2AO8RNI-1930Vigil Pro

Vigil Pro Quick Guide Warning This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiveris connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure conditions without restriction. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. FCC ID 2AO8RNI-1930 P. 1 P. 2 P. 3 P. 4 P. 5 P. 6-11 P. 12 P. 13 P. 14 Catalogue 1. What’s In The Box 2. Camera Structure 3. Insert Micro SD Card 4. Read Before Installing 5. Set Up With Netvue App 6. Sentry Camera Installation 7. Status Light 8. Netvue Protect Plan 9. Contact Us Quick Guide X 3 Anchors Vigil Pro Power Adapter Weatherproof Tube X 3 Drilling Template What’s In The Box Mounting Screws 1 Vigil Pro Quick Guide Camera Structure Infrared LEDsSpeaker Light Sensor Lens Microphone Wi-Fi Configuration Button Ethernet Cable Port Status Light Micro SD Card Slot Power Port Antenna 2 Insert Micro SD Card Vigil Pro Camera comes with a built-in card slot which supports up to 128GB Micro SD card. Once you insert the storage card, the camera will automatically start to record and store videos on the storage card. You can view those videos in the ‘Replay’ page by clicking the ‘Replay’ button in the ‘Homepage’. Step 1: Loosen the screws. Take off the cover gently since wires are attaching to it. Step 2: Insert Micro SD card. Make sure you insert it in the correct direction. The back of the card should face up. Step 3: Put the cover back and tighten the screws. 3 1 3 Micro SD Card Slot 2 Read Before Installing 1. Keep the Vigil Pro Camera and all accessories out of reach of children and pets. 2. The Vigil Pro Camera comes with a power adapter. If you prefer other power adapter, please make sure that it allows a DC12V (≥1000mA) power supply voltage. 3. The product can only be used at normal temperature and humidity: Working temperature: -10°C - 50°C (14°F-122°F) Working relative humidity: 0-95%. 4. Please do not expose the camera lens to direct sunlight. 5. Please do not install the camera where is likely struck by lightning. Note: 1. Netvue Vigil Pro Camera only works with 2.4GHz Wi-Fi. 2. Strong lights may interfere with the ability to scan the QR code. 3. Avoid placing the device behind furniture or near microwaves. Try to keep it within range of your Wi-Fi signal. 4 5 Download the Netvue App from App Store or Google Play. Follow the in-app instruction to complete the entire set up process. Set Up with Netvue App 6 Vigil Pro Installation Check following things before you starting to drill holes on your wall: 1. Vigil Pro Camera has been successfully added to your Netvue App and is able to stream video. 2. Have planned the cable route. Measured the length of the power cable and Ethernet cable (if you plan to use Ethernet connection) you will need. Step 1: Find a good installation spot. We recommend installing the Vigil Pro camera just 7-10 feet (2-3 meter) above the ground for a better two-way audio experience. There is a power outlet nearby. Test whether Vigil Pro camera can stream video smoothly at the spot. Make sure nothing blocks the camera’s sight. 7 7-10 feet (2-3 meters) 11' 10' 9' 8' 7' 6' 5' 4' 3' 2' 1' 8 Step 2: Before you start to drill, make sure you know the locations of wall-in pipes and electrical wires. (If you are not comfortable with drilling holes, please consult with a licensed electrician.) ①Use the provided drilling template to mark the position of holes on your wall. Use drill bit (15/64", 6mm) to drill three holes. ②Install anchors to hold screws. 1 2 9 3 ③Tighten the included screws to secure the camera. 10 1 Step 3 (Wired Connection): Read this step if you are using wired connection, otherwise skip this step. A weatherproof tube is needed for Ethernet cable to avoid leaking water into Ethernet cable port. Insert the cable into the weatherproof tube, and then connect it to the Ethernet cable port of Vigil Pro Camera. Make sure the cable works before installing. Things you need: Ethernet cable 3 2 Ethernet cable portEthernet cableweatherproof tube 11 100° 360° Step 5: Unscrew the thread ring close to the base, then you can point it to any direction by rotating it clockwise/counterclockwise 360°, and up and down 100°. 12 Status Light DescriptionStatus Light Solid Green Rapidly Flashing green None Online Wi-Fi Configuration Mode Offline Netvue Vigil Pro Camera uses status light t…

Text truncated - open the document above for the full version.

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, Netvue Technologies Co., Ltd. Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: Vigil Pro FCC ID: 2AO8RNI-1930 Model Number(s): NI-1930, NI-1931, NI-1932, NI-1933, NI-1934, NI-1935, NI-1936, NI-1937, NI-1938, NI-1939 Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-10-13> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AO8RNI-1930 Model name NI-1930, NI-1931, NI-1932, NI-1933, NI-1934, NI-1935, NI-1936, NI-1937, NI-1938, NI- 1939 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/10/13 To whom it may concern: We, Netvue Technologies Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AO8RNI-1930 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

Netvue Technologies Co., Ltd. Add: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Date: Oct 13, 2020 FCC ID: 2AO8RNI-1930 Model Number: NI-1930, NI-1931, NI-1932, NI-1933, NI-1934, NI-1935, NI-1936, NI-1937, NI-1938, NI-1939 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Netvue Technologies Co., Ltd., declare that this EUT (FCC ID: 2AO8RNI-1930) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Stone feng/Manager Company: Netvue Technologies Co., Ltd. Address: Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Phone: +86-0755-86227808 Fax: +86-0755-86227808 E-Mail: [email protected]

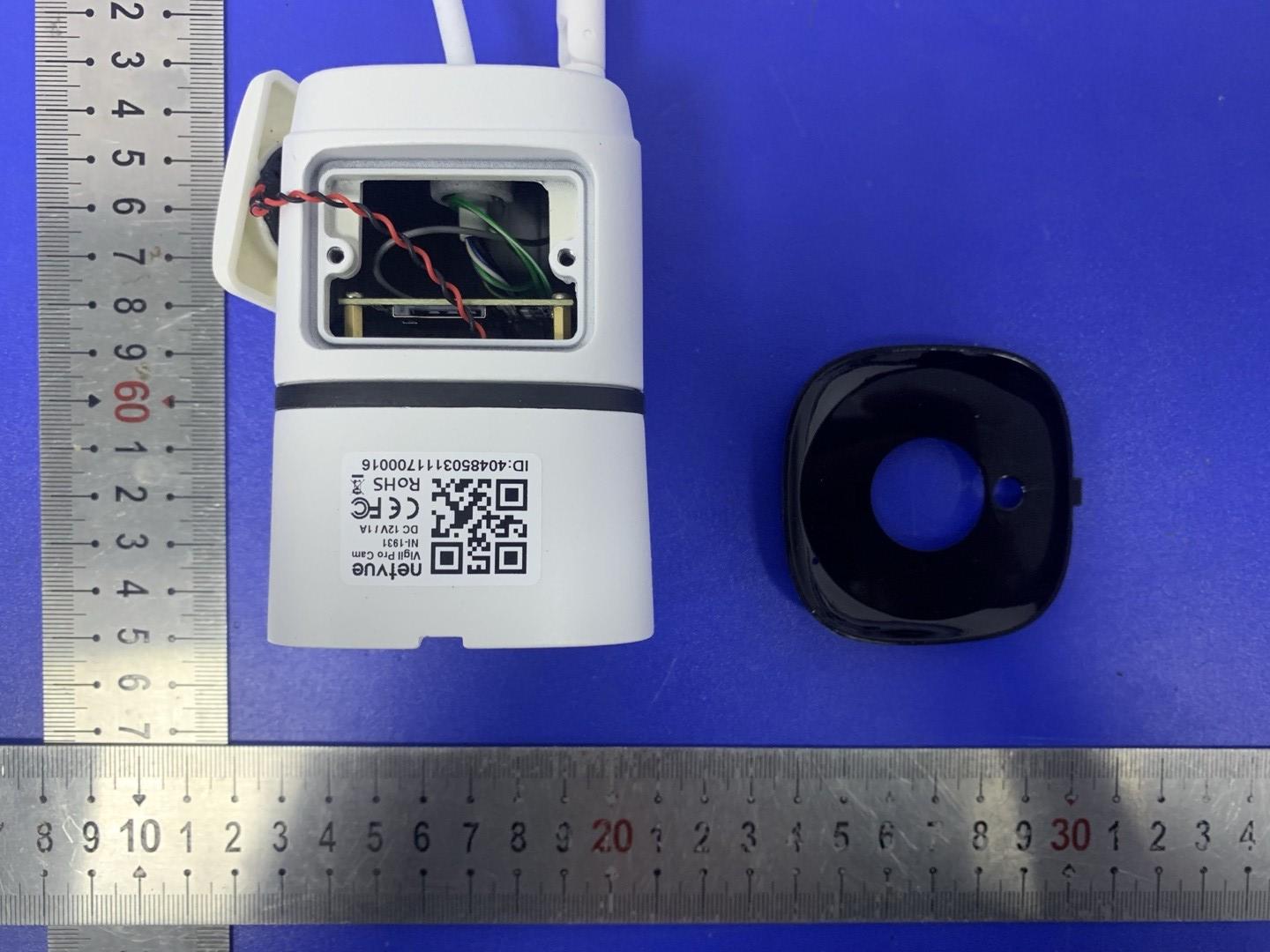

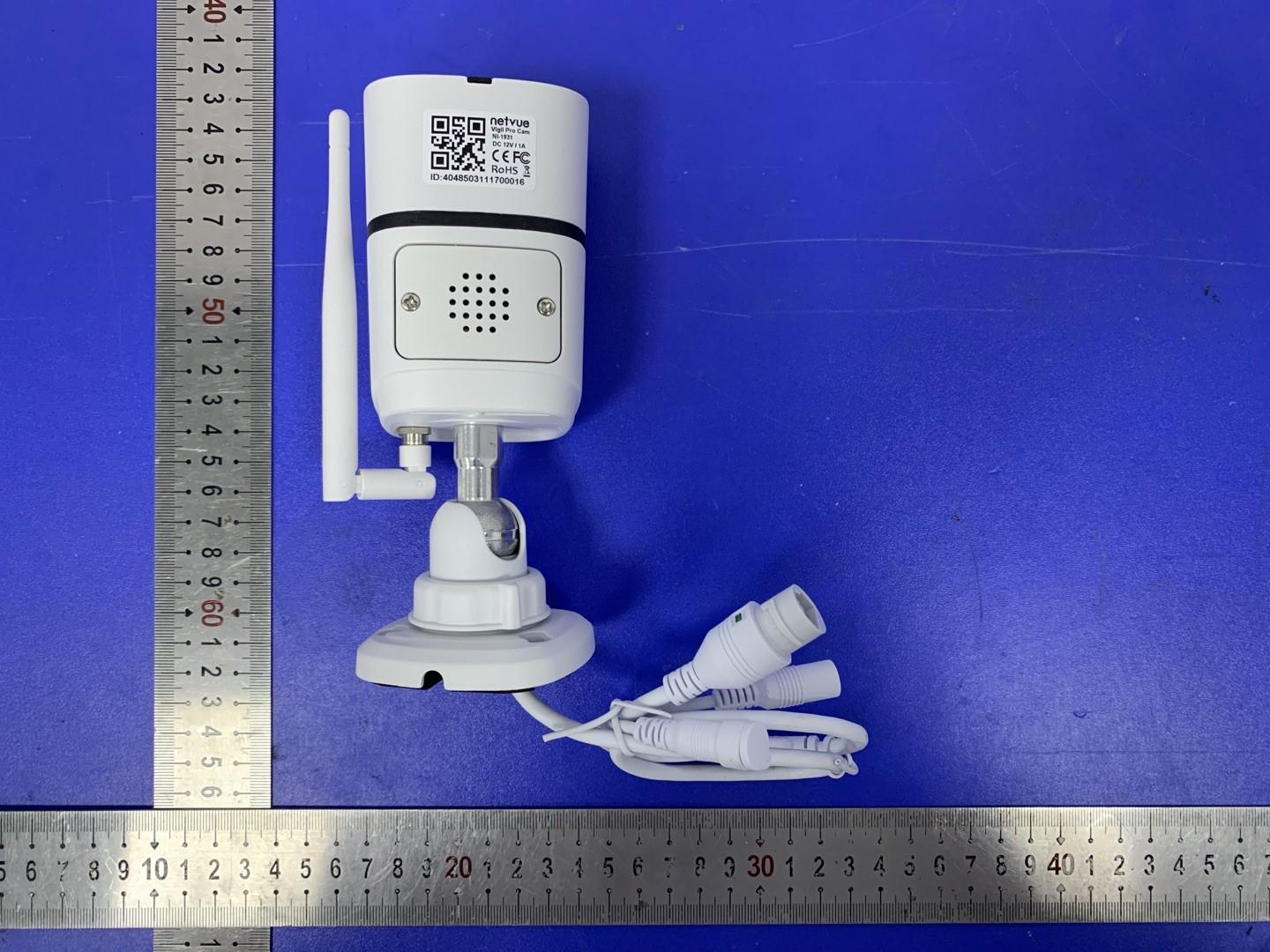

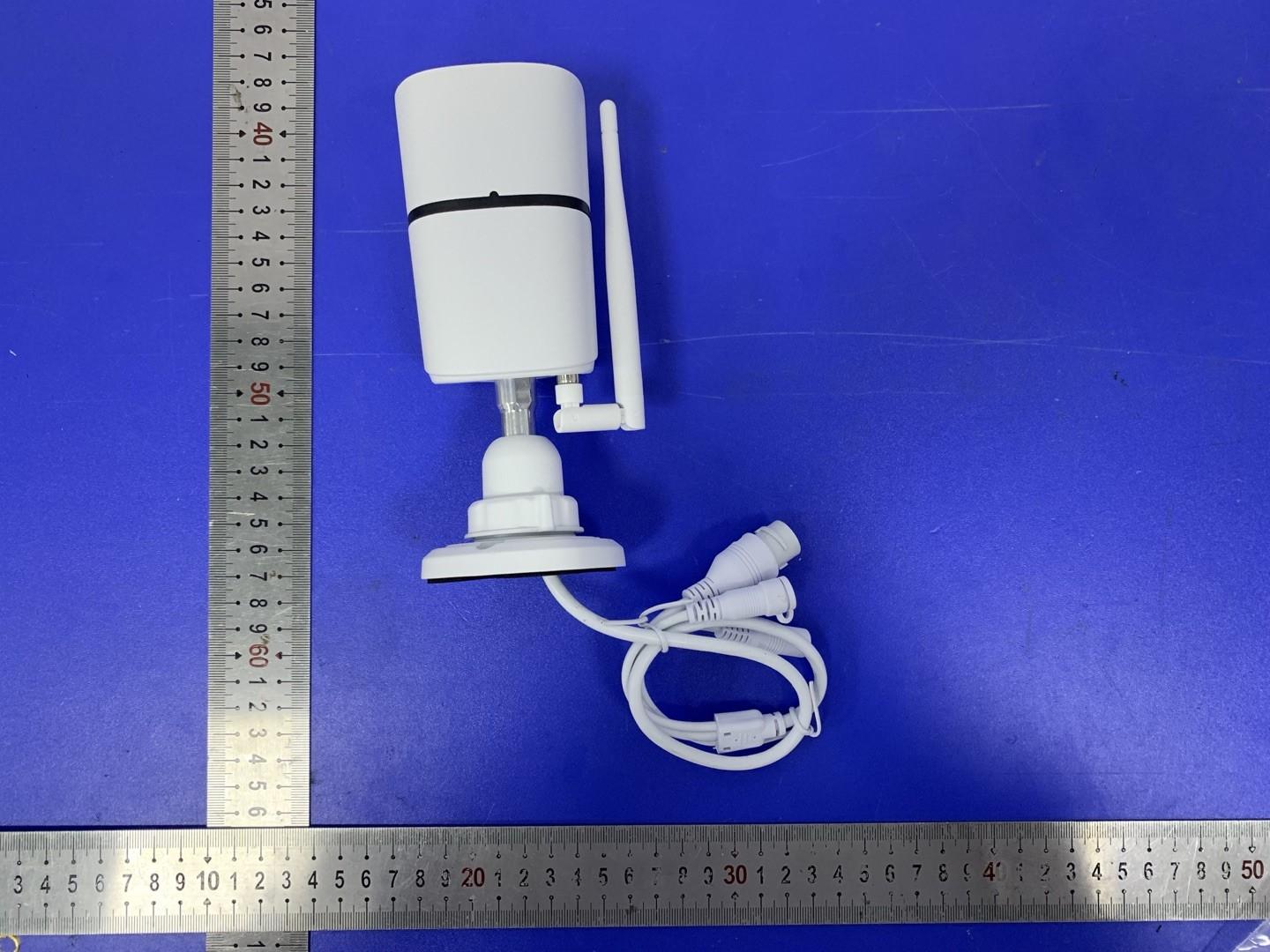

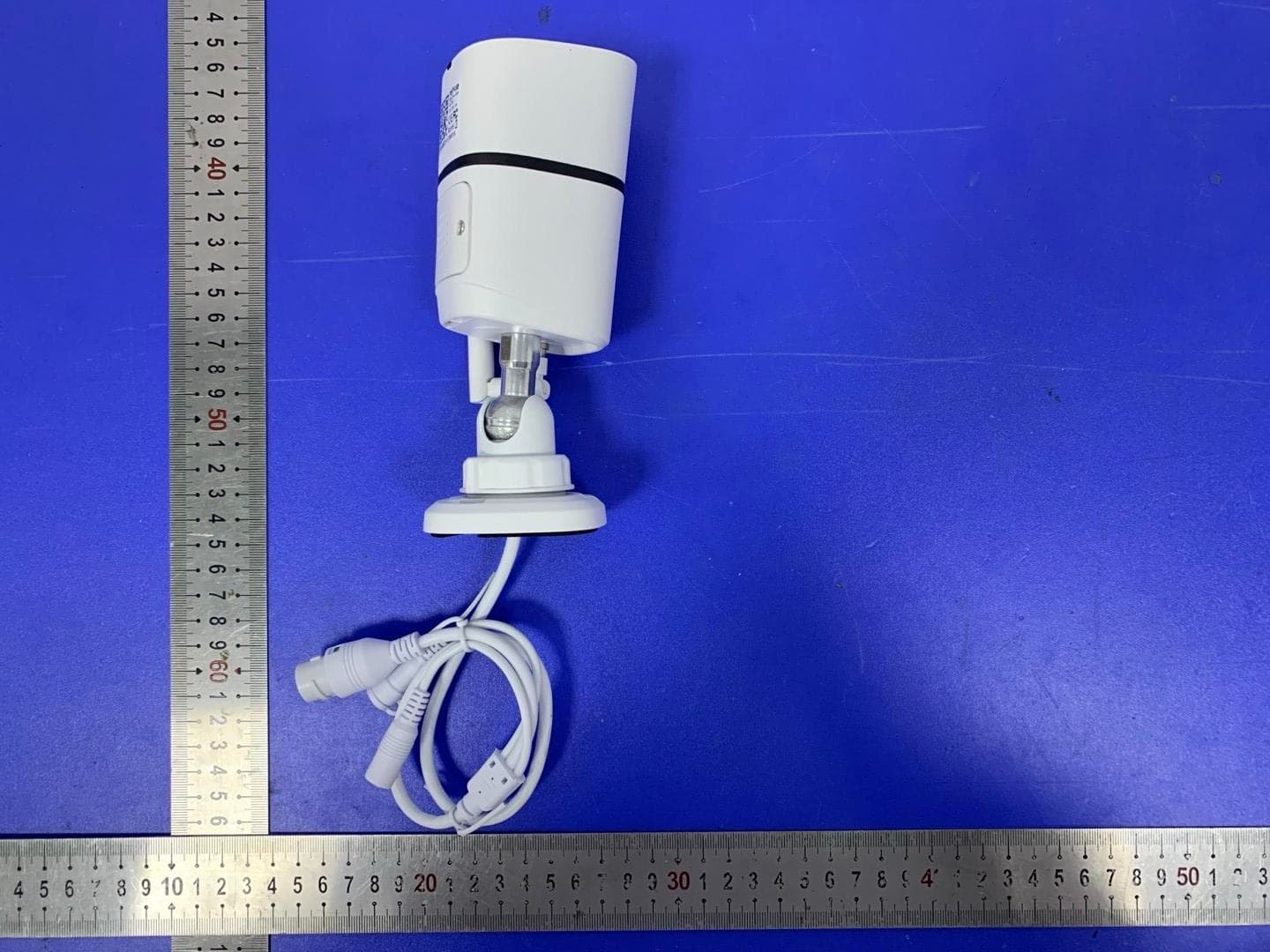

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0m x 2.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Vigil Pro Model No.: NI-1930 FCC ID: 2AO8RNI-1930 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AO8RNI-1930 Product name Vigil Pro Test Model NI-1930 Additional Model No. NI-1931, NI-1932, NI-1933, NI-1934, NI-1935, NI-1936, NI-1937, NI-1938, NI-1939 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply Input: DC 12V, 1A For adapter: Input: 100-240V~, 50/60Hz, 0.35A Output: DC 12V, 1A, 12W Operation frequency 2.412-2.462GHz for 2.4G WIFI Antenna Type External Antenna Antenna Gain 3.0 dBi Hardware version K04IPB Software version 4404811355 Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) 7 channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information C2M can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Antenna External Antenna 2400 MHz –5850 MHz 3.0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) IEEE 802.11b 1 2412 10.87 6 2437 10.91 11 2462 11.03 IEEE 802.11g 1 2412 10.97 6 2437 11.18 11 2462 11.01 IEEE 802.11n HT20 1 2412 11.21 6 2437 11.32 11 2462 11.2 IEEE 802.11n HT40 3 2422 10.97 6 2437 11.14 9 2452 11.04 7. Measurement Results 2.4GWIFI IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.0 10.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 11.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 10.0 11.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evaluation …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Vigil Pro Trade Mark: netvue Test Model: NI-1930 Environmental Conditions Temperature: 23.5C Relative Humidity: 54.6% ATM Pressure: 100.0 kPa Test Engineer: Jam Zheng Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 10.87 30 PASS MCH 10.91 30 PASS HCH 11.03 30 PASS 11G LCH 10.97 30 PASS MCH 11.18 30 PASS HCH 11.01 30 PASS 11N20SISO LCH 11.21 30 PASS MCH 11.32 30 PASS HCH 11.2 30 PASS 11N40SISO LCH 10.97 30 PASS MCH 11.14 30 PASS HCH 11.04 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -14.238 8 PASS MCH -14.810 8 PASS HCH -15.224 8 PASS 11G LCH -22.084 8 PASS MCH -22.865 8 PASS HCH -22.526 8 PASS 11N20SISO LCH -22.367 8 PASS MCH -20.310 8 PASS HCH -22.130 8 PASS 11N40SISO LCH -25.421 8 PASS MCH -23.370 8 PASS HCH -25.221 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.081 ≥0.5 PASS MCH 8.095 ≥0.5 PASS HCH 8.097 ≥0.5 PASS 11G LCH 15.32 ≥0.5 PASS MCH 15.71 ≥0.5 PASS HCH 15.15 ≥0.5 PASS 11N20SISO LCH 15.15 ≥0.5 PASS MCH 15.16 ≥0.5 PASS HCH 15.13 ≥0.5 PASS 11N40SISO LCH 35.14 ≥0.5 PASS MCH 35.17 ≥0.5 PASS HCH 35.14 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 0.293 -37.708 -19.707 PASS MCH 0.548 -37.354 -19.452 PASS HCH 0.498 -37.984 -19.502 PASS 11G LCH -7.067 -37.944 -27.067 PASS MCH -7.067 -38.443 -27.067 PASS HCH -7.547 -38.411 -27.547 PASS 11N20 SISO LCH -6.439 -37.648 -26.439 PASS MCH -6.833 -37.797 -26.833 PASS HCH -6.996 -37.637 -26.996 PASS 11N40 SISO LCH -10.233 -37.217 -30.233 PASS MCH -9.885 -37.014 -29.885 PASS HCH -10.293 -38.758 -30.293 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA Page 29 of 46 11N40S…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For Netvue Technologies Co., Ltd. Vigil Pro Test Model: NI-1930 Additional Model No.: Please Refer To Page 6 Prepared for : Netvue Technologies Co., Ltd. Address : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 10, 2020 Number of tested samples : 2 Sample No. ： 200909050A-1, 200909050A-2 Serial number : Prototype Date of Test : September 10, 2020 ~ September 21, 2020 Date of Report : September 25, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................ : LCS200909050AEA Date of Issue .................................. : September 25, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Netvue Technologies Co., Ltd. Address .......................................... : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Vigil Pro Trade Mark ..................................... : netvue Model/ Type reference ................... : NI-1930 Ratings ........................................... : Input: DC 12V, 1A For adapter: Input: 100-240V~, 50/60Hz, 0.35A Output: DC 12V, 1A, 12W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT EUT......................................... : Vigil Pro Type / Model........................... : NI-1930 Applicant............................... : Netvue Technologies Co., Ltd. Address.................................. : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Netvue Technologies Co., Ltd. Address................................... : Room A501-502, Academy of Aerospace Technology, 10 Kejinan Road, Nanshan District, Shenzhen, China, 518057 Telephone............................... : Fax.......................................... : Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200909050AEA September 25, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO8RNI-1930 Report No.: LCS200909050AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By …

Text truncated - open the document above for the full version.
