Home Cam 2 Quick Guide This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. FCC (USA) 15.9 prohibition against eavesdropping except IRUWKHRSHUDWLRQVRIODZHQIRUFHPHQWRIĆFHUVFRQGXFWHG under lawful authority, no person shall use, either directly or indirectly, a device operated pursuant to the provision of this part for the purpose of overhearing or recording the private conversations of other unless such use is authorized by all of the parties engaging in the conversation. FCC ID 2AO8RNI-3341 CE RED This product can be used across EU member states. Warning Drilling Template Home Cam 2 Screws X 2 What’s In The Box Quick Guide Anchors X 2 Power Adapter Ejector Pin Home Cam 2 Quick Guide Light Sensor Lens Infrared LEDs Camera Structure Micro SD Card Slot Magnetic Base Power Port Speaker Microphone Wi-Fi &RQĆJXUDWLRQ Button Read Before Installing 1. Keep Home Cam 2 and all accessories out of reach of children and pets. 2. Home Cam 2 comes with a power adapter. If you prefer other power adapters, please make sure that they allow a DC5V power supply voltage, and an electric current not less than 1A . 3. Working temperature: -10°C to 50°C (14°F to 122°F) Working relative humidity: 0-95% 4. Please do not expose the camera lens to direct sunlight. Note: 1. Netvue Home Cam 2 only works with 2.4GHz Wi-Fi. 2. Strong lights may interfere with the device’s ability to scan QR code. 3. Avoid placing the device behind furniture or near microwaves. Try to keep it within range of your Wi-Fi signal. Download Netvue App from App Store or Google Play. Follow the in-app instruction to complete the entire set up process. Set Up With Netvue App With the magnetic base, Home Cam 2 can be attached to the surface of any iron, nickel, cobalt-containing object, such as refrigerator, ZKLWHERDUGGLVKZDVKHUDQGĆOLQJFDELQHW Mount Your Home Cam 2 iron, nickel, cobalt containing object Put your Home Cam 2 just anywhere you want-on the wall, under the ceiling, or directly on the desktop. Install on the Wall 1. Use the provided drilling template to mark the position of holes on your wall. Use drill bit (15/64", 6mm) to drill two holes, and then install anchors to hold screws. 1 2 2. Install the Mounting Bracket on your wall with the Screws provided. 2 1 3.Point the hole at the bottom to the nail and turn it counterclockwise. 100° 4.Now it is all set, you could rotate it 100 degrees up and down. Netvue Protect Plan provides optional advanced features for those with higher security needs, and each plan supports multiple devices. Netvue Protect Plan Visit my.netvue.com to learn more. Continuous Video Recording Event Video Recording Human Detection ... www.netvue.com 240 W Whitter Blvd Ste A, La Habra, CA 90631 © 2010-2021 NETVUE, INC Netvue Web Client [email protected] Netvue Forum in-App Chat @NetvueTech 1(866)749-0567 Feel free to contact us for additional help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

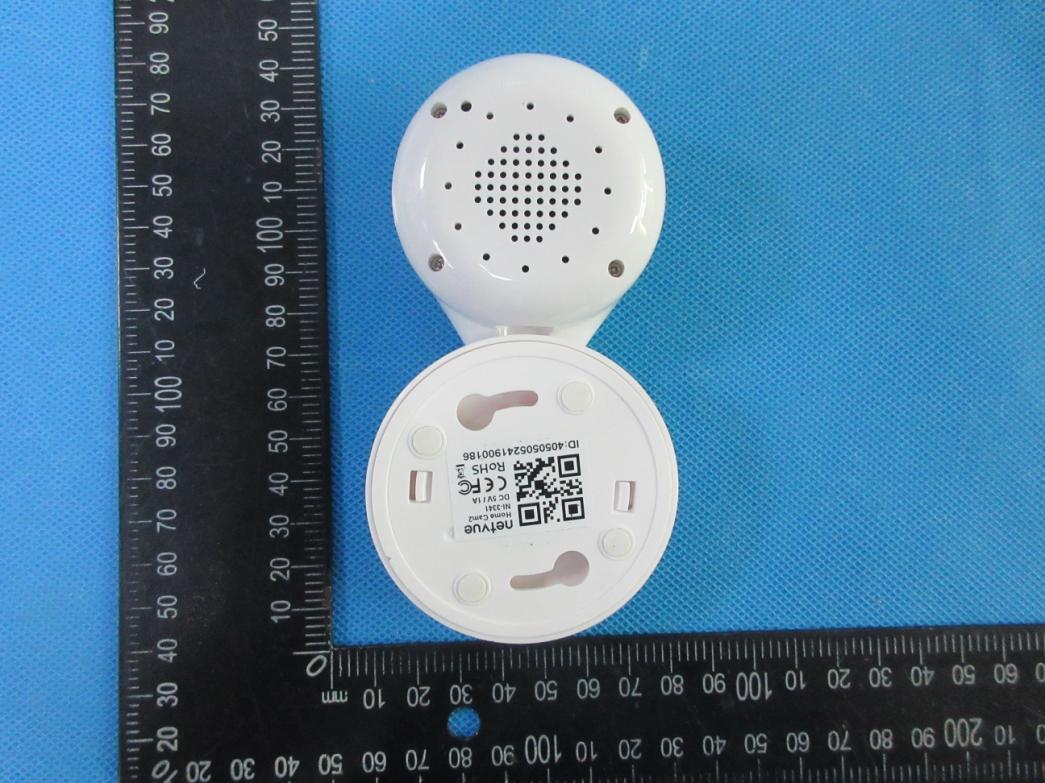

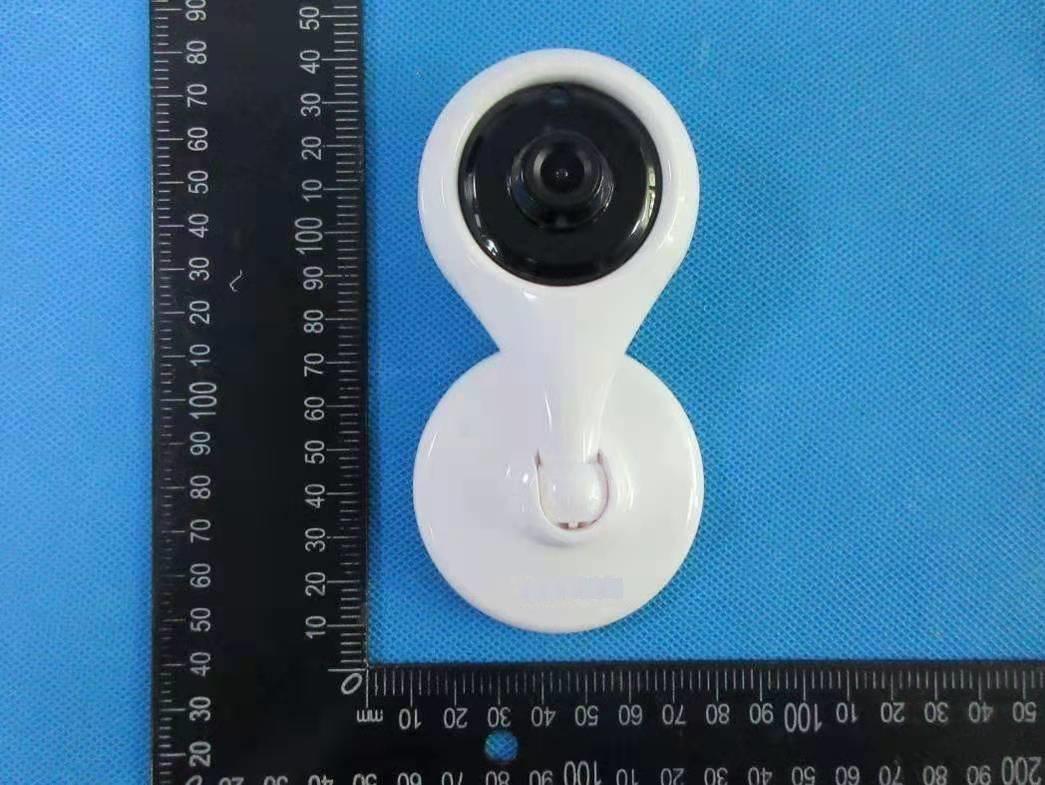

S21030802805 Model: NI-3341 Photo 1 Photo 2 S21030802805 Model: NI-3341 Photo 3 Photo 4 S21030802805 Model: NI-3341 Photo 5 Photo 6 S21030802805 Model: NI-3341 Photo 7 Photo 8 S21030802805 Model: NI-3341 Photo 9 Photo 10
Home Cam 2 DC 5V/1A NI-3341 FCC ID:2AO8RNI-3341 ID:4050503251900023 Size:15cm*20cm
S21030802805 Model: NI-3341 Photo 1 Photo 2 S21030802805 Model: NI-3341 Photo 3 Photo 4 S21030802805 Model: NI-3341 Photo 5 Photo 6 ANT S21030802805 Model: NI-3341 Photo 7
version01 Netvue Technologies Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: NI-3341,NI-3340,NI-3342,NI-3343,NI-3344,NI-3345,NI-3346,NI-3347,NI-3348,NI-3349 FCC ID: 2AO8RNI-3341 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Metal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Metal Antenna Gain of the antenna: 2 dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Netvue Technologies Co., Ltd. Address: Room A501-502,Academy of Aerospace Technology, 10 Kejinan Road,Nanshan District City: Shenzhen ZIP / Postal code: Country: China Name: feng Stone Date: 2021/05/11 Signature:
FCC ID: 2AO8RNI-3341 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) = d GP**30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: 2412-2462MHz for 802.11b/g/11n; Power density limited: 1mW/ cm 2 Antenna Type: Metal Antenna Antenna gain: 2 dBi R=20cm WIFI: conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 241213.32 14±115 31.6232.001.580.01001 243714.23 14±115 31.6232.001.580.01001 246213.12 14±115 31.6232.001.580.01001 241212.16 12±113 19.9532.001.580.00631 243712.81 12±113 19.9532.001.580.00631 246212.89 12±113 19.9532.001.580.00631 241212.26 12±113 19.9532.001.580.00631 243712.91 12±113 19.9532.001.580.00631 246212.96 12±113 19.9532.001.580.00631 242212.65 12±113 19.9532.001.580.00631 243712.23 12±113 19.9532.001.580.00631 245212.05 12±113 19.9532.001.580.00631 802.11n HT40 (mW/cm2 ) Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) 802.11b 802.11g (mW/cm2) Antenna Gain Max tune-up power 802.11n HT20 Conclusion: For the max result : 0.0100≤ 1.0 for Max Power Density, compliance RF exposure. Signature: Date: 2021-05-15 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
Report No.: S21030802805001 Version.1.3 Page 1 of 70 FCC RADIO TEST REPORT FCC ID:2AO8RNI-3341 Product: Home Cam 2 Trade Mark: Netvue Model No.: NI-3341 Family Model: NI-3340,NI-3342,NI-3343,NI-3344,NI-3345, NI-3346,NI-3347,NI-3348,NI-3349 Report No.: S21030802805001 Issue Date: Apr 15. 2021 Prepared for Netvue Technologies Co.,Ltd. Room A501-502,Academy of Aerospace Technology,10 Kejinan Road, Nanshan District,Shenzhen,China,518057 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel:400-800-6106,0755-2320 0050 / 2320 0090 Website: http://www.ntek.org.cn Report No.: S21030802805001 Version.1.3 Page 2 of 70 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.4 DUTY CYCLE ............................................................................................................................................... 27 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 29 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 30 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULT ..................................................................................................................................................... 34 8.1 MAXIMUM CONDUCTED OUTPUT POWER........................................................................................... 34 8.2 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 35 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ................................................................................. 42 8.4 BAND EDGE ................................................................................................................................................. 49 8.5 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 58 Report No.: S21030802805001 Version.1.3 Page 3 of 70 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Netvue Technologies Co.,Ltd. Address ....................................... : Room A501-502,Academy of Aerospace Technology,10 Kejinan Road, Nanshan District,Shenzhen,China,518057 Manufacturer's Name .................. : Netvue Technologies Co.,Ltd. Address ....................................... : Room A501-502,Academy of Aerospace Technology,10 Kejinan Road, Nanshan District,Shenzhen,China,518057 Product description Product name .............................. : Home Cam 2 Model and/or type reference ..... : NI-3341 Family Model ............................... : NI-3340,NI-3342,NI-3343,NI-3344,NI-3345,NI-3346, NI-3347,NI-3348,NI-3349 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is appl…
Text truncated - open the document above for the full version.
Radiated Measurement Photos Conducted Measurement Photos
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 26.50 mW |
