2AO9X-RFID4POSM RFID 4P

Functional Spec for OSM RFID Purpose of Functional Spec Document explained here. Basecamp tasks for this device are assigned here Versions and Status Party Stage Date Mike Diliberto / Tomer Harrary Initial Authoring 2/22/20 Mike D Gate 1 Review 2020/03/26 Tomer H Customer Review 2020/03/26 Overview Introduction Up to 4 connected RFID transceiver pads 2 ODC connections for integration into the IOE system Allows for both place and lift experiences ODC commands can change polling time Connections Antennas 4 Antenna connections via R-SMA The PCB edge mounted R-SMA connectors used in the module. The Digikey part 142-0701-841 as the reference. NOTE: The maximum length of the coaxial cable (distance between reader and antennas) is 10m. NOTE: The impedance of all RF channels is 50 ohm. ODC interface ● Socket type: RJ-25 socket with top side lock tab location ● Voltage range: 10-24V ● Max unit power consumption from the ODC power line: 1.3W ● Max current through ODC bus: 1.5A (polyfuses) ● ODC port configuration: Audio/Hi-power (optional by resistors; Audio by default) ● Data lines ESD protection IEC 61000-4-2, level 4 (ESD) ○ ±23 kV Contact Discharge ○ ±15 kV Air-Gap Discharge 2 ODC ports as per the current ODC spec Transmitter unit ● Transmitter chipset: TRF7970 ○ Carrier frequency: 13.56MHz ○ Transmit power: 23dBm (200mW) Cables An RG316* cable is used to connect the antennas to the device. RG316 impedance is 50Ohm. The cable shall have attenuation less than 25dB/100m@100MHz (or 8.2dB/10ft@100MHz). * During the purchase of the cable, special attention should be paid to the production date: should not be purchased a cable which was stored in warehouses without special packaging for more than 6 months: when the cable is stored unpacked on the warehouses with high humidity, its characteristics deteriorate significantly. The Antenna and RFID box will both have R-SMA connections RFID Tags Supported Supports ISO15693 tags Outform development will focus on ISO15693 Anti-collision algorithm: up to 4 tags on the same antenna (for ISO15693 only) Indicator Lights PWR- device itself is powered and working ODC pwr- is on when ODC bus is receiving power ODC RX- blinks when device receives ODC command CFG- button used for assigning ODC address manually ANT 1, ANT 2, ANT 3, ANT 4- shows which antenna is connected and blinks every time the OSM RFID does a “pull request” to check if a tag is registered by the antenna (default is 200ms per pull request, so will be blinking constantly when antenna is connected). Antenna Detection Each antenna can detect up to 4 tags at the same time, for a total of 16 simultaneous reads Tags can be read from no farther than 50mm away (on the average) Antennas must be able to read through material of up to 30mm thickness, assuming material is non-ferrous. Materials to be tested: Solid wood, acrylic, engineered wood (MDF/OSB), corian, ABS, glass.all at various different thicknesses Need to create testing matrix Hardware MCU unit STM32F103RG. Memory unit I2C M24128. Memory to keep up to 1012 tag’s IDs + device settings + Serial Number + ID. RFID unit TRF7970A (13.56MHz multiprotocol RFID transceiver) RF switch: PE42440 (1 -> 4) Status LEDs Green side LED: ODC power Yellow side LED: ODC commands 4 top green LEDS: antennas polling Green top LED: unit power Antennas Antennas design: 25x25mm ● 5 turns ● Conductor spacing: 0.3mm ● Conductor width: 0.3mm ● Outer diameter: 25mm ● Inner diameter: 19.6mm ● Inductance: 1.229uH 60x60mm ● Turns: 3 ● Conductor spacing: 0.2mm ● Conductor width: 0.8mm ● Outer diameter: 60mm ● Inner diameter: 54.4mm ● Inductance: 1.33351uH 100x100mm ● Turns: 2 ● Conductor spacing: 0.2mm ● Conductor width: 0.5mm ● Outer diameter: 100mm ● Inner diameter: 97.6mm ● Inductance: 1.12396uH Power The device is powered from the ODC bus Power demand is likely to be under 200ma Likely this section will simply reference the overall tech specs doc for max per chain and other discussions Software OIE Integration How do we program these devices in the OIE? Concept: - All tags have unique SN - We program the OIE to that SN while we create the experience - We need to be able to custom make the tags with custom serial numbers Firmware Modes of operation There are three modes of operation available, Passive, Active, and Event Reporting. Event Reporting is enabled by default and supports all currently known use cases for the interactive collection. Passive mode (not in current release) The RFID module sends an event report only by RFID status request command. The RFID module Active mode (not in current release) The RFID sends reports while the tag(s) is(are) present on the antenna(s). The tag IDs are sent continuously, at the same polling cycle interval (approximately). Event Report mode (default mode) The RFID module initiates event report as an event appears: tag appeared or tag disappeared. One single command for every change. ODC command set The device supports the following commands and functions: ● 0x0000 – ACK ● 0x0001 - NACK ● 0x0005 – enter programming mode (bootloader) ● 0x0006 – program data block. The device should support this command in two modes: o in bootloader mode (0x0005) to update the FW o in the normal mode for tag IDs programming into external memory. In the normal mode the device can write up to 64 bytes per time (M24128’s page writing mode). Currently not implemented ● 0x0007 – Execute program ● 0x0008 – Reboot device ● 0x0009 – Offer address (with button) ● 0x000A – Accept address ● 0x000B – Request device info ● 0x000C – Device info ● 0x0014 – Power (voltage reading). Currently not implemented ● o Raw 0x0014 0x01 0x01 o Raw 0x0014 0x02 0x01 xx o Raw 0x0014 0x03 0x01 o Raw 0x0014 0x04 0x01 0x0C (min) ● 0x0036 – Discover start. Currently not implemented ● 0x0037 – Discover device. Currently not implemented ● 0x0038 – Address request. Currently not implemented ● 0x0039 – Force address. Currently not implemented ● 0x003A – Config string set. Currently not impleme…

Text truncated - open the document above for the full version.

Outform Science & Technology(Shenzhen) Co., Ltd. Agent Authorization Company: Outform Science & Technology(Shenzhen) Co., Ltd. Address: Unit 3, 1st Floor, Huada Building, Gongye 3rd Road, Yanshan Community, Zhaoshang, Shenzhen, Guangdong, China 518067 Product Name: OSM RFID 4P Trade Mark: Outform Models Number: UR190878-BK FCC ID: 2AO9X-RFID4P We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-07-20 Name: Ronen Simhi Title: GM Company: Outform Science & Technology(Shenzhen) Co., Ltd.

Outform Science & Technology(Shenzhen) Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-20 Subject; Request for Confidentiality FCC ID: 2AO9X-RFID4P To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ronen Simhi Title: GM

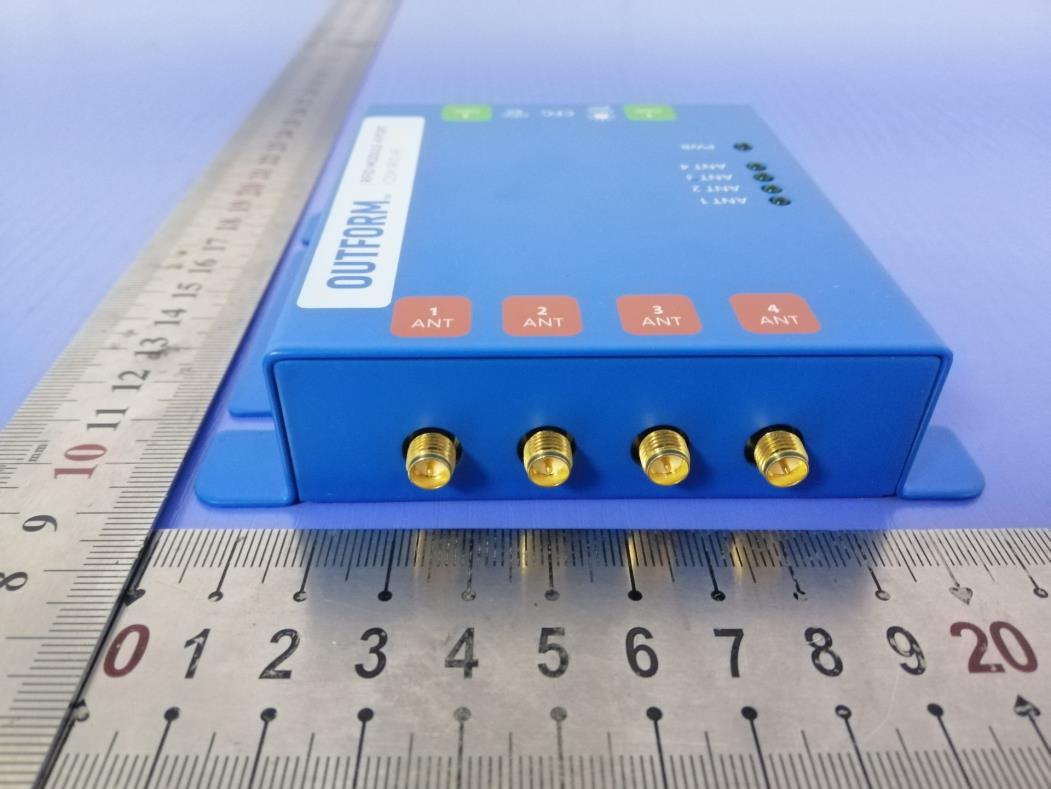

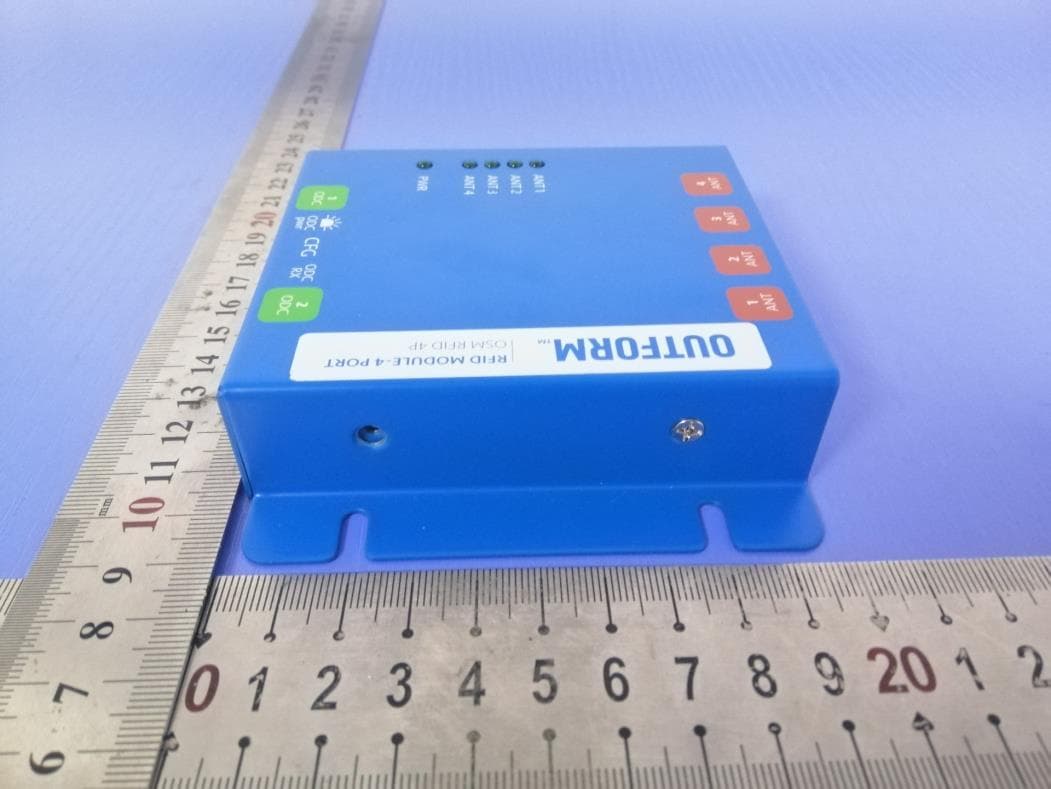

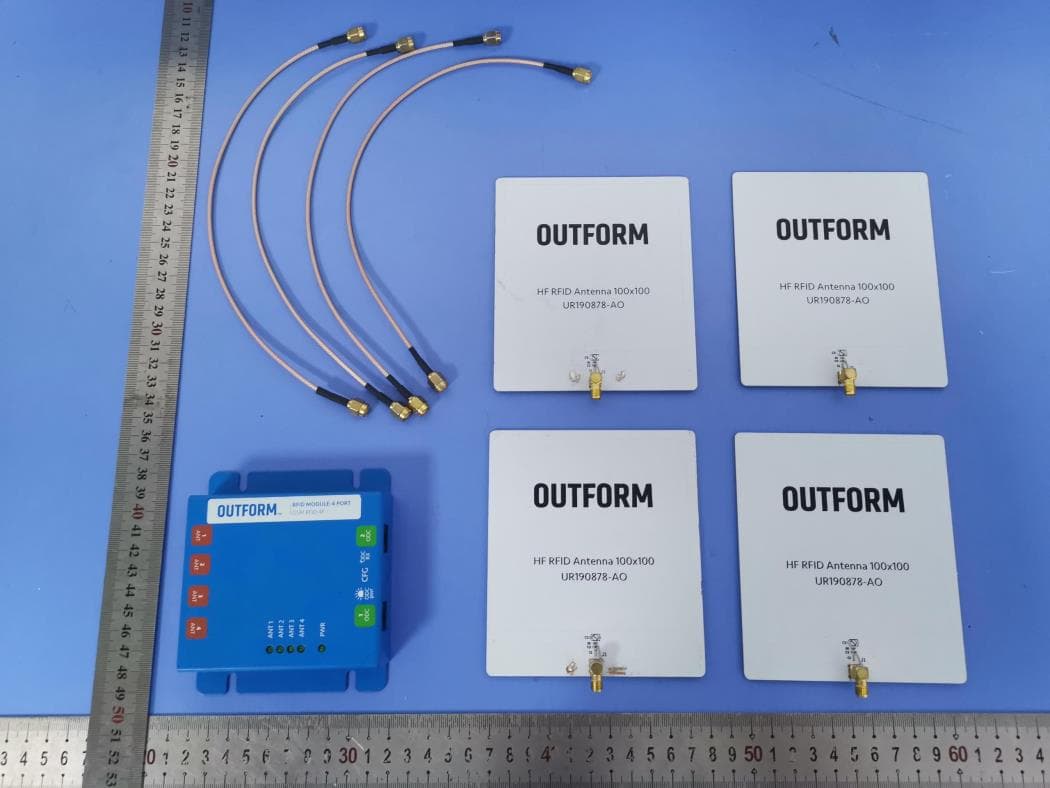

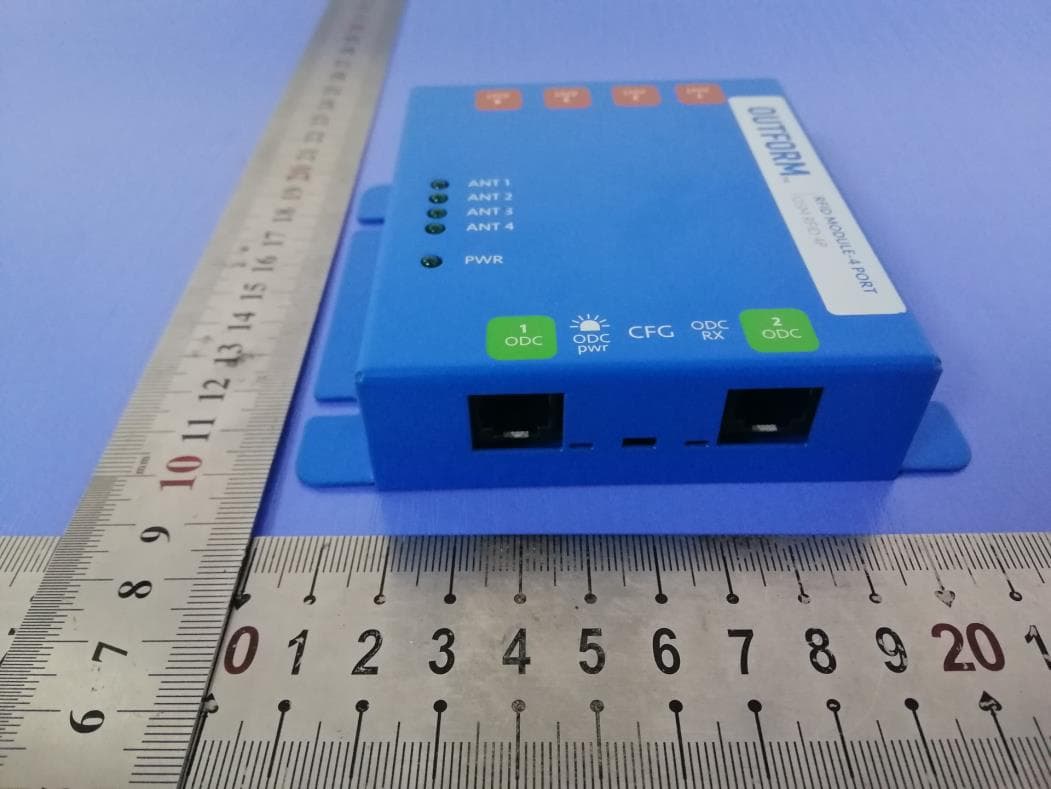

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AO9X-RFID4P EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AO9X-RFID4P Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AO9X-RFID4P Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AO9X-RFID4P Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 40mm*W: 17mm Label Location OUTFORM FCC ID: 2AO9X-RFID4P Name : OSM RFID 4P Description : RFID Module (High Frequency)-4 Port Model: UR190878-BK Input : 12~20V 1.5A Output : 12~20V 1.5A

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 30 FCC TEST REPORT FOR Outform Science & Technology(Shenzhen) Co., Ltd. OSM RFID 4P Test Model: UR190878-BK Prepared for : Outform Science & Technology(Shenzhen) Co., Ltd. Address : Unit 3, 1st Floor, Huada Building, Gongye 3rd Road, Yanshan Community, Zhaoshang, Shenzhen, Guangdong, China 518067 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 05, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : June 05, 2020 ~ June 24, 2020 Date of Report : June 30, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 30 FCC TEST REPORT FCC CFR 47 PART 15 C (15.225) Report Reference No. ................. : LCS200602043AEA Date of Issue .................................. : June 30, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Outform Science & Technology(Shenzhen) Co., Ltd. Address .......................................... : Unit 3, 1st Floor, Huada Building, Gongye 3rd Road, Yanshan Community, Zhaoshang, Shenzhen, Guangdong, China 518067 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.225) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : OSM RFID 4P Trade Mark ..................................... : Outform Test Model ...................................... : UR190878-BK Ratings ........................................... : Input: DC 12-20V, 1.5A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrators Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 30 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200602043AEA June 30, 2020 Date of issue Test Model.............................. : UR190878-BK EUT......................................... : OSM RFID 4P Applicant............................... : Outform Science & Technology(Shenzhen) Co., Ltd. Address................................... : Unit 3, 1st Floor, Huada Building, Gongye 3rd Road, Yanshan Community, Zhaoshang, Shenzhen, Guangdong, China 518067 Telephone............................... : Fax.......................................... : Manufacturer......................... : Outform Science & Technology(Shenzhen) Co., Ltd. Address................................... : Unit 3, 1st Floor, Huada Building, Gongye 3rd Road, Yanshan Community, Zhaoshang, Shenzhen, Guangdong, China 518067 Telephone............................... : Fax.......................................... : Factory................................... : Address................................... : Telephone............................... : Fax.......................................... : SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 30 Revision History Revision Issue Date Revisions Revised By 000 June 30, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO9X-RFID4P Report No.: LCS200602043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................ 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Host System Configuration List and Details ................................................................................... 7 1.3 External I/O .......................................................................................................................................... 7 1.4 Description of Test …
