2AOAF-240Wireless Charge

TYLT U SER GUIDE !"#! TRAY PIVOT - USER GUIDE !"# ! !" #$%&'"(%)&"*'(+,"-%./+"0/1"'$-! " ./+.1'"$2'"$&0( $ !"3'1.-0$'1"45"6.&'7'++"-20&8'&"9%&" " 2'01:2%/'"0/1"%$2'&":'&.:2'&07+ % !" ;<=.'/$"7.82$./8 & !" >%:"$&0(":.?%$+"9%&"1'+.&'1"  VSDFHFRQͤJXUDWLRQ Wireless Charger 1 2 4 3 / 08/20/20 / 2133_TRAY PIVOT USER GUIDE_R1 / 2 This is a wireless charger that will charge any device that supports the Qi standard, Please read the user manual before using and keep itfor future reference. Specifications: Input: 9V/2A Wireless Charging Output: Output1 : 10W Output2 : 5W Wireless Distance: ≦6 mm Efficiceny: ≧7 1% Dimension: 180 x 80 x 40.5 mm Weight: 75g Use procedure 1. Connect the device to the adapter with USB cable. 2. Power up the adapter. 3. We can put the mobile phone or iPad right above the device 4. The device is charging !"#! TRAY PIVOT - USER GUIDE !"# tray pivot !"#### ! !" #$%&'"(%)&"*'(+,"-%./+"0/1"'$-! " ./+.1'"$2'"$&0( $ !"3'1.-0$'1"45"6.&'7'++"-20&8'&"9%&" " 2'01:2%/'"0/1"%$2'&":'&.:2'&07+ % !" ;<=.'/$"7.82$./8 & !" >%:"$&0(":.?%$+"9%&"1'+.&'1"  VSDFHFRQͤJXUDWLRQ !"#$%$&&'()*+$','-$./0)*+$' 1).#2$#'3'4.+"56'7#.6 4 / 08/20/20 / 2133_TRAY PIVOT USER GUIDE_R1 / 2 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any inte- rference received, including interference that may cause undesired operation. This equipm-ent has been tested and found to comply with the limits for a Class B digital dev- ice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable pro tection against harmful interference in a resi- dential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipm- ent and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV tec hnician for help. Caution: Any changes or modifications not expressly approved by the party responsib le for compliance could void the user's authority to operate the equipment. This equipment should be installed and operated with minimum distance 20cm between the radiator&your body. &@ABA%CABDEFB%GHA%HAIHABAFJGJDKA%LM% DFMLHNGJDLF%GHO@DJAOJPHAQ%DFCDOGJDFE%IHDLHDJR% GFC%SGRLPJ%LM%IGEA%OLNILFAFJB<% 7KH\GRQRWFRQVWLWXWHWKHƓQDOORRN( RUIHHORIWKHGHVLJQ &'$&"'$!()*'( &'(& -*+#"-#( -GTFDA%UGHB@D% IGTFDAVWSGXDFO<OLN% "YYZ=$[Z$=$=%6\J<%Y!0 B7UD\3LYRW8VHU*XLGHBU( !"#$!#$!%%#%%]%$!$!%/SGX%+FO<%%#%%ZZZEODNLQFFRP3URSULHWDU\DQG&RQƓGHQWLDO

TYLT, inc. Agent Authorization Letter 2020-09-27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Huaxia Testing Technology Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Andre Sumian Position: Director of Product Management Company Name: TYLT, inc. Address: 685 Cochran St. Suite 200, Simi Valley, California 93065, United States Tel / Fax 8008435600 /805-915-2125 E-Mail: [email protected]

TYLT, inc. Long Term Confidentiality Request Letter 2020-09-27 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2AOAF-240) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Andre Sumian Position: Director of Product Management Company Name: TYLT, inc. Address: 685 Cochran St. Suite 200, Simi Valley, California 93065, United States Tel / Fax 8008435600 /805-915-2125 E-Mail: [email protected]

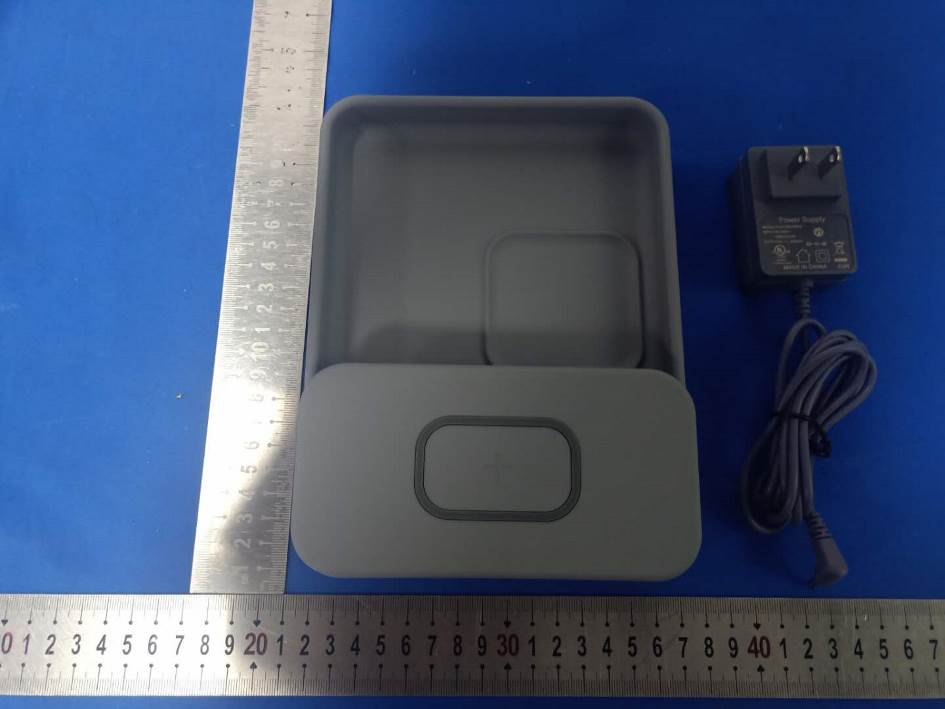

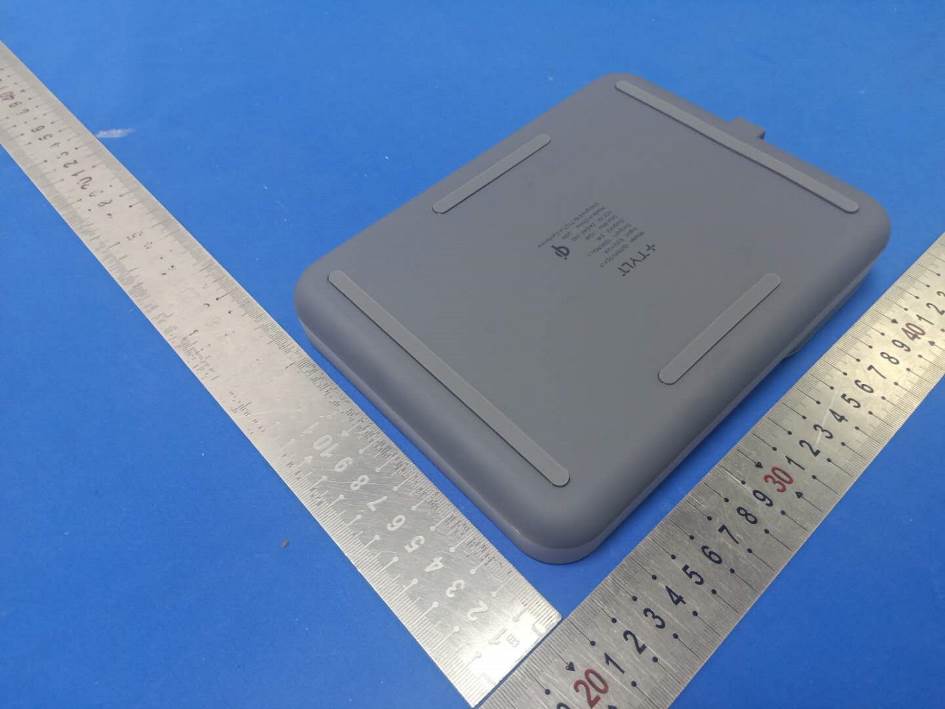

FCC ID: 2AOAF-240 Test Model No.:QITRPVTGY-T FCC ID: 2AOAF-240

FCC ID: 2AOAF-240 Test Model No.:QITRPVTGY-T

FCC ID: 2AOAF-240 FCC ID: 2AOAF-240 FCC ID: 2AOAF-240

FCC TEST REPORT FCC ID: 2AOAF-240 On Behalf of TYLT, inc. Wireless Charger Model No.: QITRPVTGY-T Prepared for : TYLT, inc. Address : 685 Cochran St. Suite 200, Simi Valley, California 93065, UnitedStates Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2009114-C01-R01 Date of Receipt : September 17, 2020 Date of Test : September 17, 2020 Date of Report : September 18, 2020 Version Number : V0 Page 2 of 16 Report No.: A2009114-C01-R01 TABLE OF CONTENTS 1. Test Result Summary .............................................................................. 5 2. EUT Description ....................................................................................... 6 2.1. DESCRIPTION OF DEVICE (EUT) ............................................................................................................. 6 2.2. ACCESSORIES OF DEVICE (EUT) ............................................................................................................ 8 2.3. TESTED SUPPORTING SYSTEM DETAILS ................................................................................................. 8 2.4. BLOCK DIAGRAM OF CONNECTION BETWEEN EUT AND SIMULATORS ....................................................... 8 2.5. DESCRIPTION OF TEST MODES ............................................................................................................... 8 2.6. DESCRIPTION OF TEST CHANNEL ........................................................................................................... 8 2.7. TEST CONDITIONS ................................................................................................................................. 9 2.8. TEST FACILITY ...................................................................................................................................... 9 2.9. MEASUREMENT UNCERTAINTY ............................................................................................................... 9 3. Test Results and Measurement Data ................................................... 10 3.1. RF EXPOSURE TEST ....................................................................................................................... 10 4. Photos of test setup .............................................................................. 13 Page 3 of 16 Report No.: A2009114-C01-R01 TEST REPORT DECLARATION Applicant : TYLT, inc. Address : 685 Cochran St. Suite 200, Simi Valley, California 93065, UnitedStates Manufacturer : TYLT, inc. Address : 685 Cochran St. Suite 200, Simi Valley, California 93065, UnitedStates EUT Description : Wireless Charger (A) Model No. : QITRPVTGY-T (B) Trademark : N/A Measurement Standard Used: FCC CFR Title 47 Part 15 Subpart C FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed full responsibility for the accuracy and completeness test. Also, this report shows that the EUT is technically compliant with the KDB 680106 D01 requirements. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).............: Lucas Pang Project Engineer Approved by (name + signature).......: Simple Guan Project Manager Date of issue...... .......................: September 18, 2020 Page 4 of 16 Report No.: A2009114-C01-R01 Revision History Revision Issue Date Revisions Revised By V0 September 18, 2020 Initial released Issue Lucas Pang Page 5 of 16 Report No.: A2009114-C01-R01 1. Test Result Summary Requirement CFR 47 Section Result RF EXPOSURE §1.1307(b)(1) & KDB680106 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Page 6 of 16 Report No.: A2009114-C01-R01 2. EUT Description 2.1. Description of Device (EUT) EUT Name : Wireless Charger Model No. : QITRPVTGY-T DIFF. : N/A Trademark : N/A Power supply : Input : DC 9V/2A Output 1: 10W (MAX.) Output 2: 5W Operation frequency : 115~205KHz Modulation : MSK Antenna Type : Coil Antenna Software version : V1.0 Hardware version : V1.0 Page 7 of 16 Report No.: A2009114-C01-R01 Conditions requirement Answers Power transfer frequency is less than 1 MHz. After measuring the product the transfer frequency is 0.115-0.205MHz Output power from each primary coil is less than or equal to 15 watts. After measuring the product output 1 primary coil power is 10 watts, output 2 primary coil power is 5 watts The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes only single primary. Client device is placed directly in contact with the transmitter. Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure conditions only. The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. After measuring the product, the Max H-field Strength is 0.7968A/m is less than 50% of the MPE limit. Page 8 of 16 Report No.: A2009114-C01-R01 2.2. Accessories of Device (EUT) Accessories1 : Power Supply Model : R122-0902000UD Ratings : Input: …
