Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual Rev. V1.0 June 15, 2023 DN: tc-jla-2310 Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. Revision History Revision Date Author Description 1.0 June 15, 2023 Tongtong Li Initial release. Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. Table List Table 1-1. Board layout description Table 1-2. Features and specifications Table 1-3. Status and function description of DIP switch Table 1-4. TurboX C2290/CM2290 configuration Table 3-1. Button specifications Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. About This Document ü Illustrations in this documentation only apply to Common DK hardware V03 which consists of the following boards: ̇ Main Board V03 ̇ Audio Board V01 ̇ Sensor Board V01 ü Depending on the model, some optional accessories, features, and software programs might not be available on your device. ü Depending on the version of operating systems and programs, some user interface instructions might not be applicable to your device. ü Documentation content is subject to change without notice. Thundercomm makes constant improvements on the documentation of the products, including this guidebook. ü Function declarations, function names, type declarations, attributes, and code samples appear in a different format, for example, FSDUPFFDUPFSS. ü Code variables appear in angle brackets, for example, QXPEHU!. ü Button, tool, and key names appear in bold font, for example, click Save or press Enter. ü Commands to be entered appear in a different font; on the host computer use $ as shell prompt, while on the target device use # as shell prompt, for example, DGEGHYLFHV ORJFDW ü Part of the code that does not contain instructions appear in a different format, for example, 68%6<67(0 XVE$775^LG9HQGRU` G02'( *5283 DGP ü Folders and files are formatted in italic, for example, turbox_flash_flat.sh. Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual - 1 - Table of Contents Chapter 1. Product Overview ..................................................................................................... - 2 - 1.1. Introduction ..................................................................................................................................... - 2 - 1.2. Board layout .................................................................................................................................... - 2 - 1.3. Features and specifications ............................................................................................................. - 3 - 1.4. Product diagram .............................................................................................................................. - 8 - Chapter 2. Flash Images ............................................................................................................. - 9 - Chapter 3. Function Verification Test ......................................................................................- 10 - 3.1. UART debug port ........................................................................................................................... - 10 - 3.2. SD card slot .................................................................................................................................... - 11 - 3.3. Display panel connector (for LCM) ................................................................................................ - 11 - 3.4. Type-C USB port ............................................................................................................................. - 13 - 3.5. LED control .................................................................................................................................... - 14 - 3.6. Buttons .......................................................................................................................................... - 15 - 3.7. Wi-Fi and Bluetooth connection .................................................................................................... - 16 - 3.8. Speaker connector ......................................................................................................................... - 18 - 3.9. Headset connector ........................................................................................................................ - 18 - 3.10. Camera module connector ........................................................................................................ - 19 - 3.11. SIM card slot .............................................................................................................................. - 20 - 3.12. HDMI out ................................................................................................................................... - 21 - Appendix 1. Compliance and Certificate Information ......................................................... - 23 - Appendix 2. Notices ........................................................................................................... - 25 - Appendix 3. Trademarks .................................................................................................... - 27 - Thundercomm TurboX C2290 CM2290 Development Kit Linux Android Software User Manual - 2 - Chapter 1. Product Overview The TurboX C2290/CM2290 development kit is a cost-effective solution to evaluate the performance and build the prototype of the smart cameras and intelligent IoT devices quickly. The development kit features rich interfaces, including Type-C USB, HDMI out, Ethernet, and camera modules. The development…

Text truncated - open the document above for the full version.

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 25, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AOHHCM2290NA FRN: 002705056 6 Thundercomm Technology Co., Ltd certifies that, as of the date of the filing of the application, FCC US Agent, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Thundercomm Technology Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. FCC US Agent, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Thundercomm Technology Co., LtdFCC US Agent, LLC Qiyong Zhou Tim Payne Signature： signature：

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 16, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AOHHCM2290NA Thundercomm Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, _______________ Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected] Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 16, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AOHHCM2290NA Thundercomm Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _______________ Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected]

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Date: June 16, 2023 Declaration To whom it may concern, This is a WLAN/Bluetooth combination antenna with FCC ID: 2AOHHCM2290NA. This WLAN/Bluetooth co-existence mechanism is to ensure that the WLAN and Bluetooth transmitters would not simultaneously operate. Therefore, WLAN and Bluetooth antenna in FCC ID: 2AOHHCM2290NA should not be considered to be able to transmit simultaneously. Though the users can use WLAN and Bluetooth simultaneously, but the real situation is that WLAN and Bluetooth are used by time sharing and no overlap transmission. Should you have any question, please have my best attention. Sincerely yours, _______________ Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected]

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Date: June 16, 2023 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 Subject: Request for Confidentiality FCC ID: 2AOHHCM2290NA To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune Up Procedure  Operational Description  Software Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected]

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Date: June 16, 2023 Power of Attorney To whom it may concern, Please be notified that I, Qiyong Zhou, have designated Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co., Ltd as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co. Ltd on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.U.S.C. 862, we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act. This authorization is limited to the product of as following: FCC ID: 2AOHHCM2290NA If you have any acknowledgement and response, please send it to Joey Lao of Bureau Veritas 7Layers Communications Technology (Shenzhen) Co., Ltd directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected]

Thundercomm Technology Co., Ltd No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2AOHHCM2290NA Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The radio portion of this module is shielded. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module has buffer modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The requirements of antenna connector and spurious emission have been fulfilled. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The required rule has been fulfilled. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). The Module will be labeled with its own FCC ID, and the instruction on the labeling rule of the end product has been stated in the User Manual of this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The required rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate The required rule has been fulfilled and all the instructions for maintaining compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. compliance have been clearly stated in the User Manual. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ____________ Qiyong Zhou Thundercomm Technology Co., Ltd Tel: +86 010-82036511 E-mail: [email protected]

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 1 Report Version 1 Reference No.: W7L-P23030025 FCC ID: 2AOHHCM2290NA PHOTOGRAPHS OF THE EUT

Model:CM2290-NA FCCID:2AOHHCM2290NA

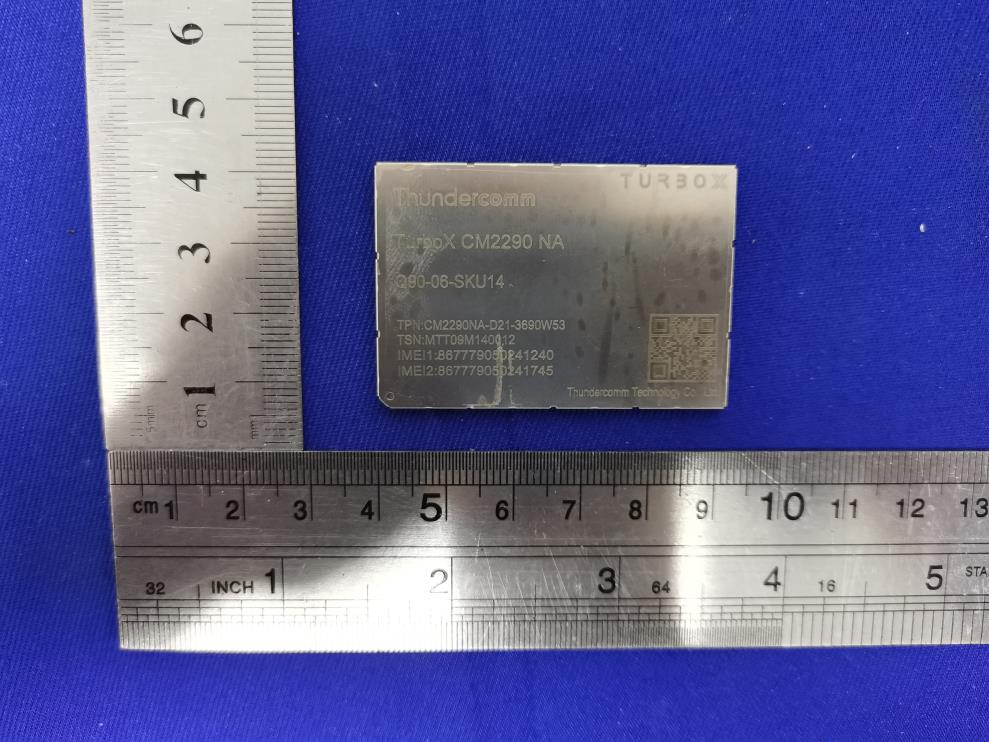

BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: W7L-P23030025 FCC ID: 2AOHHCM2290NA PHOTOGRAPHS OF THE EUT Samle 1 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: W7L-P23030025 FCC ID: 2AOHHCM2290NA Samle 2 BV 7Layers Communications Technology (Shenzhen) Co., Ltd No.B102, Dazu Chuangxin Mansion, North of Beihuan Avenue, North Area, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, China Tel: +86 755 8869 6566 Fax: +86 755 8869 6577 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: W7L-P23030025 FCC ID: 2AOHHCM2290NA

FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Jun. 20, 2023 Report No. : W7L-P23030025SA01 FCC RF Exposure Test Report Report No. : W7L-P23030025SA01 Applicant : Thundercomm Technology Co., Ltd Address : No. 107, Middle Datagu Road, Xiantao Street, Yubei District, Chongqing, China, 401122 Product : TurboX CM2290-NA FCC ID : 2AOHHCM2290NA Brand : TURBOX Model No. : TurboX CM2290-NA Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 Sample Received Date : Apr. 07, 2023 Date of Testing : Apr. 07, 2023 ~ Jun. 20, 2023 CERTIFICATION: The above equipment have been tested by BV 7LAYERS COMMUNICATIONS TECHNOLOGY (SHENZHEN) CO., LTD., and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA or any government agencies. Prepared By : Approved By : Jerry Chen / Engineer Luke Lu / Manager This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Jun. 20, 2023 Report No. : W7L-P23030025SA01 Table of Contents RELEASE CONTROL RECORD .................................................................................................................................................... 3 1. DESCRIPTION OF EQUIPMENT UNDER TEST .................................................................................................................... 4 2. MPE(MAXIMUM PERMISSIBLE EXPOSURE) ASSESSMENT ............................................................................................. 5 2.1 INTRODUCTION .......................................................................................................................................................... 5 2.2 RF RADIATION EXPOSURE LIMITS ........................................................................................................................... 5 2.3 MPE ASSESSMENT METHOD .................................................................................................................................... 6 2.4 MPE CALCULATION FOR STANDALONE OPERATIONS .......................................................................................... 6 2.5 CONCLUSION OF SIMULTANEOUS TRANSMITTER ................................................................................................ 8 3. INFORMATION ON THE TESTING LABORATORIES ........................................................................................................... 9 FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Jun. 20, 2023 Report No. : W7L-P23030025SA01 Release Control Record Report No. Reason for Change Date Issued W7L-P23030025SA01 Initial release Jun. 20, 2023 FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Jun. 20, 2023 Report No. : W7L-P23030025SA01 1. Description of Equipment Under Test EUT Type TurboX CM2290-NA Brand Name TURBOX Model Name TurboX CM2290-NA Tx Frequency Bands (Unit: MHz) LTE Band 2 : 1850.7 MHz ~ 1909.3 MHz LTE Band 4 : 1710.7 MHz ~ 1754.3 MHz LTE Band 5 : 824.7 MHz ~ 848.3 MHz LTE Band 7 : 2502.5 MHz ~ 2567.5 MHz LTE Band 12 : 699.7 MHz ~ 715.3 MHz LTE Band 13 : 779.5 MHz ~ 784.5 MHz LTE Band 14 : 790.5 MHz ~ 795.5 MHz LTE Band 17 : 706.5 MHz ~ 713.5 MHz LTE Band 25 : 1850.7 MHz ~ 1914.3 MHz LTE Band 26 : 814.7MHz ~ 848.3MHz LTE Band 41 : 2537.5MHz ~2652.5MHz LTE Band 66 : 1710.7 MHz ~ 1779.3 MHz LTE Band 71 : 665.5 MHz ~ 695.5 MHz WLAN : 2412 ~ 2462, 5180 ~ 5240, 5260 ~ 5320, 5500 ~ 5700, 5745 ~ 5825 Bluetooth : 2402 ~ 2480 Uplink Modulations LTE : QPSK, 16QAM, 64QAM 802.11b : DSSS 802.11a/g/n/ac : OFDM Bluetooth : GFSK, π/4-DQPSK, 8-DPSK Antenna Type WLAN: Flex Antenna WWAN: Flex Antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. FCC RF Exposure Test Report Report Format Version 5.0.0 Issued Date : Jun. 20, 2023 Report No. : W7L-P23030025SA01 2. MPE(Maximum Permissible Exposure) Assessment 2.…
