2APJ4-SLM900Module

Qualcomm 8-coreKryo200 Qualcomm 512GPU Android Cat6 Max:300Mbps(DL) Max:50Mbps(UL) BT5.x (BR/DDRplus IEEE802 11 GPS+BeiDou+ GLONASS HEVC/ VP9/MPEG LCCplusLGA Encapsulation AGlobalLeadingIoTTerminalsAndWirelessDataSolutionsProvider MeiG-SLM900 Multi-ModeMulti-BandSmartLTEModule SupportforWi-Fi&BTfunctionality TheSLM900seriessmartmoduleadoptsSDM660ofQualcommSnapdragon600series,equippedwith14nmFinFETprocess ofCPU,built-in64bitARM,and8-coreKryo(4*2.2GHz&4*1.8GHz).Itsupportsdecode/encodeupto4K@30fps,H.265 withAndroid9.0operatingsystem,boardmemoryof32GB+3GB(64GB+4GB,128GB+8GB),carrieraggregationofLTECat6 and2*20MHzwithamaximumdownlinkrateupto300Mbps.Itisalsosupportiveofmultiplenetworkstandardssuchas TD-LTE,FDD-LTE,WCDMA,EVDO,TD-SCDMAandCDMA,integratedintobroadbandintelligentwireless communicationmodulewithGNSSand2.4&5GWIFI. SLM900integratesabundantfunctionalinterfaces,includingLCM,touchscreen,camera,microphone,speaker,UART interface,USBinterface,I2Cinterface,SPIinterface,etc.Itcanprovidefunctionsofvoice,shortmessage,addressbook, 2.4/5GWiFi,BTandGPS.Itsupports3Dcameraofdouble1600Wordepthoffieldphotography,whichcanbewidelyusedin PoliceLawEnforcementInstrument,SmartPOSCashier,LogisticsTerminal,VRCamera,IntelligentRobot,VideoMonitoring, SecurityMonitoring,VehicleEquipment,IntelligentInformationAcquisitionEquipment,IntelligentHandheldTerminal,UAV andotherproducts. Majoradvantages 1.LTECat6and2x20MHzcarrieraggregationwith maximumdownlinkrateupto300Mbps 2.Overallcoverageofvariousnetworksystems 3.Dualscreen,differentdisplayanddualtouchcontrolwithmain screensupportupto2560*1600 4.@60fps,withamaximumsupportforauxiliaryscreen of2560*1600@60fps 5.dualcamera,upto4cameras 6.IntegratingMulti-constellationGNSSreceiverstomeetthe requirementsofhighspeedandhighspeedandprecise positioningunderdifferentcontexts EMAILUS:VISITUS:www.meigsmart.com MeiG-SLM900 Multi-networkSmartLTEModule SupportforWi-Fi&BTfunctionality Theequipmentundertest(EUT)isthesmartmoduleofModelSLM900(Modelname). ItsupportsTriple-bandGSM/GPRSsolution(GSM850,PCS1900),GPRS/EDGEClass12 Triple-bandUMTS(B2,B4,B5)HSDPA（Category24）,HSUPA（Category6）also supportsIEEE802.11a/b/g/n/ac，Bluetoothversion2.1+EDR,BT3.0+EDR,BT5.0,GPS operatingfrequencyis1.57542GHz. TheQualcommdeviceincorporatestheUMTS/LTEtechnology—thetechnologyforRF transceivers(SDR660)thatconvertsreceivedsignalsdirectlyfromRF-to-basebandand transmitssignalsdirectlyfrombaseband-to-RF(knownasdirectconversionorzero intermediatefrequency(ZIF)processing).ThistechniqueeliminatestheneedforlargeIF surfaceacousticwave(SAW)filtersandsupportingIFandLOcircuits,therebyreducingthe handsetpartscountandfacilitatingmultiband,multimodehandsetsthatcanbeproducedin smallerformfactors. RFtransmitter TheRFtransmittersarecapabletoperformaswellasUMTSandHSPAmodulationsignals withexcellentnoiseperformance,thusnointerstatefilterinbetweentransceiverandPAis required: Triple-bandUMTS,withonelowbandandtwohighbandsselectedfrom: Lowband Band5(826to836MHz) Highband Band2(1852-1907MHz) Band4(1712-1752MHz) Triple-bandGSM Lowband –GSM850(824to849MHz) Highband –PCS1900(1930to1989MHz) MeiG-SLM900 Multi-networkSmartLTEModule SupportforWi-Fi&BTfunctionality LTEBand2/4/5/7/12/13/17/25/26 –Band2(1850-1910MHz) –Band4(1710-1755MHz) –Band5(824-849MHz) –Band7(2500-2570MHz) –Band12(699-716MHz) –Band13(777-787MHz) –Band17(704-716MHz) –Band25(1820-1915MHz) Band26(814-849MHz) Thetransmitsignalpathsincludeasharedsetofbasebandamplifiers,adedicatedquadrature upconversionforeachbandtype(lowandhigh),gaincontrolRFamplification,andmultiple outputdriveramplifiersforeachbandtype.ThreeUMTSoutputdriverssupportonelow bandandTwohighbands;LTEsupportBands:2/4/5/7/12/13/17/25/26 NumeroussecondaryTxfunctionsarealsointegrated:areferenceforthetransmitDACs,the Txphase-lockedloop(PLL),theTxlocaloscillatorcircuit,theTxLOgenerationand distributioncircuits,anRMSTxpowerdetector,andvariousinterface,control,andstatus circuits. TheRFtransmitterinterfacesinternallywiththebasebandcircuitsforitsanalogbaseband inputandstatusandcontrolsignaling.Powerreductionfeaturescontrolledbybaseband circuits(suchasselectivecircuitpowerdown,gaincontrol,andtransmitpuncturing)extend handsettalktime.Thedriveramplifieroutputsareroutedexternallytothefinalstagesofthe transmitchains,culminatingwiththeantennaswitchwhoseoutputdrivestheantenna. SophisticatedTxLOcircuitsimplementthefrequencyplanandarecompletelyintegrated on-chip.AllTxLOsignalsaregeneratedbytheon-chipTxlocaloscillatorunderthecontrol ofitsPLL. MeiG-SLM900 Multi-networkSmartLTEModule SupportforWi-Fi&BTfunctionality FCCCaution. §15.19Labellingrequirements. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. §15.21Informationtouser. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoid theuser'sauthoritytooperatetheequipment. §15.105Informationtotheuser. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection against harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiate radio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto correctthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFExposurestatement ThisequipmentcomplieswithFCCradiationexpo…

Text truncated - open the document above for the full version.

THISMUSTBESIGNEDBYTHEAPPLICANT/AGENTANDSHOULDBE PLACEDONAPPROPRIATELETTERHEAD RequestforModular/LimitedModularApproval Date:12.28.2021 Subject:Manufacturer’sDeclarationfor☐ModularApproval☐-SplitModularApproval ■-LimitedModularApproval--LimitedSplitModularApproval ConfidentialityRequestfor:2APJ4-SLM900 8BasicRequirements–FCCPart15.212(a)(1) ForItemsMarked“NO(*)”,theLimitedModuleDescriptionMustbeFilledOutontheFollowingPages ModularApprovalRequirementRequirementMet 1.ThemodulartransmittermusthaveitsownRFshielding.Thisisintendedtoensurethatthemodule doesnothavetorelyupontheshieldingprovidedbythedeviceintowhichitisinstalledinorderforall modulartransmitteremissionstocomplywithFCClimits.Itisalsointendedtopreventcoupling betweentheRFcircuitryofthemoduleandanywiresorcircuitsinthedeviceintowhichthemoduleis installed.Suchcouplingmayresultinnon-compliantoperation.Thephysicalcrystalandtuning capacitorsmaybelocatedexternaltotheshieldedradioelements.15.212(a)(1)(i) ■-YES ☐-NO(*) Details:<example–ThemodulecontainsametalshieldwhichcoversallRFcomponentsandcircuitry.Theshieldislocatedon thetopoftheboardnexttoantennaconnector> 2.Themodulartransmittermusthavebufferedmodulation/datainputs(ifsuchinputsareprovided)to ensurethatthemodulewillcomplywithFCCrequirementsunderconditionsofexcessivedataratesor over-modulation.15.212(a)(1)(ii) ■-YES ☐-NO(*) Details:<example–Datatothemodulationcircuitisbufferedasdescribedintheoperationaldescriptionprovidedwiththe application> 3.Themodulartransmittermusthaveitsownpowersupplyregulationonthemodule.Thisisintendedto ensurethatthemodulewillcomplywithFCCrequirementsregardlessofthedesignofthepower supplyingcircuitryinthedeviceintowhichthemoduleisinstalled.15.212(a)(1)(iii) ■-YES ☐-NO(*) Details:<example–Themodulecontainsitsownpowersupplyregulation.Pleaserefertoschematicfiledwiththisapplication> 4.Themodulartransmittermustcomplywiththeantennaandtransmissionsystemrequirementsof§§ 15.203,15.204(b),15.204(c),15.212(a),and2.929(b).Theantennamusteitherbepermanently attachedoremploya‘‘unique’’antennacoupler(atallconnectionsbetweenthemoduleandthe antenna,includingthecable).The‘‘professionalinstallation’’provisionof§15.203isnotapplicable tomodulesbutcanapplytolimitedmodularapprovalsunderparagraph15.212(b).15.212(a)(1)(iv) ☐-YES ■-NO(*) Details:<example–ThemoduleconnectstoitsantennausinganUFLconnectorwhichisconsideredanon-standard connector.Alistofantennastestedandapprovedwiththisdevicemaybefoundinusersmanualprovidedwiththeapplication> 5.Themodulartransmittermustbetestedinastand-aloneconfiguration,i.e.,themodulemustnotbe insideanotherdeviceduringtesting.Thisisintendedtodemonstratethatthemoduleiscapableof complyingwithPart15emissionlimitsregardlessofthedeviceintowhichitiseventuallyinstalled. Unlessthetransmittermodulewillbebatterypowered,itmustcomplywiththeAClineconducted requirementsfoundinSection15.207.ACorDCpowerlinesanddatainput/outputlinesconnectedto themodulemustnotcontainferrites,unlesstheywillbemarketedwiththemodule(seeSection 15.27(a)).Thelengthoftheselinesshallbelengthtypicalofactualuseor,ifthatlengthisunknown,at least10centimeterstoinsurethatthereisnocouplingbetweenthecaseofthemoduleandsupporting equipment.Anyaccessories,peripherals,orsupportequipmentconnectedtothemoduleduringtesting shallbeunmodifiedorcommerciallyavailable(seeSection15.31(i)).15.212(a)(1)(v) ■-YES ☐-NO(*) Details:<example–Themodulewastestedstand-aloneasshownintestsetupphotographsfiledwiththisapplication> THISMUSTBESIGNEDBYTHEAPPLICANT/AGENTANDSHOULDBE PLACEDONAPPROPRIATELETTERHEAD ModularApprovalRequirementRequirementMet 6.ThemodulartransmittermustbelabeledwithitsownFCCIDnumber,oruseanelectrondisplay(see KDBPublication784748). IfusingapermanentlyaffixedlabelwithitsownFCCIDnumber,iftheFCCIDisnotvisiblewhen themoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthemoduleis installedmustalsodisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanusewording suchasthefollowing:“ContainsTransmitterModuleFCCID:XYZMODEL1”or“ContainsFCCID: XYZMODEL1.”Anysimilarwordingthatexpressesthesamemeaningmaybeused.TheGranteemay eitherprovidesuchalabel,anexampleofwhichmustbeincludedintheapplicationforequipment authorization,or,mustprovideadequateinstructionsalongwiththemodulewhichexplainthis requirement.Inthelattercase,acopyoftheseinstructionsmustbeincludedintheapplicationfor equipmentauthorization. IfthemodulartransmitterusesanelectronicdisplayoftheFCCidentificationnumber,theinformation mustbereadilyaccessibleandvisibleonthemodulartransmitteroronthedeviceinwhichitis installed.Ifthemoduleisinstalledinsideanotherdevice,thentheoutsideofthedeviceintowhichthe moduleisinstalledmustdisplayalabelreferringtotheenclosedmodule.Thisexteriorlabelcanuse wordingsuchasthefollowing:“ContainsFCCcertifiedtransmittermodule(s).”Anysimilarwording thatexpressesthesamemeaningmaybeused.Theusermanualmustincludeinstructionsonhowto accesstheelectronicdisplay.Acopyoftheseinstructionsmustbeincludedintheapplicationfor equipmentauthorization.15.212(a)(1)(vi) ■-YES ☐-NO(*) Details:<example–Thereisalabelonthemoduleasshowninthelabelingexhibitfiledwiththisapplication.Hostspecific labelinginstructionsareshownintheinstallationmanual.filedwiththisapplication.> 7.Themodulartransmittermustcomplywithallspecificruleoroperatingrequirementsapplicabletothe transmitter,includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee.Acopy oftheseinstructionsmustbeincludedintheapplicationforequipmentauthorization.Forexample, thereareverystrictoperationalandtimingrequirementsthatmustbemetbeforeatransmitteris authorizedforoperationunderSection15.231.Forinstance,datatransmissionisprohibited,exceptfor operationunderSection15.231(e),inwhichcasethereareseparatefieldstrengthlevelandtiming requirements.Compliancewiththeserequirementsmustbeassured.15.212(a)(1)(vii) ■-YES ☐-NO(*) Details:<example–ThemodulecomplieswithFCCPart15Crequirements.InstructionstotheOEMinstallerareprovidedin theinstallationmanualfiledwiththisapplication.> 8.Themodulartransmittermus…

Text truncated - open the document above for the full version.

MeiGSmartTechnologyCo.,Ltd (12/22/2021) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(Wirelesscommunication module/SLM900#2APJ4-SLM900#) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(SCH/Blocgdiagram/PCBplacement/BOM /Turn-upprocedure)requiredtobesubmittedwiththisapplicationbepermanently withheldfrompublicreview. SPECIFYREASONFORREQUEST(i.e.theabovedocumentsarecompany proprietaryinformationthatcouldnevergetintothepossessionofyour competition). Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely,

MeiGSmartTechnologyCo.,Ltd (12/22/2021) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(insertspecificINDIVIDUALattestinglaboratory)toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely,

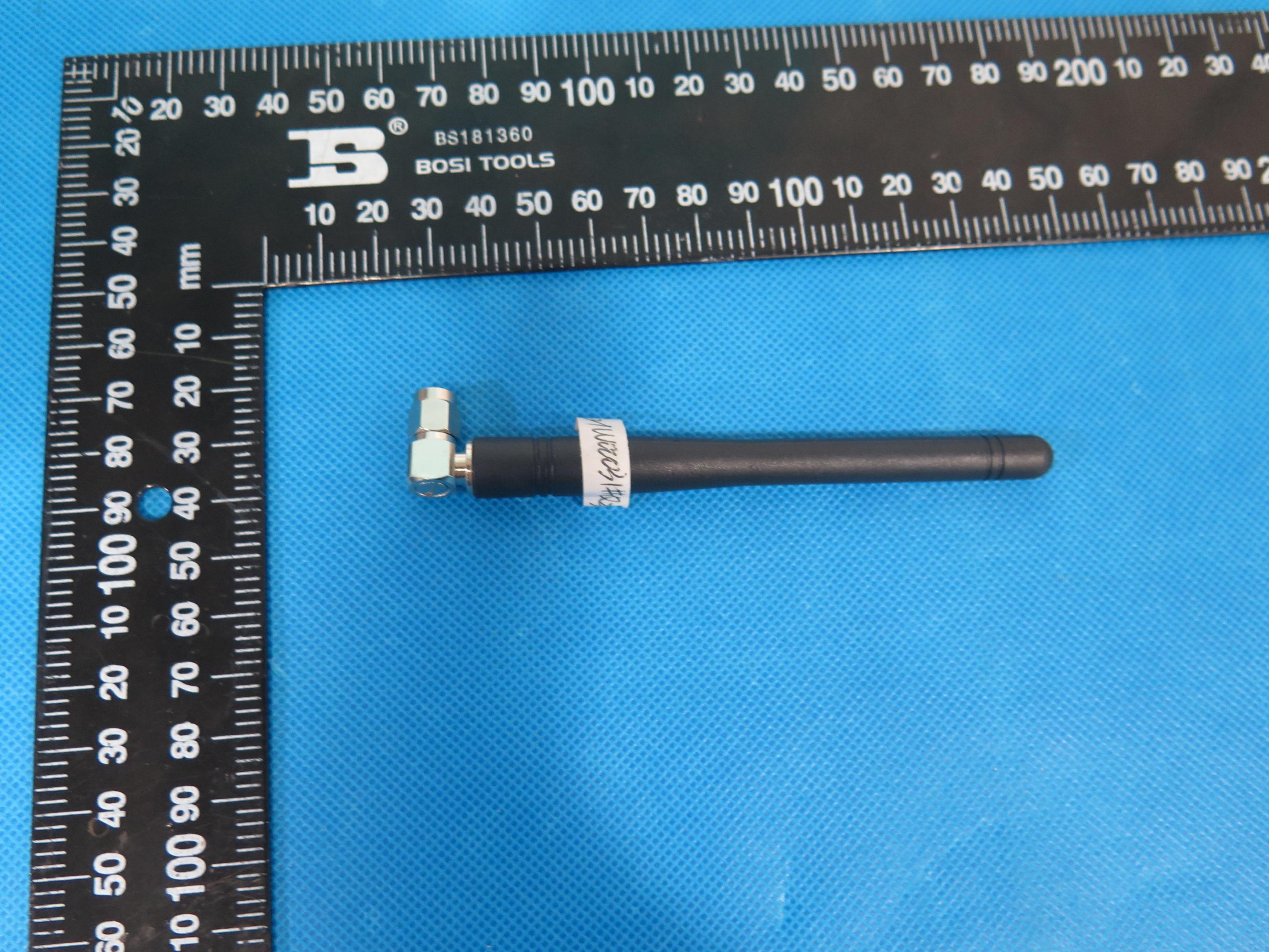

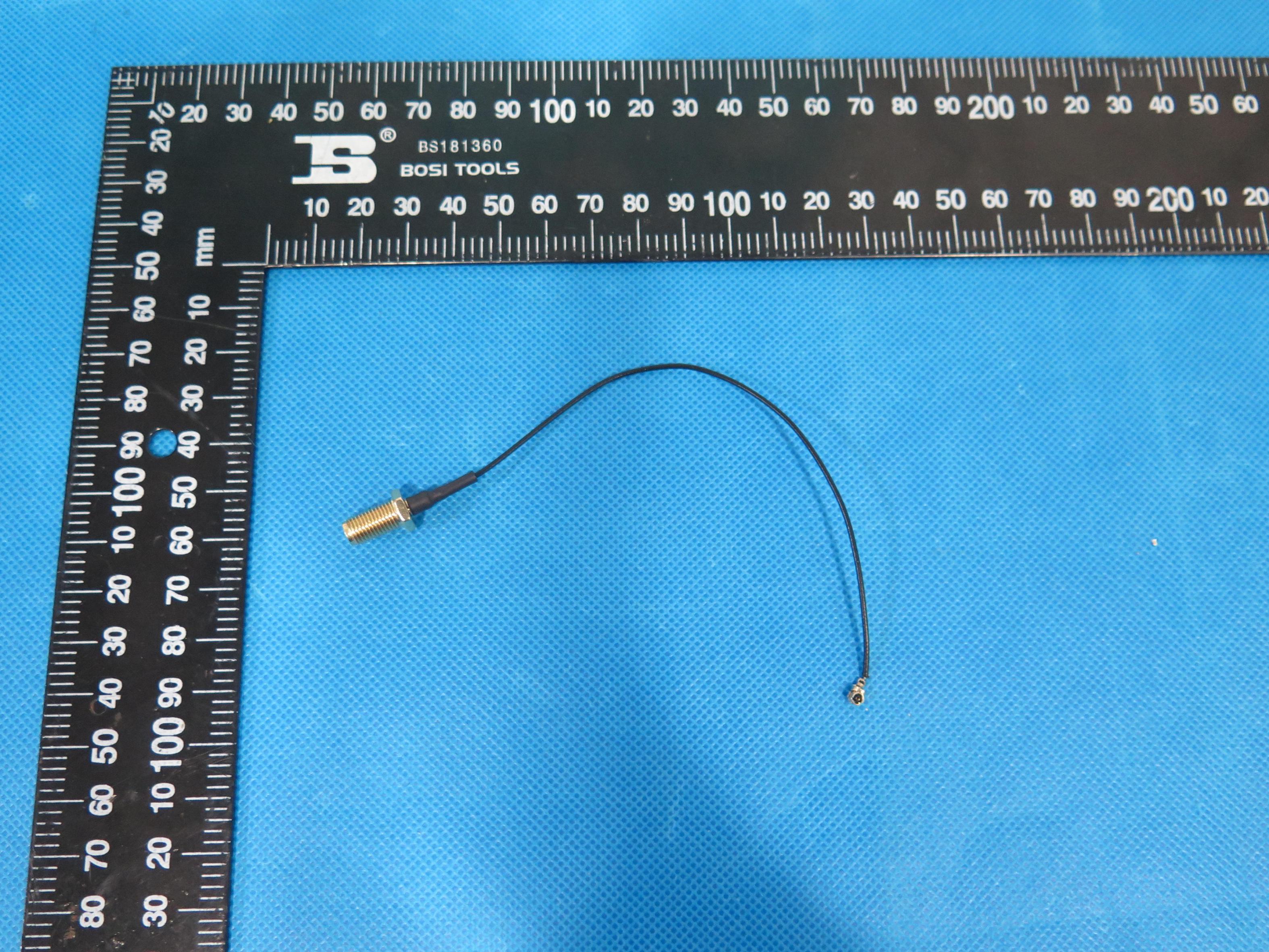

I21W00039_ExternalPhotos MainANT BT/WIFIANT1 BT/WIFIANT2

I21W00039_Label&LocationPhotos

Qualcomm 8-coreKryo200 Qualcomm 512GPU Android Cat6 Max:300Mbps(DL) Max:50Mbps(UL) BT5.x (BR/DDRplus IEEE802 11 GPS+BeiDou+ GLONASS HEVC/ VP9/MPEG LCCplusLGA Encapsulation AGlobalLeadingIoTTerminalsAndWirelessDataSolutionsProvider MeiG-SLM900 Multi-ModeMulti-BandSmartLTEModule SupportforWi-Fi&BTfunctionality TheSLM900seriessmartmoduleadoptsSDM660ofQualcommSnapdragon600series,equippedwith14nmFinFETprocess ofCPU,built-in64bitARM,and8-coreKryo(4*2.2GHz&4*1.8GHz).Itsupportsdecode/encodeupto4K@30fps,H.265 withAndroid9.0operatingsystem,boardmemoryof32GB+3GB(64GB+4GB,128GB+8GB),carrieraggregationofLTECat6 and2*20MHzwithamaximumdownlinkrateupto300Mbps.Itisalsosupportiveofmultiplenetworkstandardssuchas TD-LTE,FDD-LTE,WCDMA,EVDO,TD-SCDMAandCDMA,integratedintobroadbandintelligentwireless communicationmodulewithGNSSand2.4&5GWIFI. SLM900integratesabundantfunctionalinterfaces,includingLCM,touchscreen,camera,microphone,speaker,UART interface,USBinterface,I2Cinterface,SPIinterface,etc.Itcanprovidefunctionsofvoice,shortmessage,addressbook, 2.4/5GWiFi,BTandGPS.Itsupports3Dcameraofdouble1600Wordepthoffieldphotography,whichcanbewidelyusedin PoliceLawEnforcementInstrument,SmartPOSCashier,LogisticsTerminal,VRCamera,IntelligentRobot,VideoMonitoring, SecurityMonitoring,VehicleEquipment,IntelligentInformationAcquisitionEquipment,IntelligentHandheldTerminal,UAV andotherproducts. Majoradvantages 1.LTECat6and2x20MHzcarrieraggregationwith maximumdownlinkrateupto300Mbps 2.Overallcoverageofvariousnetworksystems 3.Dualscreen,differentdisplayanddualtouchcontrolwithmain screensupportupto2560*1600 4.@60fps,withamaximumsupportforauxiliaryscreen of2560*1600@60fps 5.dualcamera,upto4cameras 6.IntegratingMulti-constellationGNSSreceiverstomeetthe requirementsofhighspeedandhighspeedandprecise positioningunderdifferentcontexts EMAILUS:VISITUS:www.meigsmart.com 2/5NO：CS-QR-YF-054A02 ThisdocumentisexclusivepropertyofCHIPSEAandshallnotbereproducedorcopiedortransformedtoanyotherformat withoutpriorpermissionofCHIPSEA Theequipmentundertest(EUT)isthesmartmoduleofModelSLM900(Modelname).Itsupports Triple-bandGSM/GPRSsolution(GSM850,PCS1900),GPRS/EDGEClass12Triple-bandUMTS (B2,B4,B5)HSDPA（Category24）,HSUPA（Category6）alsosupportsIEEE802.11a/b/g/n/ac，Bluetooth version2.1+EDR,BT3.0+EDR,BT5.0,GPSoperatingfrequencyis1.57542GHz. TheQualcommdeviceincorporatestheUMTS/LTEtechnology—thetechnologyforRFtransceivers(SDR660) thatconvertsreceivedsignalsdirectlyfromRF-to-basebandandtransmitssignalsdirectlyfrombaseband-to-RF (knownasdirectconversionorzerointermediatefrequency(ZIF)processing).Thistechniqueeliminatestheneed forlargeIFsurfaceacousticwave(SAW)filtersandsupportingIFandLOcircuits,therebyreducingthe handsetpartscountandfacilitatingmultiband,multimodehandsetsthatcanbeproducedinsmallerformfactors. RFtransmitterTheRFtransmittersarecapabletoperformaswellasUMTSandHSPAmodulationsignals withexcellentnoiseperformance,thusnointerstatefilterinbetweentransceiverandPAisrequired: Triple-bandUMTS,withonelowbandandtwohighbandsselectedfrom: Lowband Band5(826to836MHz) Highband Band2(1852-1907MHz) Band4(1712-1752MHz) Triple-bandGSM Lowband –GSM850(824to849MHz) Highband –PCS1900(1930to1989MHz) WCDMAB21850–1910MHz WCDMAB41710-1755MHz WCDMAB5824-849MHz LTEB21850–1910MHz; LTEB41710-1755MHz; LTEB58824-849MHz; LTEB72500-2570MHz LTEB12699-716MHz; LTEB13746-756MHz; LTEB17704-716MHz LTEB251850-1915MHz LTEB26807-824MHz WIFI:2412~2472MHz WIFI5G: UNII1:5150MHz-5250MHz UNII2A:5250MHz-5350MHz UNII2C:5470MHz-5725MHz UNII3:5725MHz-5850MHz BT:2402~2480MHz 3/5NO：CS-QR-YF-054A02 ThisdocumentisexclusivepropertyofCHIPSEAandshallnotbereproducedorcopiedortransformedtoanyotherformat withoutpriorpermissionofCHIPSEA FCCCaution. §15.19Labellingrequirements. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. §15.21Informationtouser. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid theuser'sauthoritytooperatetheequipment. §15.105Informationtotheuser. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. FrequencyBandAntennaGain(dBi) GSM850 3.52 GSM1900 3.57 WCDMABand2 3.57 WCDMABand4 3.99 WCDMABand5 3.52 LTEBand2 3.57 LTEBand4 3.99 LTEBand5 3.52 LTEBand7 5.19 LTEBand12 3.18 LTEBand13 3.42 LTEBand17 3.18 LTEBand25 3.57 LTEBand26 3.52 Bluetooth 5.84 WIFI 5.84 UNII1 6.49 UNII2A 6.49 UNII2C 6.49 UNII3 6.49 4/5NO：CS-QR-YF-054A02 ThisdocumentisexclusivepropertyofCHIPSEAandshallnotbereproducedorcopiedortransformedtoanyotherformat withoutpriorpermissionofCHIPSEA -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. RFExposurestatement ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment. Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody C.AppendixA A1.RequirementofFCCKDB996369D03formodulecertification: 1.1ListofapplicableFCCrules: ThemodulecomplieswithFCCPart2,22,24,27,90,15B,15C,15E. 1.2Summarizethespecificoperationaluseconditions: SLM900usetheindependentGPSchip，includesafullyintegratedglobalnavigationsatell…

Text truncated - open the document above for the full version.

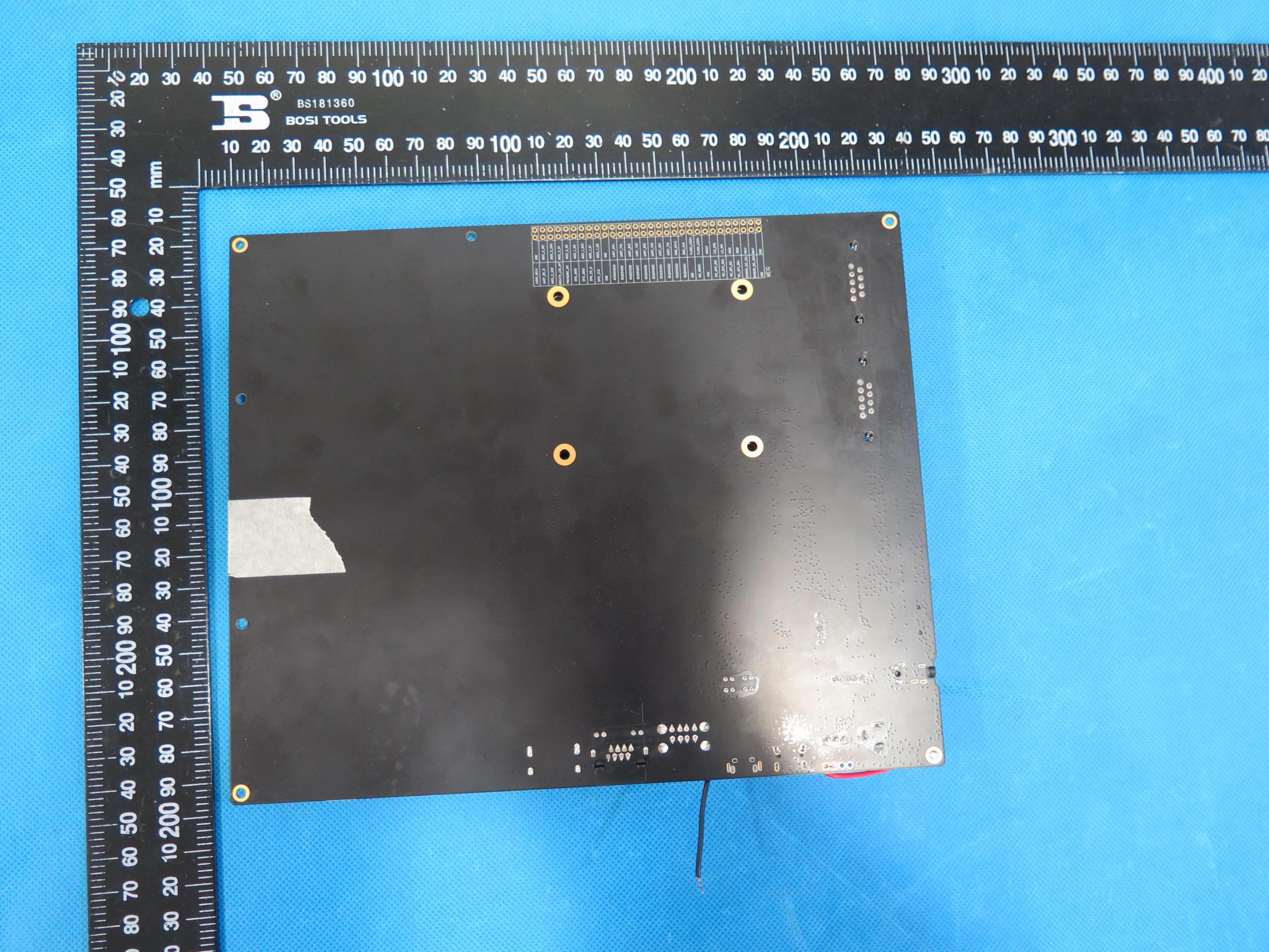

I21W00039_InternalPhotos
