SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 1/83 SNM758 Hardware Design Guide Version Number：V1.14 Released Date：2023/01 SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 1/83 IMPORTANT NOTICE COPYRIGHT NOTICE Copyright © MeiG Smart Technology Co., Ltd. All rights reserved. All contents of this manual are exclusively owned by MeiG Smart Technology Co., Ltd (MeiG Smart for short), which is under the protection of Chineselawsandcopyrightlaws in international conventions. Anyone shall not copy, spread, distribute, modify or use in other ways with its contents without the written authorization of MeiG Smart. Those who violated will be investigated by corresponding legal liability in accordance with the law. NO GUARANTEE MeiG Smart makes no representation or warranty, either express or implied, for any content in this document, and will not be liable for any specific merchantability and applicable or any indirect,particular and collateral damage. CONFIDENTIALITY All information contained here (including any attachments) is confidential. The recipient acknowledges the confidentiality of this document, and except for the specific purpose, this document shall not be disclosed to any third party. DISCLAIMER MeiG Smart will not take any responsibility for any property and health damage caused by the abnormal operation of customers. Please develop the product according to the technical specification and designing reference guide which defined in the product manual. MeiG Smart have the right to modify the document according to technical requirement with no announcement to the customer. SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 2/83 Safety Warning Pay attention to the following security precautions in the process of using or repairing any terminal or mobile phone. Terminal devices should be informed of the following security information. Otherwise, MeiG will not bear any consequences that the user does not follow these warning operations. Logo Requirement When you are at a hospital or medical facility, observe the restrictions on using your phone. If necessary, please turn off the terminal or mobile phone, otherwise the medical device may malfunction due to radio frequency interference. Turn off the wireless terminal or mobile phone before boarding. To prevent interference with the communication system, wireless communication equipment is prohibited on the aircraft. Ignoring the above will violate local laws and may result in a flight accident. Do not use mobile terminals or mobile phones in front of flammable gases. Turn off the mobile terminal when you are near an explosion, chemical factory, fuel depot, or gas station. It is dangerous to operate a mobile terminal next to any potentially explosive electrical equipment. The mobile terminal receives or transmits radio frequency energy when it is turned on. It can interfere with TV, radio, computer or other electrical equipment. Road safety first! Do not use a handheld terminal or mobile phone while driving, please use a hands-free device. Stop before using your handheld terminal or mobile phone. GSM mobile terminals operate under RF signals and cellular networks, but are not guaranteed to be connected in all situations. For example, there is no credit or invalid SIM card. When in this situation and need emergency services, remember to use an emergency call. In order to be able to call and receive calls, the mobile terminal must be powered on and in a service area where the mobile signal is strong enough. Emergency calls are not allowed when certain network services or telephony features are in use, such as feature locks, keyboard locks. These functions should be removed before using an emergency call. Some networks require effective SIM card support. SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 3/83 SNM758 Hardware Design Guide_V1.14 SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 4/83 Foreword Thank you for using the SNM758 module from MeiG Smart. This product can provide data communication services. Please read the user manual carefully before use, you will appreciate its perfect function and simple operation method. The company does not assume responsibility for property damage or personal injury caused by improper operation of the user. Users are requested to develop the corresponding products according to the technical specifications and reference designs in the manual. Also pay attention to the general safety issues that mobile products should focus on. Before the announcement, the company has the right to modify the contents of this manual according to the needs of technological development. SNM758_Hardware Design Guide MeiG Smart Technology Co., Ltd 5/83 Contents Contents .................................................................................................................................................... 5 1. Introduction........................................................................................................................................... 8 2. Module Overview .................................................................................................................................. 9 2.1. Summary of features .................................................................................................................. 10 3. Module Package ................................................................................................................................. 13 3.1.Pin Distribution Diagram ............................................................................................................. 13 3.3. Mechanical Dimensions ............................................................................................................. 31 4. Interface Application .......................................................................................................................... 33 4.1. Power Supply ...................…

Text truncated - open the document above for the full version.

MeiG Smart Technology Co., Ltd Americas Compliance Consulting LLC dba FRN:0027430412 iCertifi Xinwei Lou Paul Preston Email: [email protected] Signature Signature x'1n-WQ.: , #JIA- • V02072023

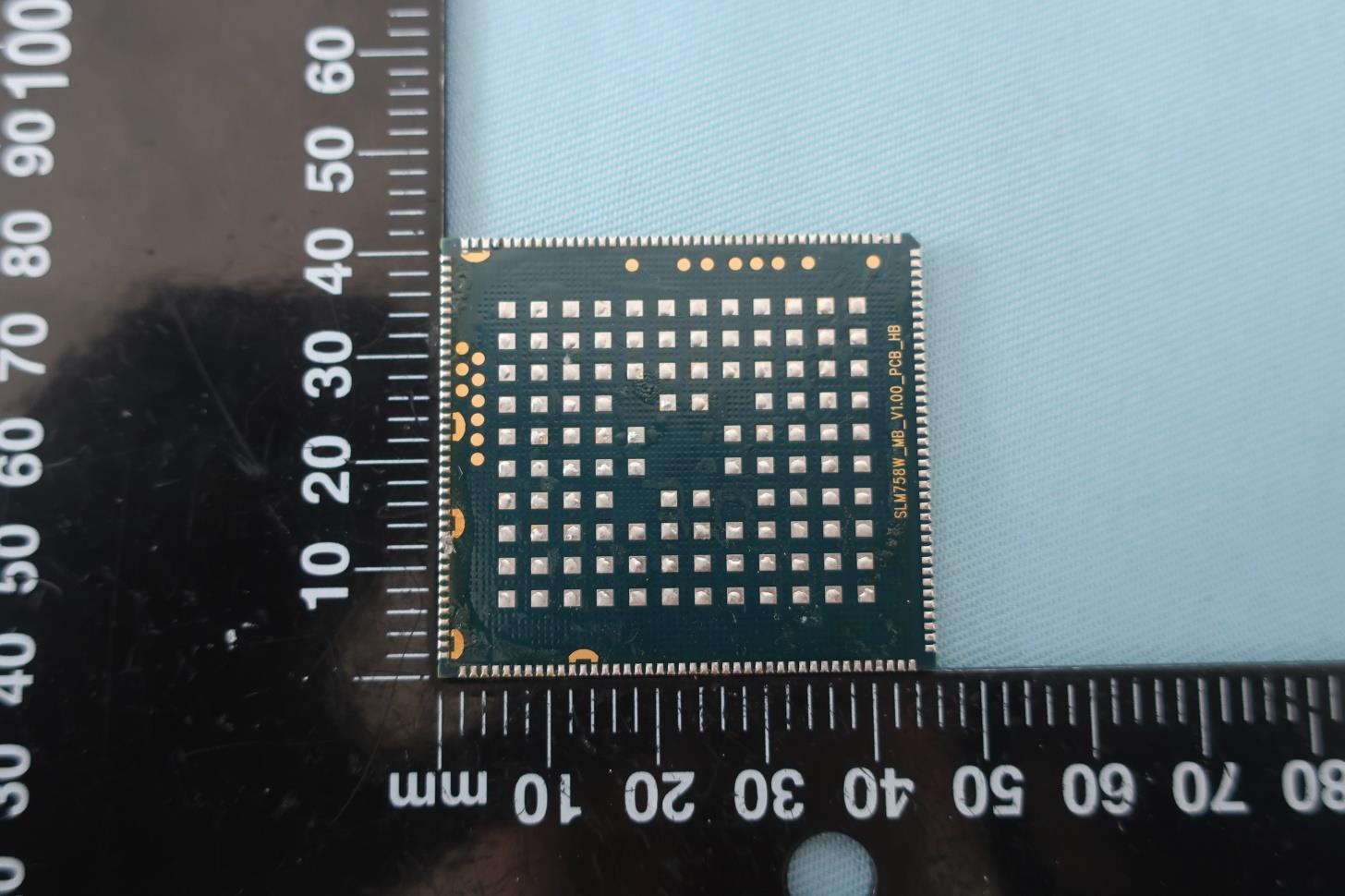

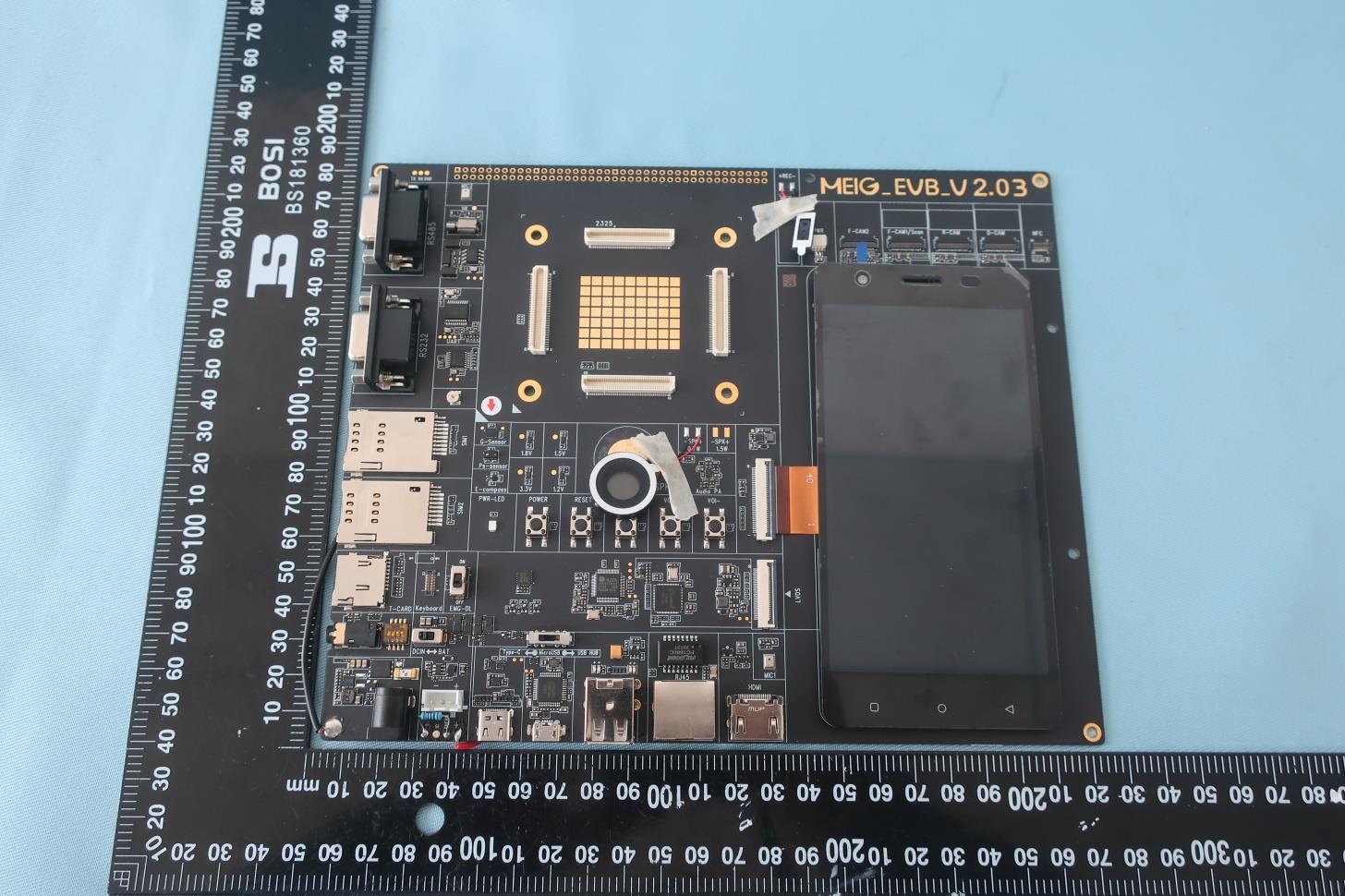

Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 1 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 2 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 3 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 4 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 5 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 6 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 7 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 EUT Test Jig 2. Photograph of Accessory 720510 Antenna Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 8 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 BT/WIFI Antenna Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 9 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Test Jig

Label location: It’s on the shield

Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 10 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 11 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 12 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 13 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 14 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 Photographs of EUT Report No.: EP970101-01A Brand Name: MEIGLink; Model Name: SNM758 Sporton International Inc. (Kunshan) Page Number : 15 of 15 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01

Sporton International Inc. (Kunshan) Page Number : 1 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 RF Exposure Evaluation Report APPLICANT : MeiG Smart Technology Co., Ltd EQUIPMENT : SNM758 BRAND NAME : MEIGLink MODEL NAME : SNM758 FCC ID : 2APJ4-SNM758 STANDARD : 47 CFR Part 2.1091 The product evaluation date was started from Dec. 06, 2023 and completed on Dec. 06, 2023. We, Sporton International Inc. (Kunshan), would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International Inc. (Kunshan), the test report shall not be reproduced except in full. Approved by: Si Zhang Sporton International Inc. (Kunshan) No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International Inc. (Kunshan) Page Number : 2 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT TUNE UP POWER AMONG PRODUCTION UNITS ....................... 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 8 Sporton International Inc. (Kunshan) Page Number : 3 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA970101-01 Rev. 01 Initial issue of report Jan. 18, 2024 Sporton International Inc. (Kunshan) Page Number : 4 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 1. Administration Data 1.1. Testing Laboratory Sporton International Inc. (Kunshan) is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.02. Testing Laboratory Test Firm Sporton International Inc. (Kunshan) Test Site Location No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China TEL : +86-512-57900158 Test Site No. Sporton Site No. FCC Designation No. FCC Test Firm Registration No. SAR01-KS CN1257 314309 Applicant Company Name MeiG Smart Technology Co., Ltd Address 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen City. Manufacturer Company Name MeiG Smart Technology Co., Ltd Address 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen City. Sporton International Inc. (Kunshan) Page Number : 5 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type SNM758 Brand Name MEIGLink Model Name SNM758 FCC ID 2APJ4-SNM758 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz WLAN 5.2GHz Band: 5180 MHz ~ 5240 MHz WLAN 5.3GHz Band: 5260 MHz ~ 5320 MHz WLAN 5.5GHz Band: 5500 MHz ~ 5700 MHz WLAN 5.8GHz Band: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz Mode WLAN 2.4GHz : 802.11b/g/n/ HT20/HT40 WLAN 5GHz : 802.11a/n HT20/HT40 WLAN 5GHz 802.11ac VHT20/VHT40/VHT80 Bluetooth BR/EDR/LE Antenna Type Glue Stick Antenna HW Version V1.02 SW Version SNM758EQ_EQ000_2774.51ABD20.4041C02_231026_100_V01_T12 EUT Stage Identical Prototype Remark: 1. The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain also the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International Inc. (Kunshan) Page Number : 6 of 8 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 FCC ID : 2APJ4-SNM758 Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA970101-01 3. Maximum RF average output tune up power among production units <WLAN 2.4GHz> Mode Maximum Average Power (dBm) 802.11b 16.50 802.11g 15.50 802.11n-HT20 14.00 802.11n-HT40 14.50 <Bluetooth> Mode Maximum Average Power (dBm) Bluetooth BR/EDR 10.00 LE 0 <WLAN 5GHz> Mode Maximum Average Power (dBm) WLAN 5.2GHz 802.11a 14.00 802.11n-HT20 13.00 802.11n-HT40 11.50 802.11ac-VHT20 12.00 802.11ac-VHT40 10.00 802.11ac-VHT80 10.00 WLAN 5.3GHz 802.11a 14.00 802.11n-HT20 13.00 802.11n-HT40 11.50 802.11ac-VHT20 11.50 802.11ac-VHT40 9.00 802.11ac-VHT80 9.00 WLAN 5.5GHz 802.11a 14.00 802.11n-HT20 13.00 802.11n-HT40 11.50 802.11ac-VHT20 11.50 802.11ac-VHT40 9.00 802.11ac-VHT80 10.00 WLAN 5.8GHz …

Text truncated - open the document above for the full version.

Antenna Test Report Antenna Summary Table Check items Information Test environment Satimo Test software Satenv Test equipment Agilent E4428C Manufacturer Name Jesoncom Manufacturer address No.358 Liuyuan RD., Baoshan Urban Industrial District.,Shanghai,PR.China. List of calibrated test equipment GTS2800 with calibrated date: On May 2,2023 Antenna Model Name 3V089B Antenna Type Glue stick Antenna Issue date 2023/07/06 Documented by Note: Antenna gain was measured in the anechoic chamber, 3D scan was exercised, and the highest numbers are reported in this document. Page Number : 2 of 8 Antenna Report Antenna Test data: Antenna Type /Gain BT/2.4G <2400MHz~2483.5MHz> < Main Ant >: Glue stick Antenna with gain: 0 dBi Antenna Type /Gain 5G <5150-5250MHz > < Main Ant >: Glue stick Antenna with gain: 1 dBi <5250-5350MHz> < Main Ant >: Glue stick Antenna with gain: 1 dBi <5470-5725MHz > < Main Ant >: Glue stick Antenna with gain: 1 dBi <5725~5850MHz > < Main Ant >: Glue stick Antenna with gain: 1 dBi Gain Plots Page Number : 3 of 8 Antenna Report BT Page Number : 4 of 8 Antenna Report WIFI 2.4G Page Number : 5 of 8 Antenna Report WIFI 5G W52 Page Number : 6 of 8 Antenna Report WIFI 5G W53 Page Number : 7 of 8 Antenna Report WIFI 5G W56 Page Number : 8 of 8 Antenna Report WIFI 5G W58

Sporton International Inc. (Kunshan) Page Number : 1 of 30 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 Report Version : Rev. 01 Report Template No.: SCE Version 1.0 FCC RF Test Report Report No. : 970101-01A Spot Check Evaluation APPLICANT : MeiG Smart Technology Co., Ltd EQUIPMENT : SNM758 BRAND NAME : MEIGLink MODEL NAME : SNM758 FCC ID : 2APJ4-SNM758 STANDARD : 47 CFR Part 15 Subpart C §15.247 47 CFR Part 15 Subpart E §15.407 TEST DATE(S) : Nov. 30, 2023 ~ Jan. 04, 2024 We, Sporton International Inc. (Kunshan), would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. (Kunshan), the test report shall not be reproduced except in full. Approved by: Jason Jia Sporton International Inc. (Kunshan) No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International Inc. (Kunshan) Page Number : 2 of 30 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 Report Version : Rev. 01 Report Template No.: SCE Version 1.0 FCC RF Test Report Report No. : 970101-01A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 1 GENERAL DESCRIPTION .......................................................................................................................... 4 1.1 Applicant ............................................................................................................................................ 4 1.2 Manufacturer ...................................................................................................................................... 4 1.3 Product Feature of Equipment Under Test ........................................................................................ 4 1.4 Modification of EUT ........................................................................................................................... 4 1.5 Testing Site ........................................................................................................................................ 5 1.6 Test Software ..................................................................................................................................... 5 1.7 Applicable Standards ......................................................................................................................... 5 2 RE-USE OF MEASURED DATA ................................................................................................................. 6 2.1 Introduction Section ........................................................................................................................... 6 2.2 Model Difference Information ............................................................................................................ 6 2.3 Reference detail Section: .................................................................................................................. 7 2.4 Spot Check Verification Data Section ................................................................................................ 8 3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ...................................................................... 10 3.1 Carrier Frequency and Channel ...................................................................................................... 10 3.2 Test Mode ........................................................................................................................................ 11 3.3 Connection Diagram of Test System ............................................................................................... 12 3.4 Support Unit used in test configuration and system ........................................................................ 12 3.5 EUT Operation Test Setup .............................................................................................................. 12 3.6 Measurement Results Explanation Example ................................................................................... 13 4 TEST RESULT .......................................................................................................................................... 14 4.1 6dB and 26dB and 99% Occupied Bandwidth Measurement ......................................................... 14 4.2 Maximum Conducted Output Power Measurement ........................................................................ 17 4.3 Power Spectral Density Measurement ............................................................................................ 20 4.4 Unwanted Emissions Measurement ................................................................................................ 24 5 LIST OF MEASURING EQUIPMENT ........................................................................................................ 29 6 MEASUREMENT UNCERTAINTY ............................................................................................................ 30 APPENDIX A. RADIATED SPURIOUS EMISSION APPENDIX B. DUTY CYCLE PLOTS APPENDIX C. SETUP PHOTOGRAPHS Sporton International Inc. (Kunshan) Page Number : 3 of 30 TEL : +86-512-57900158 Report Issued Date : Jan. 18, 2024 Report Version : Rev. 01 Report Template No.: SCE Version 1.0 FCC RF Test Report Report No. : 970101-01A REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE 970101-01A Rev. 01 Initial issue of report Jan. 18, 2024 Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks o…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page Number : 1 of 63 TEL : +86-512-57900158 Report Issued Date : Aug. 30, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID: 2APJ4-SLM758 Report Template No.: BU5-FR15CBT Version 2.0 FCC RF Test Report Report No. : FR970101A FCC RF Test Report APPLICANT : MeiG Smart Technology Co., Ltd EQUIPMENT : SLM758 BRAND NAME : MEIGLink MODEL NAME : SLM758 FCC ID : 2APJ4-SLM758 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Jul. 01, 2019 and testing was completed on Aug. 01, 2019. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Jason Jia / Supervisor Approved by: James Huang / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 63 TEL : +86-512-57900158 Report Issued Date : Aug. 30, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID: 2APJ4-SLM758 Report Template No.: BU5-FR15CBT Version 2.0 FCC RF Test Report Report No. : FR970101A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification of Equipment Under Test ................................................................................ 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency Channel ............................................................................................................... 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 Hopping Channel Separation Measurement ................................................................................... 14 3.3 Dwell Time Measurement ................................................................................................................ 21 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 23 3.5 Output Power Measurement ............................................................................................................ 36 3.6 Conducted Band Edges Measurement............................................................................................ 38 3.7 Conducted Spurious Emission Measurement ................................................................................. 45 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 55 3.9 AC Conducted Emission Measurement........................................................................................... 59 3.10 Antenna Requirements .................................................................................................................... 61 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 62 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 63 APPENDIX A. AC CONDUCTED EMISSION TEST RESULT APPENDIX B. RADIATED SPURIOUS EMISSION APPENDIX C. DUTY CYCLE PLOTS APPENDIX D. SETUP PHOTOGRAPHS Sporton International (Kunshan) Inc. Page Number : 3 of 63 TEL : +86-512-57900158 Report Issued Date : Aug. 30, 2019 F…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Page Number : 47 of 63 TEL : +86-512-57900158 Report Issued Date : Aug. 30, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID: 2APJ4-SLM758 Report Template No.: BU5-FR15CBT Version 2.0 FCC RF Test Report Report No. : FR970101A CSE Plot on Ch 39 between 30MHz ~ 3 GHz CSE Plot on Ch 39 between 2 GHz ~ 25 GHz 720510 720510 Sporton International (Kunshan) Inc. Page Number : 48 of 63 TEL : +86-512-57900158 Report Issued Date : Aug. 30, 2019 FAX : +86-512-57900958 Report Version : Rev. 01 FCC ID: 2APJ4-SLM758 Report Te…
