  3. 2APJ4-SR838IPRO

2APJ4-SR838IPRO5G CPE

MeiG Smart Technology Co., Ltd
5G CPE - FCC ID 2APJ4-SR838IPRO - MeiG Smart Technology Co., Ltd
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 25, 2023
Application Purpose
Original Equipment
Date of Application
Jul 17, 2023
Equipment Note
5G CPE
Frequency Range
1853.30000000 - 1900.00000000
Company
MeiG Smart Technology Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

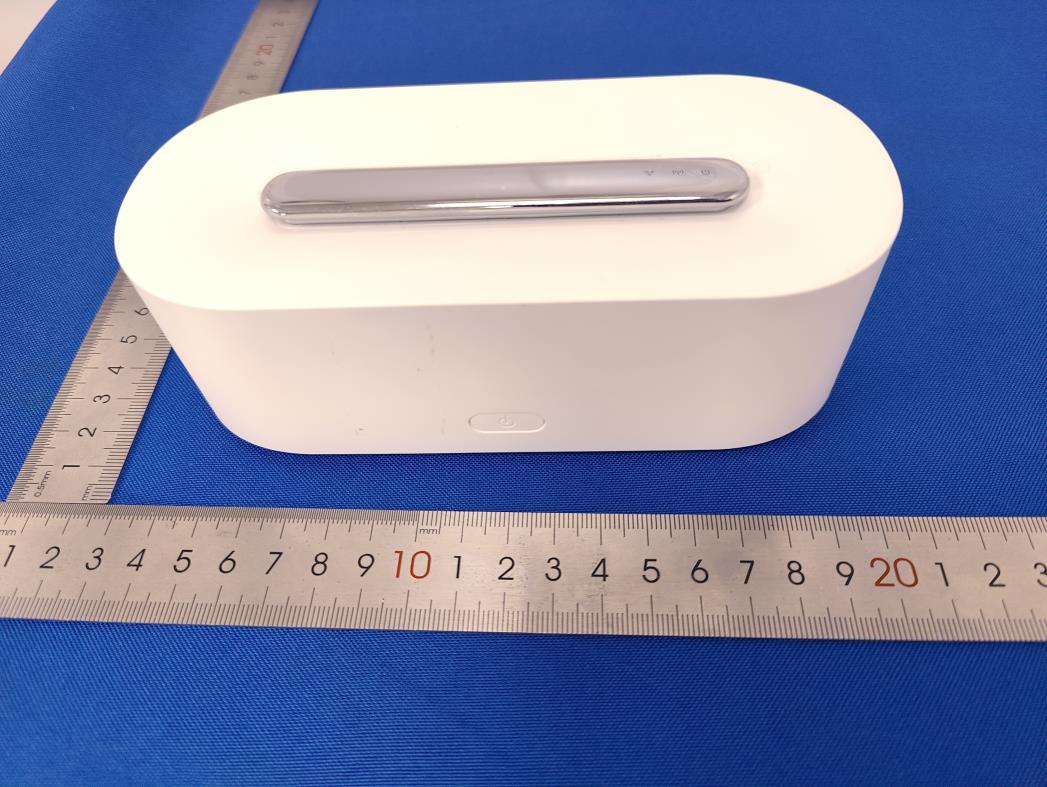

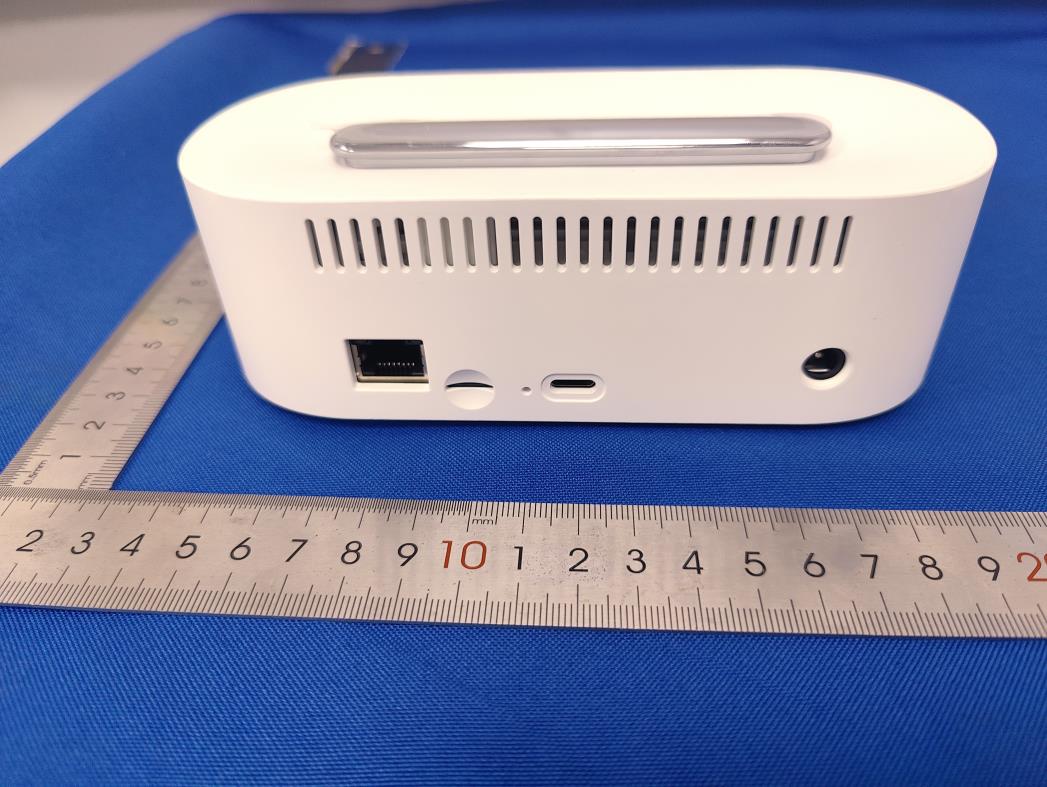

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Part Number: Issue: 01 1 Packing List 2 Appearance ItemDescriptionQty. 5G Indoor CPE SRT838iPro-SA 1 Power Adapter (12V)1 Cat5e Ethernet Cable (1.2m)1 ItemDescriptionQty. Quick Start Guide 1 Certificate of Conformity 1 Item Description Wi-FiIndicator ForthedetailsofIndicatorstatus,gotonextchapter.4G/5GIndicator PowerIndicator Power/WPSButton •Pressfor0.2-1stoenableWPS. •Pressformorethan3stopoweroffthedevice. •Pressformorethan10storebootthedevice. SIMCardSlot4FF,nano-SIMcard ResetButtonPressformorethan3storestorethedevicetofactoryconfiguration. USBPort •[WithoutETH]:USBtypeC3.0(USBOTG) •[WithETH]:USBtypeC2.0(Onlyfordebug) PowerInput AC:100V~240V,50Hz/60Hz DC:12V/1.5A WAN/LANPort[WithETH]:WAN/LANGELANport,supporting10/100/1000Mbit/s Option A:[Without ETH] Option B:[With ETH] Power/WPS button Power input USB TypeC3.0 port SIM card slot (4FF Nano-SIM) Reset button Wi-Fi indicator 4G/5G indicator Power indicator Power/WPS button Power input USB TypeC2.0 port SIM card slot (4FF Nano-SIM) Reset button WAN/LAN port Wi-Fi indicator 4G/5G indicator Power indicator 3 Installation 3. Connect cables and power on the device. DonotinsetorremoveSIMcardwhentherouterisrunning,asthismayaffectperformanceordamagetheSIMcard. 1.Insert a standard SIM card. •When the power adapter is inserted, the CPE will automatically power on. •It’s strongly suggested to change the default SSID and password by accessing to the WebUIWi-Fi management page to prevent unauthorized access to your Wi-Fi network. •You need to reconnect to the CPE Wi-Fi network after changing the Wi-Fi password. LAN/USB NodeB Wi-Fi Device management server Uuinterface CPE 2. Place the CPE on a stationary working table. Method1:Wirelessconnection Youcanconnectyourcomputerormobilephone totheCPEWi-Finetwork. Method2:Cableconnection YoucanaccesstheinternetthroughtheLANport. OptionA:WithoutETH OptionB:WithETH Indicator LED BehaviorStatus Power GreenSteadyCPE powered on. Blue BlinkingOngoing upgrade, or Restoring factory settings. Red SteadyThe device is faulty, or SIM card is abnormal. OffCPE powered off. Wi-Fi Blue SteadyWi-Fi is on. BlueBlinking Once per second: Ongoing upgrade. Five times every eight seconds: WPS is activating. Off Wi-Fi is off. 4G/5G Blue SteadyRegistered to 5G/4G network with strong signal. Blue BlinkingOnce per second: Ongoing upgrade, or Restoring factory settings. Green SteadyRegistered to 5G/4G network with good signal. Yellow SteadyRegistered to 5G/4G network with weak signal. Red BlinkingNo signals are available, or the device is searching for signals. OffPower off. For the CPE indicator status, see the following table: Item FrequencyTransmit PowerWi-Fi SRT838iPro-SA •5G NR: FDD: N2/N5/N7/N8/N25/N26N28/N66 TDD: N38/N41/N77/N78 •4G LTE: FDD: B2/B4/B5/B7/B8/B25/B26/B28/B66 TDD:B38/B41/B42/B43 •5G NR: N78: 27.5dBm N77: 25.5dBm N2/N5/N7/N8/N25/N26/N28/N3 8/N41/N66/N77: 25dBm •4G LTE: B2/B4/B5/B7/B8/B25/B26/B28/ B38/B41/B42/B43/B66: 24.5dBm •2.4GHz: 2400MHz~2483.5MHz: 23dBm •5GHz: 5150MHz~5350MHz: 20dBm 5470MHz~5850MHz: 20dBm FrequencyBandandOutputPower 4 5 Configuration Youcan access the WebUIand configure the device. You can refer to the CPE label on the backside of the CPE for the default IP address and password. 1.It is strongly recommended that you change the default login password of the WebUIto prevent unauthorized users from changing the settings. Contraseña Login to your account: English Please enter your username Please enter your password Log In Forget password? Username Password WebUILogin Page: CPE Label: •Ifanyexceptionoccurs,forexample,ifthedeviceemitsanysmoke orunusualsoundorsmell,stopusingthedeviceimmediately,power itoff,removeallthecablesconnectedtoit,andthencontactyour operator. •Donottrample,pull,oroverbendanycable.Otherwise,thecable maygetdamaged,causingmalfunctionofthedevice. •Donotusedamagedoragedcables.Usingsuchcablesmayleadto electricshocksorfire. •Beforecleaningormaintainingthedevice,stopusingit,poweritoff, andthenremoveallcablesconnectedtoit. •Donotplacemagneticstripecards,suchascreditcardsandphone cards,orfloppydisks,nearthedeviceforextendedperiodsoftime. Otherwise,themagneticstripecardsmaybedamagedorthestored datainthefloppydisksmaybelost. •Useaclean,soft,anddryclothtocleanthedeviceshell.Donotuse anychemicaldetergent,powder,orotherchemicalagentstoclean thedevice. •Withoutauthorization,noorganizationorindividualcanchangethe mechanical,safety,orperformancedesignofthedevice. •WhenusingtheCPE,observeallapplicablelawsandregulationsand respectthelegalrightsofotherpeople. EnvironmentalProtection •Donotdisposeofthedeviceanditsaccessoriesinagarbagecan. •Disposeofthedeviceaccordingtothelocalregulationsondisposing ofpackingmaterialsandabandoneddevices.Supportproper collectionandrecycling. (2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Changesormodificationsnotexpresslyapprovedbythemanufacturer responsibleforcompliancecouldvoid theuser'sauthoritytooperatetheequipment. Thisequipmenthasbeentestedandfoundtocomplywiththelimitsofa ClassBdigitaldevice,pursuantto RoHS for Environment Protection This device complies withtheRoHS Directive 2011/65/EU and other RoHS directivesinother countries. FCC Regulations FCCID: 2APJ4-SRT838 I P RO This device complies withpart15oftheFCCRules. Operationissubjectto thefollowing two conditions: (1) This device may not cause harmful interference. Part 15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferencein aresidentialinstallation.Thisequipmentgenerates,usesandcanradiate radiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation;ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipment offandon,theuserisencouragedtotrytocorrecttheinterferenceby oneormoreofthefollowingmeasures: •Reorient/reloca…

Text truncated - open the document above for the full version.

Attestation Statements

MeiG Smart Technology Co., Ltd MeiG Smart Technology Co., Ltd 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:06-30-2023 Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: 2APJ4-SR838IPRO TO WHOM IT MAY CONCERN: Hereby we certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Further we certify that, as of the date of the filing of the application, MeiG Smart Technology Co., Ltd is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, _______________ (Xinwei Lou) MeiG Smart Technology Co., Ltd FRN: 0027430412 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Contact Person: Xinwei Lou E-mail: [email protected]

Attestation Statements

MeiG Smart Technology Co., Ltd 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Date:2023-06-29 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2APJ4-SR838IPRO US Agent – Attestation Statement / Part 2.911(d)(7) MeiG Smart Technology Co., Ltd certifies, that as of 2023-06-29, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2APJ4-SR838IPRO. MeiG Smart Technology Co., Ltd, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of MeiG Smart Technology Co., Ltd for FCC ID: 2APJ4-SR838IPRO. The service term is covering product lifetime for one FCC ID. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: MeiG Smart Technology Co., Ltd FRN: 0027430412 Designated Agent: FCC US Agent, LLC Company Representative: Xinwei Lou Designated Agent Representative: Tim Payne Signature: Signature:

Cover Letter(s)

MeiG Smart Technology Co., Ltd 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Power of Attorney Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2023-6-30 SUBJECT: FCC Application for (FCC ID: 2APJ4-SR838IPRO) To Whom It May Concern: We, the undersigned, hereby authorize Well Wei at SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SGS-CSTC Standards Technical Services Co., Ltd. Suzhou Branch on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) Contact Person: Xinwei Lou E-mail: [email protected]

Cover Letter(s)

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2023-06-30> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID: 2APJ4-SR838IPRO Model name: SRT838iPro For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Description The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device, which is planned for <2023-12-30 > If you have any questions, please feel free to contact me at the address shown below. Sincerely, MeiG Smart Technology Co., Ltd 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Contact Person: Xinwei Lou E-mail: [email protected]

External Photos

Page 1 of 4 1 Photographs - EUT Constructional Details Page 2 of 4 Page 3 of 4 Page 4 of 4

Internal Photos

Page 1 of 11 1 Photographs - EUT Constructional Details Page 2 of 11 Page 3 of 11 Page 4 of 11 Page 5 of 11 Page 6 of 11 Page 7 of 11 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11 BAND Ant0 Ant1 Ant2 Ant3 Ant4 Ant5 W0 W1 B2 TRX1 DRX TRX0 B4 TRX1 DRX TRX0 B5 TRX DRX B7 TRX1 DRX TRX0 B25 TRX1 DRX TRX0 B26 TRX DRX B66 TRX1 DRX TRX0 B42 TRX0 DRX TRX1/PRXMIMO DRXMIMO B43 TRX0 DRX TRX1/PRXMIMO DRXMIMO B38/B41 TRX1 DRXMIMO DRX TRX0 PRXMIMO N38/N41 TRX1 DRXMIMO DRX TRX0 PRXMIMO N2 TRX1 DRX TRX0 N5 TRX DRX N7 TRX1 DRX TRX0 N25 TRX1 DRX TRX0 N26 TRX DRX N66 TRX1 DRX TRX0 N77 TRX0 DRX TRX1/PRXMIMO DRXMIMO N78 TRX0 DRX TRX1/PRXMIMO DRXMIMO 2.4G&5G 0 1 2.4G&5G 1 1

RF Exposure Info

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 1 of 11 Authorized Signature: Well Wei Wireless Laboratory Manager TEST REPORT Application No.: SEWM2306000193RG Applicant: MeiG Smart Technology Co., Ltd Address of Applicant: 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Manufacturer: MeiG Smart Technology Co., Ltd Address of Manufacturer: 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen EUT Description: 5G CPE Model No.: SRT838iPro Trade Mark: MEIGLink FCC ID: 2APJ4-SR838IPRO Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2023/06/08 Date of Issue: 2023/06/30 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 2 of 11 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/06/30 Original Prepared By (Nick Hu) / Test Engineer Checked By (Stone Gu) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 3 of 11 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 7 3.1 RF Exposure Compliance Requirement ................................................................ 7 3.1.1 Limits ................................................................................................................. 7 3.1.2 Test Procedure .................................................................................................. 8 3.1.3 EUT RF Exposure Evaluation ............................................................................ 8 3.1.4 Exposure calculations for multiple sources ...................................................... 11 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 4 of 11 2 General Information 2.1 Client Information Applicant: MeiG Smart Technology Co., Ltd Address of Applicant: 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen Manufacturer: MeiG Smart Technology Co., Ltd Address of Manufacturer: 2nd Floor,Office Building,No.5 Lingxia Road,Fenghuang,Fuyong Street,Bao'an District,Shenzhen 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 5 of 11 2.3 General Description of EUT EUT Description: 5G CPE Model No.: SRT838iPro Trade Mark: MEIGLink Hardware Version: SRT838PRO_BOARD_V1.00_PCB Software Version: SRT838iPro-SA_6.0.6_EQ100 Antenna Type: External, Integrated Antenna Gain: LTE Band 2: -0.34dBi(Ant0) 0.89dBi(Ant1) 1.15dBi(Ant3) LTE Band 4: -0.60dBi(Ant0) 0.55dBi(Ant1) -0.29dBi(Ant3) LTE Band 5: -2.08dBi(Ant0) -1.19dBi(Ant1) LTE Band 7: 2.00dBi(Ant0) 0.86dBi(Ant1) 0.75dBi(Ant3) LTE Band 25: -0.34dBi(Ant0) 0.89dBi(Ant1) 1.15dBi(Ant3) LTE Band 26: -2.08dBi(Ant0) -1.19dBi(Ant1) LTE Band 38: 1.84dBi(Ant0) 0.66dBi(Ant1) -0.54dBi(Ant3) LTE Band 41: 2.00dBi(Ant0) 0.90dBi(Ant1) 0.75dBi(Ant3) LTE Band 42: 2.23dBi(Ant2) 2.25dBi(Ant3) 2.23dBi(Ant4) 2.24dBi(Ant5) LTE Band 43: 2.26dBi(Ant2) 2.22dBi(Ant3) 2.18dBi(Ant4) 2.19dBi(Ant5) LTE Band 66: -0.60dBi(Ant0) 0.90dBi(Ant1) -0.13dBi(Ant3) LTE CA_2C: -0.34dBi(Ant0) 0.89dBi(Ant1) 1.15dBi(Ant3) LTE CA_5B: -2.08dBi(Ant0) -1.19dBi(Ant1) LTE CA_7C: 2.00dBi(Ant0) 0.86dBi(Ant1) 0.75dBi(Ant3) LTE CA_41C: 2.00dBi(Ant0) 0.90dBi(Ant1) 0.75dBi(Ant3) LTE CA_42C: 2.23dBi(Ant2) 2.25dBi(Ant3) 2.23dBi(Ant4) 2.24dBi(Ant5) LTE CA_66B: -0.60dBi(Ant0) 0.90dBi(Ant1) -0.13dBi(Ant3) LTE CA_66C: -0.60dBi(Ant0) 0.90dBi(Ant1) -0.13dBi(Ant3) NR Band n2: -0.34dBi(Ant0) 0.89dBi(Ant1) 1.15dBi(Ant3) NR Band n5: -2.08dBi(Ant0) -1.19dBi(Ant1) NR Band n7: 2.00dBi(Ant0) 0.86dBi(Ant1) 0.75dBi(Ant3) NR Band n25: -0.34dBi(Ant0) 0.89dBi(Ant1) 1.15dBi(Ant3) NR Band n26: -2.08dBi(Ant0) -1.19dBi(Ant1) NR Band n38: 1.84dBi(Ant0) 0.66dBi(Ant1) -0.54dBi(Ant3) NR Band n41: 2.00dBi(Ant0) 0.90dBi(Ant1) 0.75dBi(Ant3) NR Band n66: -0.60dBi(Ant0) 0.90dBi(Ant1) -0.13dBi(Ant3) NR Band n77: 2.26dBi(Ant2) 2.25dBi(Ant3) 2.23dBi(Ant4) 2.28dBi(Ant5) ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG05 Rev.: 01 Page: 6 of 11 NR Band n78: 2.26dBi(Ant2) 2.25dBi(Ant3) 2.23dBi(Ant4) 2.27dBi(Ant5) LTE CA: LTE UL CA_2C; LTE UL CA_5B; LTE UL CA_7C;LTE UL CA_41C; LTE UL CA_42C; LTE UL CA_66B; LTE UL CA_66C; LTE UL CA_2A-4A; LTE UL CA_2A-5A; LTE UL CA_2A-7A; LTE UL CA_2A-26A; LTE UL CA_2A-66A; LTE UL CA_4A-5A; LTE UL CA_4…

Text truncated - open the document above for the full version.

Test Report

Frequency/ Mhz MaxGain/dB i Efficiency / % Frequency/M hz MaxGain/dBi Efficiency / % Frequency/M hz MaxGain/dBi Efficiency / % 700 -2.46 34.66 1700 -0.68 32.86 2350145.6 705 -3.71 32.34 1710 -1.61 39.63 23601.35 47.86 710 -2.83 32.03 1720 -1.05 33.88 23701.43 47.42 715 -2.62 33.12 1730 -1.06 33.44 23801.45 48.42 720 -4.39 36.56 1740-0.6 35.76 23901.75 48.75 725 -3.43 36.79 1750 -1.6632.8 24001.16 51.29 730 -4.06 37.1 1760 -1.06 37.67 24101.87 50.82 735 -5.31 32.88 1770 -1.18 35.76 24201.24 52.84 740 -5.26 32.88 1780 -1.05 37.86 24301.47 53.33 745 -5.62 40.57 1790 -1.42 35.47 24401.44 51.76 750 -4.92 40.45 1800 -0.94 38.58 24501.8151.4 755 -4.38 41.4 1810-1.2 35.94 24601.06 53.95 760 -4.58 40.99 1820 -0.93 37.42 24701.62 57.02 765 -3.18 43.21 1830 -0.87 37.54 24801.22 51.76 770 -2.99 47.22 1840 -0.62 39.51 24901.58 52.48 775 -2.76 47.3 1850-0.7 38.05 25002 53.58 780 -2.26 40.42 1860 -0.55 39.38 25101.09 51.29 785 -2.79 42.13 1870 -0.71 38.31 25201.33 48.75 790 -2.08 42.44 1880 -0.51 39.99 25301.1151.4 795 -2.11 35.94 1890 -0.92 36.85 25401.48 54.45 800 -3.24 31.58 1900 -0.34 39.51 25501.62 52.48 805 -1.96 32.18 1910-0.836 25601.03 49.43 810 -2.28 34.66 1920 -0.74 36.06 25700.96 52.24 815 -3.11 39.05 1930 -0.91 33.88 25801.3353.7 820 -2.01 32.54 1940 -0.86 33.12 25901.57 51.17 825 -2.69 33.23 1950 -1.59 31.38 26001.74 52.72 830 -2.15 39.68 1960 -1.8833.5 26101.71 54.83 835 -2.22 33.17 1970 -0.99 36.06 26201.84 53.58 840 -3.77 37.78 1980 -0.29 38.77 26301.68 51.29 845 -2.08 38.11 1990 -0.67 36.67 26401.99 52.12 850-3 30.75 2000 -0.8440.2 26501.6752 855 -3.98 35.38 2010 -0.21 41.41 26601.1850 860 -3.15 30.37 2020 -0.04 40.97 26701.78 52.48 865 -3.42 33.99 2030 -0.52 39.11 26801.8250.7 870 -2.46 34.83 2040 -0.23 41.48 26901.42 51.05 875 -1.22 43.5 20500.58 43.81 27000.76 48.75 880 -2.91 37.99 20600.29 42.58 885 -1.08 42.89 20700.1 42.06 890 -0.58 47.41 20800.66 45.08 895 -2.3 38.44 20900.69 44.28 900 -0.4 45.08 21000.4 45.24 905 -1.15 43.27 21100.47 44.59 910 -1.2 40.69 21200.65 48.64 915 0.02 44.99 21300.78 47.07 920 -1.73 37.48 21400.58 48.19 925 0.01 42.21 21500.45 47.24 930 -0.11 42.14 21600.53 48.11 935 -1.2 35.29 21700.62 47.07 940 0.08 39.17 23000.58 42.27 945 -0.67 36.55 23100.36 41.21 950 0.18 37.04 23200.61 43.55 955 0.12 36.98 23301.07 45.19 960 -0.82 32.7 23400.9 46.67 A0 A1 Frequency/Mhz MaxGai n/dBi Efficienc y / % Frequenc y/Mhz MaxGain/ dBi Efficiency / % Frequency/Mhz MaxGain/dBi Efficiency / % 700 -2.69 26.06 1700 0.55 39.9923501.3550 705 -3.76 23.66 1710 0.3 36.4823601.07 49.89 710 -3.38 23.93 1720 0.23 44.6723701.81 46.99 715 -3.1 26.92 1730 0.0345.523801.56 45.19 720 -4.61 20.99 1740 0.55 50.2323901.52 43.15 725 -3.36 23.23 1750 -0.0245.524001.45 44.67 730 -3.18 26.18 1760 0.9 54.8324101.4741.4 735 -3.68 21.09 1770 0.75 51.5224201.3 43.85 740 -3.27 22.03 1780 0.0754.724301.4 42.76 745 -3.72 28.62 1790 -0.19 49.7724401.82 40.46 750 -3.26 28.49 1800 0.31 55.3424500.92 38.19 755 -3.17 28.37 1810 0.12 50.5824601.6 41.21 760 -4.1 25.24 1820 0.35 52.4824701.04 42.66 765 -3.2 26.07 1830 0.44 52.4824801.63 38.64 770 -3.23 28.49 1840 0.71 56.6224901.2 38.99 775 -3.39 27.06 1850 0.7 53.3325000.5236.9 780 -2.85 29.19 1860 0.79 55.8525100.8637.5 785 -3.51 30.14 1870 0.552.625200.52 36.98 790 -2.81 30.46 1880 0.78 55.7225300.4 38.73 795 -2.88 33.99 1890 0.48 49.6625400.26 40.27 800 -3.68 30.37 1900 0.89 55.0825500.24 38.73 805 -2.33 32.03 1910 0.3749.22560-0.52 36.48 810 -2.45 35.82 1920 0.67522570-0.6137.5 815 -3.22 30.18 1930 0.86 49.432580-0.02 37.93 820 -2.27 33.88 1940 0.365225900.11 36.31 825 -2.66 35.29 1950 0.82 46.9926000.57 37.67 830 -2.03 32.59 1960 0.02 50.5826100.4638.9 835 -1.86 37.73 1970 0.34 51.6426200.66 38.19 840 -3.28 32.18 1980 0.8 55.5926300.54 37.15 845 -1.19 33.5 1990 0.7 47.6426400.9 37.24 850 -1.58 37.1 2000 0.83 52.9726500.77 37.41 855 -2.81 28.41 2010 0.98 51.6426600.24 35.24 860 -2.22 30.28 2020 0.08 50.9326700.7936.9 865 -3.64 28.71 2030 0.01 45.3926800.8 34.36 870 -3.12 25.35 2040 0.2949.226900.69 34.83 875 -3.6 27.1 2050 0.565027000.35 31.77 880 -5.45 22.62 2060 0.54 48.31 885 -3.97 24.55 2070 -0.1445.6 890 -4.29 26.14 2080 0.350 895 -5.3 22.02 2090 0.2 46.67 900 -4.37 24.93 2100 0.87 48.19 905 -4.85 24.32 2110 -0.15 46.13 910 -4.49 23.71 2120 0.39 52.36 915 -3.89 25.45 2130 0.35 49.55 920 -5.02 22.05 2140 0.4550.7 925 -3.81 24.83 2150 0.2349.2 930 -3.79 24.93 2160 0.28 49.66 935 -4.33 21.83 2170 0.13 47.64 940 -3.36 23.93 2300 1.58 51.52 945 -3.9 23.06 2310 1.4850.7 950 -3.31 23.8 2320 1.12 51.76 955 -3.19 23.61 2330 1.44 53.33 A2 Frequency/MhzMaxGain/dBi Efficiency / % Frequency/Mhz MaxGain/dBi Efficiency / % 33001.853.2141601.4648.42 33201.9952.641801.9447.32 33402.1655.8542002.0151.29 33602.1454.8342201.9846.99 33802.2158.0842402.250.35 34002.1459.4342602.1450.93 34202.1254.3342802.1850.58 34402.0960.6743002.0857.81 34602.0357.1543202.156.75 34802.1262.0943402.1757.68 35002.1760.6743602.0453.95 35202.0760.5343802.2454.95 35402.0966.0744001.5254.2 35602.1562.6644200.8548.64 35802.2367.7644400.9452 36002.0965.4644600.3447.21 36202.0664.7144800.4846.45 36402.165.4645000.1648.31 36602.1663.6845200.9852.48 36802.1570.3145400.7458.75 37002.2658.8845600.7750.35 37202.2261.845800.4955.34 37402.160.3946000.8253.46 37602.1859.1646200.2953.58 37802.0957.1546400.2250.58 38002.1452.484660-0.247.64 38202.1455.3446800.0347.86 38401.6449.434700-0.3844.57 38602.2450.824720-0.0248.08 38801.9251.8847400.5152.84 39002.1649.8947600.8150.58 39202.0250.4747801.0155.46 39402.1744.9848001.1252.84 39602.1348.9848201.2860.53 39802.1244.2648400.9952.6 40002.1346.1348600.8554.58 40202.1446.5648800.6951.05 40402.0444.264900-0.1949.09 40602.1146.134920-0.4149.89 4080245.714940-0.7447.64 41002.0549.324960-0.2952.72 41201.847.324980-0.2348.98 41401.944.8750000.2950.23 A3 Freque ncy/M hz MaxGa in/dBi Efficie ncy / % Freque ncy/Mh z MaxGai n/dBi Efficien cy / % Freque ncy/Mh z MaxGai n/dBi Efficien cy / % Freque ncy/Mh z MaxGai n/dBi Efficien cy / % 1700 -0.46 26.83 2190 0.06 36.06 2…

Text truncated - open the document above for the full version.

Test Report

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG01 Rev.: 01 Page: 1 of 96 Appendix B.1 LTE Band 2 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG01 Rev.: 01 Page: 2 of 96 Effective (Isotropic) Radiated Power Output Data Test Result Ant3: Band Bandwidth Modulation Channel RB Configuration Result (dBm) EIRP (dBm) Limit (dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 23.14 24.29 33 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.24 24.39 33 PASS Band2 1.4MHz QPSK 18607 1RB#5 23.16 24.31 33 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.21 23.36 33 PASS Band2 1.4MHz QPSK 18900 1RB#0 23.12 24.27 33 PASS Band2 1.4MHz QPSK 18900 1RB#2 23.25 24.4 33 PASS Band2 1.4MHz QPSK 18900 1RB#5 23.20 24.35 33 PASS Band2 1.4MHz QPSK 18900 6RB#0 22.27 23.42 33 PASS Band2 1.4MHz QPSK 19193 1RB#0 23.00 24.15 33 PASS Band2 1.4MHz QPSK 19193 1RB#2 22.83 23.98 33 PASS Band2 1.4MHz QPSK 19193 1RB#5 22.80 23.95 33 PASS Band2 1.4MHz QPSK 19193 6RB#0 21.87 23.02 33 PASS Band2 1.4MHz 16QAM 18607 1RB#0 22.29 23.44 33 PASS Band2 1.4MHz 16QAM 18607 1RB#2 22.20 23.35 33 PASS Band2 1.4MHz 16QAM 18607 1RB#5 22.25 23.4 33 PASS Band2 1.4MHz 16QAM 18607 6RB#0 21.26 22.41 33 PASS Band2 1.4MHz 16QAM 18900 1RB#0 22.37 23.52 33 PASS Band2 1.4MHz 16QAM 18900 1RB#2 22.40 23.55 33 PASS Band2 1.4MHz 16QAM 18900 1RB#5 22.35 23.5 33 PASS Band2 1.4MHz 16QAM 18900 6RB#0 21.35 22.5 33 PASS Band2 1.4MHz 16QAM 19193 1RB#0 21.99 23.14 33 PASS Band2 1.4MHz 16QAM 19193 1RB#2 22.04 23.19 33 PASS Band2 1.4MHz 16QAM 19193 1RB#5 22.03 23.18 33 PASS Band2 1.4MHz 16QAM 19193 6RB#0 20.86 22.01 33 PASS Band2 1.4MHz 64QAM 18607 1RB#0 21.30 22.45 33 PASS Band2 1.4MHz 64QAM 18607 1RB#2 21.37 22.52 33 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG01 Rev.: 01 Page: 3 of 96 Band2 1.4MHz 64QAM 18607 1RB#5 21.24 22.39 33 PASS Band2 1.4MHz 64QAM 18607 6RB#0 20.30 21.45 33 PASS Band2 1.4MHz 64QAM 18900 1RB#0 21.24 22.39 33 PASS Band2 1.4MHz 64QAM 18900 1RB#2 21.41 22.56 33 PASS Band2 1.4MHz 64QAM 18900 1RB#5 21.33 22.48 33 PASS Band2 1.4MHz 64QAM 18900 6RB#0 20.36 21.51 33 PASS Band2 1.4MHz 64QAM 19193 1RB#0 21.01 22.16 33 PASS Band2 1.4MHz 64QAM 19193 1RB#2 21.05 22.2 33 PASS Band2 1.4MHz 64QAM 19193 1RB#5 20.94 22.09 33 PASS Band2 1.4MHz 64QAM 19193 6RB#0 19.89 21.04 33 PASS Band2 1.4MHz 256QAM 18607 1RB#0 18.33 19.48 33 PASS Band2 1.4MHz 256QAM 18607 1RB#2 18.40 19.55 33 PASS Band2 1.4MHz 256QAM 18607 1RB#5 18.23 19.38 33 PASS Band2 1.4MHz 256QAM 18607 6RB#0 18.30 19.45 33 PASS Band2 1.4MHz 256QAM 18900 1RB#0 18.29 19.44 33 PASS Band2 1.4MHz 256QAM 18900 1RB#2 18.28 19.43 33 PASS Band2 1.4MHz 256QAM 18900 1RB#5 18.27 19.42 33 PASS Band2 1.4MHz 256QAM 18900 6RB#0 18.25 19.4 33 PASS Band2 1.4MHz 256QAM 19193 1RB#0 17.99 19.14 33 PASS Band2 1.4MHz 256QAM 19193 1RB#2 18.03 19.18 33 PASS Band2 1.4MHz 256QAM 19193 1RB#5 18.01 19.16 33 PASS Band2 1.4MHz 256QAM 19193 6RB#0 17.92 19.07 33 PASS Band2 3MHz QPSK 18615 1RB#0 23.12 24.27 33 PASS Band2 3MHz QPSK 18615 1RB#8 23.31 24.46 33 PASS Band2 3MHz QPSK 18615 1RB#14 23.16 24.31 33 PASS Band2 3MHz QPSK 18615 5RB#0 22.23 23.38 33 PASS Band2 3MHz QPSK 18900 1RB#0 23.28 24.43 33 PASS Band2 3MHz QPSK 18900 1RB#8 23.20 24.35 33 PASS Band2 3MHz QPSK 18900 1RB#14 23.12 24.27 33 PASS Band2 3MHz QPSK 18900 5RB#0 22.32 23.47 33 PASS Band2 3MHz QPSK 19185 1RB#0 22.91 24.06 33 PASS Band2 3MHz QPSK 19185 1RB#8 22.99 24.14 33 PASS Band2 3MHz QPSK 19185 1RB#14 22.89 24.04 33 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG01 Rev.: 01 Page: 4 of 96 Band2 3MHz QPSK 19185 5RB#0 21.93 23.08 33 PASS Band2 3MHz 16QAM 18615 1RB#0 22.18 23.33 33 PASS Band2 3MHz 16QAM 18615 1RB#8 22.55 23.7 33 PASS Band2 3MHz 16QAM 18615 1RB#14 22.27 23.42 33 PASS Band2 3MHz 16QAM 18615 5RB#0 21.29 22.44 33 PASS Band2 3MHz 16QAM 18900 1RB#0 22.34 23.49 33 PASS Band2 3MHz 16QAM 18900 1RB#8 22.35 23.5 33 PASS Band2 3MHz 16QAM 18900 1RB#14 22.19 23.34 33 PASS Band2 3MHz 16QAM 18900 5RB#0 21.38 22.53 33 PASS Band2 3MHz 16QAM 19185 1RB#0 22.06 23.21 33 PASS Band2 3MHz 16QAM 19185 1RB#8 22.25 23.4 33 PASS Band2 3MHz 16QAM 19185 1RB#14 21.87 23.02 33 PASS Band2 3MHz 16QAM 19185 5RB#0 21.01 22.16 33 PASS Band2 3MHz 64QAM 18615 1RB#0 21.32 22.47 33 PASS Band2 3MHz 64QAM 18615 1RB#8 21.53 22.68 33 PASS Band2 3MHz 64QAM 18615 1RB#14 21.37 22.52 33 PASS Band2 3MHz 64QAM 18615 5RB#0 20.32 21.47 33 PASS Band2 3MHz 64QAM 18900 1RB#0 21.38 22.53 33 PASS Band2 3MHz 64QAM 18900 1RB#8 21.41 22.56 33 PASS Band2 3MHz 64QAM 18900 1RB#14 21.26 22.41 33 PASS Band2 3MHz 64QAM 18900 5RB#0 20.40 21.55 33 PASS Band2 3MHz 64QAM 19185 1RB#0 20.93 22.08 33 PASS Band2 3MHz 64QAM 19185 1RB#8 21.16 22.31 33 PASS Band2 3MHz 64QAM 19185 1RB#14 21.01 22.16 33 PASS Band2 3MHz 64QAM 19185 5RB#0 20.01 21.16 33 PASS Band2 3MHz 256QAM 18615 1RB#0 18.33 19.48 33 PASS Band2 3MHz 256QAM 18615 1RB#8 18.30 19.45 33 PASS Band2 3MHz 256QAM 18615 1RB#14 18.30 19.45 33 PASS Band2 3MHz 256QAM 18615 5RB#0 18.31 19.46 33 PASS Band2 3MHz 256QAM 18900 1RB#0 18.31 19.46 33 PASS Band2 3MHz 256QAM 18900 1RB#8 18.44 19.59 33 PASS Band2 3MHz 256QAM 18900 1RB#14 18.26 19.41 33 PASS Band2 3MHz 256QAM 18900 5RB#0 18.26 19.41 33 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2306000193RG01 Rev.: 01 Page: 5 of 96 Band2 3MHz 256QAM 19185 1RB#0 18.04 19.19 33 PASS Band2 3MHz 256QAM 19185 1RB#8 17.99 19.14 33 PASS Band2 3MHz 256QAM 19185 1RB#14 18.03 19.18 33 PASS Band2 3MHz 256QAM 19185 5RB#0 18.06 19.21 33 PASS Band2 5MHz QPSK 18625 1RB#0 23.21 24.36 33 PASS Band2 5MHz QPSK 18625 1RB#12 23.17 24.32 33 PASS Band2 5MHz QPSK 18625 1RB#24 23.15 24.3 33 PASS Band2 5MHz QPSK 18625 25RB#0 22.16 23.31 33 PASS Band2 5MHz QPSK 18900 1RB#0 23.33 24.48 33 PASS Band2 5MHz QPSK 18900 1RB#12 23.26 24.41 33 PASS Band2 5MHz QPSK 18900 1RB#24 23.12 24.27 33 PASS Band2 5MHz QPSK 18900 25RB#0 22.21 23.36 33 PASS Band2 5MHz QPSK 19175 1RB#0 22.87 24.02 33 PASS Band2 5MH…

Text truncated - open the document above for the full version.

Test Report

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM23060001…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Xinwei Lou(HW test Leader)
[email protected]021-54278676Fax: 021-54278679

Test Firm

SGS-CSTC Standards Technical Services (Suzhou) Co.Well Wei
[email protected]+86 18550371893

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
10924E1.85 GHz - 1.90 GHz267.30 mW27M7G7D2.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is ERP for Part 22H for frequencies below 1 GHz, and EIRP for Part 24E and 27 for frequencies above 1 GHz, and Part 90 for LTE Band 26 and NR B26 are conducted power. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. Integrators and End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device supports bandwidths of 5/10/15/20 MHz for LTE Bands 7, 38, 41, 42, 43; bandwidths of 1.4/3/5/10 MHz for LTE Band 5; bandwidths of 1.4/3/5/10/15/20 MHz for LTE Bands 2, 4, 25, 66; bandwidths of 1.4/3/5/10/15 MHz for LTE Bands 26. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range1 5G NR modes of 5/10/15/20 MHz bandwidth for Band n2, n5, n26; 5/10/15/20/25/30/40 MHz bandwidth for Bands n7, n25; 10/15/20//30/40 MHz bandwidth for n38; 5/10/15/20/30/40 MHz bandwidth for Bands n66; 10/15/20/30/40/50/60/70/80/90/100 MHz bandwidth for Bands n77, n78. Certification of 3GPP 5G NR band n77, n78 operations is limited to the 3.45 GHz segment under Part 27.5(o) and the 3.7 GHz segment under Part 27.5(m). Frequency Range1 5G NR ENDC and NR uplink carrier aggregation modes are supported by this device, as described in this filing.
