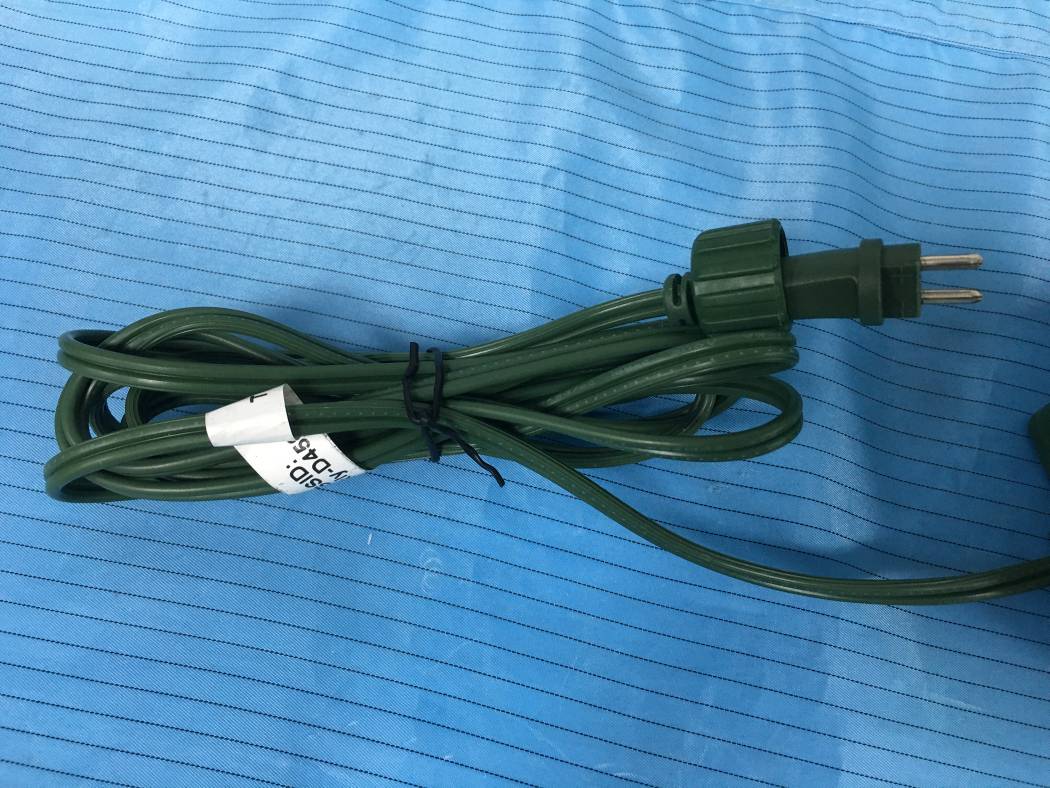

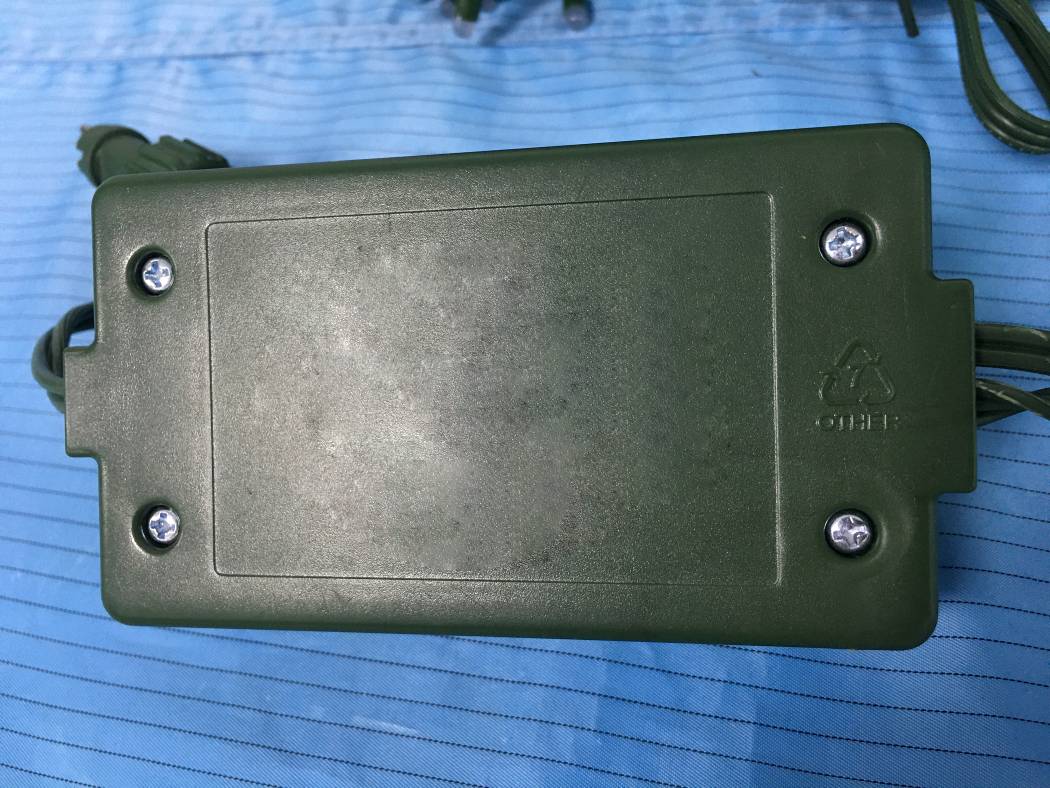

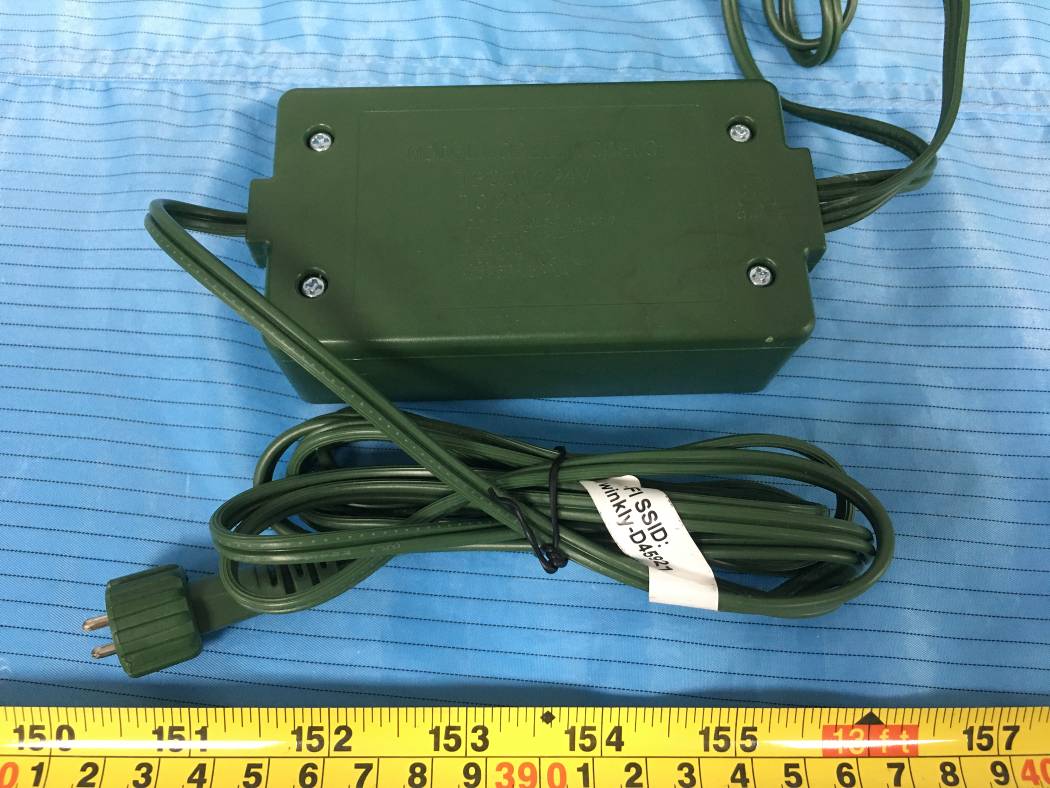

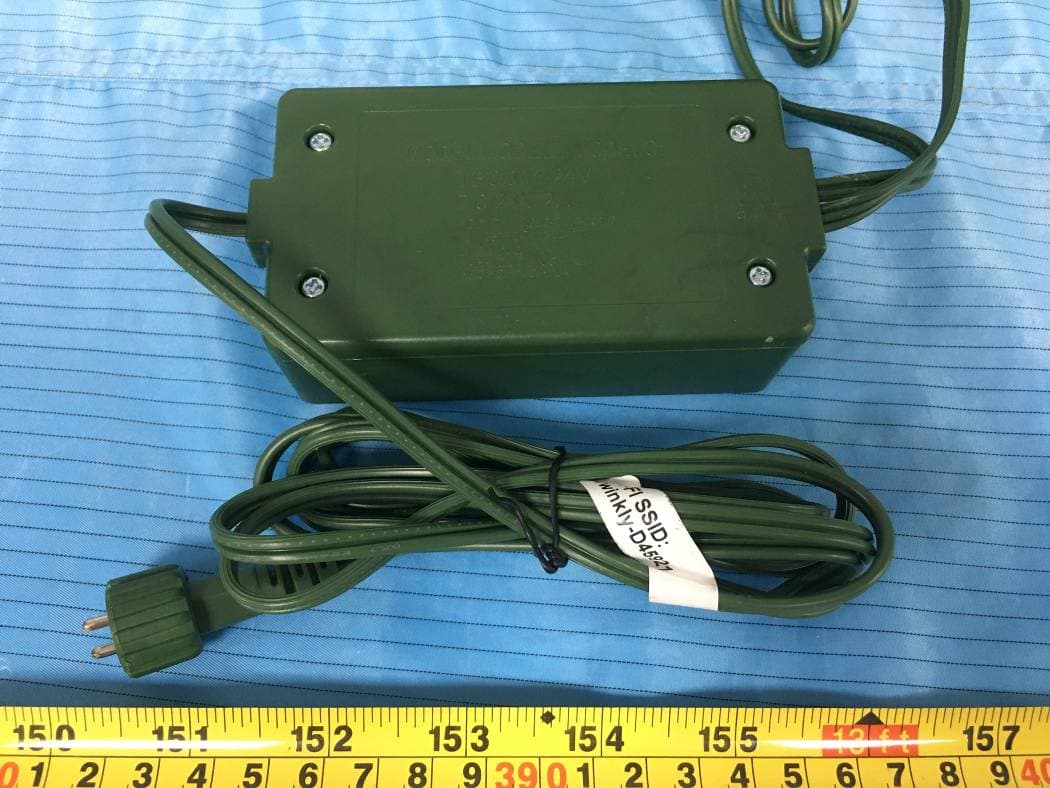

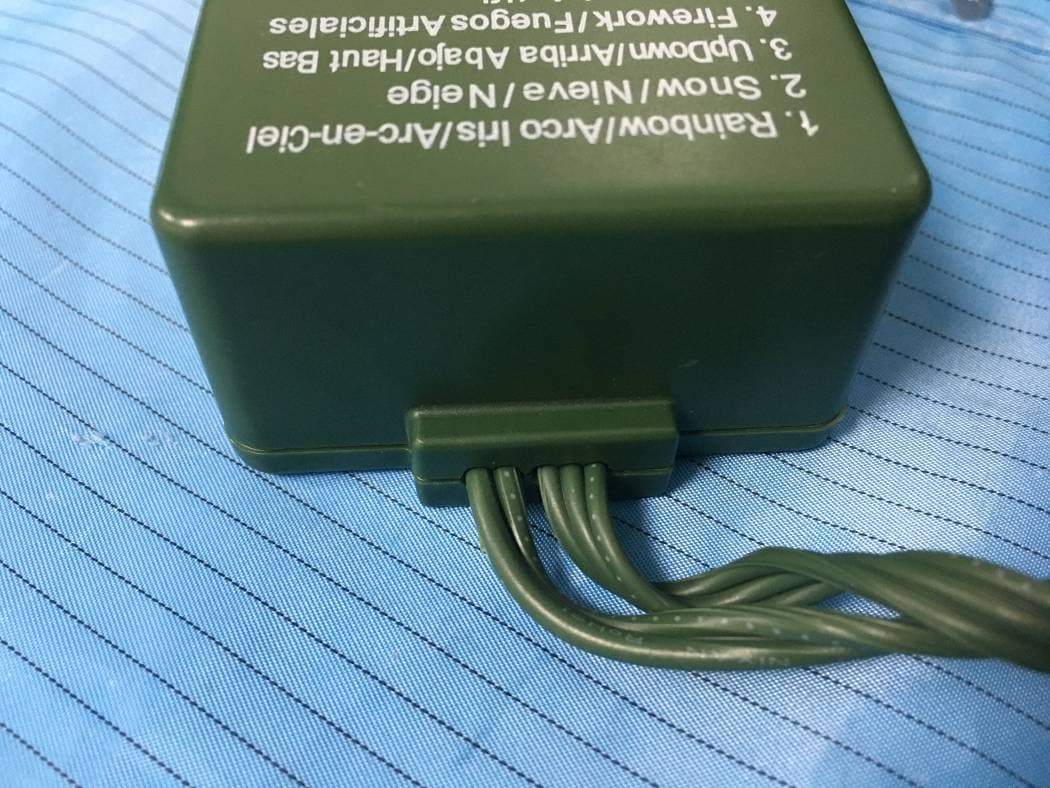

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Wi-Fi/Bluetooth Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B FCC Part 15.247 Page 12 of 29 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Turn up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2402-2480 2 1.58 5.0 3.16 20 0.001 1 2412-2472 2 1.58 21 125.89 20 0.04 1 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Polygroup Trading Limited Unit 606,Fairmont House,8 Cotton Tree Drive, Central, Hong Kong, China FCC ID: 2APJZ-TW200117 Report Type: Original Report Product Type: Controller Report Number: RSZ200224810-00 Report Date: 2020-03-06 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200224810-00 FCC Part 15.247 Page 2 of 31 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST RESULTS SUMMARY…

Text truncated - open the document above for the full version.

AppendixA: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict 11B Ant1 2412 10.160 0.5 PASS 2442 10.120 0.5 PASS 2472 10.160 0.5 PASS 11G Ant1 2412 16.600 0.5 PASS 2442 16.600 0.5 PASS 2472 16.600 0.5 PASS 11N20SISO Ant1 2412 17.760 0.5 PASS 2442 17.760 0.5 PASS 2472 17.760 0.5 PASS 11N40SISO Ant1 2422 36.720 0.5 PASS 2442 36.800 0.5 PASS 2462 36.640 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2442 11B_Ant1_2472 11G_Ant1_2412 11G_Ant1_2442 11G_Ant1_2472 11N20SISO_Ant1_2412 11N20SISO_Ant1_2442 11N20SISO_Ant1_2472 11N40SISO_Ant1_2422 11N40SISO_Ant1_2442 11N40SISO_Ant1_2462 AppendixC: Maximum Peak Conducted Output Power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 20.58 <=30 PASS 2442 19.27 <=30 PASS 2472 17.19 <=30 PASS 11G Ant1 2412 20.27 <=30 PASS 2442 19.05 <=30 PASS 2472 17.00 <=30 PASS 11N20SISO Ant1 2412 20.39 <=30 PASS 2442 19.17 <=30 PASS 2472 17.16 <=30 PASS 11N40SISO Ant1 2422 7.21 <=30 PASS 2442 6.68 <=30 PASS 2462 6.36 <=30 PASS AppendixD: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -10.59 <=8 PASS 2442 -11.85 <=8 PASS 2472 -12.95 <=8 PASS 11G Ant1 2412 -16.25 <=8 PASS 2442 -17.46 <=8 PASS 2472 -18.52 <=8 PASS 11N20SISO Ant1 2412 -15.42 <=8 PASS 2442 -16.62 <=8 PASS 2472 -17.72 <=8 PASS 11N40SISO Ant1 2422 -27.01 <=8 PASS 2442 -26.97 <=8 PASS 2462 -27.37 <=8 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2442 11B_Ant1_2472 11G_Ant1_2412 11G_Ant1_2442 11G_Ant1_2472 11N20SISO_Ant1_2412 11N20SISO_Ant1_2442 11N20SISO_Ant1_2472 11N40SISO_Ant1_2422 11N40SISO_Ant1_2442 11N40SISO_Ant1_2462 AppendixE:Band edge measurements Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2472 11G_Ant1_Low_2412 11G_Ant1_High_2472 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2472 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2462 AppendixG: DutyCycle Test Result TestMode AntennaChannel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2442 30.00 30.00 100.00 11G Ant1 2442 30.00 30.00 100.00 11N20SISO Ant1 2442 30.00 30.00 100.00 11N40SISO Ant1 2442 30.00 30.00 100.00 Test Graphs 11B_Ant1_2442 11G_Ant1_2442 11N20SISO_Ant1_2442 11N40SISO_Ant1_2442

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict BLE Ant1 2402 0.652 0.5 PASS 2440 0.652 0.5 PASS 2480 0.648 0.5 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Appendix B: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 4.65 <=30 PASS 2440 3.65 <=30 PASS 2480 1.85 <=30 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Appendix C: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -11.17 <=8 PASS 2440 -12.67 <=8 PASS 2480 -14.45 <=8 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B AppendixD:Band edge measurements Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Appendix E: Duty Cycle Test Result TestMode AntennaChannel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] BLE Ant1 2440 2.08 2.50 83.20 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B Test Graphs BLE_Ant1_2440

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Polygroup Trading Limited Unit 606,Fairmont House,8 Cotton Tree Drive, Central, Hong Kong, China FCC ID: 2APJZ-TW200117R Report Type: Original Report Product Type: Controller Re port Number: RSZ200504815-00B Re port Date: 2020-06-02 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200504815-00B FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 RESULT ...................................................................................................................................................................... 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST RESULTS SUM…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
