2APPZ-X3SWIP Phone

Quick Installation Guide Fanvil Technology Co., Ltd www.fanvil.com X3SW V101 - 4 - Programmable keys 1. You can configure shortcuts for the programmable keys. 2. Press Menu > Basic > Keyboard, select among the configurable items, and select your desired type and value, press OK key. Do not disturb 1. Press DND soft key, and enable the device do not disturb mode. 2. Or press Menu > Features > DND, and select the Mode and Type, and press OK key. Voice mail 1. To access your voice mailbox, press or Menu > Message > Voice Message, number of messages will be indicated if provided by your server or pbx. 2. Select the line and press Play to call. Call list Phonebook Access phonebook: Add new entry: 1. Press or Contact soft key or Menu > Contact > Local Contacts. 2. Select All Contacts or other group. 3. To dial an entry, press Dial soft key or pickup handset or press or . 1. Press Contact soft key, Press All Contacts or other group > Press Add. 2. Enter name and number and press OK soft key. 1. Press key or Menu > CallLog > Local Call Logs. 2. Scroll thr ough the list using . 3. To dial an entry, press Dial soft key or pickup handset or press or . Call Mute 1. Press to Mute the microphone during the call. 2. Press again to un-mute the conversation. Call forward 1. Press Menu > Features > Call Forward. 2. Select the line, the type of forward, enter the destination number and status, and press OK soft key. Call transfer Attended transfer: Blind transfer: 1. Press key or Xfer soft key during the active conversation, the call is put on hold. 2. Dial the second telephone number. 1. Press key or Xfer soft key during the active conversation, the call will be on hold. 2. Then enter the 2nd telephone number and press key or Xfer soft key. 3. When the call is answered, then press key or Xfer soft key to complete the operation. Putting a call on hol d 1. Press key or Hold sof t key, caller is put on hold. 2. To ret rieve the call press key or Resume soft key. Note: with more than one active call, select desired call with the navigator keys and use the correspond ing sof t key to hold or resume. Multiparty conference 1. Once in line with 1st caller, press key or Conf soft key, 1st caller is put on hold. 2. Then call the 2nd number. 3. After, 2nd call is established, pres s key or Conf soft key to set up the conference. P/N:CJBA100234B0 Fanvil Technology Co., Ltd Website: www.fanvil.com EMail: [email protected] [email protected] Tel: +86-755-2640-2199 Fax: +86-755-2640-2618 Add: 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Screen icon In hands-free mode In headset mode In handset mode Mute activated Silent mode Packaging list Keys features IP PhoneHandset Handset Cord Stand Power Adapter (Optional) Ethernet Cable Quick Installa tion Guide - 2 -- 3 - Wall Stand (Buy separately) Call is on holdVPN activated Internet connected Internet is disconnected X No IP address ! Auto-answering activated Installation the device VLAN activated Disable do not disturb (Blue) Call Forward activated SIP hotspot activated Do not disturb activated (Red) Keypad locked Forward call(s) New VM Messages Voice quality level of call New SMS SMS Received call(s) Dialed call(s) Missed call(s) Configuration via web 1. Get the IP address from the phone: Press key, or Menu > Status > ETH . 2. Login: Inp ut the IP address in the w eb browser. The PC and phone should be in the same IP address segme nt (The default username and password are both ‘ad min’.) 3. Configure: Select networ k/account etc, and fill the relevant content. 4. Save the configur ation. Language setting 1. Press Menu key > Basic > Language. 2. Select the desired language and press OK sof t key. Making a call Accepting a call 1. Pre-dialing: enter the phone number and pick up the handset. 2. Direct dialing: li ft the handset and enter the phone number. 3. Handsfree: enter phone number and press or vice versa. 4. Headset: enter phone number and press or vice versa. 1. Using the handset: pick up the handset. 2. Using the headset: press . 3. Using the handsfree: press . Configuration Configuration via LCD menu of phone 1. Press Menu > Advanced (default password 123) 2. Select Network: To confi gure the Network Settings (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE). 3. Select Accounts: To confi gure enable the account, fill the SIP serv er address, port, user name, password etc. 4. Save the configur ation. 5. Designated line: press line key, enter phone number and press dial key. Wireless network connected Wireless network disconnected Wireless network failure Soft keys Message waiting indicator Left and right navigation keys Up navigation key, Shortcut to call log Down navigation key, Shortcut to Status OK key, Shortcut to Menu Hold key, Hold/Resume the call Call transfer key Conference key Voice messages key Phonebook key Line keys Headset key, Activate/deactivate Headset Redial key, Access to redial the last record In idle mode: activate/deactivate silent mode In communication mode: mute/un-mute a call In idle mode or during ringing: increase or decrease ringer volume In communication: increase or decrease handset, headset or hands-free volume Hands-free key, Activate/deactivate hands free Long press to lock keypad. Enter PIN to unlock keypad (default 123) Please follow the instructions in below picture to install the device. Bracket desktop installation Wall mounting (Wall Stand need buy separately) Connecting to the device Please connect power adapter, networ k, PC, hand set, and headset to the correspond ing ports as described in below picture. ① Power port: connect the power adapter. ② Network port: connecting local area networ k or Internet. ③ PC port: the networ k port connect to the computer. ④ Headset port: connect headset. ⑤ Handset port: connect IP Phone handset. 5V InternetPCHeadset Handset Network connect Using Ethernet 1. The power on the device and connect the WAN port of the phone to the RJ45 so…

Text truncated - open the document above for the full version.

Report No.: 2104C088 Page 2 of 21 Report No.: 2104C088 Page 3 of 21 Report No.: 2104C088 Page 14 of 21 Report No.: 2104C088 Page 20 of 21 Report No.: 2104C088 Page 21 of 21

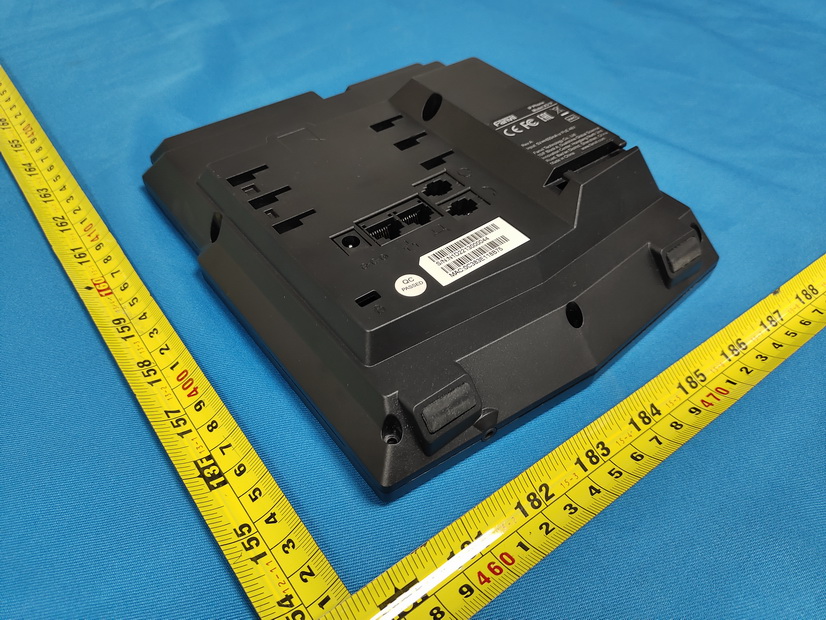

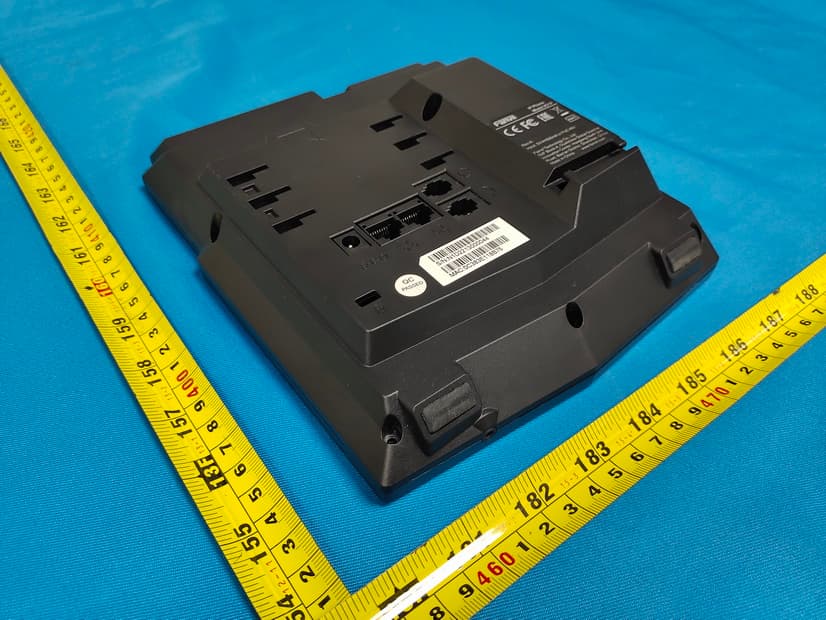

label location

Report No.: 2104C088 Page 4 of 21 Antenna Report No.: 2104C088 Page 5 of 21 Report No.: 2104C088 Page 6 of 21

Report No.: 2104C088 Page 7 of 21 Report No.: 2104C088 Page 8 of 21 Report No.: 2104C088 Page 9 of 21

Report No.: 2104C088 Page 10 of 21 Report No.: 2104C088 Page 11 of 21

Report No.: 2104C088 Page 12 of 21 Report No.: 2104C088 Page 13 of 21 Report No.: 2104C088 Page 15 of 21 Report No.: 2104C088 Page 16 of 21

Report No.: 2104C088 Page 17 of 21 Report No.: 2104C088 Page 18 of 21

Report No.: 2104C088 Page 19 of 21

Report No.: BTL-FCCP-2-2104C088 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: 2APPZ-X3SW Project No. : 2104C088 Equipment : IP Phone Brand Name : Fanvil Test Model : X3SW Series Model : N/A Applicant : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Manufacturer : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Factory : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Date of Receipt : Apr. 13, 2021 Date of Test : Apr. 13, 2021 ~ May 11, 2021 Issued Date : May 20, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021041396 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2104C088 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 20, 2021 Report No.: BTL-FCCP-2-2104C088 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand P/N Antenna Type Connector Gain (dBi) 1 Dongguan YiJia Electronics Communication Technology Co.,Ltd. WIFI Antenna Internal N/A 3 Note: The antenna gain is provided by the manufacturer. 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 20.39 109.3956 0.04345 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2104C088 Page 1 of 106 FCC Radio Test Report FCC ID: 2APPZ-X3SW This report concerns: Original Grant Project No. : 2104C088 Equipment : IP Phone Brand Name : Fanvil Test Model : X3SW Series Model : N/A Applicant : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Manufacturer : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Factory : Fanvil Technology Co., Ltd Address : 10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China Date of Receipt : Apr. 13, 2021 Date of Test : Apr. 13, 2021 ~ May 11, 2021 Issued Date : May 20, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG2021041396 for conducted, DG2021041395 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chella Zheng Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2104C088 Page 2 of 106 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2104C088 Page 3 of 106 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 19 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2104C088 Page 4 of 106 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM OUTPUT POWER 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 32 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 35 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 40 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 43 APPENDIX E - BANDWIDTH 92 APPENDIX F - MAXIMUM OUTPUT POWER 97 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 99 Report No.: BTL-FCCP-1-2104C088 Page 5 of 106 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 104 Report No.: BTL-FCCP-1-2104C088 Page 6 of 106 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. May 20, 2021 Report No.: BTL-FCCP-1-2104C088 Page 7 of 106 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2104C088 Page 27 of 106 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2104C088 Page 28 of 106 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2104C088 Page 29 of 106 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2104C088 Page 30 of 106 Radiated Emissions Test Photos Above 1 GHz Report No.: BTL-FCCP-1-2104C088 Page 31 of 106 Conducted Test Photos
