2APQQ-01WIMRAWireless AC Module

1. Overview The 01WIMRA is a highly integrated single chip Module which has built in a 2x2 dual-band wireless LAN radio and Bluetooth radio.It supports IEEE 802.11a/b/g/n/ac standard and provides the highest PHY rate up to 867Mbps,offering feature-rich wireless connectivity and reliable throughput from an extended distance.It includes Bluetooth EDR and LE radio which complies with Bluetooth v2.1+EDR,v4.2,Low Energy, and v5.1, 2. Features 2.1 Platform ■ Embedded high-performance 32-bit RISC microprocessor ■ Integrate high efficiency switching regulator ■ 40MHz crystal clock support with low power operation in sleep mode ■ Best-in-class active and idle power consumption performance ■ Fully Compliance with USB v2.0 specification ■ Internal thermal sensor for temperature compensation and thermal protection. ■ Self calibration. ■ Advanced FDD/TDD mode Wi-Fi/Bluetooth coexistence scheme. ■ Wi-Fi and Bluetooth over USB. 2.2 WLAN ■ IEEE 802.11a/b/g/n11ac compliant ■ Support 20/40MHz bandwidth in 2.4GHz band and 20/40/80MHz in 5GHz band, and. ■ Dual-band 2T2R mode with data rate up to 867Mbps ■ Greenfield,mixed mode,legacy modes support ■ Integrated LNA,PA,and T/R switch ■ Optional external LNA and PA support. ■ IEEE 802.11d/e/h/i/j/k/r/v/w support ■ Security support for WFA WPA/WPA2 /WPA3personal, WPS2.0 ■ Support MU-MIMO RX ■ QoS support of WFA WMM, WMM PS 2.3 Bluetooth ■ Bluetooth 5 dual mode for 2x the speed ■ Bluetooth specification v2.1+EDR ■ Bluetooth v4.2 Low Energy(LE) ■ Standard HCI interface over USB super-speed,high-speed and full-speed mode ■ Best-in-class BT/Wi-Fi coexistence performance ■ Scatternet support:Up to 7 piconets simultaneously with background inquiry/page scan ■ Up to 7 simulaneous active ACL links ■ Support SCO and SCO link with re-transmission ■ Support wide-band speech ■ Integrated high efficiency PA and TSSI 3. Block Diavgram 4. General Specification Model 01WIMRA Product Name WLAN 11a/b/g/n/ac USB2.0 2T2R + Bluetooth 5.1module Major Chipset CDW-U57663U-01 Standard 802.11a/b/g/n/ac Modulation Method BPSK/ QPSK/ 16-QAM/ 64-QAM/256-QAM Frequency Band 2.4GHz and 5GHz ISM Band WiFi Interface USB2.0 BT Interface USB2.0 Operating Temperature -20° C ~ 70° C Storage Temperature -40° C ~ 85°C Humidity 5% to 90% maximum Dimension 21.2x18.0x2.6mm (LxWxH)±0.25mm 5. Electrical Characteristics 5.1 WiFi Section: 2.4GHz RF Specification Feature Description WLAN Standard IEEE 802.11a/b/g/n/ac WiFi compliant Frequency Range 2.412 GHz ~ 2.462 GHz (2.4 GHz ISM Band) Number of Channels 2.4GHz：Ch1 ~ Ch11 Modulation 802.11b : DQPSK, DBPSK, CCK 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK Output Power 802.11b /11Mbps : 18.0dBm ± 1dB @ EVM ≤ -15dB 802.11g /54Mbps : 18.0 dBm ± 1dB @ EVM ≤ -28dB 802.11n HT20 /MCS7 : 18.0 dBm ± 1dB @ EVM ≤ -30dB 802.11n HT40 /MCS7 : 18.0 dBm ± 1dB @ EVM ≤ -30dB Receive Sensitivity 11b,20MHz @8%PER - 1Mbps,PER @ -98 dBm, typical - 11Mbps,PER @ -89dBm, typical Receive Sensitivity - 6Mbps,PER @ -95dBm, typical - 54Mbps,PER @ -75 dBm, typical Receive Sensitivity 11n,20MHz @10%PER - MCS=0,PER @ -95 dBm, typical - MCS=7,PER @ -74 dBm, typical Receive Sensitivity 11n,40MHz @10%PER - MCS=0,PER @ -91dBm, typical - MCS=7,PER @ -72 dBm, typical 5GHz RF Specification Feature Description WLAN Standard IEEE 802.11a/n/ac 2x2, WiFi compliant Frequency Range 5.180 GHz ~ 5.240 GHz,5.745 GHz ~ 5.825 GHz (5.0 GHz ISM Band) Number of Channels 5.0GHz：Please see the table Modulation 802.11a : OFDM /64-QAM,16-QAM, QPSK, BPSK 802.11n : OFDM /64-QAM,16-QAM, QPSK, BPSK 802.11ac : OFDM /256-QAMs Output Power 802.11a 54Mbps: 18.0 dBm ± 1dB @ EVM ≤ -25dB 802.11n HT20 /MCS7 : 18.0 dBm ± 1dB @ EVM ≤ -28dB 802.11n HT40 /MCS7 : 18.0 dBm ± 1dB @ EVM ≤ -28dB 802.11ac VHT20 /MCS8 : 18.0 dBm ± 1dB @ EVM ≤ -30dB 802.11ac VHT40 /MCS9 : 18.0 dBm ± 1dB @ EVM ≤ -32dB 802.11ac VHT80 /MCS9 : 18.0 dBm ± 1dB @ EVM ≤ -32dB Receive Sensitivity 11a,20MHz @10%PER - 6Mbps ,PER @ -92 dBm, typical - 54Mbps,PER @ -75 dBm, typical Receive Sensitivity 11n,20MHz @10%PER - MCS=0,PER @ -92 dBm, typical - MCS=7,PER @ -73 dBm, typical Receive Sensitivity 11n,40MHz @10%PER - MCS=0,PER @ -88 dBm, typical - MCS=7,PER @ -71 dBm, typical Receive Sensitivity 11ac,20MHz @10%PER - MCS=0, NSS1 PER @ -90 dBm, typical - MCS=8, NSS1 PER @ -69 dBm, typical Receive Sensitivity 11ac,40MHz @10%PER - MCS=0, NSS1 PER @ -87 dBm, typical - MCS=9, NSS1 PER @ -65 dBm, typical Receive Sensitivity 11ac,80MHz @10%PER - MCS=0, NSS1 PER @ -84 dBm, typical - MCS=9, NSS1 PER @ -62 dBm, typical 5.2 Bluetooth Section: Feature Description General Specification Bluetooth Standard Bluetooth V2.1+EDR,V4.2,V5.1 Host Interface USB2.0 Frequency Band 2402 MHz ~ 2480 MHz Number of Channels 79 channels Modulation FHSS, GFSK, DPSK, DQPSK RF Specification Min Typical Max Output Power 3 dBm ± 1 dB Sensitivity @ BER=0.1% for GFSK (1Mbps) -86 dBm Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps) -86 dBm Sensitivity @ BER=0.01% for 8DPSK (3Mbps) -80 dBm Maximum Input Level GFSK (1Mbps):-20dBm π/4-DQPSK (2Mbps) :-20dBm 8DPSK (3Mbps) :-20dBm 6. Electrical Characteristics 6.1 WLAN current consumption Description TYP Unit Sleep mode, radio off 1.23 mA 2.4GHz RX Power saving, DTIM=1 2.39 mA 2.4GHz RX Active, HT20, MCS15 132 mA 2.4GHz TX CCK, 11Mbps @ 21dBm 417 mA 2.4GHz TX HT20, MCS15 @ 17.5dBm 596 mA 2.4GHz TX HT20, MCS8 @ 18dBm 652 mA 5GHz VHT80 RX Listen, 2RX 157 mA 5GHz RX Active, VHT80, MCS9, Nss=2 236 mA 5GHz TX VHT80, MCS9, Nss=2 @ 15dBm 717 mA 5GHz TX VHT80, MCS0, Nss=2 @ 17dBm 775 mA 6.2 Bluetooth current consumption Description TYP Unit Sleep mode, radio off 1.73 mA Bluetooth TX @ 15dBm 86.5 mA Bluetooth RX 29.4 mA Bluetooth SCO connection, HV3 packets+sniff mode+scan (Page scan internal=1.28sec,inquiry scan interval=2.56s,sniff interval=500ms) 3.2 mA Bluetooth page scan+inquiry scan (Page scan interval=1.28s,inquiry scan interval=2.56s) 2.14 mA Bluetooth page scan (Page scan interval=1.28s) 1.92 mA 7. Supplier Supplier list Name of Material Supplier brand Main chip…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 LetterofAuthorization DongguanNuomiInnovationTechnologyCo.,Ltd. Company:DongguanNuomiInnovationTechnologyCo.,Ltd. Address:Room501,Building1,No.7IndustrialNorthRoad, SongshanLakePark,DongguanCity,GuangdongProvince ProductName:WirelessChargingStation ModelNumber: F3002,F3001,F300211110,F300251111,F300212110,F300252111,F30 0111110,F300151111,F300112110,F300152111 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:JennyHanDate:2022-04-12 Title:ProductManager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 CTOUCH Europe B.V. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-04-08 Subject: Request for Confidentiality FCC ID: 2APQQ-01WIMRA To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ralph Kolen Title: Product manager

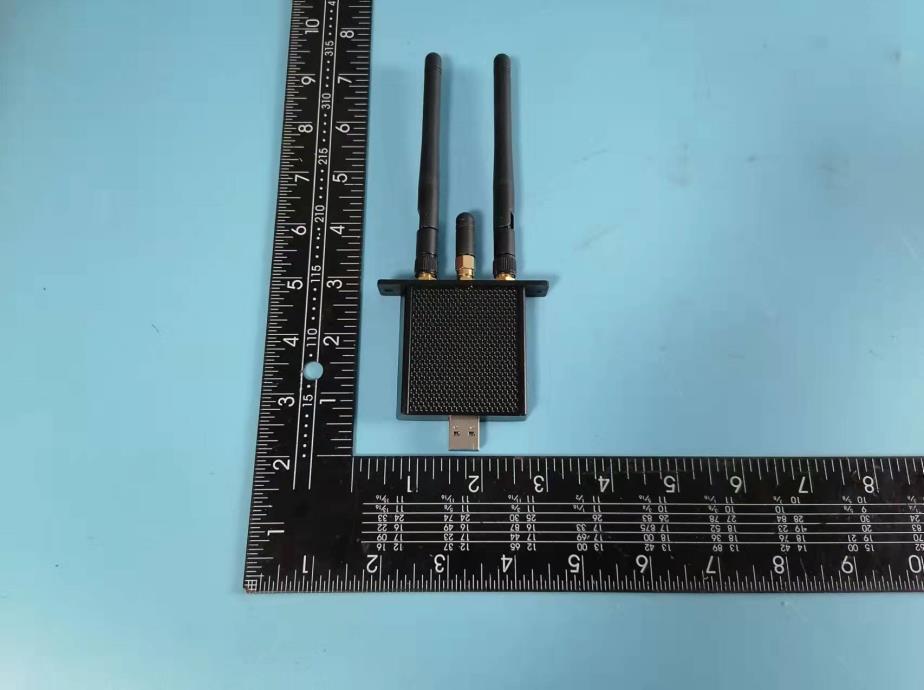

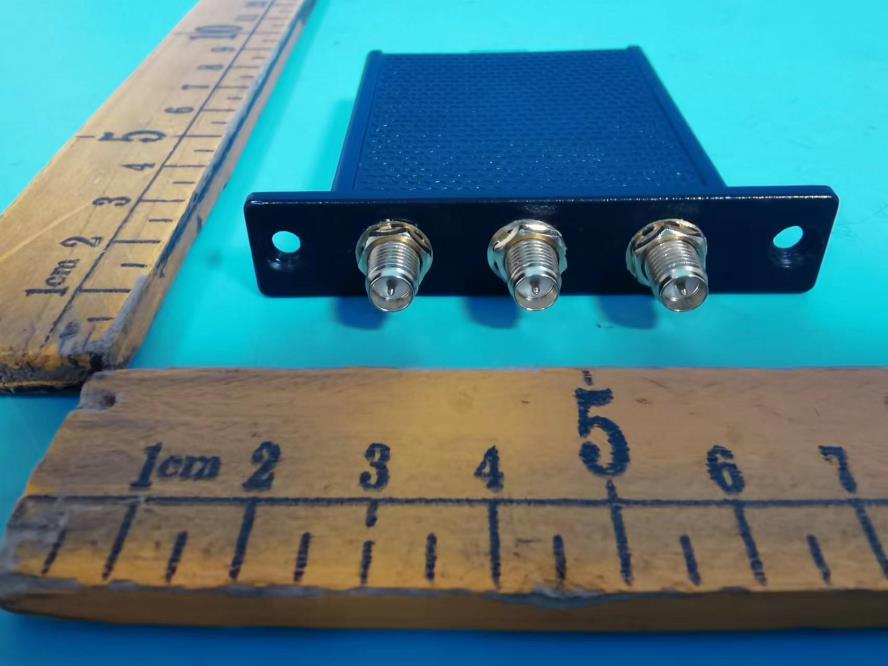

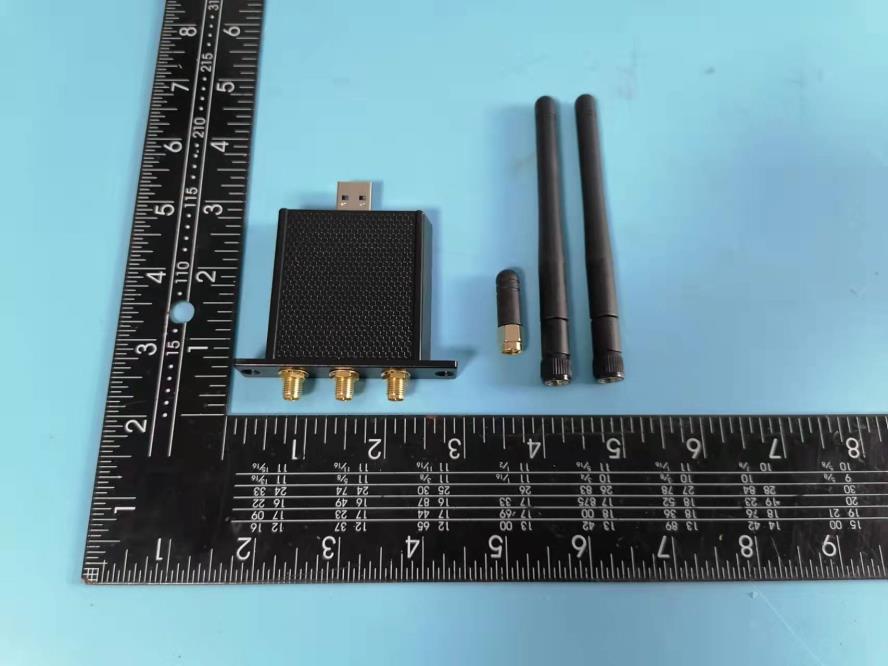

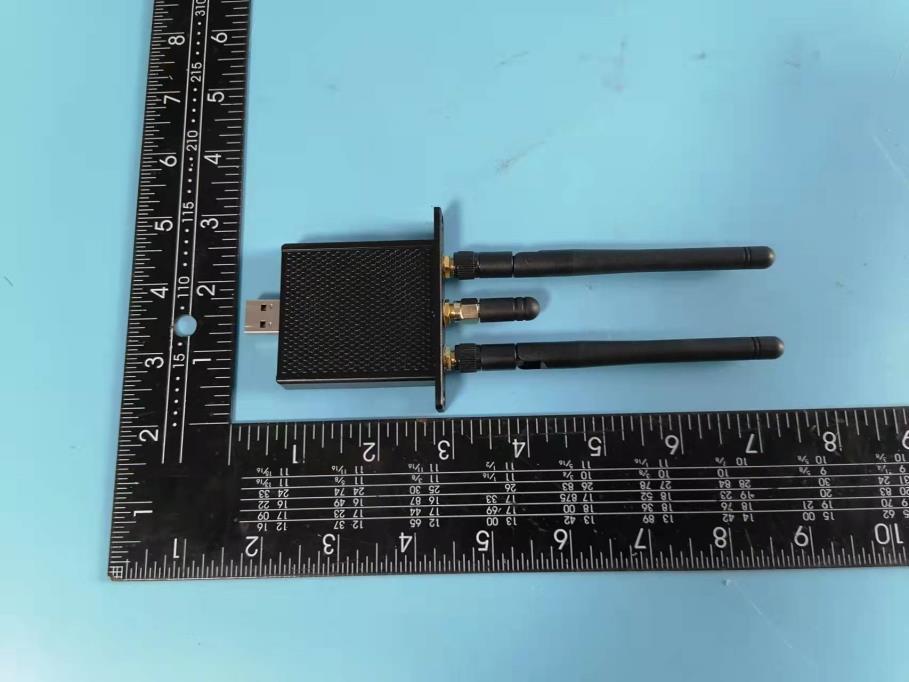

GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 4 Product Name: Wireless AC Module Test Model No.: 01WIMRA EUT Constructional Details Antenna A 2.4G/5G Wi-Fi 2.4G Wi-Fi/ 5G Wi-Fi Antenna BLE/BT Antenna B 2.4G/5G Wi-Fi 2.4G Wi-Fi/ 5G Wi-Fi GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 4 GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 4 GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 4 ------End------

GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 2 Product Name: Wireless AC Module Test Model No.: 01WIMRA EUT Constructional Details GTSL202204000115 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2 ------End------

Global United Technology Services Co., Ltd. FCC ID: 2APQQ-01WIMRA RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, and highest channel individually. Global United Technology Services Co., Ltd. Test Result of RF Exposure Evaluation BT (Worst case) Antenna gain=2dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2402 20 -1.795 1±1 1.58 1.5849 1 0.0005 Pass 2441 20 0.421 1±1 1.58 1.5849 1 0.0005 Pass 2402 20 -1.795 1±1 1.58 1.5849 1 0.0005 Pass BLE (Worst case) Antenna gain=2dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2402 20 3.186 3±1 2.51 1.5849 1 0.0008 Pass 2440 20 2.465 3±1 2.51 1.5849 1 0.0008 Pass 2480 20 3.105 3±1 2.51 1.5849 1 0.0008 Pass WIFI 2.4GHz (Antenna-A Worst case) Antenna gain=2dBi, Directional gain=5.01dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 15.059 15±1 39.81 1.5849 1 0.0126 Pass 2422 20.00 13.434 14±1 31.62 1.5849 1 0.01 Pass 2437 20.00 15.239 15±1 39.81 1.5849 1 0.0126 Pass 2452 20.00 13.556 14±1 31.62 1.5849 1 0.01 Pass 2462 20.00 15.222 15±1 39.81 1.5849 1 0.0126 Pass Global United Technology Services Co., Ltd. WIFI 2.4GHz (Antenna-B Worst case) Antenna gain=2dBi, Directional gain=5.01dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 16.524 16±1 50.12 1.5849 1 0.0158 Pass 2422 20.00 14.849 15±1 39.81 1.5849 1 0.0126 Pass 2437 20.00 16.361 16±1 50.12 1.5849 1 0.0158 Pass 2452 20.00 14.477 15±1 39.81 1.5849 1 0.0126 Pass 2462 20.00 16.254 16±1 50.12 1.5849 1 0.0158 Pass WIFI 5GHz (Antenna-A Worst case) Antenna gain=2dBi, Directional gain=5.01dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 5180 20 17.308 17±1 63.1 1.5849 1 0.0199 Pass 5190 20 14.745 15±1 39.81 1.5849 1 0.0126 Pass 5210 20 14.289 15±1 39.81 1.5849 1 0.0126 Pass 5230 20 14.481 15±1 39.81 1.5849 1 0.0126 Pass 5240 20 16.51 17±1 63.1 1.5849 1 0.0199 Pass 5745 20 16.848 17±1 63.1 1.5849 1 0.0199 Pass 5755 20 14.81 15±1 39.81 1.5849 1 0.0126 Pass 5775 20 14.458 15±1 39.81 1.5849 1 0.0126 Pass 5785 20 16.724 17±1 63.1 1.5849 1 0.0199 Pass 5795 20 14.353 15±1 39.81 1.5849 1 0.0126 Pass 5825 20 16.585 17±1 63.1 1.5849 1 0.0199 Pass Global United Technology Services Co., Ltd. WIFI 5GHz (Antenna-B Worst case) Antenna gain=2dBi, Directional gain=5.01dBi Test Frequency （MHz） Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 5180 20 17.049 17±1 63.1 1.5849 1 0.0199 Pass 5190 20 14.662 15±1 39.81 1.5849 1 0.0126 Pass 5210 20 14.166 15±1 39.81 1.5849 1 0.0126 Pass 5230 20 14.627 15±1 39.81 1.5849 1 0.0126 Pass 5240 20 16.871 17±1 63.1 1.5849 1 0.0199 Pass 5745 20 16.198 17±1 63.1 1.5849 1 0.0199 Pass 5755 20 14.29 15±1 39.81 1.5849 1 0.0126 Pass 5775 20 13.902 14±1 31.62 1.5849 1 0.01 Pass 5785 20 16.854 17±1 63.1 1.5849 1 0.0199 Pass 5795 20 14.013 15±1 39.81 1.5849 1 0.0126 Pass 5825 20 16.22 17±1 63.1 1.5849 1 0.0199 Pass For the max simultaneous transmission MPE (Worst case): Power Density (mW/cm 2 ) Power Density (mW/cm 2 ) ANT A Power Density (mW/cm2) ANT A Power Density (mW/cm2) ANT B Power Density (mW/cm2) ANT B Total Power Density Limit (mW/cm 2 ) Test Results BLE 2.4GHz 5GHz 2.4GHz 5GHz 0.069 1.000 Pass 0.0008 0.0126 0.0199 0.0158 0.0199 Note: 1. The Bluetooth function can transmit at the same time with the Wi-Fi function. 2. When the ANT 1 and ANT 2 transmit simultaneously (MIMO Mode), the formula of calculated the exposure is: (MPE1 / Limit) + (MPE2 / Limit) + ......etc. ≤1 The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure.

Global United Technology Services Co., Ltd. Report No.: GTSL202204000115F02 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 27 TEST REPORT Applicant: CTOUCH Europe B.V. Address of Applicant: Achtseweg Zuid 153R, 5651 GW Eindhoven, The Nederlands Manufacturer/Factory: CTOUCH Europe B.V. Address of Manufacturer/Factory: Achtseweg Zuid 153R, 5651 GW Eindhoven, The Nederlands Equipment Under Test (EUT) Product Name: Wireless AC Module Model No.: 01WIMRA Trade Mark: CTOUCH FCC ID: 2APQQ-01WIMRA Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Date of sample receipt: March 28,2022 Date of Test: March 30- April 25, 2022 Date of report issued: April 25, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202204000115F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 27 2 Version Version No. Date Description 00 2022-4-25 Original Prepared By: Date: 2022-4-25 Project Engineer Check By: Date: 2022-4-25 Reviewer Report No.: GTSL202204000115F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 27 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.3 DEVIATION FROM STANDARDS ............................................................................................................ 7 5.4 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................. 7 5.5 TEST FACILITY ................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 11 7.3 CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH ......................................................................... 13 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 15 7.5 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 17 7.5.1 Conducted Emission Method ..................................................................................................... 17 7.5.2 Radiated Emission Method ........................................................................................................ 20 8 TEST SETUP PHOTO ............................................................................................................................ 27 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 27 Report No.: GTSL202204000115F02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 27 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (b)(4) Pass AC Power Line Conducted Emission 15.207 Not Applicable Conducted Peak Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Remarks: 1. Pass: The EUT complies with the essential requirements in the standard. 2. Test according to ANSI C63.10:2013. Measurement Uncertainty No. Item Measurement Uncertainty 1 Radio Frequency 1 x 10 -7 2 Duty cycle 0.37% 3 Occupied Bandwidth 2.8dB 4 RF conducted power 0.75dB 5 RF power density 3dB 6 Conducted Spurious emissions 2.58dB 7 AC Power Line Conducted Emission 3.44dB (0.15MHz ~ 30MHz) 8 Radiated Spurio…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTSL202204000115F03 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 53 TEST REPORT Applicant: CTOUCH Europe B.V. Address of Applicant: Achtseweg Zuid 153R, 5651 GW Eindhoven, The Nederlands Manufacturer/Factory: CTOUCH Europe B.V. Address of Manufacturer/Factory: Achtseweg Zuid 153R, 5651 GW Eindhoven, The Nederlands Equipment Under Test (EUT) Product Name: Wireless AC Module Model No.: 01WIMRA Trade Mark: CTOUCH FCC ID: 2APQQ-01WIMRA Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Date of sample receipt: March 28,2022 Date of Test: March 28-April 25,2022 Date of report issued: April 25,2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 53 2 Version Version No. Date Description 00 2022-4-25 Original Prepared By: Date: 2022-4-25 Project Engineer Check By: Date: 2022-4-25 Reviewer Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 53 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................ 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................. 7 5.6 TEST FACILITY ................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................ 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED MAX AVERAGE OUTPUT POWER ................................................................................... 11 7.3 CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH ......................................................................... 14 7.4 POWER SPECTRAL DENSITY ............................................................................................................. 23 7.5 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 29 7.5.1 Conducted Emission Method ..................................................................................................... 29 7.5.2 Radiated Emission Method ........................................................................................................ 38 8 TEST SETUP PHOTO ............................................................................................................................ 53 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 53 Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 53 4 Test Summary Test Item Section Result Antenna requirement FCC part 15.203/15.247 (b)(4) Pass AC Power Line Conducted Emission FCC part 15.207 Not Applicable Conducted Max Average Output Power FCC part 15.247 (b)(3) Pass Channel Bandwidth & 99% OCB FCC part 15.247 (a)(2) Pass Power Spectral Density FCC part 15.247 (e) Pass Band Edge FCC part 15.247(d) Pass Spurious Emission FCC part 15.205/15.209 Pass Remark: Test according to ANSI C63.10:2013 Pass: The EUT complies wi…

Text truncated - open the document above for the full version.

Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 31 of 53 Test mode: 802.11n(HT20) Test mode: 802.11n(HT40) Lowest channel 30MHz~26.5GHz Middle channel 30MHz~26.5GHz Highest channel 30MHz~26.5GHz Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 32 of 53 Test plot as follows (ANT B): Test mode: 802.11b Test mode: 802.11g Lowest channel 30MHz~26.5GHz Middle channel 30MHz~26.5GHz Highest channel 30MHz~26.5GHz Report No.: GTSL202204000115F03 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 33 of 53 Test mode: 802.11n(HT20) Test mode: 802.11n(HT40) Lowest channel 30MHz~26.5GHz Middle channel 30MHz~26.5GHz Highest channel 30MH…

Text truncated - open the document above for the full version.
