  1. Home/
  2. CTOUCH Europe B.V./
  3. 2APQQ-MT7921AU-FRX

2APQQ-MT7921AU-FRXWIFI6 MODULE

CTOUCH Europe B.V.

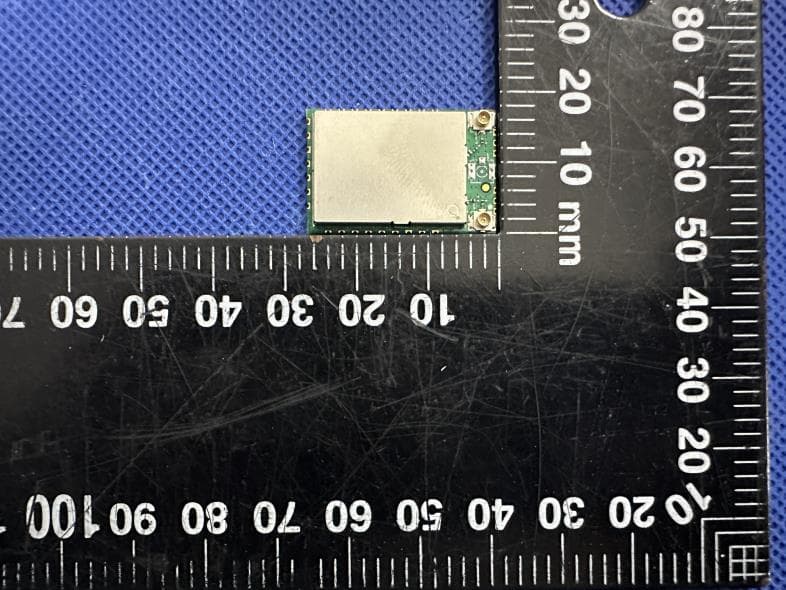

WIFI6 MODULE - FCC ID 2APQQ-MT7921AU-FRX - CTOUCH Europe B.V.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 01, 2023
Application Purpose
Original Equipment
Date of Application
Mar 01, 2023
Equipment Note
WIFI6 MODULE
Frequency Range
2402.00000000 - 2480.00000000
Company
CTOUCH Europe B.V.
Country
Netherlands

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

USER MANUALS 802.11a/b/g/n/ac/ax 1200Mbps WLAN + Bluetooth v5.2 Combo USB3.0 Module Model No.:MT7921AU-FRX Safety precautions: 1. It is not allowed to change the transmission frequency at will and increase the transmission power (including the installation of RF power amplifier). 2. It is prohibited to cause harmful interference to various legitimate radio communications. Once interference is found, it shall be stopped immediately, and measures can be taken to eliminate interference before continuing to use. 3. It must be able to resist the radiation interference of various radio or industrial/scientific/medical applications. 4. It shall not be used near the aircraft or airport. 5. Article 12 of the Administrative Measures for Low Power Radio Wave Radiative Motors: The company, firm or user shall not change the frequency, increase the power or change the characteristics and functions of the design of low power RF motors that have passed the form certification without permission. 6. Article 14 of the Administrative Measures for Low Power Radio Wave Radiative Motors: The use of low power radio frequency motors shall not affect flight safety and interfere with legal communications. If interference is found, they shall be immediately stopped and improved to no interference before continuing to use. 7. The legal communication referred to in the preceding paragraph means that the radio communication low power radio frequency motor operated in accordance with the provisions of the Telecommunications Act must withstand the interference of legal communication or industrial, scientific and medical radio wave radiation motor equipment. 8. Avoid affecting the operation of nearby radar systems. High gain directional antennas can only be used in fixed point-to-point systems. Warning: 1. Please keep the product and accessories away from children. 2. Do not splash water or other liquids on this product, otherwise it may cause damage. 3. Please do not place this product near the heat source or in the direct sunlight to avoid deformation or failure. 4. Keep away from flammable or open flame. 5. Do not repair this product by yourself. Product appearance: Product features and parameters: 1. FRX-M79AU-21 is a highly integrated dual band WLAN+ Bluetooth v5.2 Combomomodule. It combines a 2T2R dual band WLAN subsystem and a Bluetooth v5.2 subsystem with dual BT controller function. This is a module compatible IEEE 802.11a/b/g/n/ac/ax standard, which provides the maximum PHYrate up to 1200Mbps. It supports BT/BLE dual mode compatibility with BT v5.2/v4.2/v2.1, provides high standard wireless connectivity with rich functions, and provides reliable, cost-effective throughput from a long distance. 2. Compatible with IEEE 802.11b standard, providing wireless data rate of 11Mbps. Compatible with IEEE 802.11g standard, providing wireless data rate of 54Mbps. Compatible with IEEE 802.11a standard, providing wireless data rate of 54Mbps. Compatible with IEEE 802.11n standard, providing wireless data rate of 300Mbps. Compatible with IEEE 802.11ac and IEEE 802.11ax standards, providing wireless data rate of 1200Mbps. 3. Support 20MHz, 40MHz, 80MHz bandwidth in 5GHz band, 20MHz, 40MHz bandwidth in 2.4GHz band. 4. Supported frequency bands: WLAN: 2.412 - 2.462 GHz, 5.180 - 5.240 GHz, 5.745 - 5.825 GHz. Support dual band 2T2R mode, with bandwidth of 20/40/80Mhz Support MU-MIMO RX, MU-OFDMA TX/RX Support TX/RX beamformer Support DBDC (dual band dual concurrent) Bluetooth support frequency band: 2.402-2.480GHz Support BT classic/BT low-power dual frequency mode Including dual BT controller Bluetooth 2.1/3.0/4.0/4.2/5.2 5. Provide a simple legacy and 20MHz/40MHz/80MHz coexistence mechanism to ensure future and network compatibility. 6. User friendly configuration and diagnostic tools. 7. Driver support: Linux/Android/Windows. 8. High speed USB 3.0 interface for WLAN and USB. 9. The transmission power shall not exceed 1000mW. 10. Voltage 3.3V. Operating environment: Operating Temperature: -20°C to+70°C Relative Humidity: 10%-90%non-condensing) Storage: Temperature: -55°Cto+125°C (no-operating) Relative Humidity: 10-90%non-condensing) FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches)during normal operation. That changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Int…

Text truncated - open the document above for the full version.

Attestation Statements

C566091_X23_Ed1 1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: UGK-LVM UNITED INC FRN: 0033401928 Contact Name: Jimmy Chen Address: 6547 N Academy Blvd #2266 Telephone: 001-323-5104660 Email: [email protected] This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf of (CTOUCH Europe B.V.). The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: CTOUCH Europe B.V. Product Description: WIFI6 MODULE Grantee code: 2APQQ FCC ID: 2APQQ-MT7921AU-FRX Contact Name: Ralph Kolen Address: Achtseweg Zuid 153R, 5651 GW, Eindhoven, Netherlands Telephone No: + 31 (0)40 261 8320 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. This Agreement is valid until (February, 22, 2053).

Attestation Statements

C5266091_X24_Ed.1 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: CTOUCH Europe B.V. Grantee code: 2APQQ FCC ID: 2APQQ-MT7921AU-FRX Contact Name: Ralph Kolen Address: Achtseweg Zuid 153R, 5651 GW, Eindhoven, Netherlands Telephone No: + 31 (0)40 261 8320 Fax No: 26503396 Email: [email protected] i. [CTOUCH Europe B.V.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [CTOUCH Europe B.V.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Date: 2022/02/07 Applicant’s Name: Ralph Kolen Title: Product manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Cover Letter(s)

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: CTOUCH Europe B.V. Address: Achtseweg Zuid 153R, 5651 GW, Eindhoven, Netherlands Product Name: WIFI6 MODULE Model Number: MT7921AU-FRX FCC Identifier: 2APQQ-MT7921AU-FRX We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Ralph Kolen Date: 2023-1-4 Title: Product manager Signature of applicant:

Cover Letter(s)

C5266091_X10_Ed.2 1/1 CTOUCH Europe B.V. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-1-4 Subject: Request for Confidentiality FCC ID: 2APQQ-MT7921AU-FRX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ralph Kolen Title: Product manager

Cover Letter(s)

C5266091_X9_Ed.2 1/1 CTOUCH Europe B.V. Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: CTOUCH Europe B.V. FCC ID: 2APQQ-MT7921AU-FRX Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v02’. FCC ID:2APQQ-MT7921AU-FRX has been examined against the following requirements. Items to be covered by Single modular transmitters. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v02 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes The EUT provides the RF shielding. See EUT photo 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes The EUT has its buffered modulation 3. The module must contain power supply regulation on the module Yes The EUT has its own power supply regulation, please see the Schematic Diagram 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The module must demonstrate compliance in a stand- alone configuration Yes The EUT was tested with a test board, Please see test report and setup photo 6. The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes The FCC ID is The FCC ID is 2APQQ- MT7921AU-FRX 7. The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee Yes The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are given in the User Manual. 8. The module must comply with RF exposure requirements Yes The EUT complies with RF exposure requirement. C5266091_X9_Ed.2 1/1 Name: Ralph Kolen Date: January 4, 2023 Title: Product manager Signature of applicant

External Photos

GTSL202212000237 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 3 Product Name: WIFI6 MODULE Test Model No.: MT7921AU-FRX EUT Constructional Details GTSL202212000237 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 3 Wi-Fi Antenna BT Antenna Wi-Fi Antenna GTSL202212000237 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 3 ------End------ BT

ID Label/Location Info

CTOUCH Europe B.V. MT7921AU-FRX CXXXXX FCC ID:2APQQ-MT7921AU-FRX

Internal Photos

GTSL202212000237 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 1 Product Name: WIFI6 MODULE Test Model No.: MT7921AU-FRX EUT Constructional Details ------End------

RF Exposure Info

Global United Technology Services Co., Ltd. FCC ID: 2APQQ-MT7921AU-FRX RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, and highest channel individually. Global United Technology Services Co., Ltd. Test Result of RF Exposure Evaluation BT (Worst case) Antenna gain=1.5dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2402 20 4.449 4±1 3.162 1.41 1 0.0009 Pass 2441 20 3.419 4±1 3.162 1.41 1 0.0009 Pass 2480 20 4.4 4±1 3.162 1.41 1 0.0009 Pass BLE (Worst case) Antenna gain=1.5dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2402 20 2.857 3±1 2.512 1.41 1 0.0007 Pass 2440 20 1.843 2±1 1.995 1.41 1 0.0006 Pass 2480 20 3.414 3±1 2.512 1.41 1 0.0007 Pass WIFI 2.4GHz (Antenna-A Worst case) Antenna gain=4.82dBi, Directional gain=7.83dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 14.978 15±1 39.81 3.03 1 0.024 Pass 2422 20.00 14.829 15±1 39.81 3.03 1 0.024 Pass 2437 20.00 14.702 15±1 39.81 3.03 1 0.024 Pass 2452 20.00 14.666 15±1 39.81 3.03 1 0.024 Pass 2462 20.00 15.038 15±1 39.81 3.03 1 0.024 Pass Global United Technology Services Co., Ltd. WIFI 2.4GHz (Antenna-B Worst case) Antenna gain=4.82dBi, Directional gain=7.83dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 2412 20.00 15.134 15±1 39.81 3.03 1 0.024 Pass 2422 20.00 15.182 15±1 39.81 3.03 1 0.024 Pass 2437 20.00 15.177 15±1 39.81 3.03 1 0.024 Pass 2452 20.00 14.233 15±1 39.81 3.03 1 0.024 Pass 2462 20.00 14.244 15±1 39.81 3.03 1 0.024 Pass WIFI 5GHz (Antenna-A Worst case) Frequency Range: 5180-5240 MHz Antenna gain=3.43dBi, Directional gain=6.44dBi Frequency Range: 5745-5825 MHz Antenna gain=4.62dBi, Directional gain=7.63dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 5180 20 13.453 14±1 31.62 2.20 1 0.0139 Pass 5190 20 14.016 14±1 31.62 2.20 1 0.0139 Pass 5200 20 13.216 14±1 31.62 2.20 1 0.0139 Pass 5210 20 11.328 12±1 19.95 2.20 1 0.0087 Pass 5230 20 13 13±1 39.81 2.20 1 0.0174 Pass 5240 20 13.034 13±1 25.12 2.20 1 0.0110 Pass 5745 20 15.313 15±1 39.81 2.90 1 0.0229 Pass 5755 20 15.105 15±1 39.81 2.90 1 0.0229 Pass 5775 20 12.57 12±1 19.95 2.90 1 0.0115 Pass 5785 20 15.673 15±1 39.81 2.90 1 0.0229 Pass 5795 20 14.792 15±1 39.81 2.90 1 0.0229 Pass 5825 20 15.277 15±1 39.81 2.90 1 0.0229 Pass Global United Technology Services Co., Ltd. WIFI 5GHz (Antenna-B Worst case) Frequency Range: 5180-5240 MHz Antenna gain=3.43dBi, Directional gain=6.44dBi Frequency Range: 5745-5825 MHz Antenna gain=4.62dBi, Directional gain=7.63dBi Test Frequency (MHz) Minimum Separation Distance (cm) Output Power (dBm) Target power (dBm) Target power (mW) Antenna Gain (Numeric) Power Density Limit (mW/cm 2 ) Power Density At 20 cm (mW/cm 2 ) Test Results 5180 20 12.899 13±1 25.12 2.20 1 0.011 Pass 5190 20 13.973 14±1 31.62 2.20 1 0.0139 Pass 5200 20 13.358 14±1 31.62 2.20 1 0.0139 Pass 5210 20 13.026 14±1 31.62 2.20 1 0.0139 Pass 5230 20 13.918 14±1 31.62 2.20 1 0.0139 Pass 5240 20 13.768 14±1 31.62 2.20 1 0.0139 Pass 5745 20 14.573 15±1 39.81 2.90 1 0.0229 Pass 5755 20 14.271 15±1 39.81 2.90 1 0.0229 Pass 5775 20 11.072 11±1 15.85 2.90 1 0.0091 Pass 5785 20 14.421 14±1 31.62 2.90 1 0.0182 Pass 5795 20 13.456 14±1 31.62 2.90 1 0.0182 Pass 5825 20 15.104 15±1 39.81 2.90 1 0.0229 Pass For the max simultaneous transmission MPE (Worst case): Power Density (mW/cm2) BT ANT Power Density (mW/cm2) ANT A Power Density (mW/cm2) ANT B Total Power Density Limit (mW/cm 2 ) Test Results BT 2.4GHz 2.4GHz 0.0489 1.000 Pass 0.0009 0.024 0.024 Note: 1. The Bluetooth function can transmit at the same time with the Wi-Fi function. 2. When the ANT 1 and ANT 2 transmit simultaneously (MIMO Mode), the formula of calculated the exposure is: (MPE1 / Limit) + (MPE2 / Limit) + ......etc. ≤1 The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure.

Test Report

SPECIFICATION FOR APPROVAL PART NO PART NO SMA 2.4GHz L=8mm DATE 201-0-05 5541000006 Add: 9TH District,Zhongkai National Hi-Tech DevelopmentZone, HuiZhou Guangdong China Tel: 0752-2619185 Fax:0752-2619186 QQ:3178504092 E-mail:[email protected] http://www.desanwire.com Model: G120-03-G30-A1 Electrical Properties Frequency 2.4-2.5GHz Impedance 50 0hm Nominal V.S.W.R 4.0: 1 Max Return Loss -6 dB Max Radiation Omni-directional Gain (Peak) 1.5 dBi Efficiency >50% Polarization Linear, Vertical Admitted Power 2 W Connector SMA Physical Properties Antenna Material SMA Cable Type Operating Temp. -10 ~ +60 ̊C Storage Temp. -10 ~ +70 ̊C Cable Color Test Reports S 参 数 测 试 S Parameter Test Agilent E5071C Gain Test Antenna Radiation Pattern VS Gain 2450MHz XY 2450MHz XZ 2450MHz YZ Unit: dBi Model: G115-10018-A Huizhou DeYi Technology Co.,Ltd Electrical Test Report Data sheet subjectto change without notice 惠州市德亿科技有限公司 Huizhou DeYi Technology Co.,Ltd 暗室2D、3DRaditation Pattern 2450MHz H 2450MHz E2 2450MHz E1 5150MHz H 5150MHz E1 5150MHz E2 5825MHz H 5825MHz E1 5825MHz E2 Data sheet subject to changewithout notice 惠州市德亿科技有限公司 Huizhou DeYi Technology Co.,Ltd 2450MHz 5825 MHz 5150MHz 3D

Test Report

Global United Technology Services Co., Ltd. Report No.: GTSL202212000237F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 42 TEST REPORT Applicant: CTOUCH Europe B.V. Address of Applicant: Achtseweg Zuid 153R, 5651 GW Eindhoven, Nederlands Manufacturer: CTOUCH Europe B.V. Address of Manufacturer: Achtseweg Zuid 153R, 5651 GW Eindhoven, Nederlands Equipment Under Test (EUT) Product Name: WIFI6 MODULE Model No.: MT7921AU-FRX Trade Mark: CTOUCH FCC ID: 2APQQ-MT7921AU-FRX Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 6, 2022 Date of Test: December 20~29, 2022 Date of report issued: December 29, 2022 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202212000237F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 42 2 Version Version No. Date Description 00 2022-12-29 Original Prepared By: Date: 2022-12-29 Project Engineer Check By: Date: 2022-12-29 Reviewer Report No.: GTSL202212000237F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 42 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................ 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................. 7 5.6 TEST FACILITY ................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................ 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 11 7.3 20DB EMISSION BANDWIDTH ............................................................................................................ 15 7.4 CARRIER FREQUENCIES SEPARATION ............................................................................................... 19 7.5 HOPPING CHANNEL NUMBER ............................................................................................................ 23 7.6 DWELL TIME ..................................................................................................................................... 25 7.7 BAND EDGE ..................................................................................................................................... 30 7.7.1 Conducted Emission Method ..................................................................................................... 30 7.7.2 Radiated Emission Method ........................................................................................................ 34 7.8 SPURIOUS EMISSION ........................................................................................................................ 36 7.8.1 Radiated Emission Method ........................................................................................................ 36 8 TEST SETUP PHOTO ............................................................................................................................ 42 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 42 Report No.: GTSL202212000237F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang R…

Text truncated - open the document above for the full version.

Test Setup Photos

GTSL202212000237 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 1 Product Name: WIFI6 MODULE Test Model No.: MT7921AU-FRX Test Setup Photo Radiated Emission ------End------

Contact Information

Applicant

Ralph Kolen(Product manager)
[email protected]+ 31 (0)40 261 8320Fax: 26503396

Technical Contact

CTOUCH Europe B.V.Ralph Kolen
[email protected]31 (0)40 261 8320

Eindhoven · Netherlands

Test Firm

Global United Technology Services Co. Ltd.Robinson Lo
[email protected]86-0-755-2779-8480Fax: 86-0-755-27798960

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.80 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is conducted. Grantee is responsible for providing specific testing instructions to host manufacturers for additional testing to verify compliance as a composite system. This includes retesting of transmitter module per part 15.31(h) and (k) and verification of compliance with FCC RF Exposure requirements. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
