2APQQ-WIM000ASWIFI MODULE

CTOUCH Europe B.V.
WIFI MODULE - FCC ID 2APQQ-WIM000AS - CTOUCH Europe B.V.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 16, 2020
Application Purpose
Original Equipment
Date of Application
Mar 15, 2020
Equipment Note
WIFI MODULE
Frequency Range
2402.00000000 - 2480.00000000
Company
CTOUCH Europe B.V.
Country
Netherlands

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Model:WIM000AS Safety regulations: 1. It is not allowed to change the transmission frequency and increase the transmission power (including additional RF power amplifier). It is not allowed to connect the antenna or use other transmitting antennas without authorization. 2. This cannot be used when there is harmful interference to all kinds of legitimate radio communication business. Once disturbances are found, the use should be stopped immediately, and measures should be taken to eliminate disturbances before continuing use. 3. The use of micro power wireless devices must endure various radio business interference or industrial / scientific / medical application equipment radiation interference. 4. It should not be used in aircraft or airport accessories. Caution: 1. Please keep this product and accessory accessories to a child's reach. 2. Do not spill water or other liquids onto this product, otherwise it may cause damage. 3. Please do not place this product near the source of heat or place it in direct sunlight. Otherwise, it may cause deformation or malfunction. 4. Please let this product be flammable or fire such as lighted candles. 5. Please do not repair this product by yourself, only professionals can repair it. Abstract: This product is a wireless receiver with USB interface, the highest theoretical speed is 866.7Mbps. Instructions: Connect the product to the main engine using the specified connecting line. (The main engine needs to meet the working conditions). Standard specification: IEEE 802.11b、802.11g、802.11n、802.11a、802.11ac BT2.1+EDR/BT3.0+HS/BT4.2+LE * Note: compatibility of the connected devices must be confirmed before use. For detailed instructions, please refer to the instructions for each product. Specifications: Standard specification for WiFi:IEEE 802.11a/b/g/n/ac Data rate for WiFi:802.11b:1,2,5.5,11Mbps 802.11g:6,9,12,18,24,36,48,54Mbps 802.11n(HT20):MCS0~15,at most 150Mbps 802.11a:6,9,12,18,24,36,48,54Mbps 802.11ac:(HT80) at most 866.7Mbps Standard specification for Bluetooth:BT2.1+EDR/BT3.0+HS/BT4.2+LE Data rate for Bluetooth:GFSK,π/4-DQPSK,8DPSK,at most 3Mbps Size (long x width x high):18x27x2.6mm Interface:USB2.0 Frequency and channel:2.4GHz~2.5GHz,(1~13 CH for Worldwide) :5150-5250,5725-5850MHz *Note: If the design and specifications are changed, no notice shall be given.; the specifications vary from area to area; the transmission speed varies depending on the distance between the products, the number of obstacles, the product configuration, the radio wave condition and the product you use; the transmission may also be interrupted because of the bad radio waves condition; The standard value of transmission speed is the maximum value of wireless standard theory, rather than the actual speed of data transmission. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body Installation Guidance The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements.

External Photos

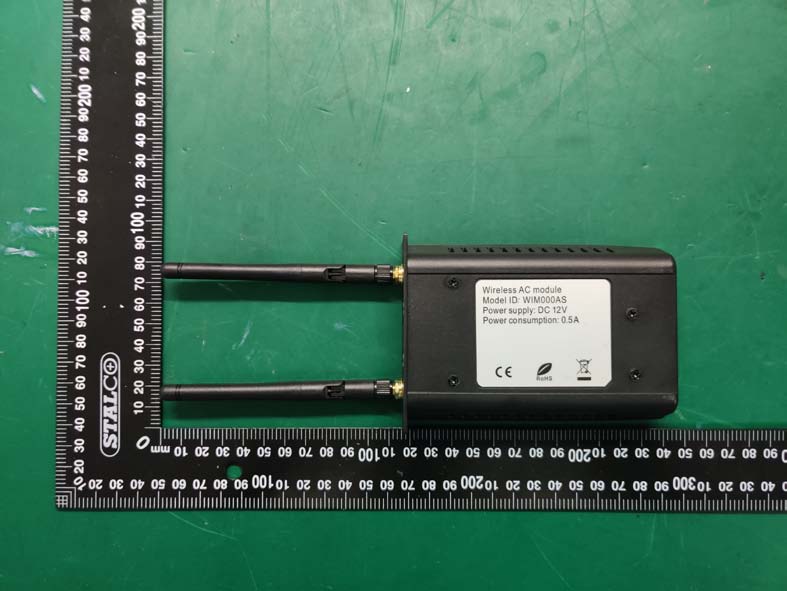

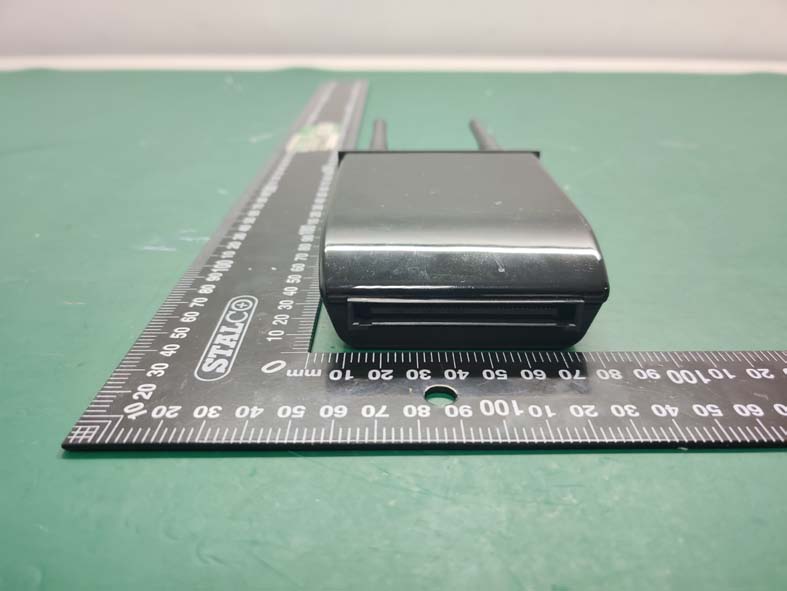

External Photos M/N: WIM000AS WiFi,Ble,Bluetooth ant1 WiFi ant2 External Photos M/N: WIM000AS External Photos M/N: WIM000AS External Photos M/N: WIM000AS

ID Label/Location Info

2APQQ-WIM000AS

Internal Photos

Internal Photos M/N: WIM000AS Internal Photos M/N: WIM000AS WiFi,Ble, Bluetooth ant1 WiFi ant2

RF Exposure Info

FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 1 of 10 FCC 47 CFR MPE REPORT CTOUCH Europe B.V. WIFI MODULE Model Number: WIM000AS FCC ID: 2APQQ-WIM000AS Prepared for: CTOUCH Europe B.V. Achtseweg Zuid 153R, 5651 GW Eindhoven, Nederlands Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2003024 Date of Test: Dec. 23, 2019~Mar. 04, 2020 Date of Report: Mar. 06, 2020 FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 2 of 10 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 3 of 10 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 4 of 10 2. Conducted Power Result Antenna 1 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 9.48 8.8716 9 ±1 2 1.58489 2441 9.51 8.9331 9±1 2 1.58489 2480 8.85 7.6736 8±1 2 1.58489 8-DPSK 2402 10.08 10.1859 10 ±1 2 1.58489 2441 10.08 10.1859 10±1 2 1.58489 2480 9.62 9.1622 9±1 2 1.58489 BLE GFSK 2402 9.42 8.7498 9 ±1 2 1.58489 2440 9.46 8.8308 9±1 2 1.58489 2480 8.84 7.6560 8±1 2 1.58489 IEEE 802.11b 2412 16.98 49.8884 16 ±1 2 1.58489 2437 17.32 53.9511 17±1 2 1.58489 2462 17.42 55.2077 17±1 2 1.58489 IEEE 802.11g 2412 18.62 72.7780 18 ±1 2 1.58489 2437 18.87 77.0903 18±1 2 1.58489 2462 19.15 82.2243 19±1 2 1.58489 IEEE 802.11n HT20(2.4G) 2412 16.13 41.0204 16 ±1 2 1.58489 2437 16.24 42.0727 16±1 2 1.58489 2462 16.38 43.4510 16±1 2 1.58489 IEEE 802.11n HT40 (2.4G) 2422 15.84 38.3707 15 ±1 2 1.58489 2437 16.28 42.4620 16±1 2 1.58489 2452 16.41 43.7522 16±1 2 1.58489 IEEE 802.11a 5180 13.99 25.0611 13 ±1 2 1.58489 5200 14.25 26.6073 14±1 2 1.58489 5240 12.56 18.0302 12±1 2 1.58489 5745 6.64 4.6132 6±1 2 1.58489 5785 7.00 5.0119 7±1 2 1.58489 5825 5.86 3.8548 5±1 2 1.58489 FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 5 of 10 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11n HT20 (5G) 5180 12.28 16.9044 12 ±1 2 1.58489 5200 12.31 17.0216 12±1 2 1.58489 5240 10.82 12.0781 10±1 2 1.58489 5745 6.72 4.6989 6±1 2 1.58489 5785 6.83 4.8195 6±1 2 1.58489 5825 5.71 3.7239 5±1 2 1.58489 IEEE 802.11ac VHT20 5180 12.34 17.1396 12 ±1 2 1.58489 5200 12.35 17.1791 12±1 2 1.58489 5240 10.78 11.9674 10±1 2 1.58489 5745 6.74 4.7206 6±1 2 1.58489 5785 7.08 5.1051 7±1 2 1.58489 5825 5.85 3.8459 5±1 2 1.58489 IEEE 802.11n HT40 (5G) 5190 9.56 9.0365 9 ±1 2 1.58489 5230 12.00 15.8489 12±1 2 1.58489 5755 7.53 5.6624 7±1 2 1.58489 5795 7.20 5.2481 7±1 2 1.58489 IEEE 802.11ac VHT40 5190 9.40 8.7096 9 ±1 2 1.58489 5230 11.96 15.7036 11±1 2 1.58489 5755 7.37 5.4576 7±1 2 1.58489 5795 7.20 5.2481 7±1 2 1.58489 IEEE 802.11ac VHT80 5210 5.39 3.4594 5 ±1 2 1.58489 5775 7.19 5.2360 7±1 2 1.58489 FCC ID: 2APQQ-WIM000AS EST Technology Co. ,Ltd Report No. ESTE-R2003024 Page 6 of 10 Antenna 2 Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) IEEE 802.11b 2412 17.09 51.1682 17 ±1 2 1.58489 2437 17.04 50.5825 17±1 2 1.58489 2462 16.91 49.0908 16±1 2 1.58489 IEEE 802.11g 2412 18.81 76.0326 18 ±1 2 1.58489 2437 18.80 75.8578 18±1 2 1.58489 2462 18.72 74.4732 18±1 2 1.58489 IEEE 802.11n HT20(2.4G) 2412 16.23 41.9759 16 ±1 2 1.58489 2437 16.67 46.4515 16±1 2 1.58489 2462 16.64 46.1318 16±1 2 1.58489 IEEE 802.11n HT40(2.4G) 2422 16.13 41.0204 16 ±1 2 1.58489 2437 16.38 43.4510 16±1 2 1.58489 2452 16.03 40.0867 16±1 2 1.58489 IEEE 802.11a 5180 15.05 31.9890 15 ±1 2 1.58489 5200 14.99 31.5500 14±1 2 1.58489 5240 14.40 27.5423 14±1 2 1.58489 5745 4.51 2.8249 4±1 2 1.58489 5785 4.60 2.8840 4±1 2 1.58489 5825 3.40 2.1878 3±1 2 1.58489 IEEE 802.11n HT20 (5G) 5180 13.03 20.0909 13 ±1 2 1.58489 5200 12.89 19.4536 12±1 2 1.58489 5240 12.63 18.3231 12±1 2 1.58489 5745 4.43 2.7733 4±1 2 1.58489 5785 4.18 2.6182 4±1 2 1.58489 5825 3.28 2.1281 3±1 2 1.58489 IEEE 802.11ac VHT20 5180 12.96 19.7697 12 ±1 2 1.58489 5200 12.95 19.7242 12±1 2 1.58489 5240 12.52 17.8649 12±1 2 1.58489 5745 4.80 3.0200 4±1 2 1.58489 5785 4.74 2.9785 4±1 2 1.58489 5825 3.38 2.1777 3±1 2 1.58489 FCC ID: 2APQQ-WIM000AS EST Technology C…

Text truncated - open the document above for the full version.

Test Report

FCC ID: 2APQQ-WIM000AS EST Technology Co., Ltd Report No.ESTE-R2003020 Page 1 of 74 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of CTOUCH Europe B.V. WIFI MODULE Model Number: WIM000AS FCC ID: 2APQQ-WIM000AS Prepared for: CTOUCH Europe B.V. Achtseweg Zuid 153R, 5651 GW Eindhoven, Nederlands Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2003020 Date of Test: Dec. 23, 2019~Mar. 04, 2020 Date of Report: Mar. 06, 2020 FCC ID: 2APQQ-WIM000AS EST Technology Co., Ltd Report No.ESTE-R2003020 Page 2 of 74 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION ........................................................................................................................ 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities .................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram .................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List .................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ...................................................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 24 5.1. Limit ............................................................................................................................................... 24 5.2. Test Setup ....................................................................................................................................... 24 5.3. Spectrum Analyzer Setting ............................................................................................................. 24 5.4. Test Procedure ................................................................................................................................ 24 5.5. Test Result ...................................................................................................................................... 25 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 30 6.1. Limit ............................................................................................................................................... 30 6.2. Test Setup ....................................................................................................................................... 30 6.3. Spectrum Analyzer Setting ............................................................................................................. 30…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted Test M/N: WIM000AS Radiated Test (Below 1GHz) M/N: WIM000AS Radiated Test (Above 1GHz) M/N: WIM000AS

Contact Information

Applicant

Ralph Kolen(Product manager)
[email protected]+ 31 (0)40 261 8320Fax: 26503396

Technical Contact

EST Technology Co., Ltd.Iceman Hu
[email protected]86-769-83081888

Dongguan · China

Non-Technical Contact

EST Technology Co., Ltd.Iceman Hu
[email protected]86-769-83081888

Test Firm

EST Technology Co., Ltd.Iceman Hu
[email protected]+86 0769-83081888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz10.20 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End-users must be provided with operating procedures for satisfying RF exposure compliance.
