2APQV-BHP120Smart Plug

Before You Begin Step 1 Download the app Download the Brilliant app from the Apple Store or Google Play Store. Step 2 Follow installation guide Receive step-by-step installation instructions using the Brilliant app. Step 3 Scan the QR code Find code on the back of plug Requirements Brilliant Control: At least one Brilliant Control must be installed for Brilliant Plug to work. Electrical: 120V AC Blue Solid: Powered on Blue Blinking (Slow): Configuration/Pairing Mode Blue Blinking (Fast): Error Detected Reset instructions Press and hold button for 8 seconds Led status indicator Use Brilliant app Want to learn more about what you can do with your Brilliant Plug? Visit brilliant.tech & more Need additional help? https://support.brilliant.tech Button & LED Indicator Turning power on/o Resetting Device BHP120US-WH1 Quick Start Guide Contains FCC ID:2APQV-BHP120 IC:23875-BHP120 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. RF Warning The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s). IC Warning: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Key features Transform any house or apartment into an easy-to-use smart home. 540-00017 REV1 SMART PLUG Home Control required Dimmer Switch Mobile AppSmart Plug Troubleshooting & Support Works With Legal The Brilliant Smart Home System Pantone 314Pantone 1495Pantone 314Pantone 1495Pantone 314Pantone 1495

Brilliant Home Technology Inc Date: 2020-03-06 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2APQV-BHP120 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description BHP120US-WH1_Schematics.pdf BHP120US-WH1_Block Diagram.pdf BHP120US-WH1_Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Brilliant Home Technology Inc Signature Brian Cardanha Vice President, Hardware Engineering 2020/03/06

Brilliant Home Technology Inc FCC ID: 2APQV-BHP120 POWER OF ATTORNEY Date: 2020-03-06 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on 2021-03-05. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Brilliant Home Technology Inc are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Brilliant Home Technology Inc Signature Brian Cardanha Vice President, Hardware Engineering 2020/03/06

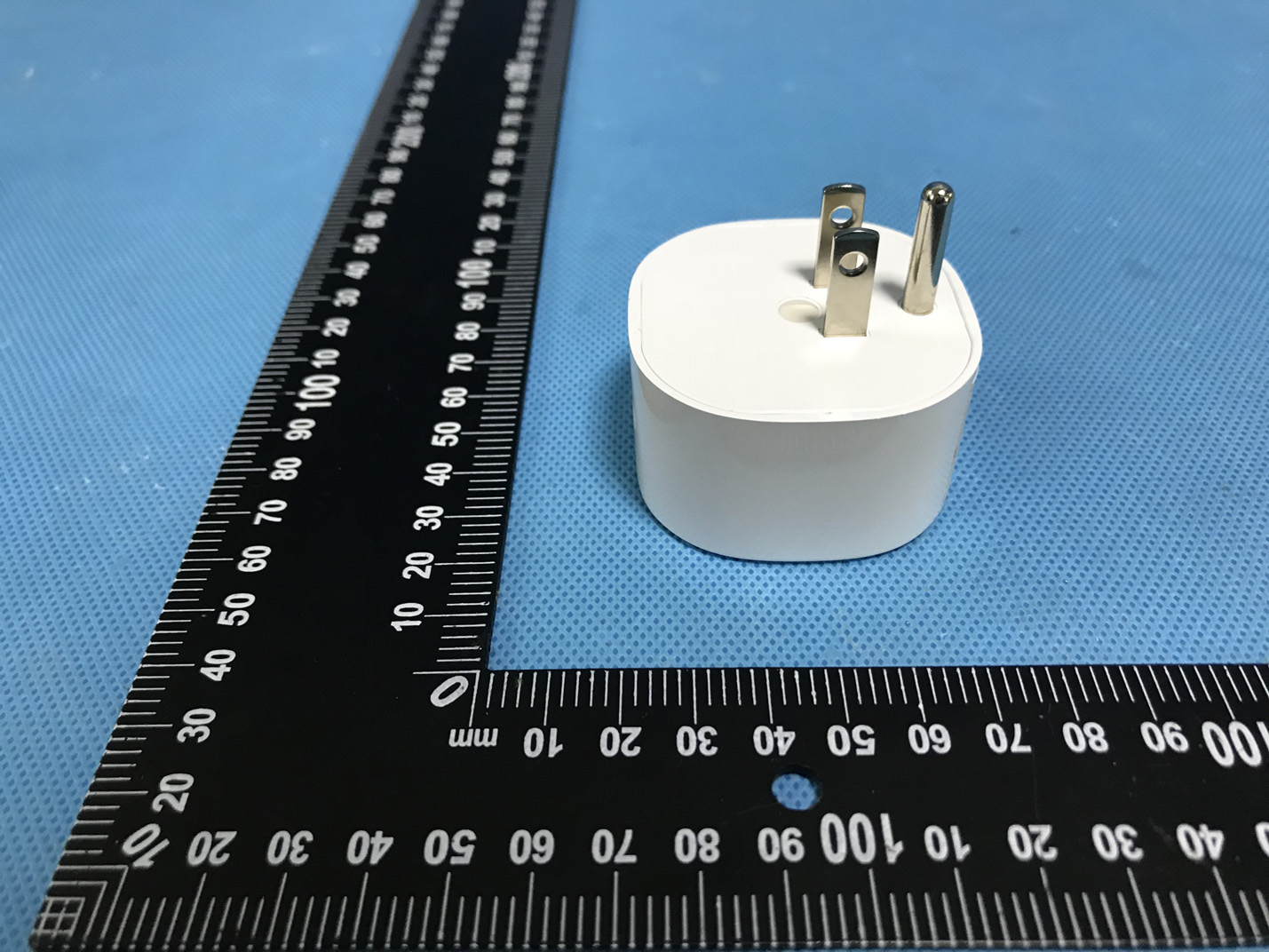

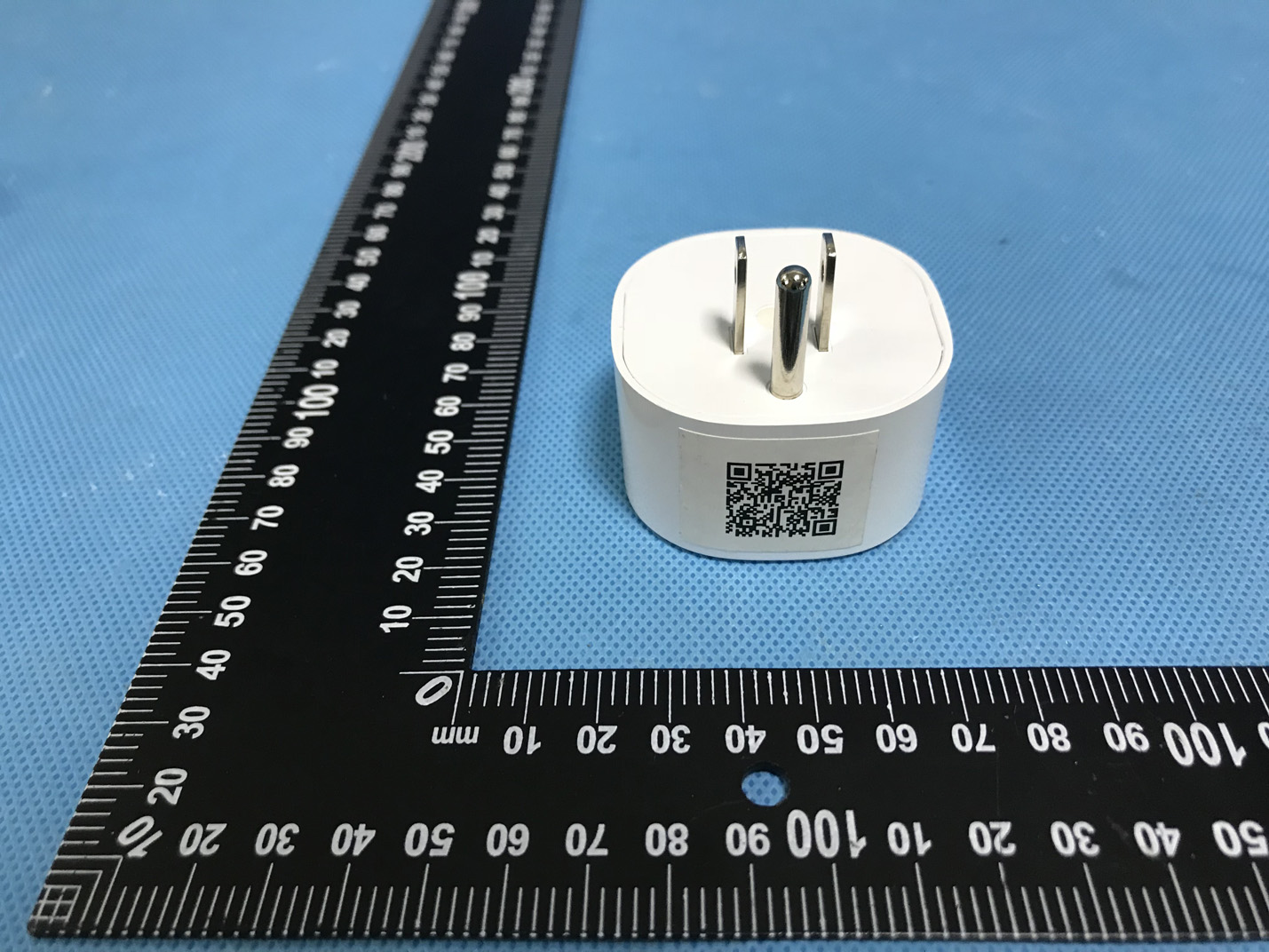

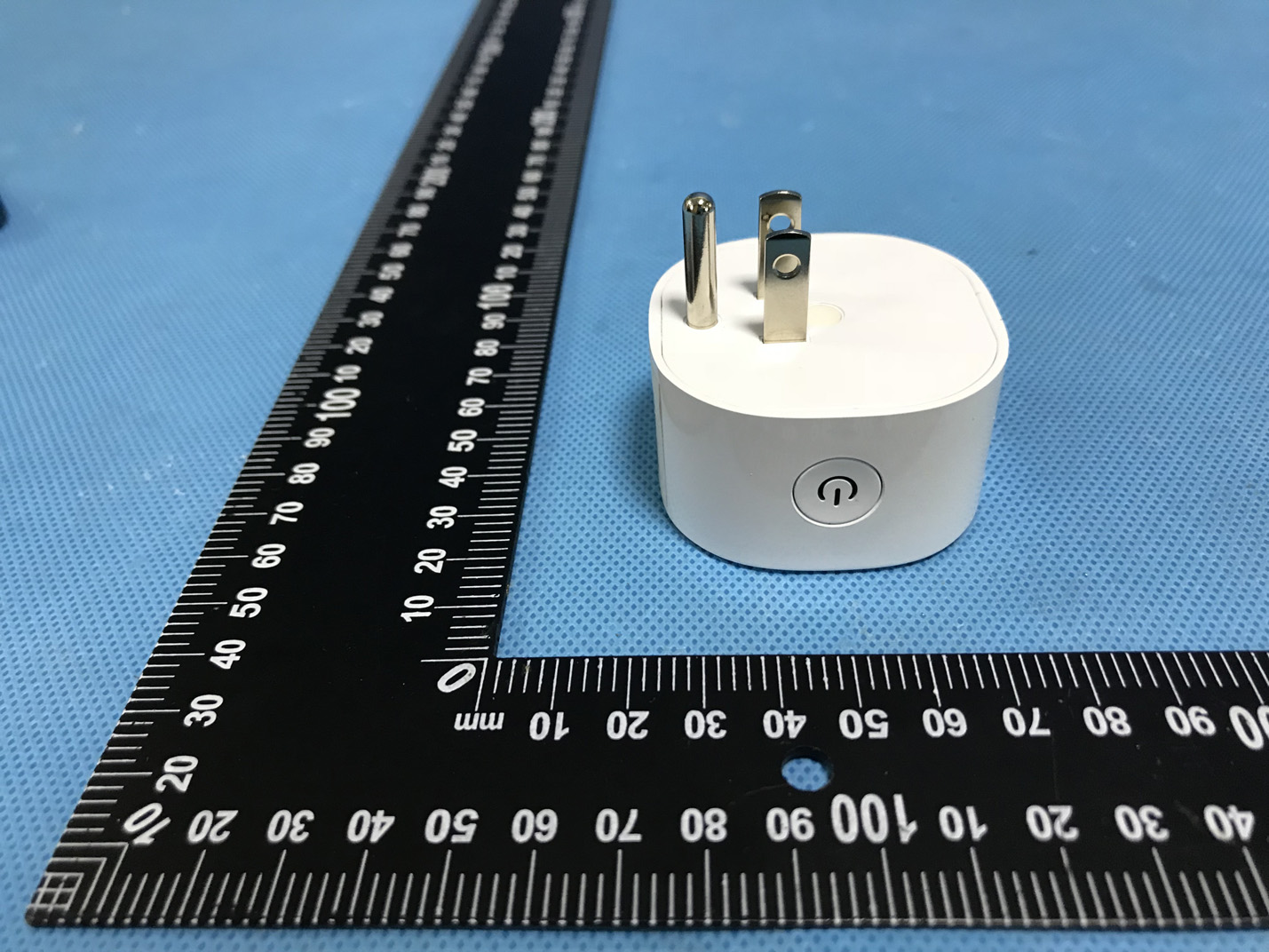

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn BHP 120US-WH1 - External Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

BHP120US-WH1_Label Sample and Label Location

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn BHP 120US-WH1 - Internal Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID: 2APQV-BHP120 RF Exposure Report Test Requirement: FCC Part 1.1307 FCC Part2.1093 & KDB 447498 D01 General RF Exposure Guidance v06 Evaluation Method Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.06141.63(100)*6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-30061.40.1631.06 300-1500F/3006 1500-100,00056 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f)*30 30-30027.50.0730.230 300-1500F/150030 1500-100,0001.030 Note: f = frequency in MHz; *Plane-wave equivalent power density Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn M PE Calculation Method S＝ 2 4R GP    S = powe r density (in appropriate units, e.g. mW/cm 2 ) P = output power to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) From the peak EUT RF output power, the minimum mobile separation distance, R=20cm, as well as the gain of the used antenna, the RF power density can be obtained Antenna Gain (dBi) Antenna Gain (numeric) Max. conducted Output Power (dBm) Max. conducted Output Power (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) Result -1.26 0.75 5.42 3.48 0.000520 1 Compliance Result : Compliance No SAR measurement is required.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 42 TEST REPORT Referen ce No. .................... : WTS20S03006774W FCC ID ................................ : 2APQV-BHP120 Applicant ............................ : Brilliant Home Technology Inc Address .............................. : 155 Bovet Rd, Suite 500, San Mateo, California, United States Manufacturer ..................... : HANK ELECTRONICS CO., LTD. Address .............................. : Floor 2nd-7th, A8, Hongye Industry City, Lezhujiao, Zhoushi Road, Baoan District, Shenzhen, China Product ............................... : Smart Plug Model(s) ............................. : BHP120US-WH1 Standards........................... : FCC CFR47 Part 15 Section 15.247:2019 Date of Receipt sample .... : 2020-03-04 Date of Test ....................... : 2020-03-04 to 2020-03-11 Date of Issue ...................... : 2020-04-01 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Robin Zhou / Test Engineer Philo Zhong / Manager Reference No.: WTS20S03006774W Page 2 of 42 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 1 Contents Page COVER PAGE ........................................................................................................................................... 1 1 CONTENTS ............................................................................................................................................................ 2 2 REVISION HISTORY ............................................................................................................................................ 4 3 GENERAL INFORMATION .................................................................................................................................. 5 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 5 3.2 DETAILS OF E.U.T. ......................................................................................................................................... 5 3.3 CHANNEL LIST ................................................................................................................................................. 5 3.4 TEST MODE ..................................................................................................................................................... 6 4 EQUIPMENT USED DURING TEST .................................................................................................................. 7 4.1 EQUIPMENTS LIST ........................................................................................................................................... 7 4.2 MEASUREMENT UNCERTAINTY ....................................................................................................................... 8 4.3 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 8 5 TEST FACILITY ..................................................................................................................................................... 8 6 TEST SUMMARY .................................................................................................................................................. 9 7 CONDUCTED EMISSION .................................................................................................................................. 10 7.1 E.U.T. OPERATION ....................................................................................................................................... 10 7.2 EUT SETUP ................................................................................................................................................... 10 7.3 MEASUREMENT DESCRIPTION ...................................................................................................................... 11 7.4 CONDUCTED EMISSION TEST RESULT ......................................................................................................... 11 8 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 8.1 EUT OPERATION ........................................................................................................................................... 13 8.2 TEST SETUP .................................................................................................................................................. 14 8.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 15 8.4 TEST PROCEDURE ........................................................................................................................................ 16 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 16 8.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 17 9 BAND EDGE MEASUREMENT ........................................................................................................................ 20 9.1 TEST PRODUCE ..................................................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn BHP120US-WH1 Test Setup Photos P hotograph-Conducted Emissions Test Setup Photos 15.2 Photograph – Radiation Spurious Emission Test Setup Photos 9 kHz to 30 MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30 MHz to 1GHz Above 1GHz
