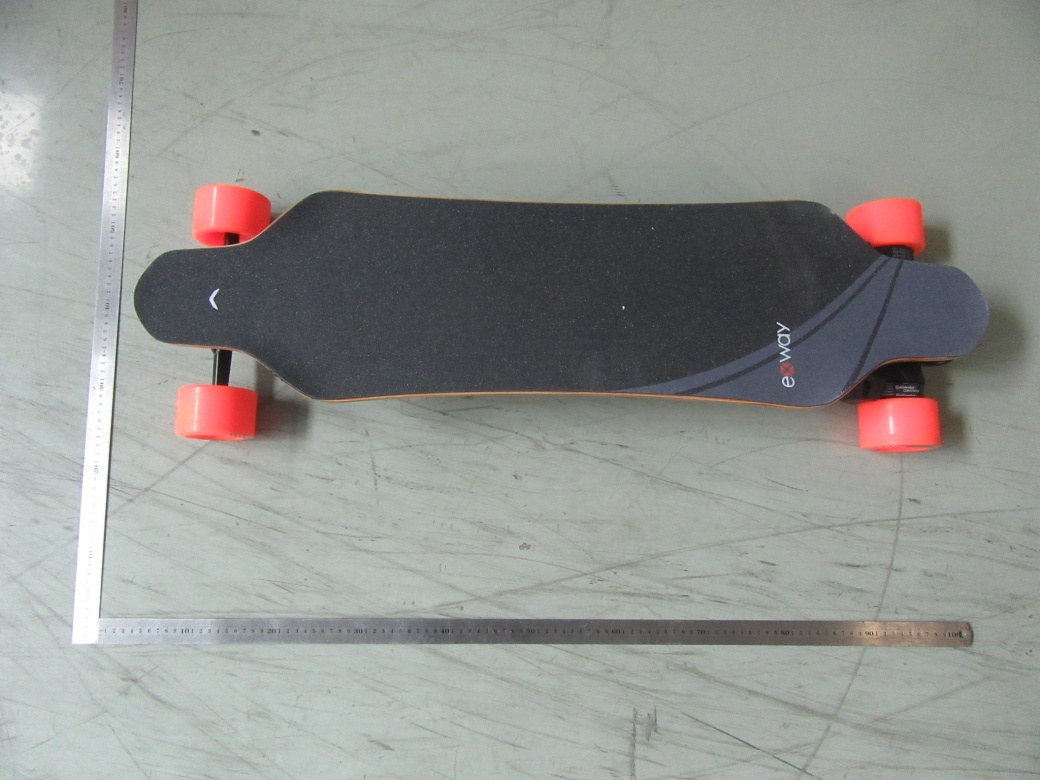

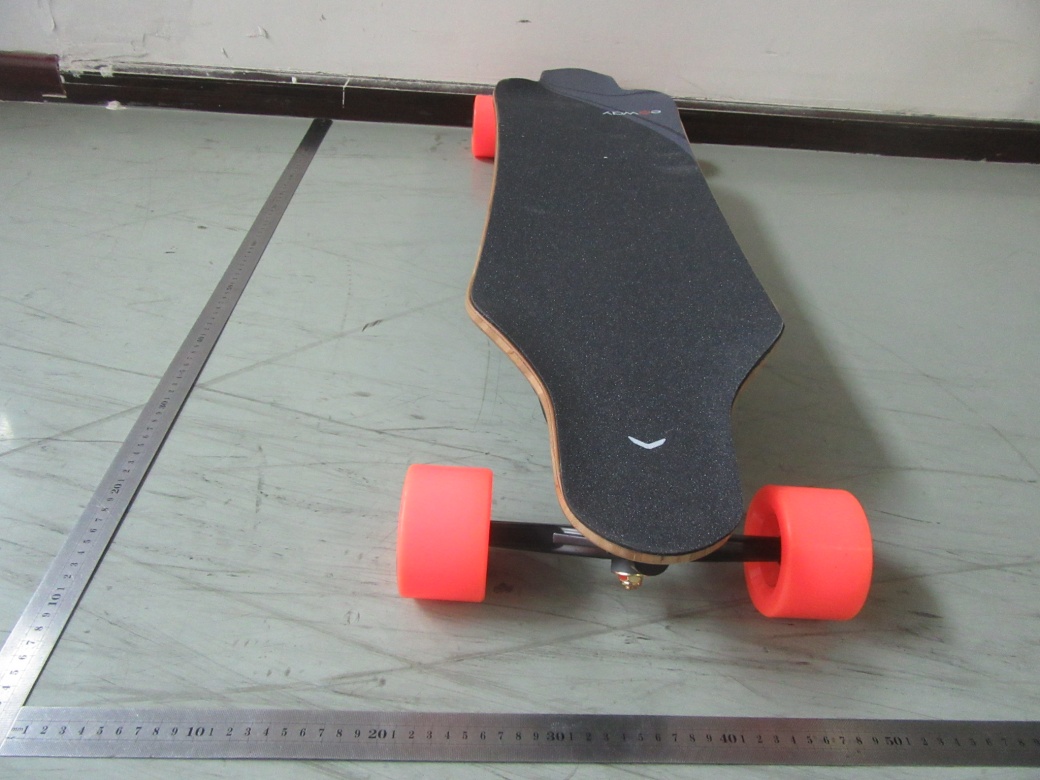

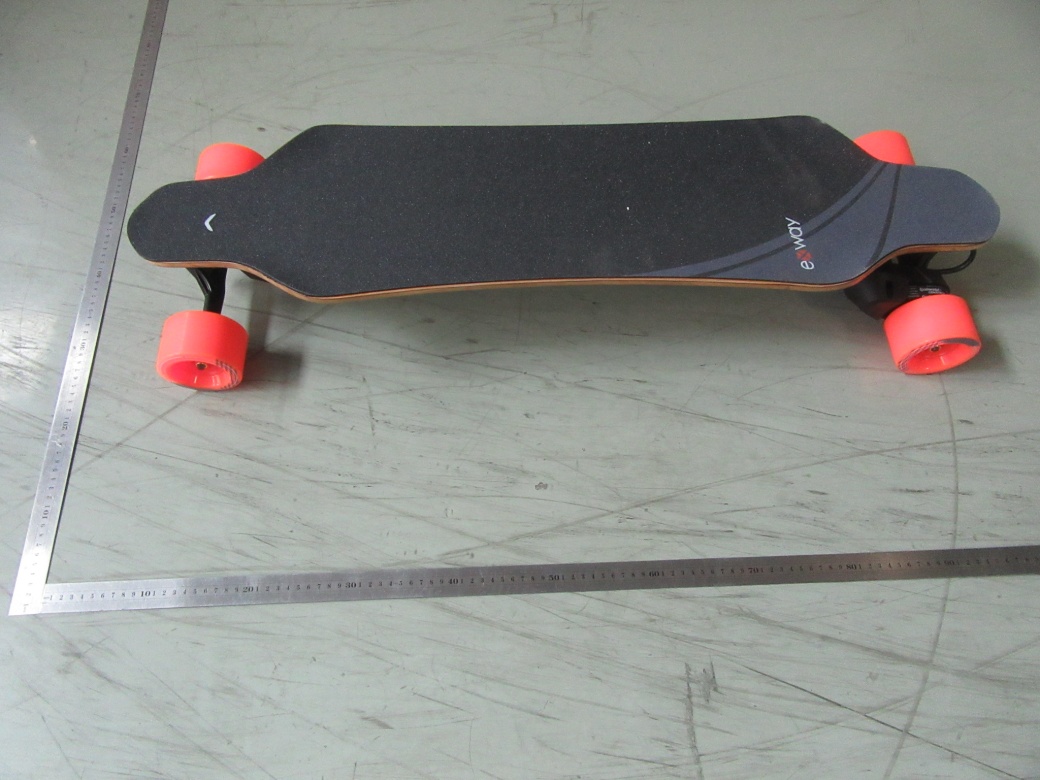

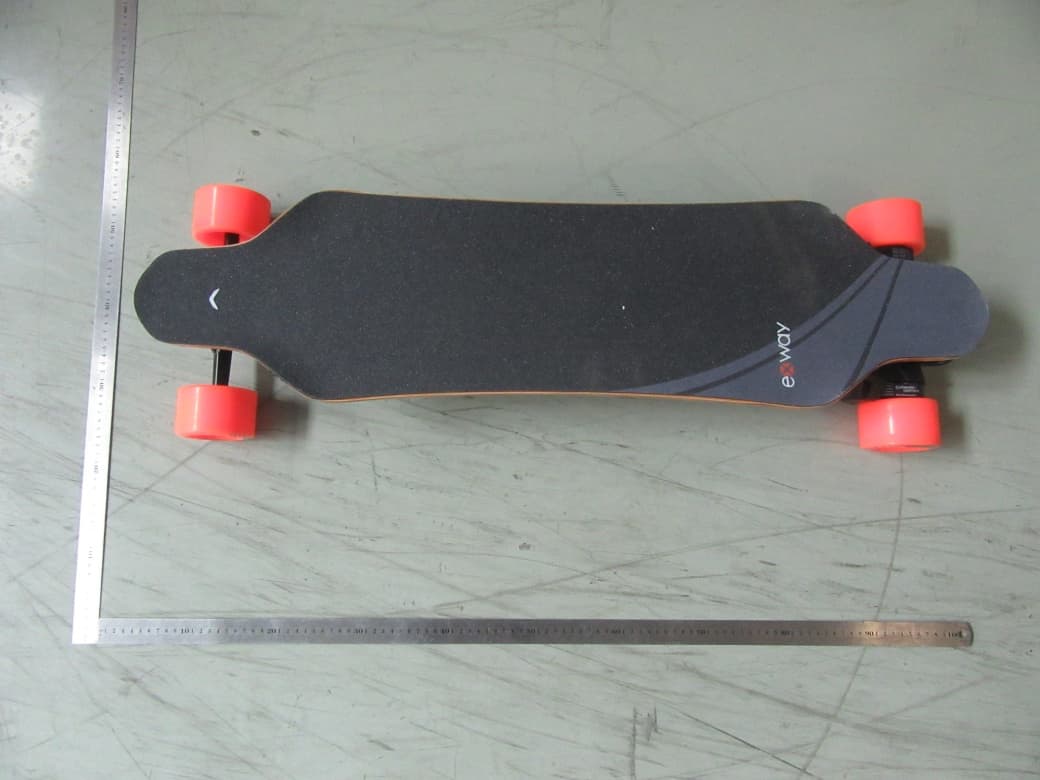

2APTF-F1Relectric skateboard

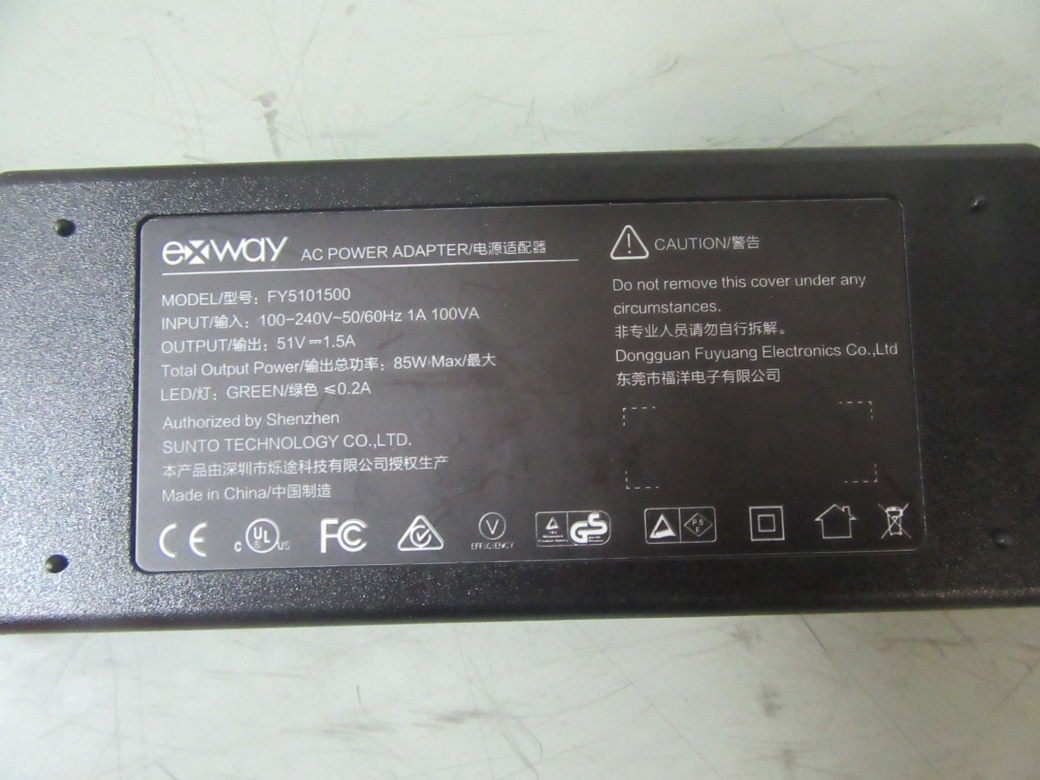

electric skateboard Manual ① Front of The Board ② Waterproof Grip Tape (Do not ride in the rain when it' s broken) ③ Rear of The Board ④ Truck ⑤ Charge Port ⑥ Power Button ⑦ Battery ⑧ ESC ⑨ Motor ⑩ Rear Drive Wheel Max. Speed： Max. Climbing Grade： Range： Gross Weight： Torque： Maximum Power: Rated Motor Power： MAX Input Current： Input Voltage： Battery Capacity： Charging Time： Truck： Braking Mode： Applicable Age Range： Maximum Load： Water Proof Level： 25mph / 40kph 30% / 16.8° 20Miles / 32km Riot/Hub 17lbs（7.7kg） Riot 5.2Nm×2 / Hub 4.6Nm×2 Riot 1700W×2 / Hub 1500W×2 Riot 750W×2 / Hub 600W×2 2A 100-240VAC,50 / 60Hz 259Wh 4.5h ( Standard Charger) Exway Trist 45°- 8” Regenerative Braking 16 ~ 50 Years old 120kg / 440lbs IP55 （Actual data varies depending on rider weight and riding conditions.） ③ ① ② ⑤ ⑥ ⑧ ⑨ ⑩ ④ ⑦ RiotHub 01 SAFETY WARNING： 1. When the skateboard battery has 5% left, the power output will be cut off to better protect the battery. (In free mode, both the power output and brakes will be restricted) 2. Connect the magnetic port on the charger to the power button on the board before plugging into the wall outlet. (Only use an origina l Exway X1 pro charger) SPECIAL NOTES： 1. The Exway board can be fully charged in about 4 hours 30 minutes. When fully charged the battery charger indicator light is green. 2. Please refer to the Exway APP or the official website for the latest version of the product manual. Operation & The state of the indicator lights: 02 Battery Level with the power off, short press power Button, light will flash to indicate battery level. (1 bar = 25% battery capacity) Turn On The Board long press power button for 2 seconds. Turn Off The Board With the power on, long press PowerButton for 3 seconds. Pairing Mode With the power off, long press power Button for 8 seconds. (light will flash in an anticlockwise direction) Brick Recovery/Firmware Upgrade Mode With the power off, short press Power Button for around 7 times. (light will flash in a clockwise direction) Charging light Flashes Continuously. ScreenOLED 0.9 inch: : 2.4GHzWireless Solution : 5V 1AInput Voltage How to operate the remote: Accelerate/Brake Roll the remote wheel forward to accelerate and roll the remote wheel back Wirelessly Switch Off The Board (Standby Mode) long press Button A for 3 seconds Switch Gears Short Press Button A Switch Directions short press button A for 3 times to switch directions Accelerating (Roll the remote wheel forward) Roller Braking (Roll the remote wheel backward) Multifunctional Button A OLED Screen 03 Setting-Calibration Remote Control Alert Instructions: Push the roller forward to the bottom withot letting go, press A button to Confirm. Enter lnto Pairing Mode Completely turn off the board and then long press the board′s power button for 8 seconds. Enter lnto Setting Mode Long press the remote′s button A for 5 seconds. Choose the first option “RE-PAIR” Choose the corrsponding Exway board and then “YES” Calibrate the neutral position, release the roller to make it frss, press A button to confirm. Press A button to confirm when calibration is complete and the calibration interface is automatically exited. 04 Remote Control Alert Instructions ESC OVERHEAT (100°C） ESC temperature is too high ESC OVERHEAT MOTOR OVERHEAT (100°C） Motor temperature is too high MOTOR OVERHEAT ESC OVERHEAT (120°C） ESC temperature is too high (Danger risk ! Cool it down before use) ESC OVERHEAT MOTOR OVERHEAT (120°C） Motor temperature is too high (Danger risk ! Cool it down before use) MOTOR OVERHEAT LOW TEMPERATURE Temperatures below 0 °C (be cautious of slippery road conditions) BATTRY OVERHEAT(55°C） TBattery temperature is too high BATTRY(55°) MOTOR BREAKOOWN Motor Seizing MOTOR BREAKDOWN 05 HIGH VOLTAGE(51V) Voltage is too high HIGH VOLTAGE(51V) HIGH VOLTAGE(51.8V) Voltage is too high (Danger risk ! Discharge it Before use) HIGH VOLTAGE(51.8V) LOW TEMPERATURE Low Charge temperature LOW TEMPERATURE DISCONNECTED The remote is disconnected from the Board DISCONNECTED LOW TEMPERATURE High Charge Temperature BEATTRY OVERHEAT Battery or BMS Error Please check battery communications port BMS ERROR 06 Flex Hub Part List ⑤⑥ ① ⑦ ④②③ ④ Remote Cable ② Remote ③ Charger ① Exway Flex Hub ⑥ Manual ⑤ T Skate Tool ⑦ 2.5mm Allen Wrench ④ Remote Cable ② Remote ③ Charger ① Exway Flex Hub ⑥ Manual ⑤ T Skate Tool ⑦ 2.5mm Allen Wrench ⑧ 2.0mm Allen Wrench Flex Riot Part List ②③④ ⑤⑧ ⑥⑦ ① 1. Please read and understand the user manual before riding your electric skateboard. You are responsible for the operation and control of the electric skateboard and you must know how to control it before you ride. 2. Riding an Exway electric skateboard is extremely dangerous. Whenever you ride your Exway board you risk great bodily injury, disability, or death from loss of control, collision, or falls. 3. The Exway electric skateboard can lose connection with the remote control. If this happens the skateboard becomes a non motorized longboard. Please always ride within your ability to control the board in case power loss occurs. Prepare to lose your ability to brake at any time. 4. Skate only in an open area free from vehicles and pedestrian traffic, and other physical obstacles. You are responsible for learning the basic features of the board such as braking, accelerating, and switching gears. Always wear a helmet and full protective gear while riding. 5. Do not ride on slippery or uneven surfaces. Only ride in areas with good visibility. Avoid riding in close proximity to vehicle and pedestrian traffic. 6. The Exway electric skateboard is not a toy and is not intended for children under 16. 7. Please refer to the Exway APP or the official website for the latest version of the product manual. 8. Do not store board at 100% battery charge for extended periods of time, doing so will permanently damage the battery. Maintain around 60% charge when storing for a long time and do not allow battery charge to go below 40%. Security Warning …

Text truncated - open the document above for the full version.

SUNTO TECHNOLOGY CO.,LTD 2020.04.10 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR EUT NAME: electric skateboard Trademark: N/A FCC ID: 2APTF-F1R MODEL : F1R, X1, X1 PRO, X2, X1 RT, F1H To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : He Huiming / Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China.

SUNTO TECHNOLOGY CO.,LTD 2020.04.10 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : He Huiming / Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China.

SUNTO TECHNOLOGY CO.,LTD Model Difference 2020-04-10 EUT NAME: electric skateboard Trademark: N/A FCC ID: 2APTF-F1R MODEL : F1R, X1, X1 PRO, X2, X1 RT, F1H All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : He Huiming / Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China.

Size:30*15mm FCC ID: 2APTF-F1R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause und esired operation. Label location

2.4g Receive Antenna BT Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2APTF-F1R Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.4021.261.341±12.001.58<50.491273.00YES GFSK2.4401.501.411±12.001.58<50.495143.00YES GFSK2.4801.731.491±12.001.58<50.499183.00YES Conclusion: For the max result : 0.49918≤3.0, the SAR testing is not required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 41 Test Report FCC: 2APTF-F1R Product Name: electric skateboard Trademark: N/A Model Name : F1R X1, X1 PRO, X2, X1 RT, F1H Prepared For : SUNTO TECHNOLOGY CO.,LTD Address : Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China. Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Mar. 19, 2020 – Apr. 03, 2020 Date of Report : Apr. 7, 2020 Report No.: BCTC2003000060E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 41 TEST RESULT CERTIFICATION Applicant’s name ................. : SUNTO TECHNOLOGY CO.,LTD Address ................................. : Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China. Manufacture's Name ............ : SUNTO TECHNOLOGY CO.,LTD Address ................................. : Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen China. Product description Product name ........................... : electric skateboard Trademark ................................. : N/A Model and/or type reference : F1R X1, X1 PRO, X2, X1 RT, F1H Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 41 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 24 3.3.1 TEST REQUIREMENT: 24 3.3.2 TEST PROCEDURE 24 3.3.3 DEVIATION FROM TEST STANDARD 25 3.3.4 TEST SETUP 25 3.3.5 EUT OPERATING CONDITIONS 25 4 . POWER SPECTRAL DENSITY TEST 27 4.1 APPLIED PROCEDURES / LIMIT 27 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 41 Table of Contents Page 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 4.1.5 TEST RESULTS 28 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 33 6.1 APPLIED PROCEDURES / LIMIT 33 6.1.1 TEST PROCEDURE 33 6.1.2 DEVIATION FROM STANDARD 33 6.1.3 TEST SETUP 33 6.1.4 EUT OPERATION CONDITIONS 33 6.1.5 TEST RESULTS 34 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 35 7.1 APPLICABLE STANDARD 35 7.2 TEST PROCEDURE 35 7.3 DEVIATION FROM STANDARD 35 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 8 . ANTENNA REQUIREMENT 38 8.1 STANDARD REQUIREMENT 38 8.2 EUT ANTENNA 38 9 . EUT TEST PHOTO 39 10 . EUT PHOTO 41 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 41 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.205, 15.209 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2003000060E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 41 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiat…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Conducted emissions Shenzhen BCTC Testing Co., Ltd. Radiated Measurement Photos
