2APTF-FPG1Electric skateboards

kmkm km km FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

U.S.AgentDesignationforServiceofProcess (ApplicantandU.S.AgentareSeparateParties) TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTENTION:FCCCertification–Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:HOPEKCORPORATIONINC Address:4358SBANNOCKSTENGLEWOOD,CO80110UnitedStates FRN:0034562900 ContactName:PeterDavis Tel.:561-235-6113 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S.AgentSignature:PeterDavis Date:November12,2024 Signedby(PrintedName/Title): TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:SUNTOTECHNOLOGYCO.,LTD FRN:0027516897 GranteeCode:2APTF FCCID:2APTF-FPG1 ContactName:hehuiming StreetAddress:RoomA3-09-11;No.108;LijiaRoad;HenggangStreet;LonggangDistrict;Shenzhen,China TelephoneNo:13534562420 Email:[email protected] ApplicantSignature: Date:November12,2024 Signedby(PrintedName/Title):hehuiming/M anager

SUNTO TECHNOLOGY CO.,LTD 2024.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2APTF-FPG1 [SUNTO TECHNOLOGY CO.,LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) he huiming SUNTO TECHNOLOGY CO.,LTD 2024.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2APTF-FPG1 [SUNTO TECHNOLOGY CO.,LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) he huiming

SUNTO TECHNOLOGY CO.,LTD 2024.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : he huiming /Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen, China Product Name: Electric skateboards Trademark: Exway Model/Type reference: FPG1 FPG2, FP2, F2 FCC ID: 2APTF-FPG1

SUNTO TECHNOLOGY CO.,LTD 2024.11.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : he huiming /Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen, China

SUNTO TECHNOLOGY CO.,LTD Model Difference 2024.11.11 Product Name:Electric skateboards Trademark:Exway Model/Type reference: FPG1 FPG2, FP2, F2 FCC ID: 2APTF-FPG1 All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : he huiming /Manager Contact information / address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen, China

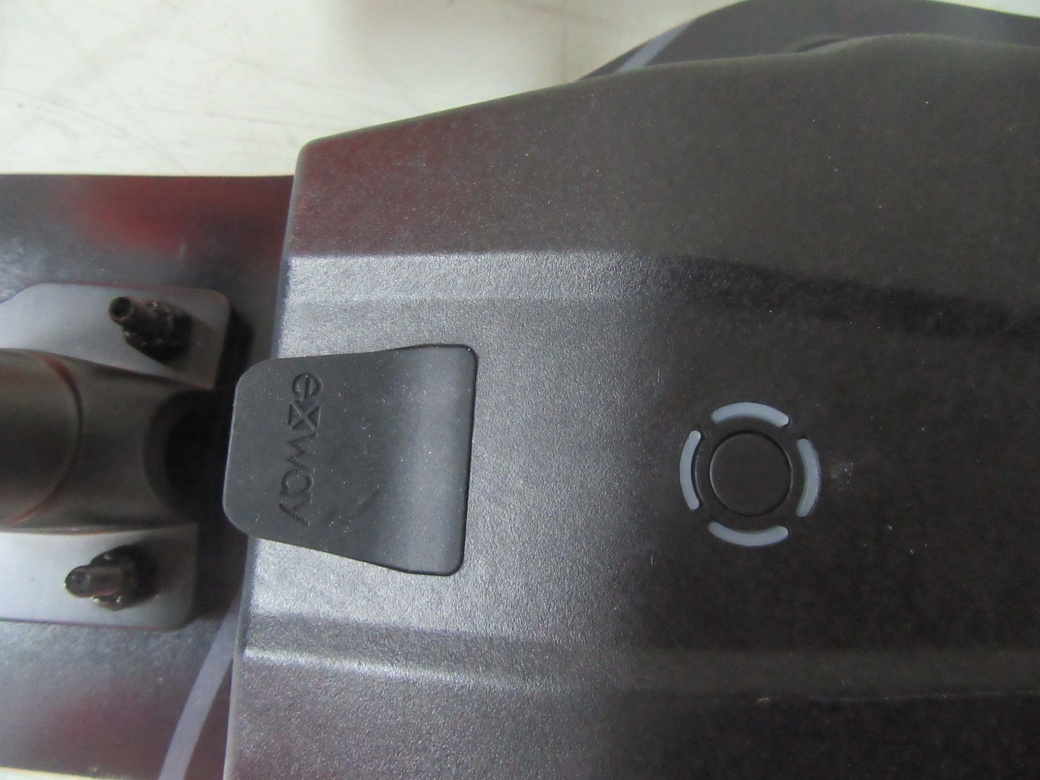

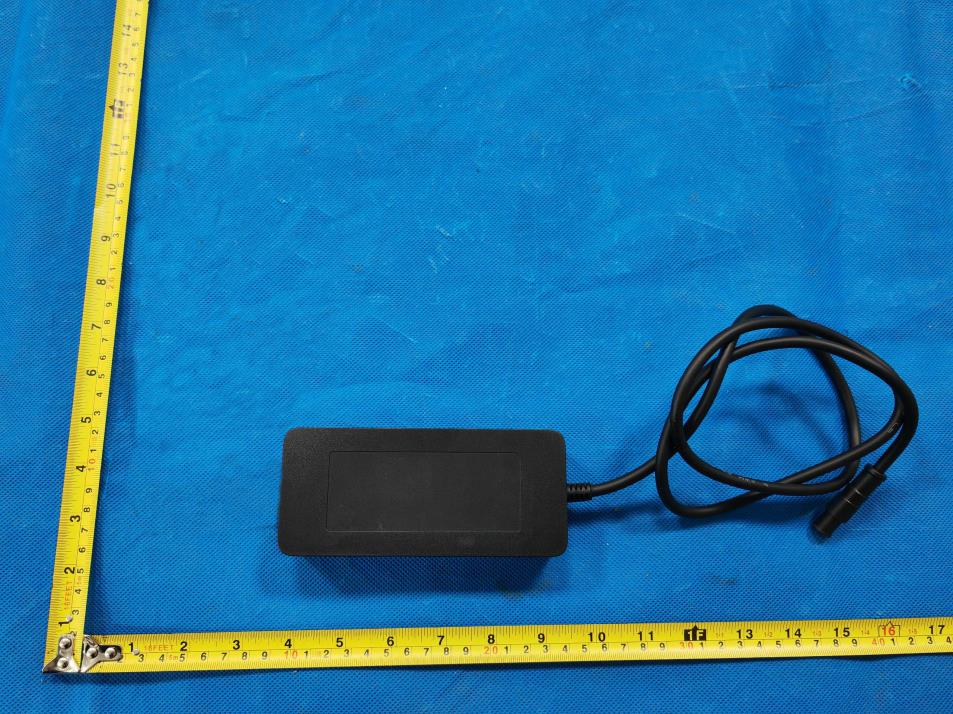

External Photos

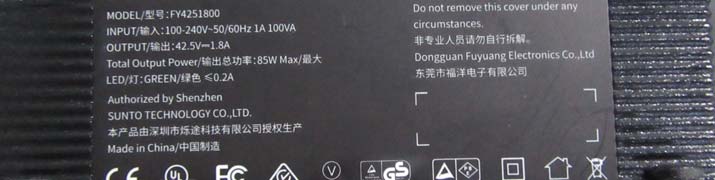

Size:20*10mm FCC ID:2APTF-FPG1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2APTF-FPG1 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. SDR GFSK 2410 1.32 30 GFSK 2440 2.46 30 GFSK 2470 1.21 30 max possible output power (PK,conducted)：3±1dBm 2.14 dBi logarithmic terms convert to numeric result is nearly 1.64 4dBm=2.51mW 2410MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.41=0.78≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2.51/5*√2.44=0.78≤3.0 2470MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.51/5*√2.47=0.79≤3.0 Conclusion: 1.[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

TengxiangTechnology.Inc ProductNumber:AN2450-FPC370130-BZ ProductName:Antenna FileNo.:200610003Version:1.0Date:2020.06.10 SpecificationForApproval Customer：深圳中盈动智能技术有限公司 CustomerP/N： TengxiangP/N：AN2450-FPC370130-BZ Description:ANTENNA TengxiangCheckedBy:CustomerApprovedBy: TengxiangTechnology.Inc NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc ProductNumber:AN2450-FPC370130-BZ ProductName:2.4GHzAntenna Page1Version:1.2IssueDate:2020-06-10 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency2400~2500MHz S.W.R.<=2.0 AntennaGain2.0dBi PolarizationLinear Impedance50Ohm B.Material&MechanicalCharacteristics MaterialofRadiatorCu CableType/ ConnectorType ConnectorPullTest C.Environmental OperationTemperature-40 ̊C~+80 ̊C StorageTemperature-40 ̊C~+80 ̊C 2.CharacteristicsandReliabilityTest TestItemsTestConditionandProcedureRequirements C1S.W.R.SetDUTonNetworkAnalyzer;makeindividual calibrationtotest DirectiveDUTspecification TengxiangTechnology.Inc ProductNumber:AN2450-FPC370130-BZ ProductName:2.4GHzAntenna Page2Version:1.2IssueDate:2020-06-10 C2Antenna Gain SetDUTonAntennaChamber;makeindividual calibrationtotest DirectiveDUTspecification M1VibrationGB/T2423.48-1997 Amplitude:0.03inch(1.5mm);Freq:20to80to20Hz 3directions;2hoursforeachdirection 1.NoVisualDamage 2.FrequencyTol.<=5% M2Random Drop GB/T2423.8-1995 Height:1.0Meter; 3directions;1timeforeachdirection 1.Nopartsseparated 2.FrequencyTol.<=5% M3SolderabilityGB2423.28-82 Solderiron:260±5°C;Duration:5seconds 1.MountedonPCB 2.NoVisualDamage M4Terminal- PullTest Holdingwithindividualspecification;forceapplied toaxisofterminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M5Terminal- TorqueTest Holdingwithindividualspecification;applied clockwiseandcounterclockwisetotheaxisof terminal 1.DirectiveDUTspecification 2.FrequencyTol.<=5% M6DimensionInspectionofdimension,color,material,package, surfaceprocess DirectiveDUTspecification E1SaltSprayGB/T2423.17-93 Temp:35°C;RH:>=95%;NaClsolution:>=5%; Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E2HumidityGB/T2423.4-93 Temp:80°C/12H;-40°C/12HRH:>=90%; Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E3Thermal Shock GB/T2423.22-87 1Cycle:-40°C(30minutes)to+80°C(30minutes) Cycles:24 After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% E4Life(High Temp.) GB/T2423.2-89 Temp:80°C;Time:24hours After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.<=5% R1RoHSWithReferencetoIEC62321:2008withflowchartDirectiveRoHS2015/863/EU TengxiangTechnology.Inc ProductNumber:AN2450-FPC370130-BZ ProductName:2.4GHzAntenna Page3Version:1.2IssueDate:2020-06-10 3.Antenna-SParameterTestData TengxiangTechnology.Inc ProductNumber:AN2450-FPC370130-BZ ProductName:2.4GHzAntenna Page4Version:1.2IssueDate:2020-06-10 4.Antenna-RadiationPatternTestData Frequency(MHz)2400.02450.02500.0 Efficiency(%)55.6048.0048.90 Gain(dBi)2.141.571.54 5.MechanicalDrawingSeeattachedfiles

No.：BCTC/RF-EMC-005 Page: 1 of 46 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405110772E Applicant: SUNTO TECHNOLOGY CO.,LTD Product Name: Electric skateboards Test Model: FPG1 Tested Date: 2024-05-16 to 2024-08-23 Issued Date: 2024-08-23 Report No.: BCTC2405110772E No.：BCTC/RF-EMC-005 Page: 2 of 46 Edition：B.2 FCC ID:2APTF-FPG1 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Electric skateboards Trademark: Exway Model/Type reference: FPG1 FPG2, FP2, F2 Prepared For: SUNTO TECHNOLOGY CO.,LTD Address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen, China Manufacturer: SUNTO TECHNOLOGY CO.,LTD Address: Room A3-09-11; No.108; Lijia Road; Henggang Street; Longgang District; Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-07 Sample tested Date: 2024-05-16 to 2024-08-23 Issue Date: 2024-08-23 Report No.: BCTC2405110772E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is SRD-2.4GHz radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2405110772E No.：BCTC/RF-EMC-005 Page: 3 of 46 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 Test Result .......................................................................................................... 27 10. Bandwidth Test ......…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos
