2APUQWM1091Sonn. 10.1 Tablet & onn. 10.1 Kids Tablet

USER GUIDE 10.1" Kids Tablet 100135920_EN_12252023 2 Table of contents Introduction .......................................................................................... 4 In The Box .............................................................................................. 5 Start Your Tablet.................................................................................. 6 Storage Card........................................................................................ 6 Home Screen At-a-Glance............................................................. 7 Customize Your Home Screen ........................................................ 8 Gesture Navigation ............................................................................ 10 More Gestures ...................................................................................... 11 Screenshots .......................................................................................... 13 Screen Recordings.............................................................................. 13 Manage Your Apps............................................................................. 14 Split Screen ........................................................................................... 15 Switch Between Apps........................................................................ 15 Connect to the Internet .................................................................... 16 Connect Bluetooth ............................................................................. 17 Screen Lock........................................................................................... 18 Magnification ....................................................................................... 18 Factory Reset ....................................................................................... 19 3 Table of contents Quick Settings and Notifications................................................... 21 Use the Cameras ................................................................................ 22 Files .......................................................................................................... 23 Google Play Updates ........................................................................ 24 Google Assistant ................................................................................. 24 Set up the Google Kids Space....................................................... 25 Remove Google Kids Space ........................................................... 25 Google Discover.................................................................................. 26 YouTube Kids ........................................................................................ 26 Google Play Protect........................................................................... 27 More Google Apps ............................................................................. 27 Technical Specifications................................................................... 28 Safety Instructions.............................................................................. 29 Safety Instructions for Toy Transformer........................................32 Troubleshooting................................................................................... 34 The Fine Print ........................................................................................ 35 Compliance Information .................................................................. 37 Certification Information .................................................................. 39 System Updates .................................................................................. 20 Force Shutdown .................................................................................. 20 4 Introduction Thank you for purchasing the onn. tablet with Android 14. With a responsive octa-core processor, this tablet is perfect for daily tasks, streaming music and movies, taking photos, checking emails, and interacting with social media. 2.0 GHz Octa-core processor can provide better performance when handling high-load tasks and reduce power consumption under light-load tasks. The tablet oers Bluetooth connectivity, mobile productivity services and 3GB RAM + 32GB ROM capacity, along with a memory card slot that supports up to 1TB of additional storage. The following information will help you get the most out of your tablet. What You Should Know to Ensure Best Performance: Fully charge the battery before first use. When downloading updates in the background, tablet performance may be aected until completion. Close unused apps. Open apps that run in the background will aect overall performance. TM 5 In The Box Battery consumption: Playback time for a fully charged battery will vary depending on your display settings, apps that stay open, and internet usage (e.g., streaming video content). It is recommended to use a tablet screen protector and a tablet case to protect the tablet. User Guide Charger Quick Start GuideUSB-C Cable Memory Card Ejection Pin 10.1" Kids Tablet USER GUIDE 10.1" Kids Tablet QUICK START GUIDE 10.1" Kids Tablet 6 Start Your Tablet 1. Press and hold the Power button for a few seconds. (If your tablet won't turn on, or if you are instructed to connect a charger, connect the AC adapter and charge the unit.) 2. At the Start-up screen, swipe up from the bottom of the screen to unlock. 3. Once you reach the home screen, you can start using your tablet. Storage Card Supported card type: Micro SD Card Maximum capacity: 1 TB 1.Status Bar. 2.Search Box. 3.Favorite apps bar. 7 Home Screen At-a-Glance Note: on certain screens, the apps pinned to "favorite apps" will appear in the form of a taskbar for your convenience. 2 1 3 8 Customize Your Home Screen Home Screen At-a-Glance The Home Screen is the starting point for using your tablet. For convenience, the home screen has been set up, …

Text truncated - open the document above for the full version.

HunanGreatwallComputerSystemCo.,Ltd * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 12/19/2023 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 CompanyName: PhysicalU.S.CompanyAddress: Agentname: AgentEmailAddress: FRN: TelNo. ATTN.: Reviewing Engineer FCC ID: 2APUQWM1091S FRN of applicant: 0027509892 Per section 2.911(d)(7) of the FCC rules, Hunan Greatwall Computer System Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: : Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment JOC Australia Inc 18351 Colima Road Ste 585 Rowland Heights,California,91748 United States of America Benjamin. Smith/Vice President [email protected]/[email protected] 0033379421 +1(626) 341 3408 . ApplicantSigned:DesignatedAgentSigned: (Required,ifdifferenttoApplicant): Signed:Signed: Printedname: zhengdezhang Printedname:Benjamin.Smith Title: Manager Title:VicePresident Company Name: HunanGreatwallComputer SystemCo.,Ltd Company Name: JOCAustraliaInc Date: December19,2023 Date:December19,2023 FRNCode: 0027509892 FRNCode:0033379421

HunanGreatwallComputerSystemCo.,Ltd CoveredEquipmentCertificationAttestationLetter 12/19/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2APUQWM1091S HunanGreatwallComputerSystemCo.,Ltd(“theapplicant”)certifiesthat,asofthedate ofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. <Signature> Name：zhengdezhang Title：Manager ApplicantCompany ： HunanGreatwallComputerSystemCo.,Ltd

HunanGreatwallComputerSystemCo.,Ltd CoveredEquipmentCertificationAttestationLetter 12/19/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2APUQWM1091S HunanGreatwallComputerSystemCo.,Ltd(“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedbyanyof theentitiesidentifiedonthecurrentCoveredList,theapplicantshouldincludean explanationonwhytheequipmentisnot“covered”equipment. <Signature> Name：zhengdezhang Title ： Manager ApplicantCompany ： HunanGreatwallComputerSystemCo.,Ltd

DATE:12/20/2023 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2APUQWM1091S ProductName:onn.10.1''Tablet&onn.10.1''KidsTablet RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: Schematics  Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name：zhengdezhang Title：Manager ApplicantCompany：HunanGreatwallComputerSystemCo.,Ltd

DATE:12/20/2023 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointESTTechnologyCo.,Ltd.Address:Chilingxiang,Qishantou, Santun,Houjie,Dongguan,Guangdong,Chinatoactasouragentinthepreparationof thisapplicationforequipmentcertification.Icertifythatsubmitteddocumentsproperly describethedeviceorsystemforwhichequipmentcertificationissought.Ialsocertifythat eachunitmanufactured,importedormarketed,asdefinedintheFederalCommunications Commission’sregulationswillhaveaffixedtoitalabelidenticaltothatsubmittedfor approvalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification, stillresideswithHunanGreatwallComputerSystemCo.,Ltd Address: HUNANGREATWALL INDUSTRIALPARK,TIANYISCIENCEANDTECHNOLOGYCITY,XIANGYUNMIDDLEROAD, TIANYUANDISTRICT,ZHUZHOU,HUNANPROVINCE，China. <Signature> Name：zhengdezhang Title ： Manager ApplicantCompany ： HunanGreatwallComputerSystemCo.,Ltd

DATE:12/20/2023 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeComplianceTesting,LLCtoactonourbehalfinallmatters relatingtoapplicationforequipmentauthorization,includingthesigningofalldocumentsrelatingto thesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothedenialof benefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21 U.S.C.853(a). Sincerely, <Signature> Name：zhengdezhang Title：Manager ApplicantCompany：HunanGreatwallComputerSystemCo.,Ltd

HunanGreatwallComputerSystemCo.,Ltd I,thesigner,zhengdezhang TheModel:TBLVD100135920 AdditionalModel:TBAQU100135920,TBPNK100135920,TBBLU100135920, TBxxx100135920,TBxxx100135920y ("x";"y"arevariables;x=A-Z"x"isvariablecanbeA-Z;whichisrepresentfordifferent color;y=A-Z"y"isvariablecanbeA-Z;whichisrepresentfordifferentmodel),arethesame inhardwareaspect.Differentmodelsandcolors ItemName：onn.10.1''Tablet&onn.10.1''KidsTablet ModelNumber:TBLVD100135920 AdditionalModel:TBAQU100135920,TBPNK100135920, TBBLU100135920,TBxxx100135920,TBxxx100135920y ("x";"y"arevariables;x=A-Z"x"isvariablecanbeA-Z;whichisrepresentfordifferent color;y=A-Z"y"isvariablecanbeA-Z;whichisrepresentfordifferentmodel) FCCID:2APUQWM1091S <Signature> Name ： zhengdezhang Title ： Manager ApplicantCompany ： HunanGreatwallComputerSystemCo.,Ltd

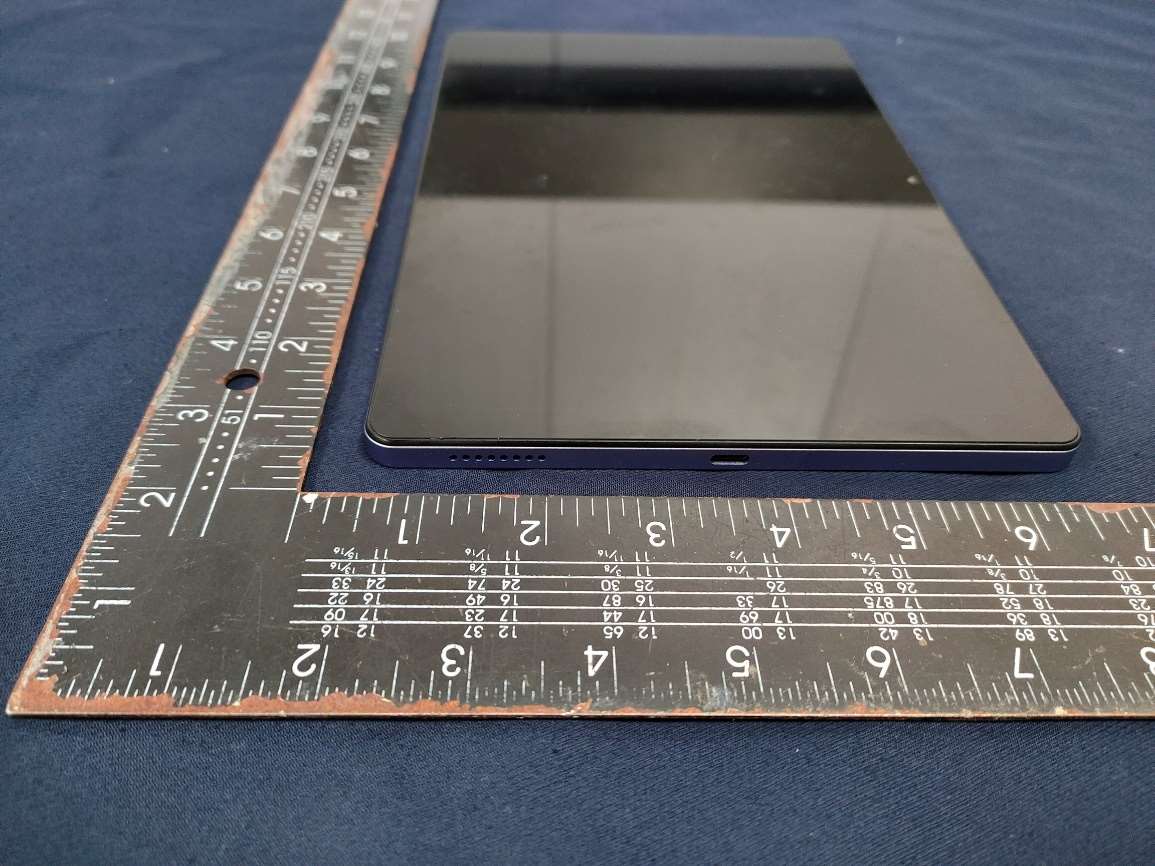

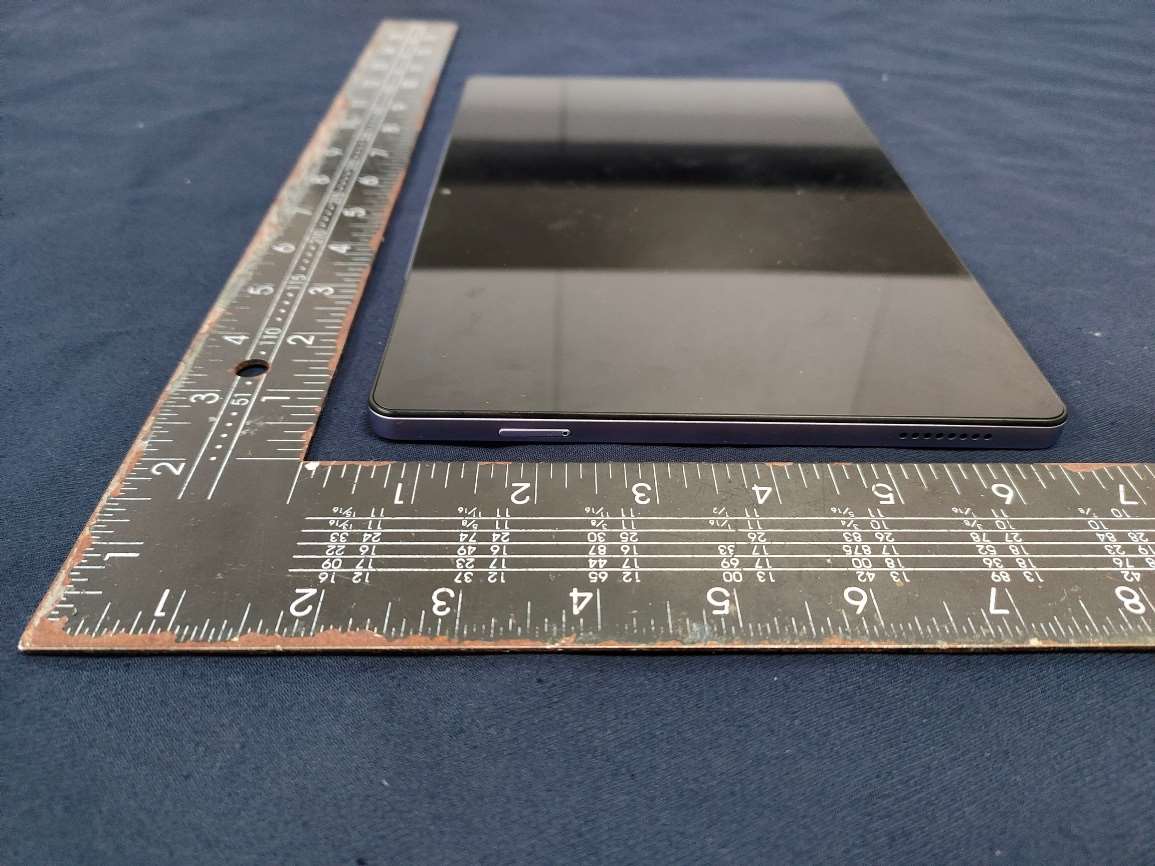

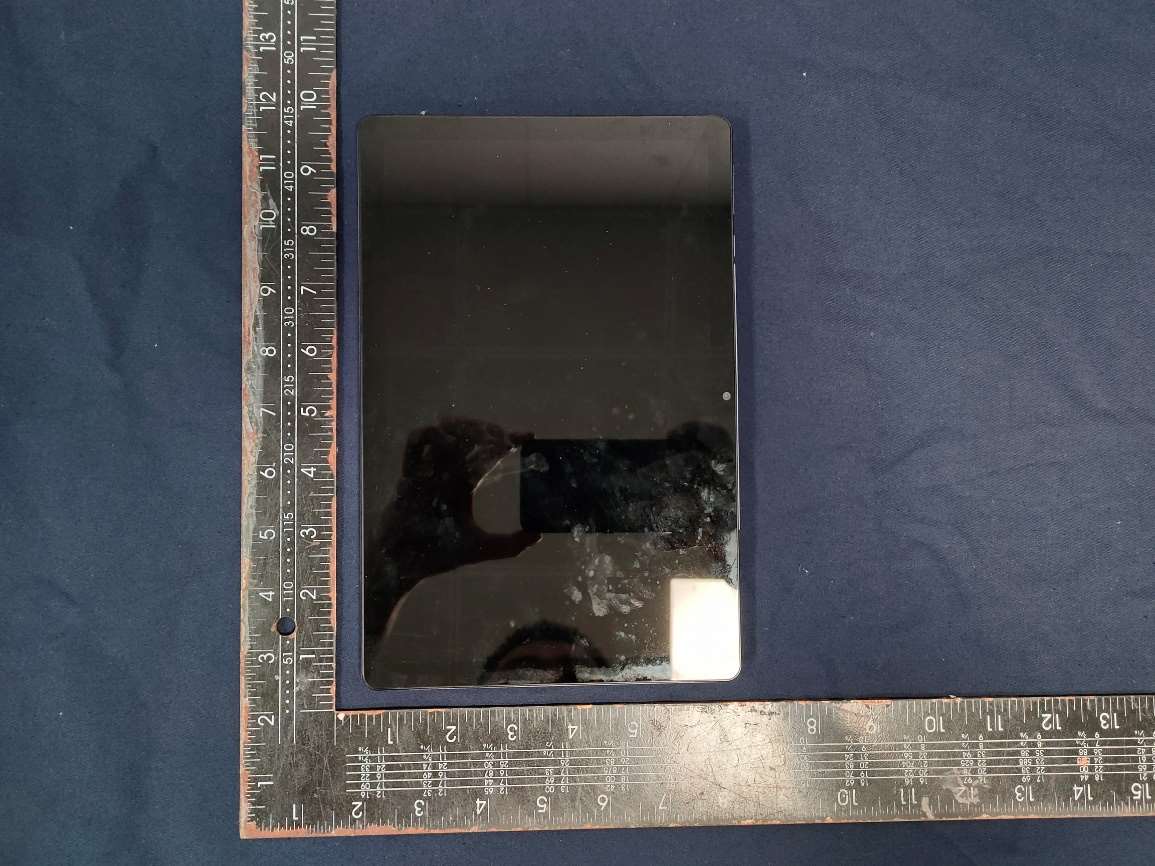

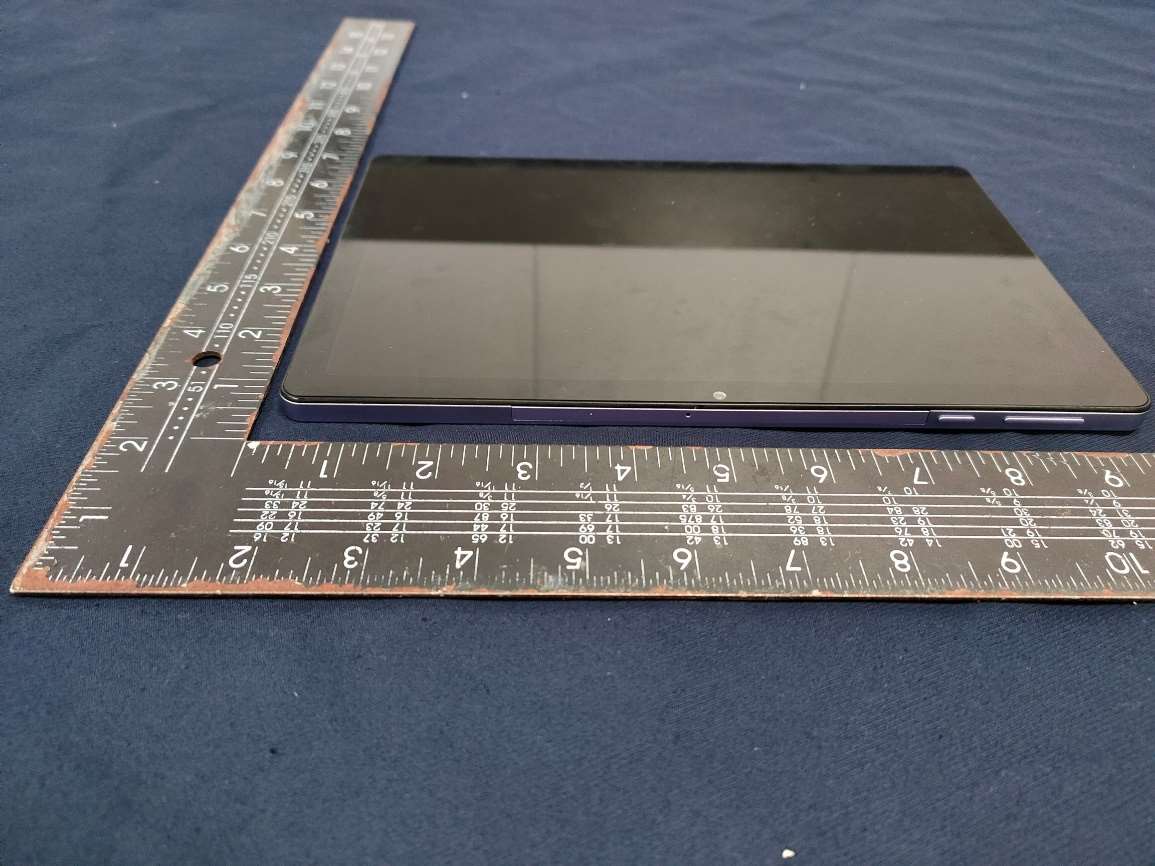

External Photos M/N: TBLVD100135920 External Photos M/N: TBLVD100135920 External Photos M/N: TBLVD100135920 External Photos M/N: TBLVD100135920

First supplier Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Second supplier Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920 Internal Photos M/N: TBLVD100135920

No.：BCTC/RF-EMC-005 Page 1 of 105 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2312463682E Applicant: Hunan Greatwall Computer System Co., Ltd Product Name: onn. 10.1" Tablet & onn. 10.1"Kids Tablet Model/Type reference: TBLVD100135920 Tested Date: 2023-12-13 to 2023-12-15 Issued Date: 2024-01-05 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 2 of 105 Edition：B.0 FCC ID: 2APUQWM1091S The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: onn. 10.1" Tablet & onn. 10.1"Kids Tablet Trademark: onn. Model/Type Ref.: TBLVD100135920 TBAQU100135920, TBPNK100135920, TBBLU100135920 TBxxx100135920, TBxxx100135920y；"x";"y" are variables; x=A-Z "x" is variable can be A-Z; which is represent for different color; y=A-Z "y" is variable can be A-Z; which is represent for different model. Applicant: Hunan Greatwall Computer System Co., Ltd Address: Hunan GreatWall Industrial Park,Tianyi Science and Technology City,Xiangyun Middle Road, TianyuanDistrict,Zhuzhou，Hunan Province Manufacturer: Hunan Greatwall Computer System Co., Ltd Address: Hunan GreatWall Industrial Park,Tianyi Science and Technology City,Xiangyun Middle Road, TianyuanDistrict,Zhuzhou，Hunan Province Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhanche ng , Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-12-13 Sample tested Date: 2023-12-13 to 2023-12-15 Issue Date: 2024-01-05 SAR Max. Values is： 1.248 W/kg (1g) for Body Test Standards: IEEE Std C95.1, 2019/ IEEE Std 1528™-2013/FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 3 of 105 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 12 6.3 Support Equipment ................................................................................................ 12 6.4 Test Environment .................................................................................................. 12 7. Test Facility and Test Instrument Used ............................................................... 13 7.1 Test Facility ........................................................................................................... 13 7.2 Test Instrument Used ............................................................................................ 14 8. Specific Absorption Rate (SAR) .......................................................................... 15 8.1 Introduction ............................................................................................................ 15 8.2 SAR Definition ....................................................................................................... 15 9. SAR Measurement System ................................................................................. 16 9.1 The Measurement System ..................................................................................... 16 9.2 Probe ..................................................................................................................... 16 9.3 Probe Calibration Process ..................................................................................... 18 9.4 Phantom ................................................................................................................ 19 9.5 Device Holder ........................................................................................................ 19 10. Tissue Simulating Liquids .................................................................................... 20 10.1 Composition of Tissue Simulating Liquid ............................................................. 20 10.2 Limit ..................................................................................................................... 21 10.3 Tissue Calibration Result ..................................................................................... 22 11. System Check ..................................................................................................... 23 11.1 Purpose of System Performance Check .............................................................. 23 11.2 System Setup ...................................................................................................... 23 11.3 Validation Results ................................................................................................ 24 12. EUT Testing Position ........................................................................................... 25 13. SAR Measurement Procedures ........................................................................…

Text truncated - open the document above for the full version.

Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 41 of 105 Edition：B.0 15. Test Plots 15.1 System Performance Check System check at 2450 MHz A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.11 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Dipole Band CW2450 Channels Middle Signal CW (Crest factor: 1.0) B. Permitivity Frequency (MHz) 2450.000 Relative permitivity (real part) 40.606 Relative permitivity (imaginary part) 13.984 Conductivity (S/m) 1.867 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=0.00 ; SAR Peak: 4.96 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 6.108 SAR 1g (W/Kg) 13.740 Variation (%) 3.091 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 2.832 2.176 1.674 1.285 1.064 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 42 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 43 of 105 Edition：B.0 System check at 5200 MHz A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.18 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=2mm Phantom Validation plane Device Position Dipole Band CW5200 Channels Middle Signal CW (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5200.000 Relative permitivity (real part) 34.716 Relative permitivity (imaginary part) 16.154 Conductivity (S/m) 4.548 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=0.00 ; SAR Peak: 5.68 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 7.815 SAR 1g (W/Kg) 19.004 Variation (%) 1.197 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 3.108 2.344 1.786 1.395 1.109 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 44 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 45 of 105 Edition：B.0 System check at 5400 MHz A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.18 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=2mm Phantom Validation plane Device Position Dipole Band CW5400 Channels Middle Signal CW (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5400.000 Relative permitivity (real part) 34.593 Relative permitivity (imaginary part) 17.082 Conductivity (S/m) 4.804 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=1.00 ; SAR Peak: 22.78 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 8.971 SAR 1g (W/Kg) 19.416 Variation (%) -2.421 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 18.711 11.234 6.561 3.924 2.453 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 46 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 47 of 105 Edition：B.0 System check at 5600 MHz A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.20 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=2mm Phantom Validation plane Device Position Dipole Band CW5600 Channels Middle Signal CW (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5600.000 Relative permitivity (real part) 34.797 Relative permitivity (imaginary part) 16.911 Conductivity (S/m) 5.046 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=1.00 ; SAR Peak: 22.54 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 8.760 SAR 1g (W/Kg) 19.963 Variation (%) -4.237 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 17.387 10.484 6.206 3.672 2.184 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 48 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 49 of 105 Edition：B.0 System check at 5800 MHz A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.15 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=2mm Phantom Validation plane Device Position Dipole Band CW5800 Channels Middle Signal CW (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5800.000 Relative permitivity (real part) 35.924 Relative permitivity (imaginary part) 15.906 Conductivity (S/m) 5.182 C. SAR Surface and Volume SURFACE SAR VOLUME SAR D. SAR 1g & 10g SAR 10g (W/Kg) 8.060 SAR 1g (W/Kg) 19.806 Variation (%) 4.376 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 31.172 16.108 7.982 3.835 1.964 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 50 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 51 of 105 Edition：B.0 15.2 SAR Test Graph Results Plot 1 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.11 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Bluetooth Channels Lower (0) Signal Bluetooth (Crest factor: 1.0) B. Permitivity Frequency (MHz) 2402.000 Relative permitivity (real part) 40.606 Relative permitivity (imaginary part) 13.211 Conductivity (S/m) 1.867 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=49.00 ; SAR Peak: 0.56 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.132 SAR 1g (W/Kg) 0.274 Variation (%) -1.830 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.549 0.282 0.116 0.057 0.046 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 52 of 105 Edition：B.0 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2312…

Text truncated - open the document above for the full version.

Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 73 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 74 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 75 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 76 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 77 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 78 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 79 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 80 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 81 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 82 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 83 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 84 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 85 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 86 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 87 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 88 of 105 Edition：B.0

Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 89 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 90 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 91 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 92 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 93 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 94 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 95 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 96 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 97 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 98 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 99 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 100 of 105 Edition：B.0 Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 101 of 105 Edition：B.0 17. EUT Photographs EUT Front View EUT Back View Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 102 of 105 Edition：B.0 18. Photographs Of The Liquid Photograph of the depth in the Body Phantom (600-10000MHz, depth >15cm) Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 103 of 105 Edition：B.0 19. EUT Test Setup Photographs Front Back Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 104 of 105 Edition：B.0 Top Report No：BCTC2312463682E No.：BCTC/RF-EMC-005 Page 105 of 105 Edition：B.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com E-Mail: [email protected] ※※※※※ END ※※※※※

FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 85 of 209 11AC20SISO-Ant1-5260 11AC20SISO-Ant1-5300 11AC20SISO-Ant1-5320 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 86 of 209 11AC20SISO-Ant1-5500 11AC20SISO-Ant1-5580 11AC20SISO-Ant1-5700 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 87 of 209 11AC20SISO-Ant1-5745 11AC20SISO-Ant1-5785 11AC20SISO-Ant1-5825 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 88 of 209 11AC40SISO-Ant1-5190 11AC40SISO-Ant1-5230 11AC40SISO-Ant1-5270 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 89 of 209 11AC40SISO-Ant1-5310 11AC40SISO-Ant1-5510 11AC40SISO-Ant1-5590 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 90 of 209 11AC40SISO-Ant1-5670 11AC40SISO-Ant1-5755 11AC40SISO-Ant1-5795 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 91 of 209 11AC80SISO-Ant1-5210 11AC80SISO-Ant1-5290 11AC80SISO-Ant1-5530 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 92 of 209 11AC80SISO-Ant1-5610 11AC80SISO-Ant1-5775 FCC ID: 2APUQWM1091S EST Technology Co., Ltd Report No.ESTE-R2312121 Page 93 of 209 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.571 5171.7073 5188.2783 --- --- 11A Ant1 5200 16.559 5191.7187 5208.2777 --- --- 11A Ant1 5240 16.519 5231.7683 5248.2873 --- --- 11A Ant1 5260 16.571 5251.7227 5268.2937 --- --- 11A Ant1 5300 16.569 5291.7100 5308.2790 --- --- 11A Ant1 5320 16…
