2APW4MAX3smart phone

Model: Max 3 Basic Operations Switch on Touch and hold the Power button until the phone switches on. Note: If you have enabled USIM/SIM locking in the Settings menu, enter the correct PIN number upon power-on before you use the phone. Caution: Three consecutive attempts of entering an incorrect PIN will lock the SIM card. If it is locked, use a PUK provided by the operator to unlock it. Switch off Touch and hold the “Power button” until the Phone Options screen displays. Tap " Power off ” to switch off the phone. Unlock Short press the “Power button” light up the screen, according to the clues of the screen interface can be unlocked. Touchscreen Usage Use your fingers to perform operations directly on icons, buttons, and the on-screen keypad. Tap/Touch/Click Tap the icon of an App to start it. Touch & Hold Touch and hold an item to display a pop-up menu of options. For example, go to Address Book, touch and hold a contact on the Address Book page, and a menu of options pops up. Drag Tap an item on the screen and drag it to another place. Slide/Sweep To sweep vertically or horizontally across the screen, you can view apps, pictures, and webpages in a convenient manner. Scroll Similar to sweeping, but faster. Pinch Put two fingers on the screen to pinch in or out an item, such as a webpage or picture. Home Screen 1. Status bar: allows you to view status icons and notices, such as signal, battery, current time and data service. 2. Notification bar: On the Home screen, tap the status bar and drag it down to display the notification bar. Tap this bar. Then you can view the notices. Touch the return button to switch back to the previous page. 3. App icon: Tap an app to open it. 4. Main menu: Slide your finger up to enter the main menu of the application.. Phone Settings To display the Settings menu, tap the Settings icon directly. 1.SIM card: In the Settings menu, choose SIM Card. You can then manage your SIM cards on the pop-up page. 2. Network: In the Settings menu, select WLAN to configure your radio network; or select Traffic usage to configure your mobile date services; or select Mobile Network under More to configure data services of your phone. 3. Sound: In the Settings menu, choose Sound. The allows you to set the volume, enable/disable vibration during ringing, and select ringtones for incoming calls and messages, as well as enable/disable keypad touch sound effect, touch alert tone, and screen lock tone 4. Display: allows you to configure the brightness, wallpaper, automatic device rotation, sleep duration, and font size. 5. Security: In the Settings menu, choose Security. The Security page allows you to set the screen locking mode and USIM/SIM locking mode. App Permission: allows you to configure certain permissions for an App and monitor their usage. 6. Anti-theft: allows you to remotely lock the phone or clear all data of it. 7. Manage apps: In the Settings menu, choose Apps. Then you can view or manage your apps. Note: Disable or unload certain apps if available space is less than 100MB. 8. Message: On the Message page, tap the Menu button and choose Settings. On the Message Settings page, you can enable/disable report sending, create or select a message template, and configure a message alert tone for each short or multimedia message. 9. Call: To display the Call Settings page, choose Settings on the Call page. Shortcuts On the Home screen, lightly drag down the Status bar. On the screen top, a group of shortcuts are displayed, such as Settings, WLAN, Bluetooth, Brightness, Auto-rotate, flashlight Airplane mode and so on. Tap any of them to open it quickly. Shortcut menu Powered by Android™ 11 (Go edition) provides several easy-to-use shortcut menus on the home screen. On this screen, long press on the screen, the selection menu of the shortcut function menu will pop up. Click the menu of the desired settings and complete the function settings according to the prompts. Move/Uninstall apps 1. Access the App main menu from the Home screen. On the ALL App page, tap and hold an app to be put on the Home screen, and drag it left or right to locate it at a proper place. In this way, a desktop app is created. 2. On the All App page, tap and hold an app, and drag it to Uninstall on the desktop. In this way, the app is removed from the phone. Note: You are not allowed to uninstall basic apps of the phone. 3. On the All App page, tap and hold an app, and drag it to APP Info. on the desktop. In this way, details about the app is displayed. Call This phone allows you to make or answer a call, initiate an emergency call, and launch a multi-party call. On the bottom left of the Home screen, tap the Dial-up icon. The Dial-up page is displayed. Enter a phone number and choose between card 1 and card 2 to make the call. When you enter the number, the phone will automatically search among all contacts a number that best matches the entered numerals, to facilitate your operation. During a call, tap Add a Call, and this call automatically switches to Silent mode. Enter the number of another contact, tap Dial-up, and the previous call automatically switches to On-hold mode. After the second call is answered, tap Join. In this way, a teleconference is established to achieve a multi-party talk. Note: You need to subscribe to this service from your carrier before you use it. You are also allowed to initiate a call by selecting a phone number from the list of contacts or the Message page. Contacts Tap Contacts to open it. The Contacts page offers management functions. It allows you to view the list of contacts and related details, make a call or send an SMS to a certain contact, and share the contact. Contact import: On the Contacts page, tap the Menu button, and choose Import/Export to select a mode for importing or exporting a contact. Add a contact: On the lower right of the Contacts page, tap the Add button to add a contact to your phone or USIM/SIM. Enter the name and number, and tap Finish. In thi…

Text truncated - open the document above for the full version.

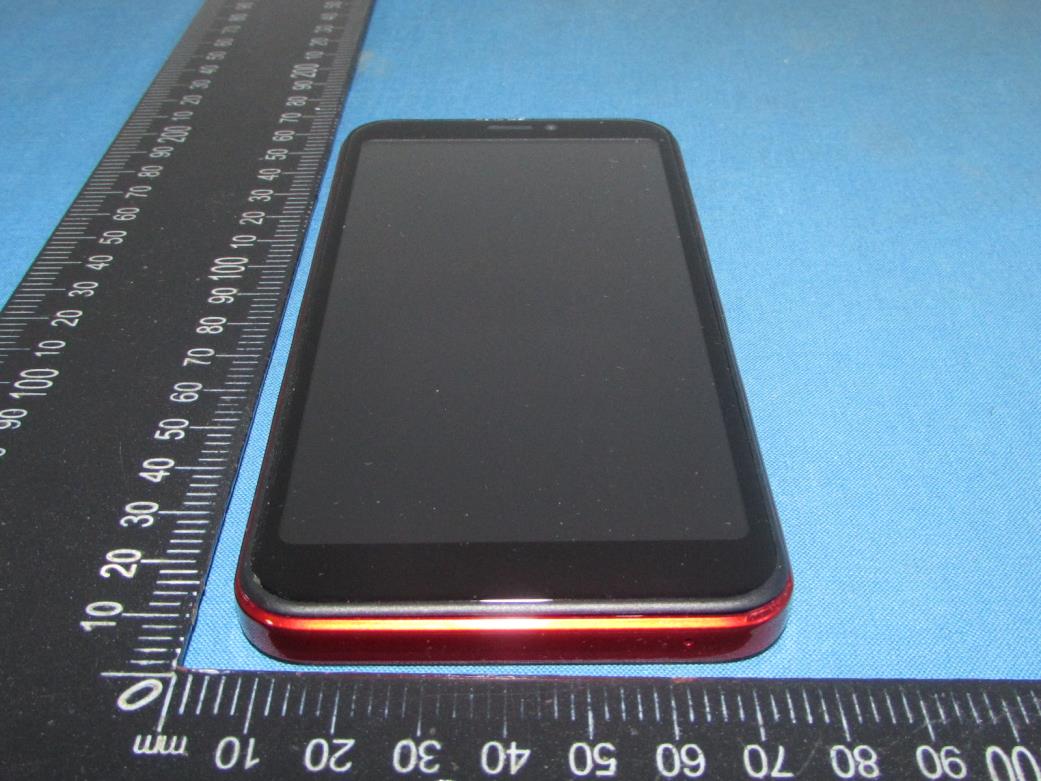

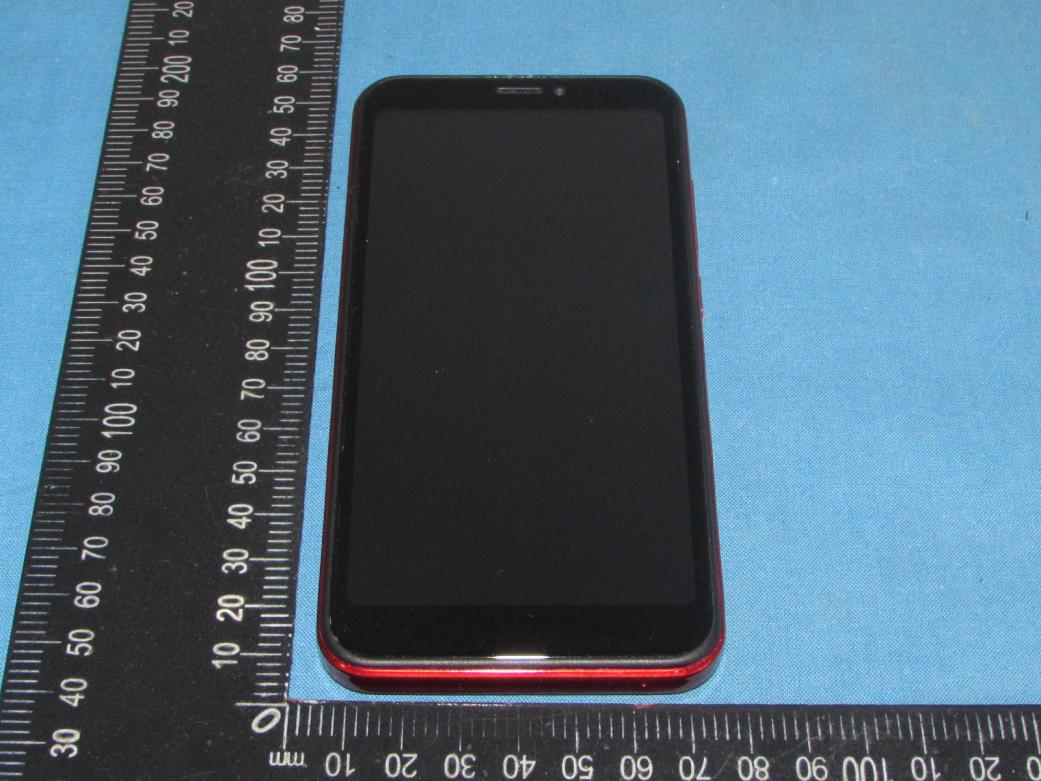

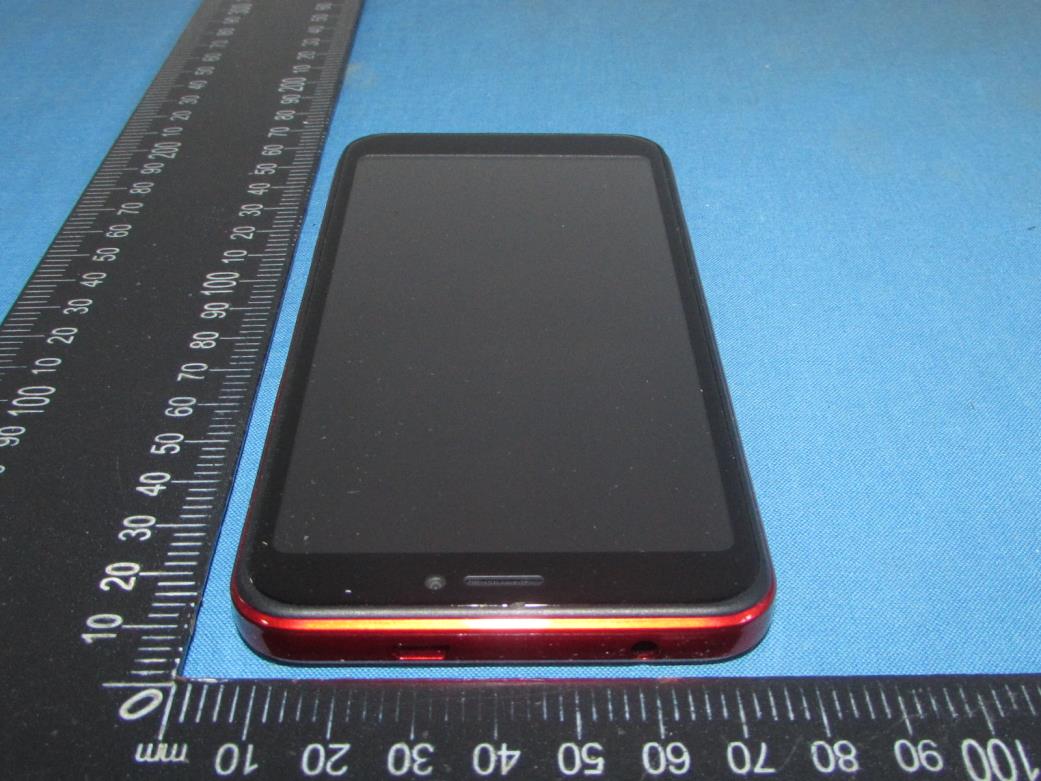

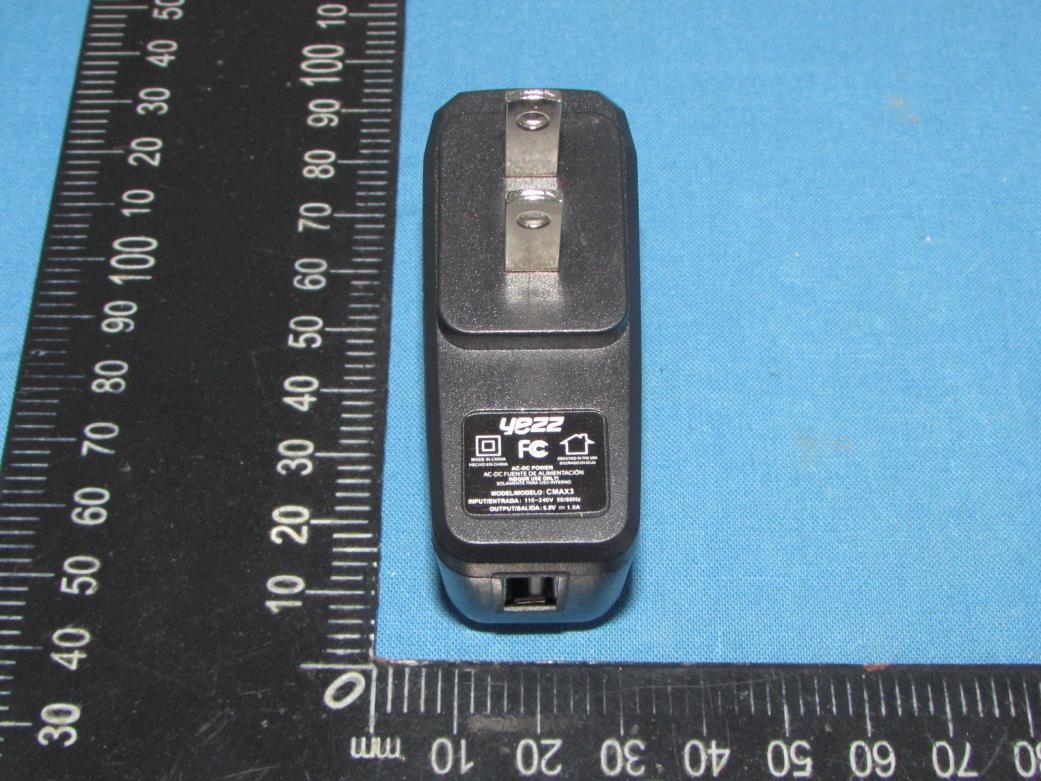

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label and Location:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 LTE diversity antenna WiFi/Bluetooth /FM/GNSS antenna LTE/WCDMA /GSM Main antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Page: 1/11 Ref : ACR.42.5.22.BES.A LGT(SHENZHEN) TEST TECHNOLOGY CO., LTD. 13-B205, ZONE B, CHEN HSONG INDUSTRIAL PARK(SHENZHEN), NO.33 RENMIN MIDDLE ROAD, JINSHA COMMUNITY KENGZI SUBDISTRICT, PINGSHAN NEW DISTRICT, SHENZHEN, GUANGDONG, CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 04/22 EPGO364 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/11/2022 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR E-Field Probe calibration performed at MVG, usin g the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. NameFunctionDateSignature Prepared by :Jérôme LucTechnical Manager 2/11/2022 Checked by :Jérôme LucTechnical Manager 2/11/2022 Approved by:Yann ToutainLaboratory Director 2/11/2022 Customer Name Distribution : LGT(Shenzhen) Test Technology Co., Ltd. IssueNameDateModifications AJérôme Luc2/11/2022Initial release 2022.02.11 11:49:06 +01'00' COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 3/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 4 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.1 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 8 5.4 Isotropy _________________________________________________________________ 9 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 4/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 04/22 EPGO364 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.206 M: Dipo le 2: R2=0.225 M: Dipole 3: R3=0.212 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.42.5.22.BES.A Page: 5/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vK This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg…

Text truncated - open the document above for the full version.

Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China SAR TEST REPORT Product Name: Smartphone Model Name: MAX 3 FCC ID：2APW4MAX3 Issued For : Bolt Modus Corp Oficina N.33 Edificio Ofidepositos Central, Calidonia - Distrito Federal, Panama Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT22K049HA01 Sample Received Date: November 22, 2022 Date of Test: November 22, 2022 – December 14, 2022 Date of Issue: December 15, 2022 Max. SAR (1g): Head: 0.371 W/kg Body: 0.705 W/kg Report No.: LGT22K049HA01 Page 2 of 121 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.3 Test Factory 6 2. Test Standards and Limits 7 3. SAR Measurement System 8 3.1 Definition of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 12 5.1 Validation System 12 5.2 Validation Result 12 6. SAR Evaluation Procedures 13 7. EUT Test Position 14 7.1 Cheek Position 14 7.2 Tilt Position 15 7.3 Body-worn Position Conditions 15 8. Uncertainty 16 8.1 Measurement Uncertainty 16 8.2 System validation uncertainty 17 9. Conducted Power Measurement 18 10. Test Photos and Results 48 10.1 EUT Photos 48 10.2 Setup Photos 51 11. SAR Result Summary 57 12. Equipment List 64 Appendix A. System Validation Plots 65 Appendix B. SAR Test Plots 77 Appendix C. Probe Calibration and Dipole Calibration Report 121 Report No.: LGT22K049HA01 Page 3 of 121 Revision History Rev. Issue Date Contents 00 December 15, 2022 Initial Issue Report No.: LGT22K049HA01 Page 4 of 121 TEST REPORT CERTIFICATION Applicant Bolt Modus Corp Address Oficina N.33 EdificioOfidepositos Central, Calidonia - Distrito Federal, Panama Manufacture Bolt Modus Corp Address Oficina N.33 EdificioOfidepositos Central, Calidonia - Distrito Federal, Panama Product Name smart phone Trademark YEZZ Model Name MAX 3 Sample Status: Normal Sample number： LGT22011070 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC KDB 447498 D04 v01；FCC KDB 865664 D01 v01r04；FCC KDB 865664 D02 v01r02； FCC KDB 941225 D01 v03r01；FCC KDB 941225 D05 v02r05；FCC KDB 941225 D06 v02r01；FCC KDB 648474 D04 v01r03；FCC KDB 248227 D01 Wi-Fi SAR v02r02 PASS Prepared by: Approved by: Zane Shan Engineer Vita Li Manager (1) The test report is effective only with both signature and specialized stamp. (2) This report shall not be reproduced except in full without the written approval of the Laboratory. (3) The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. Report No.: LGT22K049HA01 Page 5 of 121 1. General Information 1.1 EUT Description Product Name smart phone Trademark YEZZ Model Name MAX 3 Series Model N/A Model Difference N/A Hardware Version TG 104S V1.0 Software Version YEZZ_MAX3_EN_12_B201_HW1_V001_20221022_userdebug Frequency Range GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band V: 824 ~ 849 MHz LTE Band 2: 1850 ~1910MHz LTE Band 4: 1710 ~1755MHz LTE Band 7: 2500 ~ 2570MHz LTE Band 12: 699 ~ 716MHz LTE Band 17: 704 ~ 716MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz Bluetooth: 2402 ~ 2480 MHz Max. Reported SAR(1g) Mode Head (W/ kg) Body Worn and Hotspot(W/kg) GSM 850 0.144 0.176 PCS 1900 0.134 0.281 WCDMA Band II 0.275 0.502 WCDMA Band V 0.176 0.334 LTE Band 2 0.371 0.541 LTE Band 4 0.237 0.705 LTE Band 7 0.125 0.338 LTE Band 12 0.198 0.115 LTE Band 17 0.074 0.157 2.4G WLAN 0.166 0.122 Bluetooth 0.171 0.11 Limit 1.6 W/kg Battery Rated Voltage: 3.8V Capacity: 2600mAh Description test modes SIM 1 and SIM 2 is a chipset unit and tested as single chipset, SIM 1 is used to tested. Modulation Mode GSM: GSM Voice; GPRS/EGPRS Class 12 WCDMA: RMC, HSDPA, HSUPA Release 6 LTE: QPSK, 16QAM 2.4G WLAN: 802.11b(DSSS): CCK, DQPSK, DBPSK 802.11g(OFDM): BPSK, QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK, QPSK,16-QAM,64-QAM Bluetooth: GFSK +π/4DQPSK+8DPSK BLE: GFSK Antenna Specification GSM/WCDMA/LTE: PIFA Antenna Bluetooth: PIFA Antenna WLAN: PIFA Antenna Operating Mode Maximum continuous output Report No.: LGT22K049HA01 Page 6 of 121 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China FCC test Firm Registration No.: 746540 IC Registration No.: CN0136 A2LA Certificate No.: 6727.01 Report No.: LGT22K049HA01 Page 7 of 121 2. Test Standards and Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D04 v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices 5 FCC KDB 865664 D01 v01r04 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D02 v01r02 RF Exposure Reporting 7 FCC KDB 941225 D01 v03r01 SAR Measurement Procedures for 3G Devices 8 FCC KDB 941225 D05 v02r05 SAR for LTE Devices 9 FCC KDB 941225 D06 v02r01 Hotspot Mode SAR 10 FCC KDB 648474 D04 v01r03 SAR Evaluation Considerations for Wireless Ha…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 1 of 30 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: smart phone Trade Mark: YEZZ Test Model: MAX 3 FCC ID: 2APW4MAX3 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.600 2407.960 2416.560 0.5 PASS 2437 9.040 2432.480 2441.520 0.5 PASS 2462 8.600 2457.960 2466.560 0.5 PASS 11G Ant1 2412 15.720 2404.480 2420.200 0.5 PASS 2437 16.440 2428.720 2445.160 0.5 PASS 2462 15.800 2454.440 2470.240 0.5 PASS 11N20SISO Ant1 2412 16.320 2404.480 2420.800 0.5 PASS 2437 17.120 2428.200 2445.320 0.5 PASS 2462 17.320 2453.480 2470.800 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 2 of 30 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 3 of 30 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 4 of 30 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 5 of 30 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 11.488 2406.7307 2418.2187 --- --- 2437 12.127 2430.8666 2442.9936 --- --- 2462 11.948 2456.2018 2468.1498 --- --- 11G Ant1 2412 17.246 2403.6260 2420.8720 --- --- 2437 17.593 2428.0240 2445.6170 --- --- 2462 17.388 2453.4021 2470.7901 --- --- 11N20SISO Ant1 2412 18.046 2403.2416 2421.2876 --- --- 2437 18.303 2427.7383 2446.0413 --- --- 2462 18.146 2453.0645 2471.2105 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 6 of 30 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 7 of 30 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 8 of 30 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 9 of 30 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 9.24 ≤30.00 PASS 2437 4.60 ≤30.00 PASS 2462 9.90 ≤30.00 PASS 11G Ant1 2412 9.42 ≤30.00 PASS 2437 4.63 ≤30.00 PASS 2462 9.75 ≤30.00 PASS 11N20SISO Ant1 2412 8.38 ≤30.00 PASS 2437 3.44 ≤30.00 PASS 2462 8.67 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 10 of 30 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.66 ≤8.00 PASS 2437 -16.72 ≤8.00 PASS 2462 -18 ≤8.00 PASS 11G Ant1 2412 -21.61 ≤8.00 PASS 2437 -26.8 ≤8.00 PASS 2462 -21.65 ≤8.00 PASS 11N20SISO Ant1 2412 -22.83 ≤8.00 PASS 2437 -28.23 ≤8.00 PASS 2462 -22.65 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 11 of 30 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 12 of 30 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 13 of 30 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 14 of 30 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 0.03 -49.84 ≤-29.97 PASS High 2462 0.47 -50.08 ≤-29.53 PASS 11G Ant1 Low 2412 -1.07 -38.61 ≤-31.07 PASS High 2462 -1.04 -44.72 ≤-31.04 PASS 11N20SISO Ant1 Low 2412 -1.89 -40.29 ≤-31.89 PASS High 2462 -1.97 -47.27 ≤-31.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 15 of 30 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 16 of 30 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 17 of 30 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -0.20 -0.20 --- PASS 30~1000 -0.20 -61.64 ≤-30.2 PASS 1000~26500 -0.20 -52.15 ≤-30.2 PASS 2437 Reference -4.96 -4.96 --- PASS 30~1000 -4.96 -61.69 ≤-34.96 PASS 1000~26500 -4.96 -49.93 ≤-34.96 PASS 2462 Reference 1.06 1.06 --- PASS 30~1000 1.06 -61.85 ≤-28.94 PASS 1000~26500 1.06 -51.7 ≤-28.94 PASS 11G Ant1 2412 Reference -4.60 -4.60 --- PASS 30~1000 -4.60 -61.51 ≤-34.6 PASS 1000~26500 -4.60 -51.31 ≤-34.6 PASS 2437 Reference -7.88 -7.88 --- PASS 30~1000 -7.88 -61.2 ≤-37.88 PASS 1000~26500 -7.88 -51.23 ≤-37.88 PASS 2462 Reference -4.77 -4.77 --- PASS 30~1000 -4.77 -61.71 ≤-34.77 PASS 1000~26500 -4.77 -52.21 ≤-34.77 PASS 11N20SISO Ant1 2412 Reference -2.91 -2.91 --- PASS 30~1000 -2.91 -60.97 ≤-32.91 PASS 1000~26500 -2.91 -50.41 ≤-32.91 PASS 2437 Reference -8.22 -8.22 --- PASS 30~1000 -8.22 -61.58 ≤-38.22 PASS 1000~26500 -8.22 -51.41 ≤-38.22 PASS 2462 Reference -5.58 -5.58 --- PASS 30~1000 -5.58 -61.46 ≤-35.58 PASS 1000~26500 -5.58 -51.17 ≤-35.58 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E3 Page 18 of 30 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference Shenzhe…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: smart phone Trade Mark: YEZZ Test Model: MAX 3 FCC ID: 2APW4MAX3 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.656 2401.676 2402.332 0.5 PASS 2440 0.648 2439.672 2440.320 0.5 PASS 2480 0.676 2479.660 2480.336 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0217 2401.4943 2402.5160 --- --- 2440 1.0269 2439.4910 2440.5179 --- --- 2480 1.0331 2479.4899 2480.5230 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 -1.8 ≤30 PASS 2440 -1.96 ≤30 PASS 2480 -2.48 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -17.24 ≤8.00 PASS 2440 -17.49 ≤8.00 PASS 2480 -17.9 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -2.15 -50.29 ≤-22.15 PASS High 2480 -2.73 -49.44 ≤-22.73 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -2.17 -2.17 --- PASS 30~1000 -2.17 -62.07 ≤-22.17 PASS 1000~26500 -2.17 -51.7 ≤-22.17 PASS 2440 Reference -2.30 -2.30 --- PASS 30~1000 -2.30 -61.75 ≤-22.3 PASS 1000~26500 -2.30 -51.6 ≤-22.3 PASS 2480 Reference -3.02 -3.02 --- PASS 30~1000 -3.02 -61.53 ≤-23.02 PASS 1000~26500 -3.02 -51.04 ≤-23.02 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.39 0.62 62.90 2.56 2440 0.39 0.62 62.90 2.56 2480 0.39 0.62 62.90 2.56 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APW4MAX3 Report No.: TZ221103822-E2 Page 16 …
