2APX7K50Smart phone

Basic Operations Switch on Touch and hold the Power button until the phone switches on. Note: If you have enabled USIM/SIM locking in the Settings menu, enter the correct PIN number upon power-on before you use the phone. Caution: Three consecutive attempts of entering an incorrect PIN will lock the SIM card. If it is locked, use a PUK provided by the operator to unlock it. Switch off Touch and hold the “Power button” until the Phone Options screen displays. Tap " Power off ” to switch off the phone. Unlock Short press the “Power button” light up the screen, according to the clues of the screen interface can be unlocked. Touchscreen Usage Use your fingers to perform operations directly on icons, buttons, and the on-screen keypad. Tap/Touch/Click Tap the icon of an App to start it. Touch & Hold Touch and hold an item to display a pop-up menu of options. For example, go to Address Book, touch and hold a contact on the Address Book page, and a menu of options pops up. Drag Tap an item on the screen and drag it to another place. Slide/Sweep To sweep vertically or horizontally across the screen, you can view apps, pictures, and webpages in a convenient manner. Scroll Similar to sweeping, but faster. Pinch Put two fingers on the screen to pinch in or out an item, such as a webpage or picture. Home Screen 1. Status bar: allows you to view status icons and notices, such as signal, battery, current time and data service. 2. Notification bar: On the Home screen, tap the status bar and drag it down to display the notification bar. Tap this bar. Then you can view the notices. Touch the return button to switch back to the previous page. 3. App icon: Tap an app to open it. 4. Main menu: Slide your finger up to enter the main menu of the application.. Phone Settings To display the Settings menu, tap the Settings icon directly. 1.SIM card: In the Settings menu, choose SIM Card. You can then manage your SIM cards on the pop-up page. 2. Network: In the Settings menu, select WLAN to configure your radio network; or select Traffic usage to configure your mobile date services; or select Mobile Network under More to configure data services of your phone. 3. Sound: In the Settings menu, choose Sound. The allows you to set the volume, enable/disable vibration during ringing, and select ringtones for incoming calls and messages, as well as enable/disable keypad touch sound effect, touch alert tone, and screen lock tone 4. Display: allows you to configure the brightness, wallpaper, automatic device rotation, sleep duration, and font size. 5. Security: In the Settings menu, choose Security. The Security page allows you to set the screen locking mode and USIM/SIM locking mode. App Permission: allows you to configure certain permissions for an App and monitor their usage. 6. Anti-theft: allows you to remotely lock the phone or clear all data of it. 7. Manage apps: In the Settings menu, choose Apps. Then you can view or manage your apps. Note: Disable or unload certain apps if available space is less than 100MB. 8. Message: On the Message page, tap the Menu button and choose Settings. On the Message Settings page, you can enable/disable report sending, create or select a message template, and configure a message alert tone for each short or multimedia message. 9. Call: To display the Call Settings page, choose Settings on the Call page. Shortcuts On the Home screen, lightly drag down the Status bar. On the screen top, a group of shortcuts are displayed, such as Settings, WLAN, Bluetooth, Brightness, Auto-rotate, flashlight Airplane mode and so on. Tap any of them to open it quickly. Shortcut menu Powered by Android™ 11 (Go edition) provides several easy-to-use shortcut menus on the home screen. On this screen, long press on the screen, the selection menu of the shortcut function menu will pop up. Click the menu of the desired settings and complete the function settings according to the prompts. Move/Uninstall apps 1. Access the App main menu from the Home screen. On the ALL App page, tap and hold an app to be put on the Home screen, and drag it left or right to locate it at a proper place. In this way, a desktop app is created. 2. On the All App page, tap and hold an app, and drag it to Uninstall on the desktop. In this way, the app is removed from the phone. Note: You are not allowed to uninstall basic apps of the phone. 3. On the All App page, tap and hold an app, and drag it to APP Info. on the desktop. In this way, details about the app is displayed. Call This phone allows you to make or answer a call, initiate an emergency call, and launch a multi-party call. On the bottom left of the Home screen, tap the Dial-up icon. The Dial-up page is displayed. Enter a phone number and choose between card 1 and card 2 to make the call. When you enter the number, the phone will automatically search among all contacts a number that best matches the entered numerals, to facilitate your operation. During a call, tap Add a Call, and this call automatically switches to Silent mode. Enter the number of another contact, tap Dial-up, and the previous call automatically switches to On-hold mode. After the second call is answered, tap Join. In this way, a teleconference is established to achieve a multi-party talk. Note: You need to subscribe to this service from your carrier before you use it. You are also allowed to initiate a call by selecting a phone number from the list of contacts or the Message page. Contacts Tap Contacts to open it. The Contacts page offers management functions. It allows you to view the list of contacts and related details, make a call or send an SMS to a certain contact, and share the contact. Contact import: On the Contacts page, tap the Menu button, and choose Import/Export to select a mode for importing or exporting a contact. Add a contact: On the lower right of the Contacts page, tap the Add button to add a contact to your phone or USIM/SIM. Enter the name and number, and tap Finish. In this way, a cont…

Text truncated - open the document above for the full version.

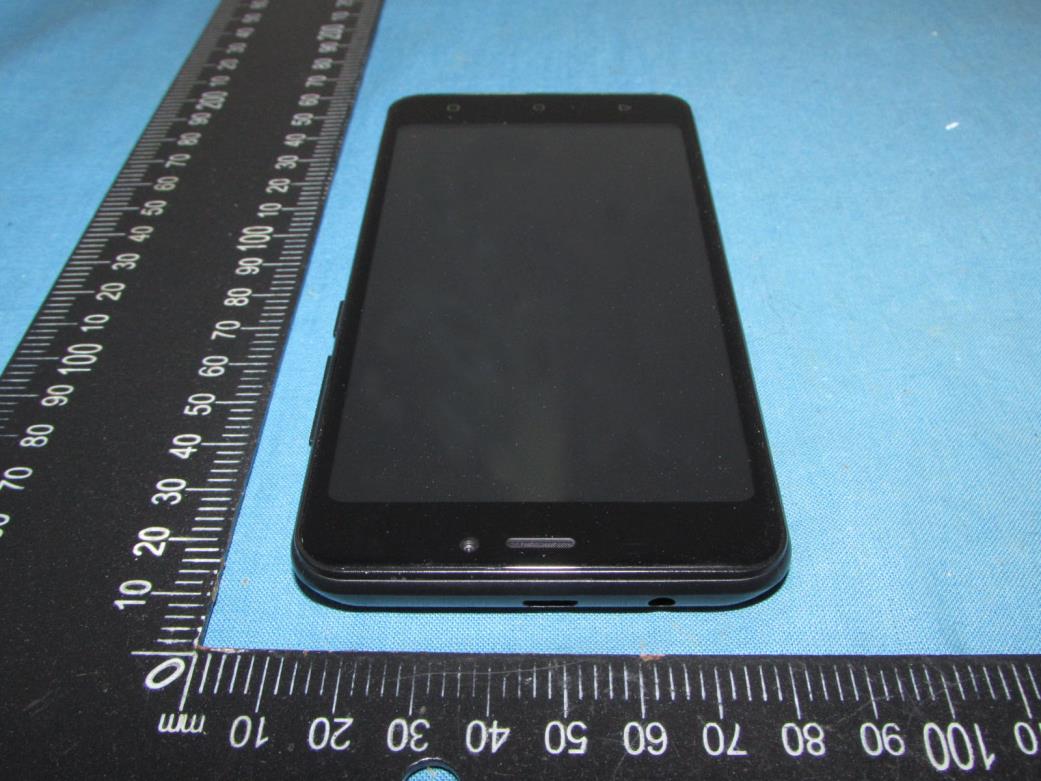

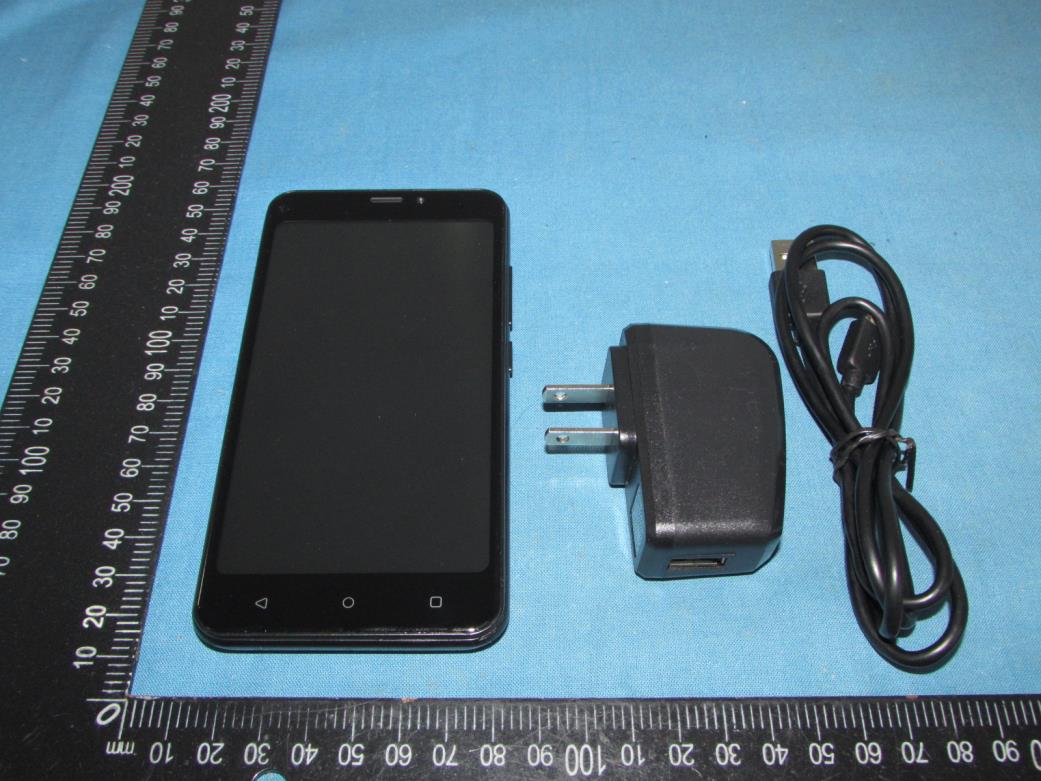

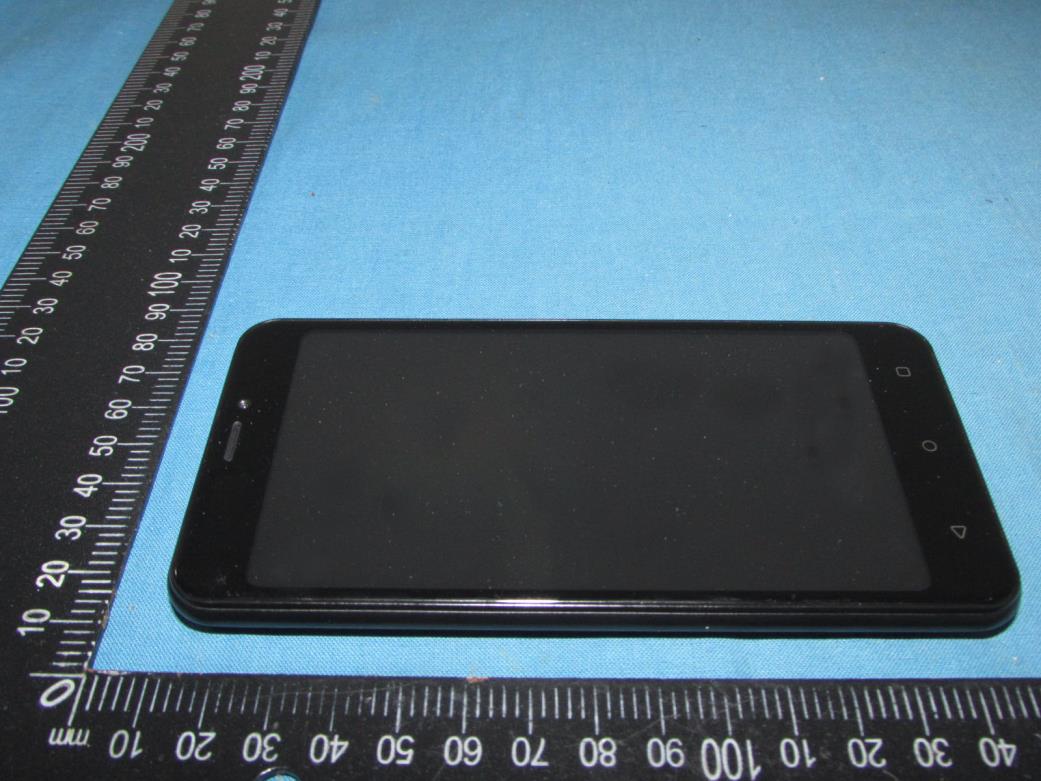

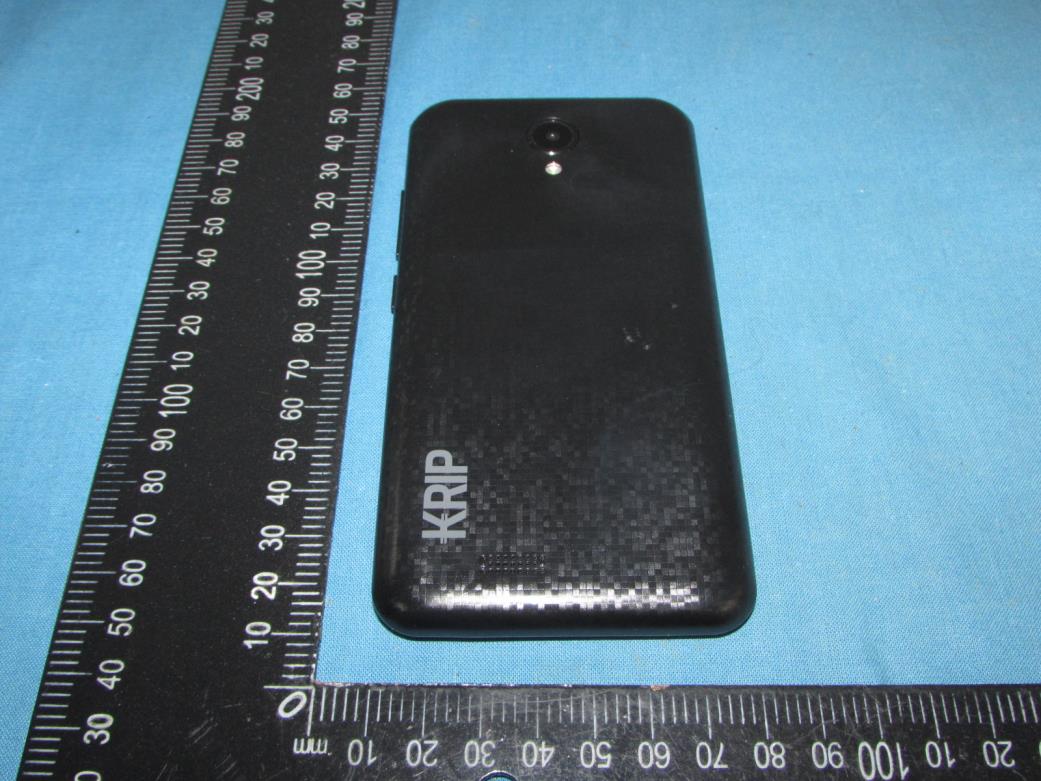

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Label Location:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 LTE diversity antenna LTE/WCDMA /GSM Main antenna WiFi/Bluetooth /FM/GNSS antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10



Page 1 of 122 SAR Test Report Report No.: AGC10211220401FH01 FCC ID : 2APX7K50 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart phone BRAND NAME : MODEL NAME : K50 APPLICANT : KRIPTO MOBILE CORPORATION DATE OF ISSUE : May 16, 2022 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC10211220401FH01 Page 2 of 122 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 16, 2022 Valid Initial Release Report No.: AGC10211220401FH01 Page 3 of 122 Test Report Applicant Name KRIPTO MOBILE CORPORATION Applicant Address 7236 NW 31ST ST, MIAMI, FL 33122, United States Manufacturer Name HuaYueShiTong Software Technology Co., Ltd Manufacturer Address Room 703-704, Building B, Phase 1, WankeYuncheng Innovation Valley, Xili Street, Nanshan District, Shenzhen, China Factory Name HuaYueShiTong Software Technology Co.,Ltd Factory Address Room 703-704, Building B, Phase 1, WankeYuncheng Innovation Valley, Xili Street, Nanshan District, Shenzhen, China Product Designation Smart phone Brand Name Model Name K50 EUT Voltage DC3.8V by battery Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date May 10, 2022 to May 13, 2022 Report Template AGCRT-US-4G/SAR (2021-04-20) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) May 13, 2022 Reviewed By Calvin Liu (Reviewer) May 16, 2022 Approved By Max Zhang (Authorized Officer) May 16, 2022 Report No.: AGC10211220401FH01 Page 4 of 122 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ........................................................................................................................ 8 3.1. THE SATIMO SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS .................. 8 3.2. COMOSAR E-FIELD PROBE .......................................................................................................................... 9 3.3. ROBOT .......................................................................................................................................................... 9 3.4. VIDEO POSITIONING SYSTEM ........................................................................................................................ 10 3.5. DEVICE HOLDER .......................................................................................................................................... 10 3.6. SAM TWIN PHANTOM ................................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE .............................................................................................................. 12 4.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 12 4.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 13 4.3. RF EXPOSURE CONDITIONS ......................................................................................................................... 15 5. TISSUE SIMULATING LIQUID ......................................................................................................................... 17 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 17 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 18 5.3. TISSUE CALIBRATION RESULT ....................................................................................................................... 19 6. SAR SYSTEM CHECK PROCEDURE ........................................................................................................... 21 6.1. SAR SYSTEM CHECK PROCEDURES ............................................................................................................. 21 6.2. SAR SYSTEM CHECK ................................................................................................................................... 22 7. EUT TEST POSITION ...................................................................................................................................... 24 7.1. DEFINE TWO IMAGINARY LINES ON THE HANDSET ........................................................................................... 24 7.2. CHEEK POSITION ......................................................................................................................................... 25 7.3. TILT POSITION .............................................................................................................................................. 25 7.4. BODY WORN POSITION ................................................................................................................................ 26 8. SAR EXPOSURE LIMITS ............................................................................................................................... 27 9. TEST FACILITY .............................................................................................................................................. 28 10. TEST EQUIPMENT LIST ............................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 1 of 129 RF Test Data for LTE (Conducted Measurement) Product Name: Smart phone Trade Mark: Test Model: K50 FCC ID: 2APX7K50 Environmental Conditions Temperature: 23.8°C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen Remark: For LTE Band2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 2 of 129 Band Edge and Emission Mask Band Bandwidth(MHz) UL Frequency(MHz) Modulation RB Size RB Offset Conclusion Band2 1.4 1850.7 QPSK 6 LOW Pass Band2 1.4 1850.7 QPSK 1 LOW Pass Band2 1.4 1850.7 16QAM 6 LOW Pass Band2 1.4 1850.7 16QAM 1 LOW Pass Band2 1.4 1909.3 QPSK 6 LOW Pass Band2 1.4 1909.3 QPSK 1 HIGH Pass Band2 1.4 1909.3 16QAM 6 LOW Pass Band2 1.4 1909.3 16QAM 1 HIGH Pass Band2 3 1851.5 QPSK 15 LOW Pass Band2 3 1851.5 QPSK 1 LOW Pass Band2 3 1851.5 16QAM 15 LOW Pass Band2 3 1851.5 16QAM 1 LOW Pass Band2 3 1908.5 QPSK 15 LOW Pass Band2 3 1908.5 QPSK 1 HIGH Pass Band2 3 1908.5 16QAM 15 LOW Pass Band2 3 1908.5 16QAM 1 HIGH Pass Band2 5 1852.5 QPSK 25 LOW Pass Band2 5 1852.5 QPSK 1 LOW Pass Band2 5 1852.5 16QAM 25 LOW Pass Band2 5 1852.5 16QAM 1 LOW Pass Band2 5 1907.5 QPSK 25 LOW Pass Band2 5 1907.5 QPSK 1 HIGH Pass Band2 5 1907.5 16QAM 25 LOW Pass Band2 5 1907.5 16QAM 1 HIGH Pass Band2 10 1855 QPSK 50 LOW Pass Band2 10 1855 QPSK 1 LOW Pass Band2 10 1855 16QAM 50 LOW Pass Band2 10 1855 16QAM 1 LOW Pass Band2 10 1905 QPSK 50 LOW Pass Band2 10 1905 QPSK 1 HIGH Pass Band2 10 1905 16QAM 50 LOW Pass Band2 10 1905 16QAM 1 HIGH Pass Band2 15 1857.5 QPSK 75 LOW Pass Band2 15 1857.5 QPSK 1 LOW Pass Band2 15 1857.5 16QAM 75 LOW Pass Band2 15 1857.5 16QAM 1 LOW Pass Band2 15 1902.5 QPSK 75 LOW Pass Band2 15 1902.5 QPSK 1 HIGH Pass Band2 15 1902.5 16QAM 75 LOW Pass Band2 15 1902.5 16QAM 1 HIGH Pass Band2 20 1860 QPSK 100 LOW Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 3 of 129 Band2 20 1860 QPSK 1 LOW Pass Band2 20 1860 16QAM 100 LOW Pass Band2 20 1860 16QAM 1 LOW Pass Band2 20 1900 QPSK 100 LOW Pass Band2 20 1900 QPSK 1 HIGH Pass Band2 20 1900 16QAM 100 LOW Pass Band2 20 1900 16QAM 1 HIGH Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 4 of 129 Band2-1.4-1850.7-QPSK-6#LOW@Pass Band2-1.4-1850.7-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 5 of 129 Band2-1.4-1850.7-16QAM-6#LOW@Pass Band2-1.4-1850.7-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 6 of 129 Band2-1.4-1909.3-QPSK-6#LOW@Pass Band2-1.4-1909.3-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 7 of 129 Band2-1.4-1909.3-16QAM-6#LOW@Pass Band2-1.4-1909.3-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 8 of 129 Band2-3-1851.5-QPSK-15#LOW@Pass Band2-3-1851.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 9 of 129 Band2-3-1851.5-16QAM-15#LOW@Pass Band2-3-1851.5-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 10 of 129 Band2-3-1908.5-QPSK-15#LOW@Pass Band2-3-1908.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 11 of 129 Band2-3-1908.5-16QAM-15#LOW@Pass Band2-3-1908.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 12 of 129 Band2-5-1852.5-QPSK-25#LOW@Pass Band2-5-1852.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 13 of 129 Band2-5-1852.5-16QAM-25#LOW@Pass Band2-5-1852.5-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 14 of 129 Band2-5-1907.5-QPSK-25#LOW@Pass Band2-5-1907.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 15 of 129 Band2-5-1907.5-16QAM-25#LOW@Pass Band2-5-1907.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 16 of 129 Band2-10-1855-QPSK-50#LOW@Pass Band2-10-1855-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 17 of 129 Band2-10-1855-16QAM-50#LOW@Pass Band2-10-1855-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 18 of 129 Band2-10-1905-QPSK-50#LOW@Pass Band2-10-1905-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 19 of 129 Band2-10-1905-16QAM-50#LOW@Pass Band2-10-1905-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 20 of 129 Band2-15-1857.5-QPSK-75#LOW@Pass Band2-15-1857.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 21 of 129 Band2-15-1857.5-16QAM-75#LOW@Pass Band2-15-1857.5-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 22 of 129 Band2-15-1902.5-QPSK-75#LOW@Pass Band2-15-1902.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 23 of 129 Band2-15-1902.5-16QAM-75#LOW@Pass Band2-15-1902.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 24 of 129 Band2-20-1860-QPSK-100#LOW@Pass Band2-20-1860-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 25 of 129 Band2-20-1860-16QAM-100#LOW@Pass Band2-20-1860-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 26 of 129 Band2-20-1900-QPSK-100#LOW@Pass Band2-20-1900-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 27 of 129 Band2-20-1900-16QAM-100#LOW@Pass Band2-20-1900-16QAM-1#HIGH@Pass Sh…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 69 of 129 OB2-1.4-1850.7-Q16-6#[email protected]@Pass OB2-1.4-1850.7-Q16-6#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 70 of 129 OB2-1.4-1880-Q16-6#LOW@30mHz-1GHz@Pass OB2-1.4-1880-Q16-6#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 71 of 129 OB2-1.4-1880-Q16-6#[email protected]@Pass OB2-1.4-1880-Q16-6#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 72 of 129 OB2-1.4-1909.3-Q16-6#LOW@30mHz-1GHz@Pass OB2-1.4-1909.3-Q16-6#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 73 of 129 OB2-1.4-1909.3-Q16-6#[email protected]@Pass OB2-1.4-1909.3-Q16-6#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 74 of 129 OB2-3-1851.5-Q16-15#LOW@30mHz-1GHz@Pass OB2-3-1851.5-Q16-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 75 of 129 OB2-3-1851.5-Q16-15#[email protected]@Pass OB2-3-1851.5-Q16-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 76 of 129 OB2-3-1880-Q16-15#LOW@30mHz-1GHz@Pass OB2-3-1880-Q16-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 77 of 129 OB2-3-1880-Q16-15#[email protected]@Pass OB2-3-1880-Q16-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 78 of 129 OB2-3-1908.5-Q16-15#LOW@30mHz-1GHz@Pass OB2-3-1908.5-Q16-15#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 79 of 129 OB2-3-1908.5-Q16-15#[email protected]@Pass OB2-3-1908.5-Q16-15#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 80 of 129 OB2-5-1852.5-Q16-25#LOW@30mHz-1GHz@Pass OB2-5-1852.5-Q16-25#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 81 of 129 OB2-5-1852.5-Q16-25#[email protected]@Pass OB2-5-1852.5-Q16-25#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 82 of 129 OB2-5-1880-Q16-25#LOW@30mHz-1GHz@Pass OB2-5-1880-Q16-25#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 83 of 129 OB2-5-1880-Q16-25#[email protected]@Pass OB2-5-1880-Q16-25#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 84 of 129 OB2-5-1907.5-Q16-25#LOW@30mHz-1GHz@Pass OB2-5-1907.5-Q16-25#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 85 of 129 OB2-5-1907.5-Q16-25#[email protected]@Pass OB2-5-1907.5-Q16-25#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 86 of 129 OB2-10-1855-Q16-50#LOW@30mHz-1GHz@Pass OB2-10-1855-Q16-50#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 87 of 129 OB2-10-1855-Q16-50#[email protected]@Pass OB2-10-1855-Q16-50#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 88 of 129 OB2-10-1880-Q16-50#LOW@30mHz-1GHz@Pass OB2-10-1880-Q16-50#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 89 of 129 OB2-10-1880-Q16-50#[email protected]@Pass OB2-10-1880-Q16-50#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 90 of 129 OB2-10-1905-Q16-50#LOW@30mHz-1GHz@Pass OB2-10-1905-Q16-50#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 91 of 129 OB2-10-1905-Q16-50#[email protected]@Pass OB2-10-1905-Q16-50#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 92 of 129 OB2-15-1857.5-Q16-75#LOW@30mHz-1GHz@Pass OB2-15-1857.5-Q16-75#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 93 of 129 OB2-15-1857.5-Q16-75#[email protected]@Pass OB2-15-1857.5-Q16-75#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 94 of 129 OB2-15-1880-Q16-75#LOW@30mHz-1GHz@Pass OB2-15-1880-Q16-75#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 95 of 129 OB2-15-1880-Q16-75#[email protected]@Pass OB2-15-1880-Q16-75#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 96 of 129 OB2-15-1902.5-Q16-75#LOW@30mHz-1GHz@Pass OB2-15-1902.5-Q16-75#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 97 of 129 OB2-15-1902.5-Q16-75#[email protected]@Pass OB2-15-1902.5-Q16-75#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 98 of 129 OB2-20-1860-Q16-100#LOW@30mHz-1GHz@Pass OB2-20-1860-Q16-100#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 99 of 129 OB2-20-1860-Q16-100#[email protected]@Pass OB2-20-1860-Q16-100#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 100 of 129 OB2-20-1880-Q16-100#LOW@30mHz-1GHz@Pass OB2-20-1880-Q16-100#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 101 of 129 OB2-20-1880-Q16-100#[email protected]@Pass OB2-20-1880-Q16-100#[email protected]@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 102 of 129 OB2-20-1900-Q16-100#LOW@30mHz-1GHz@Pass OB2-20-1900-Q16-100#LOW@1GHz-7GHz@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ2204…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 1 of 129 RF Test Data for LTE (Conducted Measurement) Product Name: Smart phone Trade Mark: Test Model: K50 FCC ID: 2APX7K50 Environmental Conditions Temperature: 23.8°C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen Remark: For LTE Band4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 2 of 129 Band Edge and Emission Mask Band Bandwidth(MHz) UL Frequency(MHz) Modulation RB Size RB Offset Conclusion Band4 1.4 1710.7 QPSK 6 LOW Pass Band4 1.4 1710.7 QPSK 1 LOW Pass Band4 1.4 1710.7 16QAM 6 LOW Pass Band4 1.4 1710.7 16QAM 1 LOW Pass Band4 1.4 1754.3 QPSK 6 LOW Pass Band4 1.4 1754.3 QPSK 1 HIGH Pass Band4 1.4 1754.3 16QAM 6 LOW Pass Band4 1.4 1754.3 16QAM 1 HIGH Pass Band4 3 1711.5 QPSK 15 LOW Fail Band4 3 1711.5 QPSK 1 LOW Fail Band4 3 1711.5 16QAM 15 LOW Pass Band4 3 1711.5 16QAM 1 LOW Fail Band4 3 1753.5 QPSK 15 LOW Pass Band4 3 1753.5 QPSK 1 HIGH Fail Band4 3 1753.5 16QAM 15 LOW Pass Band4 3 1753.5 16QAM 1 HIGH Fail Band4 5 1712.5 QPSK 25 LOW Pass Band4 5 1712.5 QPSK 1 LOW Pass Band4 5 1712.5 16QAM 25 LOW Pass Band4 5 1712.5 16QAM 1 LOW Pass Band4 5 1752.5 QPSK 25 LOW Pass Band4 5 1752.5 QPSK 1 HIGH Pass Band4 5 1752.5 16QAM 25 LOW Pass Band4 5 1752.5 16QAM 1 HIGH Pass Band4 10 1715 QPSK 50 LOW Pass Band4 10 1715 QPSK 1 LOW Pass Band4 10 1715 16QAM 50 LOW Pass Band4 10 1715 16QAM 1 LOW Pass Band4 10 1750 QPSK 50 LOW Pass Band4 10 1750 QPSK 1 HIGH Pass Band4 10 1750 16QAM 50 LOW Pass Band4 10 1750 16QAM 1 HIGH Pass Band4 15 1717.5 QPSK 75 LOW Pass Band4 15 1717.5 QPSK 1 LOW Pass Band4 15 1717.5 16QAM 75 LOW Pass Band4 15 1717.5 16QAM 1 LOW Pass Band4 15 1747.5 QPSK 75 LOW Pass Band4 15 1747.5 QPSK 1 HIGH Pass Band4 15 1747.5 16QAM 75 LOW Pass Band4 15 1747.5 16QAM 1 HIGH Pass Band4 20 1720 QPSK 100 LOW Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 3 of 129 Band4 20 1720 QPSK 1 LOW Pass Band4 20 1720 16QAM 100 LOW Pass Band4 20 1720 16QAM 1 LOW Pass Band4 20 1745 QPSK 100 LOW Pass Band4 20 1745 QPSK 1 HIGH Pass Band4 20 1745 16QAM 100 LOW Pass Band4 20 1745 16QAM 1 HIGH Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 4 of 129 Band4-1.4-1710.7-QPSK-6#LOW@Pass Band4-1.4-1710.7-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 5 of 129 Band4-1.4-1710.7-16QAM-6#LOW@Pass Band4-1.4-1710.7-16QAM-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 6 of 129 Band4-1.4-1754.3-QPSK-6#LOW@Pass Band4-1.4-1754.3-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 7 of 129 Band4-1.4-1754.3-16QAM-6#LOW@Pass Band4-1.4-1754.3-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 8 of 129 Band4-3-1711.5-QPSK-15#LOW@Pass Band4-3-1711.5-QPSK-1#LOW@Fail Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 9 of 129 Band4-3-1711.5-16QAM-15#LOW@Pass Band4-3-1711.5-16QAM-1#LOW@Fail Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 10 of 129 Band4-3-1753.5-QPSK-15#LOW@Pass Band4-3-1753.5-QPSK-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 11 of 129 Band4-3-1753.5-16QAM-15#LOW@Pass Band4-3-1753.5-16QAM-1#HIGH@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 12 of 129 Band4-5-1712.5-QPSK-25#LOW@Pass Band4-5-1712.5-QPSK-1#LOW@Pass Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2APX7K50 Report No.: TZ220403146-E5 Page 13 o…

Text truncated - open the document above for the full version.
