2APXN-LACC119Aircharge Mag

power is reduced to 5W Non-MagSafe Qi-Compatible Smartphone 9V 2.22 A AIRCHARGE MAG AIR0781 Input: Output: Up to 15W (Compatible Devices*) Connect the AirMag with MagSafe to the power supply provided. Once completed simply place your Qi compatible device on the wireless charger. *Compatible devices for 15W Fast Charging -iPhone 12 Models and Later - CMS Industries hereby declares on its own responsibility that the product conforms to the essential requirements of the UK Regulations. A full UKCA declaration can be found by scanning the QR code below. CMS Industries hereby declares on its own responsibility that the product fulls the basic requirements and the other pertinent provisions of 2014/53/EU (Radio Equipment Directive). A full CE declaration can be found by scanning the QR code below. Manufactured by UKCA Declaration of Conformity CMS Industries, Downsview House, Downsview Road, Wantage, OX12 9FA, United Kingdom CE Declaration of Conformity Scan Me for More Info Z Z 115-205KH for 5W output Frequency:350-400KH for 15w FCC Statement： Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions (1)This device may not cause harmful interference, and (2)This device must accept any interference received including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1）Reorient or relocate the receiving antenna. 2）Increase the separation between the equipment and receiver. 3）Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4）Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Statement： This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)L’appareil ne doit pas produire de brouillage; (2)L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 10cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 10 cm entre le radiateur et votre corps.

ASAP Technology(Jiangxi) Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Product Name: Aircharge Mag FCC ID: 2APXN-LACC119 Model(s): AIR0781, AIR0781-0.5M, AIR0781B, AIR0781B-0.5M 2.911(d)(5)(i) Equipment Type We, [ASAP Technology(Jiangxi) Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Xiaolan Deng Date: 2023/07/26 Title and Company name: Manager / ASAP Technology(Jiangxi) Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ASAP Technology(Jiangxi) Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Product Name: Aircharge Mag FCC ID: 2APXN-LACC119 Model(s): AIR0781, AIR0781-0.5M, AIR0781B, AIR0781B-0.5M 2.911(d)(5)(ii) Applicant filing We, [ASAP Technology(Jiangxi) Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Xiaolan Deng Date: 2023/07/26 Title and Company name: Manager / ASAP Technology(Jiangxi) Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

ASAP Technology(Jiangxi) Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Luxshare-ICT Inc FRN: 0033589201 Contact Name: Kyle Liu Address: 480 N.McCarthy Blvd #280, Milpitas, CA 95035, United States Telephone No: (408) 957-0535 59081 Email: [email protected] This letter is to confirm that we (Luxshare-ICT Inc) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023-07-20 Signed by (Printed Name/Title): Kyle Liu / Deputy Director of Business The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: ASAP Technology(Jiangxi) Co., Ltd. FCC ID: 2APXN-LACC119 Contact Name: Xiaolan Deng Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Telephone No: +86 796 7118988 Email: [email protected] Applicant Signature: Date: 2023-07-20 Signed by (Printed Name/Title): Xiaolan Deng / Manager

ASAP Technology(Jiangxi) Co., Ltd. Agent Authorization Company: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Product Name: Aircharge Mag Model Number(s): AIR0781, AIR0781-0.5M, AIR0781B, AIR0781B-0.5M We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/07/26 Name: Xiaolan Deng Title: Manager Company: ASAP Technology(Jiangxi) Co., Ltd.

ASAP Technology(Jiangxi) Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023/07/26 Subject; Request for Confidentiality FCC ID: 2APXN-LACC119 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiaolan Deng Title: Manager

ASAP Technology(Jiangxi) Co., Ltd. Model Difference 2023-07-26 EUT NAME: Aircharge Mag FCC ID: 2APXN-LACC119 MODEL : AIR0781, AIR0781-0.5M, AIR0781B, AIR0781B-0.5M All the model are the same circuit and RF module, except model names, appearance color and cable length. Model: AIR0781 Model: AIR0781-0.5M silver, with 2M cable silver, with 0.5M cable Model: AIR0781B Model: AIR0781B-0.5M Black, with 2M cable Black, with 0.5M cable Regards Sincerely Client’s signature: Client’s name / title : Xiaolan Deng /Manager Contact information / address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China

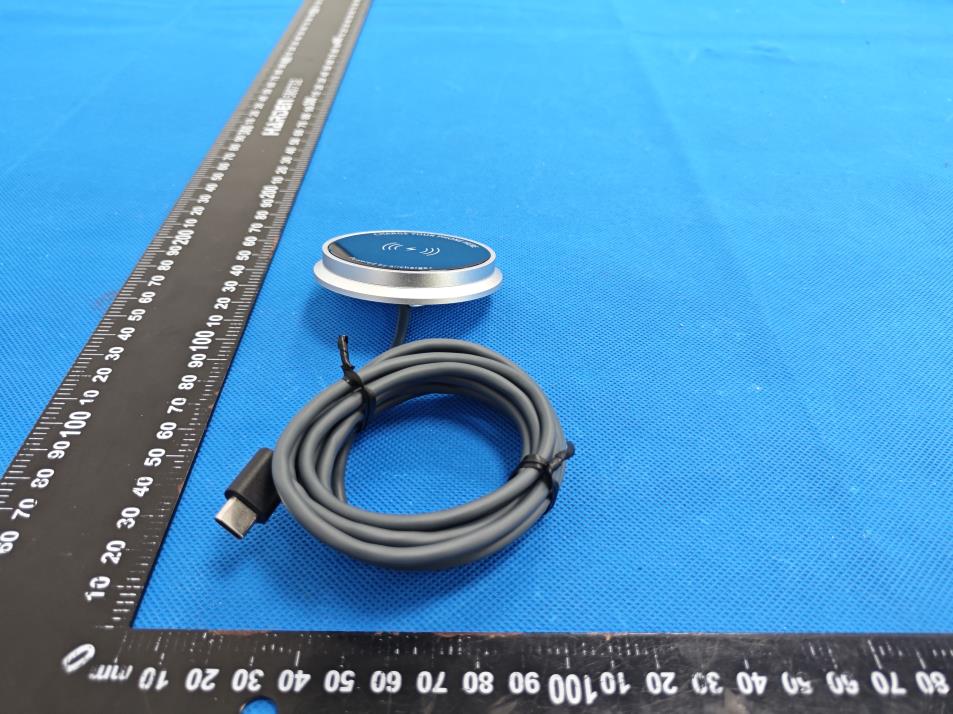

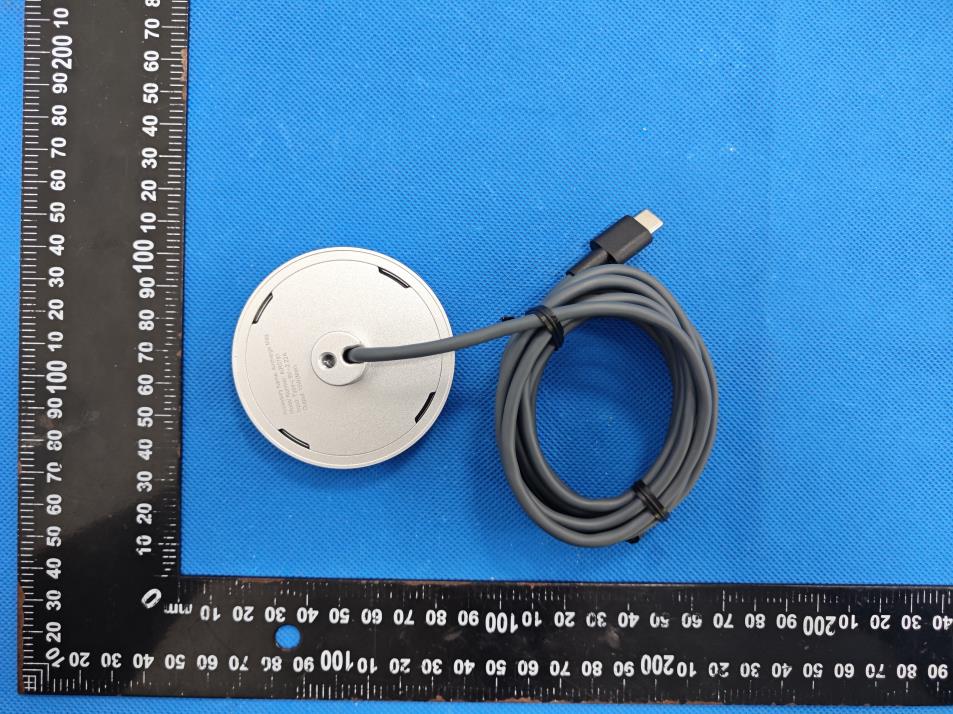

FCC ID: 2APXN-LACC119 External Photos

DWG NO: SHEET SCALE N/A 2/3 REV. A1 OF LUXSHARE-ICT THESE DRAWINGS AND SPECIFICATIONS WITHOUT THE PRIOR WRITTEN CONSENT AND SHALL NOT BE REPRODUCED, COPIED OR CUED IN ANY MANNER LUXSHARE-ICT ARE THE PROPERTY OF LUXSHARE-ICT * SUPPLIER P/N: TITLE: A E A E 8 7 6 5 4 3 21 8 7 6 5 4 3 21 .XXX± 0.05 .XX± 0.1 .X± 0.15 X.± 0.3 .XX°±0.1 .X°±0.2 .XXX°±0.05 X.°±0.3 UNITS: mm E 4 3 21 A B C D E A B C D E B C D DRAW: CHKD: APPD: Customer P/N: Customer REV.: RDS2209239-001 L244WC001-CS-H RDS2209239-001 DUWEN XIAO XIONGWU LI XIN LIU RoHS 11 Reach CP65 HF Accessory Name: Aircharge Mag Model Number: AIR0781-0.5M Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 Accessory Name: Aircharge Mag Model Number: AIR0781-0.5M Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 24.4 11.34 27.97 11 Accessory Name: Aircharge Mag Model Number: AIR0781 Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 Accessory Name: Aircharge Mag Model Number: AIR0781 Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 24.4 11.34 27.97 AIR0781-0.5M AIR0781 LACC119 Type-C Craft: Radium carving Typeface：Arial Height：1.2mm Percentage：2:1 Craft: Radium carving Typeface：Arial Height：1.2mm Percentage：2:1 DWG NO: SHEET SCALE N/A 3/3 REV. A1 OF LUXSHARE-ICT THESE DRAWINGS AND SPECIFICATIONS WITHOUT THE PRIOR WRITTEN CONSENT AND SHALL NOT BE REPRODUCED, COPIED OR CUED IN ANY MANNER LUXSHARE-ICT ARE THE PROPERTY OF LUXSHARE-ICT * SUPPLIER P/N: TITLE: A E A E 8 7 6 5 4 3 21 8 7 6 5 4 3 21 .XXX± 0.05 .XX± 0.1 .X± 0.15 X.± 0.3 .XX°±0.1 .X°±0.2 .XXX°±0.05 X.°±0.3 UNITS: mm E 4 3 21 A B C D E A B C D E B C D DRAW: CHKD: APPD: Customer P/N: Customer REV.: Craft: Radium carving Typeface：Arial Height：1.2mm Percentage：2:1 RDS2209239-001 L244WC001-CS-H RDS2209239-001 DUWEN XIAO XIONGWU LI XIN LIU RoHS 11 Reach CP65 HF Accessory Name: Aircharge Mag Model Number: AIR0781B-0.5M Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 Accessory Name: Aircharge Mag Model Number: AIR0781B-0.5M Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 24.4 11.34 27.97 11 Accessory Name: Aircharge Mag Model Number: AIR0781B Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 Accessory Name: Aircharge Mag Model Number: AIR0781B Input: Type-C 9V 2.22A Output: 15W(Max) FCC ID:2APXN-LACC119 IC:24654-LACC119 24.4 11.34 27.97 AIR0781B-0.5M AIR0781B LACC119磁吸无线充15W直连Type-C Craft: Radium carving Typeface：Arial Height：1.2mm Percentage：2:1

FCC ID: 2APXN-LACC119 Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 15 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2306986737-2E Applicant: ASAP Technology(Jiangxi) Co., Ltd. Product Name: Aircharge Mag Model/Type reference: AIR0781 Tested Date: 2023-06-09 to 2023-06-20 Issued Date: 2023-06-20 Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 2 of 15 Edition：B.0 FCC ID: 2APXN-LACC119 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Aircharge Mag Trademark: Aircharge Model/Type reference: AIR0781 AIR0781-0.5M, AIR0781B, AIR0781B-0.5M Prepared For: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Manufacturer: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-06-09 Sample tested Date: 2023-06-09 to 2023-06-20 Issue Date: 2023-06-20 Report No.: BCTC2306986737-2E Test Standards: FCC CFR 47 part1, 1.1307(b), 1.1310 Test Results: PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 3 of 15 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Product Information ............................................................................................... 5 2.1 Product Information ............................................................................................... 5 2.2 Support Equipment ............................................................................................... 5 2.3 Test Mode ............................................................................................................. 5 3. Test Facility And Test Instrument Used ................................................................. 6 3.1 Test Facility ........................................................................................................... 6 3.2 Test Instrument Used ............................................................................................ 6 4. Method Of Measurement ....................................................................................... 7 4.1 Applicable Standard .............................................................................................. 7 4.2 Block Diagram Of Test Setup ................................................................................ 7 4.3 Limit ...................................................................................................................... 8 4.4 Test procedure ...................................................................................................... 8 4.5 Equipment Approval Considerations ..................................................................... 9 4.6 E and H field Strength ......................................................................................... 10 5. Photographs Of Test Set-Up ............................................................................... 12 (Note: N/A Means Not Applicable) Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 4 of 15 Edition：B.0 1. Version Report No. Issue Date Description Approved BCTC2306986737-2E 2023-06-20 Original Valid Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 5 of 15 Edition：B.0 2. Product Information 2.1 Product Information Model/Type Ref.: AIR0781 AIR0781-0.5M, AIR0781B, AIR0781B-0.5M Model differences: All the model are the same circuit and RF module, except model names, appearance color and cable length. Product Description: Aircharge Mag Operation Frequency: 5W: 115kHz-205kHz 15W: 350-400kHz Antenna installation: loop coil antenna Ratings: Input: DC 9V 2.22A Wireless Charging Output: 5W, 15W Hardware Version: A Software Version: V1.0 2.2 Support Equipment No. Device Type Brand Model Series No. Note 1. Adapter N/A CD122 N/A Auxiliary Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode Test Mode 1 Wireless charging 5W Test Mode 2 Wireless charging 15W Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 6 of 15 Edition：B.0 3. Test Facility And Test Instrument Used 3.1 Test Facility All measurement facilities used to collect the measurement data are located at Shenzhen BCTC Testing Co., Ltd. Address:1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1-1 other equivalent standards. FCC Test Firm Registration Number: 712850 A2LA certificate registration number is: CN1212 ISED Registered No.: 23583 ISED CAB identifier: CN0017 3.2 Test Instrument Used Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Electromagnet-ic radiation tester Wavecontrol SMP160 19SN0980 May 15, 2023 May 14, 2024 Electromagne-tic field probe Wavecontrol WP400-3 20WP120082 Sept. 08, 2022 Sept. 07, 2023 843 Chamber ETS 843 84301 Aug. 27, 2020 Aug. 26, 2023 Software Frad EZ-EMC EMC-CON 3A1 \ \ Report No.: BCTC2306986737-2E No.：BCTC/RF-EMC-005 Page 7 of 15 Edition：B.0 4. Method Of Measurement 4.1 Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated…

Text truncated - open the document above for the full version.

且JL ElECTRONiC (r L，、 CoRDORATioN JL COILS ' Customer: I 88232 Revision Date XA 2021/01/28 XB 2021/02/24 xc 2021/05/15 3L P/N: I WPT4203-6R5UH 。Hs Customer P/N: I 13705-LOX0001R-OO Revision description Design Approved Initial release. Bake「 He Hong Modify the pin size Baker He Hong Add glues to PIN Position Baker He Hong I Rev. xc Date: I 20210515 且｝LELECTRONiC d 飞 CoRDORATiON 3L COILS ' 。HS Customer: I 88232 Customer P/N: I丁3705-LOX0001R-00 1 胁 c ... l ; i m e n s ： 吨 ⑥ 手＃的拉位 ① ui ， ．．． ITEM SPEC(mm) TYP(mm) ITEM SPEC(mm) TYP(mm) A 42.5+-0.6 42.4 F 1.2-2.8 1.8 B 20.5+-0.5 20.3 G 3.5REF c 2.65MAX 2.25 H D 5.5+-1.0 5.82 E 2.0MAX 1.35 .,. J Note: 1. Core peeling & breakage: Breakage is acceptable when it meets: length三5mm,width三1mm,depths 0.5mm. Eve『ytwo breakages within 1 mm interval would be regarded as one breakage and three breakages under this standard shall be acceptable on each product. 2. Crack on core: No more than two unobvious cracks which is less than 5mm long and 0.5mm wide are allowable to be on the core. Any crack or coating detachment affecting electromagnetic performance of co『e o「 mechanical strength is not acceptable. 3. Core fatness of product surface: The acceptable height difference of uneven su『face shall be :5 0.03mm. 4. Eva double sided adhesive: 1) No folding on the tape. 2) No more than 3 bubbles on single side of tape while the area of single bubble shall not be more than 5mm.No breakage or hurt on tape. 3) The thickness might shrink to a ce「tain extent 』 whichwould be controlled to be within the spec based on the dimension of finished product dimension. 3L P/N: I WPT4203-6R5UH Rev. xc Date: I 20210515

No.：BCTC/RF-EMC-005 Page 1 of 32 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2306986737-1E Applicant: ASAP Technology(Jiangxi) Co., Ltd. Product Name: Aircharge Mag Model/Type Ref.: AIR0781 Tested Date: 2023-06-09 to 2023-06-20 Issued Date: 2023-06-20 Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 2 of 32 Edition：B.0 FCC ID: 2APXN-LACC119 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Aircharge Mag Trademark: Aircharge Model/Type Ref.: AIR0781 AIR0781-0.5M, AIR0781B, AIR0781B-0.5M Prepared For: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Manufacturer: ASAP Technology(Jiangxi) Co., Ltd. Address: Ji’an Industrial Park, Ji’an, Jiangxi, 343100, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-06-09 Sample tested Date: 2023-06-09 to 2023-06-20 Issue Date: 2023-06-20 Report No.: BCTC2306986737-1E Test Standards: FCC Part15.209 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 3 of 32 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Support Equipment ............................................................................................... 7 4.3 Test Setup Configuration ...................................................................................... 8 4.4 Test Mode ............................................................................................................. 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test Procedure ................................................................................................... 11 6.4 EUT Operating Conditions .................................................................................. 11 6.5 Test Result .......................................................................................................... 12 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 17 7.4 Test Result .......................................................................................................... 19 8. Bandwidth Test .................................................................................................... 25 9. Antenna Requirements ........................................................................................ 28 10. EUT Photographs ................................................................................................ 29 11. EUT Test Setup Photographs.............................................................................. 30 (Note: N/A Means Not Applicable) Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 4 of 32 Edition：B.0 1. Version Report No. Issue Date Description Approved BCTC2306986737-1E 2023-06-20 Original Valid Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 5 of 32 Edition：B.0 2. Test Summary The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 20dB Bandwidth 15.215 PASS 4 Antenna Requirement 15.203 PASS Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 6 of 32 Edition：B.0 3. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m chamber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m chamber Radiated spurious emission(30MHz-1GHz) U=4.3dB 3 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 4 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 5 Conducted Emission(150kHz-30MHz) U=3.20dB 6 Conducted Adjacent c…

Text truncated - open the document above for the full version.

Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 30 of 32 Edition：B.0 11. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.: BCTC2306986737-1E No.：BCTC/RF-EMC-005 Page 31 of 32 Edition：B.0
