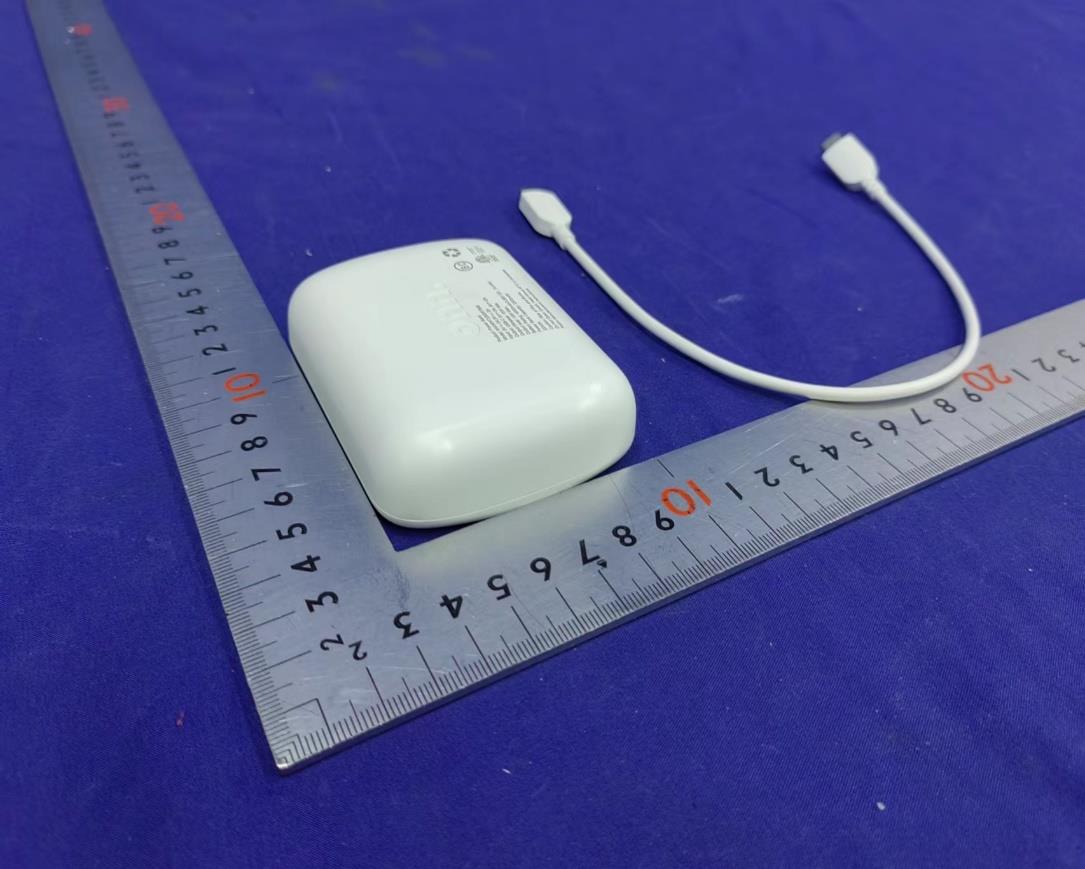

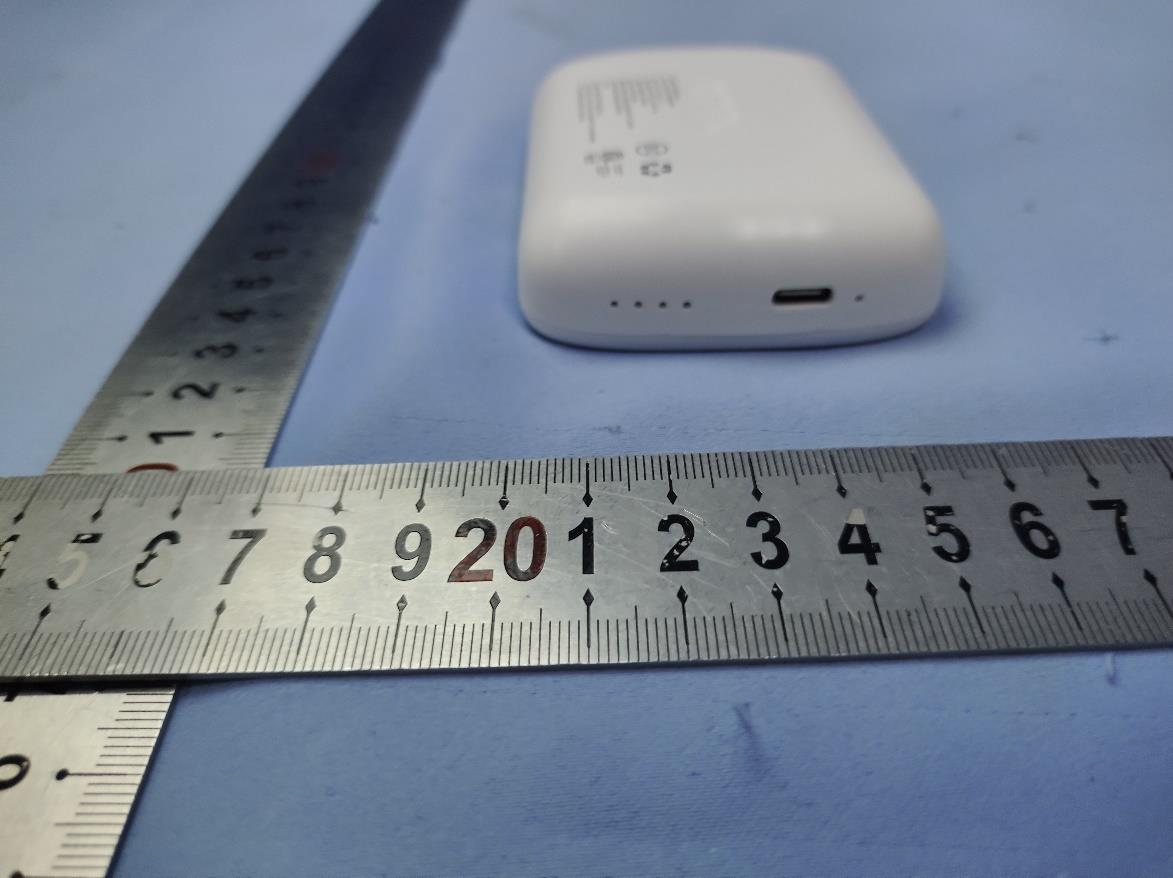

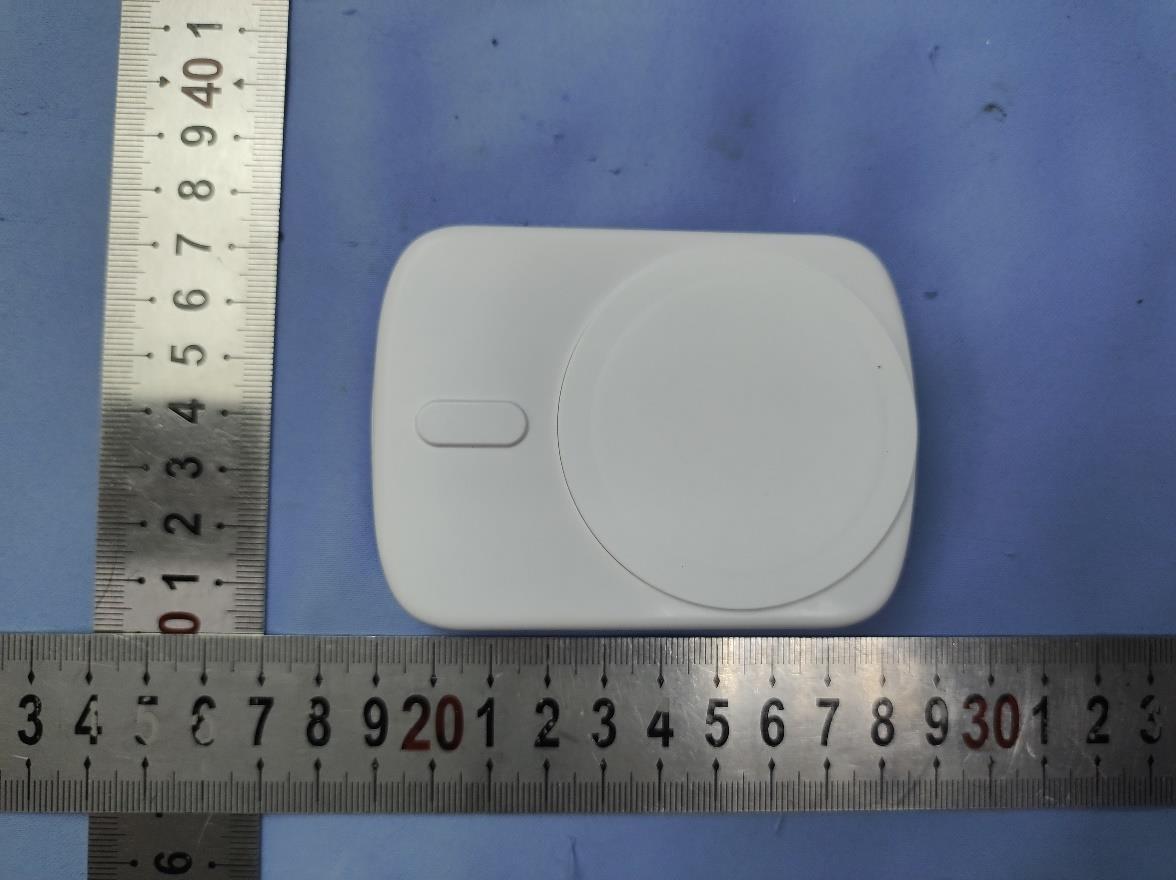

2APXNLACP011Power Bank

TEL:1-888-516-2630 Produced for Wal-Mart Stores,Inc. Bentonille,AR 72716 Walmart.com 4000mAh Magsafe Portable Battery Model:WIAWHT100097966 Sept 20,2022-V1 5V 3A,9V 2A White 89(L)*66(W)*23.5(H)mm 20W Wireless charging indicator C TO C Cable Medical Device Interference: ® The MagSafe Charger contains magnets and radios that emit electromagnetic fields. These electromagnetic fields may interfere with medical devices, such as pacemakers and defibrillators. Consult your physician and medical device manufacture for information specific to your medical device and whether you and ®® the MagSafe Charger. If you suspect the MagSafe Charger is ® interfering with your medical device, stop using the MagSafe Charger. Remove any foreign object (if any) Example: Magnet, holder, key or card 85 This equipment complies with FCC radiation exposure limits se t forth for an uncontrolled environment. This transmitter mus t n o e co-located o r operating in conjunction with any othe r antenn r transmitter. onn. DC,15.4Wh 2300mAh USB-C: 5V 3A,9V 2A USB-C Power Switch Power Status Indicator s 1pcs 1ft USB-C Charging cable status Output Wireless: 15W Max. Output total:15W Max. o

WM4000mAh Power Bank Diagram Block DC5V/9V Input & Output Battery Charge & Discharge Control IC U3 SW6201 Battery Protection IC U1, U2, U4, U5 XB4908M Battery-Battery+ MCU U6 CA51F003T3 LED indictor Coil

(ASAP Technology (Jiangxi) Co., Ltd) [2022.11.17] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement ASAP Technology (Jiangxi) Co., Ltd FCC ID: 2APXNLACP011 To Whom It May Concern: We, ASAP Technology (Jiangxi) Co., Ltd, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2APXNLACP011 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2022.11.17. The Limited Agency Agreement expires on (2023.11.20), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Xiaolan Deng Director

Technical Description Model: WLAWHT100097966 The Equipment Under Test (EUT) is a wireless power bank, the wireless charging frequency is 115-400 kHz. The EUT is powered by D C 5 / 9V of adapter or DC 3.85V of battery; W i re le s s Output: 15.0W, 7.5W by EUT. For more detailed features description, please refer to the user’s manual. Technical notes: 1. Wireless charging power transfer frequency is 115kHz to 400kHz; 2. Output power of wireless function is 15W max; 3. The wireless transfer system includes only single primary coil; 4. Client device is placed directly in contact with the transmitter. 5. The product is a portable device. 6. The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface are demonstrated to be less than 50% of the applicable MPE limit. 7. The maximum coupling surface area of the WPT source is 9.62 cm2; The function of Wireless main IC is mentioned as below: 1. U3(SW6201) acts as main IC 2. U1, U2, U4, U5 acts as Protect IC

ASAP Technology (jiangxi) Co., Ltd TEST REPORT SCOPE OF WORK SAR Assessment– WIAWHT100097966, LACP011 REPORT NUMBER 221025020SZN-002 ISSUE DATE [REVISED DATE] 27 December 2022 [--------------------] PAGES 17 DOCUMENT CONTROL NUMBER RF Exposure © 2017 INTERTEK TEST REPORT Intertek No.: 221025020SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page 1 of 17 RF Exposure 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Test Report Applicant : ASAP Technology (jiangxi) Co., Ltd No.5,Shuguang Rd ,West Zone,Ji’an Industrial Park, Ji’an, Jiangxi 343100 China Sample Description Product : Power Bank Model No. : WIAWHT100097966, LACP011 Brand Name : onn. Electrical Rating : Input: DC 5V 3A,9V 2.22A Output: USB-C DC 5V 3A, 9V 2A Wireless Output: 15.0W Max Output total: 15W Max Date Received : 25 October 2022 Date Test Conducted : 25 October 2022 to 10 November 2022 Test Requested : Test for compliance with CFR 47 part 1 Test Method : Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 Test Result : Pass Conclusion : When determining of test conclusion, measurement uncertainty of tests have been considered. ******************************** End of Page ******************************** Prepared and Checked By: Approved By: Tenet Cao Peter Kang Assistant Engineer Senior Technical Supervisor Date: 27 December 2022 TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 2 of 17 RF Exposure Test Report Test Setup Configuration Test Distance: 0cm Test Distance: 2cm TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 3 of 17 RF Exposure Test Distance: 4cm Test Distance: 6cm TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 4 of 17 RF Exposure Test Distance: 8cm Test Distance: 10cm TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 5 of 17 RF Exposure Test Distance: 12, 14cm, 16cm, 18, 20cm Note - The RF exposure test is performed in the shield room. - The test distance is between the edge of the charger and the the measurement probe. The Model: LACP011 is the same as the Model: WIAWHT100097966 in hardware aspect. The difference in model number serves as marketing strategy. Test Equipment List Name of instrument Model Manufacturer Cal. Date Due Date Electric and Magnetic Field Analyzer EHP-200A Narda 28 July 2022 28 July 2023 Support Equipment List Description Manufacturer Detail Adjustable load Apple (Provided by applicant) iPhone 12 pro max TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 6 of 17 RF Exposure Reference Limit: Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(c) and (d), 1.1310 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range ( MHz ) Electric Field strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3 – 3.0 614 1.63 (100) * 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 (100) * 30 Note: * = Plane wave equivalent power density Test Result: Pass H-Field Strength at 0 cm surrounding the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (A/m) Probe Position Rear (A/m) Probe Position Left (A/m) Probe Position Right (A/m) Probe Position Top (A/m) Probe Position Bottom (A/m) Limits (A/m) 0.110- 0.400 1% Battery Level 0.0153 0.0153 0.0759 0.1357 0.2078 0.1976 1.63 0.110- 0.400 50% Battery Level 0.0137 0.0113 0.0759 0.1157 0.2078 0.2078 1.63 0.110- 0.400 99% Battery Level 0.0124 0.0595 0.0582 0.0525 0.2083 0.2166 1.63 0.110- 0.400 Stand-by 0.0042 0.0032 0.0045 0.0036 0.0052 0.0089 1.63 E-Field Strength at 0 cm surrounding the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (V/m) Probe Position Rear (V/m) Probe Position Left (V/m) Probe Position Right (V/m) Probe Position Top (V/m) Probe Position Bottom (V/m) Limits (V/m) 0.110- 0.400 1% Battery Level 0.2089 0.2123 0.2527 0.1996 0.7225 0.3826 614 0.110- 0.400 50% Battery Level 0.1778 0.2179 0.2423 0.2012 0.7957 0.3716 614 0.110- 0.400 99% Battery Level 0.1018 0.1028 0.0874 0.0437 0.7945 0.3338 614 0.110- 0.400 Stand-by 0.0729 0.0815 0.0786 0.0699 0.0490 0.0291 614 TEST REPORT Intertek No.: 221025020SZN-002 Version: 01-November-2017 Page 7 of 17 RF Exposure H-Field Strength at 2 cm surrounding the EUT Frequency Range (MHz) EUT Operation mode Probe Position Front (A/m) Probe Position Rear (A/m) Probe Position Left (A/m) Probe Position Right (A/m) Probe Position Top (A/m) Probe Position Bottom (A/m) Limits (A/m)…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA LUXSHARE-ICT 项目名称 修改记录 Change History 版本 Version A1 修改内容 Modifications 发行时间 Release Date 2022-09-09 初次绘制 Initial Drawing Project Name 页次 Page 1/1 绘制 Draw By EE Engineer 电子工程师 Check By 审核 Approve By 批准 尺寸 Size A3 R2 0.005R/1206 VOUTA1VBUSCVBUS C4 226/25V/0805 C3 104/25V/0402 C6 106/25V/0603 C5 106/25V/0603 G DS Q1 ASDM20P09 GNDGND E C B Q3 2N3906/SOT23 R4 10K/0402 GND GATEC R6 100K/0402 DPC R8 10K/0402 DMC A K Z1 13V/SOD323 GND VBUS1 A4 VBUS2 A9 VBUS3 B4 VBUS4 B9 D+ A6 D- A7 D+ B6 D- B7 GND1 A1 GND2 A12 GND3 B1 GND4 B12 CC1 A5 CC2 B5 SBU1 A8 SBU2 B8 GND 1 J1 TYPE-C-16PIN GND R10 10K/0402 GND CC1 CC2 1 1 WXC+WXC+VBUSA2 C13 106/25V/0603 Q4 ASDM20P09 Q5 ASDM20N12 GND GATEA2 R15 100K/0402 C14 106/25V/0603 DAC1 1 GND 2 SEL1 3 SEL2 4 VDD 5 DAC2 6 U7 SC8P1151A Q9 2N3904 1 1 WXC- DMA2 DPA2 WXC- R18 10K/0402 VOUT1_EN C20 16V/104/0402 A K Z2 3V3 R20 0.02R/1206 GND R21 10K/0402 1 1 VBAT+VBAT+ R1 10Ω/0402 WXC- S1 SW-PB C1 104/25V/0402 KEY C19 104/25V/0402 C2 104/25V/0402 1 1 VBAT- R29 1K/0402 VBAT- GND LED1 LED2 LED3 VOUT1_EN P0.5/T0/ADC_CH[5]/BEEP/PWM 1 P0.6/ADC_CH[6]/UART1_TX/PWM 2 P0.7/ADC_CH[7]/UART1_RX/PWM 3 P2.0/RESET/PWM/T2CP 4 P3.0/ADC_CH[8]/XOSCH_IN/PWM 5 P1.7/ ADC_CH[9]/ XOSCH_OUT/PWM 6 VSS 7 P1.6/ADC_CH[10]/UART2_TX/PWM/I2C_SDA 8 VDD 9 P1.5/ADC_CH[11]/PWM/SPI_SSB 10 P1.4/FB/PWM/I2C_SDA 11 P1.3/PWM/I2C_SCL 12 P1.2/ ADC_CH[0]/ADC_REF/PWM 13 P1.1/ADC_CH[1]/ PWM 14 P1.0/T2/PWM/SPI_SCK 15 P0.0/T1/PWM/SPI_MOS 16 P0.1/ADC_CH[2]/PWM/SPI_MISO 17 P0.2/SWIM/UART2_RX/PWM/I2C_SCL 18 P0.3/ADC_CH[3]/PWM/AMP_B_P 19 P0.4/ ADC_CH[4]/PWM/AMP_B_N 20 U6 CA51F003T3 LED1LED2LED3 C23 104/25V/0402 NTC 10K 1% 1 2 3 4 J2 烧录 NTC_AD VDD 1 GND 2 GND 3 VM 4 VM 5 U2 XB4908M VDD 1 GND 2 GND 3 VM 4 VM 5 U1 XB4908M VREG GND R38 30K/0402 IIC_SCL R36 1K/0603 R37 1K/0603 IIC_SDA C24 106/10V/0603 GND C25 104/25V/0402 VREG VREG IIC_SDA LED2 BLED LED4 BLED GND LED3 BLED LED5 BLED C7 10nF/50V/0402 VDD 1 GND 2 GND 3 VM 4 VM 5 U4 XB4908M VDD 1 GND 2 GND 3 VM 4 VM 5 U5 XB4908M VCC1 VCC1 VCC1 C9 104/25V/0402 C10 104/25V/0402 WM 4000mAh Power Bank Fangming Sun Dongmin Liu Wenchao Xu Wenchao Xu IIC_SCL R32 2K/0402 R25 10K/0402 R31 10K/0402 R24 2K/0402 3.3V 3.3V LED1 NC R33 1K/0603 SW6201 DPA2 1 SW1 2 SW2 3 SW3 4 BST 5 VOUTA1 6 VBUSA1 7 VBUSB 8 VBUSC 9 VOUTC 10 VOUTA2 11 VBUSA2 12 BAT 13 NTC 14 VCC 15 KEY/GSET 16 FLED/BSET 17 LED5/CSET 18 LED4/I2C 19 LED3/IRQ 20 LED2/SDA 21 LED1/SCK 22 VOUTSP 23 VOUTSN 24 VOUT1 25 VOUT2 26 VOUT3 27 GATEA2 28 GATEA1 29 GATEB 30 GATEC 31 CC2 32 CC1 33 DMC 34 DPC 35 DMB 36 DPB 37 DMA1 38 DPA1 39 DMA2 40 EPAD 41 U3 SW6201 VOUT 330pF/16V C11 330pF/16V C8 GND GND C0805 C18 22uF/25V 1 32 Q12 2N7002 GATEA1 VBUSA1 DMB DPA1 DMA1 DPC DMC CC2 CC1 GATEC DPB DMA2 GND DPA2 VOUTA1VBUSCVBUSB SW BSTVOUTA1VBUSA1 0.1uF/16V C15 C16 25V/22uF GND C17 25V/22uF GND 2.2uH L1 VBUSA2 VOUTA1 VBAT+ NTC BSET/HLED VCC LED3/IRQ LED5/CSET LED4/I2C C12 25V/22uF GND MCU_KEY GND VOUTSPVOUTSNLED2/SDALED1/SCLGATEA2GATEA1GATEB VCC VCC R39 1Ω/0603 R34 100K/0402 R28 470Ω/0402 MCU_K2 MCU_KEY VBAT+ R3 2.2K/0402 R7 2.2K/0402 R9 2.2K/0402 VOUTA1 VOUTA1 GND Q10 2N3904 R19 10K/0402 R22 10K/0402 MCU_K2 R16 100K/0402 Q8 ASDM20P09 VBUSA2 R17 10K/0402 R14 10K/0402 R13 5.6K/0402 R11 10K/0402 GND C27 226/25V/0805 C26 226/25V/0805 C28 226/25V/0805 GND G DS Q2 ASDM20N12 VOUTA1 LED1/SCL LED2/SDA LED3/IRQVBAT+ A K D1 1N4148 A K D2 1N4148 VCC 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA LUXSHARE-ICT 项目名称 修改记录 Change History 版本 Version A1 修改内容 Modifications 发行时间 Release Date 2022-10-10 初次绘制 Initial Drawing Project Name 页次 Page 1/1 绘制 Draw By EE Engineer 电子工程师 Check By 审核 Approve By 批准 尺寸 Size A3 GND1 C51 1nF/10V C520.1uF/25V C54NPC551uF/10V C57 22nF/10V L4 4.7uH VDD5V1 Demod01Demod11ISH1ISL1ISNS_O1VDD3P31VDD5V1 C584.7uF/10VC590.1uF/10V GND1GND1 VDD5V1C62 1uF/10V GPA01 D- DMA1 DRV1H1 D+ DPA1 DRV1L1 GND1 Vin_SNS1 C64 100nF/10V BST31 C65 10nF/10V DRV3H1 GND1 LDO1P51 SW_B 37 VIN 38 PGATE 39 VIN_SNS 40 VDD5V 41 LDO3P3 42 OCP_VREF 43 DEMOD0 44 DEMOD1 45 ISNS_0 46 VIN5V 1 GPIOA0 2 A1/D- 3 A3/D+ 4 A4/VinS 5 GPIOA6 6 LDO1P5 7 GND 8 XIN 9 XOUT 10 B0/TXD 14 GPIOB1 15 GPIOB2 16 B3/NTC1 17 GPIOB4 18 GPIOB5 19 GPIOB8 20 B6/LED1 21 B7/LED2 22 GPIOC0 23 BST2 27 DRV3L 28 SW3 29 DRV3H 30 BST3 31 DRV1L 32 SW1 33 DRV1H 34 BST1 35 GND 36 GPIOA7 11 VDDIOA 12 VDDIOB 13 DRV2L 24 DRV2H 26 SW2 25 ISL 47 ISH 48 GND 49 U8 MT5811 C66 1uF/10V SW31 DRV3L1 BST21 C67 10nF/10V DRV2H1 C69 1uF/10V SW21VDD3P31 DRV2L1 GND1 VDD5V1C70 1uF/10V OTP1 VDD3P31 GPC01 GPB81 R36 10KΩ LED21 LED11TXD1Vcoil_SNS1 R37 5.1KΩ LED11 R38 100KΩ C71 0.1uF/10V RT1 10KΩ VDD5V1 LED6white GND1GND1 VDD5V1 WXC+ VDD3P31 C30 100nF/50V R22 200KΩ/1% DRV2H1DRV3H1 D1 G1 S1 Q3A ABS3214 D1 G1 S1 Q4A ABS3214 R21 4.7Ω R56 4.7Ω R59 2.4KΩ C31 100nF/50V C32 100nF/50V AK D1 BAV21W L3 MPA11 SW21SW31Vin_SNS1 C3310UF/25VC3410UF/25VC3510uF/25VC36100NF/25VC380.1uF/16VC3910uF/16VC4010uF/16VC4110uF/16VC4210uF/16VC3710uF/16V C43 100nF/50V R58 0.1R R61 0.1R C44 100nF/50V R26 20KΩ/1% R60 2KΩ DRV2L1DRV3L1 Q3B ABS3214 D2 G2 S2 D2 Q4B ABS3214 R25 4.7Ω R57 4.7Ω GND1 Vcoil_AC1 C46 22NF C47 22NF GNDGND1 R28 10mΩ R29 4.7Ω R30 4.7Ω C48 470nF/10V ISH1ISL1 C49 6.8nF/25V C50 22nF/100V AK D2 BAV21W Demod01 R53 5.1KΩ C53 6.8nF/100V R23 200KΩ R54 499KΩ C56 470pF/100V GND1 VDD3P31 R31 240KΩ AK D3 BAV21W R32 1KΩ R55 5.1KΩ Vcoil_SNS1 C60 2.2nF/16V C61 47pF/16V R33 47KΩ R34 24KΩ GND1 WXC+ Y1 R3 2MΩ GND1GND1 C72 12pF/10V C73 12pF/10V R7 10Ω R9 10Ω 15W 磁吸无线充 Wenchao Xu Wenchao Xu Liming Zuo Fangming Sun

ASAP Technology (jiangxi) Co., Ltd TEST REPORT SCOPE OF WORK FCC TESTING–WIAWHT100097966, LACP011 REPORT NUMBER 221025020SZN-001 ISSUE DATE [REVISED DATE] 27 DECEMBER 2022 [---------------------] PAGES 20 DOCUMENT CONTROL NUMBER FCC ID 209_b © 2017 INTERTEK Intertek Report No.: 221025020SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 20 FCC ID 209_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com ASAP Technology (jiangxi) Co., Ltd Application For Certification FCC ID: 2APXNLACP011 Power Bank Model: WIAWHT100097966, LACP011 Transmitter Report No.: 221025020SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-21] Prepared and Checked by: Approved by: Tenet Cao Peter Kang Assistant Engineer Sr. Technical Supervisor Date: 27 December 2022 Intertek Report No.: 221025020SZN-001 Version: 01-November-2017 Page: 2 of 20 FCC ID 209_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DCD - Part 15 Low Power Transmitter Below 1705 kHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-21] Edition] provision. Report prepared by: Tenet Cao Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6751 Intertek Report No.: 221025020SZN-001 Version: 01-November-2017 Page: 3 of 20 FCC ID 209_b TEST REPORT Table of Contents 1.0 Summary of Test Results .................................................................................... 4 2.0 General Description ............................................................................................. 5 2.1 Product Description ............................................................................................. 5 2.2 Related Submittal(s) Grants ................................................................................ 5 2.3 Test Methodology ............................................................................................... 5 2.4 Test Facility......................................................................................................... 5 3.0 System Test Configuration .................................................................................. 6 3.1 Justification ......................................................................................................... 6 3.2 EUT Exercising Software .................................................................................... 6 3.3 Special Accessories ............................................................................................ 6 3.4 Equipment Modification ....................................................................................... 6 3.5 Measurement Uncertainty ................................................................................... 7 3.6 Support Equipment List and Description ............................................................ 7 4.0 Measurement Results .......................................................................................... 8 4.1 Field Strength Calculation ................................................................................... 8 4.2 Radiated Emission Configuration Photograph ..................................................... 9 4.3 Radiated Spurious Emission ............................................................................... 9 4.4 Conducted Emission Configuration Photograph ................................................ 13 4.5 Conducted Emission ......................................................................................... 13 5.0 Equipment Photographs .................................................................................... 16 6.0 Product Labelling ............................................................................................... 16 7.0 Technical Specifications .................................................................................... 16 8.0 Instruction Manual ............................................................................................. 16 9.0 Miscellaneous Information ................................................................................ 17 9.1 20dB Bandwidth ..................................…

Text truncated - open the document above for the full version.

30M-1G 9K-30M
