ASAP Technology (Jiangxi) Co., Ltd Model difference list To who concerns: ASAP TECHNOLOGY (jiangxi) CO., LTD hereby Model LACA129, NS-MWPC15K, NS-MWPC15K-C, NS-MWPC15xxxxx, MD MWPC15xxxxx, DX-MWPC15xxxxx, PT-MWPC15xxxxx, RF-MWPC15xxxxx (‘x’ can be A-Z, a-z, 0-9, - or blank) are identical for market purpose only, except the model name) (Trademark: INSIGNIA) Sincerely, Manager By: Mr Xiaolan Deng (Signature/Title) (Print name)

Sample Agency Request Letter QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 2020-04-08 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint Mr. Jonathan Li of TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with ASAP TECHNOLOGY (jiangxi) CO., LTD / No.5, Shuguang Rd, West Zone, Ji'an County Industrial Park, Ji’an, Jiangxi 343100 China For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By : Mr. Xiaolan Deng (Signature) (Print Name) Title : Manager Te le phone : +86 796 7118988 On be half of : ASAP TECHNOLOGY (jiangxi) CO., LTD (Company Name)

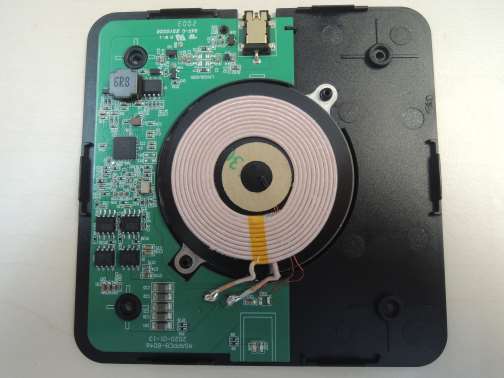

Page 1 of 2 FCC ID: 2APXNLACA129 IC: 24654-LACA129 Page 2 of 2 FCC ID: 2APXNLACA129 IC: 24654-LACA129

Page 1 of 2 FCC ID: 2APXNLACA129 IC: 24654-LACA129 Page 2 of 2 FCC ID: 2APXNLACA129 IC: 24654-LACA129

FCC ID: 2APXNLACA129 1.1. Measuring Standard FCC CFR 47 Part 1(1.1310) KDB 680106 D01 v03 1.2. Requirements The EUT does comply with item 5(b) of KDB 680106 D01 v03 1) Power transfer frequency is less than 1MHz 2) Output power from each primary coil is less than or equal to 15 watts. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling only between individual pair of coils. 4) Client device is inserted in or placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion) 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. 1.3. Test Configuration 1) The field strength of both H-field was measured at 15cm using the equipment list above for determining compliance with the MPE requirements of FCC Part 1.1310. 2) The RF power density was measured at Under maximum load test 3) Maximum H-field measurements were made 15cm from each side of the EUT. Along the side of the EUT and still 15cm away from the edge of the EUT, the field probes were positioned at the location where there is maximum field strength. The maximum H-field is reported below. 4) This device uses a wireless charging circuit for power transfer operating at the frequency of 110 – 205 kHz. Thus, the 300kHz limits were used: H-field limit 1.63 (A/m). 1.4. Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 v03. Remark: The EUT’s test position A, B, C, D, and E is valid for the H field measurements. 1.5. Test Setup 1.6. Limits Remark: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 1.63 A/m 1.7. Measuring Device and Test Equipment For MPE Measurement Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. H-Field Probe 100 cm2 SENSOR narda D-0010 BN 2300/90.10 May 20, 2019 1 Year 2. MAGNETIC FIELD HiTESTER ELT- 400 narda D-0009 BN 2304/03 May 20, 2019 1 Year 1.8. Description of Test Facility Test Items : H field measurements Test Laboratory : TÜV Rheinland (Shenzhen) Co., Ltd. Site Location : East of F/1, F/2 - F/4, Building 1, Cybio Technology Building, No. 6 Langshan No. 2 Road, North Hi-tech Industry Park, Nanshan District, Shenzhen, P.R. China 1.9. Measuring Results Table: H-Field Strength at 15 cm from the edges surrounding the EUT and 20cm from the top surface of the EUT EUT Test Mode Measured H-Field Strength Values (A/m) 50% Limit (A/m) Limit (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% Battery Level 0.286 0.337 0.356 0.284 0.354 0.815 1.63 50% Battery Level 0.364 0.337 0.338 0.337 0.327 0.815 1.63 99% Battery Level 0.302 0.337 0.384 0.297 0.386 0.815 1.63 IC:24654-LACA129 1.10. Measuring Standard RSS-102 Issue 5 1.11. 1.11.Requirements The maximum operating frequency of the device is 205 kHz Thus, the minimum limit for Canada is 0.73 / ƒ = 0.73 / 0.205 = 3.56 A/m >0.575 A/m => PASS 1.12. Test Procedure 5) The RF exposure test was performed in anechoic chamber. 6) The aggregate H-field strengths at 10 cm surrounding the device and 10 cm above the top surface 7) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. Remark: The EUT’s test position A, B, C, D, and E is valid for the H field measurements. 1.13. Limits 1.14. Measuring Device and Test Equipment For MPE Measurement Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. H-Field Probe 100 cm2 SENSOR narda D-0010 BN 2300/90.10 May 20, 2019 1 Year 2. MAGNETIC FIELD HiTESTER ELT- 400 narda D-0009 BN 2304/03 May 20, 2019 1 Year 1.15. Description of Test Facility Test Items : H field measurements Test Laboratory : Test Laboratory Site Location : East of F/1, F/2 - F/4, Building 1, Cybio Technology Building, No. 6 Langshan No. 2 Road, North Hi-tech Industry Park, Nanshan District, Shenzhen, P.R. China 1.16. Measuring Results Table: H-Field Strength at 10 cm from the edges surrounding the EUT and 10cm from the top surface of the EUT EUT Test Mode Measured H-Field Strength Values (A/m) Limit (A/m) Test Position A Test Position B Test Position C Test Position D Test Position E 1% Battery Level 0.338 0.357 0.363 0.383 0.482 3.56 50% Battery Level 0.337 0.358 0.345 0.374 0.454 3.56 99% Battery Level 0.345 0.366 0.368 0.356 0.468 3.56

Produkte Products Prüfbericht-Nr.: Test report No.: 60360762 001 Auftrags-Nr.: Order No.: 168154784 Seite 1 von 24 Page 1 of 24 Kunden-Referenz-Nr.: Client reference No.: N/A Auftragsdatum: Order date: 04.03.2020 Auftraggeber: Client: ASAP TECHNOLOGY (jiangxi) CO., LTD No.5, Shuguang Rd, West Zone, Ji'an County Industrial Park, Ji’an, Jiangxi 343100 China Prüfgegenstand: Test item: Wireless Charging Pad Bezeichnung / Typ-Nr.: Identification / Type No.: LACA129, NS-MWPC15K, NS-MWPC15K-C, NS-MWPC15xxxxx, MD MWPC15xxxxx, DX-MWPC15xxxxx, PT-MWPC15xxxxx, RF-MWPC15xxxxx (‘x’ can be A-Z, a-z, 0-9, - or blank, only for different models) (Trademark: INSIGNIA) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.201 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2: Subpart J Section 2.1091 RSS-216 issue 2 Janyary 2016 RSS-GEN issue 5 March 2019 RSS-102 issue 5 March 2015 Wareneingangsdatum: Date of receipt: 17.03.2020 Refer to photos document Prüfmuster-Nr.: Test sample No.: A001069150-017 to 018 Prüfzeitraum: Testing period: 18.03.2020 - 07.04.2020 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: kontrolliert von / reviewed by: 06.05.2020 Jonathan Li / Project Manager 06.05.2020 Winnie Hou / Technical Certifier Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: FCC ID: 2APXNLACA129 IC: 24654-LACA129, HVIN: NS-MWPC15K-C Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = v ery good 2 = good 3 = satisfactory 4 = suf ficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = f ailed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfm uster und darf ohne Genehm igung der Prüfstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V04 duplicated in extracts. This test report does not entitle to carry any test mark. T ÜV Rheinland (Shenzhen) Co., Ltd., 1F East & 2-4F, Cybio T echnology Building No.1, No.16 Langshan 2nd Road, High-Tech Industrial Park North Nanshan District, 518057, Shenzhen, China http://www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No. 60360762 001 Seite 2 von 24 Page 2 of 24 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 99% BANDWIDTH RESULT: Pass 5.1.3 RADIATED SPURIOUS EMISSIONS RESULT: Pass 5.1.4 CONDUCTED EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60360762 001 Seite 3 von 24 Page 3 of 24 Contents 1 GENERAL REMARKS .......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................. 4 2 TEST SITES ..................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ..................................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................. 7 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................... 7 3 GENERAL PRODUCT INFORMATION........................................................................................ 8 3.1 PRODUCT FUNCTION AND INTENDED USE................................................................................ 8 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................................ 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS............................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES................................................................................... 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................................. 9 4.2 TEST OPERATION AND TEST SOFTWARE................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................. 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ............................................................... 9 4.5 TEST SETUP DIAGRAM ...................................................................................................…

Text truncated - open the document above for the full version.

Produkte Products Appendix A 60360762 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.................................................................................................................. 1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED EMISSION, 9KHZ - 30MHZ......................................................................................... 2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED EMISSION, 30MHZ - 1GHZ ........................................................................................ 2 PHOTOGRAPH 3: SET-UP PHOTO FOR CONDUCTED EMISSION ON AC MAINS ......................................................................................... 3 Produkte Products Appendix A 60360762 001 Page 2 of 3 Photograph 1: Set-up photo for Radiated Emission, 9KHz - 30MHz Photograph 2: Set-up photo for Radiated Emission, 30MHz - 1GHz Produkte Products Appendix A 60360762 001 Page 3 of 3 Photograph 3: Set-up photo for Conducted Emission on AC Mains

Page 1 of 1 FCC ID: 2APXNLACA129 IC: 24654-LACA129 MPE test photo
