2AQ68-N718USLoRa module

1 Foxconn Release Document User’s Manual Part number: T77I718.01 Product English name: LoRa Module 2 Revised History: Date Summary FW Version Act By 2016/6/20 Initial release V2.03 Allen Chen 2016/6/20 Add some items V2.03 Johnny Wu 2016/07/07 Add pin definition V2.03 Johnny Wu 2016/09/01 Translate into English version V2.03 Johnny Wu 3 Contents Pin description .......................................................4 Pin assignment .......................................................4 Get Started: Installation..........................................7 Sending data.........................................................9 Receiving data.......................................................10 4 Pin description Pin Number Pad Name Pin Description Pin Number on LPC54102 (WLPCSP49) 1 GND GND GND 2 NRST Active Low Chip Reset G1 3 SWDIO Programming and debug interface G5 4 SWCLK Programming and debug interface F5 5 VCC 2.5V-3.5V DC power supply VCC 6 PA0 GPIO G4 7 PB2 GPIO / SPI_MI C5 8 PB1 GPIO / SPI_MO B5 9 PB3 GPIO / SPI_CLK B3 10 PB4 GPIO / SPI_SS A5 11 PB0 GPIO E6 12 PC0 GPIO F3 13 PA1 GPIO / IIC_SDA D1 14 GND GND GND 15 GND GND GND 16 GND GND GND 17 PA2 GPIO / IIC_CLK D2 18 PB7 GPIO C6 19 PB6 GPIO C7 20 PA4 GPIO / ADC0 C3 21 PA5 GPIO / ADC1 C1 22 PC1 GPIO / ADC2 B1 23 PB5 GPIO / ADC3 B2 24 PA6 GPIO D7 25 PA3 GPIO A2 26 VCC 2.5V-3.5V DC power supply VCC 5 27 VCC 2.5V-3.5V DC power supply VCC 28 RF OUT Reserved for external on-board printed antenna. NC 29 PA4 GPIO / ADC0 C3 30 PA5 GPIO / ADC1 C1 31 PC0 Programming and debug interface F3 32 SWCLK Programming and debug interface F5 33 PC2/UART_RX Programming and debug interface A6 34 PC3/UART_TX Programming and debug interface B6 35 SWDIO Programming and debug interface G5 36 NRST Active Low Chip Reset G1 37 VCC 2.5V-3.6V DC power supply VCC 38 GND GND GND 39 GND GND GND 40 GND GND GND 41 ISP Pull low to program FW ISP 6 Pin Assignment GND NRST SWDIO SWCL K VCC 1 2 3 4 5 PA0 PB2 PB1 PB3 PB4 6 7 8 9 10 PB0 PC0 PA1 GND 11 12 13 14 PA 4 PA 5 PC 0 SW CL K NR ST VC C GN D VCC VCC PA3 PA6 PB5 PC1 PA5 PA4 PB6 PB7 PA2 GND GND 27 26 25 24 23 22 21 20 19 18 17 16 15 RF- SX1276 MCU NXP-LPC54102J256UK49 Clearance Area Reserved For Antenna 29 30 31 32 33 34 35 36 37 38 GND 40 EXT ERN AL_ RF 28 39 41 GND ISP SW DIO UAR T_Rx x RX UAR T_Tx TX 7 Get Started: Installation LoRa module is a wireless transceiver which provides an easily controllable CMD interfaces(CLI/UART) that the user would send data quickly with wireless communication protocol. Prepare only one usb cable, users could use any kind of terminal utilities such as TeraTerm, Putty and HyperTerminal to access the CMD interfaces(CLI/UART). 1. Hardware introduction As the following figures, you can see a LoRa module mounted on a debugger board. The red frame indicates the main interfaces on the debugger board, includes UART, ADC and SPI and so on. 2. Connect to the computer Use a micro USB cable to connect to the computer with debug board. When it is connected, the power LED will turn on. USB to UART Power LED GND D ADCx4 SPI Antenna UART TX/RX 8 3. Get the comport information After connected micro USB cable to PC, user can check the COM number in "Device Manager", for instances, below figure indicates the COM number is 3. 4. Execute the terminal utility(PuTTY) The connection information of LoRa Module is Baud Rate 9600, Data bits 8, Parity none, Stop bits 1 and Flow control none. Here is an example using PuTTY to access UART interface. Click the Open button, then, click the Enter button on the keyboard. When you see the #CMD:[] which means the connection is successful. 9 Sending data This section provides command examples that used for sending user data. Example 1: Send a two-byte data 0x1234 senddata 1234 After perform this command, user will see a success state which indicates the command is correct. Due to the minimum transmission period(default is 60 seconds), user data will not be sent immediately. It can only be sent at the 60, 120, 180... second of system time. As you can see in above figure, the user data is sent at the 60 second of system time. Example 2: Perform two senddata commands in a short time. User data are 0x5678 and 0x1234. senddata 5678 senddata 1234 There will always keep one set of user data during the transmission period. So the old data 0x5678 will be overwritten by new data 0x1234. In this case, only the data 0x1234 will be sent. To check the user data on website, please contact your system provider to create new account. 10 Commands Usage: senddata <data> Description: Sending user data by transmission period(default period is 60 seconds) <data>: continuously hexadecimal value without the “0x” or “0X” prefix. The length of <data> bytes capable of being transmitted is dependent upon the data rate. Receiving data The receiving task just after each transmit operation, if a downlink data was received, following message will be displayed: [Output] [!] Receive FPort=3, Length=3 [DATA:AA5531] In this case, the received data is three-byte length and the contents: 0xAA 0x55 0x31. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between th…

Text truncated - open the document above for the full version.

Date: 2021/1/12 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2AQ68-N718US Product name: LoRa module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model N718US to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Hon Lin Technology Co., Ltd. Address : 11F, No.32, Jihu Rd., Neihu Dist., Taipei City,Taiwan 114 Signature : _________________________________ Name and Job Title. : Nancy Lin/Compliance manager E-mail : [email protected] Tel. : 02-2267-6511

Date: January 12, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: 2AQ68-N718US To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Hon Lin Technology Co., Ltd. Address : 11F, No.32, Jihu Rd., Neihu Dist., Taipei City,Taiwan 114 Signature : _________________________________ Name and Job Title. : Nancy Lin/Compliance manager E-mail : [email protected] Tel. : 02-2267-6511

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: 2AQ68-N718US Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is NXP-LPC54102J256UK49 3. The modular transmitter must have its own power supply regulation. The component number is SX1276 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Antenna Connectors are ipex. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): __________________ Date: ___29 January 2021____ Signature: ___________________________

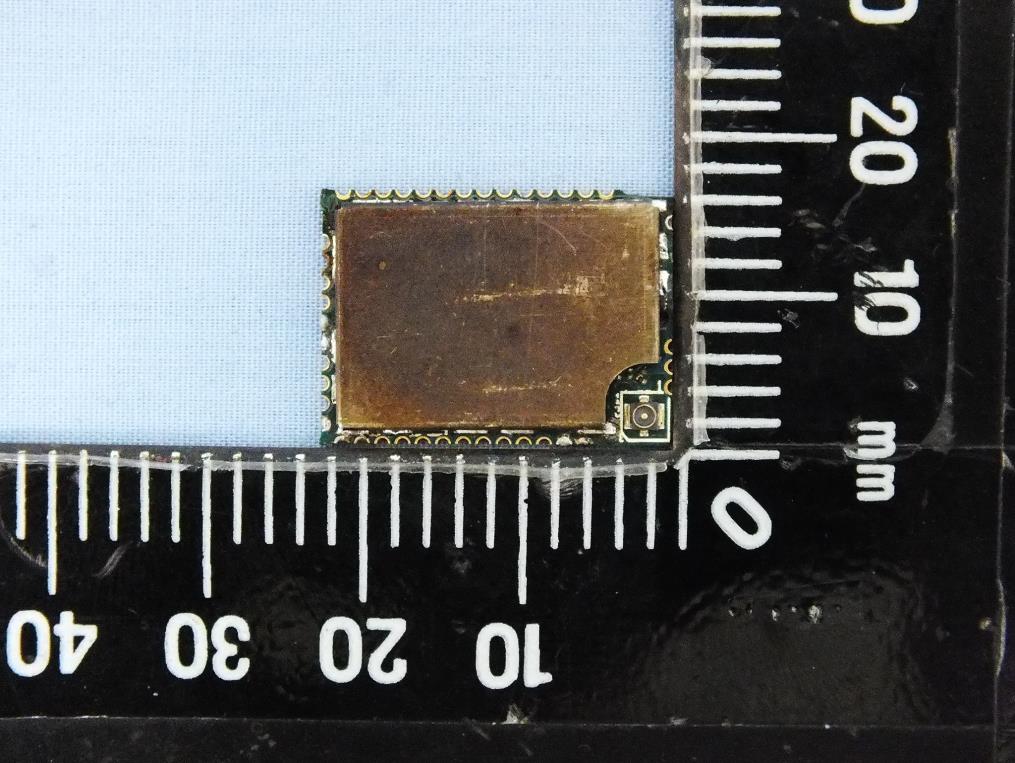

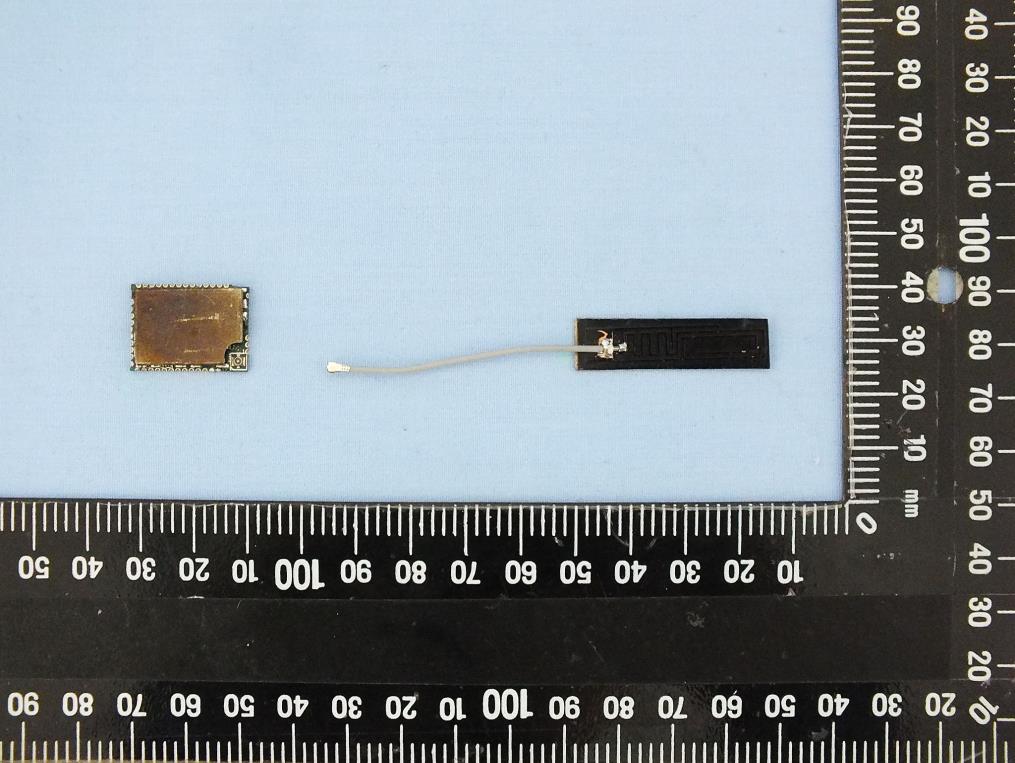

Project No.: EP0D1604 Page No. : 1 of 5 Photographs of EUT Project No.: EP0D1604 Page No. : 2 of 5

[在此鍵入] T77I718T01 標籤內容 1. 鐳雕 內容 -Barcode: 長寬6*6mm。(+- 2mm tolerance) FCC ID: 2AQ68-N718US

Project No.: EP0D1604 Page No. : 3 of 5 Project No.: EP0D1604 Page No. : 4 of 5 Project No.: EP0D1604 Page No. : 5 of 5

Report No.: FA0D1604 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : 2AQ68-N718US Equipment : LoRa module Model No. : N718US Applicant : HON LIN TECHNOLOGY CO., LTD. Address : 11F, No.32, Jihu Rd., Neihu Dist., Taipei City,Taiwan 114 Standard : 47 CFR FCC Part 2.1091 Received Date : Dec. 16, 2020 Tested Date : Dec. 24 ~ Dec. 30, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA0D1604 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA0D1604 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA0D1604 Rev. 01 Initial issue Jan. 15, 2021 Report No.: FA0D1604 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA0D1604 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 902.3~914.9 19.09 19.5 2 20 0.012 0.602 0.02 Pass *Ratio = Power density / Limit. Report No.: FA0D1604 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══
