2AQ68-QTS110LTE GPS Tracker

Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets QTS110 User Manual 2 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets General description QTS110 is a track and sense device that can be used in shipping and logistics field for tracking the locat ion of a cargo and to monitor environmental condition of car go during transit and during warehousing. The device c an be used in multimodal journeys over land, sea and air.QTS110 is a device with a cellular radio that works on three different radio access technologies: LTE-M, N BIoT and GPRS/2G. It is equipped with a GNSS receiver, a nd a Wi-Fi receive module for collecting information abo ut nearby Wi-Fi access points for the purpose of deter mining location. In addition, the device has a number of se nsors. The device sends location and sensor measurements t o a cloud on a periodic basis or when certain events ar e triggered. Ultra low power, cloud connected, globally usable t rack and sense device 3 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Design and components • Dimension - 50mm*125mm*14mm • Weight - About 140g • Sensors: • Inertial measurement unit aka IMU • Temperature sensor • Humidity sensor • Ambient light sensor • Pressure sensor • One USB2.0 type-C female connector • Power button • 1x Red/Green/Blue LED • eSIM • Communications module that supports LTE-M, NBIoT and 2G • WiFi module for positioning 4 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Use Cases and capabilities Use case supported by QTS 110 Use case supported by QTS 110Use case supported by QTS 110Use case supported by QTS 110 Asset tracking and remote managementShipment tracking and loggingTotes and pallet shipmentCold chain tracking for food and pharmaAir cargos Capabilities QTS 110 Capabilities QTS 110Capabilities QTS 110Capabilities QTS 110 International Protection rating: IP65Multi-mode LTE Cat.M1, LTE Cat.NB2, EGPRSGeolocation: GNSS, cellular & WiFi based positioningStatus LEDs: GNSS status; cellular status; power statusProgrammable non-mechanical touch power buttonBattery powered with high efficiencyOut-of-the box cellular connectivity 5 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Device battery charging • Device can be placed on the charging cradle to char ge it • The device shows a blinking XXXX color LED while it is charging. When the device charge is 85% or high er the LED color changes to YYYY. • After charging is complete, device should be remove d from the cradle. 6 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Device Label Markings on the device label include:• 1. Model number: QTS110 • 2. FCCID: 2AQ68-QTS110 • 3. ICCID: 24374-QTS110 • 4. SN(Serial number) • 5. IMEI • 6. CE logo • 7. WEEE logo • 8.UL logo • 9.England UKCA logo • 10.Warning logo of UL QTS 110 has been certified with regulatory bodies a nd against regulatory standards and as such contains markings related to these certifications 7 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets QR Code • The QR code can be scanned by a camera on a cell phone in order to access a device specific public URL • The URL provides information about the tracker device such as the firmware on the device, whether device is being used for a shipment, remaining battery life and few other things. • Since the URL is a public URL journey specific details such as origination and destination address, current location of the tracker, customer specific information is not provided. 8 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Specifications Item Specification Device dimension 50mm*125mm*14mm(typical) Main Chipset Qualcomm/ MDM9205-0 (LTE Modem)Qualcomm/ SDR105 (WAN RF) Qualcomm/ SMB231(Charger IC) Qualcomm/ QTA3516(Antenna tuner) Qualcomm/ PM9205(PMIC) Qualcomm/QCA4004(WiFi SoC) Wireless connectivity Cellular LTE Cat.M1+ Cat. NB2, 3GPP Rel14 Class5(20d Bm) GPRS/EGPRS Low band:  GPRS power class 4 (33dBm), EGPRS power class E2 ( 27dBm) Mid band: GPRS power class 1 (30dBm) , EGPRS power class E2 ( 26dBm) GNSS GPS/GAL/GLO/Beidou/QZSS , L1 band(1575.42MHz)High precision GNSS (Gen 9VT) - no concurrency with LTE Wi-Fi 2.4G only (IEEE 802.11b/g/n ) Band Plan LTE Cat.M1 bands: Low Band: B5, B8, B12, B13, B14, B18, B19, B20, B26 , B27, B28, B85 Middle Band: B1,B2,B3,B4,B25,B66NB bands:Low Band: B5,B8,B12,B13,B18,B19,B20,B26,B28,B85Middle Band:B1,B2,B3,B4,B25,B66 GPRS Low bands: GSM850,GSM900 Middle band: DCS, PCS Over Temperature Protection: 60 degree °C Under Temperature Protection: 0 degree °C 9 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Flight Mode The QTS110 flight mode feature disables the device transmitters while the device is in flight in accordance with FAA advisory circular A.C 91.21-1D • The flight detection algorithm on QTS110 is designe d to prevent emission while the device is in a flig ht. In case the device has any scheduled transmissions to the cloud , the algorithm checks two independent sources to c onfirm whether the device is in flight. These two sources include the cellular radio where the speed/velocity with which the device is moving is assessed and the other source i s an accelerometer sensor which look for a unique sequence of events. Only when both the checks confirm that devi ce is not in a flight, is the device is allowed to transmit. If any one of the checks fails, the device is put in airplane mode thereby preventing the device from transmittin g and receiving any cellular signals. 10 Confidential – Qualcomm Technologies, Inc. and/or its aff iliated companies – May Contain Trade Secrets Fligh…

Text truncated - open the document above for the full version.

Declaration letter Applicant name Hon Lin Technology Co., Ltd. Address 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, Taiwan Contact name Nancy Lin Product model name QTS110 Authorized contact name Nancy Lin Contact Email [email protected] Contact Phone +886222676511-6736 For this device QTS110, it will use two types of SIM card: (1) Normal SIM card (2) eSIM. We, FOXCONN INDUSTRIAL INTERNET CO.LTD, can ensure the setting for RF configuration is the same for the two types SIM and the different type of SIM card will not impact the EMC performance Applicant Signature: Date:2022-11-30 Print Name: Nancy Lin Title: Associate Manager

Hon Lin Technology Co., Ltd. Date: 2022-11-25 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AQ68-QTS110 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services (Kunshan) Inc and Winkey Wang in Compliance Certification Services (Kunshan) Inc to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hon Lin Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Print Name: Nancy Lin Title: Associate Manager Signature: On behalf of Company: Hon Lin Technology Co., Ltd. Telephone: 886 2 2267 6511 E-mail: [email protected]

Hon Lin Technology Co., Ltd. TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AQ68-QTS110 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions BOM List Tune up procedure Th e documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed. We are requesting the Commission withholds the following documents from public viewing until 03/31/2023, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Nancy Lin Title: Associate Manager Signature: On behalf of Company: Hon Lin Technology Co., Ltd. Telephone: 886 2 2267 6511 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hon Lin Technology Co., Ltd. Address 11F, No.32, Jihu Rd., Neihu Dist., Taipei City , 114,Taiwan Grantee Code 2AQ68 FCC ID 2AQ68-QTS110 Authorized Contact Name Nancy Lin Contact Email [email protected] Contact Phone 886 2 2267 6511 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2022-11-25 Print Name: Nancy Lin Title: Associate Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

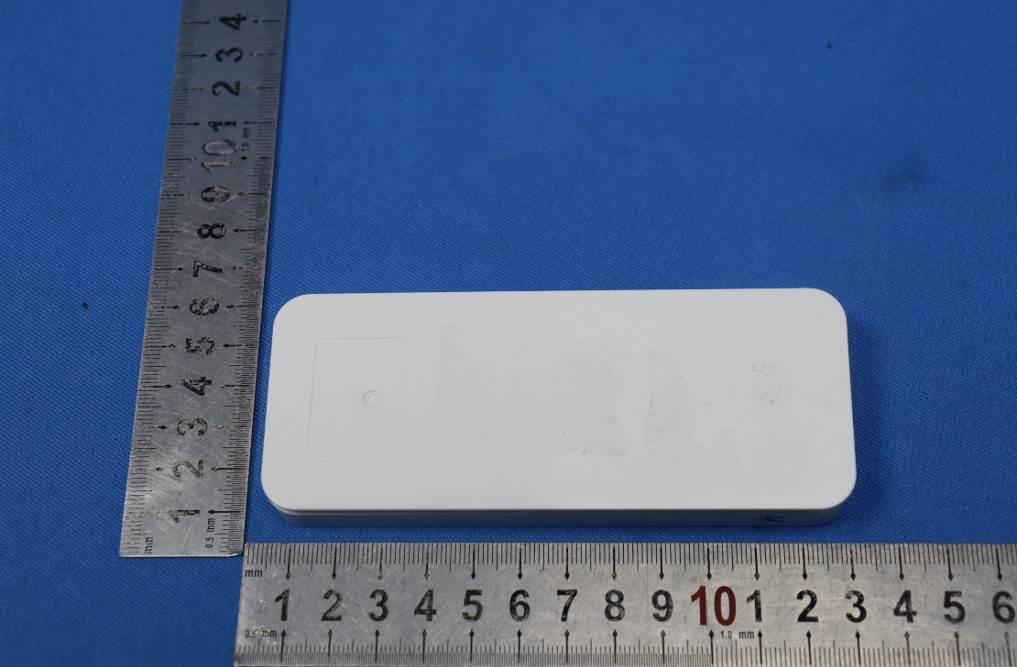

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 1 of 4 Appendix External Photos for FYCR2211000436AT FCC ID: 2AQ68-QTS110 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A02 Rev.A/0 Page: 4 of 4

Meredith 2.Device Label IMEI Label Scale: 2:1 Eve Dong U25W003.00 2022/6/30 Eve Dong Label Sticking Area-bottom case (print at online) 1 2 3 500.02769.005 /U25W003.00/00/4 of 7 4

Fii P/N: U25W003 Model name: QTS110 Foxconn Industrial Internet Co., Ltd IMEI:35526693XXXXXX SN:XXXXXXXXXXXX IC:24374-QTS110 FCC ID:2AQ68-QTS110 5V1.5A

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 1 of 8 Appendix Internal Photos for FYCR2211000436AT FCC ID: 2AQ68-QTS110 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 2 of 8 EUT Constructional Details (EUT Photos) Wi-Fi Antenna 2G4G Antenna GPS Antenna Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 3 of 8 SIM card version Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 4 of 8 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 5 of 8 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 6 of 8 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 7 of 8 eSIM version Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-A03 Rev.A/0 Page: 8 of 8 - End of the Appendix -

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 1 of 9 Winkey Wang EMC Technical Manager RF EXPOSURE EVALUATION REPORT Application No.: FYCR2211000436AT Applicant: Hon Lin Technology Co., Ltd. Address of Applicant: 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, Taiwan Manufacturer: Foxconn Industrial Internet Co.,Ltd Address of Manufacturer: No.2,2 nd Donghuan Road,10th Yousong Industrial District, Longhua, Shenzhen City, Guangdong Provice, China Factory: Nanning Fulian Fugui Precision Co.,Ltd Address of Factory: No.51, Tongle Boulevard, Shajing, Jiangnan District, Nanning, P. R. CHINA Equipment Under Test (EUT): EUT Name: LTE GPS Tracker Model No.: QTS110 Trade Mark: Qualcomm Aware FCC ID: 2AQ68-QTS110 Standard(s) : 47 CFR Part 1.1307 47 CFR Part 1.1310 FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2022-11-02 Date of Evaluation: 2022-11-03 to 2022-12-09 Date of Issue: 2022-12-12 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2022-12-12 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 3 of 9 2 Contents Page 1 Cover Page ................................................................................................................................................ 1 2 Contents .................................................................................................................................................... 3 3 General Information .................................................................................................................................. 4 3.1 General Description of E.U.T. ............................................................................................................ 4 3.2 Details of E.U.T. ................................................................................................................................. 4 3.3 Test Location ...................................................................................................................................... 6 3.4 Test Facility ........................................................................................................................................ 6 3.5 Deviation from Standards ................................................................................................................... 6 3.6 Abnormalities from Standard Conditions ........................................................................................... 6 4 Radio Spectrum Technical Requirement ............................................................................................... 7 4.1 RF Exposure Compliance Requirement ............................................................................................ 7 4.1.1 Limits .............................................................................................................................................. 7 4.1.2 Test Procedure .............................................................................................................................. 7 4.1.3 EUT RF Exposure Evaluation ........................................................................................................ 8 5 EUT Constructional Details (EUT Photos) ............................................................................................. 9 Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Power supply: DC3.7V by li-ion battery Recharged input: DC5V/1.5A For 2.4G Wi-Fi: Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Channel Spacing: 5MHz Antenna Type: PIFA Antenna Antenna Gain: 2.81 dBi For GSM: Support Network: GPRS, EGPRS Operation Frequency Band: GSM850/PCS1900 Modulation Type: GMSK for GPRS/EGPRS 8PSK for EGPRS GPRS Class: 12 EGPRS Class: 12 Antenna Type: PIFA antenna Antenna Gain: GSM850:3.53dBi, 1900: 2.65dBi For LTE: LTE Operation Frequency Band: LTE Cat M1 B2,4,5,12,13,14,19,25,26,66,85 LTE Cat NB B2,4,5,12,13,19,25,26,66,85 Modulation Type: QPSK, 16QAM For Cat M1 BPSK, QPSK for Cat NB LTE Power Class: Class 5(Rated Power: 20dBm) Antenna Type: PIFA Antenna Antenna Gain: B2: 2.65dBi Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 5 of 9 B4: 3.05dBi B5: 3.53dBi B12: 1.95dBi B13: 1.22dBi B14: 2.54dBi B19: 3.48dBi B25: 2.65dBi B26: 3.53dBi B66: 3.05dBi B85: 1.95dBi Remark: The information in this section is provided by the applicant or manufacturer, CCS is not liable to the accuracy, suitability, reliability or/and integrity of the information. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043605 Page: 6 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services（Kunshan）Inc. Shenzhen branch. Fuyong lab. Xinlong TechnoPark,Fengtang Road, Fuyong Subdistrict, Bao’an, Shenzhen, China Tel: +86 755 8866 3988 Fax: +86 755 2671 0594 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate N…

Text truncated - open the document above for the full version.

1 Copyright © by Passive System Alliance | All rights reserved. 2 P r e s e n t e d b y Yi A n N i e n, R F R & D D e p t . I N PA Q Te c h n o l o g y C o . , L t d . 1 F, N o . 3 8 , Ke-Yi S t . , Z h u n a n To w n s h i p , M i a o l i C o u n t y 3 5 0 5 9 , Ta i w a n , R . O . C . Last updated in .10.26. 2022 Copyright © by Passive System Alliance | All rights reserved. Customer : Foxconn Project : Tracker Product : Antenna LTE & GPS & WiFi Antenna P/ N:WAG-F-LTE12-00-066 : 3 Revised History Released Date Version Record Nov.22 th , 2021 0.0 Initial antenna test Nov.24 th , 2021 0.1 Antenna fine tune Nov.26 th , 2021 0.2 Add metal ground test Dec.03 th , 2021 0.3 Antenna fine tune Dec.06 th , 2021 0.4 Antenna fine tune Dec.10 th , 2021 0.5 Antenna fine tune Dec.16 th , 2021 0.6 Antenna add tuner fine tune Dec.22 th , 2021 0.7 Antenna add tuner fine tune Dec.29 th , 2021 0.8 Add shielding and increase via fine tune Jan.12 th , 2022 0.9 fine tune Jan.18 th , 2022 1.0 Compare with tuner or without tuner Mar.08 th , 2022 1.1 Antenna fine tune Mar.10 th , 2022 1.2 Compare FPCB with flat or uneven Mar.15 th , 2022 1.3 Antenna fine tune Mar.28 th , 2022 1.4 Antenna fine tune with QRCT tuner 4 Revised History Released Date Version Record Mar.30 th , 2022 1.5 Antenna fine tune with shell Apr.06 th , 2022 1.6 Antenna fine tune Apr.22 th , 2022 1.7 Compare GND with two solution Apr.25 th , 2022 1.8 Antenna fine tune May.06 th , 2022 1.9 Compare GND with two solution May.17 th , 2022 2.0 Antenna fine tune Jun.06 th , 2022 2.1 Antenna fine tune Jun.24 th , 2022 2.2 3516 vs. 5515 JuL.15 th , 2022 2.3 Antenna Matching JuL.28 th , 2022 2.4 3516 GND with new spring Aug.15 th , 2022 2.5 Antenna Fine Tune Sep.06 th , 2022 2.6 GND with two solution Sep.26 th , 2022 2.7 GND with two solution Oct.26 th , 2022 2.8 GND with no GND 5 Contents •Product / Antenna Overview •Matching Circuit •Test Results -VSWR -Isolation -2D Radiation Pattern -3D Radiation Pattern -Efficiency & Peak Gain •Conclusions 6 Product Overview Keypad board backside Frequency state LTE_state1 700MHz- 805MHz 0x0F LTE_state2 790MHz- 960MHz 1710MHz- 2200MHz 0xF0 GNSS L1 Band WiFi Metal Sheet LTE Shielding Tuner STATE RF1 RF2 RF3 RF4 3516 5.6nH 5.6nH 5.6nH 5.6nH 7 Product Overview 8 Product Overview Unit:mm Feed Spring PCB Pattern LTE Pattern 9 Product Overview Front Back 10 VSWR LTE_state1 LTE_state2 11 VSWR GNSS Wi-Fi 12 LTE State1 _GNSS Isolation LTE State1 _WiFi 13 LTE State2 _GNSS Isolation LTE State2 _WiFi 14 WiFi _GNSS Isolation 15 1575MHz 2D Radiation Pattern(GNSS L1 Band) X-Z plane Y-Z plane X-Y plane Z X Z Y X Y X Z Y 16 2450MHz 2D Radiation Pattern(WiFi) X-Z plane Y-Z plane X-Y plane Z X Z Y X Y X Z Y 17 1575 MHz 3D Radiation Pattern(GNSS L1 Band) X Z Y 18 3D Radiation Pattern(WiFi) 2450 MHz X Z Y 19 LTE_state1 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 700 0.10 -6.34 23.23 705 0.72 -6.29 23.50 710 1.28 -6.03 24.95 715 1.95 -5.66 27.16 720 1.18 -5.51 28.12 725 1.27 -5.07 31.12 730 1.78 -4.92 32.21 735 1.19 -4.76 33.42 740 2.14 -4.63 34.43 745 2.06 -4.09 38.99 750 1.94 -3.97 40.09 755 1.12 -3.85 41.21 760 1.19 -3.63 43.35 765 1.11 -3.56 44.06 LTE_state1 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 770 1.73 -3.65 43.15 775 1.10 -3.78 41.88 780 1.22 -3.85 41.21 785 1.16 -3.93 40.46 790 0.91 -4.15 38.46 795 1.04 -4.39 36.39 800 1.43 -4.78 33.27 805 1.48 -5.16 30.48 0x0F Efficiency(No GND) 20 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 790 2.36 -3.71 42.56 795 2.54 -3.68 42.85 800 3.11 -3.39 45.81 805 3.25 -3.23 47.53 810 3.34 -3.16 48.31 815 3.64 -3.03 49.77 820 3.39 -2.97 50.47 825 3.53 -2.86 51.76 830 3.08 -2.81 52.36 835 3.48 -2.76 52.97 840 3.43 -2.73 53.33 845 2.98 -2.64 54.45 850 3.07 -2.59 55.08 855 2.55 -2.71 53.58 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 860 3.19 -2.89 51.40 865 2.81 -3.17 48.19 870 3.23 -3.43 45.39 875 3.02 -3.58 43.85 880 2.87 -3.61 43.55 885 2.88 -3.63 43.35 890 2.61 -3.78 41.88 895 2.81 -3.88 40.93 0xF0 Efficiency(No GND) 21 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 880 2.87 -3.61 43.55 885 2.88 -3.63 43.35 890 2.61 -3.78 41.88 895 2.81 -3.88 40.93 900 2.31 -3.95 40.27 905 2.52 -3.99 39.90 910 2.24 -4.19 38.11 915 2.31 -4.32 36.98 920 2.03 -4.61 34.59 925 1.58 -4.71 33.81 930 1.51 -4.79 33.19 935 1.04 -4.83 32.89 940 1.07 -4.95 31.99 945 0.98 -5.02 31.48 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 950 1.17 -5.10 30.90 955 1.24 -5.16 30.48 960 1.46 -5.19 30.27 0xF0 Efficiency(No GND) 22 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 1710 3.05 -2.60 54.95 1730 2.69 -2.79 52.60 1750 2.47 -2.91 51.17 1770 2.06 -3.18 48.08 1790 1.64 -3.22 47.64 1810 1.07 -3.18 48.08 1830 1.93 -2.83 52.12 1850 2.37 -2.61 54.83 1870 2.65 -2.35 58.21 1890 2.36 -2.05 62.37 1910 1.53 -1.88 64.86 1930 2.19 -1.58 69.50 1950 2.53 -1.42 72.11 1970 3.07 -1.40 72.44 LTE_state2 Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 1990 3.16 -1.46 71.45 2010 3.14 -2.11 61.52 2030 3.43 -2.14 61.09 2050 3.22 -2.35 58.21 2070 3.62 -2.48 56.49 2090 3.62 -2.57 55.34 2110 3.93 -2.66 54.20 2130 3.76 -2.74 53.21 2150 4.03 -2.77 52.84 2170 3.81 -2.87 51.64 2190 3.98 -2.92 51.05 2200 3.48 -3.00 50.12 Efficiency(No GND) 0xF0 23 GNSS L1 Band Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 1565 2.34 -2.91 51.17 1570 2.42 -2.34 58.34 1575 2.47 -2.38 57.81 1580 2.55 -2.41 57.41 1585 2.64 -2.44 57.02 1597 2.76 -2.47 56.62 1602 2.83 -2.59 55.08 1605 2.88 -2.75 53.09 Efficiency 24 WiFi Frequency (MHz) Peak Gain(dBi) Average Gain(dB) Efficiency(%) 2400 1.64 -2.36 58.08 2410 1.77 -2.38 57.81 2420 1.85 -2.64 54.45 2430 2.13 -2.48 56.49 2440 2.37 -2.66 54.20 2450 2.58 -2.75 53.09 2460 2.63 -2.77 52.84 2470 2.69 -2.67 54.08 2480 2.75 -2.88 51.52 2490 2.79 -2.61 54.83 2500 2.81 -2.94 50.82 Efficiency 25 1.The LTE antenna Low Band performance show on the pictu…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043603 Page: 1 of 23 Winkey Wang EMC Technical Manager TEST REPORT Application No.: FYCR2211000436AT Applicant: Hon Lin Technology Co., Ltd. Address of Applicant: 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, Taiwan Manufacturer: Foxconn Industrial Internet Co.,Ltd Address of Manufacturer: No.2,2 nd Donghuan Road,10th Yousong Industrial District, Longhua, Shenzhen City, Guangdong Provice, China Factory: Nanning Fulian Fugui Precision Co.,Ltd Address of Factory: No.51, Tongle Boulevard, Shajing, Jiangnan District, Nanning, P. R. CHINA Equipment Under Test (EUT): EUT Name: LTE GPS Tracker Model No.: QTS110 Trade Mark: Qualcomm Aware FCC ID: 2AQ68-QTS110 Standard(s) : 47 CFR Part 2 47 CFR Part 22 subpart H 47 CFR Part 24 subpart E Date of Receipt: 2022-11-02 Date of Test: 2022-11-03 to 2022-11-24 Date of Issue: 2022-12-12 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043603 Page: 2 of 23 Revision Record Version Chapter Date Modifier Remark 01 2022-12-12 Original Authorized for issue by: Tree Zhan/Project Engineer Winkey Wang/Reviewer Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043603 Page: 3 of 23 2 Test Summary Test Item FCC Rule No. Requirements Verdict Effective (Isotropic) Radiated Power Output Data §2.1046, §22.913, §24.232 ERP≤7W(GSM850) EIRP≤2W(PCS1900) PASS Peak-Average Ratio §24.232 ≤13dB PASS Modulation Characteristics §2.1047 Digital modulation PASS Bandwidth §2.1049(h) OBW: No limit EBW: No limit PASS Band Edge Compliance §2.1051, §22.917, §24.238 ≤ -13dBm/1%*EBW, in 1 MHz bands immediately outside and adjacent to the frequency block. PASS Spurious emissions at antenna terminals §2.1051, §22.917, §24.238 ≤ -13dBm PASS Field strength of spurious radiation §2.1051, §22.917, §24.238 ≤ -13dBm PASS Frequency stability §2.1055, §22.355, §24.235 ≤ ±2.5ppm. PASS Remark: Final product will be equipped with normal SIM card or eSIM, which will not affect the EMC and RF performance according to declaration letter. For this project, normal SIM card was used to test. Compliance Certification Services (Kunshan) Inc. Shenzhen Branch SZCCS-TRF-01 Rev. A/0 Aug01,2022 Report No.: FYCR221100043603 Page: 4 of 23 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 TEST FREQUENCY ................................................................................................................................ 7 4.3 TEST ENVIRONMENT ............................................................................................…
