2AQ68T99W3685G WWAN Module

Product Feature & Specification EUT Type 5G WWAN Module Brand Name Foxconn Model Name T99W368M FCC ID 2AQ68T99W368M Wireless Technology and Frequency Range WCDMA Band II: 1850 MHz ~ 1910 MHz WCDMA Band IV: 1710 MHz ~ 1755 MHz WCDMA Band V: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7: 2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 14: 788 MHz ~ 798 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 25: 1850 MHz ~ 1915 MHz LTE Band 26: 814 MHz ~ 849 MHz LTE Band 30: 2305 MHz ~ 2315 MHz LTE Band 38: 2570 MHz ~ 2620 MHz LTE Band 41: 2496 MHz ~ 2690 MHz LTE Band 42: 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3600 MHz LTE Band 43: 3600 MHz ~ 3700 MHz LTE Band 48: 3550 MHz ~ 3700 MHz LTE Band 66: 1710 MHz ~ 1780 MHz LTE Band 71: 663 MHz ~ 698 MHz 5G NR n2 : 1850 MHz ~ 1910 MHz 5G NR n5 : 824 MHz ~ 849 MHz 5G NR n7 : 2500 MHz ~ 2570 MHz 5G NR n12 : 699 MHz ~ 716 MHz 5G NR n13: 777 MHz ~ 787 MHz 5G NR n14 : 788 MHz ~ 798 MHz 5G NR n25 : 1850 MHz ~ 1915 MHz 5G NR n26 : 814 MHz ~ 849 MHz 5G NR n30 : 2305 MHz ~ 2315 MHz 5G NR n38 : 2570 MHz ~ 2620 MHz 5G NR n41 : 2496 MHz ~ 2690 MHz 5G NR n48: 3550 MHz ~ 3700 MHz 5G NR n66 : 1710 MHz ~ 1780 MHz 5G NR n70 : 1695 MHz ~ 1710 MHz 5G NR n71 : 663 MHz ~ 698 MHz 5G NR n77 : 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3700 MHz, 3700 MHz ~ 3980 MHz 5G NR n78 : 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3700 MHz, 3700 MHz ~ 3800 MHz Mode RMC/AMR 12.2Kbps HSDPA HSUPA DC-HSDPA HSPA+ (16QAM uplink) LTE: QPSK, 16QAM, 64QAM, 256QAM 5G NR: DFT-s-OFDM/CP-OFDM, Pi/2 BPSK/QPSK/16QAM/64QAM/256QAM T99W373M 2AQ68T99W373M Product Feature and Specification T99W368 2AQ68T99W368 T99W373 2AQ68T99W373 LTE Band 29: 717 MHz ~ 728 MHz *(DL only) LTE Band 46: 5150 MHz ~ 5925 MHz (DL only)























Based on FCC 47 CFR §1.1307, the analysis concludes that this product when transmitting in standalone within a host device, is compliant with the FCC RF exposure requirements in mobile exposure condition, provided the conducted power and antenna gain do not exceed the limits for each given frequency band per wireless technology as follow table: Devoce Technology Band Maximum Conducted Power (dBm) Stanalone Allow Antenna Gain (dBi) Collocated Allow Antenna Gain (dBi) T99W368M UMTS WCDMA Band 2 24.50 5.905.20 WCDMA Band 4 24.50 5.505.00 WCDMA Band 5 24.50 3.502.80 LTE LTE Band 2 24.00 5.90 5.20 LTE Band 4 24.00 5.50 5.00 LTE Band 5 24.50 3.50 2.80 LTE Band 7 24.00 4.30 3.60 LTE Band 12 24.50 3.10 2.30 LTE Band 13 24.50 3.40 2.60 LTE Band 14 24.50 3.40 2.70 LTE Band 17 24.50 3.00 2.30 LTE Band 25 24.00 5.90 5.20 LTE Band 26 24.50 3.50 2.80 LTE Band 30 23.00 0.98 0.98 LTE Band 38 24.00 4.30 3.60 LTE Band 41_PC3 24.00 4.30 3.60 LTE Band 41_PC2 27.00 4.30 3.60 LTE Band 42 (3450~3550MHz) 24.00 6.00 6.00 LTE Band 42 (3550~3600MHz) 22.00 1.00 1.00 LTE Band 43 22.00 1.00 1.00 LTE Band 48 22.00 1.00 1.00 LTE Band 66 24.00 5.50 5.00 LTE Band 71 24.00 3.40 2.70 5G NR 5G NR n2 24.00 5.90 5.20 5G NR n5 24.00 3.50 2.80 5G NR n7 24.00 4.30 3.60 5G NR n12 24.00 3.10 2.30 5G NR n13 24.00 3.40 2.60 5G NR n14 24.00 3.40 2.70 5G NR n25 24.00 5.90 5.20 5G NR n26 24.00 3.50 2.80 5G NR n30 23.00 0.98 0.98 5G NR n38 24.00 4.30 3.60 5G NR n41_PC3 24.00 4.30 3.60 5G NR n41_PC25G NR n41_PC2 27.0027.00 4.304.30 3.603.60 5G NR n485G NR n48 22.0022.00 1.001.00 1.001.00 5G NR n66 24.00 5.50 5.00 5G NR n70 24.00 6.00 5.50 5G NR n71 24.00 3.40 2.70 5G NR n77 (3450~3550MHz) (3700~3980MHz) 27.00 3.00 3.00 5G NR n77 (3550~3700MHz) 22.00 1.00 1.00 5G NR n78 (3450~3550MHz) (3700~3800MHz) 27.00 3.00 3.00 5G NR n78 (3550~3700MHz) 22.00 1.00 1.00 T99W368 T99W373M T99W373 Maximum Antenna gain and Collocated Allowed Antenna gain










Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicabl…

Text truncated - open the document above for the full version.





   !"#$!%&'(()' '* $+
,--,.!-(/$-0-/-
 1/ 2  33)4&5 $ "!/- 2  $ 6&7$ 847$9& $:*2         ))













  1/,--,$ ,   1/-;"6-   <= ,- $;  !-















    !



 > " -/-  33)4&5--,/ %"=-"/ /--/@0  /% C (!/ @ /;- (/-%"=-/;/;
 $-0-/- 4?9/@:@B" / 33)4&5-/;/ "!/- /;/"-=-"=-/= C#))+  /--/@0 /;#$!%&(()+' '* $ #<$ <$*<$7
<$7+$" B- !"-"  /  "-  ;= 0-,!/-   !"##$%$&'
(
))#*+,
-$! / 2 A 'D-E '  %-" ))2D 0 '$=- (' "0 - *2 !/; "C ('$=- (
2 "/'/!'  ( ': '$ 0/%C
;-2



*




 F
-,,(/% "%!-,(/ G
$ "!/- $ 6&7$ 847$9&76&  >#$!%&+ B25>>4>9>5?&58>HB2>#+4&&8?88&H  <B284?459?9>954888583 #(()+85&?&>#*679

 >6>75

+ 99  >#+4&&8?84?459?9>95488&888583 *
%-"-/@ *# B +H # B + 9 $! /B  B2B&#>5>3+5>#>8+>4>9?538> B2B>#+49#&&+4 <B2B84?4945439?9>99495 99  B>#+4&&#9+84?9?9>#45+99495  B9&#  "@+
/ !
/, @*>5#*2>>%+7!
/, @ ?# 2%+H 8
'*
'
7969 #*/
/?+ 4 )
 <$7"5# *2!/ 9>>%+ $! /B B>95 $$  !" .!@$$2>2$" B- !"-" ' 2$B- !"-"  $  !"$ =-/;$  % #$ - /- +' !"$  !" /-# $ + /0  *$B4>'
4
9> (0/  4?9
:@B


 >> $@/(- /! /! -/-  ;@-"
( !"'-E4?9':@B'8-, "0-, "/-"$-,"D

!"@#4>4DI4&4D+ -(-  -(- #J)J<+29((J4?((J&(('  (-(!(;-,;/K8((#?>((/ "+ $;-"-,-,$;-" % -,' -/- ";-"-,.!-(/ )-,;/  -(/"@I5, *$   00% *$  / ! / < //; !,;*$ >H  $ (%  !"/; !,;*$  /-,B )
<$ <$*<$7 /-,%2 B>2>3?/ >35?<E#*+'>>?/ >8?<E# + B2>5?/ >3>?<E#*+'>34?/ >33?<E# + B92>8>?/ >8<E#*+'>>?/ ><E# + B259/ 593<E#*+'5&3/ 539<E# + B5255?/ 3><E#*+'3/ 3&?<E# +     /-,%2 B>2>3?/ >35?<E#*+'>>?/ >8?<E# + B2>5?/ >3>?<E#*+'>34?/ >33?<E# + B42>8>?/ >85<E#*+'>5?/ >55?<E# +    B92>8>?/ >8<E#*+'>>?/ ><E# + B259/ 593<E#*+'5&3/ 539<E# + B82??/ 8?<E#*+'&?/ &3?<E# + B5255?/ 3><E#*+'3/ 3&?<E# + B>2&33/ 8>&<E#*+'83/ 89&<E# + B>42888/ 858<E#*+'89&/ 8&<E# + B>92855/ 835<E#*+'85/ 8&5<E# + B>828?9/ 8>&<E#*+'849/ 89&<E# + B>525>/ 54?<E#*+'5&?/ 58<E# + B>3254?/ 59<E#*+'58/ 53?<E# + B?254/ 5&<E#*+'83>/ 5><E# +    B2>5?/ >3><E#*+'>34?/ >33<E# + B&25>9/ 593<E#*+'53/ 539<E# + B528?4/ 895<E#*+'85/ 5?4<E# + B328>8/ 85<E# + B4?24?/ 4><E#*+4?/ 4&?<E# + B42>9/ >93&<E# + B492?>?/ ?<E#* + B4528?/ &?<E#* + B432>55?/ >3?<E#* + B9?24??/ 9??<E#* + B9>293&/ &3?<E#* + B&&2>8>?/ >5??<E#*+'>>?/ ??<E# + B8>2&&4/ &35<E#*+'&>8/ &<E# +


/-,B  4 B9249??/ 4&??<L#* + B9424&??/ 45??<L#* + B9524?/ 48??<L#* +  B9&2>?/ 3<L# + $!%&<L >2>3?/ >35?<E#*+'>>?/ >8?<E# + 2>5?/ >3>?<E#*+'>34?/ >33?<E# +    42>8>?/ >85<E#*+'>5?/ >55?<E# + 259/ 593<E#*+'5&3/ 539<E# + 82??/ 8?<E#*+'&?/ &3?<E# + 5255?/ 3><E#*+'3/ 3&?<E# + >2&33/ 8>&<E#*+'83/ 89&<E# + >42888/ 858<E#*+'89&/ 8&<E# + >92855/ 835<E#*+'85/ 8&5<E# + >52855/ 835<E#*+'85/ 8&5<E# + ?254/ 5&<E#*+'83>/ 5><E# + 2>5?/ >3><E#*+'>34?/ >33<E# + &25>9/ 593<E#*+'53/ 539<E# + 528?4/ 895<E#*+'85/ 5?4<E# + 4?24?/ 4><E#*+4?/ 4&?<E# + 4528?/ &?<E#* + 9?24??/ 9??<E#* + 9>293&/ &3?<E#* + 9524?/ 48??<L#* + 42
954/ 93<E#* + &&2>8>?/ >5??<E#*+'>>?/ ??<E# + 8?2>&3/ >8>?<E#*+'>33/ ??<E# + 8>2&&4/ &35<E#*+'&>8/ &<E# + 82>94/ >>8<E# + 8&2>98/ >94<E# + 88244??/ 9??<E#*…

Text truncated - open the document above for the full version.

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, 114, Taiwan Tel: + 886 2 2267 6511 ; Fax: + 886 2 2267 6512 Date: August 15, 2022 FCC Agent Authorization To whom it may concern, Hon Lin Technology Co., Ltd. hereby authorize Eric Huang in Sporton International Inc. to act on our behalf in all matters relating to applications for FCC equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Eric Huang in Sporton International Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 862. This authorization is limited to the products of as following: FCC ID: 2AQ68T99W368M; FCC ID: 2AQ68T99W368; FCC ID: 2AQ68T99W373M; FCC ID: 2AQ68T99W373; This authorization is valid until further written notice from the Hon Lin Technology Co., Ltd.. Sincerely, ________________________ Nancy Lin / Assistant Manager [email protected]

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, 114, Taiwan Tel: + 886 2 2267 6511 ; Fax: + 886 2 2267 6512 Date: August 15, 2022 Module Approval Checklist Ref: FCC ID: 2AQ68T99W368M; FCC ID: 2AQ68T99W368; FCC ID: 2AQ68T99W373M; FCC ID: 2AQ68T99W373; Item Requirements EUT 1. The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The radio portion of this module has been shielded, please see exhibition External Photo. 2. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal The module has buffer modulation / data inputs. 3. The module must contain power supply regulation on the module The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Not applicable to licensed modules. 5. The module must demonstrate compliance in a stand-alone configuration The EUT was tested in a stand-alone configuration via a USB extender fixture. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end-user of the final end-product. 8. The module must comply with RF exposure requirements The modular transmitter complies with RF exposure requirement. ________________________ Nancy Lin / Assistant Manager [email protected]

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, 114, Taiwan Tel: + 886 2 2267 6511 ; Fax: + 886 2 2267 6512 Date: August 15, 2022 FCC Laboratory 7435 Oakland Mills Rd Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AQ68T99W368M; FCC ID: 2AQ68T99W368; FCC ID: 2AQ68T99W373M; FCC ID: 2AQ68T99W373; To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following documents from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned documents which contain detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we are requesting the Commission to withhold the following documents for 180 days after the grant of equipment authorization is issued:  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _______________________ Nancy Lin / Assistant Manager [email protected]

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City, 114, Taiwan Tel: + 886 2 2267 6511 ; Fax: + 886 2 2267 6512 Date: November 17, 2022 SUBJECT: FCC Application for FCC ID: 2AQ68T99W368 To Whom It May Concern: We, Hon Lin Technology Co., Ltd., declare our product, 5G WWAN Module with FCC ID: 2AQ68T99W368, 1. Sub 6GHz n40, 2. LTE Band 40, are disabled by embedded software in United States. Sub 6GHz n40, and LTE Band 40 will only allowed to be used when additional approval is applied. Sincerely yours, Nancy Lin [email protected]

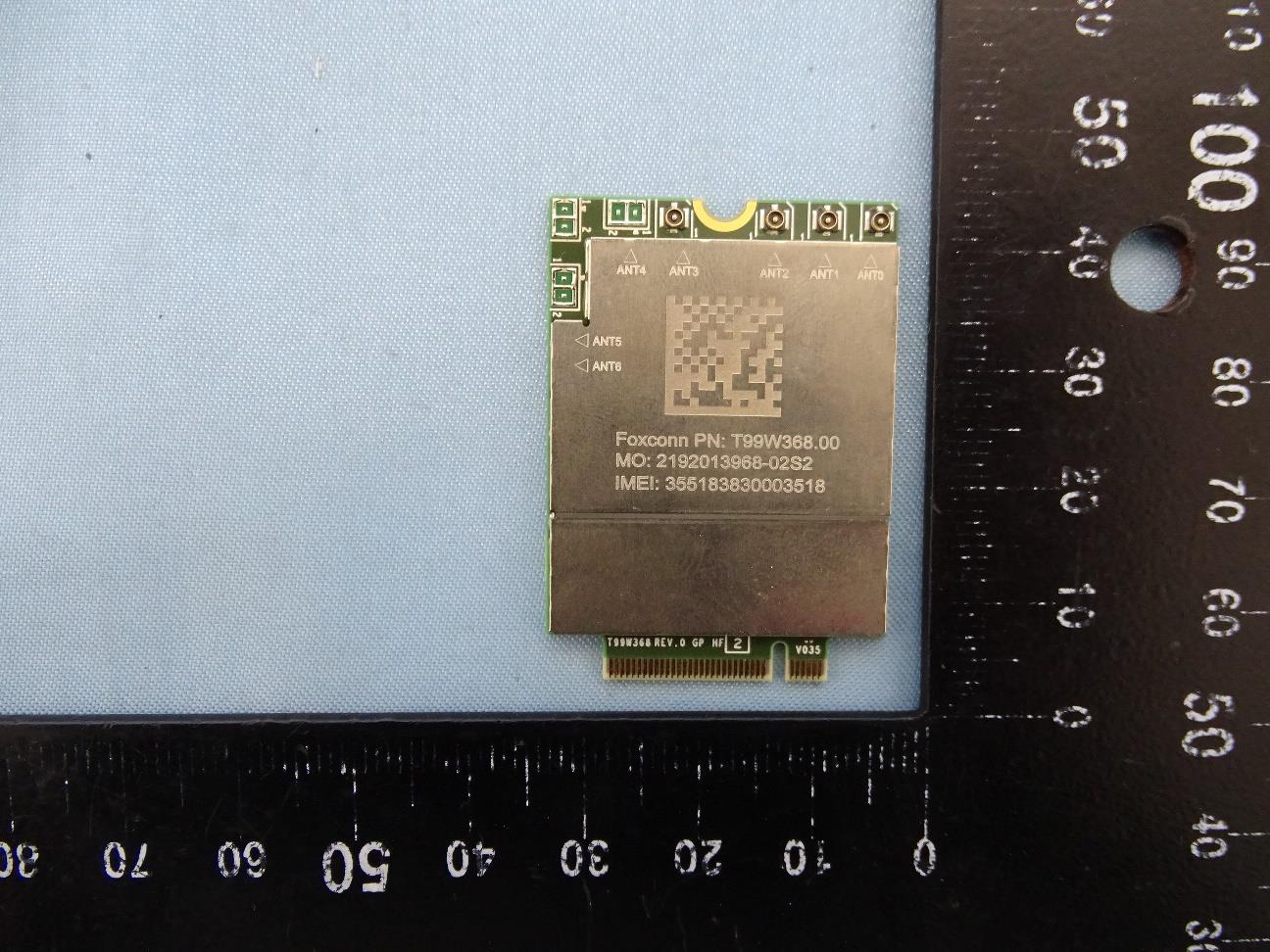

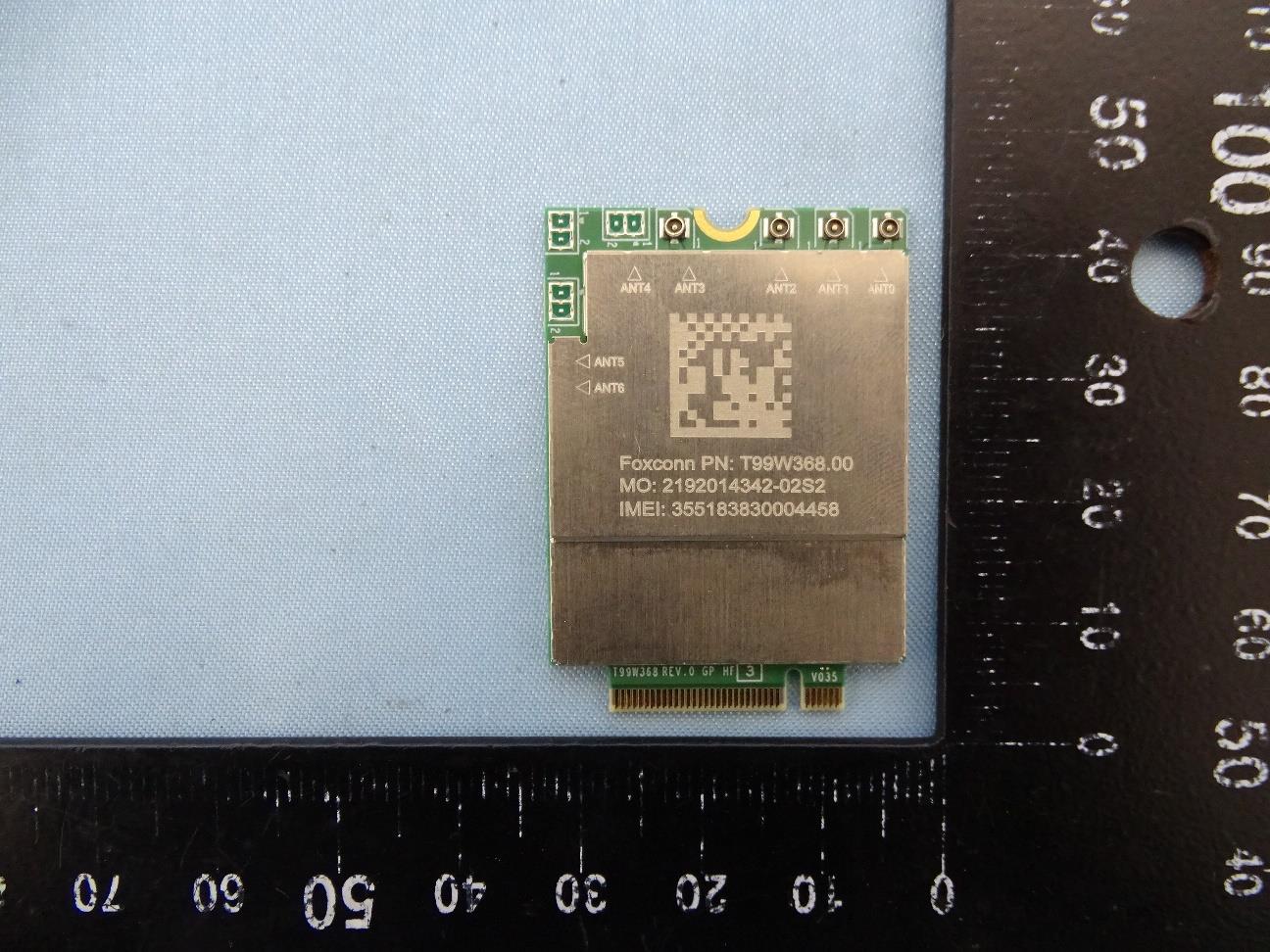

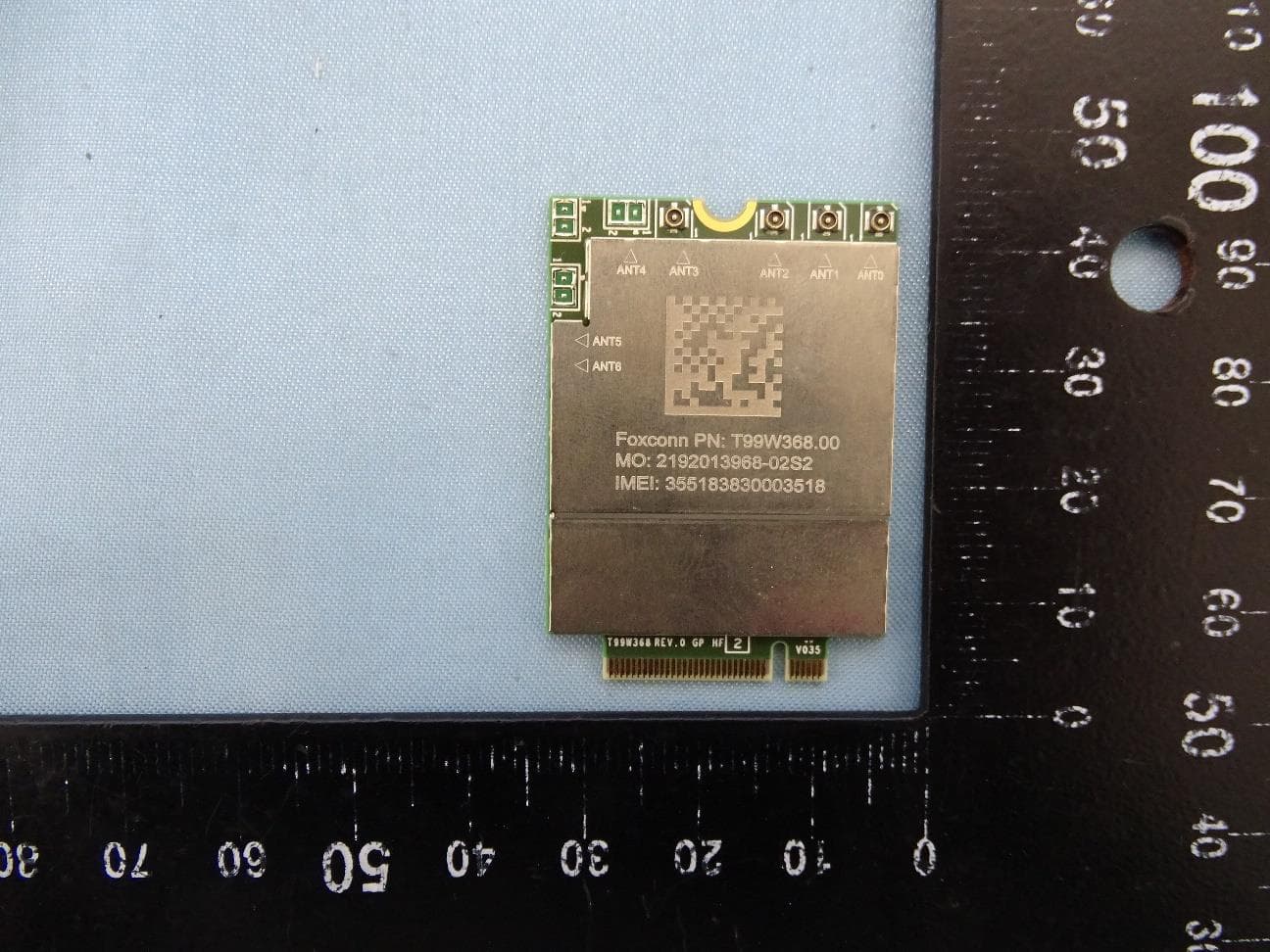

PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 1 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 1. Photograph of the EUT 5G WWAN Module (Brand Name: Foxconn / Model Name: T99W368) There are two different HW of T99W368. Sample Information Brand Model HW Foxconn T99W368 1. WCDMA+LTE+Sub6+eSIM 2. WCDMA+LTE+Sub6+w/o eSIM Sample 1 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 2 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 3 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 4 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 5 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 6 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 7 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 8 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 9 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 Sample 2 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 10 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 11 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 12 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 13 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 14 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 15 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 16 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 17, 2022 Report Version : 02

0 0 0

label on the module shieldig

PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 17 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 2. Internal Photograph of the EUT 5G WWAN Module (Brand Name: Foxconn / Model Name: T99W368) Sample 1 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 18 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 19 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 20 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 21 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Sample 2 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 22 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 23 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 24 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 25 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 26 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 3. Photograph of the Fixture Fixture (Brand Name: Foxconn / Model Name: 95.2580T00) PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 27 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 28 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 29 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 30 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 31 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 GTT Antenna PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 32 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 SMA Antenna PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 33 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Whayu Antenna 1 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 34 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Whayu Antenna 2 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 35 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Whayu Antenna 3 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 36 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Whayu Antenna 4 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 37 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 Whayu Antenna 5 PHOTOGRAPHS OF EUT Report No.: EP262904-01 TEL : 886-3-327-3456 Page Number : 38 of 38 FAX : 886-3-328-4978 Issue Date : Nov. 15, 2022 Report Version : 01 ─────THE END──── Whayu Antenna 6

TEL : 886-3-327-3456 Page : 1 of 11 FAX : 886-3-328-4978 Issued Date : Jul. 28, 2022 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA262904-01 RF EXPOSURE EVALUATION REPORT FCC ID : 2AQ68T99W368 Equipment : 5G WWAN Module Brand Name : Foxconn Model Name : T99W368 Applicant : Hon Lin Technology Co., Ltd 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan R.O.C. Manufacturer : Hon Lin Technology Co., Ltd 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan R.O.C. Standard : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part2.1091 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page : 2 of 11 FAX : 886-3-328-4978 Issued Date : Jul. 28, 2022 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA262904-01 Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 3. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 6 4. RF EXPOSURE EVALUATION ................................................................................................................... 7 4.1. Standalone assessment .................................................................................................................... 7 4.2. Collocated assessment ..................................................................................................................... 9 TEL : 886-3-327-3456 Page : 3 of 11 FAX : 886-3-328-4978 Issued Date : Jul. 28, 2022 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA262904-01 History of this test report Report No. Version Description Issued Date FA262904-01 Rev. 01 Initial issue of report Jul. 28, 2022 TEL : 886-3-327-3456 Page : 4 of 11 FAX : 886-3-328-4978 Issued Date : Jul. 28, 2022 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA262904-01 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type 5G WWAN Module Brand Name Foxconn Model Name T99W368 FCC ID 2AQ68T99W368 Wireless Technology and Frequency Range WCDMA Band II: 1850 MHz ~ 1910 MHz WCDMA Band IV: 1710 MHz ~ 1755 MHz WCDMA Band V: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7: 2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 14: 788 MHz ~ 798 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 25: 1850 MHz ~ 1915 MHz LTE Band 26: 814 MHz ~ 849 MHz LTE Band 29: 717 MHz ~ 728 MHz(Rx only) LTE Band 30: 2305 MHz ~ 2315 MHz LTE Band 38: 2570 MHz ~ 2620 MHz LTE Band 41: 2496 MHz ~ 2690 MHz LTE Band 42: 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3600 MHz LTE Band 43: 3600 MHz ~ 3700 MHz LTE Band 46: 5150 MHz ~ 5925 MHz(Rx only) LTE Band 48: 3550 MHz ~ 3700 MHz LTE Band 66: 1710 MHz ~ 1780 MHz LTE Band 71: 663 MHz ~ 698 MHz 5G NR n2 : 1850 MHz ~ 1910 MHz 5G NR n5 : 824 MHz ~ 849 MHz 5G NR n7 : 2500 MHz ~ 2570 MHz 5G NR n12 : 699 MHz ~ 716 MHz 5G NR n13: 777 MHz ~ 787 MHz 5G NR n14 : 788 MHz ~ 798 MHz 5G NR n25 : 1850 MHz ~ 1915 MHz 5G NR n26 : 814 MHz ~ 849 MHz 5G NR n30 : 2305 MHz ~ 2315 MHz 5G NR n38 : 2570 MHz ~ 2620 MHz 5G NR n41 : 2496 MHz ~ 2690 MHz 5G NR n48: 3550 MHz ~ 3700 MHz 5G NR n66 : 1710 MHz ~ 1780 MHz 5G NR n70 : 1695 MHz ~ 1710 MHz 5G NR n71 : 663 MHz ~ 698 MHz 5G NR n77 : 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3700 MHz, 3700 MHz ~ 3980 MHz 5G NR n78 : 3450 MHz ~ 3550 MHz, 3550 MHz ~ 3700 MHz, 3700 MHz ~ 3800 MHz Mode RMC/AMR 12.2Kbps HSDPA HSUPA DC-HSDPA HSPA+ (16QAM uplink) LTE: QPSK, 16QAM, 64QAM, 256QAM 5G NR: DFT-s-OFDM/CP-OFDM, Pi/2 BPSK/QPSK/16QAM/64QAM/256QAM There are three different HW of T99W368 Brand Model HW Foxconn T99W368 WCDMA+LTE+Sub6+mmWave+eSIM WCDMA+LTE+Sub6+mmWave w/o eSIM WCDMA+LTE+Sub6+mmWave w/o eSim+FPC connector on bottom Reviewed by: Jason Wang Report Producer: Paula Chen TEL : 886-3-327-3456 Page : 5 of 11 FAX : 886-3-328-4978 Issued Date : Jul. 28, 2022 Form version: 220617 RF EXPOSURE EVALUATION REPORT Report No. : FA262904-01 2. Maximum RF average output power among production units Mode Maximum Transmit Power Level (dBm) WCDMA WCDMA Band 2 24.50 WCDMA Band 4 24.50 WCDMA Band 5 24.50 LTE LTE Band 2 24.00 LTE Band 4 24.00 LTE Band 5 24.50 LTE Band 7 24.00 LTE Band 12 24.50 LTE Band 13 24.50 LTE Band 14 24.50 LTE Band 17 24.50 LTE Band 25 24.00 LTE Band 26 24.50 LTE Band 30 23.00 LTE Band 38 24.00 LTE Band 41_PC3 24.00 LTE Band 41_PC2 27.00 LTE Band 42 (3450~3550MHz) 24.00 LTE Band 42 (3550~3600MHz) 22.00 LTE Band 43 22.00 LTE Band 48 22.00 LTE Band 66 24.00 LTE Band 71 24.00 FR1 5G NR n2 24.00 5G NR n5 24.00 5G NR n7 24.00 5G NR n12 24.00 5G NR n13 24.00 5G NR n14 24.00 5G NR n25 24.00 5G NR n26 24.00 5G NR n30 23.00 5G NR n38 24.00 5G NR n41_PC3 24.00 5G NR n41_PC2 27.00 5G NR n48 22.00 5G NR n66 24.00 5G NR n70 24.00 5G NR n71 24.00 5G NR n77 (3450~3550MHz) (3700~3980MHz) 27.00 5G NR n77 (3550~3700MHz…
