2AQ68T99B123T03Sirius Fly mPro

M.2-B048-101 Confidential Page 1 FII Industrial PCIE M.2 Module Product specification V1.0 Project Name Sirisu Fly mPro Module Code M.2-B048-101 Customer Approval: _________________ M.2-B048-101 Confidential Page 2 Revision history Version Date Author Modification V1.0 2020/08/11 M.2-B048-101 Confidential Page 3 TABLE OF CONTENTS 1. PRODUCT OVERVIEW ........................................................................................................ 4 2. ELECTRICAL TECHNICAL INDICATORS ........................................................................... 6 2.1 Electrical characteristics ............................................................................................. 6 2.2 Module Interface ........................................................................................................... 6 2.3 Pin definition ................................................................................................................. 7 2.4 RF connector ................................................................................................................ 8 3. THERMAL DESIGN ............................................................................................................. 9 4. PRODUCT LIST ................................................................................................................. 10 5. LIST OF ABBREVIATIONS ................................................................................................ 11 ======================================== FCC regulatory compliance statement §15.19 Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Information to user Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure compliance statement This Module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Labelling Instruction for Host Product Integrator Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2AQ68T99B123-03” any similar wording that expresses the same meaning may be used. § 15.19 Labelling requirements shall be complied on end user device. Labelling rules for special device, please refer to §2.925, § 15.19 (a)(5) and relevant KDB publications. For E-label, please refer to §2.935. Installation Notice to Host Product Manufacturer The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. The module is limited to installation in mobile application, a separate approval is required for all other operating configurations, including portable configurations with respect to §2.1093 and difference antenna configurations. Antenna Change Notice to Host manufacturer If you desire to increase antenna gain and either change antenna type or use same antenna type certified, a Class II permissive change application is required to be filed by us, or you (host manufacturer) can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. FCC other Parts, Part 15B Compliance Requirements for Host product manufacturer This modular transmitter is only FCC authorized for the specific rule parts listed on our grant, host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. Host manufacturer in any case shall ensure host product which is installed and operating with the module is in compliant with Part 15B requirements. Please note that For a Class B or Class A digital device or peripheral, the instructions furnished the user manual of the end-user product shall include statement set out in §15.105 Information to the user or such similar statement and place it in a prominent location in the text of host product manual. Original texts as following: For Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. ===================================================== M.2-B048-101 Confidential Page 4 1. Product Overview The M.2-B048-101 PCIE M.2 data module is a PCI Express M.2 data module based on the LTE (Long Term Evolution) standard. It is mainly used by i…

Text truncated - open the document above for the full version.

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan R.O.C Date: January 22, 2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AQ68T99B123T03 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hon Lin Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Signature: Nancy Lin / Assistant Manager HON LIN Technology Co., Ltd. TEL: (02) 22676511 FAX: (02) 22656512 E-Mail: [email protected]

Hon Lin Technology Co., Ltd. 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan R.O.C TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application for FCC ID: 2AQ68T99B123T03 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Parts List / BOM Tune Up Procedure The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Signature: Nancy Lin / Assistant Manager HON LIN Technology Co., Ltd. TEL: (02) 22676511 FAX: (02) 22656512 E-Mail: [email protected]

Hon Lin Technology Co., Ltd. . Cover Letter-Modular Approval FCC ID: 2AQ68T99B123T03 Date: 26 January 2021 Gentlemen: There’s an Sirius Fly mPro that would like to have your authorization as a modular approval. The specific product as below, Sirius Fly mPro with its designed features and specified description, meets special requirements for Full modular approval on FCC KDB996369 by cross-reference list below. Company Hon Lin Technology Co., Ltd. Model Name Sirius Fly mPro Model Number M.2-B048-101 FCC ID 2AQ68T99B123T03 Requirement of FCC KDB996369 Comply（Y/N） 1.The modular transmitter must have its own RF shielding. Y The EUT provides the RF shielding. See EUT photo. 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y The EUT has its buffered modulation. Please see the Schematic Diagram. 3.The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, please see the Schematic Diagram. 4.The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5.The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. Y The EUT was tested with a test board, Please see test report and setup photo 6.The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which Y Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on Hon Lin Technology Co., Ltd. . the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AQ68T99B123T03” or “Contains FCC ID: 2AQ68T99B123T03” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. how to label the end product. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Y The EUT complies with RF exposure requirement. Thank you. Sincerely, Signature: Nancy Lin / Assistant Manager HON LIN Technology Co., Ltd. TEL: (02) 22676511 E-Mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hon Lin Technology Co., Ltd Address 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan R.O.C Grantee Code 2AQ68 FCC ID 2AQ68T99B123T03 Authorized Contact Name Nancy Lin Contact Email [email protected] Contact Phone +886-2-22676511 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 01/22/2021 Print Name: Nancy Lin Title: Assistant Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

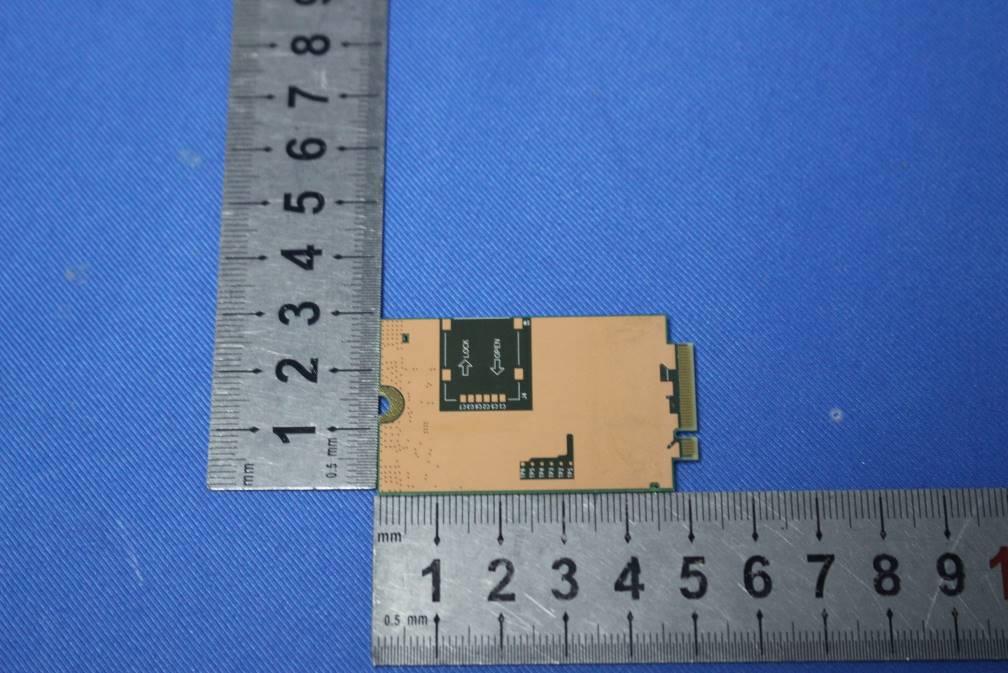

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 External Photos for SZEM2101000844CR FCC ID: 2AQ68T99B123T03 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 EUT Constructional Details

FCCID:2AQ68T99B123T03

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 Internal Photos for SZEM2101000844CR FCC ID: 2AQ68T99B123T03 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 EUT Constructional Details Antenna 1 Port Antenna 2 Port

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100084403 Page: 1 of 7 Keny Xu EMC Laboratory Manager 1 Cover RF Exposure Evaluation Report Application No.: SZEM2101000844CR Applicant: Hon Lin Technology Co., Ltd. Address of Applicant: 11F, No.32, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan Manufacturer: NANNING FUGUI PRECISION INDUSTRIAL CO., LTD. Address of Manufacturer: No.51, Tongle Avenue, Nanning, Guangxi. China Factory: NANNING FUGUI PRECISION INDUSTRIAL CO., LTD. Address of Factory: No.51, Tongle Avenue, Nanning, Guangxi. China Equipment Under Test (EUT): EUT Name: Sirius Fly mPro Model No.: M.2-B048-101 FCC ID: 2AQ68T99B123T03 Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2021-01-20 Date of Test: 2021-01-20 to 2021-02-01 Date of Issue: 2021-02-02 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100084403 Page: 2 of 7 2 Version Revision Record Version Chapter Date Modifier Remark 01 2021-02-02 Original Authorized for issue by: Calvin Weng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100084403 Page: 3 of 7 3 Contents Page 1 COVER ................................................................................................................................................... 1 2 VERSION ................................................................................................................................................ 2 3 CONTENTS ............................................................................................................................................ 3 4 GENERAL INFORMATION ..................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF EUT ............................................................................................................. 4 4.2 TEST LOCATION .................................................................................................................................... 5 4.3 TEST FACILITY ...................................................................................................................................... 5 4.4 DEVIATION FROM STANDARDS ................................................................................................................. 5 4.5 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................ 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 5 5 RF EXPOSURE EVALUATION ............................................................................................................... 6 5.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 6 5.1.1 Limits .......................................................................................................................................... 6 5.1.2 Test Procedure ........................................................................................................................... 6 5.1.3 EUT RF Exposure Evaluation ...................................................................................................... 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100084403 Page: 4 of 7 4 General Information 4.1 General Description of EUT Power supply: DC3.3V from main board. Main board rated input: DC12V/1A Sample Type: Mobile Product LTE Operation Frequency Band: 48 Frequency range: 3550-3700 MHz Modulation Type: UL: QPSK, 16QAM, 64QAM DL: QPSK, 16QAM, 64QAM, 256QAM LTE Release Version: R11 LTE Power Class: Level 3 CA Capability MIMO: DL 2CC 2X2 MIMO DL 1CC 2X2 MIMO UL 1CC 2X2 MIMO UL 2CC SISO Support Intra-band contiguous/non-contiguous CA and support UL MIMO Antenna Type: Dipole Antenna Ant 1: TX & RX Ant 2: TX & RX Antenna Gain: 2.5dBi SIM Card: This device has only one SIM Card sockets. Remark: The EUT is a M.2 Module. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100084403 Page: 5 of 7 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. 4.4 Deviation from Standards None. 4.5 Abnormalities from Standard Conditions None. 4.6 Other Information Requ…

Text truncated - open the document above for the full version.

1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result SISO Main: EIRP Test data_Test Band: 48 _ 5MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 25 0 20.42 20.35 20.14 / 2.50 22.92 22.85 22.64 23.00 PASS 16QAM 25 0 19.40 19.58 19.43 / 2.50 21.90 22.08 21.93 23.00 PASS 64QAM 25 0 18.60 18.83 18.58 / 2.50 21.10 21.33 21.08 23.00 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 50 0 20.03 20.19 20.16 / 2.50 22.53 22.69 22.66 23.00 PASS 16QAM 50 0 19.22 19.24 19.67 / 2.50 21.72 21.74 22.17 23.00 PASS 64QAM 50 0 18.55 18.47 18.54 / 2.50 21.05 20.97 21.04 23.00 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 15MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 75 0 20.13 20.12 20.43 / 2.50 22.63 22.62 22.93 23.00 PASS 16QAM 75 0 19.31 19.55 19.37 / 2.50 21.81 22.05 21.87 23.00 PASS 64QAM 75 0 18.44 18.70 18.73 / 2.50 20.94 21.20 21.23 23.00 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 20MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP (dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 100 0 20.21 20.07 20.44 / 2.50 22.71 22.57 22.94 23.00 PASS 16QAM 100 0 19.37 19.43 19.22 / 2.50 21.87 21.93 21.72 23.00 PASS 64QAM 100 0 18.82 18.86 18.43 / 2.50 21.32 21.36 20.93 23.00 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Intra-band contiguous CA for LTE Band 48 Bandwidth (MHz) Modulati on Power (dBm) Antenna Gain (dBi) EIRP (dBm) Limit (dBm) Verdict PCC SCC LCH MCH HCH LCH MCH HCH 5 20 QPSK 20.03 19.86 20.07 2.50 22.53 22.36 22.57 23.00 Pass 5 20 16QAM 19.88 19.64 19.73 2.50 22.38 22.14 22.23 23.00 Pass 5 20 64QAM 19.24 19.29 19.21 2.50 21.74 21.79 21.71 23.00 Pass 10 20 QPSK 20.18 20.14 20.04 2.50 22.68 22.64 22.54 23.00 Pass 10 20 16QAM 19.60 19.64 19.53 2.50 22.10 22.14 22.03 23.00 Pass 10 20 64QAM 19.42 19.33 19.12 2.50 21.92 21.83 21.62 23.00 Pass 15 20 QPSK 20.20 20.24 20.02 2.50 22.70 22.74 22.52 23.00 Pass 15 20 16QAM 19.80 19.86 19.76 2.50 22.30 22.36 22.26 23.00 Pass 15 20 64QAM 19.35 19.23 19.18 2.50 21.85 21.73 21.68 23.00 Pass 20 20 QPSK 20.27 19.94 19.84 2.50 22.77 22.44 22.34 23.00 Pass 20 20 16QAM 19.99 19.69 19.93 2.50 22.49 22.19 22.43 23.00 Pass 20 20 64QAM 19.43 19.32 19.30 2.50 21.93 21.82 21.80 23.00 Pass 20 5 QPSK 20.13 19.82 19.90 2.50 22.63 22.32 22.40 23.00 Pass 20 5 16QAM 19.62 19.54 19.53 2.50 22.12 22.04 22.03 23.00 Pass 20 5 64QAM 19.15 19.32 19.38 2.50 21.65 21.82 21.88 23.00 Pass 20 10 QPSK 19.81 20.27 20.07 2.50 22.31 22.77 22.57 23.00 Pass 20 10 16QAM 19.70 19.55 19.50 2.50 22.20 22.05 22.00 23.00 Pass 20 10 64QAM 19.16 19.48 19.06 2.50 21.66 21.98 21.56 23.00 Pass 20 15 QPSK 19.84 20.02 19.82 2.50 22.34 22.52 22.32 23.00 Pass 20 15 16QAM 19.89 19.95 19.82 2.50 22.39 22.45 22.32 23.00 Pass 20 15 64QAM 19.18 19.34 19.34 2.50 21.68 21.84 21.84 23.00 Pass Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Intra-band non-contiguous CA for LTE Band 48 Bandwidth (MHz) Modulati on Power (dBm) Antenna Gain (dBi) EIRP (dBm) Limit (dBm) Verdict PCC SCC LCH MCH HCH LCH MCH HCH 5 20 QPSK 19.92 19.96 19.93 2.50 22.42 22.46 22.43 23.00 Pass 5 20 16QAM 19.81 19.61 19.82 2.50 22.31 22.11 22.32 23.00 Pass 5 20 64QAM 19.33 19.13 19.48 2.50 21.83 21.63 21.98 23.00 Pass 10 20 QPSK 20.23 20.25 20.12 2.50 22.73 22.75 22.62 23.00 Pass 10 20 16QAM 19.65 19.68 19.68 2.50 22.15 22.18 22.18 23.00 Pass 10 20 64QAM 19.50 19.11 19.40 2.50 22.00 21.61 21.90 23.00 Pass 15 20 QPSK 19.81 20.03 19.89 2.50 22.31 22.53 22.39 23.00 Pass 15 20 16QAM 19.66 19.73 19.61 2.50 22.16 22.23 22.11 23.00 Pass 15 20 64QAM 19.20 19.12 19.11 2.50 21.70 21.62 21.61 23.00 Pass 20 20 QPSK 19.89 20.05 20.02 2.50 22.39 22.55 22.52 23.00 Pass 20 20 16QAM 19.63 20.00 19.51 2.50 22.13 22.50 22.01 23.00 Pass 20 20 64QAM 19.26 19.15 19.27 2.50 21.76 21.65 21.77 23.00 Pass 20 5 QPSK 20.23 20.07 19.80 2.50 22.73 22.57 22.30 23.00 Pass 20 5 16QAM 19.57 19.65 19.84 2.50 22.07 22.15 22.34 23.00 Pass 20 5 64QAM 19.09 19.08 19.47 2.50 21.59 21.58 21.97 23.00 Pass 20 10 QPSK 19.88 20.13 20.11 2.50 22.38 22.63 22.61 23.00 Pass 20 10 16QAM 19.76 19.95 19.55 2.50 22.26 22.45 22.05 23.00 Pass 20 10 64QAM 19.19 19.09 19.30 2.50 21.69 21.59 21.80 23.00 Pass 20 15 QPSK 20.19 19.96 20.27 2.50 22.69 22.46 22.77 23.00 Pass 20 15 16QAM 19.53 19.65 19.74 2.50 22.03 22.15 22.24 23.00 Pass 20 15 64QAM 19.21 19.18 19.29 2.50 21.71 21.68 21.79 23.00 Pass Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes have been tested and we only record the worst test data. 3) Full RB test mode EIRP Test data_Test Band: 48 _ 5MHz Bandwidth Modulation RB Allocation Conducted Power (dBm/10MHz) Antenna gain EIRP (dBm/10MHz) Limit (dBm/10 MHz) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 25 0 20.45 20.28 20.25 / 2.50 22.95 22.78 22.75 23.00 PASS 16QAM 25 0 19.28 19.25 19.24 / 2.50 21.78 21.75 21.74 23.00 PASS 64QAM 25 0 18.43 18.40 18.51 / 2.50 20.93 20.90 21.01 23.00 PASS Note: 1) EIRP = Conducted output power + Antenna gain (dBi) 2) All modes …
