Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|
| 327 | 27 | 2.50 GHz - 2.69 GHz | 662.00 mW | 62M4D7W | 0.002
ppm |
Modular TypeSingle Modular ApprovalConfidentialityLong Term Grant NotesPower listed is maximum EIRP. Values listed for LTE and 5GNR operations are for the highest power and the widest bandwidth for each band and modulation. Single modular approval for mobile RF exposure conditions. Co-transmission of this module with other transmitters requires a separate evaluation according to FCC multi-transmitter procedures. The host integrator must follow the integration instructions provided by the module manufacturer and ensure that the composite-system end product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules and to KDB Publication 996369. The module antenna(s) must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369. Approval is limited to OEM installation only. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.

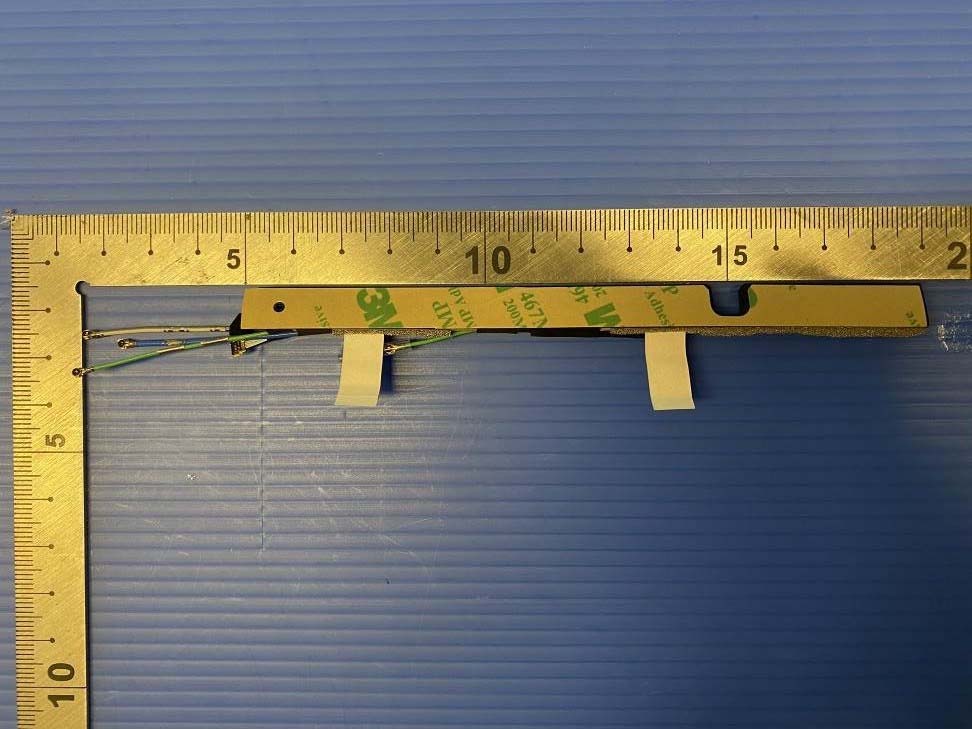

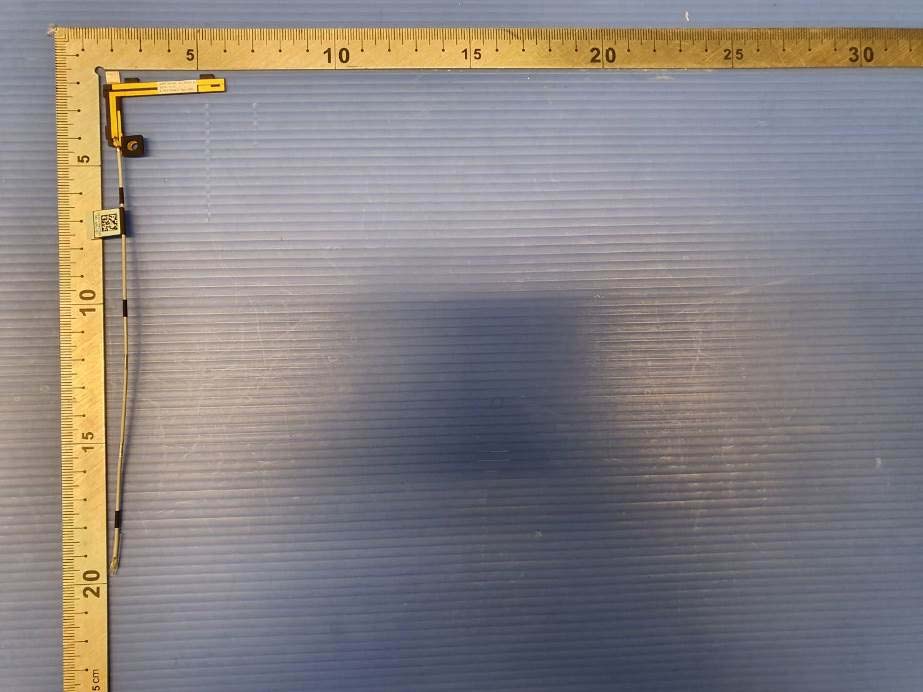

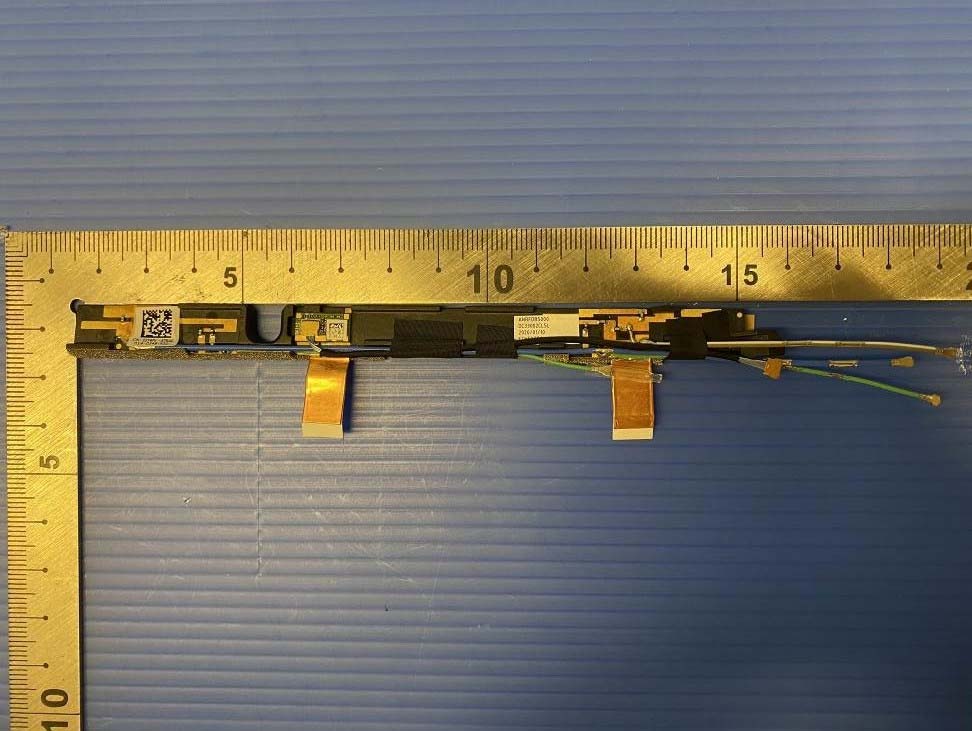

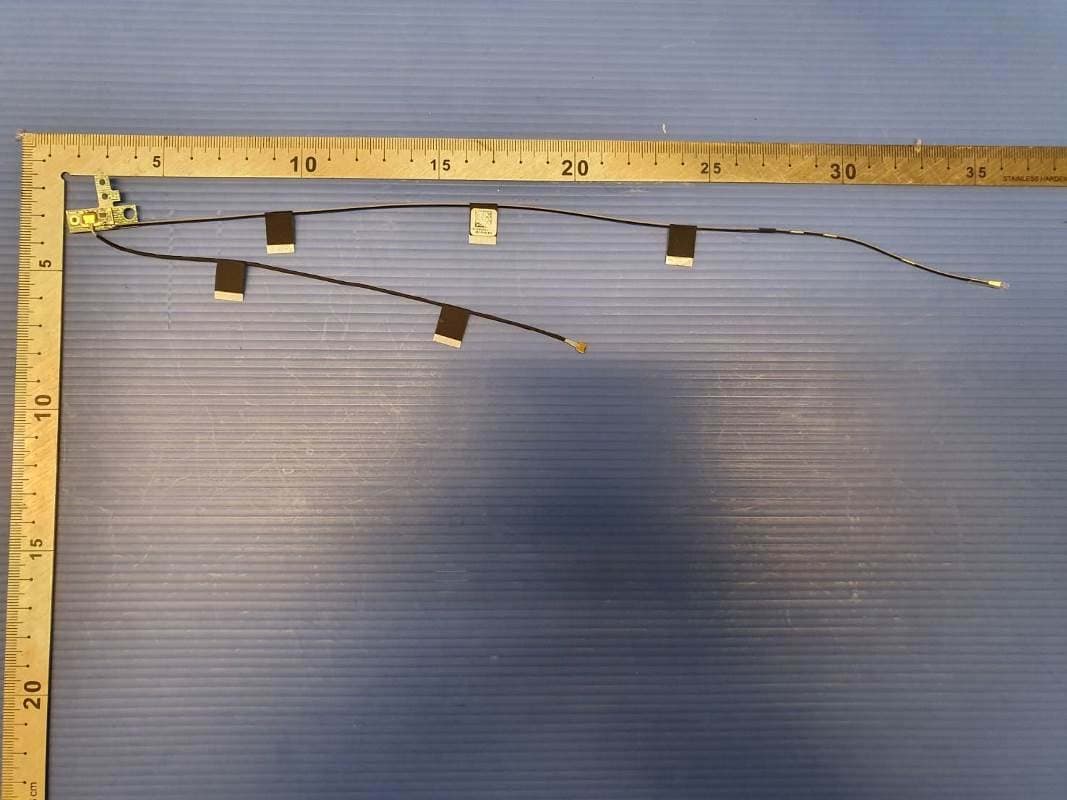

The maximum antenna gain is 4.27dBi for WCDMA Band 2/4 & LTE Band 2/4/25/66 & 5GNR n2/n66; 5.31dBi for LTE Band 7/38/41& 5GNR n7/41; 3.81dBi for WCDMA Band 5 & LTE Band 5/B26 & 5GNR n5; 4.41dBi for LTE Band 12/13/14/17/71 & 5GNR n12/71; 2.99dBi for LTE Band 30.
LTE supports 1.4/3/5/10 MHz modes in Band 5; 1.4/3/5/10/15 MHz modes in Band 26; 1.4/3/5/10/15/20 MHz modes in Band 2, Band 4, Band 25, Band 66; 5/10/15/20 MHz modes mode in Band 7, Band 38, Band 41, Band 71; 1.4/3/5/10 MHz modes in Band 12, Band 26; 5/10 MHz modes in Band 13, Band 14, Band 17, Band 30.
5GNR supports 5/10/15/20 MHz modes in n2/5/7/n66/n71; 5/10/15 MHz modes in n12; 20/40/50/60/80/90/100 MHz modes in n41; 5/10/15/20 MHz modes in n2 20 MHz mode in n38.
LTE Carrier Aggregation (CA) mode support 5+10/10+10 MHz mode in Band 5; 15+15/10+20/15+20/15+10/15+15 MHz mode in Band 7; 15+15/20+20 MHz mode in Band 38; 10+20/15+15/15+20/20+20/5+20/10+15 MHz mode in Band 41; 5+5/5+10/5+15/10+10 MHz mode in Band 66B; 5+20/10+15/10+20/15+15/15+20/20+20 MHz mode in Band 66B
ENDC mode support n2 + LTE Band 5/12/13/30/48/66; n5 + LTE Band 2/7/12/48/66; n7 + LTE Band 5/12; n12 + LTE Band 2/66; n41 + LTE Band 2/25/26/41/66; n66 + LTE Band 5/12/13/30/48/71; n71 + LTE Band 2/7/66.
