2AQ8A-KP1LINKKapture Wifi Bridge

Pamex Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 16, 2020
Application Purpose: Original Equipment
Date of Application: Jul 23, 2020
Equipment Note: Kapture Wifi Bridge
Frequency Range: 2422.00000000 - 2452.00000000
Company: Pamex Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Product Introduction & User Instructions Kapture KP1-D7 (KP1-D791, KP1-D7P1) Smart Home Lock With Mechanical Key Kapture KP1-LINK (Optional) 05/2020 Agenda Product Features1 Operation Modes1 Common Functions2 Keypad Programming Mode3 Stand-Alone Mode3 Link Mode4 Detailed Function Description4 First time to power up4 Battery change4 Access the lock via the keypad code5 Lock/Unlock UI5 Privacy Mode5 Low Battery Level6 Keypad Programming Commands6 Reset the lock7 Key Cover Open7 Lock Out8 Volume Control8 Auto-Lock8 Lock Error8 Kapture Cloud Account Registration (Sign Up)9 Log in the Kapture App9 Paring the app to the lock via the Bluetooth (Adding A Lock)9 Lock Settings in Kapture App10 User Roles10 Access the lock through the app11 Permissions11 Audit Trail12 Report Problem13 Lock Firmware Update14 Install/Remove LINK14 Real-time notification14 Upgrade LINK Firmware15 FCC Statement16 NCC Statement16 Product Features Included In The Box (Smart Lock) ●A Smart Lock ●4 AA Batteries ●A Deadbolt ●Mounting Hardware ●Installation Guide (Hardware) ●User Manual Available Colors ●Matt Black ●Satin Nickel Included In The Box (Link) ●A wifi bridge adapter ●Installation Guide Operation Modes The Kapture lock can function on one of the three modes mentioned below. ●Keypad Programming Mode ○In this mode, a smartphone is needless when operating a Kapture lock. After the hardware installation, setting the lock and adding the user’s keypad code via the keypad. ●Stand-Alone Mode (Bluetooth Only) ○In this mode, you need to download a Kapture app and register an account. You can operate the lock after a successful pairing to the lock via the Bluetooth. ○Kapture locks can be paired under an account. ●Link Mode (Bluetooth + Wifi Bridge) 1 ○Under Stand-Alone mode, and if connecting the Kapture lock to a Kapture Link, the lock will be capable of providing the remote control management. Not only the real-time events can pop-up on the Kapture app but also an alert notification will receive immediately on the app. Both master and family can remotely access the lock. ○Voice assistant: You can access a registered lock through Amazon Alexa or Google Assistant. Common Functions ➔Users can access the lock via the physical kay or keypad. ➔An initial access code, which is the master code, is 147369. Master code is a changeable six-digit code, we suggest that it is for master use only. ➔Kapture lock can store user keypad codes up to a hundred sets. ➔Access the door via the turnpiece if you stay indoors. ➔When the lock is on Privacy Mode, only the physical key or the Mater’s Kapture app can unlock the door from the outdoors. ➔Press icon once to straightly lock the door from the exterior keypad. ➔The key cover locates the exterior lock and hides the cylinder. If it stays open within a period of time, the alert will activate. And master’s Kapture app will receive the alert under Link Mode. ➔There is an LED on the exterior lock that tells all the access UI whether success or failure. ➔Both exterior and the interior lock have a buzzer that tells all the access UI whether success or failure. ➔The lock is power-saving and normally remains to hibernate. In normal use, over a year’s lifetime with four AA batteries. ➔Under hibernated, the exterior panel will auto-shine and ready for operating when touching by hand. ➔The lock will auto-lock when the battery change. The tesla coil is useless. ➔The latch recognition will do when powering on the lock for the very first time. ➔The length of the user keypad code can be 4-8 digits. ➔To press the reset button in the interior returns the lock to factory default. ➔A low battery LED in the interior will continuously shine to notify users to change the batteries. ➔Three stages of keypad lockout, preventing from the bad intention. ➔Four stages of volume control, from sound to silence. ➔Adjustable time period auto-lock function. ➔Lock errors auto-recognition, preventing from the system error. 2 Keypad Programming Mode Requires: None Key Features : ➔Keypad Programming Mode is the default operating mode. ➔This mode allows users to use the keypad, setting the lock with a Master code. (See Keypad Programming Commands). Stand-Alone Mode Requires : ●A Smart Phone With Bluetooth Capability (iOS, Android Supported) and internet access. ●Install the Kapture app and register a Kapture Cloud account. Key Features : ➔Equipped with Bluetooth 5.0 communication technology standards, transmit the data via AES encryption, guard against the malicious attacks from hackers. ➔Encrypted-communication between smartphone and Kapture Cloud goes through SSL, guard against the malicious attacks from hackers. ➔Log in the Kapture Cloud is needed when using the below functions. ➔There are three different user roles in the lock, including Owner, Family, and Guest. Each role has its own user rights. ➔Before operating the lock setting, you have to pair the lock with the Kapture app via Bluetooth in advance. ➔Users can access the door via physical key, keypad code, or the Kapture app. ➔The owner can manage the user right through the app and manage it anywhere you want for real-time control. ➔Up to 100 Family or Guests can be invited through Owner or Family via the app to access the lock. ➔Users (Owner, Family, Guest) can set their own keypad code via the app. Guest’s keypad code is unique. ➔There are three types of Guest’s permissions:1. Always (unlimited in a given period) 2. Weekly re-occurring 3.Single access pass. ➔The Kapture app can tell all the events to the lock, including access to the lock, user right change, and system status change. Also, you may check with the user, the date and the way on the history if access via the app or keypad code. ➔Directly use the app to do the lock OTA through the Kapture cloud. ➔The low battery alert will notify the user’s app when the smartphone is close enough. ➔When using the Report Problem on the Kapture App, Pamex will respond as soon as we can to provide you better s…

Text truncated - open the document above for the full version.

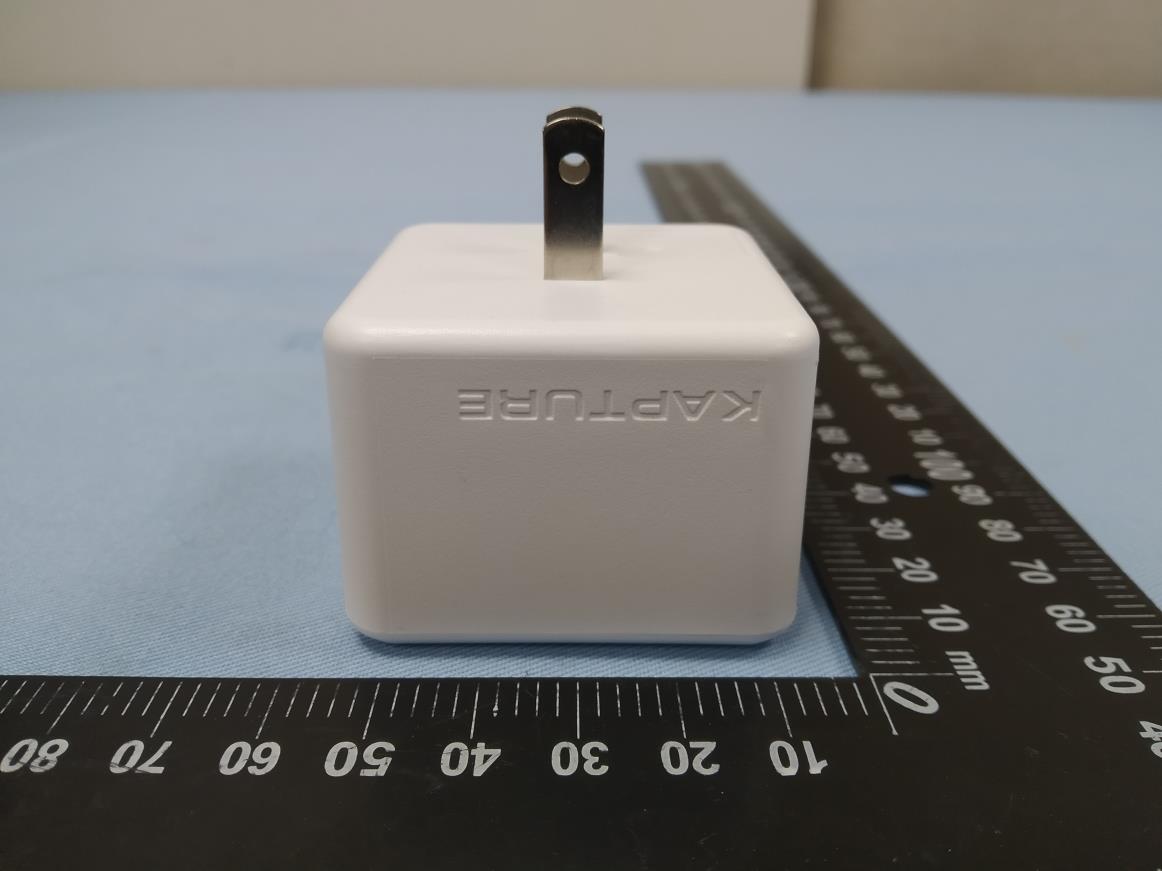

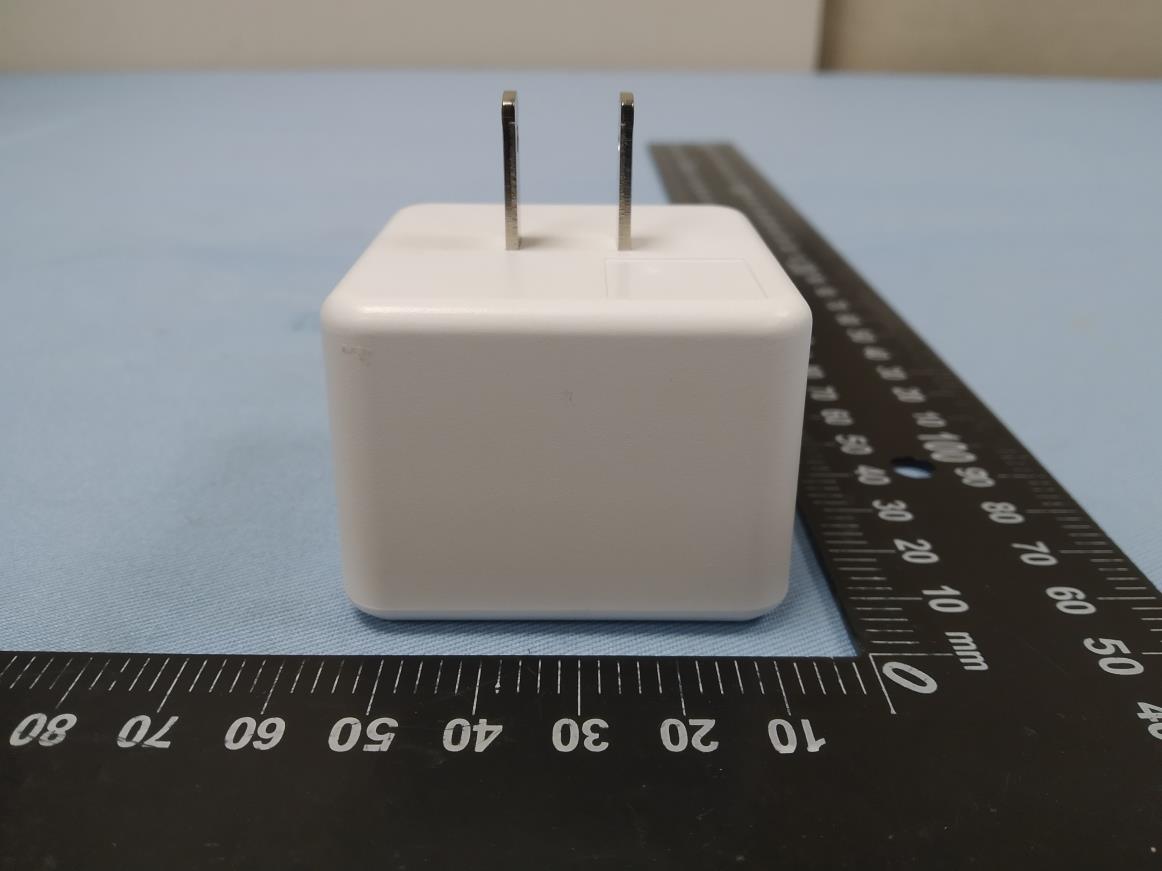

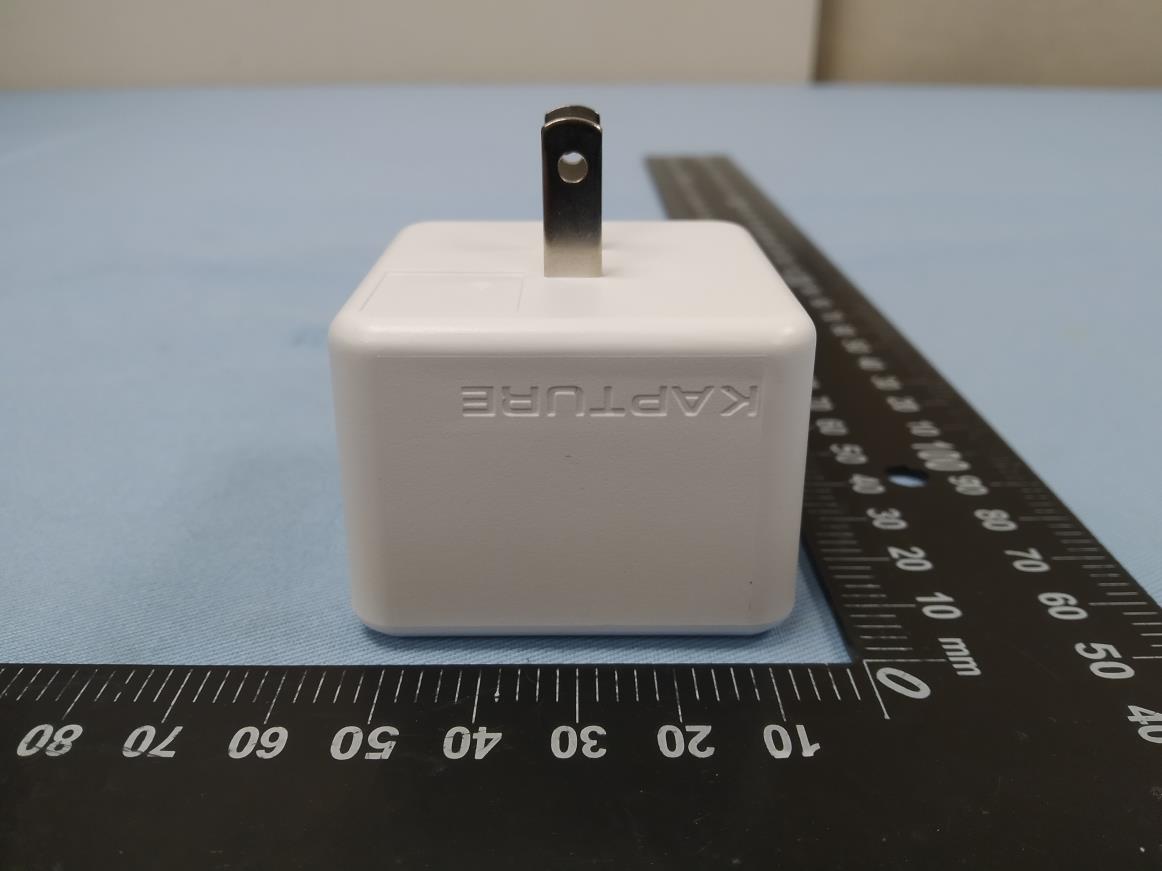

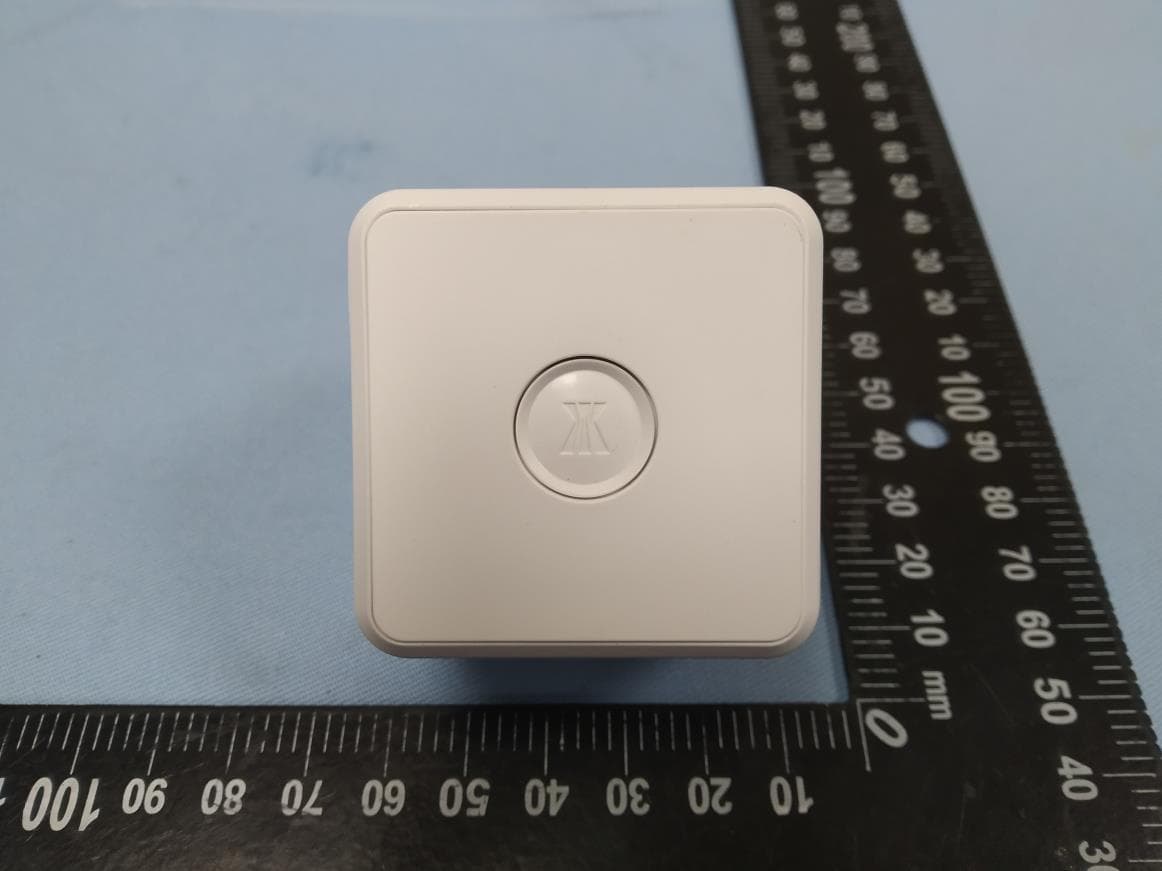

External Photos

Appendix D Photo Documentation Page 1 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Appendix D Photo Documentation Page 2 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Appendix D Photo Documentation Page 3 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK

ID Label/Location Info

Lable Artwork

Internal Photos

Appendix D Photo Documentation Page 4 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Appendix D Photo Documentation Page 5 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Appendix D Photo Documentation Page 6 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Ante nna Appendix D Photo Documentation Page 7 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK Appendix D Photo Documentation Page 8 of 8 60376686 001, 60376687 001 Product: Kapture Wifi Bridge Type Identification: KP1-LINK

RF Exposure Info

Produkte Products Prü fbericht - Nr.: Test Report No. 60376686 001 Seite 31 von 31 Page 31 of 31 6. Safety Human Exposure 6.1 RF Exposure Compliance 6.1.1 Electromagnetic Fields Results Separation distance is more than 20 cm, thus mobile device exposure limits can be applied. Maximum Exposure: Power to Antenna (mW) 324.34mW Power to Antenna (dBm) 25.11dBm Antenna Gain3.3dBi Power+Ant Gain693.4mW Distance20cm S= 0.138mW/cm^2 Limit: 1 mW/cm 2 Limit 0.3-1.34 MHz (100) mW/cm 2 1.34-30 MHz (180/f 2 ) mW/cm 2 30-300 MHz 0.2 mW/cm 2 300-1500 MHz f/1500 mW/cm 2 1500-100,000 MHz 1.0 mW/cm 2

Schematics

PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101 PAAC101 COAC1 PAAC201 COAC2 PAP202 PAP201 COP2 PAPW101 PAPW105 PAPW102 PAPW104 PAPW103 COPW1 PAP201 PAPW102 PAAC101 PAPW103 PAAC201 PAPW104 PAP202 PAPW101

Test Report

Prü fbericht - Nr.: Test Report No. 60376687 001 Seite A1 von A5 Page A1 of A5 Appendix A: Test Results of Conducted Test Test Result of 6 dB Bandwidth BLE_1M Channel Channel Frequency (MHz) 6 dB Bandwidth (kHz) Limit (kHz) Result Low Channel 2402 713.290 > 500 Pass Middle Channel 2442 710.290 > 500 Pass High Channel 2480 713.290 > 500 Pass Low Channel Middle Channel High Channel Date: 26.MAY.2020 04:18:01Date: 26.MAY.2020 04:21:37 Date: 26.MAY.2020 04:24:12 Prü fbericht - Nr.: Test Report No. 60376687 001 Seite A2 von A5 Page A2 of A5 Test Result of 99% Occupied Bandwidth BLE_1M Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2402 1.03 Middle Channel 2442 1.03 High Channel 2480 1.03 Low Channel Middle Channel High Channel Date: 26.MAY.2020 04:18:57Date: 26.MAY.2020 04:22:12 Date: 26.MAY.2020 04:24:38 Prü fbericht - Nr.: Test Report No. 60376687 001 Seite A3 von A5 Page A3 of A5 Test Result of Power Spectral Density BLE_1M Channel Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel 2402 -6.84 8 Pass Middle Channel 2442 -6.95 8 Pass High Channel 2480 -6.82 8 Pass Low Channel Middle Channel High Channel Date: 26.MAY.2020 04:19:56Date: 26.MAY.2020 04:22:40 Date: 26.MAY.2020 04:25:11 Prü fbericht - Nr.: Test Report No. 60376687 001 Seite A4 von A5 Page A4 of A5 Test Result of Conducted Spurious Emissions, Tx Mode BLE_1M Low Channel Middle Channel High Channel Date: 26.MAY.2020 04:20:44Date: 26.MAY.2020 04:23:10 Date: 26.MAY.2020 04:26:01 Prü fbericht - Nr.: Test Report No. 60376687 001 Seite A5 von A5 Page A5 of A5 Test Result of Conducted Band Edge, Tx Mode BLE_1M Low Channel High Channel Date: 26.MAY.2020 04:20:24Date: 26.MAY.2020 04:25:35

Test Report

Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B1 von B10 Page B1 of B10 Appendix B: Test Results of Radiated Spurious Emissions & Mains Conducted Emission Test Band Edges, 2.35GHz ~ 2.5GHz BLE_1M Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B2 von B10 Page B2 of B10 BLE_1M Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B3 von B10 Page B3 of B10 BLE_1M High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B4 von B10 Page B4 of B10 BLE_1M High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B5 von B10 Page B5 of B10 Spurious Emissions, Tx Mode, 9kHz ~ 30MHz BLE_1M High Channel 9kHz~150kHz High Channel 150kHz~30MHz Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B6 von B10 Page B6 of B10 Spurious Emissions, Tx Mode, 30MHz ~ 1GHz BLE_1M High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B7 von B10 Page B7 of B10 Spurious Emissions, Tx Mode, 1GHz ~ 40GHz BLE_1M Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B8 von B10 Page B8 of B10 BLE_1M Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B9 von B10 Page B9 of B10 BLE_1M High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376687 001 Seite B10 von B10 Page B10 of B10 Mains Conducted Emission, 150kHz ~ 30MHz BLE_1M 2480MHz (Line) (Neutral)

Test Report

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: 60376687 001 Auftrags-Nr.: Order no.: 238486687 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 18-May-2020 Auftraggeber: Client: Pamex Inc. 4680 VINITA CT, CHINO, CA, 91710, UNITED STATES Prü fgegenstand: Test item: Kapture Wifi Bridge Bezeichnung / Typ-Nr.: Identification / Type no.: KP1-LINK Auftrags-Inhalt: Order content: FCC Part 15C Test report (BLE) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 25-May-2020 Prü fmuster-Nr.: Test sample no: A002832902-007 A002832902-008 Prü fzeitraum: Testing period: 25-May-2020 – 2-Jun-2020 Ort der Prü fung: Place of testing: EMC/RF Laboratory Taipei Prü flaboratorium: Testing laboratory: Taipei Testing laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: reviewed by: Mars Y.J. Lin genehmigt von authorized by: Ryan W.T. Chen Datum: 3-Jun-2020 Date: Datum: 3-Jun-2020 Date: Stellung / Position: Project Engineer Stellung / Position: Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] Web: www.tuv.com Produkte Products Prü fbericht - Nr.: Test Report No. 60376687 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission Pass 6.1 FCC CFR 47 Part 2 Subpart J Section 2.1091 RF Exposure Compliance Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Produkte Products Prü fbericht - Nr.: Test Report No. 60376687 001 Seite 3 von 27 Page 3 of 27 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 9 3.4 SUBMITTED DOCUMENTS ....................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................. 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 10 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 10 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 11 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 12 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ........................................... 13 4.6 TEST SETUP DIAGRAM ........................................................................................ 13 5. TEST RESULTS ................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 14 5.1.1 Antenna Requirement .............................................................................................................14 5.1.2 Peak Output Power .....................................................…

Text truncated - open the document above for the full version.

Test Report

Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A1 von A18 Page A1 of A18 Appendix A: Test Results of Conducted Test Test Result of 6 dB Bandwidth 802.11b Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2412 9.99 > 0.5 Pass Middle Channel 2437 9.03 > 0.5 Pass High Channel 2462 9.51 > 0.5 Pass Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:46:02Date: 30.MAY.2020 12:55:16 Date: 30.MAY.2020 13:04:01 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A2 von A18 Page A2 of A18 802.11g Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2412 16.30 > 0.5 Pass Middle Channel 2437 16.30 > 0.5 Pass High Channel 2462 16.30 > 0.5 Pass Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:31:06Date: 30.MAY.2020 12:34:55 Date: 30.MAY.2020 12:38:05 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A3 von A18 Page A3 of A18 802.11n HT20 Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2412 17.54 > 0.5 Pass Middle Channel 2437 17.50 > 0.5 Pass High Channel 2462 17.54 > 0.5 Pass Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:16:20Date: 30.MAY.2020 12:19:29 Date: 30.MAY.2020 12:22:54 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A4 von A18 Page A4 of A18 802.11n HT40 Channel Channel Frequency (MHz) 6 dB Bandwidth (MHz) Limit (MHz) Result Low Channel 2422 35.40 > 0.5 Pass Middle Channel 2437 35.64 > 0.5 Pass High Channel 2452 35.01 > 0.5 Pass Low Channel Middle Channel High Channel Date: 30.MAY.2020 11:59:02Date: 30.MAY.2020 12:03:20 Date: 30.MAY.2020 12:10:32 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A5 von A18 Page A5 of A18 Test Result of 99% Occupied Bandwidth 802.11b Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2412 14.51 Middle Channel 2437 14.59 High Channel 2462 14.53 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:46:49Date: 30.MAY.2020 12:58:06 Date: 30.MAY.2020 13:04:21 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A6 von A18 Page A6 of A18 802.11g Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2412 17.18 Middle Channel 2437 17.30 High Channel 2462 16.98 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:31:36Date: 30.MAY.2020 12:35:18 Date: 30.MAY.2020 12:39:19 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A7 von A18 Page A7 of A18 802.11n HT20 Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2412 17.82 Middle Channel 2437 18.06 High Channel 2462 18.42 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:16:56Date: 30.MAY.2020 12:19:45 Date: 30.MAY.2020 12:23:13 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A8 von A18 Page A8 of A18 802.11n HT40 Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2422 36.50 Middle Channel 2437 36.84 High Channel 2452 36.58 Low Channel Middle Channel High Channel Date: 30.MAY.2020 11:59:27Date: 30.MAY.2020 12:03:38 Date: 30.MAY.2020 12:10:56 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A9 von A18 Page A9 of A18 Test Result of Power Spectral Density 802.11b 3 Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Low Channel 2412 -3.66 8 Middle Channel 2437 -3.06 8 High Channel 2462 -2.52 8 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:48:14Date: 30.MAY.2020 13:00:14 Date: 30.MAY.2020 13:04:54 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A10 von A18 Page A10 of A18 802.11g Channel Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Low Channel 2412 -4.98 8 Middle Channel 2437 -5.09 8 High Channel 2462 -4.85 8 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:32:08Date: 30.MAY.2020 12:36:02 Date: 30.MAY.2020 12:41:02 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A11 von A18 Page A11 of A18 802.11n HT20 Channel Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Low Channel 2412 -5.71 8 Middle Channel 2437 -5.41 8 High Channel 2462 -4.31 8 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:17:27Date: 30.MAY.2020 12:20:24 Date: 30.MAY.2020 12:23:36 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A12 von A18 Page A12 of A18 802.11n HT40 Channel Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Low Channel 2422 -11.57 8 Middle Channel 2437 -9.72 8 High Channel 2452 -10.33 8 Low Channel Middle Channel High Channel Date: 30.MAY.2020 11:59:50Date: 30.MAY.2020 12:04:02 Date: 30.MAY.2020 12:11:34 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A13 von A18 Page A13 of A18 Test Result of Conducted Spurious Emissions 802.11b Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:51:37Date: 30.MAY.2020 13:01:37 Date: 30.MAY.2020 13:06:20 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A14 von A18 Page A14 of A18 802.11g Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:33:36Date: 30.MAY.2020 12:36:30 Date: 30.MAY.2020 12:44:22 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A15 von A18 Page A15 of A18 802.11n HT20 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:18:09Date: 30.MAY.2020 12:20:46 Date: 30.MAY.2020 12:24:14 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A16 von A18 Page A16 of A18 802.11n HT40 Low Channel Middle Channel High Channel Date: 30.MAY.2020 12:00:40Date: 30.MAY.2020 12:04:44 Date: 30.MAY.2020 12:12:34 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A17 von A18 Page A17 of A18 Test Result of Conducted Bandedge, Tx Mode 802.11b Low Channel High Channel 802.11g Low Channel High Channel Date: 30.MAY.2020 12:49:21Date: 30.MAY.2020 13:05:27 Date: 30.MAY.2020 12:33:08Date: 30.MAY.2020 12:43:49 Prü fbericht - Nr.: Test Report No. 60376686 001 Seite A18 von A18 Page A18 of A18 802.11n HT20 Low Channel High Channel 802.11n HT40 Low Channel High Channel Date: 30.MAY.2020 12:17:47Date: 30.MAY.2020 12:23:55 Date: 30.MAY.2020 12:00:12Date: 30.MAY.2020 12:12:05

Test Report

Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B1 von B31 Page B1 of B31 Appendix B: Test Results of Radiated Spurious Emissions & Mains Conducted Emission Test Band Edges, 2.35GHz ~ 2.5GHz 802.11b Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B2 von B31 Page B2 of B31 802.11b Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B3 von B31 Page B3 of B31 802.11b High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B4 von B31 Page B4 of B31 802.11b High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B5 von B31 Page B5 of B31 802.11g Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B6 von B31 Page B6 of B31 802.11g Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B7 von B31 Page B7 of B31 802.11g High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B8 von B31 Page B8 of B31 802.11g High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B9 von B31 Page B9 of B31 802.11n HT20 Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B10 von B31 Page B10 of B31 802.11n HT20 Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B11 von B31 Page B11 of B31 802.11n HT20 High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B12 von B31 Page B12 of B31 802.11n HT20 High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B13 von B31 Page B13 of B31 802.11n HT40 Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B14 von B31 Page B14 of B31 802.11n HT40 Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B15 von B31 Page B15 of B31 802.11n HT40 High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B16 von B31 Page B16 of B31 802.11n HT40 High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B17 von B31 Page B17 of B31 Spurious Emissions, Tx Mode, 9kHz ~ 30MHz 802.11n HT40 Low Channel 9kHz~150kHz Low Channel 150kHz~30MHz Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B18 von B31 Page B18 of B31 Spurious Emissions, Tx Mode, 30MHz ~ 1GHz 802.11n HT40 Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B19 von B31 Page B19 of B31 Spurious Emissions, Tx Mode, 1GHz ~ 26.5GHz 802.11b Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B20 von B31 Page B20 of B31 802.11b Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B21 von B31 Page B21 of B31 802.11b High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B22 von B31 Page B22 of B31 802.11g Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B23 von B31 Page B23 of B31 802.11g Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B24 von B31 Page B24 of B31 802.11g High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B25 von B31 Page B25 of B31 802.11n HT20 Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B26 von B31 Page B26 of B31 802.11n HT20 Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B27 von B31 Page B27 of B31 802.11n HT20 High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B28 von B31 Page B28 of B31 802.11n HT40 Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B29 von B31 Page B29 of B31 802.11n HT40 Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B30 von B31 Page B30 of B31 802.11n HT40 High Channel (Horizontal) High Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60376686 001 Seite B31 von B31 Page B31 of B31 Mains Conducted Emission, 150kHz ~ 30MHz 802.11n HT40 2422MHz (Line) (Neutral)

Test Report

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: 60376686 001 Auftrags-Nr.: Order no.: 238486687 Seite 1 von 31 Page 1 of 31 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 18-May-2020 Auftraggeber: Client: Pamex Inc. 4680 VINITA CT, CHINO, CA, 91710, UNITED STATES Prü fgegenstand: Test item: Kapture Wifi Bridge Bezeichnung /…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Charles Chen(Product Manager)

[email protected]909-606-4168Fax: 909-606-4358

Test Firm

TUV Rheinland Taiwan Ltd. Taipei Testing Lab.Kenji Lin

[email protected]+886-2-2172-7000Fax: +886-2-2172-1322

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15C	2.42 GHz - 2.45 GHz	251.00 mW

Confidentiality

Long Term

Grant Notes

Power output listed is peak conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Wi-Fi Supports 20 MHz and 40MHz bandwidth.
