2AQ8LTREKC1Temperature Data logger with Bluetooth Low Energy

Parsyl Trek Tab User Guide 2020 Trek​ Tab The Android App The Web Application Gateway Safety and Certification 1 The Trek Tab Product Sheet Basic specifications of Trek Tab device User Guide Shipments Configuration Settings 2 The Trek Tab Product Overview Sensors Enclosures Wireless Connectivity Bluetooth Low Energy (BLE) 5.0 - 2.4GHz, Class 2. Warranty The product is covered by a one year warranty in the event of any component failure not caused by mechanical damage. 3 Temperature Normal Operating Range -30°C to +55°C Sensing Range -30°C to +70°C Accuracy ±0.3°C to ±0.4°C Resolution 0.01°C Calibration NIST Traceable, ISO/IEC 17025 certified Dimensions 51mm x 26mm x 5.3mm Weight 9g Battery 100 days of active logging at 0°C, 24-month shelf life at 20°C Ingress Protection IP67-rated. Water and dust resistant. Status Indicators Bright LED lights indicate status of device and monitoring. The Trek Tab User Guide Status button, LED Display The Trek Tab LED display utilizes indicator lights in green or red in varying patterns to indicate status. The center LED indicates the recording status. A flashing green LED after a single short button press indicates that the Trek Tab is actively recording. The left [✔] LED indicates with a flashing green LED after a single short button press that the Trek Tab has not experienced conditions that exceed any of the threshold alarm settings. If the button is pressed while the TrekTab is actively recording, the [✔] LED will flash in sequence after the center LED flashing green. The right [✖] LED indicates with a flashing red LED after a single short button press when the Trek Tab has experienced at least one instance of conditions exceeding at least one of the threshold alarm settings. If the button is pressed while the Trek Tab is actively recording, the right [✖] LED will flash in sequence after the center LED flashing green. Shipments To activate the Trek Tab device to track a shipment, press and hold the ‘Push’ button for 3-seconds until the center LED flashes green. Depending on your shipping profile settings, there may be a delay after the unit is activated until it begins recording. 4 Data Transfer In order to access the data recorded on the Trek Tab, it will need to be offloaded by a ​Gateway or the ​Parsyl Mobile App​. To offload data with the app, start by ​logging in​ or selecting ​Transfer Data​. To view the Trek Tab data and analyze findings, log into the ​Parsyl Web Application​ and select the appropriate Shipment from the list within your Company to view the details. 5 The Trek Tab Configuration Settings Excursions An excursion is defined as any time spent outside of “expected ranges” when monitoring your products. Excursion thresholds are defined by your specific needs and set by creating upper and lower limits of temperature. Options for excursions Within our excursion settings, you have two options for tracking the excursions recorded by our Treks: ●Cumulative​ excursions will sum all of the time your Trek Tab records values outside the predetermined range, even if those values temporarily enter back into normal range during the Trek Tab’s journey. Optionally, the Trek Tab can be reset once the alarm has been breached or the device has been turned off. ●Continuous ​excursions occur only when the readings from your Trek are outside the predetermined range, continuously, for a specified amount of time. The timer becomes reset upon detecting that readings have returned to “normal” or “expected” ranges. Alerts The Trek Tab can be configured to display and record varying alert “levels” given certain values and threshold conditions. There are three (optional) severity levels that can be customized to your preferred workflow and procedure requirements: ●Info:​ normal, or expected recordings for data points logged by the Trek Tab. ●Warning:​ “concerning” recordings for data points logged by the Trek Tab. ●Alarm:​ “high-level of concern” recordings for data points logged by the Trek Tab. Note:​ Only alarm and normal conditions are indicated by the LEDs of the TrekTab. Warning conditions are accessible by means of mobile and web interfaces. Customizations Within each alert type, the behavior requested when each severity threshold is met can be customized to your desire. Settings that are customizable for displaying alarms on the Trek Tab include: ●Alarm threshold settings ●Logging start delay Please note that no action is required from the user to ensure uninterrupted use of the device during electromagnetic disturbance. 6 The Android App User Guide Getting Started Shipments Settings 7 The Android App User Guide Getting Started Before you begin, you must have a Parsyl account with appropriate permissions to access the Android App experience for your company’s Parsyl account. Download the Parsyl Android App from the Google Play store, ​here​. Once the download is complete, open the Parsyl App from your Android phone. Log in by entering your email address or phone number and entering the login code we send you. 8 Shipments The Shipments section of the Android app is reserved for the monitoring and analyzing of shipment data recorded by the Trek Tab during its journey. Trek Details Screen Upon scanning the QR code of a Trek Tab, from the Shipments section within the Mobile App, you will be taken to the Trek Details screen. This screen provides an example of the details of the shipment including at least one time-temperature limit violation for each alarm type including the first time-temperature-violation of high and low temperature alarms. 9 The ​Trek Details​ screen highlights the current reading for the given Trek Tab, other details about the Trek Tab including its Product Type, Mode and total monitoring time for that shipment. At the conclusion of a shipment, tap​ Transfer Data​ to transfer the data collected from the Trek Tab device to the Parsyl Web Application for further analysis. Settings Mobile App Usage Settings From the Parsyl Android App, you…

Text truncated - open the document above for the full version.

COMPANY LETTERHEAD Date (01/12/2021) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2AQ8LTREKC1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Parsyl Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics PCB & Components list Block Diagrams Operating instruction Parsyl Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: internal photos User manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Murat Erdogan Telephone Number: +1 5038587599 Email: [email protected]

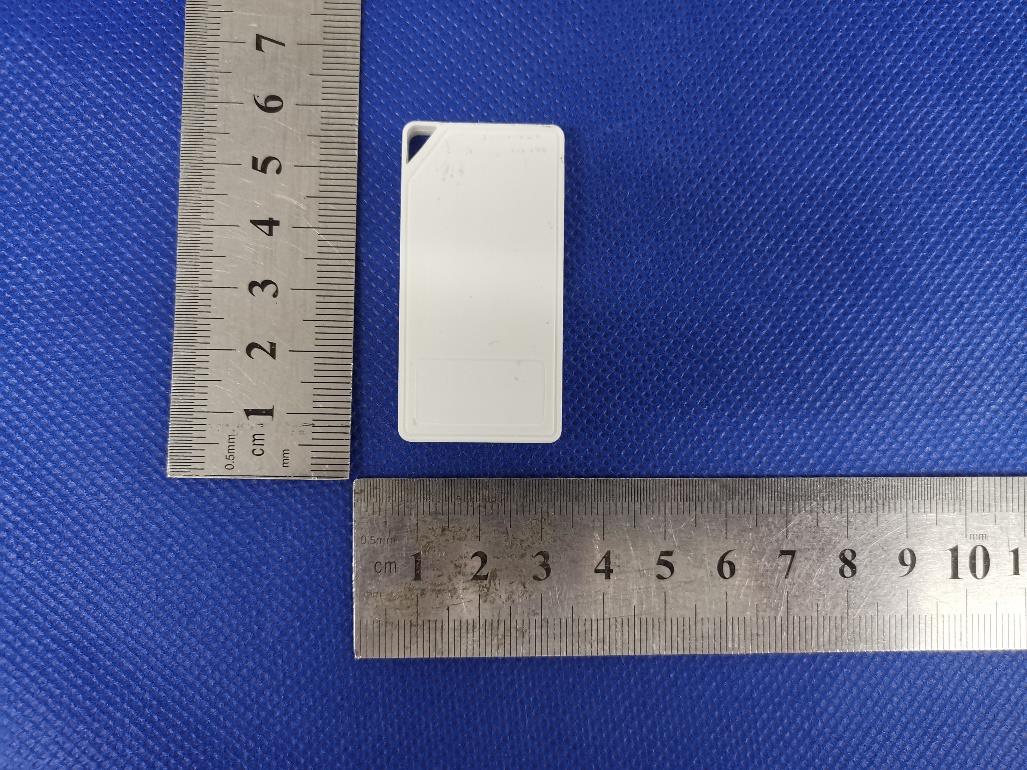

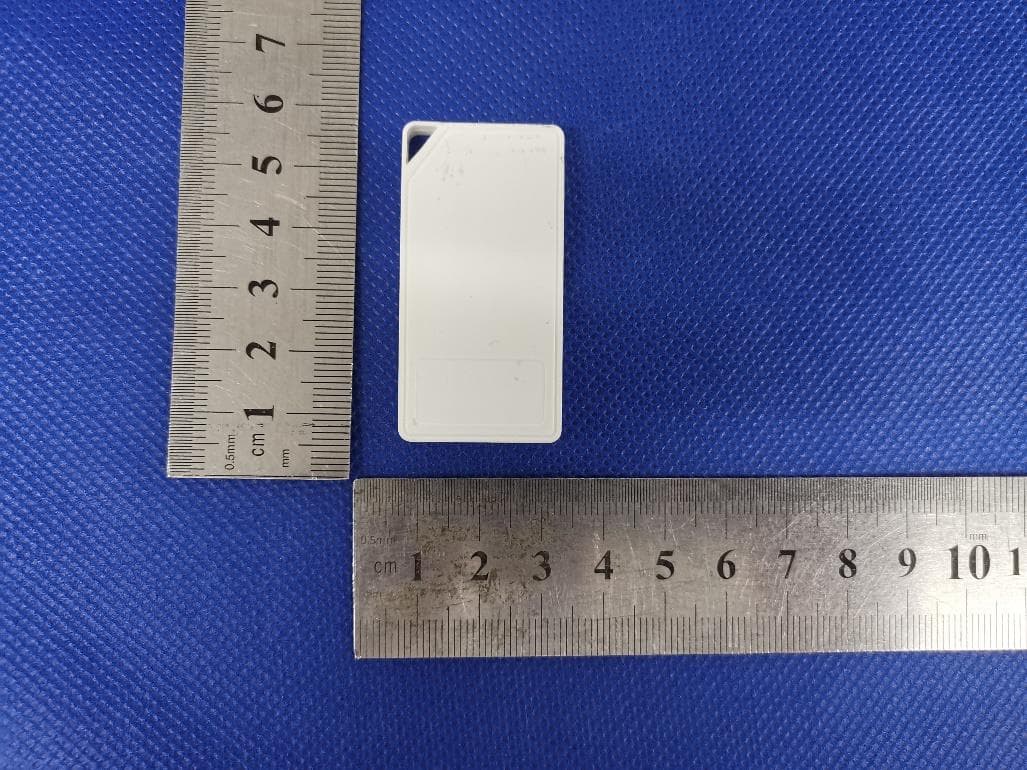

Project No: Rev.: 00 Date: Page: 1 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Photo Documentation Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 2 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 3 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom

Project No: Rev.: 00 Date: Page: 1 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Photo Documentation Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 2 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom BLE Antanna

Report Number: 64.790.20.05491.01-S Page 1 of 1 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF exposure Estimation Applicant: Parsyl Inc. Address: 2825 Larimer Street, Denver CO 80205 USA FCC ID: 2AQ8LTREKC1 1. Product information EUT is a Temperature Data logger, 2.4GHz Bluetooth technology was used for communicating. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v06, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Maximum output power: -0.31dBm = 0.93mW Distance = 5 mm f = 2.402 GHz [0.93/5] * SQRT(2.402) = 0.29 0.29 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Guangzhou Branch Reviewed by: Prepared By: Peter Jia Matt Zhang Date: 2021-01-07 Date: 2021-01-07

Report Number: 64.790.20.05491.01 Page 1 of 29 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC- TEST REPORT Report Number : 64.790.20.05491.01 Date of Issue: January 7, 2021 Model : TREKC1 Product Type : Temperature Data logger Applicant : Parsyl Inc. Manufacturer : Parsyl Inc. Address : 2825 Larimer Street, Denver CO 80205 USA Test Result : ◼ Positive  Negative Total pages including Appendices : 29 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 64.790.20.05491.01 Page 2 of 29 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment under Test ........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 5 5 Summary of Test Results ................................................................................................................................................... 6 6 General Remarks ................................................................................................................................................................ 7 7 Test Setups .......................................................................................................................................................................... 8 8 Systems test configuration ................................................................................................................................................. 9 9 Technical Requirement .................................................................................................................................................... 10 9.1 Conducted Emission ................................................................................................................................................ 10 9.2 Conducted peak output power................................................................................................................................ 11 9.3 6dB bandwidth and 99% Occupied Bandwidth......................................................................................................... 13 9.4 Power spectral density ............................................................................................................................................. 17 9.5 Spurious RF conducted emissions ........................................................................................................................ 19 9.6 Band edge ................................................................................................................................................................. 23 9.7 Spurious radiated emissions for transmitter ......................................................................................................... 25 10 Test Equipment List ...................................................................................................................................................... 28 11 System Measurement Uncertainty ............................................................................................................................. 29 Report Number: 64.790.20.05491.01 Page 3 of 29 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China FCC Registration Number: 514049 IC Registration Number: 10320A Telephone: 86 755 8828 6998 Fax: 86 755 828 5299 Report Number: 64.790.20.05491.01 Page 4 of 29 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F,Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 …

Text truncated - open the document above for the full version.

Spurious radiated emissions (30MHz-1000MHz) Spurious Emission (Above 1GHz)
