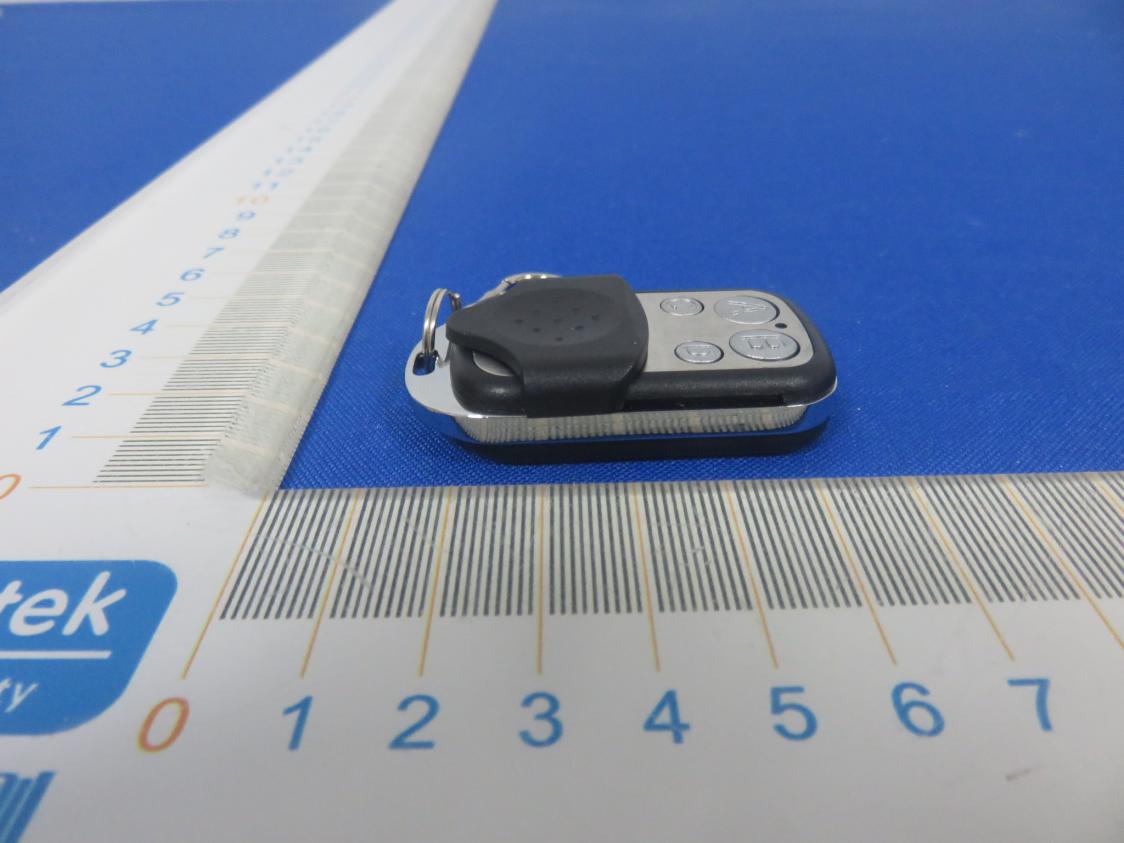

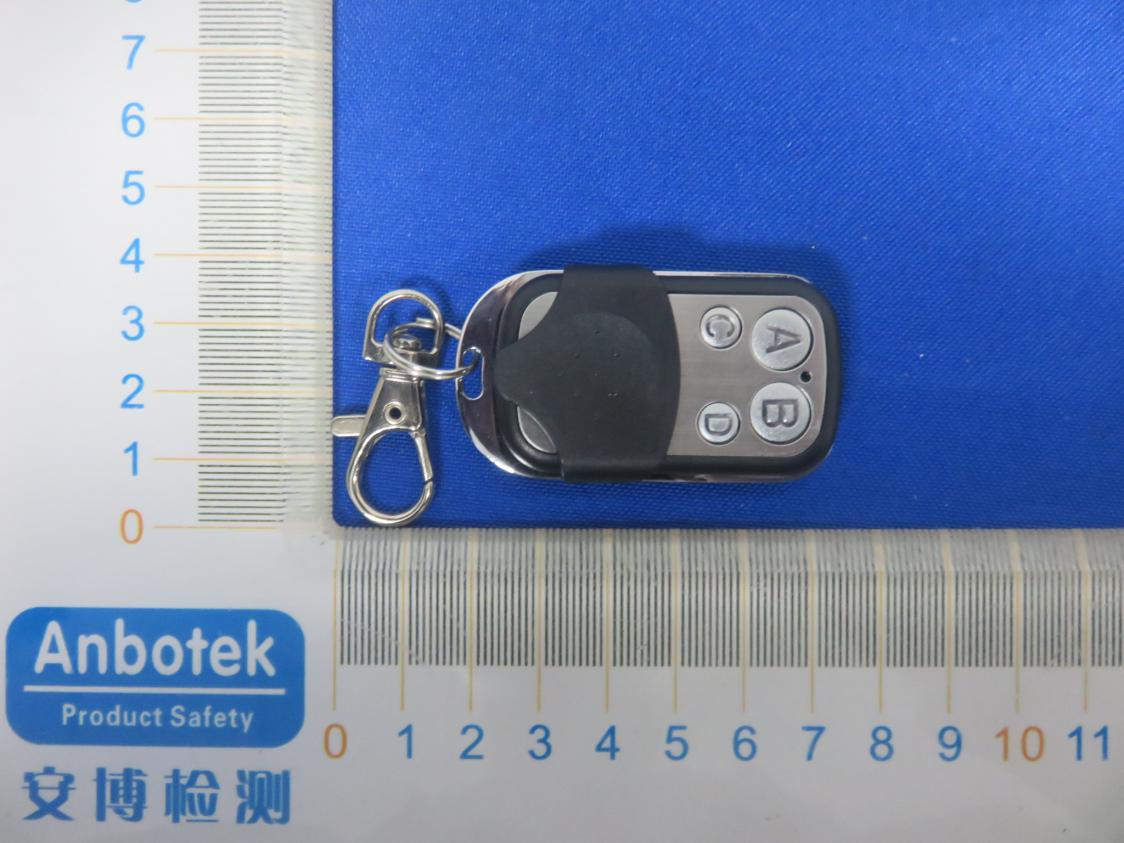

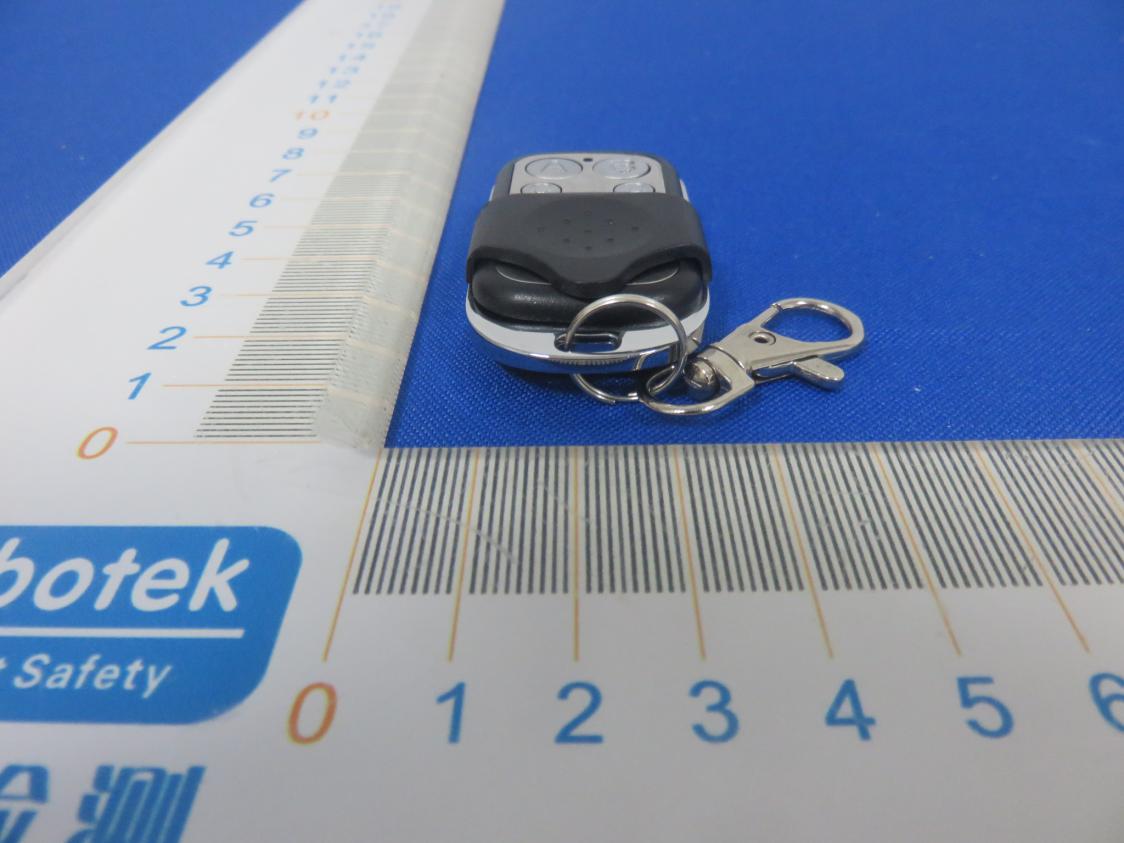

2AQA6-H1131Remote Control

Shenzhen Zhianbao Electronics Co.,Ltd Add:On 5th floor of A1 Bldg in Donghua of the third industrial Park in Baoan area,Shenzhen Guangdong ,China Tel: 86-0755-33075723-801Fax:86-0755-23462824 Mobile phone:86-13418538078 product name: remote control Product model：H1131 Features : It is designed with,beautiful exterior,Sound wave resonator(SAW)is used for stabilizing frequency,It is applied for wireless alarms,wireless controlling device,etc. Tech Spec : Operating voltageDC12V Operating current12mA Transmitting power>10mW Modulation modeASK Quiescent Current0uA Operating frequency433.92 MHZ Transmitting distance60-100m(open space , receiving sensitivity : -108dBm) Encoding typefixed code, learning code, rolling code Ecoding ChipPT2262 , EV1527,HCS301 Size55mm*30mm*13mm Application : Widely used in various anti-theft alarms,security systems,Remote controlling devices,motor-driven curtain,roller blind door,garage gate ,gate barriers,motorcycle,short-range and long-range wireless remote control products,industrial control products. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

FCC ID: 2AQA6-H1131

Label Location On EUT Label Product Name: Remote Control Model No.: H1131 FCC ID: 2AQA6-H1131

FCC ID: 2AQA6-H1131 ANT

version01 Shenzhen Intellirocks Tech. Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: H1131 FCC ID : 2AQA6-H1131 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internalantenna type(s) described below: 433.92MHz antenna: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 433.92MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 401 Building 9, YunGu phase II, Nanshan, Liuxian Avenue, Taoyuan Street, Nanshan District, Shenzhen, China City:Nanshan ZIP / Postal code: N.A. Country:China Place:Shenzhen Date: 2020-01-08 Signature:

FCCID:2AQA6-H1131 RFEXPOSUREEVALUATION EUTSpecification EUTRemoteControl ModelNameH1131 Frequencyband (Operating) WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.32GHz/5.50GHz~5.70GHz WLAN:5.745GHz~5825GHz Others(433.92MHz) DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Max.outputpower80.60dBuV/m(-14.66dBm)(0.034mW) Antennagain0dBi EvaluationappliedMPEEvaluation SAREvaluation StandardRequirement PortableDevice Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthissection shallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequency energylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01GeneralRF ExposureGuidanceV6,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR, 16 where ·f(GHz)istheRFchanneltransmitfrequencyinGHz ·PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 ·Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. FCCID:2AQA6-H1131 MeasurementResult Channel Frequency (MHz) MaxOutput power(dBm) MaxOutput power(mW) Calculation Value (Note1) Threshold Value 433.92-14.660.0340.00453.0 EIRP=E-104.8+20logD=80.60-104.8+20log3=-14.66dbm Note1:CalculationValue=[(max.powerofchannel,mW)/(min. testseparationdistance,mm)]·[√f(GHz)]. Foxexample:0.034/5*√0.43392=0.0045≤3.0 AccordingtoKDB447498D01V6,thresholdatwhichnoSARrequiredis≤3.0for1-gSAR, separationdistanceis5mm,andnosimultaneousSARmeasurementisrequired. StandardApplicable Accordingto2.1093thisisaportabledevice.AccordingtoKDB447498D01V6,AppendixA SARtestexclusionthresholdsforbelowtable,thepowerlevel22mWat5mm. MeasurementResult: ThisisaportabledeviceandtheMax.peakoutputpoweris-14.66dBm(0.034mW)lowerthan lowthreshold22mWat5mmingeneralpopulationcategory; TheSARmeasurementisnotnecessary.

Report No.: SZAWW191130011-01 FCC ID: 2AQA6-H1131 Page 1 of 29 Code:AB-RF-05-a FCC Test Report Client Name : Shenzhen Intellirocks Tech. Co., Ltd. Address : Room 401 Building 9, YunGu phase II, Nanshan, Liuxian Avenue, Taoyuan Street, Nanshan District, Shenzhen, China Product Name : Remote Control Date : Jan. 08, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: SZAWW191130011-01 FCC ID: 2AQA6-H1131 Page 2 of 29 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................ 4 1.1. Client Information ..................................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................. 4 1.4. Description of Test Modes ...................................................................................................................... 5 1.5. List of channels ........................................................................................................................................ 5 1.6. Description Of Test Setup ....................................................................................................................... 6 1.7. Test Equipment List ................................................................................................................................. 7 1.8. Measurement Uncertainty ...................................................................................................................... 8 1.9. Description of Test Facility ...................................................................................................................... 8 2. Summary of Test Results ................................................................................................................................... 9 3. Conducted Emission Test ................................................................................................................................ 10 3.1. Test Standard and Limit ........................................................................................................................ 10 3.2. Test Setup ............................................................................................................................................... 10 3.3. Test Procedure ....................................................................................................................................... 10 3.4. Test Data ............................................................................................................................... .................. 10 4. Radiation Spurious Emission and Band Edge .............................................................................................. 11 4.1. Test Standard and Limit ........................................................................................................................ 11 4.2. Test Setup ............................................................................................................................................... 12 4.3. Test Procedure ....................................................................................................................................... 13 4.4. Test Data ................................................................................................................................................. 13 5. 20DB Occupy Bandwidth Test ......................................................................................................................... 19 5.1. Test Standard and Limit ........................................................................................................................ 19 5.2. Test Setup ............................................................................................................................................... 19 5.3. Test Procedure ....................................................................................................................................... 19 5.4. Test Data ................................................................................................................................................. 19 6. Dwell Time Test ................................................................................................................................................. 21 6.1. Test Standard and Limit ........................................................................................................................ 21 6.2. Test Setup ............................................................................................................................................... 21 6.3. Test Procedure ....................................................................................................................................... 21 6.4. Test Data ............................................................................................................................... .................. 21 7. Antenna Requirement ....................................................................................................................................... 23 7.1. Test Standard and Requirement .......................................................................................................... 23 7.2. Antenna Connected Construction ........................................................................................................ 23 APPENDIX I -- TEST SETUP PHOTOGRAPH ................................................................................................. 24 APPENDIX II -- EXTERNAL PHOTOGRAPH ...............................…

Text truncated - open the document above for the full version.

FCC ID: 2AQA6-H1131 Photo of Radiated Emission Measurement
