2AQLF-SD5BGXOTT BOX+GPON

RECOVERYUSBMICRO SDMIC Connect to the optical socket Power on TVie Press and hold Back+Home button at the same time, until the red light flashes quickly, then release it. Waiting for few seconds, until it pop up the message of pairing successfully. 1 1 2 234 GPON 8 5 WLAN 7 HDMI 6 Connect to the TV AV 9 RESET 11 DC 10 LAN 6 STB 1.5m HDMI cable 7 1m Ethernet cable 4 3 2 7 5 6 Android TV brings a world of content to your biggest screen. Easily search and watch blockbuster movies, stream apps, and ask questions to see answers from Google Search on the big screen. 1. Power on TVie 2. Connect to the optical cable 3. Connect to the Computer/laptop via Ethernet cable 4. Enter IP address “192.168.1.1” in the web browser 5. Login in with administrator account 6. Go to Network >> WLAN to set 2.4G Wi-Fi; Go to Network >> WLAN5G to set 2.4G Wi-Fi; Then click “Apply” button to keep it. Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC. AV HDMI WLAN LAN POE-OUT DC 12VRESETGPON AV HDMI WLAN LAN POE-OUT DC 12VRESETGPON 567891011 3 4 Use 2*AAA Compliance with GB battery Remove the back cover of RCU. According to the “+” and “-” pole to insert the batteries correctly. Put on the back cover. Note: 1. Do not mixed use the old and new batteries. 2. Please replace the batteries when the RCU under low power. 3. Please remove the batteries when the RCU not used for a long time. 1 2 34 1. Power: Power on/off the TVie. 2. APPS: Open APPS list. 3. Navigation buttons. 4. Back: Return one step back. 5. Home: Fast back to the home page. 6. VOL Up/Down: To adjusts the sound volume up or down. 7. Voice(Assistant): Enable voice recognition. 8. YouTube: The shortcut key to open YouTube. 9. Myanmar Cast: The shortcut key to open Myanmar Cast. 1 3 4 7 2 5 6 8 9 REMOTE CONTROL SETUP ROUTER 说明书 SY.SMS.77#.SD5BGD.2008007 技术要求： 1. 成形尺寸： 95 * 95 mm 2.产品不能变形、压痕、划伤、脏污等缺陷 3.图案文字印刷清晰，色差在允许范围内 4.风琴折 5.80g书纸，4C Y.017.100766A V1 Shenzhen SEI Robotics Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm from your body. The NII band I indoor use only.

Difference description FCC ID: 2AQLF-SD5BGX Model: SD5BGD,SD5BGX(“X” on behalf of one of 26 English Letters A-Z) The OTT BOX+GPON manufactured by Frontiir Pte (with Frontiir Co LTD, Myanmar) needs to apply for FCC certification. The applied models are as listed above. They are the same except for the model name, even the principle of the circuit, the electrical structure and all key components related to safety and electromagnetic compatibility are the same. The difference does not affect electromagnetic compatibility and safety. Company: Signature Allen Miu Frontiir Pte (with Frontiir Co LTD, Myanmar)

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: January 13, 2021 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AQLF-SD5BGX SD5BGD,SD5BGX(“X” on behalf of one of 26 English Letters A-Z) For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos 180 Internal Photos 180 Block Diagram Schematics Test Setup Photos 180 User’s Manual 180 Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Allen Miu Company: Frontiir Pte (with Frontiir Co LTD, Myanmar) Address: 809 Yakima Drive,Fremont, CA 94539,United States. Phone: 5109962071 Fax: 5109799639 E-Mail: [email protected]

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive,Fremont, CA 94539,United States. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/13/2021 To whom it may concern: We, Frontiir Pte (with Frontiir Co LTD, Myanmar), the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AQLF-SD5BGX including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Allen Miu Frontiir Pte (with Frontiir Co LTD, Myanmar)

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive,Fremont, CA 94539,United States. UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AQLF-SD5BGX (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Allen Miu Company: Frontiir Pte (with Frontiir Co LTD, Myanmar) Address: 809 Yakima Drive,Fremont, CA 94539,United States. Phone: 5109962071 Fax : 5109799639 Email: [email protected]

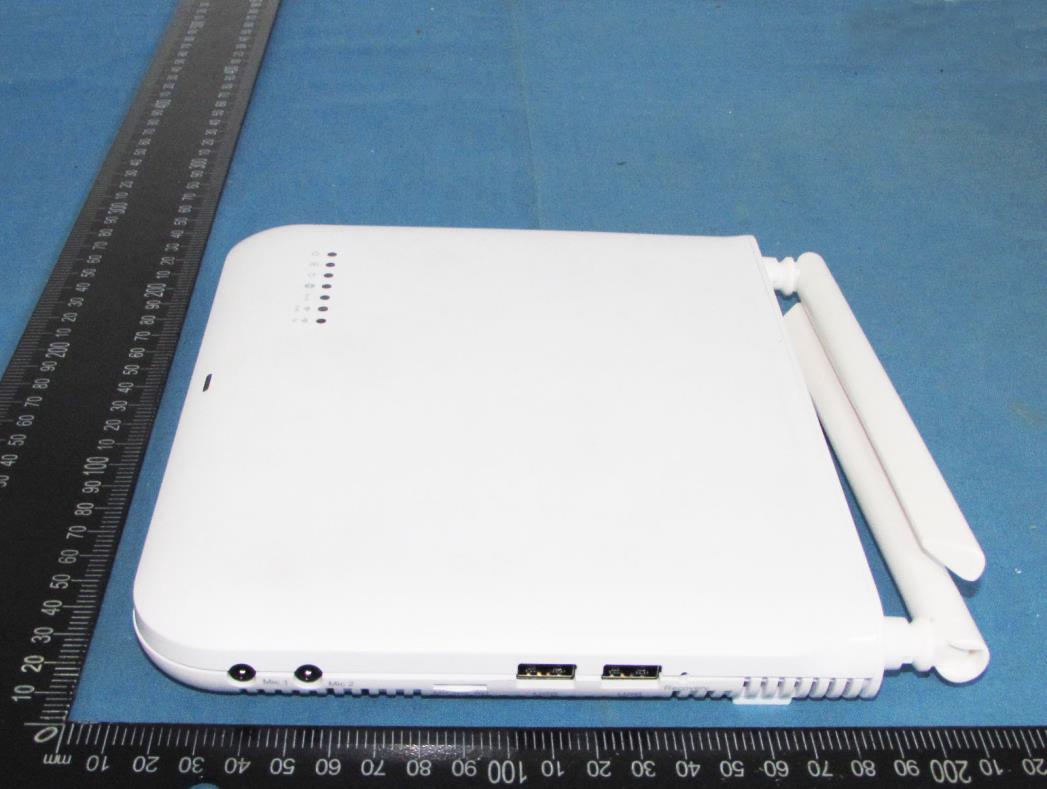

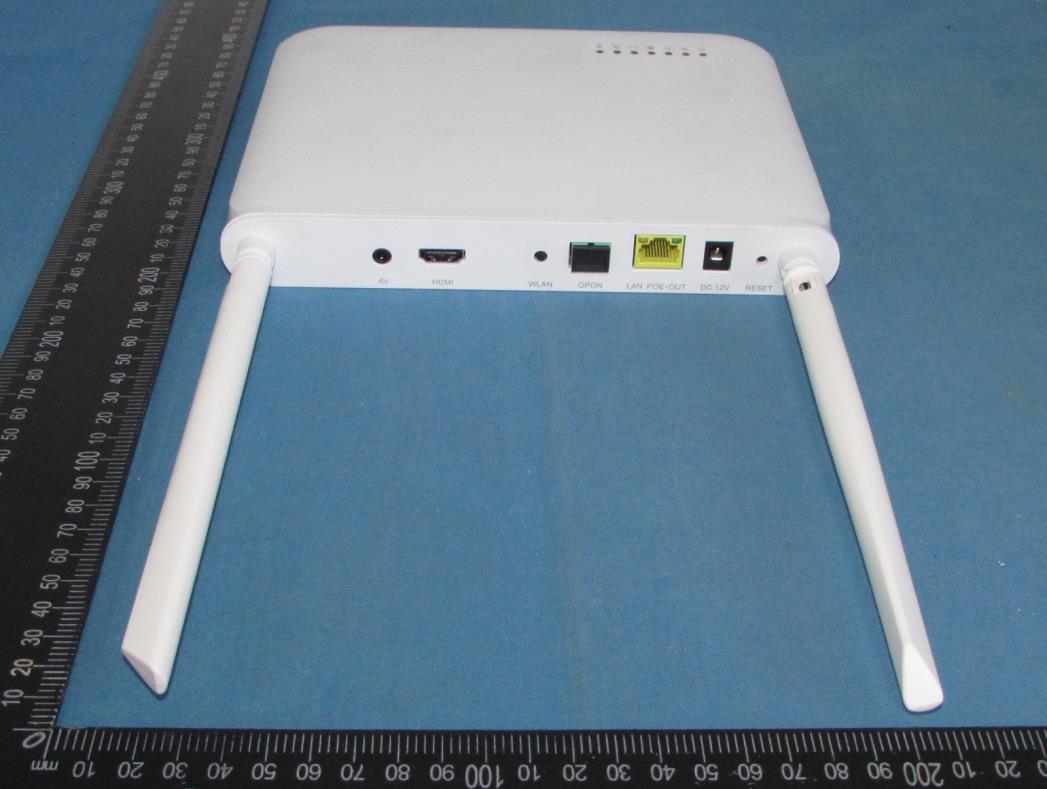

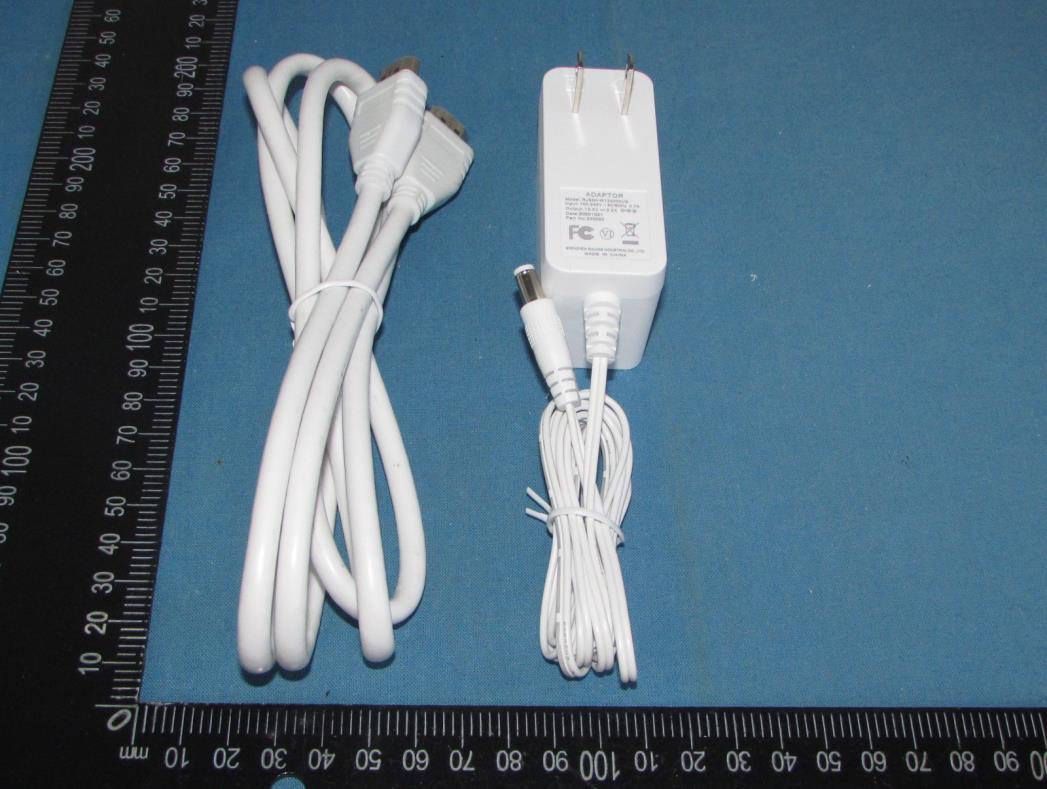

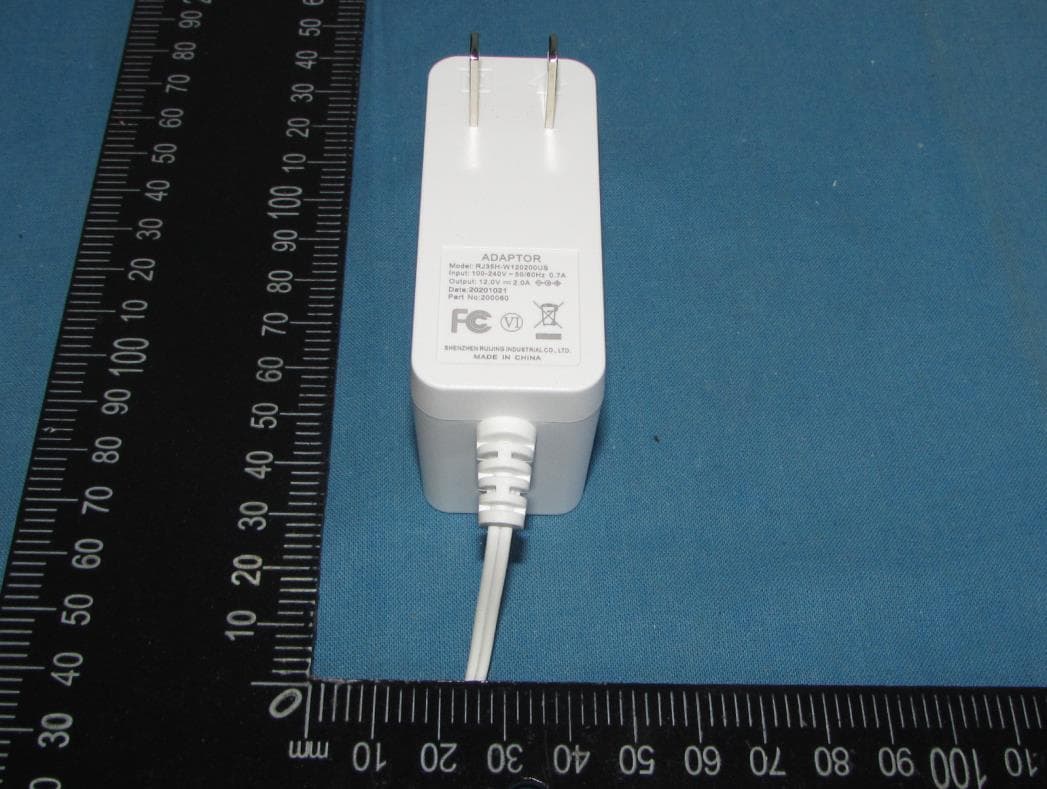

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 4 of 4

Label & Label Location Size: 45mm(L)*30mm(W) FCC ID: 2AQLF-SD5BGX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Internal Photos WiFi Antenna [Antenna 1] WiFi Antenna [Antenna 2] Bluetooth Antenna [Antenna 3] Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 11 Maximum Permissible Exposure Report Product Information EUT : OTT BOX+GPON Model Number : SD5BGD,SD5BGX(“X” on behalf of one of 26 English Letters A-Z) Model Declaration : All the same except for model name and color of cover Test Model : SD5BGD Power Supply : DC 12V by adapter Hardware version : GPON:SMB.258.02;OTT:SMB.257.03 Software version : 215 Sample ID : TZ201101782–2#&TZ201101782–4# Bluetooth Bluetooth Version : V4.0+EDR Channel Number : 79 Channels for Bluetooth BR/EDR(DSS) 40 Channels for BLE (DTS) Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth BR/EDR (DSS) GFSK for BLE (DTS) Data Rates : Bluetooth BR/EDR (DSS): 1/2/3Mbps BLE (DTS): 1Mbps Antenna Type And Gain Internal Antenna 3: 2.08dBi WiFi WLAN : Supported IEEE 802.11a/b/g/n WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz / 5180-5240MHz / 5745-5825MHz IEEE 802.11n HT40: 2422-2452MHz /5190-5230MHz / 5755-5795MHz IEEE 802.11a: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT20: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT40: 5190-5230MHz / 5755-5795MHz IEEE 802.11ac VHT80: 5210MHz / 5775MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 4 Channels for 5180-5240MHz (IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5190-5230MHz (IEEE 802.11ac VHT40/n HT40) 1 Channels for 5210MHz (IEEE 802.11ac VHT80) 5 Channels for 5745-5825MHz(IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5755-5795MHz(IEEE 802.11ac VHT40/n HT40) 1 Channels for 5775MHz(IEEE 802.11ac VHT80) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 11 IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : Antenna 2: 2.84dBi(Max.), for TX/RX (WLAN 2.4G Band) 3.64dBi(Max.), for TX/RX (WLAN 5.2G Band) 3.64dBi (Max.), for TX/RX (WLAN 5.8G Band) Antenna 2: 3.81dBi(Max.), for TX/RX (WLAN 2.4G Band) 3.95dBi(Max.), for TX/RX (WLAN 5.2G Band), 3.95dBi(Max.), for TX/RX (WLAN 5.8G Band) 802.11n/ac support 2T2R.[Antenna 2 and Antenna 2] Note: Antenna position refer to EUT Photos. 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 11 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use a…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 1 of 60 RF Test Data for RLAN(5.2G) (Conducted Measurement) Product Name: OTT BOX+GPON Trade Mark: N/A Test Model: SD5BGD FCC ID: 2AQLF-SD5BGX Environmental Conditions Temperature: 25.5C Relative Humidity: 55.2% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: Emission Bandwidth Test Result TestMode Antenna Channel 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 19.960 5170.000 5189.960 --- PASS Ant2 5180 19.920 5170.040 5189.960 --- PASS Ant1 5200 20.080 5190.080 5210.160 --- PASS Ant2 5200 20.240 5190.040 5210.280 --- PASS Ant1 5240 20.600 5229.920 5250.520 --- PASS Ant2 5240 20.320 5229.880 5250.200 --- PASS 11N20MIMO Ant1 5180 20.240 5169.800 5190.040 --- PASS Ant2 5180 20.280 5169.880 5190.160 --- PASS Ant1 5200 20.160 5189.960 5210.120 --- PASS Ant2 5200 20.320 5189.880 5210.200 --- PASS Ant1 5240 20.360 5229.760 5250.120 --- PASS Ant2 5240 20.520 5229.720 5250.240 --- PASS 11N40MIMO Ant1 5190 41.200 5169.280 5210.480 --- PASS Ant2 5190 40.960 5169.600 5210.560 --- PASS Ant1 5230 46.480 5209.600 5256.080 --- PASS Ant2 5230 40.480 5209.760 5250.240 --- PASS 11AC20MIMO Ant1 5180 20.320 5169.800 5190.120 --- PASS Ant2 5180 20.320 5169.800 5190.120 --- PASS Ant1 5200 20.360 5189.880 5210.240 --- PASS Ant2 5200 20.480 5189.840 5210.320 --- PASS Ant1 5240 20.360 5229.920 5250.280 --- PASS Ant2 5240 20.640 5229.840 5250.480 --- PASS 11AC40MIMO Ant1 5190 40.640 5169.680 5210.320 --- PASS Ant2 5190 41.600 5169.200 5210.800 --- PASS Ant1 5230 40.400 5209.920 5250.320 --- PASS Ant2 5230 41.040 5209.600 5250.640 --- PASS 11AC80MIMO Ant1 5210 80.800 5169.680 5250.480 --- PASS Ant2 5210 81.600 5169.040 5250.640 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 2 of 60 Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 3 of 60 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 4 of 60 11N20MIMO_Ant1_5180 11N20MIMO_Ant2_5180 11N20MIMO_Ant1_5200 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 5 of 60 11N20MIMO_Ant2_5200 11N20MIMO_Ant1_5240 11N20MIMO_Ant2_5240 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 6 of 60 11N40MIMO_Ant1_5190 11N40MIMO_Ant2_5190 11N40MIMO_Ant1_5230 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 7 of 60 11N40MIMO_Ant2_5230 11AC20MIMO_Ant1_5180 11AC20MIMO_Ant2_5180 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 8 of 60 11AC20MIMO_Ant1_5200 11AC20MIMO_Ant2_5200 11AC20MIMO_Ant1_5240 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 9 of 60 11AC20MIMO_Ant2_5240 11AC40MIMO_Ant1_5190 11AC40MIMO_Ant2_5190 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 10 of 60 11AC40MIMO_Ant1_5230 11AC40MIMO_Ant2_5230 11AC80MIMO_Ant1_5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 11 of 60 11AC80MIMO_Ant2_5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 12 of 60 Appendix B: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11A Ant1 5180 11.04 <=30.00 PASS Ant2 5180 10.39 <=30.00 PASS Ant1 5200 10.45 <=30.00 PASS Ant2 5200 9.50 <=30.00 PASS Ant1 5240 12.13 <=30.00 PASS Ant2 5240 10.86 <=30.00 PASS 11N20MIMO Ant1 5180 10.01 <=30.00 PASS Ant2 5180 9.29 <=30.00 PASS total 5180 12.7 <=29.19 PASS Ant1 5200 9.39 <=30.00 PASS Ant2 5200 8.35 <=30.00 PASS total 5200 11.9 <=29.19 PASS Ant1 5240 11.20 <=30.00 PASS Ant2 5240 9.82 <=30.00 PASS total 5240 13.6 <=29.19 PASS 11N40MIMO Ant1 5190 9.69 <=30.00 PASS Ant2 5190 8.81 <=30.00 PASS total 5190 12.3 <=29.19 PASS Ant1 5230 11.54 <=30.00 PASS Ant2 5230 10.23 <=30.00 PASS total 5230 13.9 <=29.19 PASS 11AC20MIMO Ant1 5180 9.94 <=30.00 PASS Ant2 5180 9.33 <=30.00 PASS total 5180 12.7 <=29.19 PASS Ant1 5200 9.32 <=30.00 PASS Ant2 5200 8.32 <=30.00 PASS total 5200 11.9 <=29.19 PASS Ant1 5240 10.42 <=30.00 PASS Ant2 5240 9.57 <=30.00 PASS total 5240 13.0 <=29.19 PASS 11AC40MIMO Ant1 5190 9.71 <=30.00 PASS Ant2 5190 8.79 <=30.00 PASS total 5190 12.3 <=29.19 PASS Ant1 5230 11.58 <=30.00 PASS Ant2 5230 10.19 <=30.00 PASS total 5230 14.0 <<=29.19 PASS 11AC80MIMO Ant1 5210 9.76 <=30.00 PASS Ant2 5210 8.82 <=30.00 PASS total 5210 12.3 <=29.19 PASS Note：The Duty Cycle Factor is compensated in the graph. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 13 of 60 Appendix C: Maximum power spectral density Test Result TestMode Antenna Channel Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant0 5180 4.9 <=17 PASS Ant1 5180 3.29 <=17 PASS Ant0 5200 3.25 <=17 PASS Ant1 5200 3.83 <=17 PASS Ant0 5240 3.13 <=17 PASS Ant1 5240 3.4 <=17 PASS 11N20MIMO Ant0 5180 1.31 <=17 PASS Ant1 5180 0.87 <=17 PASS total 5180 4.11 <=14.94 PASS Ant0 5200 0.88 <=17 PASS Ant1 5200 1 <=17 PASS total 5200 3.95 <=14.94 PASS Ant0 5240 1.23 <=17 PASS Ant1 5240 1.55 <=17 PASS total 5240 4.40 <=14.94 PASS 11N40MIMO Ant0 5190 -2.1 <=17 PASS Ant1 5190 -3.41 <=17 PASS total 5190 0.30 <=14.94 PASS Ant0 5230 -1.45 <=17 PASS Ant1 5230 -1.65 <=17 PASS total 5230 1.46 <=14.94 PASS 11AC20MIMO Ant0 5180 1.36 <=17 PASS Ant1 5180 0.88 <=17 PASS total 5180 4.14 <=14.94 PASS Ant0 5200 0.77 <=17 PASS Ant1 5200 1.56 <=17 PASS total 5200 4.19 <=14.94 PASS Ant0 5240 1.07 <=17 PASS Ant1 5240 0.97 <=17 PASS total 5240 4.03 <=14.94 PASS 11AC40MIMO Ant0 5190 -2.42 <=17 PASS Ant1 5190 -3.59 <=17 PASS total 5190 0.04 <=14.94 PASS Ant0 5230 -1.31 <=17 PASS Ant1 5230 -1.54 <=17 PASS total 5230 1.59 <=14.94 PASS 11AC80MIMO Ant0 5210 -1.74 <=17 PASS Ant1 5210 -1.77 <=17 PASS total 521…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 30 of 60 11AC20MIMO_Ant2_High_5240 11AC40MIMO_Ant1_Low_5190 11AC40MIMO_Ant2_Low_5190 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 31 of 60 11AC40MIMO_Ant1_High_5230 11AC40MIMO_Ant2_High_5230 11AC80MIMO_Ant1_Low_5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 32 of 60 11AC80MIMO_Ant2_Low_5210 11AC80MIMO_Ant1_High_5210 11AC80MIMO_Ant2_High_5210 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 33 of 60 Appendix G: Frequency Stability Test Result Ant 1 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5180 20 132 5180.002246 5150 – 5250 PASS 5180 20 108 5179.911813 5150 – 5250 PASS 5180 50 120 5179.964404 5150 – 5250 PASS 5180 40 120 5179.960909 5150 – 5250 PASS 5180 30 120 5180.020997 5150 – 5250 PASS 5180 20 120 5179.901398 5150 – 5250 PASS 5180 10 120 5180.007019 5150 – 5250 PASS 5180 0 120 5179.975880 5150 – 5250 PASS 5180 -10 120 5179.961686 5150 – 5250 PASS 5180 -20 120 5180.072601 5150 – 5250 PASS 5180 -30 120 5180.090135 5150 – 5250 PASS Ant 2 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5180 20 132 5180.067830 5150 – 5250 PASS 5180 20 108 5180.080599 5150 – 5250 PASS 5180 50 120 5179.958489 5150 – 5250 PASS 5180 40 120 5179.984433 5150 – 5250 PASS 5180 30 120 5180.000347 5150 – 5250 PASS 5180 20 120 5180.061390 5150 – 5250 PASS 5180 10 120 5179.939478 5150 – 5250 PASS 5180 0 120 5180.035407 5150 – 5250 PASS 5180 -10 120 5179.961198 5150 – 5250 PASS 5180 -20 120 5179.978237 5150 – 5250 PASS 5180 -30 120 5180.024082 5150 – 5250 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 34 of 60 Ant 1 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5200 20 132 5200.054100 5150 – 5250 PASS 5200 20 108 5200.067042 5150 – 5250 PASS 5200 50 120 5200.057998 5150 – 5250 PASS 5200 40 120 5200.040502 5150 – 5250 PASS 5200 30 120 5199.916831 5150 – 5250 PASS 5200 20 120 5200.030823 5150 – 5250 PASS 5200 10 120 5200.097128 5150 – 5250 PASS 5200 0 120 5200.091492 5150 – 5250 PASS 5200 -10 120 5200.050308 5150 – 5250 PASS 5200 -20 120 5199.948226 5150 – 5250 PASS 5200 -30 120 5200.001746 5150 – 5250 PASS Ant 2 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5200 20 132 5200.079056 5150 – 5250 PASS 5200 20 108 5200.081332 5150 – 5250 PASS 5200 50 120 5200.064340 5150 – 5250 PASS 5200 40 120 5200.098318 5150 – 5250 PASS 5200 30 120 5200.053835 5150 – 5250 PASS 5200 20 120 5200.014271 5150 – 5250 PASS 5200 10 120 5199.965523 5150 – 5250 PASS 5200 0 120 5199.962516 5150 – 5250 PASS 5200 -10 120 5199.952315 5150 – 5250 PASS 5200 -20 120 5199.911928 5150 – 5250 PASS 5200 -30 120 5199.978408 5150 – 5250 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 35 of 60 Ant 1 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5240 20 132 5239.973756 5150 – 5250 PASS 5240 20 108 5239.927704 5150 – 5250 PASS 5240 50 120 5240.097414 5150 – 5250 PASS 5240 40 120 5239.984200 5150 – 5250 PASS 5240 30 120 5240.083522 5150 – 5250 PASS 5240 20 120 5240.041929 5150 – 5250 PASS 5240 10 120 5240.099265 5150 – 5250 PASS 5240 0 120 5239.960032 5150 – 5250 PASS 5240 -10 120 5240.065624 5150 – 5250 PASS 5240 -20 120 5240.050753 5150 – 5250 PASS 5240 -30 120 5239.943328 5150 – 5250 PASS Ant 2 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5240 20 132 5240.034548 5150 – 5250 PASS 5240 20 108 5239.904996 5150 – 5250 PASS 5240 50 120 5239.966104 5150 – 5250 PASS 5240 40 120 5239.971253 5150 – 5250 PASS 5240 30 120 5239.913319 5150 – 5250 PASS 5240 20 120 5240.064747 5150 – 5250 PASS 5240 10 120 5239.927054 5150 – 5250 PASS 5240 0 120 5240.021490 5150 – 5250 PASS 5240 -10 120 5239.900189 5150 – 5250 PASS 5240 -20 120 5240.032933 5150 – 5250 PASS 5240 -30 120 5239.948629 5150 – 5250 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 36 of 60 Ant 1 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5190 20 132 5190.098052 5150 – 5250 PASS 5190 20 108 5189.958838 5150 – 5250 PASS 5190 50 120 5189.964864 5150 – 5250 PASS 5190 40 120 5190.043323 5150 – 5250 PASS 5190 30 120 5190.039796 5150 – 5250 PASS 5190 20 120 5190.026123 5150 – 5250 PASS 5190 10 120 5190.043781 5150 – 5250 PASS 5190 0 120 5189.945697 5150 – 5250 PASS 5190 -10 120 5189.914969 5150 – 5250 PASS 5190 -20 120 5190.025199 5150 – 5250 PASS 5190 -30 120 5190.071234 5150 – 5250 PASS Ant 2 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5190 20 132 5189.988976 5150 – 5250 PASS 5190 20 108 5189.968657 5150 – 5250 PASS 5190 50 120 5189.997957 5150 – 5250 PASS 5190 40 120 5190.000545 5150 – 5250 PASS 5190 30 120 5190.014710 5150 – 5250 PASS 5190 20 120 5190.033023 5150 – 5250 PASS 5190 10 120 5190.013388 5150 – 5250 PASS 5190 0 120 5190.064777 5150 – 5250 PASS 5190 -10 120 5189.937845 5150 – 5250 PASS 5190 -20 120 5190.042062 5150 – 5250 PASS 5190 -30 120 5190.013000 5150 – 5250 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E5 Page 37 of 60 Ant 1 Frequency Enviroment Temperature Voltage Measured Frequency Limit Range Test Results (MHz) (Dregree) (VAC) (MHz) (MHz) 5230 20 132 5229.905974 5150 – 5250 PASS 5230 20 108 5229.985751 5150 – 5250 PASS 5230 50 120 5230.014145 5150 – 5250 PASS 5230 40 120 5229.908394 5150 – 5250 PASS 5230 30 120 5229.905277 5150 – 5250 PASS 5230…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AQLF-SD5BGX Report No.: TZ201101782-E2 Page 1 of 54 RF Test Data for RLAN(5.8G) (Conducted Measurement) Product Name: OTT BOX+GPON Trade Mark: N/A Test Model: SD5BGD FCC ID: 2AQLF-SD5BGX Environmental Conditions Temperature: 25.5C Relative Humidity: 55.2% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: Min emission bandwidth Test Result TestMode Antenna Channel 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 15.160 5737.400 5752.560 0.5 PASS Ant2 5745 15.560 5737.040 5752.600 0.5 PASS Ant1 5785 15.160 5777.400 5792.560 0.5 PASS Ant2 5785 15.200 5777.400 5792.600 0.5 PASS Ant1 5825 15.200 5817.400 5832.600 0.5 PASS Ant2 5825 15.080 5817.400 5832.480 0.5 PASS 11N20MIMO Ant1 5745 15.760 5736.800 5752.560 0.5 PASS Ant2 57…
