A2 for WP8324-FT&WP8324G-FT QSG 515300196947 (材質): 128G 特級銅版 (顏色): CMYK( C:98% M:93%) (上光方式): NO (尺寸): 展開尺寸 450X125mm 成型尺寸 90*125mm (公差): +-1 mm 90mm 成型方式: 正面 反面 125mm Dereck 2020-02-12 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution (15.19 statement) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 24cm between the radiator & your body. This device is restricted to indoor use.

RF_160, Issue 02 Declaration of Authorization We Name:Frontiir Pte (with Frontiir Co LTD, Myanmar) Address:809 Yakima Drive City:Fremont, California 94539 Country:United States Declare that: Name Representative of agent: Delia Feng (1) Agent Company name:Cerpass Technology Corporation Address:No.10, Lane 2, Lianfu Street, Luzhu Dist., City:Taoyuan City 33848 Country:Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: 802.11ac 2x2 dual-band AP Type designation: LCA-C Trademark: FRONTiiR on our behalf. Date:Feb. 18, 2020 City:Fremont Name:Allen Miu (2) Function:CTO Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosureDate: 10-Aug-09 RF_501, Issue 5Page 1 of 1 Company Name:Frontiir Pte (with Frontiir Co LTD, Myanmar) Address:809 Yakima Drive City:Fremont, California 94539 Country:United States To:Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID:2AQLFLCC Reference number:###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of MaterialBlock Diagrams Operational DescriptionSchematic DiagramsTune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal PhotosUser’s ManualTest Set-up PhotosExternal Photos Justification:Marketing purpose Planned Release Date STC:180days after grant date(notes 2, 3, 4, 5) Date:2020/02/18Name and signature of applicant:Allen Miu Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

WIFI Channel 12 and 13 Declaration Letter Date: 2020/4/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: WIFI Channel 12 and 13 Declaration Letter We declare the equipment FCC ID: 2AQLFLCC, the product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Best Regards _____________________ Allen Miu / CTO

LCA-C and LCA-F EVT antenna 2019/12/17 John Hsieh Antenna Placement and Coordinate Ant3 Ant2 Ant1 Ant4 Experimental Setup 2G Antenna S-parameter 5G Antenna S-parameter Ant3Ant4 Isolation Antenna Gain and Eff. Ant#2G12G25G15G2 Peak Gain4.6dBi5.3dBi4.5dBi4.7dBi Efficiency72%70%71%74% 2G Antenna aggregate pattern X Z Y ZX Y 5G Antenna aggregate pattern X Z Y ZX Y Summary ⚫Antenna gain is higher than 4.5dBi, radiation efficiency is above 70% ⚫Antenna gain pattern is omni-directional in azimuth plane (see Page.7 and Page.8 XY Plane), the pattern is suitable for indoor access point , place on table or client mount.

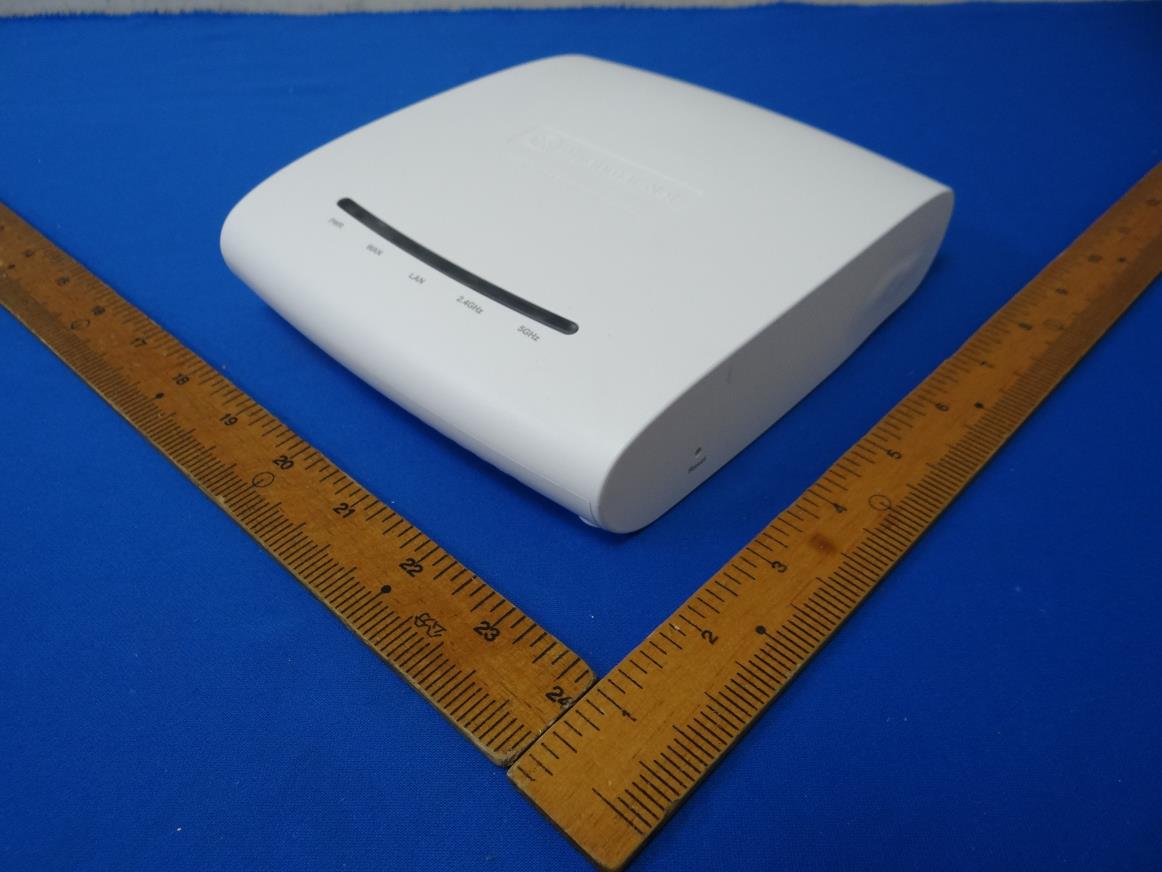

CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 1 of 2 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 2 of 2 Antenna position

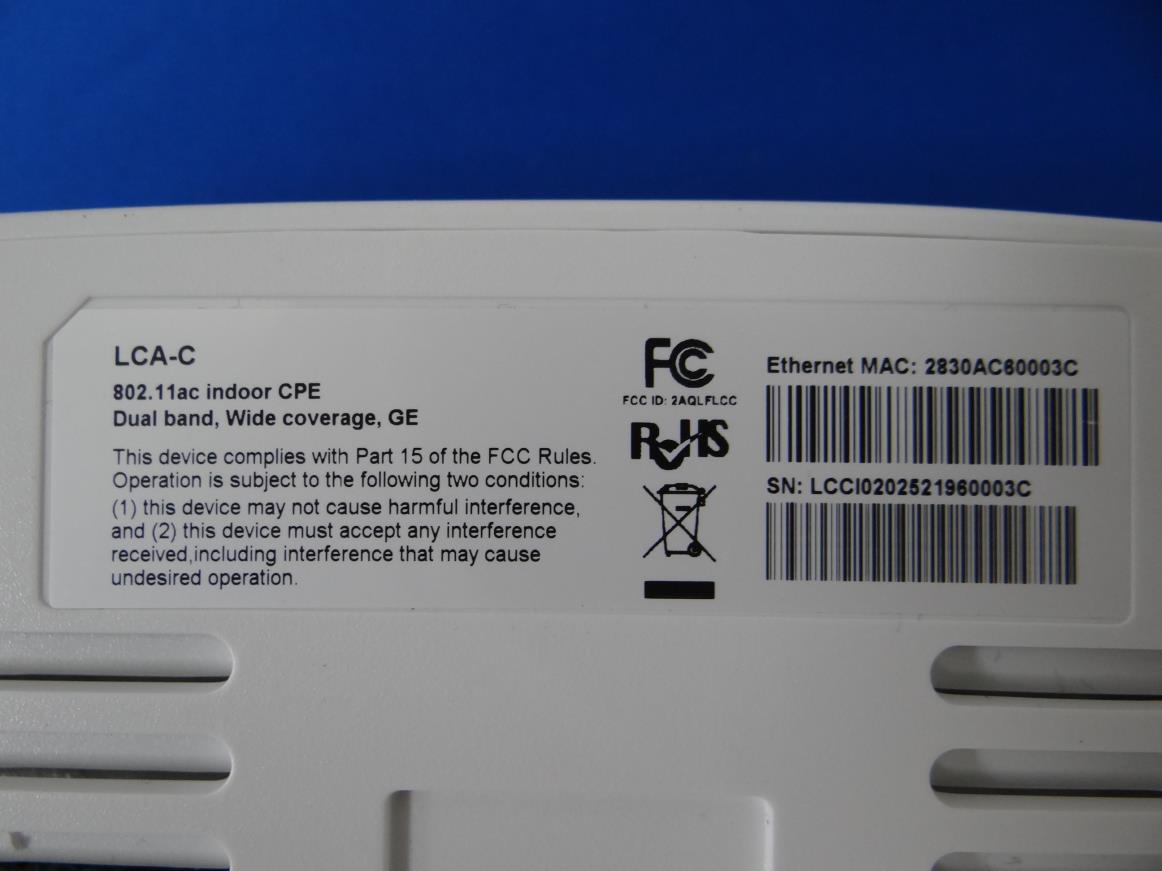

Label & Location Rear side of EUT Label Location A7 Dereck 2019-12-31 (对应空白料号):509000120277 (材質):壓花底50#白色特多龍 (顏色):BLACK (表面處理):NO (尺寸):69.5x19.5mm (公差):+-0.2mm Unit label for WP8324G-FT MM125570107 刀模同509152125877 FCC ID: 2AQLFLCC Ethernet MAC: XXXXXXXXXXXX SN: LCCIXXXXWWYYABCDEF This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. LCA-C 802.11ac indoor CPE Dual band, Wide coverage, GE Ethernet MAC: XXXXXXXXXXXX(業務提供) Code128 High:5mm 1:1 FCC ID: 2AQLFLCC Ethernet MAC: XXXXXXXXXXXX SN: LCCIXXXXWWYYABCDEF LCA-C 802.11ac indoor CPE Dual band, Wide coverage, GE 2:1 SN編碼原則: 顯示內容:LCCIXXXXWWYYABCDEF Code128 High:5mm LCCI:固定碼 XX:Gerber Version(由業務提供) XX:BOM Version(由業務提供) WW:周别 YY:年(2019=19) ABCDEF: 对应MAC后6码 Arial Bold-5pt Arial-4pt Arial Bold-4pt

CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 1 of 5 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 2 of 5 CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 3 of 5 CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 4 of 5 RF Chip CERPASS TECHNOLOGY CORP. Report No.: 2002077 Cerpass Technology Corp. Issued Date : Mar. 24, 2020 Page No. : 5 of 5 Antenna position Antenna position

CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 87 of 89 FCC ID. : 2AQLFLCC 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 29.97dBm (992.048mW) at 2437MHz (with 5.30dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 88 of 89 FCC ID. : 2AQLFLCC 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 89 of 89 FCC ID. : 2AQLFLCC 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 29.97 31.97 5.3 24 0.737 1 Maximum Permissible Exposure(Co-location) Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 11n HT20 2412-2462 29.97 31.97 5.3 24 0.737 1.000 0.737 11ac VHT20 5150-5250 25.74 27.74 4.7 24 0.242 1.000 0.242 Co-location Total 0.979 ∑MPE ratios Limit 1

CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 1 of 89 FCC ID. : 2AQLFLCC FCC RADIO TEST REPORT Applicant : Frontiir Pte (with Frontiir Co LTD, Myanmar) Address : 809 Yakima Drive, Fremont, California 94539, United States Equipment : 802.11ac 2x2 dual-band AP Model No. : LCA-C Trade Name : FRONTiiR FCC ID. : 2AQLFLCC I HEREBY CERTIFY THAT : The sample was received on Feb. 14, 2020 and the testing was completed on Mar. 17, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 2 of 89 FCC ID. : 2AQLFLCC Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment ................................................................................................................. 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 9 2.5 General Information of Test ...................................................................................................... 10 2.6 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Antenna Requirements ..................................................................................................................... 13 4.1 Antenna Construction and Directional Gain ............................................................................. 13 5. Test of AC Power Line Conducted Emission ................................................................................. 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 14 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data ................................................................................................................ 16 5.5 Test Photographs ..................................................................................................................... 20 6. Test of Radiated Spurious Emission ............................................................................................... 22 6.1 Test Limit .................................................................................................................................. 22 6.2 Test Procedures ....................................................................................................................... 22 6.3 Typical Test Setup .................................................................................................................... 23 6.4 Test Result and Data (9KHz ~ 30MHz) .................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 28 6.7 Restricted Bands of Operation ................................................................................................. 52 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 53 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 55 7. Test of Conducted Spurious Emission ........................................................................................... 56 7.1 Test Limit .................................................................................................................................. 56 7.2 Test Procedure ......................................................................................................................... 56 7.3 Test Setup Layout .................................................................................................................... 56 7.4 Test Result and Data ................................................................................................................ 56 8. On Time, Duty Cycle and Measurement methods ......................................................................... 73 8.1 Test Limit .................................................................................................................................. 73 8.2 Test Procedure ......................................................................................................................... 73 8.3 Test Setup Layout .......................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 20 of 89 FCC ID. : 2AQLFLCC 5.5 Test Photographs Power from Adapter Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 21 of 89 FCC ID. : 2AQLFLCC Power from POE Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 53 of 89 FCC ID. : 2AQLFLCC 6.8 Test Photographs (30MHz ~ 1GHz) Power from Adapter Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 54 of 89 FCC ID. : 2AQLFLCC Power from PoE Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI2002077 Cerpass Technology Corp. Issued date : Mar. 24, 2020 T-FD-509-0 Ver 1.2 Page No. : 55 of 89 FCC ID. : 2AQLFLCC 6.9 Test Photographs (1GHz ~ 25GHz) Front View Rear View
