2AQLFLAP802.11ac Outdoor PoE Access Point

1 User Manual Model: LAP , LAQ 802.11ac Outdoor PoE Access Point Customer Project Name: LAP -1, LAP-2 LITE -ON Project Name: WP9331D1-FT24 (LAP , LAP with antenna type I.) WP9331D2 -FT24 (LA Q, LAP with antenna type II.) Version: V1.1 This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC. 2 1 Product Descriptions The LAP, LAQ is a 2-radio, dual band dual concurrent, 802.11ac wave 2 access point. It provides powerful WLAN supporting wireless speed up to 400Mbps on 2.4GHz and 867Mbps on 5GHz, one Ethernet port to connect to the backbone network, another one Ethernet port can be aggregated to connect to one computer through the cable. LAP, LAQ could be powered by 24VDC/48VDC PoE injector which is supplied by customer. There are two SKUs: LAP : Type I antenna - target HPBW 170(H) x 90(V) (LAP-1) LAQ : Type II antenna - target HPBW 120(H) x 30(V) (LAP-2) To protect data during wireless transmission, the device supports WEP data encryption and WPA/WPA2 wireless security to ensure network safely. The LAP, LAQ is ideal for a variety of medium density enterprise and hotspot environments. Note: Optional features are not included in default SKU and to be quoted separately if required afte rwards. 2 Product Specifications and Features 2.1 H/W Features 2.1.1 Specification Key Components / Connectors / Performance Processor QCA IPQ4029 - IPQ-4029-1-583MSP-MT-00-0 (I-Temp) Wireless Chipset Integrated with IPQ4029 – 2.4G Integrated with IPQ4029 – 5G GE PHY QCA8075 - QCA-8075-1-108DRQFN-MT-00-0 (I-Temp) SPI Flash 32 Mbytes NAND Flash - DDR3 512 Mbytes Console Internal console port Interfaces 3 Ethernet 1x 10/100/1000 Base-TX MDI/MDIX RJ-45 port with PoE PD (to engage with passive PoE injector which is provided by customer.) 1x 10/100/1000 Base-TX MDI/MDIX RJ-45 port Pin definitions : 1/2/3/6 for Data transmission 4/5 for postive power pin 7/8 for negative power pin Compliant with following standards: 1. IEEE 802.3/802.3u 2. Hardware based 10/100/1000, full/half, flow control auto negotiation 3. Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control 4 Wireless 802.11n 2.4GHz on board 802.11ac 5GHz on board 2 internal antennas – 2.4G 2 internal antennas – 5G IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac compliant Data Rate: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6 Mbps 802.11b: 11, 5.5, 2 & 1 Mbps 802.11n: 20 MHz BW: 130, 117, 104, 78, 52, 39, 26, 13Mbps 40 MHz BW: 270, 243, 216, 162, 108, 81, 54, 27 Mbps 802.11ac: 20MHz BW : 173, 144, 130, 115, 86, 57, 43, 28,14 Mbps 40MHz BW : 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps 80MHz BW : 867, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps Modulation: 802.11b: CCK (11&5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 2.4GHz Operating Frequencies: USA – FCC 2412~2462MHz Canada – IC 2412~2462MHz Europe – ETSI 2412~2472MHz The available channels are subject to the country regulatory. 5GHz Operating Frequencies: 5150MHz ~ 5350MHz for US & Canada 5150MHz ~ 5350MHz for Europe 5470MHz ~ 5725MHz for Europe 5030MHz ~ 5091MHz and 5150MHz ~ 5250MHz for Japan 5150MHz ~ 5350MHz for Australia 5470MHz ~ 5725MHz for Australia (except channel 120, 124 and 128) 5725Mhz ~ 5825Mhz for Australia 5865MHz could be supported with software enabled. The available channels are subject to the country regulatory. Maximum output power (per chain): 2.4GHz band (discrete PA/LNA) 802.11b: 24 +/- 2 dBm 802.11n: 24 +/- 2 dBm 802.11g: 24 +/- 2 dBm 5GHz band (discrete PA/LNA) 802.11a: 24 +/-2 dBm 802.11n: 24 +/-2 dBm 802.11ac: 24 +/-2 dBm Rx sensitivity: 2.4GHz band, 802.11b@11Mbps: -93 +/- 2dBm 802.11g@54Mbps: -76 +/- 2dBm 802.11n BW40 MCS7: -70 +/-2 dBm 5GHz band, 802.11a @6Mbps: -93+/- 2dBm 802.11a @54Mbps: -76+/- 2dBm 802.11n BW40 MCS7 : -68 +/- 2dBm 802.11ac BW80 MCS9: -60 +/- 2dBm 5 Target type-I antenna HPBW: 170(H) x 90 (V) (Simulated results: HPBW: 185(H) x 90(V) @2.4GHz, HPBW: 178(H) x 71(V) @5GHz) Target type-II antenna HPBW: 120(H) x 30 (V) (Simulated results: HPBW: 115(H) x 50(V) @2.4GHz, HPBW: 115(H) x 50(V) @5GHz) Peak Gain: > 5.0dBi Typical – 2.4G Peak Gain: > 5.0dBi Typical – 5G Note: The HPBW depend on the optimized EVT results. Impedance: 50 Ohm nominal Antenna efficiency - 2.4G: 50% Antenna efficiency - 5G: 60% V.S.W.R.: 2.0:1 Max Reset 1 x reset button 2.1.2 LED indicators - from top to bottom (total 5 LEDs) PWR 2.4GHz 5GHz LAN2 LAN1 (PoE) Location LED Indicative Color Status Description Per device Power Green Solid Light Power on Light off Power off WLAN 5G Green Solid Light Connect to WLAN port Blinking WLAN activity present Light off No activity or power off Amber Reserved 2.4G Green Solid Light Connect to WLAN port Blinking WLAN activity present Light off No activity or power off Amber Reserved Per port LAN Amber Solid Light Device connected to LAN port at 10/100/1000Mbps Blinking LAN Activity present Light off Not Connected 6 2.2 Antenna  Internal antenna (Type I antenna for LAP)  2 × 2.4GHz antennas, Target HPBW: 170 x 90 degree, peak gain > 5.0dBi (The simulated resu lts at 2.4GHz band are HPBW 185 x 90 degrees, peak gain is about 5.5dBi. The final results depend on the test reaults on EVT/DVT samples.)  2 × 5GHz antennas, Target HPBW: 170 x 90 degree, peak gain > 5.0dBi (The simulated resul ts at 5GHz band are HPBW 178 x 71 degrees, peak gain is about 6.5dBi. The final results depend on the test reaults on EVT/DVT samples.)  Internal antenna (Type II antenna for LAQ)  2 × 2.4GHz antennas, Target HPBW: 120 x 30 degree, peak gain > 5.0dBi (The simulated results at 2.4GHz band are HPBW 115 x 50 degrees, peak gain is about 8.0dBi. The final results depend on the test reaults on EVT/DVT samples.)  2 × 5GHz antennas, Target HPBW: 120 x 30 degree, peak gain > 5.0dBi (The simulated results at 5GHz b…

Text truncated - open the document above for the full version.

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive, Fremont, CA, US SDoC Attestation Letter Date: 2020/4/14 We Frontiir Pte (with Frontiir Co LTD, Myanmar), as the grantee of this project (FCC ID: 2AQLFLAP / Brand Name: FRONTiiR / Model No.: LAP, LAQ), would like to declare that the composite portion has been authorized under the Supplier's Declaration of Conformity procedures (Sporton report No.: FD021954, FCC designation number: TW1096). The final product shall consequently comply with the FCC rule applied for SDoC Procedure. Regards, Sincerely, Applicant’s company name : Frontiir Pte (with Frontiir Co LTD, Myanmar) Applicant’s company address : 809 Yakima Drive, Fremont, CA, US Signature : Name : Allen Miu E-Mail : [email protected] Tel : 5109962071 Fax : 5109799639

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive, Fremont, CA, US Confidential Letter Date: 2020/4/14 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：2AQLFLAP To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Sincerely, Applicant’s company name : Frontiir Pte (with Frontiir Co LTD, Myanmar) Applicant’s company address : 809 Yakima Drive, Fremont, CA, US Signature : Name : Allen Miu E-Mail : [email protected] Tel : 5109962071 Fax : 5109799639

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive, Fremont, CA, US Power of Attorney Date: 2020/4/14 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: 2AQLFLAP Sincerely, Applicant’s company name : Frontiir Pte (with Frontiir Co LTD, Myanmar) Applicant’s company address : 809 Yakima Drive, Fremont, CA, US Signature : Name : Allen Miu E-Mail : [email protected] Tel : 5109962071 Fax : 5109799639

Frontiir Pte (with Frontiir Co LTD, Myanmar) 809 Yakima Drive, Fremont, CA, US Professional Installation Declaration Date: 2020/4/14 FCC ID：2AQLFLAP To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Sincerely yours, Applicant’s company name : Frontiir Pte (with Frontiir Co LTD, Myanmar) Applicant’s company address : 809 Yakima Drive, Fremont, CA, US Signature : Name : Allen Miu E-Mail : [email protected] Tel : 5109962071 Fax : 5109799639

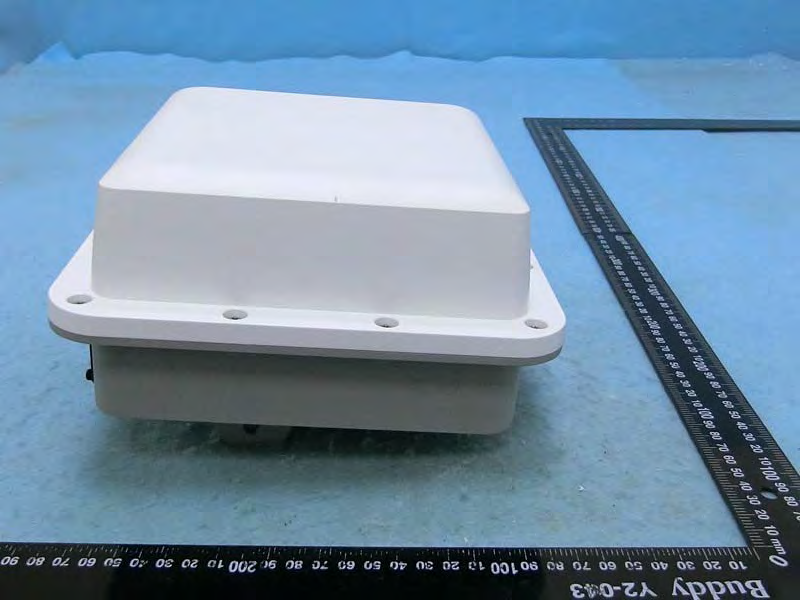

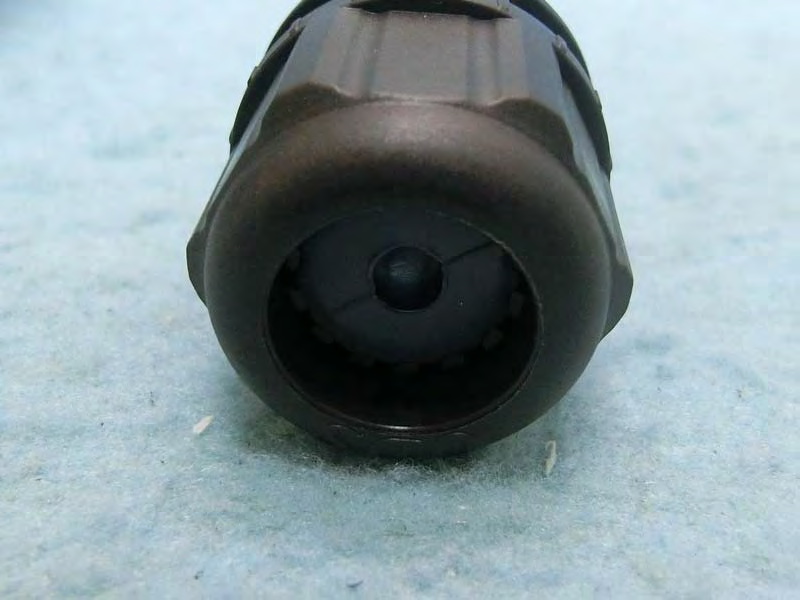

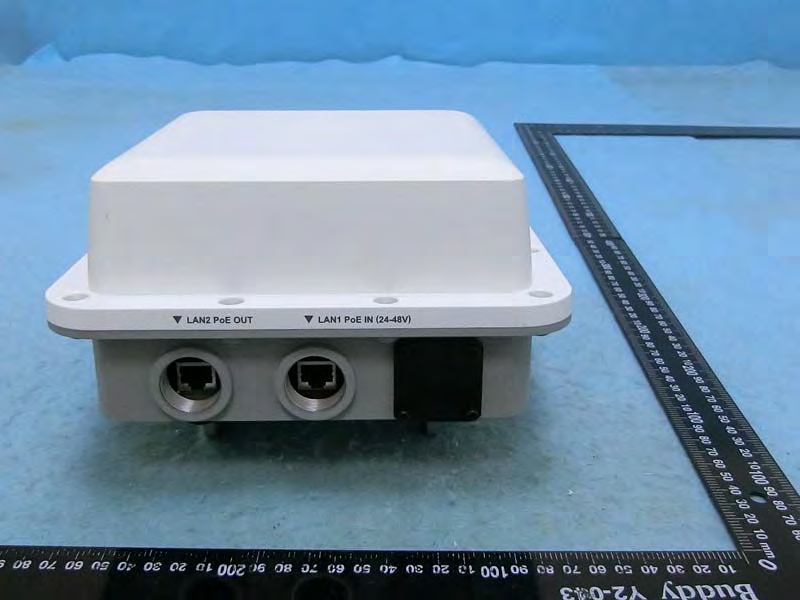

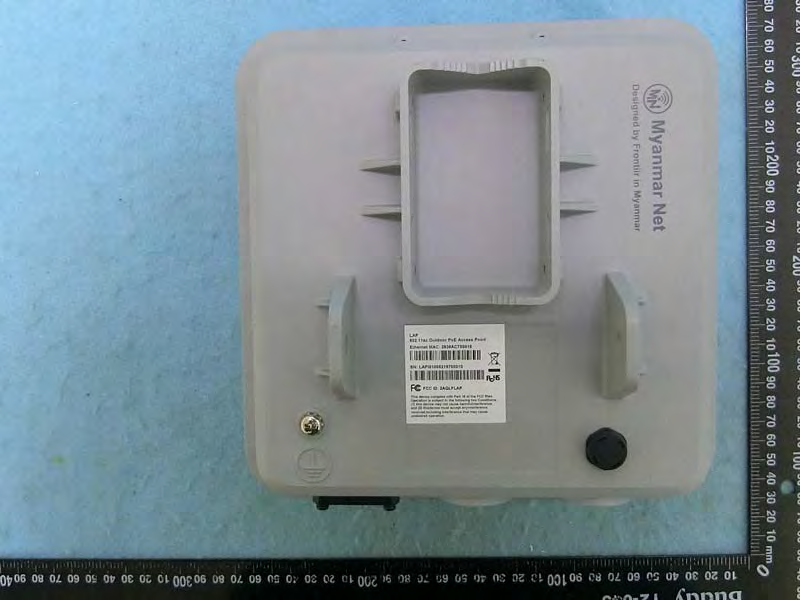

PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: FRONTiiR Model Name: LAP, LAQ PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Waterproof plug PHOTOGRAPHS OF EUT Report No. : EP021954 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 6 TEL : 886-3-656-9065 Issued Date : Jun. 10, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP
