2AQOV-WIMUPROWIMU PRO

USER MANUAL Calle Guinea, 2 04009 ALMERÍA SPAIN T +34 950 272 379 [email protected] http://www.realtracksystems.com WIMU are registered trademarks of Realtrack Systems ©2018 all rights reserved Made in the EU All registered trademarks belong to their respective owners. INTRODUCTION 03 FUNCTIONS 04 SPECIFICATIONS 05 DISCLAIMER 06 DECLARATION OF CONFORMITY 07 CUSTOMER INFORMATION 09 CONTENTS INTRODUCTION 03 Advanced technology for realtime physical activity monitoring Realtrack Systems has developed the leading wearable device system WIMU PRO to monitor every moment of your training sessions. Uniting ergonomics and performance to collect and trans- mit instantly every conceivable metric and variable to maximize efficiency and productivity during real time, training and coaching sessions, individual recovery & return to play management, tactical implementation, talent identification and deep dive data post session for your specialist teams to analyze and build their own database of individual and team parameters and history. Total data capture; Equiped with multiple sensors WIMU PRO captures and processes every indivi- dual movement and positional change on the field or court, with an inbuilt INTEL processor only WIMU PRO can guaranteeimmediate data flow using 3 independent wireless technologies. Intel Atom Inside 1GHz Hybrid Location System; GPS/GNSS 18Hz Precision Locator UWB <10cm 4 realtime monitors: BLUETOOTH, BLE, ANT+, WIFI B/G/N (HEART RATE, SMO2, EMG, ETC) 3 Level Inercial Sensors: 3D Accelerometer1000 Hz (400G) 3D Gyroscope 1000 Hz (8000º/S) 3D Magnetometer (100Hz) OLED Screen (player ID) Standard USB portal Small and light FUNCTIONS 04 ON / OFF BUTTON MICRO-USB CONNECTOR Switch ON / OFF 1 BATTERY 2 SWITCH ON/OFF THE DEVICE 3 ON / OFF BUTTONON / OFF BUTTON MICRO-USBMICRO-USB CONNECTORCONNECTOR Switch ON / OFF LED COLOR CHART STATE BLINKING BootingWimu Ready Logger GPS fix / ANT+ Connect FLASHING -Slow--Fast- To charge the battery of the device from AC adapter and to load data WIMU PRO has to be fully charged before starting any activity. Be sure the red LED from the lateral is turn off (it will indicate the battery is fully charge). If we start a session without the enough battery charge, we risk not recording the full session. 1. ON Press the button until a blue light flashes. It’s recommended to place the device horizontally (in the floor, i.e.) and away from vibrations during the first 30 sec. it’s on. WIMU PRO uses this period of time to take references. 2. OFF Press the button 3 in quick sucession (less than 1 second) STARTING PROCEDURE 4 In 30 seconds, aprox. you will see a BLUE LED flashing, then a blue LED will flash quicker. That means that WIMU PRO is ready to be used. LOGGING 5 To start collecting data, we have to press and hold the button for 1 second. Then a flashing is displayed followed for a red led blinking. Remember, the red led indicates the session is being recorded into the device PLACE OF WIMU PRO 6 Place the device into the sport vest as seeing in the picture SPECIFICATIONS 05 Technical Specifications (WIMU) Maintenance Warning Computer interface wireless, micro-USB Maximal Output RF Power 12,5 dBm. Protocol WiFi 802.11 b/g/n, Bluetooth, ANT+ Data Storage 16 GB Battery type Lithium-ion, [1300,1800] mAh Charge Micro-USB AC adapter Charge time < 3 h Autonomy transmitting > 3 h Autonomy in standby > 7 days Operating temperature from -20 to +55 ºC Use WIMU PRO only as directed in the user manual. Do not disassemble the device. Protect the device from possible damage, do not drop or expose to extreme heat of excessive sun exposure. Keep the device in a clean and dry place, at room temperature. -Avoid scratching the device. Please protect the Performance Sensors from water. Cleaning Clean your device with a wet cloth, if necessary use a mild soap. Do not use gasoline, solvents, acetone, alcohol, repellents, paints or any other chemical products on the device.. DISCLAIMER 06 Maintenance Warning It is not a medical product. WIMU PRO must not be used as a substitute for obtai- ning measurements that require professional precision or laboratory-quality mea- surements. All training plans in WIMU PRO have been developed by professional and qualified trainers. However, they do not replace doctor’s advice. Warning People who have a pacemaker, defibrillator, or other implanted electronic devices use WIMU PRO at their own risk. Before starting using WIMU PRO, we recom- mend an exercise test under a doctor’s supervision with WIMU PRO. Exercise may include some risk, especially for those who have been sedentary for a long period of time. We strongly advise you to get a medical check-out prior to beginning a regular exercise program. The equipment shall be powered by a limited power supply in compliance with clause 2.5 of Standard UNE-EN 60950-1 which meets SELV requirement. Please ensure that you follow the guidelines listed below. Failure to follow these guidelines may result in a shortened battery life span and/or result in damage to the WIMU PRO and possibly injury. If the WIMU PRO is to be stored for an extended period of time, please ensure that the product is kept within the following temperature range: from 5°C to 25°C. Do not operate the WIMU PRO outside the following temperature range: from -20°C to 55°C. Do not puncture or incinerate the WIMU PRO. Batteries must be disposed of properly according to local laws and regulations. Do not disassemble. Do not expose to high temperatures. Do not dispose of your battery in a fire. Battery It is not possible to extract the battery used in WIMU devices. Due to its components, these batteries must be properly managed in order to avoid environmental damage. Thus, the whole device should be returned to RealTrack Systems S.L. (C/Guinea, 2 - 04009 Almeria, Spain) for the correct waste management once it will no longer be used. For private households: Information on Disposal for Users of WEEE This symbol (figure 1) on the pr…

Text truncated - open the document above for the full version.

Confidentiality request Date: 03/12/2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 FCC ID: 2AQOV-WIMUPRO To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, REALTRACK SYSTEMS S.L. hereby request requests that a part of the subject FCC application be held confidential to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Permanent Confidentiality: The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us and provide unjustified benefits to our competitors. Short-Term Confidentiality: We hereby request short-term confidentiality for the product stated above to avoid premature release of sensitive information prior to marketing or release of the product to the public. Release date of short term confidentiality is: 45 days from grant date marked 90 days from grant date marked 135 days from grant date marked 180 days from grant date marked Specific date: We are also aware that we are responsible to notify DEKRA Testing and Certification S.A.U. in the event information regarding the product or the product is made available to the public. DEKRA Testing and Certification S.A.U. will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: Isabel Segura Title: CEO Telephone: +34950272379 e-mail: [email protected]

Supplier’s Declaration of Conformity Date: 05/01/2021 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia MD 21046 FCC ID: 2AQOV-WIMUPRO Pursuant to §15.101 of the Commission’s Rules (47 C.F.R.), REALTRACK SYSTEMS S.L. hereby declare that the device above mentioned is classified under the following equipment class/classes: JAB Part 15 Class B Digital Device JAD Part 15 Class A Digital Device JAV Other Non-Digital SDoC Devices JBP Part 15 Class B Computing Device Peripheral JBC Part 15 Class B Computing Device/Personal Computer CXX Communications Rcvr for use w/ licensed Tx and CBs CRR Superregenerative Receiver CYY Communications Receiver used w/Pt 15 Transmitter HID Part 15 TV Interface Device And will follow the Authorization procedure Supplier’s Declaration of Conformity prior to the initiation of marketing. Sincerely, By: Isabel Segura Title: CEO Telephone: +34950272379 e-mail: [email protected]

FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs External Photographs External Photo 1: WIMU PRO – External front side Pag. 1 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs External Photo 2: WIMU PRO – External back side Pag. 2 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN

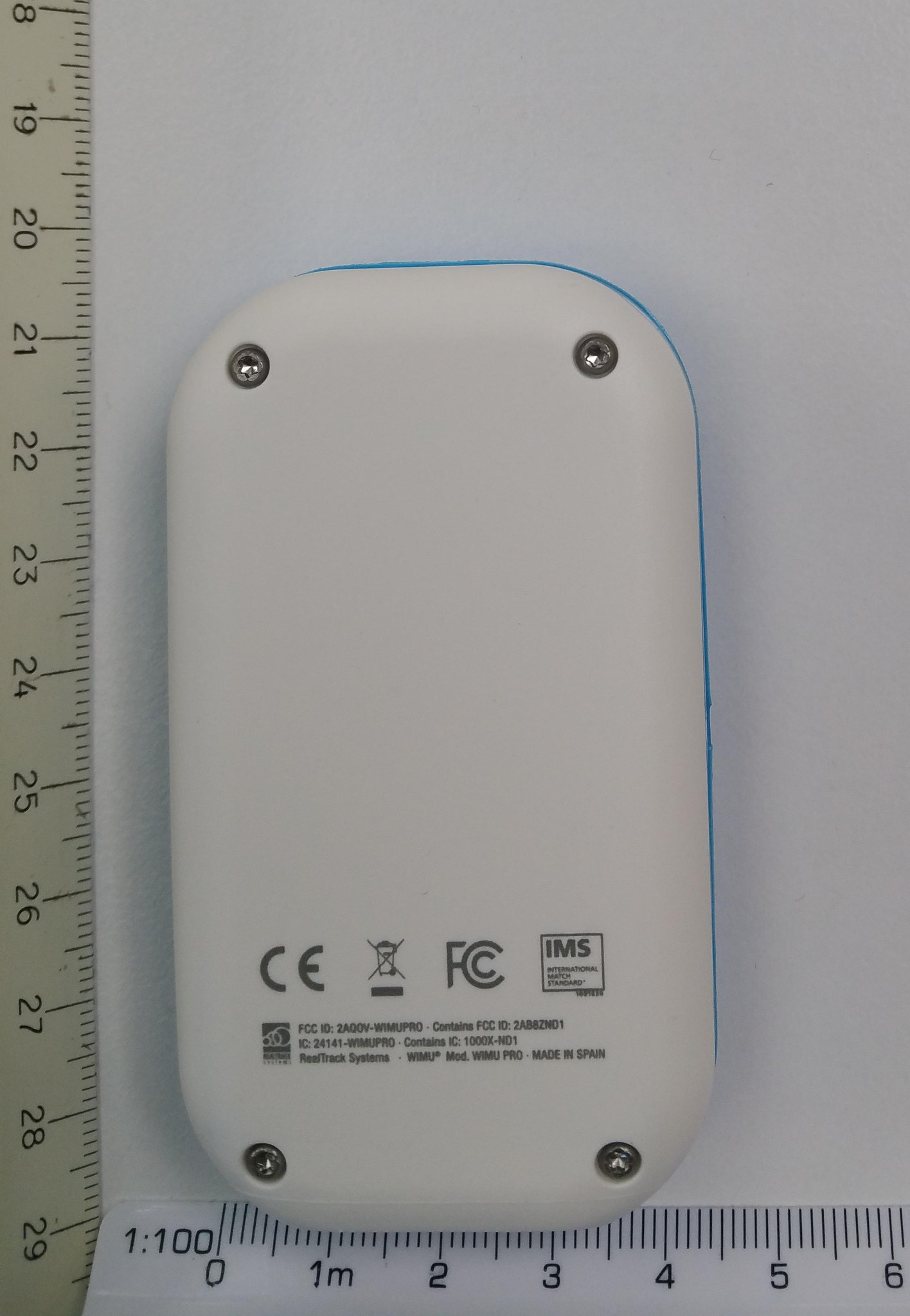

Top Bottom Image 1 – Model - FCC is engraved on the rear bottom of the device Image 2 – Model - Marking detail on model Image 3 – FCC marking detail Page 1

FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photographs Internal Photo 1: WIMU PRO – Internal with envelope. Pag. 1 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photo 2: WIMU PRO – Internal, opnened envelope. Pag. 2 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photo 3: WIMU PRO – PCB side 1 and GNSS antenna. Pag. 3 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photo 4: WIMU PRO – PCB side 2 and GNSS antenna. Pag. 4 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photo 5: WIMU PRO – Edison without shield, side 1. Pag. 5 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN FCC ID: 2AQOV-WIMUPRO IC ID: 24141-WIMUPRO WIMU PRO Photographs Internal Photo 6: WIMU PRO – Edison without shield, side 2. Pag. 6 Realtrack Systems- St Guinea, 2 - 04009 - Tel. +34 950 272 379 / +34 950 265 960 - Almeria SPAIN

DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 56382RRF.001A2 2020-12-04 Test report No: NIE: 56382RRF.001A2 Test report USA FCC Part 15.249, 15.209 CANADA RSS-210, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. Identification of item tested Wearable electronic device Trademark WIMU Model and /or type reference WIMU PRO Other identification of the product FCC ID: 2AQOV-WIMUPRO IC: 24141-WIMUPRO HW version: 8.0 SW version: 8.5 Features GNSS, ANT+, WiFi + Bluetooth and UWB (only reception) Applicant Realtrack Systems S.L. Calle Guinea, 2 Almería 04009 Spain Test method requested, standard USA FCC Part 15.249 (10-1-17) Edition: Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, 5725 - 5875 MHz, and 24.0 – 24.25 GHz. USA FCC Part 15.209 (10-1-17) Edition: Radiated emission limits; general requirements. CANADA RSS-210 Issue 9 (August 2016). CANADA RSS-Gen Issue 5 (April 2018). ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Rafael López Martín EMC Consumer & RF Lab. Manager Date of issue 2020-12-04 Report template No FDT08_23 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 56382RRF.001A2 Page 2 of 29 2020-12-04 Index Competences and guarantees ...................................................................................................................... 3 General Conditions ........................................................................................................................................ 3 Uncertainty ..................................................................................................................................................... 3 Data provided by the client ............................................................................................................................ 3 Usage of samples .......................................................................................................................................... 4 Test sample description ................................................................................................................................. 5 Identification of the client ............................................................................................................................... 6 Testing period and place ............................................................................................................................... 6 Document history ........................................................................................................................................... 6 Environmental conditions .............................................................................................................................. 6 Remarks and comments ................................................................................................................................ 7 Testing verdicts .............................................................................................................................................. 8 Summary ....................................................................................................................................................... 8 Appendix A: Test results. ANT+ .................................................................................................................... 9 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España C.I.F. A29 507 456 Report No: (NIE) 56382RRF.001A2 Page 3 of 29 2020-12-04 Competences and guarantees DEKRA Testing and Certification S.A.U. is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. DEKRA Testing and Certification is a FCC-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. DEKRA Testing and Certification is an ISED-recognized accredited testing laboratory with appropriate scope of accreditation that include testing performed in this test report. In order to assure the traceability to other national and international laboratories, DEKRA Testing and Certification S.A.U. has a calibration and maintenance program for its measurement equipment. DEKRA Testing and Certification S.A.U. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Testing and Certification S.A.U. at the time of performance of the test. DEKRA Testing and Certification S.A.U. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Testing and Certification S.A.U. General Conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA …
