2AQOV-WT200Embedded system wearable device for sport analytics

1 WIMU PRO USER MANUAL INTRODUCTION 1 WIMU PRO Device 1 WIMU PRO Device Architecture 2 GETTING STARTED GUIDE 3 1. WIMU PRO device 3 2. Battery 5 3. Switch ON/OFF the device 6 4. Starting protocol 7 5. Logging 7 6. Place the device 8 TECHNICAL SPECIFICATIONS (WIMU PRO) 8 MAINTENANCE 9 Maintenance Warning 9 Cleaning 9 IMPORTANT SAFETY INFORMATION 9 Important Safety Information 10 Health Warnings 10 Charging 11 Battery Warnings 11 INTRODUCTION WIMU PRO Device WIMU PRO is a high-end sports tracking device, conceived as a multisport/multiplayer sports tracking device. The WIMU PRO device is part of the WIMU PRO system. The WIMU PRO system is a suite of tools where the hardware and software team up to bring comprehensive sports technology solutions designed to provide physical and tactical performance insights. 2 WIMU PRO integrates cutting-edge tracking technology into a compact, wearable device. Its architecture brings together a hub of inertial sensors that provides inertial data with four 3D accelerometers, three 3D gyroscopes, one magnetometer and one barometer WIMU PRO Device Architecture Tracking - Global Navigation Satellite System; GPS, GLONASS, Galileo and BeiDou at 18Hz. - Ultra-Wide Band (UWB): High precision for Indoor 20Hz. Inertial sensors - 1 x 3D Accelerometers: ± 100 g, ± 200 g, ± 400 g recording from 50 Hz to 1000 Hz - 3 x 3D Accelerometers: ± 2 g, ± 4 g, ± 8 g, ± 16 g recording from 12.5 Hz to 6667 Hz. - 3 x 3D Gyroscopes: ±125, ± 250, ± 500, ± 1000, ± 2000, ± 4000 dps* * Degrees per second recording from 12.5 Hz to 6667 Hz. - 3D Magnetometer: ± 8 Gauss recording from 50 Hz to 1000 Hz. - Barometer: From 10 mbar to 1200 mbar recording from 120 Hz to 2000 Hz. 3 Connectivity - WiFi: IEEE 802.11 b/g/n - Bluetooth: Wireless BLUETOOTH 5.1 - ANT+: Wireless ANT+ - USB: High Speed 2.0 USB GETTING STARTED GUIDE 1. WIMU PRO device STATE BLINKING -Slow- FLASHING -Fast- Blue Booting WIMU Ready 4 Red Logger Green GPS fix / ANT+ Connect / UWB fix The display will display the following symbol when the LED light turns blue. This means the device is ready to be used. The following symbol will show on the display when the LED light turns red. This means the device is collecting data from the available sensors. The following symbol will show on the display when the LED light turns green. This means the GPS function of the device is active. 5 The following symbol will show on the display when the LED light turns green. This means the device is connected to the Heart Rate/GPS/UWB fix monitor device. 2. Battery It is recommended that the WIMU PRO device is fully charged before starting monitoring. This process takes from approximately 4 to 5 hours depending on the status of the battery. Be sure the red LED from the lateral is turned off (it will indicate the battery is fully charged). 6 3. Switch ON/OFF the device 1. ON Press the button until a blue light flashes. Turn on the WIMU PRO device outdoors and try to avoid obstacles such as buildings that may interfere with the signal. It’s recommended to place the device horizontally (in the floor, i.e.) and away from vibrations during the first 30 sec. Once the device is running, wait until the GNSS signal is active for time and location synchronization. 2. OFF Press quickly (less than 1 second approx.) the ON/OFF button 4 times in a row. Try it again if the device does not turn off. 4. Starting protocol A blue LED light will flash after 30 seconds approximately and the display screen will show a new icon. That means that WIMU PRO is ready to be used. 7 5. Logging Press the ON/OFF button for at least 3 seconds until the LED light turns red. The red light indicates that the session is being recorded. 6. Place the device Place the device into the pocket located in the back of the sport vest as displayed in the picture. The front of the WIMU device (blue) shall be seen through the hole in the lower part of the pocket. TECHNICAL SPECIFICATIONS (WIMU PRO) Computer interfaces wireless, micro-USB Wireless interfaces 8 ● WiFi 802.11 b/g/n ○ Frequency Band: 2,4 GHz to 2,4835 GHz ○ Maximal Output Power: 19 dBm ● Bluetooth 5.1 ○ Frequency Band: 2,402 GHz to 2,480 GHz ○ Maximal Output Power: 14 dBm ● ANT+ ○ Frequency Band: 2,4 GHz to 2,527 GHz ○ Maximal Output Power: 4dBm ● UWB ○ Frequency Band: 3,244 GHz to 6,999 GHz ○ Maximal Output Power: 17,45 dBm Data Storage 16 GB Battery type Lithium-ion, 1300 mAh Charge Micro-USB AC adapter Autonomy transmitting up to 3 hours Autonomy in standby up to 7 days Operating temperature from -20 to +55°C (-4°F to 131°F) MAINTENANCE Maintenance Warning ● Use WIMU PRO only as directed in this user manual. ● Do not disassemble the device. ● Protect the device from possible damage. Do not drop or expose to excessive heat or excessive sun exposure. ● Store the device in a clean and dry place, at room temperature. ● Avoid scratching the device. ● Do not expose the device to water or other liquids or humidity. 9 Cleaning ● Clean the device with a damp cloth; if necessary, use a mild soap. ● Do not use gasoline, solvents, acetone, alcohol, repellents, paints or any other chemical products on the device. IMPORTANT SAFETY INFORMATION WARNING: Failure to heed the following warnings could result in an accident or medical event resulting in death or serious injury. Important Safety Information Handle the WIMU PRO device with care. The WIMU PRO and its electrical components, including a battery, can be damaged, have impaired functionality, or cause injury if the WIMU PRO is dropped, punctured, crushed, disassembled, or exposed to excessive heat or to humidity or liquids. Don’t use a damaged WIMU PRO. Health Warnings ● The WIMU PRO can interfere with a pacemaker, defibrillator, or other implanted electronic medical device. Before using WIMU PRO, any individual with a pacemaker, defibrillator, or other implanted electronic medical device should consult with a physician and the medical device manufacturer. Such individuals should stop using a W…

Text truncated - open the document above for the full version.

C5266091_X24_Ed.1 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: REALTRACK SYSTEMS SLU Grantee code: 2AQOV FCC ID: 2AQOV-WT200 Contact Name: ISABEL PEREZ SEGURA Address: CALLE GUINEA, 2 04009 ALMERIA SPAIN Telephone No: +34 950 265960 +34 950 272379 Fax No: Email: [email protected] i. REALTRACK SYSTEMS SLU (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. REALTRACK SYSTEMS SLU (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Date: 2023/06/21 Applicant’s Name: ISABEL PEREZ SEGURA, REALTRACK SYSTEMS SLU Title: WEARABLES MARKET DIRECTOR Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

1/1 Date: 2023/06/ 22 Applicant’s Name: ISABEL PEREZ SEGURA Title:WEARABLE MARKET DIRECTOR Signature Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 C566091_X23_Ed2 TO: US Agent for Service of Process: Company Name: QPS America, Inc. FRN: 0033412354 Contact Name: John Gulino Address: 5005 Rockside Road, Suite 600, Independence, Ohio 44131-6827 Telephone: 216-337-3191 Email: [email protected] This letter is to confirm that the US Agent for Service of Process accepts responsibility to act as a local representative on behalf ofREALTRACK SYSTEMS SLU. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: REALTRACK SYSTEMS SLU Product Description: Embedded system wearable device for sport analytics. Grantee code:2AQOV FCC ID:2AQOV-WT200 Contact Name:ISABEL PEREZ SEGURA Address:CALLE GUINEA, 2 04009 ALMERIA SPAIN Telephone No:+34 950 265969, +34 950 272379 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. US Agent’s Name: John Gulino Title:President Signature US Agent for Service of Process LETTER OF ATTESTATION Type your text

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: REALTRACK SYSTEMS SLU Address: CALLE GUINEA, 2 04009 ALMERIA SPAIN Product Name: WIMU Model Number: WT200 FCC Identifier: 2AQOV-WT200 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: ISABEL PEREZ SEGURA Date: Title: WEARABLES MARKET DIRECTOR Signature of applicant: 22/06/2023

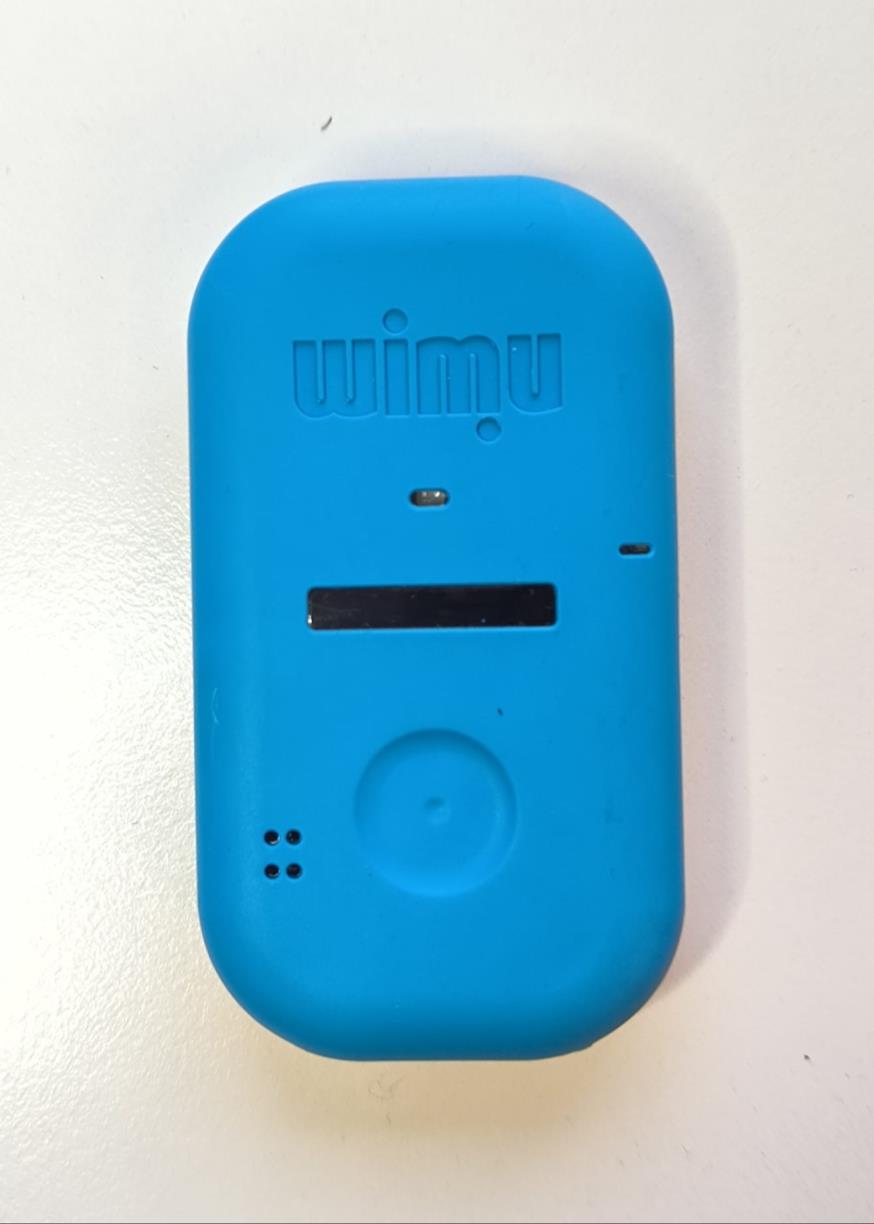

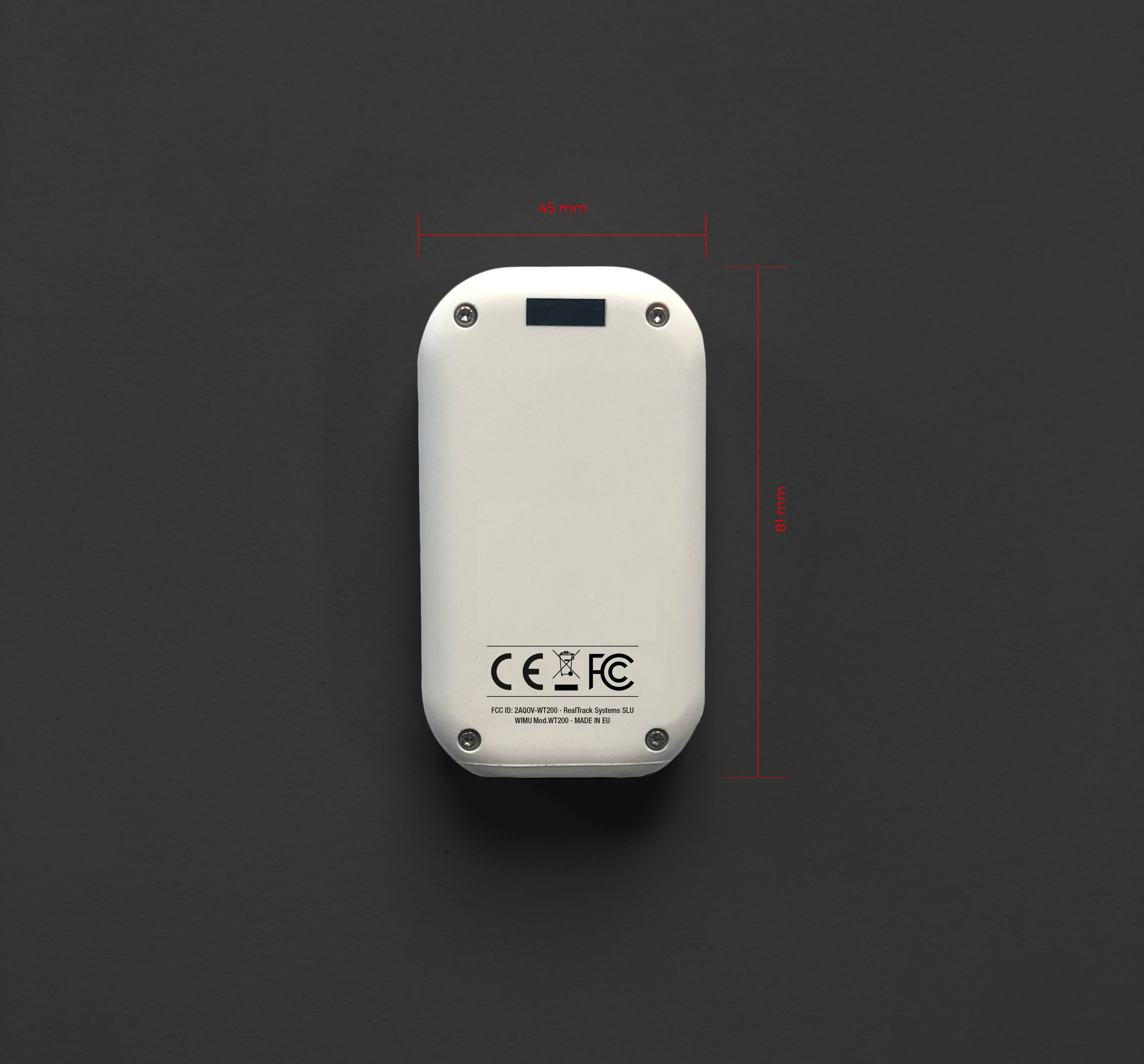

º EXTERNAL PICTURES º º

INTERNAL PICTURES

Page 1 of 8 FCC ID: 2AQOV-WT200 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name : WIMU PRO EVO Test Model : WT200 Power Supply : DC 3.7V by Rechargeable Li-ion Battery, 1300mAh Hardware Version : V.2 Software Version : V.1.0.0 Bluetooth Frequency Range : 2402MHz~2480MHz Channel Number : 79 channels for Bluetooth V5.1(DSS) 40 channels for Bluetooth V5.1 (DTS) Channel Spacing : 1MHz for Bluetooth V5.1 (DSS) 2MHz for Bluetooth V5.1 (DTS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.1(DSS) GFSK for Bluetooth V5.1 (DTS) Bluetooth Version : V5.1 Antenna Description : Internal Antenna, 1.0dBi(Max.) WIFI(2.4G Band) Frequency Range : 2412MHz~2462MHz Channel Spacing : 5MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Description : Internal Antenna, 1.0dBi(Max.) ANT+ Frequency Range : 2400MHz~2483.5MHz Antenna Description : Internal Antenna, 1.3dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device Page 2 of 8 FCC ID: 2AQOV-WT200 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 8 FCC ID: 2AQOV-WT200 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 5…

Text truncated - open the document above for the full version.

Page 1 of 34 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For REALTRACK SYSTEMS SL WIMU PRO EVO Test Model: WT200 Prepared for : REALTRACK SYSTEMS SL Address : Calle Guinea, 2; Almería, 04009 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 05, 2023 Number of tested samples : 2 Sample No. : A042623040-1, A042623040-2 Serial number : Prototype Date of Test : May 05, 2023 ~ July 11, 2023 Date of Report : July 12, 2023 Page 2 of 34 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSA042623040EB Date of Issue .................................. : July 12, 2023 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : REALTRACK SYSTEMS SL Address .......................................... : Calle Guinea, 2; Almería, 04009 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : WIMU PRO EVO Trade Mark ..................................... : WIMU WT200 Test Model ...................................... : WT200 Ratings ........................................... : DC 3.7V by Rechargeable Li-ion Battery, 1300mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jack Liu/ Administrator Cary Luo/ Technique principal Gavin Liang/ Manager Page 3 of 34 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Model............................... : WT200 EUT......................................... : WIMU PRO EVO Applicant............................... : REALTRACK SYSTEMS SL Address.................................. : Calle Guinea, 2; Almería, 04009 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : REALTRACK SYSTEMS SL Address................................... : Calle Guinea, 2; Almería, 04009 Telephone............................... : / Fax.......................................... : / Factory................................... : REALTRACK SYSTEMS SL Address................................... : Calle Guinea, 2; Almería, 04009 Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA042623040EB July 12, 2023 Date of issue Page 4 of 34 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 July 12, 2023 Initial Issue --- Page 5 of 34 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. SUPPORT EQUIPMENT LIST .................…

Text truncated - open the document above for the full version.

Page 1 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix B RF Test Data for BLE (Conducted Measurement) Product Name: WIMU PRO EVO Test Model: WT200 Environmental Conditions Temperature: 23.8°C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Nick Peng Supervised by: Ling Zhu Page 2 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.1 DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant 2402 0.716 2401.632 2402.348 0.5 PASS 2440 0.716 2439.636 2440.352 0.5 PASS 2480 0.708 2479.644 2480.352 0.5 PASS Page 3 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_Ant_2402 BLE_Ant_2440 BLE_Ant_2480 Page 4 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 5 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE Ant 2402 -15.93 ≤30 PASS 2440 -16.35 ≤30 PASS 2480 -16.93 ≤30 PASS Page 6 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_Ant_2402 BLE_Ant_2440 BLE_Ant_2480 Page 7 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 8 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.3 Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE Ant 2402 -30.37 ≤8.00 PASS 2440 -30.89 ≤8.00 PASS 2480 -31.62 ≤8.00 PASS Page 9 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_Ant_2402 BLE_Ant_2440 BLE_Ant_2480 Page 10 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Page 11 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.4 Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant Low 2402 -17.02 -59.62 ≤-37.02 PASS High 2480 -17.95 -58.17 ≤-37.95 PASS Page 12 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs BLE_Ant_Low_2402 BLE_Ant_High_2480 Page 13 of 24 FCC ID: 2AQOV-WT200 Report No.: LCSA042623040EB Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity B.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant 2402 Reference -17.08 -17.08 --- PASS 30~1000 -17.08 -60.56 …

Text truncated - open the document above for the full version.

Page 1 of 36 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EC Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT For REALTRACK SYSTEMS SL WIMU PRO EVO Test Model: WT200 Prepared for : REALTRACK SYSTEMS SL Address : Calle Guinea, 2; Almería, 04009 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 05, 2023 Number of tested samples : 2 Sample number : A042623040-1, A042623040-2 Serial number : Prototype Date of Test : May 05, 2023 ~ July 11, 2023 Date of Report : July 12, 2023 Page 2 of 36 FCC ID:2AQOV-WT200 Report No.: LCSA042623040EC Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSA042623040EC Date of Issue .................................. : July 12, 2023 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Proce…

Text truncated - open the document above for the full version.
