2AQPW-DD313IA-01AAutomotive Rear Seat Entertainment LCD display mounted on the ceiling

Seite 1Thema | Abteilung | Datum FeatureBook Panoramadisplay. Serie SA 01.12.2022 G70 Contact Data status SoP X 6FR iDrive ID8 Kick-off Feature Book G70 | 04.02.2021 Visuals •Bluetooth •CE-device certification •FCC American CE-device certification Description 1.Content offer: common Video On Demand Apps are preinstalled and CE-Store is integrated 2.Control via Multi-touch and an additional input device with limited remote control capabilities 3.The display is electrically adjustable via multiple control units in the vehicle(e.g.CID, FZD, PaDi) 4.Pre-requisites: •Mandatory: SA6PA (E-SIM) and SA6U3 (MGU). •Additionally:Customer SIM Card in Vehicle (MNO Contract) Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 PLT FeaturebookNext –Status 01/21 Confidential Holger Forstmeier, DE-521, Tel. 53126 07/22 Model Padi31.3 CN Trademark Seite 2Thema | Abteilung | Datum Display specific features: -Joint entertainment-/cinema-experience for both passengers in the backseat of the G70 -Display for RearSeatEntertainmentwith adjustable aspect ratio -Color space synchronized with AZV for a consistent high-end appearance G70 -Mechanical, thermal and E/E-Integration of RearSeatUnit-electronics (varies based on country- variant: CN and ROW) Controls: -The display offers multi-touch control as well as a second input device -Audio playbackvia headphones (2x 3,5mm audiojack or 2x Bluetooth) or use of the vehicle audiosystem -Customer inputs -HDMI-TypeA -Charging via USB-C up to 5V/3A -max 2 CE-Devices via Bluetooth connectable (max. 2 BT Headphones and1 HDMI active simultaneously) -1 additional BT HID Device (e.g. Gamepad) usable -Integrated camera and microphone (displayed by two mic sensors) Serie SA X 6FR Holger Forstmeier, DE-521, Tel. 53126 Contact Data status PLT FeaturebookNext –Status 01/21 AdditionalInformation-Panoramadisplay 2x Audiojack USB-C for Charging HDMI TypeA 2x Microphone Vertraulich Camera Bluetooth FeatureBook Panoramadisplay. G70 01.07.2021 Reset Seite 3Thema | Abteilung | Datum Serie SA X 6FR Contact Data status PLT FeaturebookNext –Status 01/21 User Story for Content Playback ZOOM 21:9 FOR VIDEOS 1.Setup Wizard CN •EULA (end user license agreement) and GDPR (General Data Protection Regulation) •Language selection •Bluetooth pairing for headphones (feature might only be available after SOP) •CE Area Guide 2.Setup Wizard RoW(first-use only) •Language selection (default HU-language) •Status of internet connection (necessary for account login) •Account login CE-Area •EULA (end user license agreement) and GDPR (General Data Protection Regulation) •System updates 3.Internet connection via E-SIM in Vehicle (see Manual E_SIM) 4.Video playback via selection of 3rd party app •Might need to be downloaded from the store •Login via 3 rd party account, if necessary 5.Audio playback via speakers/headphones: •Input selection RSE via display, second input device or CID (only vehicle audio system) •Optionally Bluetooth pairing or headphone jack 6.Remote control via second input device: •Display On/Off and brightness control •Remote control PaDicontent via Touchpad/D-Pad Vertraulich FeatureBook Panoramadisplay. G70 01.07.2021Holger Forstmeier, DE-521, Tel. 53126 Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Seite 4Thema | Abteilung | Datum Serie SA X 6FR Contact Data status PLT FeaturebookNext –Status 01/21 BMWFunctions & Bluetooth Pairing ZOOM 21:9 FOR VIDEOS Basic interaction elements of Panoramadisplay: •ON/OFF (including status) BMW Fuctions: •Volume (Slider, Plus, Minus) •Mute •Sink selector (Headphones / Car-Speaker) •Screen source selector (Extension PCB / HDMI) •Zoom image •Move image (left / right) •possibly "screen settings" •PaDikinematics •Bluetooth paring Reboot User is able to restart the RSE system by long pressing the Reset button. Vertraulich FeatureBook Panoramadisplay. G70 01.07.2021Holger Forstmeier, DE-521, Tel. 53126 Bluetooth Paring Access to Bluetooth paring menu: Side bar → Settings •The paring process can be started from either side of the side bar. •The already known devices shall be listed under "My devices". Device in range shall be shown under "Available devices" My Devices For every known device, a device type icon and device name is shown in the first line of the list entry. The connection status is shown in the sub-line. Following status shall be shown: •Connected •Connected for the left passenger (headphone) •Connected for the right passenger (headphone) •Paring •Paring for the left passenger (headphone) •Paring for the right passenger (headphone) •Not able to connect •Not connected The label of the Headphone radio button depends on the headphone connection. •Headphones are connected via cable: list entry is "headphones" •Headphones are connected via bluetooth:list entry is the name of the headphones If headphone is selected as sink, Sound settings can be displayed. Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Seite 5Thema | Abteilung | Datum BEISPIEL. Basic interaction elements of Panoramadisplay: •ON/OFF (inkl. Status) BMW Fuctions: •Volume (Slider, Plus, Minus) •Mute •Sink selector (Headphones / Car-Speaker) •Screen source selector (Extension PCB / HDMI) •Zoom image •Move image (left / right) •possibly "screen settings" •PaDikinematics •Bluetooth paring Bluetooth Paring Access to bluetoothparing menu: Side bar → Settings •The paring process can be started from either side of the side bar. •The already known devices shall listed unter"My devices". Device in range shall be shown unter"Available devices" My Devices For every known device, a device type icon and device name is shown in the first line of the list entry. The connection status is shown in the sub- line. Following status shall be shown: •Connected •Connected for the left passenger (headphone) •Connected for the right passenger (headphone) •Paring •Paring for the left passenger (headphone) •Paring for the right passenger (headphone) •Not able to connect •Not connected The label of the Headphone radio b…

Text truncated - open the document above for the full version.

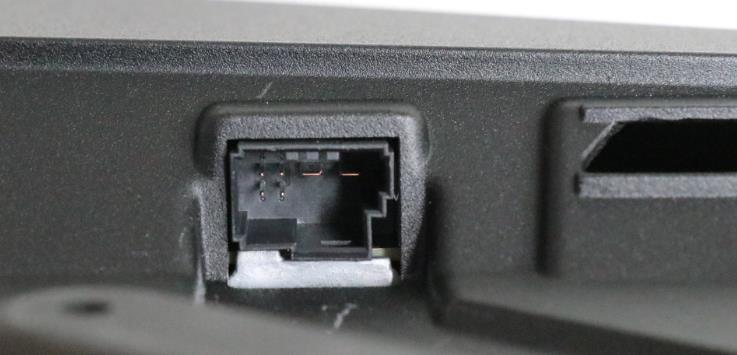

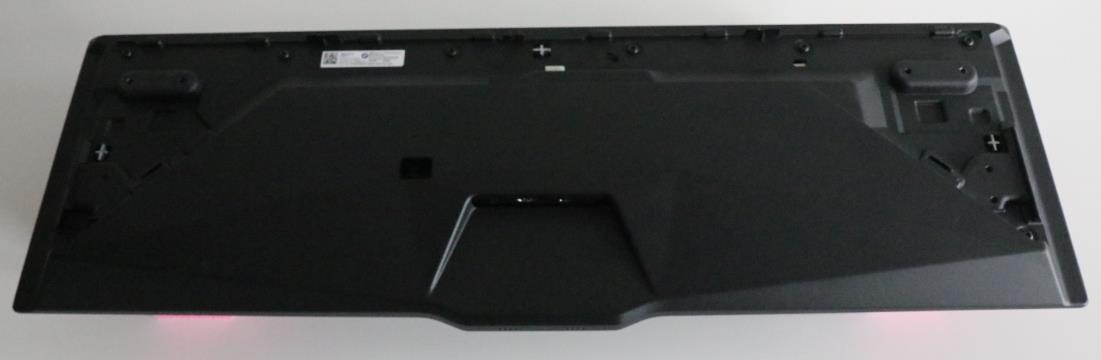

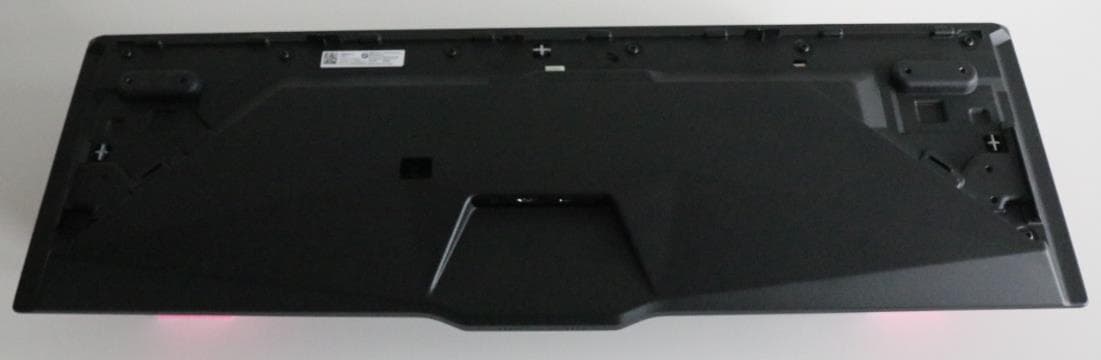

Front side Backside Input connectors customer: Headphone R - HDMI - USBC - Reset - Headphone L Power Connector OABR connector Camera and Microfoon holes

Homologation label 1: Location of the homologation label 1 Location of the homologation label 2 Location of the product label Homologation label 2: Product label:

Internal electronics Zoom in internal electronics Zoom in internal electronics Cropped Interface PCBA Left - Top - Bottom Power PCBA - Top - Bottom Extension PCBA ROW - Top - Bottom Interface PCBA Right - Top - Bottom Main RSE Top - Top - Bottom Camera PCBA - Top - Bottom

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.006 2022-10-27 Test report No: 3735ERM.006 Assessment report RF EXPOSURE REPORT ACCORDING TO FCC 47 CFR Part 2.1091; FCC 47 CFR Part 1.1307 FCC 47 CFR Part 1.1310 (*) Identification of item under evaluation Automotive Rear Seat Entertainment LCD Display mounted on the ceiling (*) Trademark Innolux (*) Model and /or type reference Padi 31.3 (*) Other identification of the product FCC ID: 2AQPW-DD313IA-01A (*) Features Bluetooth Classic (*) Manufacturer CARUX TECHNOLOGY INC. No. 12, Building B, Nanke 8th Road, Shanhua District, Tainan City, 74144 Test method requested, standard FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. FCC 47 CFR Part 1.1307: Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. FCC 47 CFR Part 1.1310: Radiofrequency radiation exposure limits. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 2022-10-27 Report template No FERMUSA_200 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.006 Page 2 of 9 2022-10-27 Index Competences and guarantees .................................................................................................... 3 General conditions ...................................................................................................................... 3 Data provided by the client .......................................................................................................... 3 Identification of the client............................................................................................................. 3 Document history ........................................................................................................................ 3 Appendix A: FCC RF Exposure assessment result ..................................................................... 4 General description of the device under evaluation ..................................................................... 5 Evaluation Results ...................................................................................................................... 5 Appendix B: FCC RF Exposure information ................................................................................ 6 RF Exposure determination of exemption ................................................................................... 7 RF Exposure evaluation .............................................................................................................. 9 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.006 Page 3 of 9 2022-10-27 Competences and guarantees In order to assure the traceability to other national and international laboratories, DEKRA Certification Inc. has a calibration and maintenance program for its measurement equipment. DEKRA Certification Inc. guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at DEKRA Certification Inc. at the time of performance of the test. DEKRA Certification Inc. is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Assessment Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA Certification Inc. General conditions 1. This report is only referred to the item that has undergone the assessment. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA Certification Inc. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA Certification Inc. and the Accreditation Bodies Data provided by the client The following data has been provided by the client: 1. Information relating to the description of the sample ("Identification of the item under evaluation", "Trademark", "Model and/or type reference", “General description of the device”, “Other identification of the product”). 2. Maximum antenna gain and use distance information. 3. The device under evaluation consists of an Automotive Rear Seat Entertainment LCD Display mounted on the ceiling. DEKRA Certification Inc. declines any responsibility with respect to the information provided by the client and that may affect the validity of results. Identification of the client Innolux Europe BV Stationsstraat 39G, 6411NK, Heerlen Netherlands Document history Report number Date Description 3735ERM.006 2022-10-27 First release DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.006 Page 4 of 9 2022-10-27 Appendix A: FCC RF Exposure assessment result DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.006 Page 5 of 9 2022-10-27 General description of the device under evaluation The device under evaluation consists of an Automotive Rear Seat Entertainment LCD Display mounted on the ceiling. According to the manufacturer, during its normal use, the separation distance between the radiating structures of the device and nearby users will…

Text truncated - open the document above for the full version.

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005A12 12-07-2022 FCC LISTED, REGISTRATION NUMBER: 2764.01 ISED LISTED REGISTRATION NUMBER: 23595-1 Test Report No: 3735ERM.005A2 Test Report USA FCC Part 15.247, 15.209, 15.207; & CANADA RSS-247, RSS-Gen Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, and 5725 - 5850 MHz Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices. (*) Identification of item tested Automotive Rear Seat Entertainment LCD Display mounted on the ceiling (*) Trademark Innolux (*) Model and /or type reference Padi 31.3 CN Other identification of the product FCC ID: 2AQPW-DD313IA-01A IC: 27960-DD313IA01A (*) Features Bluetooth Classic Manufacturer CARUX TECHNOLOGY INC. No. 12, Building B, Nanke 8th Road, Shanhua District, Tainan City, 74144 Test method requested, standard USA FCC Part 15.247 (10-1-20 Edition): Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, and 5725 - 5850 MHz. USA FCC Part 15.209 (10-1-20 Edition): Radiated emission limits; general requirements. CANADA RSS-247 Issue 2 (February 2017). CANADA RSS-Gen Issue 5 amendment 1 (March 2019). Guidance for Performing Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid Systems Devices Operating Under Section 15.247 of the FCC Rules. 558074 D01 Meas Guidance v05r02 dated April 2, 2019. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Summary IN COMPLIANCE Approved by (name / position & signature) Domingo Galvez EMC&RF Lab Manager Date of issue 12-07-2022 Report template No FDT08_24 (*) “Data provided by the client” DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005A12 Page 2 of 97 12-07-2022 Index INDEX ........................................................................................................................................................................... 2 ACRONYMS ................................................................................................................................................................. 3 COMPETENCES AND GUARANTEES ....................................................................................................................... 3 GENERAL CONDITIONS ............................................................................................................................................. 4 UNCERTAINTY ............................................................................................................................................................ 4 DATA PROVIDED BY THE CLIENT ............................................................................................................................. 5 USAGE OF SAMPLES ................................................................................................................................................. 5 TEST SAMPLE DESCRIPTION ................................................................................................................................... 7 IDENTIFICATION OF THE CLIENT ............................................................................................................................. 8 TESTING PERIOD AND PLACE .................................................................................................................................. 8 DOCUMENT HISTORY ................................................................................................................................................ 8 ENVIRONMENTAL CONDITIONS ............................................................................................................................... 9 REMARKS AND COMMENTS ..................................................................................................................................... 9 LIST OF EQUIPMENT USED DURING THE TEST ..................................................................................................... 9 TESTING VERDICTS ................................................................................................................................................. 10 SUMMARY .................................................................................................................................................................. 11 APPENDIX A: TEST RESULTS. BLUETOOTH EDR ................................................................................................ 12 PRODUCT INFORMATION ........................................................................................................................................ 13 TEST CONDITIONS ................................................................................................................................................... 14 TEST CASES DETAILS ............................................................................................................................................. 17 DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005A12 Page 3 of 97 12-07-2022 Acronyms Acronym ID Acronym Description # of Tx Chains Number of Transmission Chains 26Ebw Emission Bandwidth Avg COT Average Channel Occupancy Time BW Bandwidth Detector Detector used Equipment Equipment Type Freq Frequency Freq Rng Frequency Range Freq Sep Frequency Separation Inband Peak Lvl Inband Peak Level Lvl Level MP Measurement Point Mod Modulation NHC Number of Hopping Channels NHp Number of hops over the period Occ Ch BW Occupied Channel Bandwidth Peak Power Maximum Peak Conducted Output Power Pol Polarization Port Active Port Unwanted Freq Unwanted Emissions Frequency Unwanted Lvl Unwanted Emissions Level Competences and guarantees DEKRA Certification Inc. is a testing la…

Text truncated - open the document above for the full version.

Version3 Info Source: Supplier Garmin ModelPADI 31.3 Date28 January 2022 CompanyCarux UX, "an Innolux subsidary" NameMark Smeets [email protected] functionProject Manager AdressStationstraat 39G Zip6411NK CityHeerlen CountryNetherlands BT Antenna GainsAntenna parameters Frequency (MHz)Gain (dBi) Spec Items AntennaValue 2400-4.5272 Operating frequency 2400MHz – 2485MHz 2405-4.09892 Both Peak Average Gain (Although for certification the important one is peak) Peak = -3.2dBi, Avg = -4.07dBi 2410-3.90772 Impedance 50 ohms 2415-3.9867 Input power Max limit not known, tested for up to 4dBm 2420-3.89634 Operating temperature Set same as PADi spec, -40°C / 85°C 2425-3.56221 Dimensions Maximum 13 mm x 12 mm 2430-3.39372 Pictures 2435-3.27304 Installation instructions (if applicable) N/A. It is an Internal antenna, see picture. No external cable connection or antenna mounting needed. 2440-3.18154 Radiation plots 2445-3.23779 2450-3.53861 2455-4.15924 2460-4.79472 2465-4.52698 2470-4.30392 2475-4.47365 2480-5.00526 2485-5.42564

DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 09-16-2022 Appendix B: Photographs DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 Page 2 of 6 09-16-2022 Figure B1. Front View of Radiated Sample Figure B2. Rear View of Radiated Sample DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 Page 3 of 6 09-16-2022 Figure B3. Front View of Conducted Sample Figure B4. Rear View of Conducted Sample DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 Page 4 of 6 09-16-2022 Figure B5. Front View of DUT with Accessories DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 Page 5 of 6 09-16-2022 Figure B6. Radiated Emission test setup1 LR (0.03-1GHz) Figure B7. Radiated Emission test setup2 HR (1-18GHz) DEKRA Certification, Inc. 405 Glenn Dr. Suite 12, Sterling, VA 20164 United States of America Report No: 3735ERM.005 Page 6 of 6 09-16-2022 Figure B8. Radiated Emission test setup3 HR (18-26GHz)
