2AQRM-V8Tablet PC

Thanks for choosing Foxx products Thanks for choosing Foxx products PRODUCT HEX-VISION IMAGE VOLUME BUTTON: Short press to adjust the volume or to mute incoming calls. PRODUCT HEX-VISION IMAGE POWER BUTTON:Long press to turn on the device; When the device is on, short press Power Button to shutdown or turn on the screen. CARD INSERT MANUAL Insert Nano-SIM Card Reminder: TF Card lnstallation Please place the metal contact of the TF card adown ,be aware of the direction of the cut edge. Insert the card directly into the device. Reminder: Please turn off the tablet before changing or replacing the TF card.TF card does not come with the tablet please purchase separately. Do not insert or remove the SiM card when the tablet is turned on. SIM MANAGEMENT Please choose which SIM card slot to be the main one to be for 4G network via Setting > SIM Card . Choose your preferred network types of 4G/3G/2G via Setting > Network & lnternet >Mobile network >Preferred network type. 3 Gold contact facing down Insert a Nano SIM card. Insert the Nano-SIM card with the chip facing down. Note the direction of cutting a Nano-SIM card into a slot. Please use standard Nano-SIM card .Please don't use a nonstandard card that is hand-cut . Insert a Nano SIM card. Insert the Nano-SIM card with the chip facing down. Note the direction of cutting a Nano-SIM card into a slot. Device is supported With Vitual Sim as default. Nano sim can be supported with new firmware from FoxxTech support team. NETWORK CONNECTION Bluetooth Function Into the setting of Bluetooth function via Settings > Connected devices > Bluetooth Enable the Bluetooth function by clicking the Menu Button then select "Refresh", then the tablet will search for available Bluetooth devices for pairing and list on the screen. Click on the one you want to pair with ,then click "Pair "on the dialog pop-up. Documents are available for Connecting WIFI lnto the setting of WIFI via Settings > Network & lnternet > Wi-Fi When WIFI is on, a list available WiFi connection will appear. Click on the one you want to connect to, enter the password if the network is encrypted, then click Connect .When it's a public network,just click Connect When the network shows "connected", it is available to use . transmission after Bluetooth pairing . Reminder : Slide down the status bar to open the shortcut switches for Bluetooth and other functions. WIFI Hot-spot Setting Click on via Settings > Network & tethering > Wi-Fi hotspot to turn on the Portable WIFI Hot-spot functiong . When setting up WIFI hot-spot , enter your user name in "Network Name"and password ,then click Save .Another device password of the password . Reminder : Please enable the Data Connection before enabling the network sharing function. Your mobile traffic will be shared by other devices, so please use it carefully .The signal of the WIFI hot-spot depends on the signal strength and devices . 4 CAMERA Aim the camera at the shooting object, the tablet will start focus automatically ; or you can click on the screen to choose the object you want to focus on, then click " Capture" icon to take photos . You can also choose other modes such as video recording ,beautifying , panorama to take photos/videos. SECURITY INFORMA TION INSTRUCTIONS FOR SIM-CARD &SD Card Security information (including BS, ES, battery securityinformation)of third-party software installation and function may vary in different regions or by different hardware specifications. Foxx holds disclaimer for the performance problem or incompatibility caused by third-party applications, registry editing ,OS software modifying .Customizing the OS may cause the device or some applications fail to work properly The Device is equied with Single Sim card slot and SD card slot . Its not a device with Dual SIM card . Please prevent the device or the battery in extreme cold/hot condition. Then extreme temperature will lead to deformation of the tablet and reduce the charging capacity and battery life. Please do not crush or pierce the battery . Prevent the battery from getting high pressure from outside , it may cause internal short and Please do not place the battery or the tablet onto or inside heating devices such as microwave, oven or radiator. The battery may Please only use the custom designed and approved battery and charger by Foxx. lncompatible battery and chearger may cause damage to the tablet . Please abide by local regulation when disposing of the used batteries and tablet. explode if it gets too hot. overheating . 5 SPECIFICA Model V8 Operating System Android™ 13 CPU MT8766B 4 Core 2.0GHz GPU GE8300 RAM 3GB ROM 32GB Battery 4000mAh TIONS BASIC INFORMATION 5MP Camera 8MP Camera Display Screen Size 8 inch Resolution 1280*800 Pixeis Touch Capacitive multi-touch Cameras Front Camera Rear Camera Connection(I/O) Band GSM:B2/3/5/8 WCDMA :B2/4/5 FDD:B2/4/5/12/13/66/71 TDD:B41 HPUE SIM/TF card 2 Nano SIM Card and 1 TF Card WiFi IEEE802.11 a/b/g/n/ac Bluetooth Bluetooth 5.0 GNSS GPS FM YES Earphone Port 3.5mm USB Port Type-C USB Other Features In the box 1*tablet 1*Type-c Cable 1* Power Adapter 1*Quick Start Guide Video File Format 3GP/MPEG4,etc Audio File Format WAV/MP3/AAC/AMR/MIDI/APE/WMA,etc Card Extend Support TF card up to 256 GB Language Support Multi-language Sensor G-Sensor,Gravity sensor,Compass. 6 7 8 9 Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for typical body-worn operations with the back of the device kept 0mm from the body. To maintain compliance with FCC RF ex…

Text truncated - open the document above for the full version.

FOXX Development Inc. Section 2.911(d)(5)(i) Certification – Equipment Type Company name: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Product Name: Tablet PC FCC ID: 2AQRM-V8 Model(s): FOXXD_V8 2.911(d)(5)(i) Equipment Type We, [FOXX Development Inc. ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Xiangyu Zeng Date: 2023-1 1-0 6 Title and Company name: Manager NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(i) Equipment Type Attestation v1.2

FOXX Development Inc. Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Product Name: Tablet PC FCC ID: 2AQRM-V8 Model(s): FOXXD_V8 2.911(d)(5)(ii) Applicant filing We, [FOXX Development Inc.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Xiangyu Zeng Date: 2023-11-0 6 Title and Company name: Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant Attestation v1.2

FOXX Development Inc. Section 2.911(d)(7) USA Agent for Service of Process Company name: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Product Name: Tablet PC FCC ID: 2AQRM-V8 Model(s): FOXXD_V8 2.911(d)(7) USA Designated Agent for Service of Process We, [FOXX Development Inc. ] (“the applicant”) designate [FOXX Development Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA FRN: 0027735299 FCC Grantee Code:2AQRM Contact Name: Xiangyu Zeng Telephone No: (404) 645-6389 Email: [email protected] Applicant Company name: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA FRN: 0027735299 FCC Grantee Code:2AQRM Contact Name: Xiangyu Zeng Telephone No: (404) 645-6389 Email: [email protected] Signature: Title: Manager Signature: Title: Manager Date: 2023-11-06 Date: 2023-11-06 2.911 (d)(7)USA Agent v1.2 FOXX Development Inc. NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-t o-the-communications-supply-chain-through-the 2.911 (d)(7)USA Agent v1.2

FOXX Development Inc. FCC Software Configuration Control Declaration Date: November 6, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Tablet PC/ FOXXD_V8 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Xiangyu Zeng Date: 2023-11-06 Title: Manager Signature of applicant FCC Software Configuration Control Declaration Rev1.1(5G)

FOXX Development Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-11-06 Subject; Request for Long Term Confidentiality FCC ID: 2AQRM-V8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedurer software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xiangyu Zeng Title: Manager

Letter of Authorization Company: FOXX Development Inc. Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Product Name: Tablet PC Model Number: FOXXD_V8 FCC Identifier: 2AQRM-V8 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Xiangyu Zeng Date: 2023-1 1-06 Title: Manager

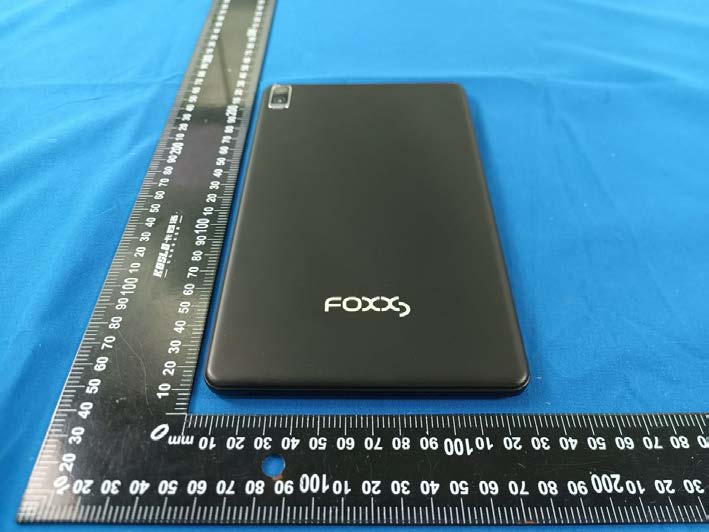

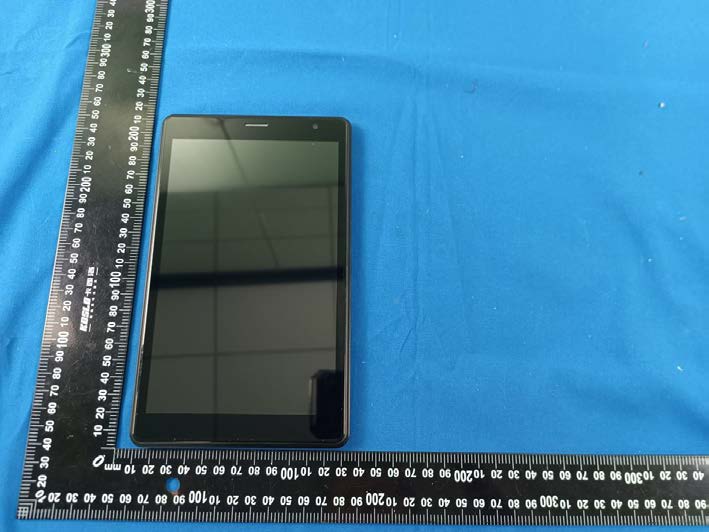

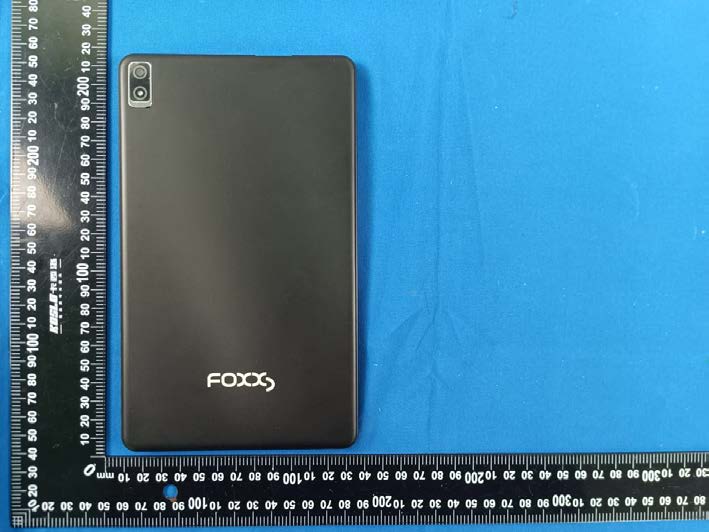

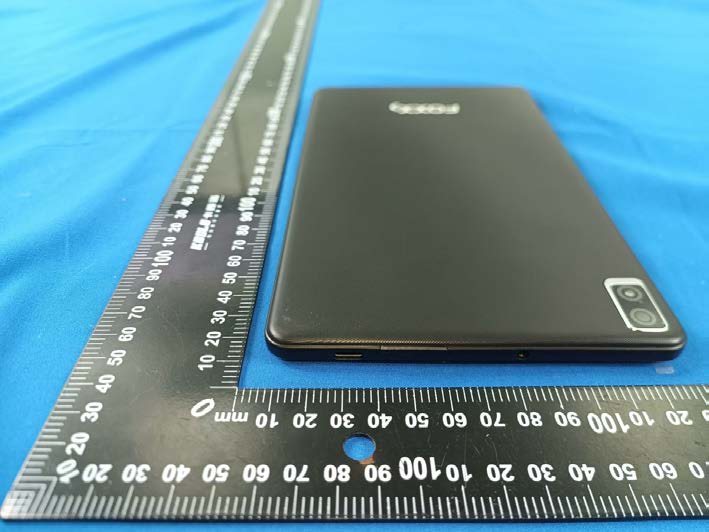

Model: FOXXD_V8 External Model: FOXXD_V8 Model: FOXXD_V8 Model: FOXXD_V8

Label&Location FOXXD Tablet PC Model: FOXXD_V8 FCC ID: 2AQRM-V8

Model: FOXXD_V8 Internal Model: FOXXD_V8 Model: FOXXD_V8 Model: FOXXD_V8

TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 1 of 101 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China SARTestReport For ApplicantName:FOXXDevelopmentInc Address:3480PrestonRidgeRoad,Suite500,Alpharetta,GA30005,USA EUTName:TabletPC ModelNumber:FOXXD_V8 BrandName:FOXXD IssuedBy CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:BTF231007R00401 TestStandards: 47CFRPart2.1093IEEE1528-2013IEEEC95.1-2019 KDB447498D04KDB865664D01KDB865664D02 KDB941225D01KDB941225D05KDB941225D06 KDB248227D01KDB616217D04KDB648474D04 KDB690783D01 FCCID:2AQRM-V8 TestConclusion:Pass TestDate:2023-10-23to2023-10-24 DateofIssue:2023-10-25 PreparedBy: MonicaZhou/ProjectEngineer Date:2023-10-25 ApprovedBy: Ryan.CJ/EMCManager Date:2023-10-25 Note:Allthetestresultsinthisreportonlyrelatedtothetestingsamples.Whichcanbeduplicatedcompletelyforthelegalusewithapprovalof applicant;itshallnotbereproducedexceptinfullwithoutthewrittenapprovalofBTFTestingLab(Shenzhen)Co.,Ltd.,Alltheobjectionsshouldbe raisedwithinthirtydaysfromthedateofissue.Tovalidatethereport,youcancontactus. TestReportNumber:BTF231007R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 2 of 101 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RevisionHistory VersionIssueDateRevisionsContent R_V02023-10-25Original Note:Oncetherevisionhasbeenmade,thenpreviousversionsreportsareinvalid. TestReportNumber:BTF231007R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 3 of 101 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China TableofContents 1.Introduction...................................................................................................................................................................................................4 1.1IdentificationofTestingLaboratory.....................................................................................................................................................4 1.2IdentificationoftheResponsibleTestingLocation..............................................................................................................................4 1.3LaboratoryCondition...........................................................................................................................................................................4 1.4Announcement....................................................................................................................................................................................4 2.ProductInformation.......................................................................................................................................................................................5 2.1ApplicationInformation........................................................................................................................................................................5 2.2ManufacturerInformation....................................................................................................................................................................5 2.3FactoryInformation.............................................................................................................................................................................5 2.4GeneralDescriptionofEquipmentunderTest(EUT).........................................................................................................................5 2.5EquipmentunderTestAncillaryEquipment........................................................................................................................................5 2.6TechnicalInformation..........................................................................................................................................................................5 3.SummaryofTestResults..............................................................................................................................................................................7 3.1TestStandards....................................................................................................................................................................................7 3.2DeviceCategoryandSARLimit..........................................................................................................................................................7 3.3TestResultSummary..........................................................................................................................................................................8 3.4TestUncertainty..................................................................................................................................................................................9 4.MeasurementSystem.................................................................................................................................................................................11 4.1SpecificAbsorptionRate(SAR)Definition........................................................................................................................................11 4.2MVGSARSystem.............................................................................................................................................................................11 5.SystemVerification.............................................................................................................…

Text truncated - open the document above for the full version.

天线报告 致力于为客户提供专业级天线解决方案 项目调试简介 机 型 平板 板 型 主板 频段及天线材质 主天线 频 段 材 质 2G GSM850/900/1800/1900 FPC 3G WCDMA B2/4/5 4G LTE B2/4/5/12/13/25/26/41/66/71 其他天线 GWB 1575.42MHz/2.450GHz FPC FPC 性能要求 按客户要求执行 致力于为客户提供专业级天线解决方案 主天线有源参数 Test GSM 850 PCS 1900 Channel 128 190 251 512 661 810 TRP(dBm) 26.3 2 26.55 26.21 25.83 25.21 25.18 TIS(dBm) -102.6 4-102.25 Test EGSM 900 DCS 1800 Channel 1 62 124 512 698 885 TRP(dBm) 26.4 0 25.25 24.61 24.52 25.18 25.29 TIS(dBm) -101.2 3-102.32 致力于为客户提供专业级天线解决方案 Test WCDMA_II Channel 9662 9800 9938 TRP(dBm) 18.3 8 18.27 18.01 TIS(dBm) -103.24 Test WCDMA_VI Channel 1537 1638 1738 TRP(dBm) 17.2 5 17.49 17.35 TIS(dBm) -102.4 0 主天线有源参数 致力于为客户提供专业级天线解决方案 Test FDD B2 FDD B4 Channel 18650 18900 19150 20050 20175 20350 TRP(dBm) 18.08 17.52 17.41 17.15 17.41 17.30 TIS(dBm) -92.3 2 -91.54 Test FDD B5 FDD B12 Channel 20450 20525 20600 23035 23095 23155 TRP(dBm) 17.2 5 17.39 17.52 15.35 15.56 16.11 TIS(dBm) -90.25-89.56 Test FDD B13 FDD B25 Channel 23130 23230 23330 21500 21625 21750 TRP(dBm) 15.2 8 15.34 16.02 17.66 18.19 17.36 TIS(dBm) -90.22-92.23 主天线有源参数 致力于为客户提供专业级天线解决方案 Test FDD B26 TDD B41 Channel 26740 26865 26990 40240 40620 41140 TRP(dBm) 16.36 17.04 17.52 21.14 22.87 21.43 TIS(dBm) -90.13-90.64 Test FDD B66 FDD 71 Channel 132033 132322 132622 133172 133297 133422 TRP(dBm) 17.21 17.12 17.47 15.08 15.12 15.36 TIS(dBm) -92.13-89.21 主天线有源参数 FrequencyEfficiency(%)Gain.(dBi) 2400MHz55.220.95 2410MHz57.250.98 2420MHz57.230.99 2430MHz56.690.94 2440MHz57.380.96 2450MHz60.330.95 2460MHz60.261.01 2470MHz57.170.99 2480MHz60.210.97 2490MHz56.550.96 2500MHz56.640.99 5150MHz55.780.98 5250MHz55.870.95 5350MHz54.990.96 5450MHz56.120.96 5550MHz56.600.98 5650MHz60.141.01 5750MHz56.490.98 5850MHz56.550.99 3D 2400 3D 2450 3D 2500 3D 5150 3D 55503D 5850 B T/2.4G WiFi/5G WiFi 致力于为客户提供专业级天线解决方案 Band Gain（MAX） GSM850 0.62 E GSM900 0.53 DCS1800 0.51 P CS1900 0.53 WCDMA1700 0.48 W CDMA1900 0.53 W CDMA850 0.62 Band2 0.53 B and4 0.48 B and5 0.62 B and12 0.48 B and13 0.48 B and25 0.53 B and26 0.62 B and41 0.75 B and66 0.46 B and71 0.46 天线增益 GPS 1.04 WiFi 1.01 BT 1.01 致力于为客户提供专业级天线解决方案 开关逻辑 RF1( 0欧） GSM 900/1800/1900 WCDMA B2 LTE B2/25/41 RF2（3.9NH） GSM 850 WCDMA B4/5 LTE B4/5 /26/66 RF3（15NH） GSM WCDMA LTE B12/13 RF4（22NH） GSM WCDMA LTE B71

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 86 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Test Report For Applicant Name: FOXX Development Inc Address: 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA EUT Name: Tablet PC Brand Name: FOXXD Model Number: FOXXD_V8 Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230926R00104 Test Standards: 47 CFR Part 15E Test Conclusion: Pass FCC ID: 2AQRM-V8 Test Date: 2023-09-26 to 2023-10-27 Date of Issue: 2023-10-30 Prepared By: Chris Liu / Project Engineer Date: 2023-10-30 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-30 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230926R00104 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 86 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-30 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230926R00104 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 86 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1 INTRODUCTION ......................................................................................................................................... 5 1.1 Identification of Testing Laboratory .............................................................................................. 5 1.2 Identification of the Responsible Testing Location ..................................................................... 5 1.3 Announcement ................................................................................................................................ 5 2 PRODUCT INFORMATION ......................................................................................................................... 6 2.1 Application Information .................................................................................................................. 6 2.2 Manufacturer Information ............................................................................................................... 6 2.3 Factory Information ........................................................................................................................ 6 2.4 General Description of Equipment under Test (EUT) .................................................................. 6 2.5 Technical Information ..................................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................................ 7 3.1 Test Standards ................................................................................................................................. 7 3.2 Uncertainty of Test .......................................................................................................................... 7 3.3 Summary of Test Result ................................................................................................................. 7 4 TEST CONFIGURATION ............................................................................................................................ 8 4.1 Test Equipment List ........................................................................................................................ 8 4.2 Test Auxiliary Equipment ............................................................................................................. 14 4.3 Test Modes ..................................................................................................................................... 14 5 EVALUATION RESULTS (EVALUATION) ................................................................................................ 15 5.1 Antenna requirement .................................................................................................................... 15 6 RADIO SPECTRUM MATTER TEST RESULTS (RF) .............................................................................. 15 6.1 Conducted Emission at AC power line ....................................................................................... 15 6.1.1 E.U.T. Operation: ................................................................................................................. 15 6.1.2 Test Setup Diagram: ............................................................................................................ 15 6.1.3 Test Data: ............................................................................................................................ 16 6.2 Duty Cycle ...................................................................................................................................... 18 6.2.1 E.U.T. Operation: ................................................................................................................. 18 6…

Text truncated - open the document above for the full version.

Model: FOXXD_V8 Band edge emissions (Radiated) Emissions in frequency bands (above 1GHz) Emissions in frequency bands (below 1GHz)
