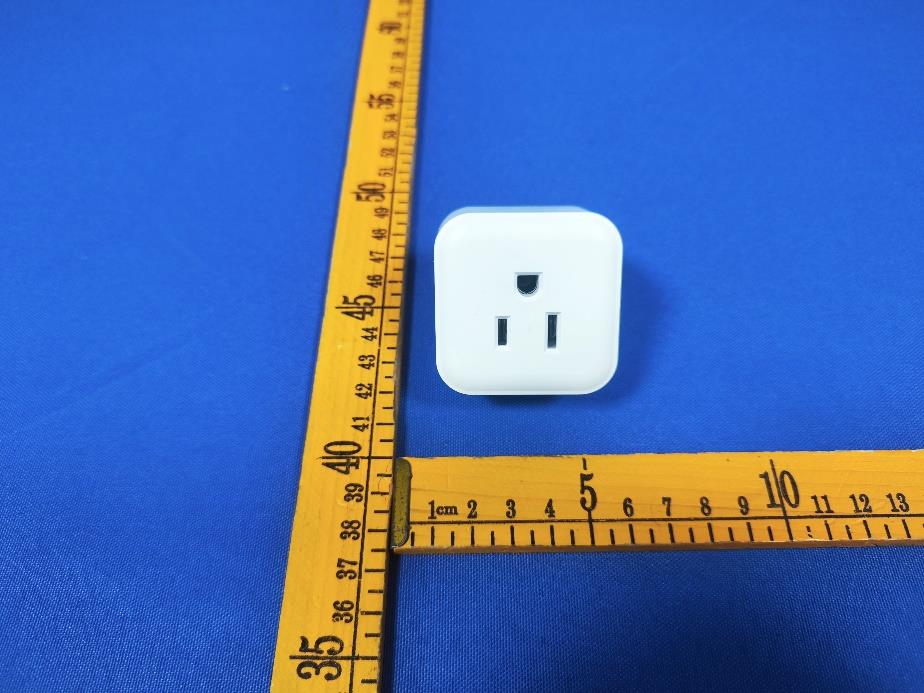

2AQURZW38SU-V8Z-Wave Mini Smart Plug

LED Indicator Parameter Settings Locally Button Press function: Notes: 100 feet • MP21ZP • Z-Wave Plug with Energy Monitor(800S) Adding Device To Z-Wave Network for QR CODE Scan here for SmartStar inclusion Note: FULL DSK can be found on the packaging box. Do not remove or damage them. Indoor use in dry location Specification Input: 125VAC 60Hz Frequency: 908.42 MHz 10A MAX 1250W TUNGSTEN GENERAL PURPOSE 1/2 HP Loading: 15A 1875W RESISTIVE OR Program button Press 1x: Manually Press 3x: Z-Wave Network configuration hold the 3rd press for 10 seconds Reset: Press the button quickly and then LED indicator Blue: Light status indicator Blue: ADD / Inclusion Purple: Remove / Exclusion Red: Network Failure Please contact us if you have any questions: [email protected] www.minoston.com Z-WAVE INTEROPERABILITY Z-Wave Network Configuration (LED flashes twice when the configuration parameter changed.) Support 2 groups, each group max support 5 devices Group 1 lifeline Group 2 Left outlet send basic set. Adding Device To Z-Wave Network 2. Once the controller is ready to add your device, press the Manual/ Program button on the 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press the manual / program button on the smart plug 3 times quickly. The green light is on for 2s when the removal is successful. To Remove The Device Manual: Press the button quickly and then hold the 3rd press for 10 seconds. Host reset: Remove it from hub, the device will be restore to factory default. To Return The Device To Factory Defaults Association Group Note:MP21ZP Support Z-Wave Long Range Z-Wave Long Range device can only support be included via SmartStart.Extract the DSK from end device and paste it into the Dsk Value in PC Controller, make sure the long Range' option is ticked. Z-Wave Long Range If the SmartThings replacement service results in abnormal use of the product, please install a new driver(edge driver) according to the following solutions. Regarding SmartThings usage exceptions: (SmartThings driver subscription channel)(guide video) 1. Plug the device you want to control into the Z-Wave Smart plug controlled outlet NOTE: Plug directly into the outlet, do not use with power strip. Features: 2. Your device may need to be within 100 feet of the controller to be included. If so, desired position in your home. Be sure to refresh the network if the device is included in this manner. 1: press 1x: turn output ON or OFF 2: quickly press 3x: inclusion or exclusion 3: quickly press 5x: change Parameter 1 4: quickly press 8x: change Parameter 4 5: quickly press 10x: Reset KWH 6: Manual: Press the button quickly and then hold the 3rd press for 10 seconds. smart plug 3 times quickly. SIZE: 235 x 285 mm 47 x 47.5 mm This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network. This Device supports Lifeline (association group 1) supporting 1 node for lifeline communication. Group 1 must be assigned the Node ID of the primary controller where unsolicited notifications will be sent. The Z-Wave controller should set this association automatically after inclusion. Lifeline association only supports the "Device Reset Locally" function. This parameter can access you to set a timer to make the switch turn on automatically after the switch turned off. The numberentered as value corresponds to number of minutes. Important note: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. This device is intended for installation in accordance with the National Electric Code and local regulations in the United States, or the Canadian Electrical Code and local regulations in Canada If you are unsure or uncomfortable about performing this installation consult a qualified electrician. RISK OF FIRE /RISK OF ELECTRICAL SHOCK/ RISK OF BURNS TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS PRODUCT HAS A GROUNDING TYPE PLUG THAT HAS A THIRD (GROUNDING) PIN. THIS PLUG WILL ONLY FIT INTO A GROUNDING TYPE POWER OUTLET. IF THE PLUG DOES NOT FIT INTO THE OUTLET, CONTACT A QUALIFIED ELECTRICIAN TO INSTALL THE PROPER OUTLET. DO NOT CHANGE THE PLUG IN ANY WAY. CONTROLLING APPLIANCES: CAUTION: TO REDUCE THE RISK OF OVERHEATING AND POSSIBLE DAMAGE TO OTHER EQUIPMENT • DO NOT EXCEED RATINGS • DO NOT USE TO CONTROL ANY DEVICE WHERE UNINTENDED OPERATION COULD CAUSE UNSAFE CONDITIONS (HEAT LAMP, SUN LAMP, ETC.) Please exercise EXTREME CAUTION when using Z-Wave devices to control appliances. Reason being is because the appliance you want to control may be in a separate room and if unintentional behavior occurs (such as adevice turning on or off - either intentionally via schedules, or unintentionally via network error) this event may lead to a hazardous condition. For these reasons, please note the following suggestions: 1) Do not include Z-Wave devices in Groups or Scenes if they control appliances. 2) Do not use Z-Wave devices to control electric heatersor any other appliances which may present a hazardous condition due to unattended, unintentional, or automatic power control. FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet o…

Text truncated - open the document above for the full version.

{NIE-TECH Co., Ltd} { Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA } Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 {2023-12-30} U.S. Agent Designation { NIE-TECH Co., Ltd} acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AQURZW38SU- V8): Name and company of U.S. agent: { Jasco Products Company LLC } Physical U.S. address of agent: {10 e memorial road Office oklahoma city OK 73114} FRN of U.S. agent: {0017309360} Email address of U.S. agent: {[email protected]} { Jasco Products Company LLC } acknowledges their obligation to accept service of process on behalf of {NIE- TECH Co., Ltd}. { NIE-TECH Co., Ltd} with the FRN [{0027755610}] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, { } Signature { jianghai} { Nie } { Manager } {NIE-TECH Co., Ltd} {} Signature {Mark Simpkins} {Manager} {Jasco Products Company LLC} 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

FCC ID: 2AQURZW38SU-V8 FCC ID: 2AQURZW38SU-V8 FCC ID: 2AQURZW38SU-V8

MP21ZP(ZW38SU) (ZW38SU) Model: MP21ZP Date: VER: 8.0 FCC ID: 2A QURZW38SU-V8 UL Std. 60730-1 Conforms to Cert. to CSA Std. E60730-1 PURPOSE 10A MAX 1250W TUNGSTEN 1/2 HP Loading: 15A 1875W RESISTIVE OR GENERAL Input: 125VAC 60Hz Frequency: 908.42 MHz Made in China For indoor use Z-Wave Plug With Energy Monitor (800S)

FCC ID: 2AQURZW38SU-V8 FCC ID: 2AQURZW38SU-V8 FCC ID: 2AQURZW38SU-V8 FCC ID: 2AQURZW38SU-V8 ANT FCC ID: 2AQURZW38SU-V8

Page 1 of 3 RF EXPOSURE EVALUATION FCC ID: 2AQURZW38SU-V8 Product Name : Z-Wave Mini Smart Plug Model Name : ZW38SU, MP21Z,ZW36SU,MP21ZP Operating frequency : 908.40MHz 908.42MHz 916.00MHz 912 MHz 920 MHz Type of Modulation : 2FSK for 908.40MHz 2FSK for 908.42MHz 2GFSK for 916.00MHz DSSS OQPSK LR for 912 MHz and 920 MHz Antenna Type : PCB Antenna Antenna Gain : -6.66dBi Power supply : Input: AC 125V/60Hz Output: AC 125V/15A 60Hz Hardware Version : V1.3 Software Version : V1 Page 2 of 3 Standard Requirement According to § 15.247(i) and § 1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4. 3. 1. The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances ≤ 50mm are determined by: [ (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g SAR extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50mm and for transmission frequencies between 100MHz and 6GHz. When the minimum test separation distance is <5mm, a distance of 5mm is applied to determine SAR test exclusion. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. E (V/m) ＝ d G P   30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   θφ From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 3 of 3 RF Output power Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) 908.40 89.46 -5.74 908.42 89.88 -5.32 916.00 90.15 -5.05 Note: EIRP=E-104.8+20logD, Where E is the electric field strength in dBμV/m. EIRP is the equivalent isotropically radiated power in dBm. d is the specified measurement distance in m. where D=3, EIRP=E-95.2. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (mW) Distance (mm) Calculation results Limit Result 912MHz -0.242 0.00 ± 1 1.000000 5 0.190997 3 Pass 920MH -0.677 -0.50 ± 1 0.891251 5 0.170972 3 Pass 908.40MH -5.74 -5.50 ± 1 0.281838 5 0.053724 3 Pass 908.42MH -5.32 -5.00±1 0.316228 5 0.060280 3 Pass 916.00MH -5.05 -5.00±1 0.316228 5 0.060531 3 Pass According to KDB 447498, no stand-alone required for the antenna, and no simultaneous SAR measurement is required. Signature Manager Simon Pu Date: 2023-12-25

ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page1of10 TestingReport CustomerName:NIE-TECHCo.,Ltd ProductName:ZW800_V8.42 SampleModel:ZW800_V8.42ANT ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2023.6.12 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.6.12Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesting.........................................................................6 3.TestResults.....................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................8 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 24.2°C Humidity 59%RH Pressure 100.15kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name NIE-TECHCo.,Ltd Address / Contacts / Tel / E-mail / Manufacturer / 2.2DescriptionofEUT(S) ProductName ZW800_V8.42 SampleModel ZW800_V8.42ANT AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 902-928MHz ReceivedDate 2023.6.08 TestDate 2023.6.09 Remark ThelengthoftheRFcableis50mm ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesting Planform Frontview ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202306-FF05-3 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata 3.3.3Typicalfreespaceefficiencyandgain Frequency/MHz 902915928 VSWR 6.44816.50926.5622 Frequency/MHz 902904906908910912914916918920922924926928 PeakGain/dBi -7.64-7.43-7.29-7.16-7.05-6.91-6.77-6.61-6.48-6.36-6.26-6.21-6.21-6.16 Efficiency/% 6.046.196.286.376.526.696.897.067.257…

Text truncated - open the document above for the full version.

FCC TEST REPORT FCC ID: 2AQURZW38SU-V8 Product Name : Z-Wave Mini Smart Plug Model Name : ZW38SU,MP21Z,ZW36SU,MP21ZP Brand Name : Ministon Report No. : PTC23120112101E-FC01 Prepared for NIE-TECH Co., Ltd Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Prepared by Precise Testing & Certification Co., Ltd. Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC23120112101E-FC01 Page 2 of 38 1 TEST RESULT CERTIFICATION Applicant’s name : NIE-TECH Co., Ltd Address : Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Manufacture's name : NIE-TECH Co., Ltd Address : Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Product name : Z-Wave Mini Smart Plug Model name : ZW38SU, MP21Z,ZW36SU,MP21ZP Standards : FCC Part15 Subpart C, Paragraph 15.249 Test procedure : ANSI C63.10: 2013 Test Date : Dec. 06, 2023 to Dec. 25, 2023 Date of Issue : Dec. 25, 2023 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.: PTC23120112101E-FC01 Page 3 of 38 Contents Page 1 TEST RESULT CERTIFICATION .............................................................................................................................. 2 2 TEST SUMMARY ......................................................................................................................................................... 4 3 TEST FACILITY ............................................................................................................................................................ 5 4 GENERAL INFORMATION ........................................................................................................................................ 6 4.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 6 4.2 TEST MODE ........................................................................................................................................................ 7 4.3 LIST OF CHANNELS ............................................................................................................................................. 8 5 EQUIPMENT DURING TEST ..................................................................................................................................... 9 5.1 EQUIPMENTS LIST............................................................................................................................................... 9 5.2 MEASUREMENT UNCERTAINTY ......................................................................................................................... 11 5.3 DESCRIPTION OF SUPPORT UNITS ................................................................................................................... 12 6 TEST STANDARD AND LIMIT ............................................................................................................................... 13 6.1. TEST SETUP .................................................................................................................................................... 13 6.2. TEST PROCEDURE ........................................................................................................................................... 13 6.3. TEST DATA ...................................................................................................................................................... 14 7 . RADIATED EMISSION AND BAND EDGE ......................................................................................................... 16 7.1. TEST STANDARD AND LIMIT ............................................................................................................................ 16 7.2. TEST SETUP .................................................................................................................................................... 17 7.3. TEST PROCEDURE ........................................................................................................................................... 18 7.4. TEST DATA ...................................................................................................................................................... 19 8. 20DB BANDWIDTH TEST ....................................................................................................................................... 22 8.1. TEST STANDARD AND LIMIT ............................................................................................................................ 26 8.2. TEST SETUP .................................................................................................................................................... 26 8.3. TEST PROCEDURE ........................................................................................................................................... 26 8.4. TEST DATA ...................................................................................................................................................... 26 9. ANTENNA REQUIREMENT .................................................................................................................................... 27 9.1. TEST STANDARD AND REQUIREMENT ............................................................................................................. 28 9.…

Text truncated - open the document above for the full version.

FCC ID: 2AQURZW38SU-V8 Conducted Emissions Radiated Spurious Emissions From 30MHz-1000MHz FCC ID: 2AQURZW38SU-V8 Test frequency from Above 1GHz
