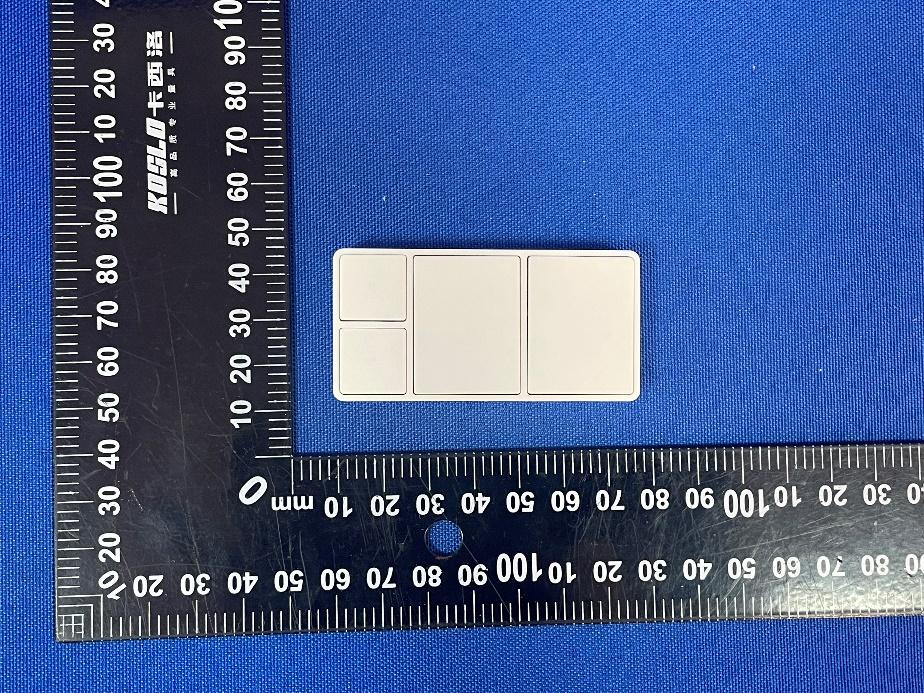

2AQURZW924-V2S2 Remote Control Switch(800S)

SIZE: 354 x 120 mm 89 x 60 mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (2) This device must accept any interference received, including interference that may cause FCC warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following meas- ures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. NOTE: If you are unsure or uncomfortable about performing this installation consult a qualified electrician. Risk of Fire / Risk of Electrical Shock / Risk of Burns Please DO NOT use this plug to control Medical or Life Support equipment. This device should never be used to control the On/Off status of Medical and/or Life Support equipment. OTHER WARNINGS MEDICAL EQUIPMENT IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. Read and follow all instructions that are on the product or provided with the product. 3. do not use an extension cord. 4. Reference the National Electrical Code, NFPA 70, specifically for the installation of wiring 5. Installation work and electrical wiring must be done by qualified person(s) in accordance 6. do not install or use within 10 feet of a pool 7. do not use in a bathroom 8. WARNING: 10.WARNING: operating instructions. Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface Risk of Electric fire. install only to a receptacle protected by 20A branch circuit over current protection. andclearances from power and lighting conductors. Risk of Electric Shock. When used outdoors, install only to a covered Class A GFCI protected receptacle that is weatherproof with the power unit connected to the receptacle. If one is not provided, contact a qualified electrician for proper installation. Ensure that the power unit andcord do not interfere with completely closing the receptacle cover. 9.WARNING: with allapplicable codes and standards, including fire-rated construction. regulations in the United States, or the Canadian Electrical Code and local regulations in Canada. SAVE THESE INSTRUCTIONS This device is intended for installation in accordance with the National Electric Code and local – This manual contains important safety and CAUTION - PLEASE READ! Minoston S2 Remote Control Switch(800S) Model – MR40Z(ZW924) If you have any questions, please contact us at and www.minoston.com [email protected] Scan QR code or visit Temperature Range: 32°F~104°F Indoor use in dry location Features of S2 Remote Control Switch 2. Do not use it in direct contact with water. 3. Contains small parts, please keep away from children. Specifications: Battery: CR2032*2 2. Remove battery tabs. 2. Control other Z-wave devices and enable scenes with a click of a button. 3. The device with S2 and SmartStart support. Power the device Battery position Open and access the battery Press 5x: Add Z-Wave Network Press 5x: Remove Z-Wave Network Press 5x: Wake-up Device again when the red light is flashing Program button: Inclusion: flashing blue RGB LED Indicator: Exclusion: flashing purple Wake up: stay solid blue Reset: flashing red Reset: Press 5x, then press it 5x 1. Power by battery. No wiring required. Note the ± direction of the battery. 1. Open the remote cover by hand and push it to separate the two halves. 1. Please read this online guide carefully at Minoston.com 1. Add the device to your Z-Wave network by following the instructions of your Z-Wave controller. 2. Once the controller is preparing to add your device, press the FIRST BUTTON(ONLY) 5 times. The LED is flashing in blue during inclusion, and it is solid green for 2 seconds after inclusion Inclusion/Exclusion Function To add the device This remote supports four scene controls Scene 3 : Third Button 1-Tap/2-Tap/3-Tap/Held/Released Scene 4 : Fourth Button 1-Tap/2-Tap/3-Tap/Held/Released Scene 1 : First Button 1-Tap/2-Tap/3-Tap/Held/Released Scene 2 : Second Button 1-Tap/2-Tap/3-Tap/Held/Released Scene Control: This remote supports 9 Association Group controls Group 1 Lifeline Group 2 First button press 1x send basic set 0xff, Second button press 1x send basic set 0x00. Group 3 Third button press 1x send basic set 0xff, Fourth button press 1x send basic set 0x00. Group 4 First button hold more than 0.5s send SWITCH_MULTI - LEVEL_START_LEVEL_CHANGE(Dim Up) Support group number: 9 Each group max. Support 10 devices Association Group: Parameter 7 indicates LED Indicator Brightness. Choose the LED indicator Brightness level. size=1 byte Available settings: 0--10 Value=0 LED off Value=1 10% Brightness Value=2 20% Brightness Value=3 30% Brightness Value=4 40% Brightness Value=5 50% Brightness Value=6 60% Brightness Value=7 70% Brightness Value=8 80% Brightness Value=9 90% Brightness Value=10 100% Brightness (DEFAULT) : 5 Down) Group 5 Second button release …

Text truncated - open the document above for the full version.

1/1 NIE-TECH Co., Ltd US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Lorenz High Definition LLC FRN: 0030963904 Contact Name: Zbigniew Lorenz Address: 230 Rt 206 STE 401, Flanders, NJ 07836, United States Telephone No: (848) 200-0995 Email: [email protected] Applicant: Company name: NIE-TECH Co., Ltd Product Description: S2 Remote Control Switch(800S) Grantee code: 2AQUR FCC ID: 2AQURZW924-V2 Contact Name: Jianghai Nie Address: Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Telephone No: 13751285558 Email: [email protected] [NIE-TECH Co., Ltd ] certifies that, as of the date of this filing of the application with the TCB, [Lorenz High Definition LLC] is our designated US agent for service of process for the above referenced FCC ID. [NIE-TECH Co., Ltd ] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Lorenz High Definition LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023 /08/17 Applicant’s Name:JianghaiNieUS Agent ’s Name:ZbigniewLorenz Title: ManagerTitle: President SignatureSignature

C5266091_X24_Ed.2 1/1 NIE-TECH Co., Ltd “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: NIE-TECH Co., Ltd Grantee code: 2AQUR FCC ID: 2AQURZW924-V2 Contact Name: Jianghai Nie Address: Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Telephone No: 13751285558 Fax No: 86 (769) 82286661 Email: [email protected] i.[NIE-TECHCo., Ltd] (“the applicant”) certifiesthat the equipmentfor which authorizationis soughtis not “covered” equipmentprohibitedfrom receiving an equipmentauthorizationpursuantto section2.903 of the FCC rules. The applicantmust sign this certification. ii.[NIE-TECHCo., Ltd] (“the applicant”) certifiesthat, as of the date of the filing of the application,the applicant[is not] (as a specificallynamedentity or any of its subsidiariesor affiliates)identifiedon the CoveredList as an entity producing“covered” equipment.The applicantmust sign this certification. [NIE-TECHCo., Ltd] (“the applicant”) certifiesthat, as of the date of the filing of the application,the applicant[ is not ] identifiedon the CoveredList as an entity producing“covered” equipment. Date: 2023 /08 /17 Applicant’s Name:JianghaiNie Title: Manager Signature 1 The Commission’s CoveredListis publishedby the PublicSafetyand HomelandSecurityBureauand postedon the Commission’s website.This CoveredList, whichis periodicallyupdated,identifiesparticularequipment,producedby particularentities,that constitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

NIE-TECHCo., Ltd ProductSimilarityDeclaration Product name: S2 Remote Control Switch(800S) Model name: ZW924, MR40Z FCC ID: 2AQURZW924-V2 We (NIE-TECH Co., Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: Name:JianghaiNie Title: Manager China,August17, 2023

C5266091_X8_Ed.1 1/1 Letter of Authorization NIE-TECH Co., Ltd Company: NIE-TECH Co., Ltd Address: Jinlian commercial center 9001, Jinxiu road No.2, ChanganTown,Dongguan City, GuangDongProv., CHINA Product Name: S2 Remote Control Switch(800S) Model Number: ZW924, MR40Z FCC Identifier: 2AQURZW924-V2 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jianghai Nie Date: 2023-08-17 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Date:2023-08-17 NIE-TECH Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: 2AQURZW924-V2 To Whom It May Concern, Pursuantto the provisionsof Sections0.457and 0.459of Commission'srules (47CFR0.457,0.459),we are requestingthe Commissionto withholdthe following attachment(s)as confidentialdocumentfrom publicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 ID Label/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ Block Diagram ☒☐ Schematics ☒☐ Test ReportNoNo Test SetupPhotosNo ☐ User’ s Manual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ Parts List / Tune Up ☐☐ RF ExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDR Software/ SecurityInfo ☐ No NOTE1: Long-TermConfidentialitymay be permittedunderspecialconditions(SeeII. LONG-TERMCONFIDENTIALITY,Section3 of KDB 726920,use last in force) NOTE2: Short-TermConfidentialitycan be requestedfor a maximumof 180 daysfromthe dateof the grant. Abovementioneddocumentcontainsdetailedsystemand equipmentdescriptionare consideredas proprietaryinformationin operationof the equipment.The public disclosureof abovedocumentsmightbe harmfulto our companyand wouldgive competitoran unfairadvantagein the market. In case of short-termConfidentiality,the applicantrequeststhe exhibitsselected aboveare withheldfrom publicview for a periodofdays from the date of the Grantof EquipmentAuthorizationand prior to marketing. It is our understandingthat all measurementtest reports,FCC ID label formatand correspondentduringcertificationreviewprocesscannotbe grantedas confidential documentsand thoseinformationwill be availablefor publicreviewonce the grant of equipmentauthorizationis issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name:JianghaiNie Title:Manager

Label Location

ANT

Page 1 of 3 RF EXPOSURE EVALUATION Product Name : S2 Remote Control Switch(800S) Model Name : ZW924, MR40Z Operating frequency : 908.40MHz 908.42MHz 916.00MHz 912 MHz 920 MHz Numbers of Channel : 5 channels Antenna Type : PCB Antenna Antenna Gain : -15.59 dBi Type of Modulation : 2FSK for 908.40MHz 2FSK for 908.42MHz 2GFSK for 916.00MHz DSSS OQPSK LR for 912 MHz and 920 MHz Power supply : Battery: CR2032*2 Voltage: 6.0V Hardware Version : 1.0 Software Version : 1.0 Page 2 of 3 Standard Requirement According to § 15.247(i) and § 1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4. 3. 1. The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances ≤ 50mm are determined by: [ (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g SAR extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50mm and for transmission frequencies between 100MHz and 6GHz. When the minimum test separation distance is <5mm, a distance of 5mm is applied to determine SAR test exclusion. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. RF Output power Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) 908.40 90.04 -5.16 908.42 89.91 -5.29 916.00 89.87 -5.33 Note: 1.EIRP=E-104.8+20logD, Where E is the electric field strength in dBμV/m. EIRP is the equivalent isotropically radiated power in dBm. d is the specified measurement distance in m.where D=3, EIRP=E-95.2. Page 3 of 3 Test Result Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (mW) Distance( mm) Calculation results Limit 912 0.271 0.5±1 1.412538 5 0.269791 3 920 0.420 0.5±1 1.412538 5 0.270972 3 908.40 -5.16 -5.00±1 0.398107 5 0.075887 3 908.42 -5.29 -5.00±1 0.398107 5 0.075888 3 916.00 -5.33 -5.00±1 0.398107 5 0.076204 3 According to KDB 447498, no stand-alone required for SRD antenna, and no simultaneous SAR measurement is required. Signature Ronnie Liu EMC Manager Date: 2023-08-17

ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page1of9 TestingReport CustomerName:NIE-TECHCo.,Ltd ProductName:ZSE42ANT SampleModel:ZSE42ANT ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-1979 IssueDate:2023.7.10 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page2of9 Version VersionNo.DateDescriptionFormulateApproval A02023.7.10Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesing..........................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................7 3.3.1Typicalfreespaceefficiencyandgain......................................................................7 3.3.2Typicalfreespaceradiationpattern...........................................................................8 （Thefollowingisblank）................................................................................................................9 ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page3of9 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel 13682621346 E-mail [email protected] Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page4of9 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 23.6°C Humidity 58%RH Pressure 100.14kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page5of9 2.SampleInformation 2.1Clientinformation Name NIE-TECHCo.,Ltd Address / Contacts / Tel / E-mail / Manufacturer / 2.2DescriptionofEUT(S) ProductName ZSE42ANT SampleModel ZSE42ANT AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem Antennagain;Efficiency;Radiationpattern FrequencyRange 902MHz-928MHz ReceivedDate 2023.7.5 TestDate 2023.7.5 Remark ThelengthoftheRFcableis90mm ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page6of9 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesing Planform Frontview ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page7of9 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-1979 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty Antennagain±0.72dB Radiationefficiency±0.72dB 3.3Testdata 3.3.1Typicalfreespaceefficiencyandgain Frequency/MHz 902904906908910912914916918920922924926928 PeakGain/dBi -21.15-21.00-20.85-20.74-20.39-20.14-19.76-19.46-18.80-18.13-17.26-16.54-15.95-15.59 Efficiency/% 0.240.250.270.290.320.360.390.440.500.580.670.750.820.86 ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page8of9 3.3.2Typicalfreespaceradiationpattern (1)X-ZPlane(unit:dBi): (2)Y-ZPlane(unit:dBi): ReportNo.:RFI-LAB-RF-202307-GG01-2 QP030-E41 Page9of9 (3)X-YPlane(unit:dBi): (4)TypicalFreeSpace3DRadiationPatternat928MHz(unit:dBi): -------------------------------------------------End------------------------------------------------ （Thefollowingisblank）

Page 1 of 42 FCC TEST REPORT FCC ID: 2AQURZW924-V2 Product : S2 Remote Control Switch(800S) Model Name : ZW924, MR40Z Brand : Moniston Report No. : PTC23061400605E-FC02 Prepared for NIE-TECH Co., Ltd Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Prepared by Precise Testing & Certification Co., Ltd Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC23061400605E-FC02 Page 2 of 42 1 TEST RESULT CERTIFICATION Applicant’s name : NIE-TECH Co., Ltd Address : Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Manufacture's name : NIE-TECH Co., Ltd Address : Jinlian commercial center 9001, Jinxiu road No.2, Changan Town,Dongguan City, GuangDongProv., CHINA Product name : S2 Remote Control Switch(800S) Model name : ZW924, MR40Z Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10:2013 Test Date : Jul. 01, 2023 to Jul. 19, 2023 Date of Issue : Aug. 17, 2023 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Contents Test Engineer: Simon Pu/ Engineer Technical Manager: Ronnie Liu/ Manager Report No.: PTC23061400605E-FC02 Page 3 of 42 Page 1 TEST RESULT CERTIFICATION .............................................................................................................................. 2 2 TEST SUMMARY ......................................................................................................................................................... 5 2.1 TEST SITE ........................................................................................................................................................... 6 3 GENERAL INFORMATION ....................................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 7 3.2 CHANNEL LIST .................................................................................................................................................... 8 4 EQUIPMENT DURING TEST .................................................................................................................................... 9 4.1 EQUIPMENTS LIST .............................................................................................................................................. 9 4.2 MEASUREMENT UNCERTAINTY ......................................................................................................................... 11 4.3 DESCRIPTION OF SUPPORT UNITS ................................................................................................................... 12 5 CONDUCTED EMISSION ......................................................................................................................................... 13 5.1 E.U.T. OPERATION ........................................................................................................................................... 13 5.2 EUT SETUP ...................................................................................................................................................... 13 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 14 5.4 MEASUREMENT PROCEDURE ........................................................................................................................... 14 5.5 CONDUCTED EMISSION LIMIT ........................................................................................................................... 14 5.6 MEASUREMENT DESCRIPTION .......................................................................................................................... 14 5.7 CONDUCTED EMISSION TEST RESULT ............................................................................................................. 14 6 RADIATED SPURIOUS EMISSIONS ..................................................................................................................... 15 6.1 EUT OPERATION .............................................................................................................................................. 15 6.2 TEST SETUP ..................................................................................................................................................... 16 6.3 SPECTRUM ANALYZER SETUP .......................................................................................................................... 17 6.4 TEST PROCEDURE ............................................................................................................................................ 18 6.5 SUMMARY OF TEST RESULTS .......................................................................................................................... 19 7 CONDUCT BAND EDGE AND SPURIOUS EMISSIONS MEASUREMENT ................................................... 25 7.1 TEST PROCEDURE ............................................................................................................................................ 25 7.2 TEST SETUP ..................................................................................................................................................... 25 7.3 TEST RESULT ...............................................................................................................................…

Text truncated - open the document above for the full version.

Radiated Spurious Emissions Test Frequency From 30MHz-1000MHz TestfrequencyfromAbove1GHz
