Scanmarker Pro User Manual WhatsAPP support WhatsApp ID:8618820461144 Consumer Service: [email protected] —1— Introduction Description: VORMOR Scanner is an Al product that integrates image stitching, OCR, text translation, voice and other technologies. Effectively solve language barriers in scenarios such as overseas travel, foreign language learning, and business communication. ①:Power on/off ②: Return key ③ : Scan head ④:Type-c ⑤: Big horr ⑥: TF carc ⑦:Camera ④: Type-c Power button: 1.Power on/off: Press and hold the power button for more than 3 seconds, and you can choose to power on/off or restart. 2.Standby: Short press the power button to wake up orstandby. —2— Return button: Short press the device "Round button" or tap the return icon "<" to return. Touch screen: Touch screen to select the function. In the function interface, press and hold the left side of the screen and s l i d e r i g h t to ma k e s e i e c ti o n ; p r e s s and hoid the right side of the screen and slide left to return. Voice blue/red key;This is the voice input key for the voice translation feature and it corresponds to the screen's blue/red- language. Long-press the key to begin speaking, then release it to see the translation result and broadcast. Quick Start Instructions: First of all, thanks for using vormor products!' Preparation before use: 1.Device Charging: Before using this device, please ensure that it has enough power.If the device cannot be turned on or the power is insufficient, please use the special charging cable provided to charge the device first, preferably for one hour or until the poweris sufficient before turning it on. When charging the device when it is off, the screen will display the charging logo and battery percentage in about 8- 10 seconds. When the device is turned on, the battery is marked with"lightning" in the upper right corner of the screen. —3— 2. Network connection: After turning on the device, go to the Settings--WIFl interface to connect to the network. This product works better in the networked state, it can be connected to WIFl or mobile phone hotspot. 3. Interface language: Settings-Interface Language, select the language you need for the operation interface. 4.Scan operation (1)A kind reminder, during the scanning operation, the equipment should be inclined 45-80 degrees with the plane, and the front sight should be aligned with the centerline of the text (2) Press the pen tip and when the light starts to turn on, drag the pen tip to the right to scan at a constant speed. During the scanning process, keep the pen tip light always on; (3) Aim the crosshair at the blank space in front of the first letter and start scanning. After the crosshair has passed the last letter, raise the nib; (4) View the results and click the screen to perform corresponding operations; 5. Offline use:This product supports offline use, and the electronic dictionary, offline scanning, and translation functions can be used normally without connecting to the Internet; however, it is recommended that you connect to the Internet first, as the effect will be better. —4— 6.The top of the device screen displays some status information about the device, such as WIFI,power, and charging status. Main function introduction: (In the main interface, if you directly press the pen to scan, the electronic dictionary function will be automatically used by default) 7.Main functions 7.1-Scan Translation Support 56 kinds of languages multi- language scan translation. (1) Before scanning, you can select the ianguage that needs to be scanned and translated (2)After scanning, the screen will automatically display the results. 7.2-Phonetic Translation Support online scanning and reading up to 112 languages (with software upgrades, the supported ianguages will increase). (1)After setting the language, long press the voice blue/red button on the device's side, then release it after speaking the corresponding language; the screen will automatically display and broadcast the result. <桃之天天，灼灼其华。之子于归，宜其室家。 The peach sky bums is splendor. The son of the home, the appropriate home. oriyin transsisn Trad Chinese (Mandarin) English(US) English(AU) Chinese(Mandarin) Chinese(Cantonese) —5— ... d t T 7.3-Photo Translation (1)Before taking a photo, you can choose the text language of the picture, at the same time, choose the language you need to translate. 的 English(us) wery TradChinese(Mandarm)~ m aeng n (2)After the photo translation is completed, t h e t r a n sl a ti on r e s ul t wi l l be di s pl a y ed on the screen 7 .4-T ext E xc e rp t S u p p o r t m u l t i-l a n g u a g e t e x t e x c e r p t s , i mport them to the computer throug h the USB cable and view and edit them on the computer. wniranssappscnep take some of the stress out of travel by providing on-the-spot translations of things like signs Translatlon language-Trad Chinese(Mandarin) 無 是 出 行 到 一 個新的圆家旅行時，尤其是如果你揭自旅行，营试 一 Englsh(usj Chinese(Mandari) 早上好。 Good moming. Dialogue translation Fs long prais the cornesponding vaice buttan to spesk, then relese it to translste aout whut m w —6— (1)First select the language you need. Click the "plus" sign, then start to scan. (2)After saving, you can choose to upload to you PC. Click here"upload sign", and connect the translator with you computer through USB cable, you can find the saving text on "Excerpt File" 7.5-Recording Click "red" button start to record, and click here to save. VORM Spre s Imamal thared tengs Alams Andrsld DQM Doanload wpt Movis mthog Maie Notfk < By downloading a translation app before you travel. you can be confident that youll be able to navigate your way around and communicate effectively.It's ir —7— 00:00:07 I saving 7.6-Scan Translation Currently only supports Chinese-English and English-Chinese dictionaries, chinese, idioms, and Tang poetry (1)Setting the language first, then vertically scan the text you need to translate, and you can saving your favorite words. 7.7-Favorites View favorit…

Text truncated - open the document above for the full version.

Shenzhen Beibo Intelligent Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Beibo Intelligent Technology Co., Ltd. Address: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen Product Name: Scanmarker Pro FCC ID: 2AR4E-SCAN Model(s): Scanmarker Pro,V01,V02,V03,V04,V05,V06,V07,V08,V09,V10, V11,V12,V13,V14,V15,V16,V17,V18,V19,V20,X01,X2,X3,X4, X5Pro,X6,X7,X8,X9,X10, X12,X15,X16,X17,X18,X19,X20 2.911(d)(5)(i) Equipment Type We, [Shenzhen Beibo Intelligent Technology Co., Ltd.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Wendy zhang Date: Sep.11,2023 Title and Company name: manager / Shenzhen Beibo Intelligent Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Beibo Intelligent Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Beibo Intelligent Technology Co., Ltd. Address: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen Product Name: Scanmarker Pro FCC ID: 2AR4E-SCAN Model(s): Scanmarker Pro,V01,V02,V03,V04,V05,V06,V07,V08,V09,V10, V11,V12,V13,V14,V15,V16,V17,V18,V19,V20,X01,X2,X3,X4, X5Pro,X6,X7,X8,X9,X10, X12,X15,X16,X17,X18,X19,X20 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Beibo Intelligent Technology Co., Ltd.] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Wendy zhang Date: Sep.11,2023 Title and Company name: manager / Shenzhen Beibo Intelligent Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Beibo Intelligent Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.3 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Beibo Intelligent Technology Co., Ltd. Address: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen Product Name: Scanmarker Pro FCC ID: 2AR4E-SCAN Model(s): Scanmarker Pro,V01,V02,V03,V04,V05,V06,V07,V08,V09,V10, V11,V12,V13,V14,V15,V16,V17,V18,V19,V20,X01,X2,X3,X4, X5Pro,X6,X7,X8,X9,X10, X12,X15,X16,X17,X18,X19,X20 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Beibo Intelligent Technology Co., Ltd.] (“the applicant”) designate [THREE STONES MEDIA LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: THREE STONES MEDIA LLC Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN: 0033401761 Contact Name: Sijie Zhang Telephone No: (267) 909-3692 Email: [email protected] Applicant Company name: Shenzhen Beibo Intelligent Technology Co., Ltd. Address: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen FCC Grantee Code: 2AR4E Contact Name: Wendy zhang Telephone No: + 8613615185095 Email: [email protected] Signature: Title: CEO Signature: Title: manager Shenzhen Beibo Intelligent Technology Co., Ltd. 2.911 (d)(7)USA Agent v1.3 Date: Sep. 11,2023 Date: Sep. 11,2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Beibo Intelligent Technology Co., Ltd. Agent Authorization Company: Shenzhen Beibo Intelligent Technology Co., Ltd. Address: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen Product Name: Scanmarker Pro Model Number(s): Scanmarker Pro,V01,V02,V03,V04,V05,V06,V07,V08,V09,V10, V11,V12,V13,V14,V15,V16,V17,V18,V19,V20,X01,X2,X3,X4, X5Pro,X6,X7,X8,X9,X10, X12,X15,X16,X17,X18,X19,X20 Product Description: Scanmarker Pro We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sep.11,2023 Name: Wendy zhang Title: manager Company: Shenzhen Beibo Intelligent Technology Co., Ltd.

Shenzhen Beibo Intelligent Technology Co., Ltd. Family models declaration letter. Date: September 12, 2023 We Shenzhen Beibo Intelligent Technology Co., Ltd. Of Address of Applicant: 512,Building A,Quansen Qichuangyuan, No.58-60,Blong Road,Dalang Street，Longhua District,Shenzhen Product: Scanmarker Pro Model Name: Scanmarker Pro, Serial Model: V01,V02,V03,V04,V05,V06,V07,V08,V09,V10, V11,V12,V13,V14,V15,V16,V17,V18,V19,V20,X01,X2,X3,X4, X5Pro,X6,X7,X8,X9,X10, X12,X15,X16,X17,X18,X19,X20 Difference description of series models: All the model are the same circuit and RF module, except the model names and colors Thanks Sincerely Signature Name: Wendy zhang Date:Sep.11,2023 Title: manager

Shenzhen Beibo Intelligent Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 12, 2023 Subject; Request for Confidentiality FCC ID: 2AR4E-SCAN To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wendy zhang Title: manager

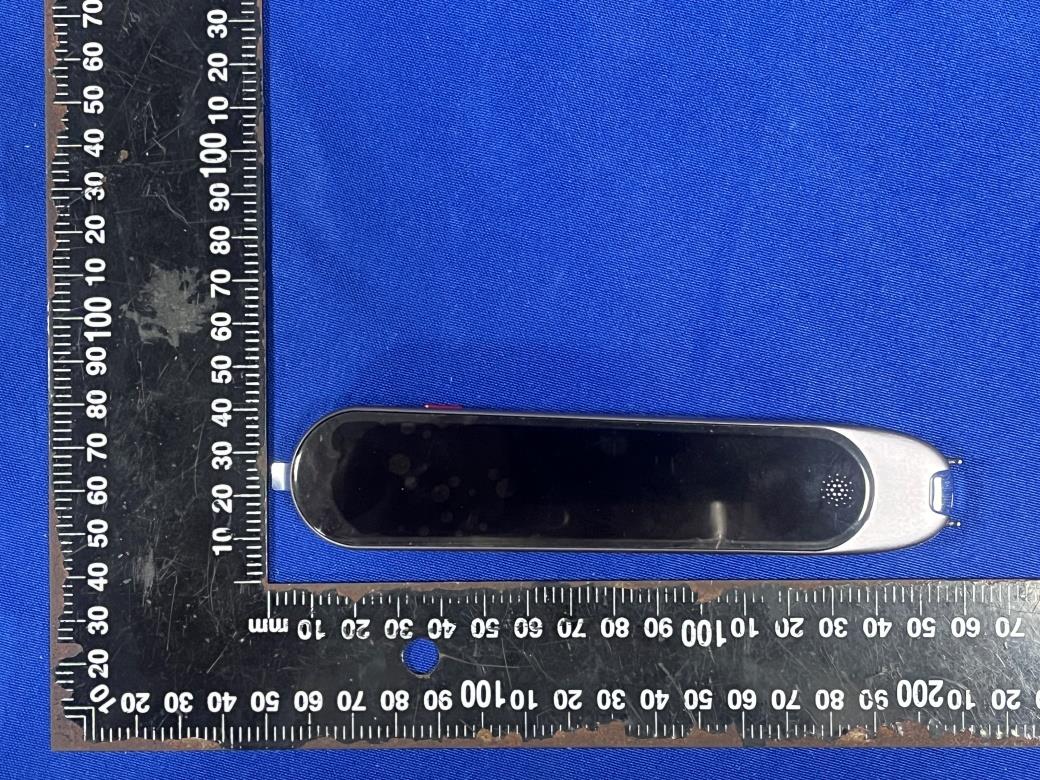

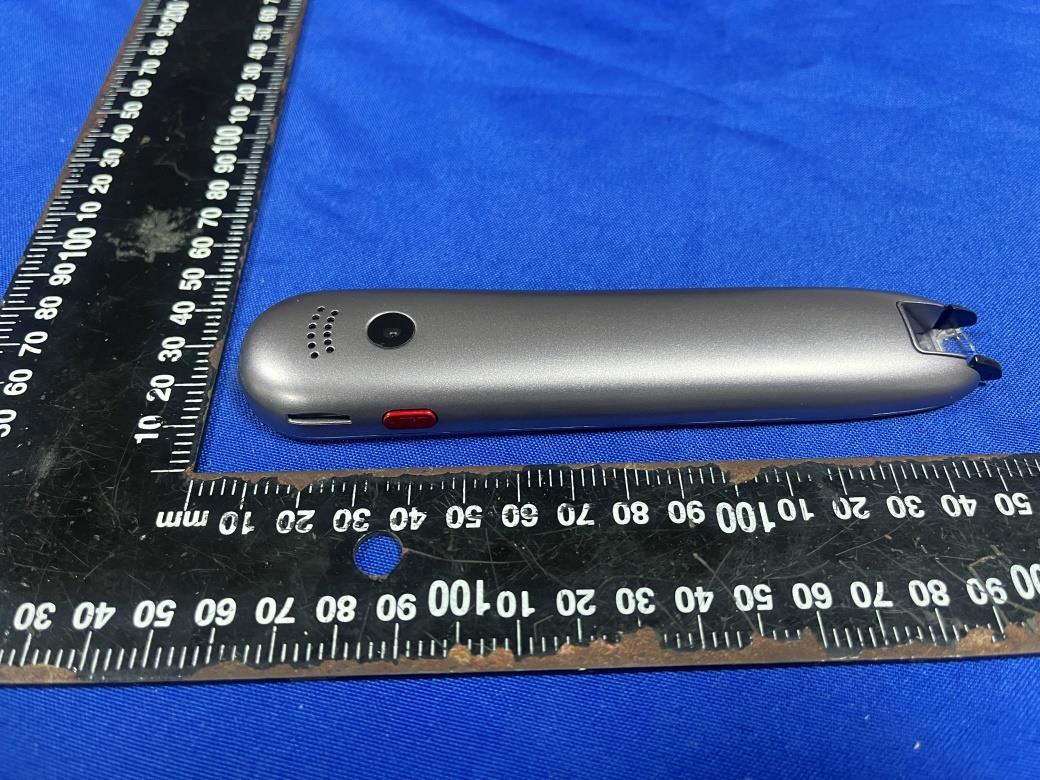

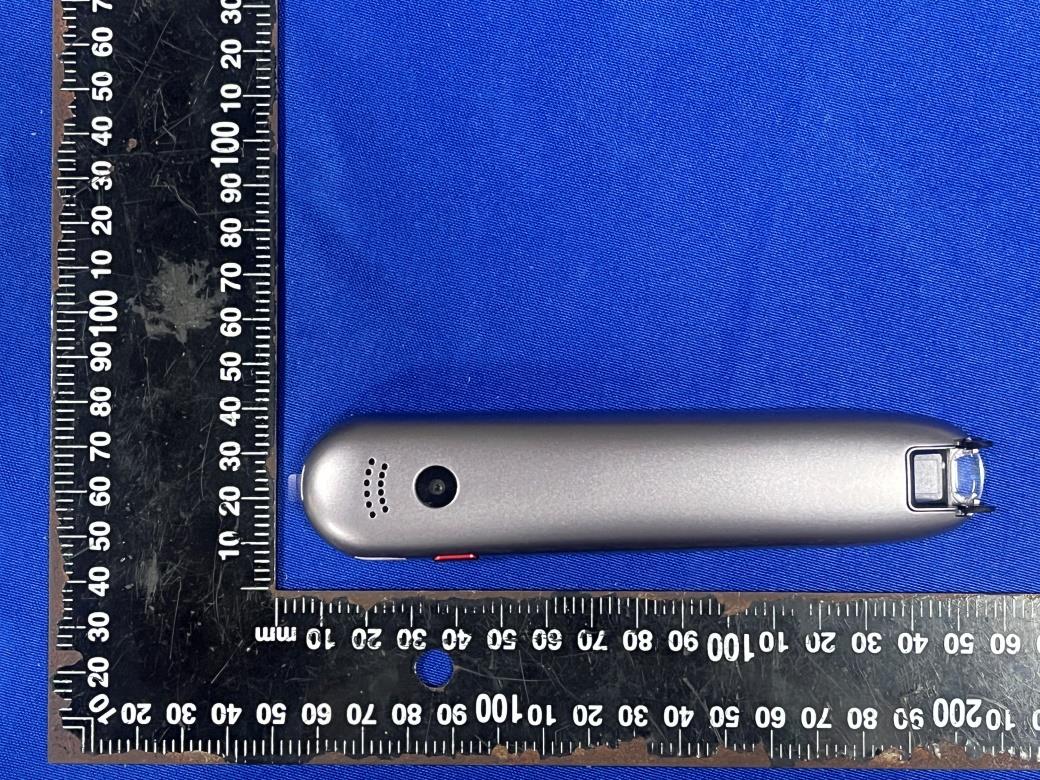

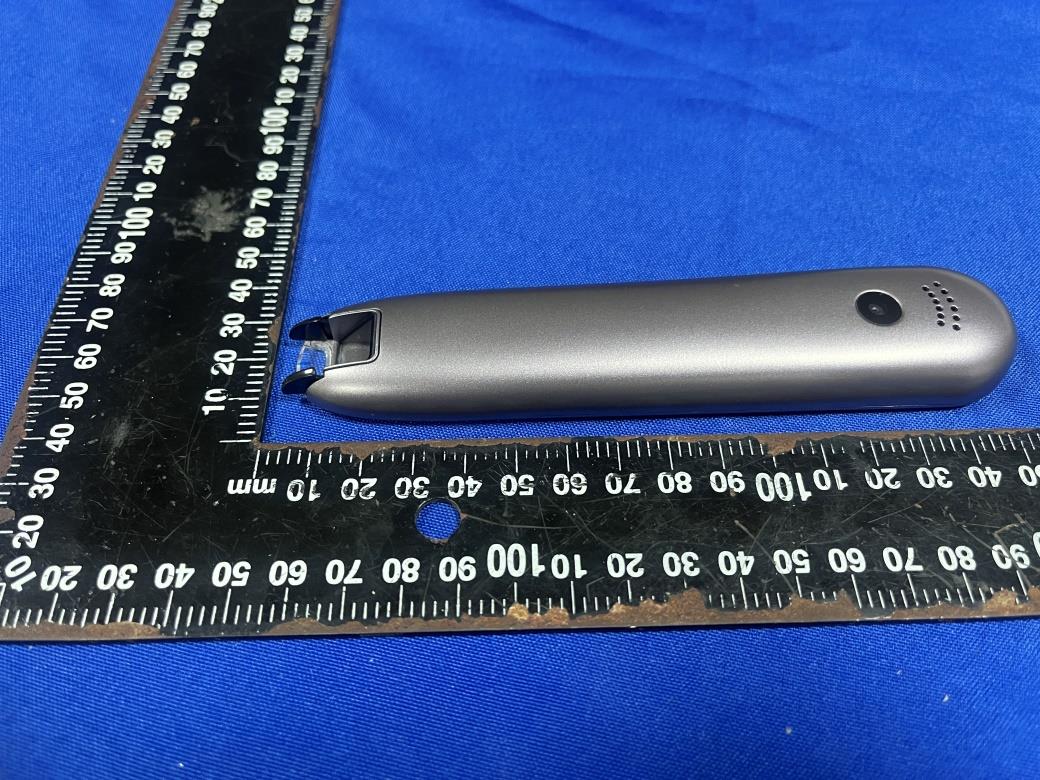

- Page 1 of 3 - ET-23080990 Product Name: Scanmarker Pro Model No.: Scanmarker Pro Ext Photos - Page 2 of 3 - ET-23080990 - Page 3 of 3 - ET-23080990 -----END-----

1 / 1 Label size: 30mm*20mm Product Name : Scanmarker Pro Model No. : Scanmarker Pro Rated specification : 5V 1A Manufacturer : Shenzhen Beibo Intelligent Technology Co., Ltd. FCC ID : 2AR4E-SCAN Made in China location

- Page 1 of 5 - ET-23080990 Product Name: Scanmarker Pro Model No.: Scanmarker Pro Internal photos - Page 2 of 5 - ET-23080990 RF ANT - Page 3 of 5 - ET-23080990 - Page 4 of 5 - ET-23080990 - Page 5 of 5 - ET-23080990 ------END-----

FCC ID: 2AR4E-SCAN RF Exposure evaluation According to 447498 and part 2.1093 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] *[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, For BLE Frequency (MHz) Max power (dBm) Max power (mW) Min. distance (mm) Calculation Value Threshold Value 2440 1.98 1.58 5 0.49 3.0 For 2.4G WIFI Frequency (MHz) Max power (dBm) Max power (mW) Min. distance (mm) Calculation Value Threshold Value 2412 8.87 7.71 5 2.39 3.0 So SAR test is not required Mark: The BT(BLE) and WIFI cannot operate simultaneously.
