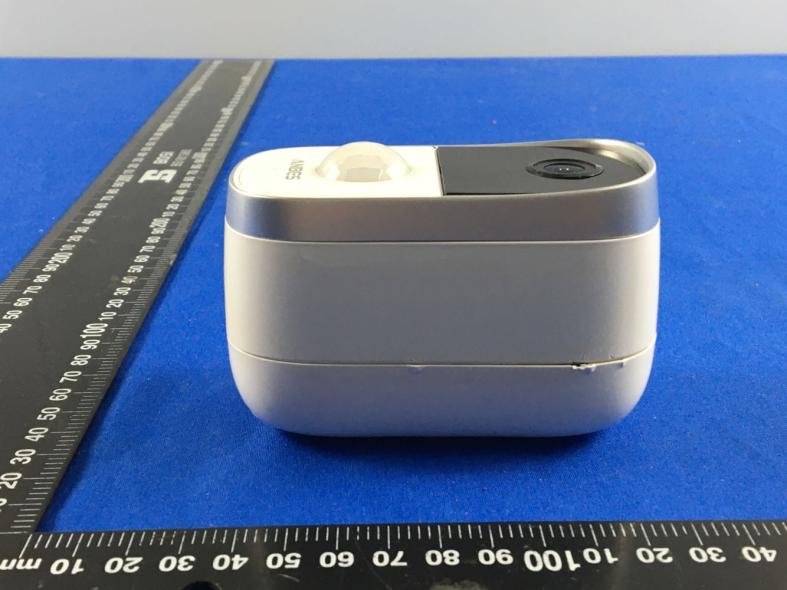

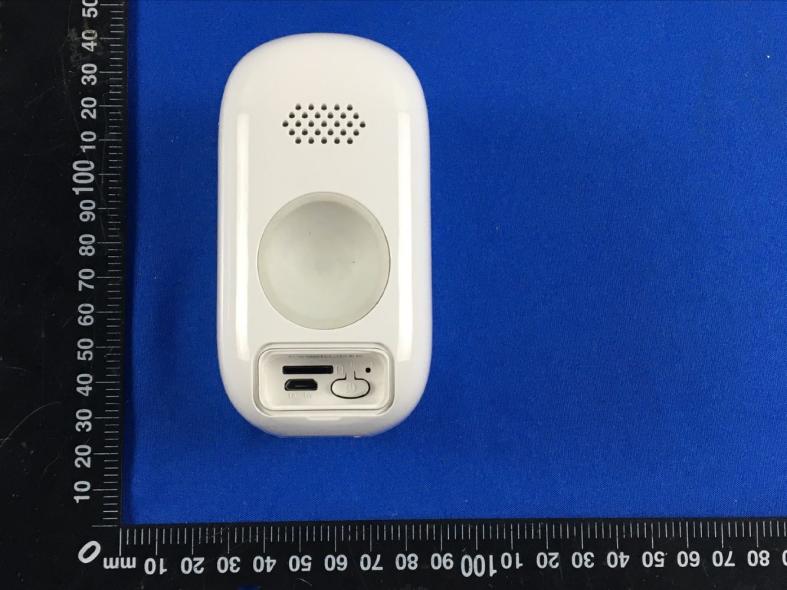

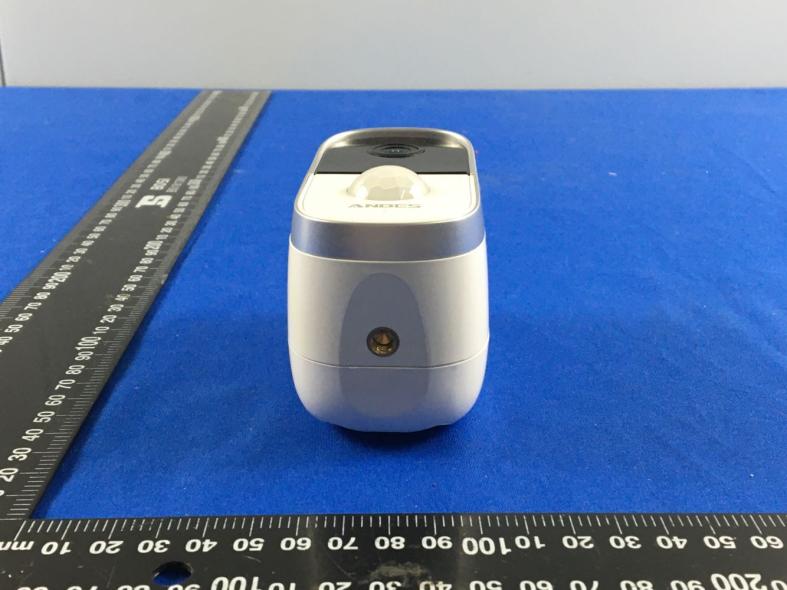

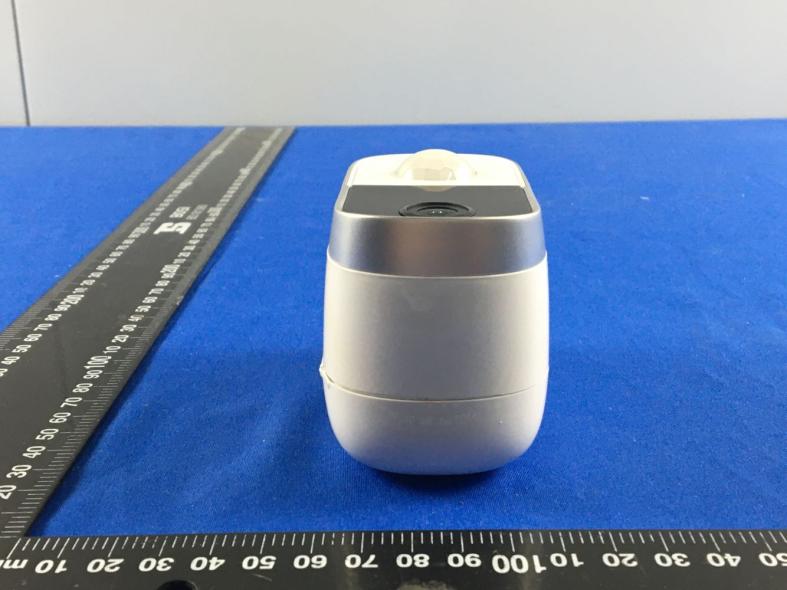

2AR5E-BF-A10Battery Powered Wi-Fi Camera

FCC Radiation Exposure StatementThis device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating inconjunction with any other antenna or transmitter.This device must operate with a minimum distance of 20 cm between the radiator and user body.

FCC ID Label Information 1. Label location: 2. FCC ID Label: FCC ID: 2AR5E-BF-A10 FCCID Label Location

WIFI antenna

version01 SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Tel: +86-13715282097 Fax: N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BF-A10 FCC ID: 2AR5E-BF-A10 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: UB01C60F3D668A Type of antenna: FPC ANT Gain of the antenna: 3dBi Frequency range: 2412~2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address: 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA City: Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-08-21 Signature:

RF Exposure evaluation FCC ID: 2AR5E-BF-A10 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 3dBi, the RF power density can be obtained. WIFI Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 19.36 86.30 1.9953 0.0343 1 PASS 5. Conclusion The SAR evaluation is not required.

1 / 37 Annex for WIFI Test Report No. : CTL2007071061-WF 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 9.569 ≥0.5 PASS 2437 SISO 1 9.591 ≥0.5 PASS 2462 SISO 1 9.093 ≥0.5 PASS 802.11g 2412 SISO 1 16.400 ≥0.5 PASS 2437 SISO 1 16.436 ≥0.5 PASS 2462 SISO 1 16.399 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.688 ≥0.5 PASS 2437 SISO 1 17.651 ≥0.5 PASS 2462 SISO 1 17.676 ≥0.5 PASS 802.11n(HT40) 2422 SISO 1 35.413 ≥0.5 PASS 2437 SISO 1 35.405 ≥0.5 PASS 2452 SISO 1 35.755 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 11.109 Only for Report Use 2437 SISO 1 11.100 Only for Report Use 2462 SISO 1 10.996 Only for Report Use 802.11g 2412 SISO 1 16.669 Only for Report Use 2437 SISO 1 16.681 Only for Report Use 2462 SISO 1 16.642 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.708 Only for Report Use 2437 SISO 1 17.746 Only for Report Use 2462 SISO 1 17.694 Only for Report Use 802.11n(HT40) 2422 SISO 1 35.995 Only for Report Use 2437 SISO 1 36.127 Only for Report Use 2452 SISO 1 36.190 Only for Report Use 1.2 Test Graph - 6dB Bandwidth 2 / 37 3 / 37 4 / 37 5 / 37 6 / 37 7 / 37 1.3 Test Graph - 99% Occupied Bandwidth 8 / 37 9 / 37 10 / 37 11 / 37 12 / 37 13 / 37 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 14.13 30 PASS 2437 SISO 14.99 30 PASS 2462 SISO 14.90 30 PASS 802.11g 2412 SISO 18.60 30 PASS 2437 SISO 19.36 30 PASS 2462 SISO 19.22 30 PASS 802.11n(HT20) 2412 SISO 18.33 30 PASS 2437 SISO 19.11 30 PASS 14 / 37 2462 SISO 19.00 30 PASS 802.11n(HT40) 2422 SISO 17.15 30 PASS 2437 SISO 18.11 30 PASS 2452 SISO 17.69 30 PASS 2.2 Test Graph 15 / 37 16 / 37 17 / 37 18 / 37 19 / 37 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -11.20 ≤8 PASS 2437 SISO -10.08 ≤8 PASS 2462 SISO -9.49 ≤8 PASS 802.11g 2412 SISO -13.70 ≤8 PASS 2437 SISO -13.32 ≤8 PASS 2462 SISO -12.28 ≤8 PASS 802.11n(HT20) 2412 SISO -14.06 ≤8 PASS 20 / 37 2437 SISO -14.04 ≤8 PASS 2462 SISO -13.76 ≤8 PASS 802.11n(HT40) 2422 SISO -17.27 ≤8 PASS 2437 SISO -17.36 ≤8 PASS 2452 SISO -17.54 ≤8 PASS 3.2 Test Graph 21 / 37 22 / 37 23 / 37 24 / 37 25 / 37 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -16.41 PASS 2437 SISO 1 Refer to test graph -16.41 PASS 2462 SISO 1 Refer to test graph -16.41 PASS 802.11g 2412 SISO 1 Refer to test graph -18.94 PASS 2437 SISO 1 Refer to test graph -18.94 PASS 2462 SISO 1 Refer to test graph -18.94 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -18.96 PASS 2437 SISO 1 Refer to test graph -18.96 PASS 2462 SISO 1 Refer to test graph -18.96 PASS 26 / 37 802.11n(HT40) 2422 SISO 1 Refer to test graph -22.77 PASS 2437 SISO 1 Refer to test graph -22.77 PASS 2452 SISO 1 Refer to test graph -22.77 PASS 4.2 Test Graph 27 / 37 28 / 37 29 / 37 30 / 37 31 / 37 32 / 37 33 / 37 34 / 37 35 / 37 36 / 37 37 / 37

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2007071061-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Battery Powered Wi-Fi Camera Model/Type reference ................ : BF-A10 List Model(s) ............................... : N/A Trade Mark .................................. : LETSCOM, Letsfit, ANBES FCC ID ......................................... : 2AR5E-BF-A10 Applicant’s name ....................... : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant ................. : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jul. 10, 2020 Date of sampling ........................ : Jul. 10, 2020 Date of Test Date ........................ : Jul. 10, 2020–Aug. 03, 2020 Date of Issue .............................. : Aug. 04, 2020 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL2007071061-WF TEST REPORT Test Report No. : CTL2007071061-WF Aug. 04, 2020 Date of issue Equipment under Test : Battery Powered Wi-Fi Camera Sample No. CTL200707106-1-S001 Model /Type : BF-A10 Listed Models : N/A Applicant : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 32 Report No.: CTL2007071061-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-08-04 CTL2007071061-WF Tracy Qi V1.0 Page 4 of 32 Report No.: CTL2007071061-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER ........................…
