Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƽReorient or relocate the receiving antenna. ƽIncrease the separation between the equipment and receiver. ƽConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƽConsult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RFexposurestatement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 5mm between the radiator and any part of your body.

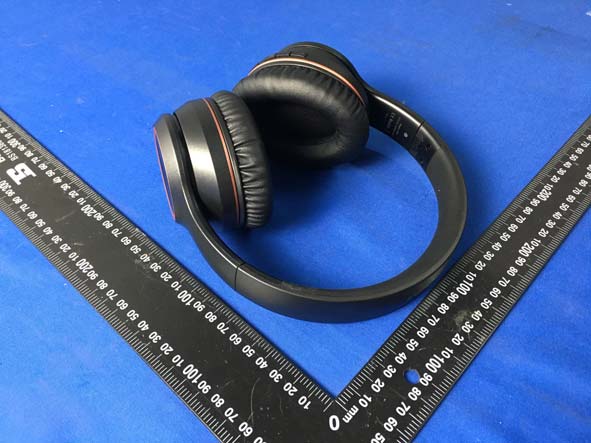

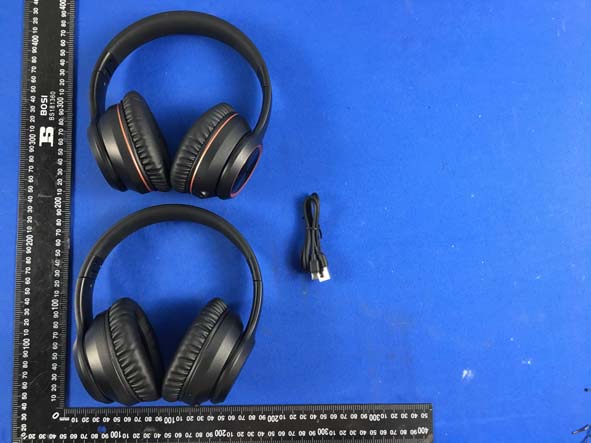

ExternalPhotos
FCC ID Label Information Label location: FCC ID:2AR5E-H081
Internal Photos Antenna
version01 SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. 305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Tel: +86-13715282097 Fax:N/A Declaration concerning Antenna Specification It is hereby declared that the product Model No.: H081 FCC ID:2AR5E-H081 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402~2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address: 305, No.8 BLDG, SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA City:Shenzhen ZIP / Postal code: Country: China Place: Shenzhen Date: 2020-07-23 Signature:
RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1‐gand10‐gSARtest exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐gSARand≤7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth BR/EDR pt=0.64dBm=1.159mW at 2480MHz So (1.159mW/5mm)x√2.480GHz = 0.37<3 Then SAR evaluation is not required
Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2007011031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name .............................. : ANC Wireless Headphones Model/Type reference ................. : H081 List Model(s) ................................ : N/A Trade Mark ................................... : LETSCOM, Letsfit, ANBES FCC ID .......................................... : 2AR5E-H081 Applicant’s name ........................ : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address of applicant .................. : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test Firm ...................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm .................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................ : Standard ........................................ : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator .............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ................................... : Dated 2011-01 Date of receipt of test item ......... : Jul. 07, 2020 Date of sampling ......................... : Jul. 07, 2020 Date of Test Date ......................... : Jul. 07, 2020-Jul. 17, 2020 Data of Issue ................................ : Jul. 17, 2020 Result ........................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 34 Report No.: CTL2007011031-WF TEST REPORT Test Report No. : CTL2007011031-WF Jul. 17, 2020 Date of issue Equipment under Test : ANC Wireless Headphones Model /Type : H081 Listed Models : N/A Applicant : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Manufacturer : SHENZHEN MIFANG NETWORK TECHNOLOGY CO., LTD. Address : 305, No.8 BLDG., SUOLING INDUSTRIAL ZONE XIKENG, GUANLAN, LONGHUA, SHENZHEN, GUANGDONG, CHINA Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 34 Report No.: CTL2007011031-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2020-07-17 CTL2007011031-WF Tracy Qi V1.0 Page 4 of 34 Report No.: CTL2007011031-WF Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 9 2.6. MODIFICATIONS ........................................................................................................................................................... 9 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3. MAXIMUM PEAK OUTPUT POWER ..................................................................................…
Text truncated - open the document above for the full version.
Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 20dB Bandwidth Verdict Test Result (MHz) GFSK 2402 SISO 1 0.967 PASS 2441 SISO 1 0.944 PASS 2480 SISO 1 0.940 PASS Pi/4DQPSK 2402 SISO 1 1.233 PASS 2441 SISO 1 1.311 PASS 2480 SISO 1 1.232 PASS 8DPSK 2402 SISO 1 1.268 PASS 2441 SISO 1 1.259 PASS 2480 SISO 1 1.290 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) GFSK 2402 SISO 1 0.876 Only for Report Use 2441 SISO 1 0.861 Only for Report Use 2480 SISO 1 0.865 Only for Report Use Pi/4DQPSK 2402 SISO 1 1.170 Only for Report Use 2441 SISO 1 1.177 Only for Report Use 2480 SISO 1 1.171 Only for Report Use 8DPSK 2402 SISO 1 1.168 Only for Report Use 2441 SISO 1 1.181 Only for Report Use 2480 SISO 1 1.167 Only for Report Use 1.2 Test Graph - 20dB Bandwidth 1.3 Test Graph - 99% Occupied Bandwidth 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 GFSK 2402 SISO -3.71 20.97 PASS 2441 SISO -1.09 20.97 PASS 2480 SISO 0.64 20.97 PASS Pi/4DQPSK 2402 SISO -5.98 20.97 PASS 2441 SISO -3.26 20.97 PASS 2480 SISO -1.47 20.97 PASS 8DPSK 2402 SISO -5.57 20.97 PASS 2441 SISO -2.77 20.97 PASS 2480 SISO -1.04 20.97 PASS 2.2 Test Graph 3. Carrier frequency separation 3.1 Test Result Test Mode TX Type ANT No. Channel Separation (MHz) 20dB Bandwidth (MHz) Limits (MHz) Verdict GFSK SISO 1 0.963 0.967 ≥0.645 PASS Pi/4DQPSK SISO 1 0.999 1.311 ≥0.874 PASS 8DPSK SISO 1 0.999 1.290 ≥0.860 PASS 3.2 Test Graph 4. Number of hopping frequencies 4.1 Test Result Test Mode TX Type ANT No. Num of Hopping Frequencies Limits Verdict GFSK SISO 1 79 ≥15 PASS Pi/4DQPS K SISO 1 79 ≥15 PASS 8DPSK SISO 1 79 ≥15 PASS 4.2 Test Graph 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict GFSK 2402 SISO 1 Refer to test graph -19.72 PASS 2441 SISO 1 Refer to test graph -19.72 PASS 2480 SISO 1 Refer to test graph -19.72 PASS Hopping SISO 1 Refer to test graph -19.72 PASS Pi/4DQPSK 2402 SISO 1 Refer to test graph -23.10 PASS 2441 SISO 1 Refer to test graph -23.10 PASS 2480 SISO 1 Refer to test graph -23.10 PASS Hopping SISO 1 Refer to test graph -23.10 PASS 8DPSK 2402 SISO 1 Refer to test graph -23.13 PASS 2441 SISO 1 Refer to test graph -23.13 PASS 2480 SISO 1 Refer to test graph -23.13 PASS Hopping SISO 1 Refer to test graph -23.13 PASS 5.2 Test Graph
Testset-upProcedures
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.20 mW |
