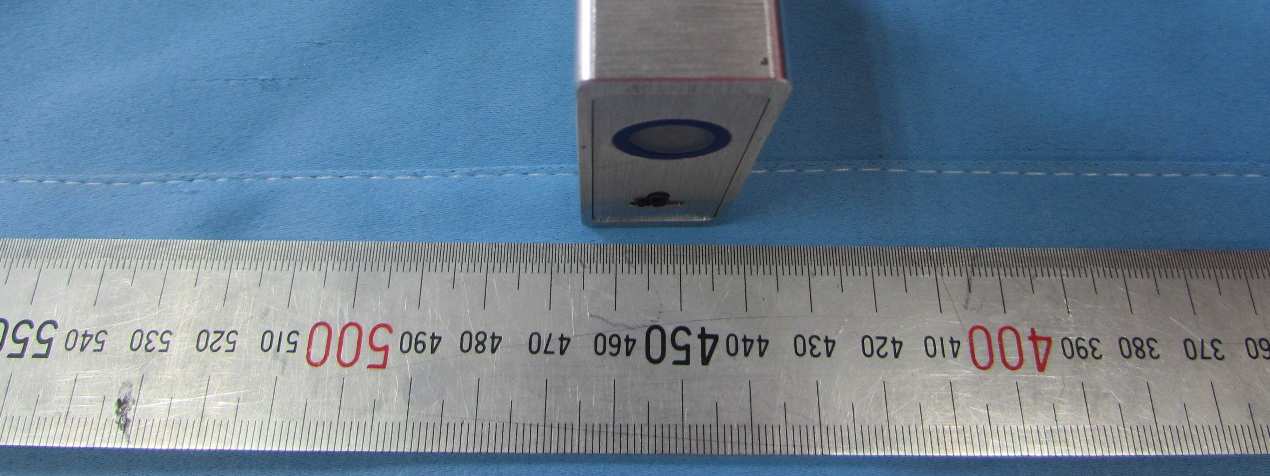

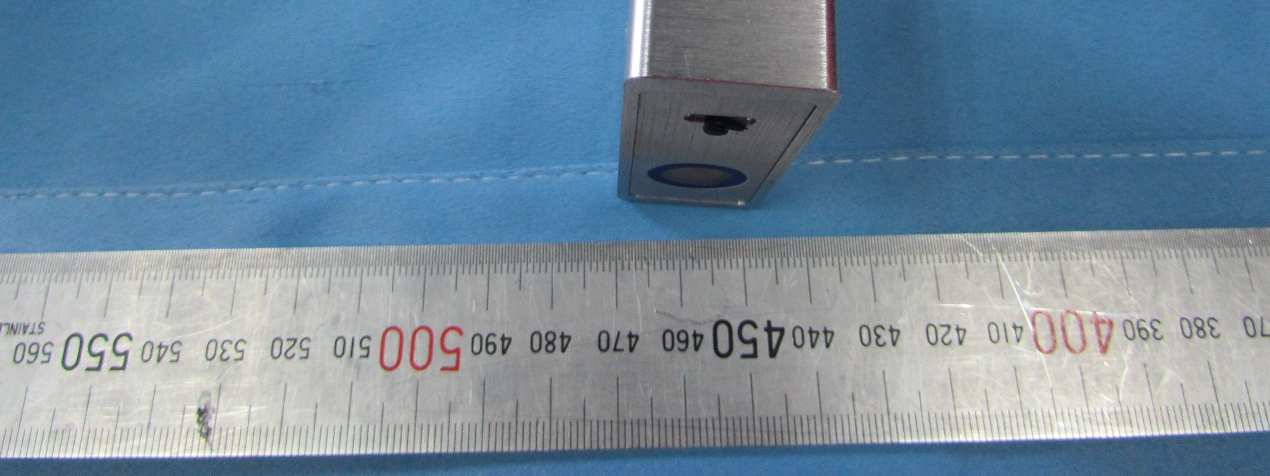

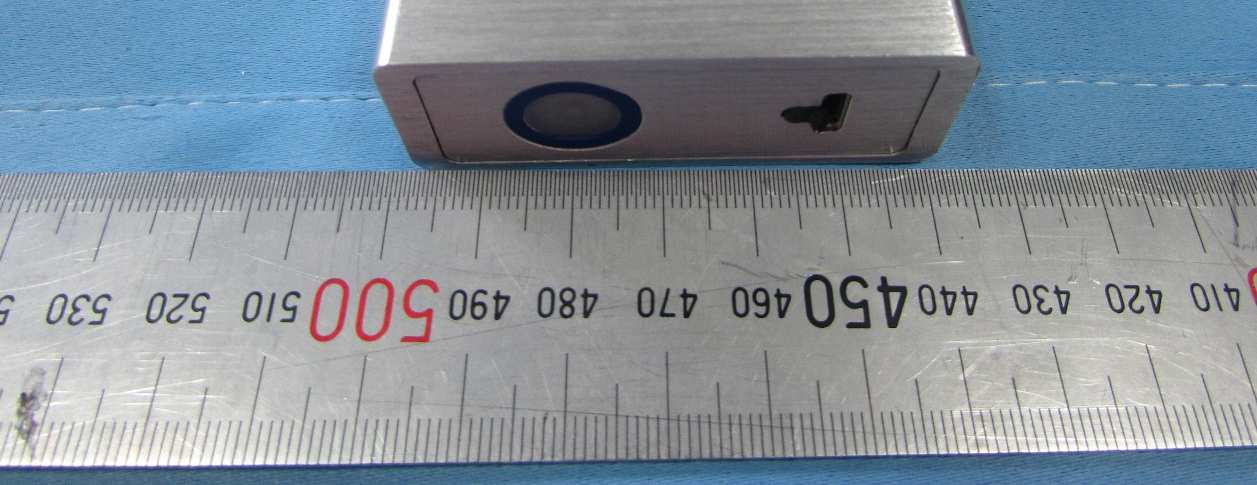

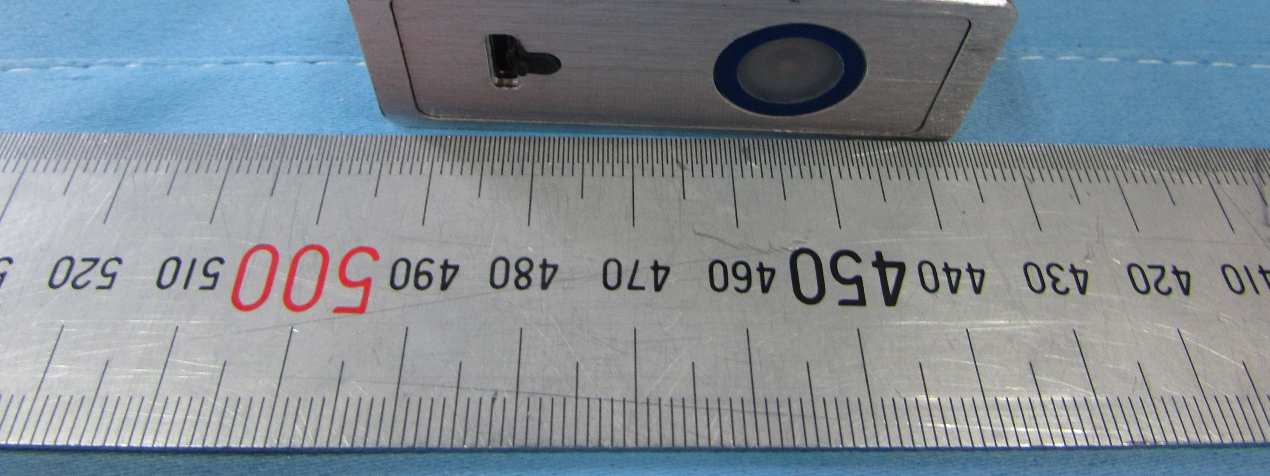

2AR93-082V1927VL1BLE Padlock

BLUE : Pantone Black C 1:0.700 SCALE: REVPART NAMEPART NUMBER PROPRIETARY AND CONFIDENTIAL : THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ACSYS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ACSYS IS PROHIBITED. CONFIDENTIAL INDUSTRY BLUETOOTH PADLOCK USER MANUAL – VL1BLE USER MANUAL-ENG 421-020A Folding Marks Trim Marks DIMENSION WHAT’S IN BOX 70mm 105mm USER MANUAL VL1 BLE Bluetooth Enabled Padlock [email protected] www.acsys.com Copyright © 2019 Acsys International Ltd. 1 2 3 • Enter Site ID • Enter Lock ID • Press Unlock 1 2 3 OPERATE LOCK • Activate Lock4• Lock shackle pops out. Lock is open 5 RECHARGE LOCK Insert a Micro USB Cable in the chargin port Connect the other end into a USB wall charger or a portable power bank USB charging port Micro USB Cable 1 • Remove the Dust Cap to uncover the USB charging port 2 3 While charging, the status light blinks Blue When the battery is fully charged, the status light glows solid Blue 4 • Enter Site ID • Enter Lock ID • Request CGS+ OTP • Press Unlock 1 1 2 3 4 2 3 4 OFFLINE MODE • Activate Lock 4 INSTALL APP 3 • Register the app by following the on-screen instructions • Search for “Acsys BLE mobile” on your device app store. • Download and install the app on your device METHOD 2 1 2 • Scan the QR code • Download the Acsys BLE mobile app for your respective platform 1 2 METHOD 1 REGISTER LOCK • Activate Lock 4 1 2 3 • Enter Site ID • Enter Lock ID • Press Register 1 2 3 • Lock is registered 5 1 2 3 • Enter Site ID • Enter Lock ID • Press Delete 1 2 3 DELETE LOCK • Lock is deleted 5 • Activate Lock 4 STATUS LED INDICATORDESCRIPTION Lock is advertising Charging in progress In the first 45 seconds, the lock starts advertising thus flashing a Red Light simultaneously Lock is connected Charging done Solid Blue R Solid Blue Flashing Red Flashing Blue B B B LED LIGHT PATTERNS • Don’t attempt to remove the rechargeable Lithium-Ion battery from this product. • Only for indoor use CAUTION • This user manual is for reference only. Minor differences can be found in user interface. • Please follow the instructions to set up your device. In case of any issue, please contact Acsys Support • Specifications may be altered without prior written notice. NOTE -10C +60C 0 95% without condensation WARRANTY LIMITED YEAR 1 SPECIFICATIONS GENERAL Dimensions & Weight 60 x 23 x 107 mm | 8mm Shackle | 230g 1 year Operations | 3 years Lifetime Battery Cycle Lithium-Ion | Rechargeable | Jump-Start Battery Type Unicolor LED | displays status of Bluetooth communication Battery power level Battery charging Visual Indicator iAMS, Acsys Telecom & Acsys CGS PLUS Acsys Mobile BLE (iOS Android) Software and Mobile Apps FCC STATEMENT FCC ID: 2AR93-082V1927 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.SPECIFICATIONS NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.



Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Job No.: 191012001GZU Page: 1 of 1 FCC ID: AR93-082V1927 RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 0.91 9.7 2.440 0.90 9.6 2.480 0.87 9.5 The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation17 ⚫ The result is rounded to one decimal place for comparison According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05, the SAR report is not required.

Acsys International Limited TEST REPORT SCOPE OF WORK EMC TESTING–VL1BLE REPORT NUMBER 191012001GZU-001 ISSUE DATE [REVISED DATE] 10-December-2019 [---------------------] PAGES 44 DOCUMENT CONTROL NUMBER FCC BT 4.0-d © 2017 INTERTEK TEST REPORT Block E, No.7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science City, GETDD Guangzhou, China Telephone: 86-20-8213 9688 Facsimile: 86-20-3205 7538 www.intertek.com This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Version: 10 June 2019 Page 2 of 44 FCC BT 4.0-d Applicant Name & Address : Acsys International Limited 22nd Floor,Tai Yua Buiding,181,Johnston Road,Wanchai ,Hong Kong. Manufacturing Site : Shenzhen Dragon Brothers Digital Lock Co.,Ltd Floor 5 Building A Dajiahao Square 28 District Baoan Area Shenzhen China Intertek Report No: FCC ID: 191012001GZU-001 2AR93-082V1927 Test standards 47 CFR PART 15 Subpart C: 2018 section 15.247 Sample Description Product : VL1BLE Padlock Model No. : VL1BLE Electrical Rating : DC 3.7V From battery Charging:DC 5V from adapter Serial No. Not Labeled Date Received : 15 October 2019 Date Test Conducted : 15 October 2019-10 December 2019 Prepared and Checked By Paul Pang Sr. Project Engineer Intertek Guangzhou Approved By: Helen Ma Team Leader Intertek Guangzhou TEST REPORT Intertek Report: No: 191012001GZU-001 Version: 10 June 2019 Page 3 of 44 FCC BT 4.0-d CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 6 2.3 TEST METHODOLOGY ........................................................................................................... 6 2.4 TEST FACILITY ...................................................................................................................... 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 8 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 9 4.0 MEASUREMENT RESULTS ......................................................................................... 10 4.1 ANTENNA REQUIREMENT .................................................................................................... 10 4.2 6 DB BANDWIDTH (DTS BANDWIDTH) .................................................................................. 11 4.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ..................................................................... 14 4.4 PEAK POWER SPECTRAL DENSITY .......................................................................................... 17 4.5 OUT OF BAND CONDUCTED EMISSIONS ................................................................................. 20 4.6 OUT OF BAND RADIATED EMISSIONS .................................................................................... 23 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS .......................................................................... 23 4.8 BAND EDGES REQUIREMENT ................................................................................................ 37 4.9 CONDUCTED EMISSION TEST ................................................................................................ 41 5.0 TEST EQUIPMENT LIST ............................................................................................. 44 TEST REPORT Intertek Report: No: 191012001GZU-001 Version: 10 June 2019 Page 4 of 44 FCC BT 4.0-d 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth (DTS bandwidth) FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 11.8 PASS Maximum Peak Conducted Output Power FCC PART 15 C section 15.247(b)(3) ANSI C63.10: Clause…
