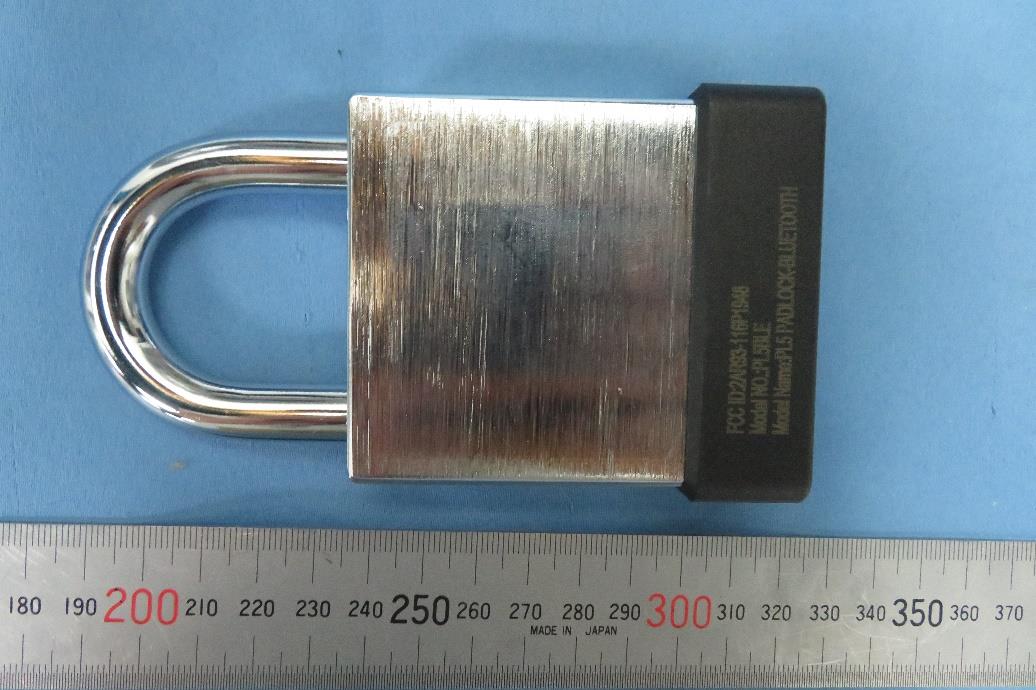

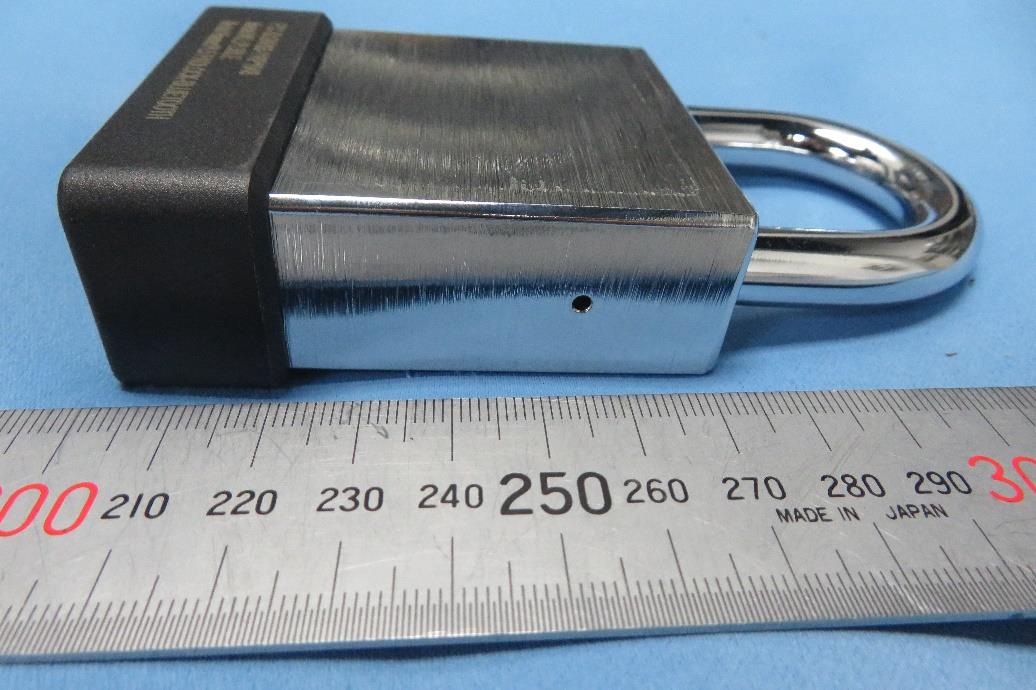

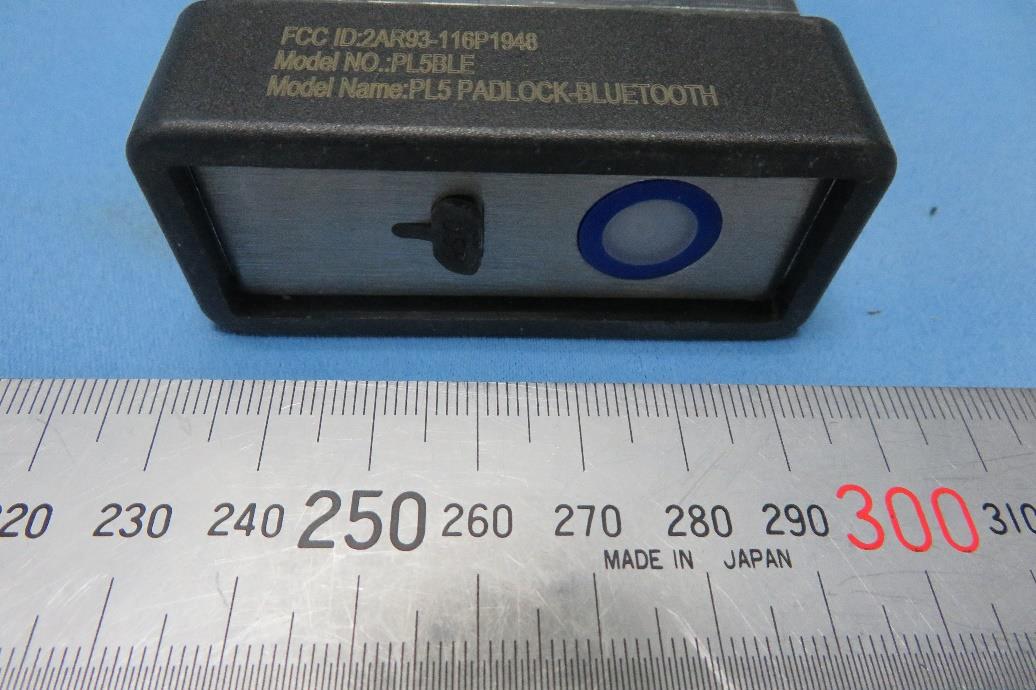

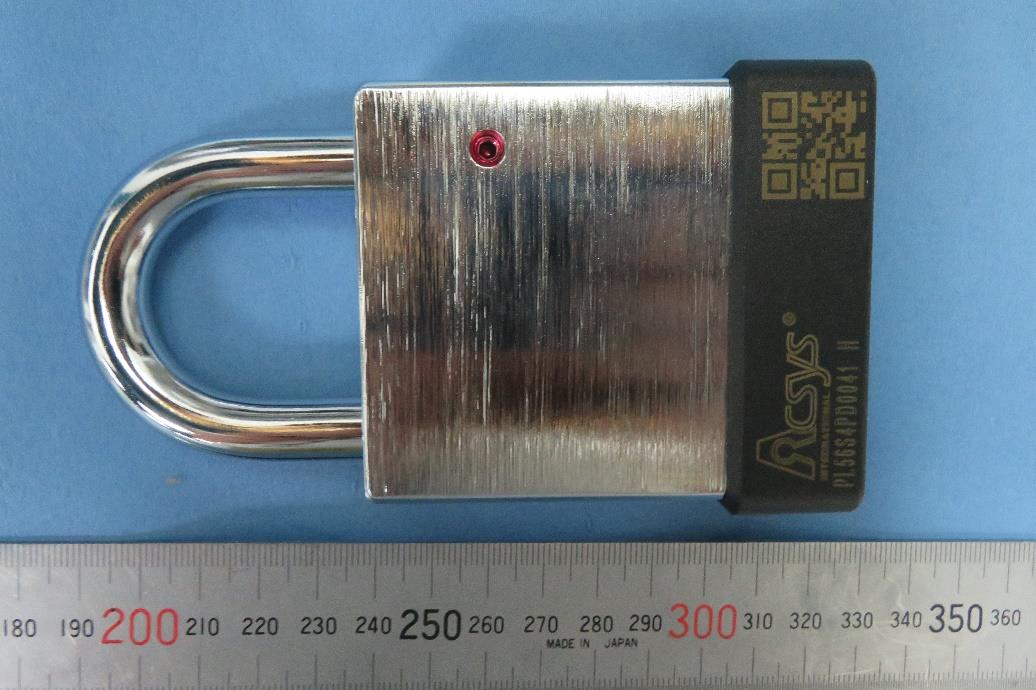

2AR93-116P1948PL5 PADLOCK - BLUETOOTH

BLUE : Pantone Black C 1:0.701 SCALE: REVPART NAMEPART NUMBER PROPRIETARY AND CONFIDENTIAL : THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ACSYS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ACSYS IS PROHIBITED. CONFIDENTIAL INDUSTRY BLUETOOTH PADLOCK USER MANUAL – PL5BLE USER MANUAL-ENG 421-024A Folding Marks Trim Marks 70mm 105mm USER MANUAL PL5 BLE Bluetooth Enabled Padlock [email protected] www.acsys.com Copyright © 2019 Acsys International Ltd. 1 2 3 • Enter Site ID • Enter PIN code • Press Check-in or Check-out depending on the operation type 1 2 3 OPERATE LOCK • Press the Open button next to the Lock name 4 4 • Lock shackle pops out Lock is open 6 • Activate Lock 5 CHECK-OUT • Press the shackle and hold 4 • Press the Close button next to the Lock name 5 • Lock is Closed 6 5 CHECK-IN REPLACE BATTERY • Remove the screw found at the bottom of the shackle hole 1 • Push the bottom plate through the shackle hole and detach it from the padlock body 2 • Replace the battery and reverse the previous steps to reassemble 3 JUMP START LOCK Insert a Micro USB Cable in the Micro USB port and connect it to USB wall charger or a portable power bank USB jump-start port 1 • Remove the Dust Cap to uncover the USB jump-start port Jump starting is used when the battery is fully depleted. It serves as a way to wake up the lock, open it and perform a battery replacement (illustrated in the next section) 2 2 3 While jump-starting, the LED flashes green every 2 seconds indicating that Bluetooth is advertising during which, the lock can be opened using the mobile app. After 60 sec, the lock enters in sleep mode indicated by an orange LED glow. If the 60 sec have elapsed, press the Bluetooth button or remove and reconnect the USB power to put the lock in Bluetooth advertising mode again. Open the padlock using the mobile app and perform the battery replacement procedure shown below. 4 5 INSTALL APP • Search for “Acsys Mobile App” on your device app store • Download and install the app on your device METHOD 2 1 2 3 4 • On the welcome screen, select “Acsys iAMS Enterprise” from the available app types • Register the app by following the on-screen instructions • Scan this QR code • Download the Acsys BLE mobile app for your respective platform DO NOT SCAN the QR code on the padlock bottom cover or on the padlock package. 1 2 METHOD 1 REGISTER LOCK • Activate Lock 7 1 2 3 • Open Main Menu Add Access Point • Enter Site ID • Enter PIN code • Press Register 1 2 3 4 4 6 • Add Access Point • Enter Lock ID or scan QR Code on the lock 5 6 5 • Lock is registered 8 DELETE LOCK • Activate Lock 7 1 2 3 • Open Main Menu Delete Access Point • Enter Site ID • Enter PIN code • Press Delete 1 2 3 4 4 • Press the Delete button next to the correct Lock name 5 5 • Lock is deleted 8 ACTIONSTATE INITIALIZED LOCK INDICATION Bluetooth advertising Lock is open and shackle is pushed closed 1 green flash every 2 sec for 60 sec BLANK LOCK INDICATION 1 red flash every 2 sec for 60 sec 1 red flash every 2 sec 1 green flash, every 2 sec until shackle is released Press Bluetooth button Press and Hold shackle Operation successful Operation failure 1 quick green flash 1 quick orange flash 1 quick green flash1 quick red flash Initialize, Delete Open, Close Battery Replacement Bluetooth advertising Sleep mode USB jump start 1 green flash, every 2 sec for 60 sec orange glow 1 red flash, every 2 sec for 60 sec orange glow LED INDICATIONS • Don’t attempt to remove the Lithium-(CR2) battery from this product without consulting an Acsys authorized installer first. CAUTION • This user manual is for reference only. Minor differences can be found in user interface. • Please follow the instructions to set up your device. In case of any issue, please contact Acsys Support • Specifications may be altered without prior written notice. NOTE -10C +60C 0 95% without condensation SPECIFICATIONS Dimensions & Weight 70 x 125 x 31 mm | 11mm shackle | 900g Lithium (CR2) | Non-Rechargeable | Jump-Start Power Type Tricolor LED Visual Indicator FCC STATEMENT FCC ID: 2AR93-116P1948 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.SPECIFICATIONS NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

ACSYS INTERNATIONAL LIMITED 19th,March,2021 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Acsys International Limited FCC ID: 2AR93-116P1948 To Whom It May Concern: We, (Acsys International Limited), hereby authorized Intertek Testing Services Shenzhen Ltd. Guangzhou Branch to act as our Agent for the purpose of preparing application for FCC ID number (2AR93-116P1948) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (19th,March,2021). The Limited Agency Agreement expires on (18th,Sep,2021), unless sooner terminated or extended by written notice to Intertek Testing Services Shenzhen Ltd. Guangzhou Branch and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Jason Zhang Quality manager Acsys International Limited

1(1) ACSYS INTERNATIONAL LIMITED [19 th ,March,2021] Attention: Application Examiner RE: Request for Confidentiality Applicant: [Acsys International Limited ] FCC ID: [2AR93-116P1948] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by Acsys International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: Acsys International Limited has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Jason Zhang Quality manager Acsys International Limited

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210317050GZU FCC ID: 2AR93-116P1948 Version: 08 July 2020 Page 1 of 1 FCC RF Exposure-Portable RF Exposure Compliance Requirement Model no.: The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2402-2480 0.26 9.5 Remark: peak output power were declared by applicant. The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation17 ⚫ The result is rounded to one decimal place for comparison According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05, the SAR report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Acsys International Limited TEST REPORT SCOPE OF WORK EMC TESTING–PL5BLE REPORT NUMBER 210317050GZU-001 ISSUE DATE [REVISED DATE] 23-June-2021 [--------------------] PAGES 42 DOCUMENT CONTROL NUMBER FCC BT 4.0-d © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 10 June 2019 Page 2 of 42 FCC BT 4.0-d Applicant Name & Address : ACSYS INTERNATIONAL LIMITED 22nd Floor, Tai Yau Building, 181 Johnston Road, Wanchai, Hong Kong Manufacturing Site : Gusuo Intelligence Limited (Shenzhen) D605-3, Silver Star Tech Bldg., 1301 Guanguang Rd., Xinlan Community, Guanlan Street, Longhua District, Shenzhen, Guangdong, China Intertek Report No: FCC ID: : 210317050GZU-001 2AR93-116P1948 Test standards 47 CFR PART 15 Subpart C: 2019 section 15.247 Sample Description Product : PL5 PADLOCK - BLUETOOTH Model No. : PL5BLE Electrical Rating : 3.00V / 500mA Serial No. : Not Labeled Date Received : 17 March 2021 Date Test Conducted : 24 March 2021-22 June 2021 Prepared and Checked By Elena Lei Engineer Approved By: Strong Yao Manager TEST REPORT Intertek Report No.: 210317050GZU-001 Version: 10 June 2019 Page 3 of 42 FCC BT 4.0-d CONTENT TEST REPORT ................................................................................................................... 1 CONTENT ..................................................................................................................... 3 1.0 TEST RESULT SUMMARY..................................................................................... 4 2.0 GENERAL DESCRIPTION ...................................................................................... 5 2.1 PRODUCT DESCRIPTION .................................................................................................... 5 2.2 RELATED SUBMITTAL(S) GRANTS ........................................................................................ 6 2.3 TEST METHODOLOGY ....................................................................................................... 6 2.4 TEST FACILITY.................................................................................................................. 6 3.0 SYSTEM TEST CONFIGURATION ........................................................................... 6 3.1 JUSTIFICATION ................................................................................................................. 6 3.2 EUT EXERCISING SOFTWARE .............................................................................................. 7 3.3 SPECIAL ACCESSORIES ....................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ........................................................................................... 8 3.5 EQUIPMENT MODIFICATION .............................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION ....................................................................... 8 4.0 MEASUREMENT RESULTS ..................................................................................10 4.1 ANTENNA REQUIREMENT ................................................................................................ 10 4.2 6 DB BANDWIDTH (DTS BANDWIDTH)............................................................................... 11 4.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................. 14 4.4 PEAK POWER SPECTRAL DENSITY ...................................................................................... 17 4.5 OUT OF BAND CONDUCTED EMISSIONS ............................................................................. 20 4.6 OUT OF BAND RADIATED EMISSIONS ................................................................................. 23 4.7 RADIATED EMISSIONS IN RESTRICTED BANDS ...................................................................... 23 4.8 BAND EDGES REQUIREMENT ............................................................................................ 37 4.9 CONDUCTED EMISSION TEST ............................................................................................ 39 5.0 TEST EQUIPMENT LIST.......................................................................................42 TEST REPORT Intertek Report No.: 210317050GZU-001 Version: 10 June 2019 Page 4 of 42 FCC BT 4.0-d 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 6 dB Bandwidth (DTS bandwidth) FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 11.8 PASS Maximum Peak Conduc…

Text truncated - open the document above for the full version.

Note:EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (Below 1GHz) Radiated Emission (Above 1GHz) Conducted disturbance voltage at mains ports
