2ARD3-LA124MINO T

2020 / 07 / 03

LEXON Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-7-24 FCC ID: 2ARD3-LA124 SUBJECT: To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, LEXON ------------------------------- （Catherine CLUZEL）

C:\Users\ADMINI~1\AppData\Local\Temp\Rar$DIa0.033\POA_Letter.docx LEXON Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-07-24 SUBJECT: FCC Application for FCCID: 2ARD3-LA124 To Whom It May Concern: We, the undersigned, hereby authorize Willa Lan atA Test Lab Techno Corp.on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Willa Lan on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) Company Name: LEXON Contact Person: Catherine CLUZEL Signature:

Rev 11/20/07 LEXON Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ARD3-LA124 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (ie- Block Diagram, Schematics, Operational Description) (ie- “10. Block Diagram”, “11. Schematic Diagram”, “12. Circuit Description”.) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (signature) (printed name) Catherine CLUZEL

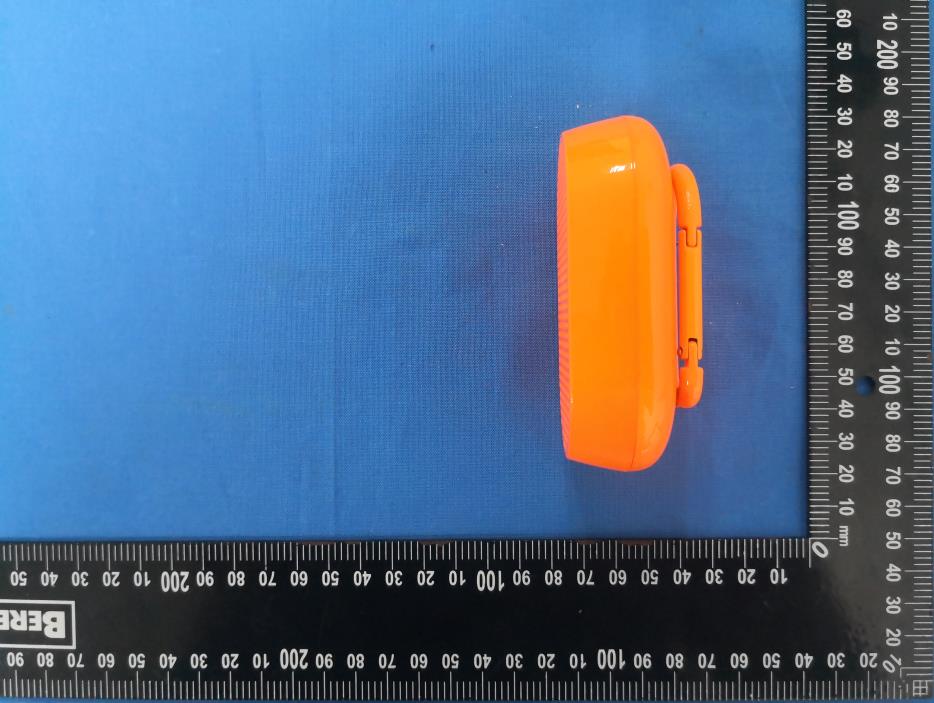

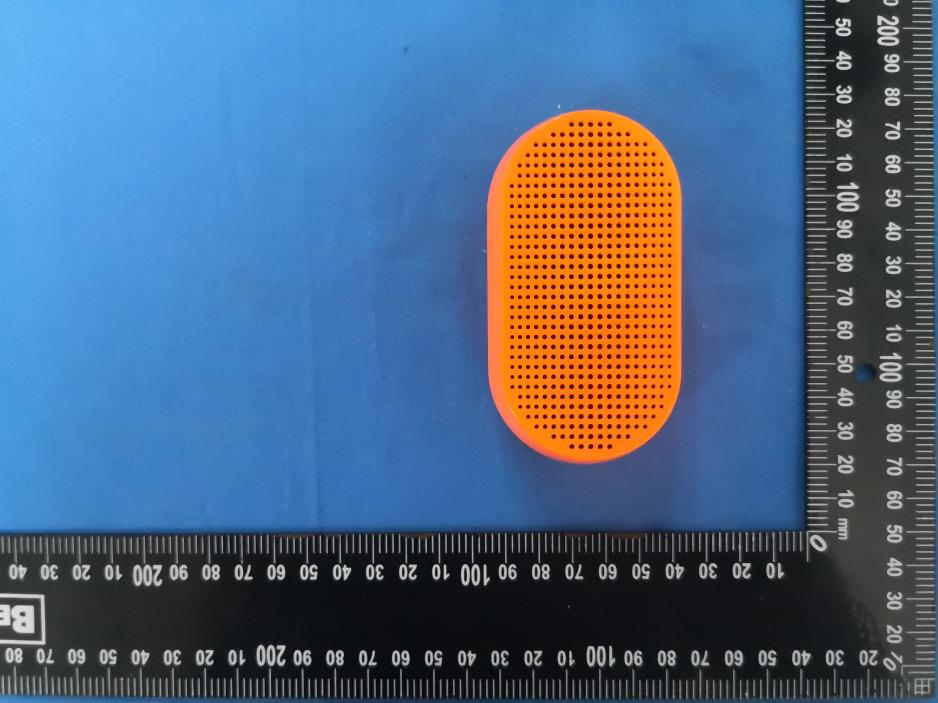

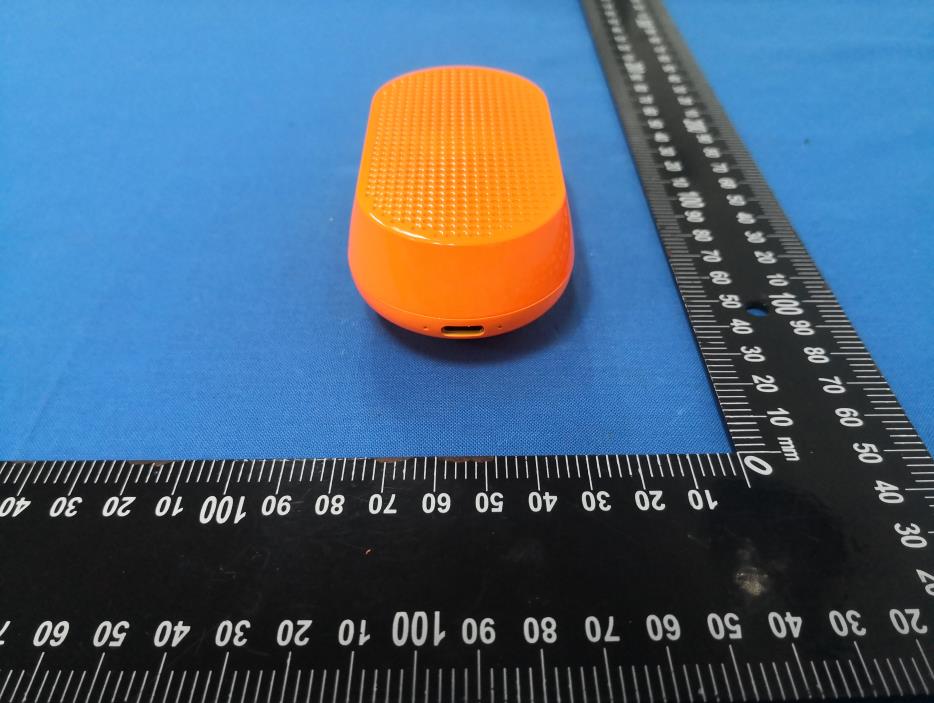

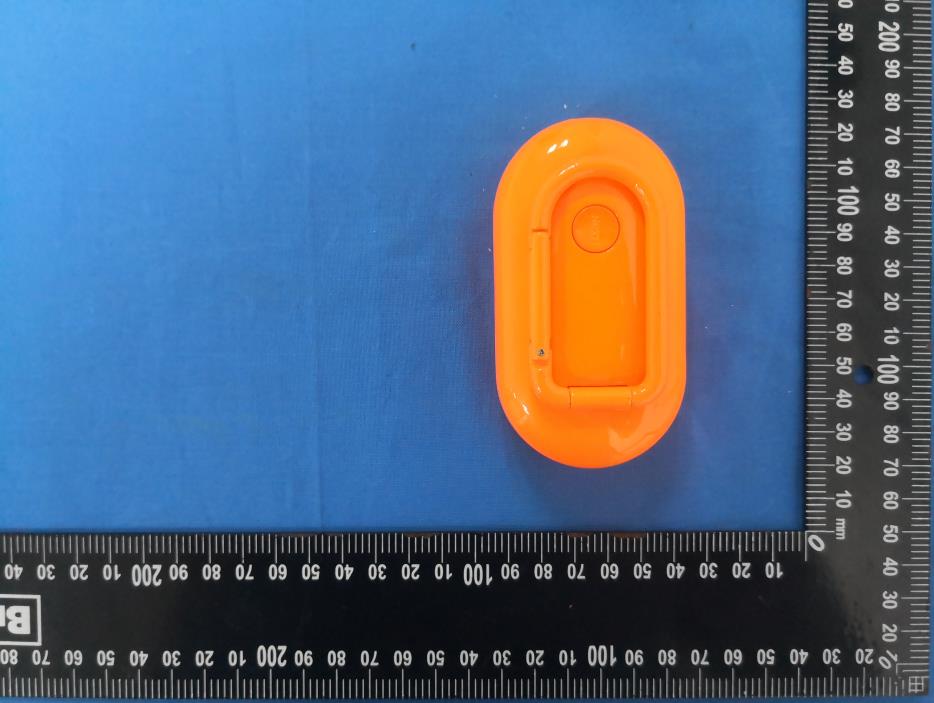

Page 1 of 7 External Photos Model Number: LA124 FCC ID: 2ARD3-LA124 Page 2 of 7 EUT Photo (1) EUT Photo (2) Page 3 of 7 EUT Photo (3) EUT Photo (4) Page 4 of 7 EUT Photo (5) EUT Photo (6) Page 5 of 7 EUT Photo (7) EUT Photo (8) Page 6 of 7 EUT Photo (9) EUT Photo (10) Page 7 of 7 EUT Photo (11)

Page 1 of 8 Internal Photos Model Number: LA124 FCC ID: 2ARD3-LA124 Page 2 of 8 EUT Photo (1) EUT Photo (2) Page 3 of 8 EUT Photo (3) EUT Photo (4) Page 4 of 8 EUT Photo (5) EUT Photo (6) Page 5 of 8 EUT Photo (7) EUT Photo (8) Page 6 of 8 EUT Photo (9) EUT Photo (10) Page 7 of 8 EUT Photo (11) EUT Photo (12) Page 8 of 8 EUT Photo (13) EUT Photo (14)

SAR Exclusion Evaluation R eport Applicant ： LEXON Product Type ： MINO T Trade Name ： LEXON Model Number ： LA124 Applicable Standard ： ANSI/IEEE C95.1 / IEEE Std. 1528-2013 47 CFR Part §2.1093 KDB 865664 D01 / KDB 865664 D02 / KDB 447498 D01 Received Date ： May 12, 2020 Te s t Period ： Jul. 16, 2020 Issued Date ： Jul. 29, 2020 Issued by Approved By ： (Kris Pan) A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Te l：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Test Firm MRA designation number: TW0010 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or c ompleteness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Report Number: 2007FS14 Rev.00 Page 1 of 7 Revision History Re v. Issued Date Revisions Revised By 00 Jul. 29, 2020 Initial Issue Nicole Chu Report Number: 2007FS14 Rev.00 Page 2 of 7 Contents 1. Reference Applicable Standard ........................................................................................................... 4 2. Description of Equipment under Test (EUT) ....................................................................................... 4 3. SAR Test Exclusion ............................................................................................................................. 5 3.1 Conducted Power ................................................................................................................................ 6 3.2 Antenna Location ................................................................................................................................ 7 3.3 Evaluation Results .............................................................................................................................. 7 Report Number: 2007FS14 Rev.00 Page 3 of 7 1. Reference Applicable Standard Standard Description Version ANSI/IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 kHz to 100 GHz, New York. 1992 IEEE 1528 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head From Wireless Communications Devices: Measurement Techniques. 2013 FCC 47 CFR Part 2.1093 Radiofrequency radiation exposure evaluation: portable devices. --- FCC KDB 865664 D01 SAR measurement 100 MHz to 6 GHz - describes SAR measurement procedures for devices operating between 100 MHz to 6 GHz v01r04 FCC KDB 865664 D02 RF Exposure Reporting - provides general reporting requirements as well as certain specific information required to support MPE and SAR compliance. v01r02 FCC KDB 447498 D01 General RF Exposure Guidance - provides guidance pertaining to RF exposure requirements for mobile and portable device equipment authorizations. v06 2. Description of Equipment under Test (EUT) Applicant LEXON 125 avenue des Champs Elysées 75008 Paris France Manufacturer LEXON 125 avenue des Champs Elysées 75008 Paris France Product Type MINO T Trade Name LEXON Model Number LA124 FCC ID 2ARD3-LA124 Frequency Range Operate Band Frequency Range (MHz) Bluetooth BR/EDR 2402 - 2480 Antenna information Model Type Max. Gain (dBi) 2.4G ANT Inverted F Antenna 2402 - 2480 -0.58 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1093. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Report Number: 2007FS14 Rev.00 Page 4 of 7 3. SAR Test Exclusion As RF exposure evaluation of portable device, SAR test is not required when the evaluation results. According to KDB 447498 4.3.1, unless excluded by specific FCC test procedures, portable devices shall include SAR data for equipment approval. SAR test necessity will be based on the exclusion result. The test exclusion refers KDB 447498 as below: ≤50 mm: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR >50 mm and <200 mm: a) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW, at 100 MHz to 1500 MHz b) [Power allowed at numeric threshold for 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz Report Number: 2007FS14 Rev.00 Page 5 of 7 3.1 Conducted Power The conducted power turn-up tolerance, please reference manufacturer specification. Operate Band Frequency (MHz) Packet Type Average Conducted power (dBm) Bluetooth BR GFSK 2402.0 DH1 -0.92 DH3 -0.90 DH5 -0.88 2441.0 DH1 -0.80 DH3 -0.76 DH5 -0.74 2480.0 DH1 -0.65 DH3 -0.62 DH5 -0.60 Bluetooth EDR π/4-DQPSK 2402.0 DH1 -2.23 DH3 -2.20 DH5 -2.18 2441.0 DH1 -2.07 DH3 -2.05 DH5 -2.02 2480.0 DH1 -1.92 DH3 -1.90 DH5 -1.85 Bluetooth EDR 8DPSK 2402.0 DH1 -2.20 DH3 -2.18 DH5 -2.15 2441.0 DH1 -2.05 DH3 -2.01 DH5 -1.99 2480.0 DH1 -1.88 DH3 -1.85 DH5 -1.82 Report Number: 2007FS14 Rev.00 Page 6 of 7 3.2 Antenna Location Ant. Used Antenna to user distance (mm) Front Back Bluetooth Antenna 5 5 Note：We use a minimum distance of 5mm for bluetooth function. 3.3 Evaluation Results The evaluation of SAR test reduction according to KDB447498 SAR test is not required when the results showed “EXEMPT”. Body SAR test reduction Ant. Used Band Frequency Tune-Power Distance of Ant. To User (mm) Calculated va…

Text truncated - open the document above for the full version.

RF Test Report Issued Date: Jul . 23, 2020 Applicant : LEXON Product Type : MINO T Trade Name : LEXON Model Number : LA124 FCC ID : 2ARD3-LA124 EUT Rated Voltage : DC 5 V, 1 A Test Voltage : 120 Vac / 60 Hz Receive Date : May 06 , 2020 Test Period : Jun. 23 , 2020 Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Test Result : Complied Testing Laboratory A Test Lab Techno Corp. 101-104, 1F, A building, Safflower ridge industrial area, Taoyuan street, Nanshan district, Shenzhen Tel：+86-755- 23987770 / Fax：+86-755- 26637771 http://www.atl-lab.com.tw/e-index.htm American Association for Laboratory Accreditation number: 3464.02 Test Firm MRA designation number: CN1168 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA, or any government agencies. The test results in the report only apply to the tested sample. Approved By ： Reviewed By ： (Manager) (Louis Shen) (Testing Engineer) (Joyce Feng) Report NumberSZ2007FR11 Page 1 of 63 Revision History Rev. Issue Date Revisions 00 Jul. 23, 2020 Initial Issue Report NumberSZ2007FR11 Page 2 of 63 TABLE OF CONTENTS 1 General Information ........................................................................................................ 4 1.1. Summary of Test Result ........................................................................................... 4 1.2. Measurement Uncertainty ........................................................................................ 5 2 EUT Description .............................................................................................................. 6 3 Test Methodology ........................................................................................................... 7 3.1. Mode of Operation ................................................................................................... 7 3.2. EUT Exercise Software ............................................................................................ 8 3.3. Configuration of Test System Details ....................................................................... 9 3.4. Test Instruments .................................................................................................... 10 3.5. Test Site Environment ............................................................................................ 11 4 Measurement Procedure .............................................................................................. 12 4.1. Maximum Conducted Output Power Measurement ............................................... 12 4.2. AC Power Line Conducted Emission Measurement .............................................. 13 4.3. Radiated Emission Measurement .......................................................................... 15 4.4. 20dB RF Bandwidth Measurement ........................................................................ 18 4.5. Carrier Frequency Separation Measurement ......................................................... 19 4.6. Number of Hopping Measurement ......................................................................... 20 4.7. Time of Occupancy (Dwell Time) Measurement .................................................... 21 4.8. Out of Band Conducted Emissions Measurement ................................................. 22 4.9. Antenna Measurement .......................................................................................... 22 5 Test Results .................................................................................................................. 23 Annex A. Conducted Emission ....................................................................................... 23 Annex B. Conducted Test Results .................................................................................. 25 Annex C. Radiated Emission Measurement .................................................................. 43 Report NumberSZ2007FR11 Page 3 of 63 1 General Information 1.1. Summary of Test Result FCC Standard Item Result Remark 15.207 AC Power Conducted Emission PASS ----- 15.203 Antenna Requirement PASS ----- 15.247(b)(1) Max. Output Power PASS ----- 15.247(d) Transmitter Radiated Emissions PASS ----- 15.247(a)(1) 20dB RF Bandwidth PASS ----- 15.247(a)(1) Carrier Frequency Separation PASS ----- 15.247(a)(1)(iii) Number of Hopping PASS ----- 15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS ----- 15.247(d) Out of Band Conducted Spurious Emission PASS ----- Standard Description CFR47, Part 15, Subpart C §15.247 Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices ANSI C63. 4: 2014 American National Standard for methods of measurement of radio – noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz DA 00-705 Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems KDB558074 D01 v05r02 GUIDANCE FOR COMPLIANCE MEASUREMENTS ON DIGITAL TRANSMISSION SYSTEM, FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM, AND HYBRID SYSTEM DEVICES OPERATING UNDER SECTION 15.247 OF THE FCC RULES The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. Report NumberSZ2007FR11 Page 4 of 63 A Test Lab Techno Corp. tested the above equipment under the requirements outlined in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. Based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test resu…

Text truncated - open the document above for the full version.

Report Number: SZ2007FR11 Page 1 of 3 Test Setup Photographs Conducted Emission Test Mode: Mode 1 Description: Front View Description: Back View Report Number: SZ2007FR11 Page 2 of 3 Radiated Emission Test Mode: Mode 1 Description: Front View _ Below 1 GHz Description: Back View _ Below 1 GHz Report Number: SZ2007FR11 Page 3 of 3 Test Mode: Mode 1 Description: Front View _ Above 1 GHz Description: Back View _ Above 1 GHz
