Ultimate 2-channel Wireless Microphone System Saramonic Ultra User Manual Sta tement Please read this manual carefully before using, and strictly operate and store it in accordance with the instructions. Please save the manual for future reference. If you need further assistance than the user manual, please consult your retailer for help or email us at: info@saramonic. com Cautions 1. Non-professionals are strictly prohibited fr om disassembling this unit on their own. 2. Please keep it away from heat sources such as radiators or spotlights. 3. Do not remove the battery without pr ofessionals’ help. 4. Please clean the unit with only a soft, dry cloth. 5. When using and storing, please keep away fr om dust and moisture. 6. For the best pick-up pattern, do not hold your hand against the microphone capsule cover. General Introduction Saramonic Ultra, a portable ultimate 2-channel wireless microphone system, provides professional-quality sound within 300 meters* of tr ansmission range. It is ideal for broadcasting, pr esentations, mobile journalism and more. The system adopts a new self-developed noise cancellation algorithm and low-cut sound mode to effectively eliminate background noise. The transmitter of this system is IPX5-rated for water resistance, performing well in harsh environments. Saramonic Ultra comes with 32-bit float on- board recording, timecode, and more advanced settings. The 32-bit float on-board recording supports the transmitterrecording audio independently, which is available for storing the recording files in real time. Its timecode keeps your video and audio flawlessly synchronized in post-production. The receiver comes with a 1.1- inch touchscreen, displaying information such as wireless signal strength, noise cancellation, battery, volume, time code, r ecording status, etc. Users can easily adjust various parameters during the recording process. Saramonic Ultra boasts extensive compatibility . The transmitter incorporates an in-built microphone, and can be connected to an external lavalier microphone (some packages do not include this lavalier microphone; please refer to the actual package purchased) The receiver has a 3.5 mm multi-functional output, which can output audio from the receiver to a camera or mixer . In addition, the included USB-C or Lightning adapter can be used to output audio from the receiver to a smartphone, tablet, or computer. * Measured in an unobstructed environment without interference, and this data can only be achieved while using the external antenna. Features • Timecode sync • 130 dB SPL • External antenna, stable signal • Noise cancellation, AGC • 32-bit float REC, 8 GB storage • IPX5 waterproof What’s in the Box Saramonic Ultra 01 (Black) Transmitter ×2 Receiver ×1 Charging Case ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×2 Magnet ×2 External Antenna ×1 Carrying Bag ×1 Saramonic Ultra 02 (White) Transmitter ×2 Receiver ×1 Charging Case ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×2 Magnet ×2 External Antenna ×1 Carrying Bag ×1 Saramonic Ultra 03 (Black) Transmitter ×2 Receiver ×1 Charging Case ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×2 Magnet ×2 External Antenna ×1 Lavalier Microphone × 2 Carrying Bag × 1 Saramonic Ultra 04 (White) Transmitter ×2 Receiver ×1 Charging Case ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×2 Magnet ×2 External Antenna ×1 Lavalier Microphone × 2 Carrying Bag × 1 Saramonic Ultra 05 (Black) Transmitter ×1 Receiver ×1 Carrying Bag ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×1 Magnet ×1 External Antenna ×1 Saramonic Ultra 06 (White) Transmitter ×1 Receiver ×1 Carrying Bag ×1 USB-C to USB-C Data Cable ×1 3.5 mm TRS to TRS Audio Cable ×1 Lightning Adapter ×1 USB-C Adapter ×1 Fur Windshield ×1 Magnet ×1 External Antenna ×1 Accessories (Sold Separately) Adapter for Connecting SONY C amera Lavalier Microphone Product Structure Transmitter (TX) 1 3 7 8 2 9 5 6 4 10 Power Button • Press and hold for 2 seconds to power on or of f. • Press once to mute or unmute the tr ansmitter. • When the receiver is connected to a smartphone, the user can start or stop recording by pressing the transmitter’s power button twice. Note that this feature only supports smartphones where the volume button can be used to take a photo. Sta tus Indicator Sta tusIndicator UnpairedBlinks blue slowly PairedSolid blue Noise cancellation enabled Solid green Low batteryBlinks red ChargingSolid red Fully chargedSolid blue or green PairingBlinks blue rapidly • In paring mode, the status indicator will blink blue rapidly for 2 minutes waiting for pairing with the receiver. Af ter the timeout, the transmitter will exit paring mode, and its indicator will blink blue slowly. • Please charge the transmitter when its status indicator blinks red, or it will automatically shut down after 10 minutes. • When multiple functions are activated on the tr ansmitter, its indicator will give priority to displaying only one feature. The indicator is prioritized as follows:charging > low battery > unpaired >noise cancellation. Recording Indicator Sta tusIndicator Mute onBlinks red Onboard recording enabled Solid red Failed to enable onboard recording Blinks red 3 times and then turns off • When reading the onboard recording files, onboard recording can not be enabled. • The indicator is prioritized as follows: mute > onboard recording. TIP: The recording indicator doubles as a charging status indicator when the transmitter is placed into the charging case for charging. See the chart below for more details. Sta tusIndicator ChargingSolid red Fully chargedOff REC Button Press once to enable or disable on…

Text truncated - open the document above for the full version.

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, Our product Wireless Microphone, model: Saramonic Ultra TX, FCC ID: 2ARN3-122911TX, for marketing purpose, this product only supports 2.4GHz FHSS (2402-2480MHz), The other functions and bands were disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Michael zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2ARN3-122911TX Shenzhen Jiayz photo industrial ., Ltdcertifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARN3-122911TX Shenzhen Jiayz photo industrial ., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely Yours, Signature: Michael Zhao Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ARN3-122911TX Shenzhen Jiayz photo industrial ., Ltd certifies that, as of the date of the filing of the application, Mamiya America Corporation is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Jiayz photo industrial ., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Mamiya America Corporation accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Mamiya America Corporation Address: 75 Virginia Rd White Plains, NY 10063 FRN: 0033742214 Tel.: +1-(914) 345-5436 Email: [email protected] Signed by (printed name): Joseph Nassar Signature: Applicant: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China FRN: 0027973098 Tel: +86-0755-28435911 Email: [email protected] Signed by (printed name): Michael Zhao Signature:

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Jiayz photo industrial ., Ltd, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] FCC Confidential Authorization Date: 2024-12-17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARN3-122911TX In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Jiayz photo industrial ., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Part list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Michael Zhao Manager

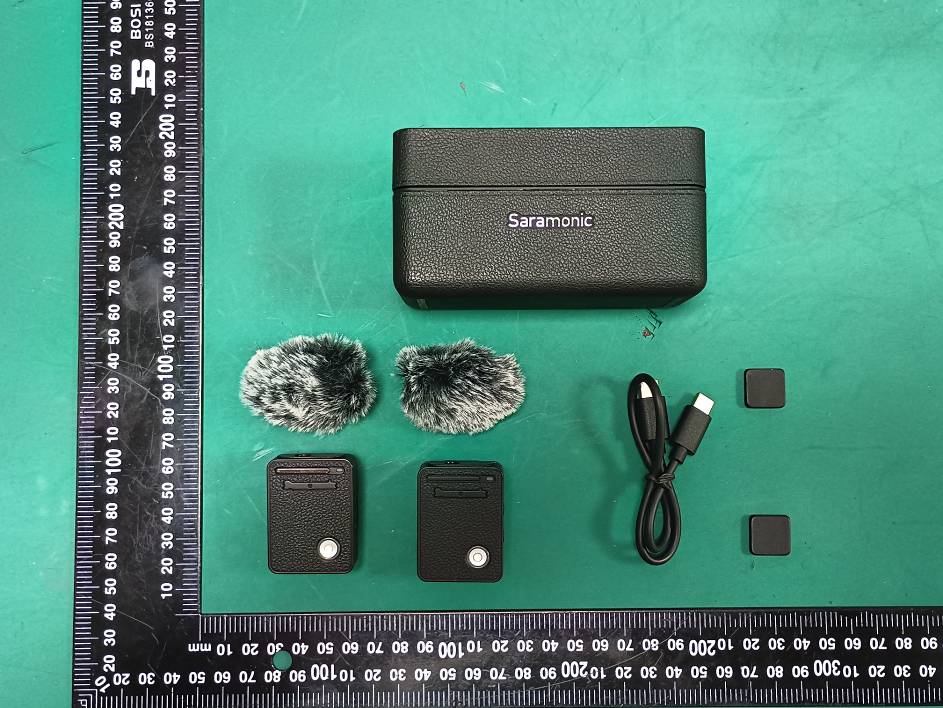

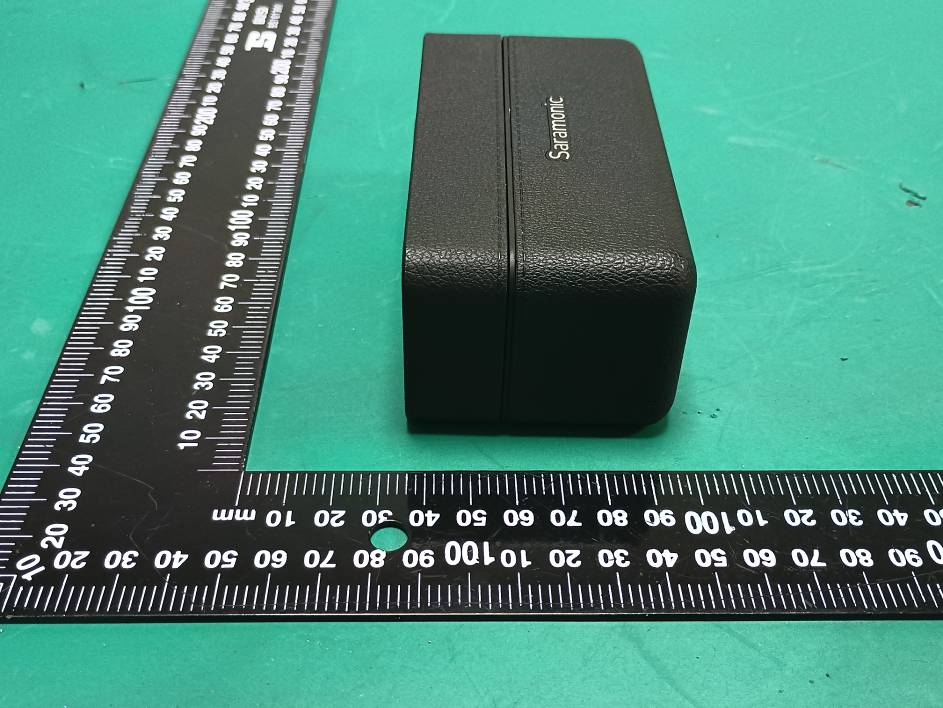

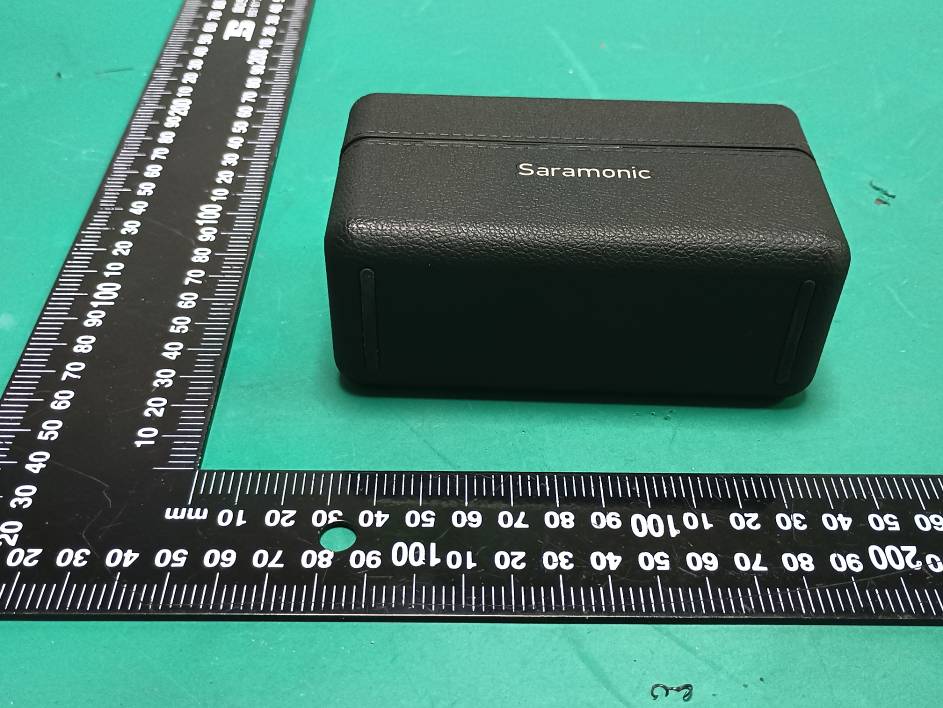

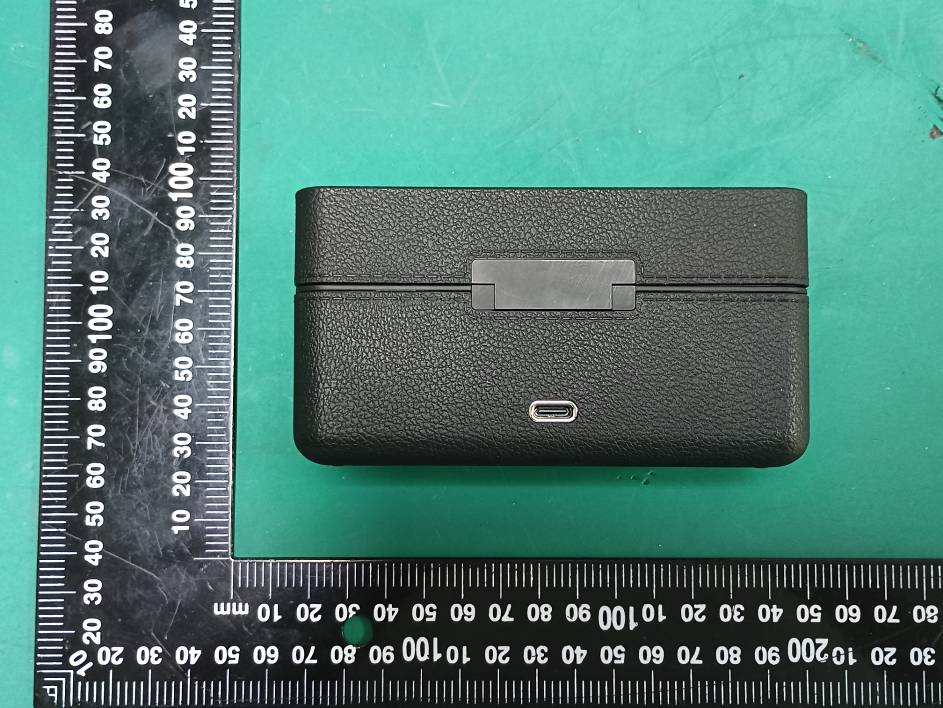

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 4 of 7 Charger box Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 7 of 7

10.30mm 36.60mm 0.60mm 4.55mm 1.19mm 2.53mm 1.90mm 13.17mm 2.35mm Label Label location

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 1 of 6 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 2 of 6 Antenna 1 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 3 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 4 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 5 of 6 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401Y27183E-RF Page 6 of 6 Antenna 2

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF-00 TR-EM-RF006 Page 13 of 71 Version 3.0 FCC§15.247 (i)&§1.1307 (b) &§2.1093 - RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion GFSK 2402-2480 7.0 5.01 5 1.6 3.0 Yes Note: The Max tune-up conducted power # was declared and provided by the manufacturer Result: Compliant

Ant e Proj Ma n Add Gua Ant e Ante Fre q 2400 2440 2480 Ant e enna Report ect：Saram o nufacturer： dress: A16 nlan,Longh u enna1: FPC a enna2: PIFA  Anten n q MHz 0 0 0 enna return onic Ultra TX Shenzhen Jia Building, In ua District, Sh antenna, pea antenna , pe na1: loss: X ayz Photo In ntelligent Te henzhen, Ch ak gain -2.7d eak gain -3d ndustrial ., Ltd erminal Ind hina dBi dBi Ante n -2.8 -2.7 -2.85 d dustrial Park nna Gain dBi k of Siliconn Valley Poower, Radiation pattern: -20 -15 -10 -5 0 91 95 99 103 107 111 115 119 123 127 131 135 139 143 147 151 155 159 163 167 171 175 179 -177 -173 -169 -165 -161 -157 -153 -149 -145 -141 -137 -133 -129 -125 -121 -117 -113 -109 -105 -101 -97 -93 -89 -85 -81 -77 -73 -69 -65 -61 -57 -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 -13 -9 -5 -1 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63 67 71 75 79 83 87 Phi=0 -20 -15 -10 -5 0 91 95 99 103 107 111 115 119 123 127 131 135 139 143 147 151 155 159 163 167 171 175 179 -177 -173 -169 -165 -161 -157 -153 -149 -145 -141 -137 -133 -129 -125 -121 -117 -113 -109 -105 -101 -97 -93 -89 -85 -81 -77 -73 -69 -65 -61 -57 -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 -13 -9 -5 -1 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63 67 71 75 79 83 87 phi=90 Antenna Photo Dimension:15.3mmX5.6mm -25 -20 -15 -10 -5 0 91 95 99 103 107 111 115 119 123 127 131 135 139 143 147 151 155 159 163 167 171 175 179 -177 -173 -169 -165 -161 -157 -153 -149 -145 -141 -137 -133 -129 -125 -121 -117 -113 -109 -105 -101 -97 -93 -89 -85 -81 -77 -73 -69 -65 -61 -57 -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 -13 -9 -5 -1 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63 67 71 75 79 83 87 theta=90 Freq 2400 2440 2480 Ant e Rad  Antenn q MHz 0 0 0 enna return iation patte r - -1 -9 -5 -1 3 7 11 1 na2: loss: rn: -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 13 9 5 7 1 15 19 23 27 31 35 39 43 47 51 5 5 -7 -73 -69 -65 -61 -57 3 5 59 63 67 71 75 7 Anten -3.3 -3 -3.8 -20 -15 -10 -5 0 91 95 99 1 -1 -97 -93 -89 -85 -81 77 9 83 87 Phi=0 nna Gain dBi 103 107 111 115 119 12 3 -12 -117 -113 -109 -105 101 3 127 131 135 139 143 147 151 155 15 9 16 1 - -1 -15 -153 -149 -145 -141 -137 -133 -129 -125 1 9 63 167 171 175 179 -177 -173 -169 -165 161 7 -25 -20 -15 -10 -5 0 91 95 99 103 107 111 115 119 123 127 131 135 139 143 147 151 155 159 163 167 171 175 179 -177 -173 -169 -165 -161 -157 -153 -149 -145 -141 -137 -133 -129 -125 -121 -117 -113 -109 -105 -101 -97 -93 -89 -85 -81 -77 -73 -69 -65 -61 -57 -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 -13 -9 -5 -1 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63 67 71 75 79 83 87 phi=90 -25 -20 -15 -10 -5 0 91 95 99 103 107 111 115 119 123 127 131 135 139 143 147 151 155 159 163 167 171 175 179 -177 -173 -169 -165 -161 -157 -153 -149 -145 -141 -137 -133 -129 -125 -121 -117 -113 -109 -105 -101 -97 -93 -89 -85 -81 -77 -73 -69 -65 -61 -57 -53 -49 -45 -41 -37 -33 -29 -25 -21 -17 -13 -9 -5 -1 3 7 11 15 19 23 27 31 35 39 43 47 51 55 59 63 67 71 75 79 83 87 theta=90 Ante Dim enna Photo mension:14.5mmmX7.6mm

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF006 Page 1 of 71 Version 3.0 TEST REPORT Applicant Name: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan,Longhua District, Shenzhen, China Report Number: 2401Y27183E-RF-00 FCC ID: 2ARN3-122911TX Test Standard (s) FCC PART 15.247 Sample Description Product Type: Wireless Microphone Model No.: Saramonic Ultra TX Multiple Model(s) No.: N/A Trade Mark: Saramonic Date Received: 2024/10/11 Issue Date: 2025/01/10 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Wills Yu Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF-00 TR-EM-RF006 Page 2 of 71 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC§15.247 (I)&§1.1307 (B) &§2.1093 - RF EXPOSURE ....................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT RESULT ............................................................................................................................................ 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (A) - AC LINE CONDUCTED EMISSIONS ..................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP .................................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF Page 1 of 4 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF Page 2 of 4 Radiated Emissions View (9 kHz- 30 MHz) Radiated Emissions View (30 MHz- 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF Page 3 of 4 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Y27183E-RF Page 4 of 4 Close-up
