2ARN3-52901TXWireless Microphone

Wireless Microphone Cautions 1. Non-professionals are strictly prohibited from disassembling this unit on their own. 2. Please keep it away from heat sources such as radiators or spotlights. 3. Do not remove the battery without professionals’ help. 4. Please clean the unit with only a soft, dry cloth. 5. When using and storing, please keep away from dust and moisture. 6. For the best pick-up pattern, do not hold your hand against the microphone capsule cover. General Introduction The Saramonic Air SE series includes both USB-C and Lightning receivers, ensuring wide compatibility with smartphones, tablets, computers, and other devices. Each transmitter supports at least 6 hours of continuous use, and together with the charging case provides up to 24 hours of operation. The charging case also works as a portable power source for the transmitters, offering quick charging on the go The Saramonic Air SE is a compact and portable 2.4 GHz wireless microphone system. Its lightweight transmitter is easy to carry, while the charging case not only stores the transmitter and receiver but can also be used as a handheld microphone. With its easy operation, it is an ideal choice for content creation, live streaming, vlogging, mobile journalism, and more . and making it convenient for travel. ① In-built Condenser Microphone ② Power Button • Press once to enable or disable noise cancellation. • Press twice to start or stop video recording when the receiver is connected to a smartphone and paired with the transmitter. This feature is supported only on smartphones where the volume button functions as a camera shutter. • Press and hold for 2 seconds to power on or off. • Press and hold for 5 seconds while powered off to enter pairing mode. Note: In handheld microphone scenarios, the above operation still works even when the transmitter is placed in the charging case. ③ Status Indicator ① ② ③ ④ ⑤ Product Structure Transmitter (Saramonic Air SE-TX) Status Indicator Unpaired Blinks blue slowly Pairing Blinks blue quickly (For 5 minutes) Paired successfully Solid blue Noise reduction enabled Solid green Mute on Blinks red slowly Low battery Blinks red rapidly Charging Solid red for 5 s and then off Firmware updatingBlinks red and green alternately Note: •
When in pairing mode, the indicator on the transmitter will blink blue rapidly for 5 minutes while waiting to pair with the receiver. After the timeout, the transmitter will exit pairing mode, and its indicator will blink blue slowly. • Please charge the transmitter when its indicator blinks red rapidly, or it will automatically power off after 10 minutes. ④ • The transmitter(s) will power off automatically after 10 minutes if not paired. This function is enabled by default and can be disabled via the Central App if required.
In-built Magnet ⑤
Charging Contacts Charging starts once the charging contacts on the transmitter are connected with the charging pins on the charging case. ① ② ③ ① USB-C Connec USB-C Receiver (Saramonic Air SE-RXU) tor It can be connected to iPhone 15 or newer, Android smartphones, tablets, computers and other USB-C devices. ② Noise Reduction Button • Press twice to mute or unmute the microphone. • Press once to enable or disable noise reduction. • Press and hold for 5 seconds to enter pairing mode. ③ Indicator Status Indicator UnpairedBlinks blue slowly Pairing Blinks blue quickly (For 5 minutes) Paired successfully Solid blue Noise reduction enabled Solid green Mute on Blinks red slowly Firmware updatingBlinks red and green alternately ③ ④ ⑤ ① ② ① USB-C Charging Por CC Charging Case (Saramonic Air SE-CC) t For charging the charging case via the included USB-C to USB-A data cable. ② Charging/Remaining Battery Level Indicator When the charging case is not connected to power and the transmitter is removed from or placed into it, this indicator will display the case’s remaining battery level. Note: •
When not charging, the indicator on the charging case blinks or stays solid for about 5 seconds before turning off automatically. Battery level (case) Indicator 5% or lower Blinks red 6% to 30% Solid red 31% to 100% Solid green Accessories Note: The included accessories are subject to the purchased kit. MagnetMagnetic Clip Fur Windshield •
Please charge the charging case as soon as possible when its indicator blinks red. •
When the charging case is connected to power, this indicator will display the case’s charging status. ③ Receiver Slot For storing the Lightning or USB-C receiver. ④ Transmitter Slot For charging or storing the transmitter. ⑤ Charging Pins For charging the transmitter(s). Note: The transmitter charges only when its contacts are properly aligned with the charging pins. Battery level (case) Indicator 30% or lowerBlinks red 31% to 99%Blinks green Fully chargedSolid green Magnetic
Charging
Cable Note: If the purchased combo does not include a charging case, use the magnetic charging cable. Align the transmitter's charging contacts with the pins and bring them close. The magnetic force will attract the transmitter and start charging. Charging Pins USB-C to USB-A Data Cable Carrying Pouch Silicone Plug How to Use Pairing the Transmitter(s) and Receiver 1. The transmitter(s) will power on automatically as soon as it is taken out of the charging case. For handheld scenarios, keep the transmitter in the charging case and press and hold its power button for 2 seconds to turn it on. 2. Connect the USB-C receiver to a USB-C device or the Lightning receiver to an iOS device. 3.The transmitter(s) and receiver are pre-paired before leaving the factory. Therefore, they will be paired once they are powered on. Their indicators will glow solid blue if paired successfully. If they are disconnected, please follow the below steps: Pairing the Transmitter(s) with a Receiver ①With the transmitter powered off, press and hold the power button for 5 the noise cancellation button for 5 seconds. The indicator will blink blue rapidly to enter pairin…

Text truncated - open the document above for the full version.

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, Our product Wireless Microphone, model: Saramonic Air SE-TX, Saramonic Air SE 2-TX, FCC ID: 2ARN3-52901TX, for marketing purpose, this product only supports 2.4GHz FHSS (2402-2480MHz), The other functions and bands w ere disabled to use by manufacture in the software, the end user has no capability to acti vate it. Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARN3-52901TX Shenzhen Jiayz photo industrial ., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARN3-52901TX Shenzhen Jiayz photo industrial ., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely Yours, Signature: Michael Zhao Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ARN3-52901TX Shenzhen Jiayz photo industrial ., Ltd c ertifies that, as of the date of the filing of the application, Mamiya America Corporation is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Jiayz photo industrial ., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Mamiya America Corporation accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Mamiya America Corporation Address: 75 Virginia Rd White Plains, NY 10063, United States FRN: 0033742214 Tel.: +1-(914) 345-5436 Email: [email protected] Signed by (printed name): Joseph Nassar Signature: Applicant: Shenzhen Jiayz photo industrial ., Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China FRN: 0027973098 Tel: +86-0755-28435911 Email: [email protected] Signed by (printed name): Michael Zhao Signature:

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Shenzhen Jiayz photo industrial ., Ltd, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] FCC Confidential Authorization Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARN3-52901TX In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Jiayz photo industrial ., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Michael Zhao Manager

Shenzhen Jiayz photo industrial ., Ltd ADD: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China Tel: +86-0755-28435911 Email: [email protected] Product Similarity Declaration Date: 2025-12-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam, We Shenzhen Jiayz photo industrial ., Ltd hereby declare that we have a product named Wireless Microphone (Model number: Saramonic Air SE-TX, FCC ID: 2ARN3-52901TX) was tested by Shenzhen Accurate Technology Co., Ltd. Meanwhile, for our marketing purpose, we would like to list a series models (Saramonic Air SE 2-TX) on reports and certificate. All of the models are electrically identical, but the difference among them is model name and sales channels. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact with me if you have any question. Sincerely Yours, Signature: Michael Zhao Manager

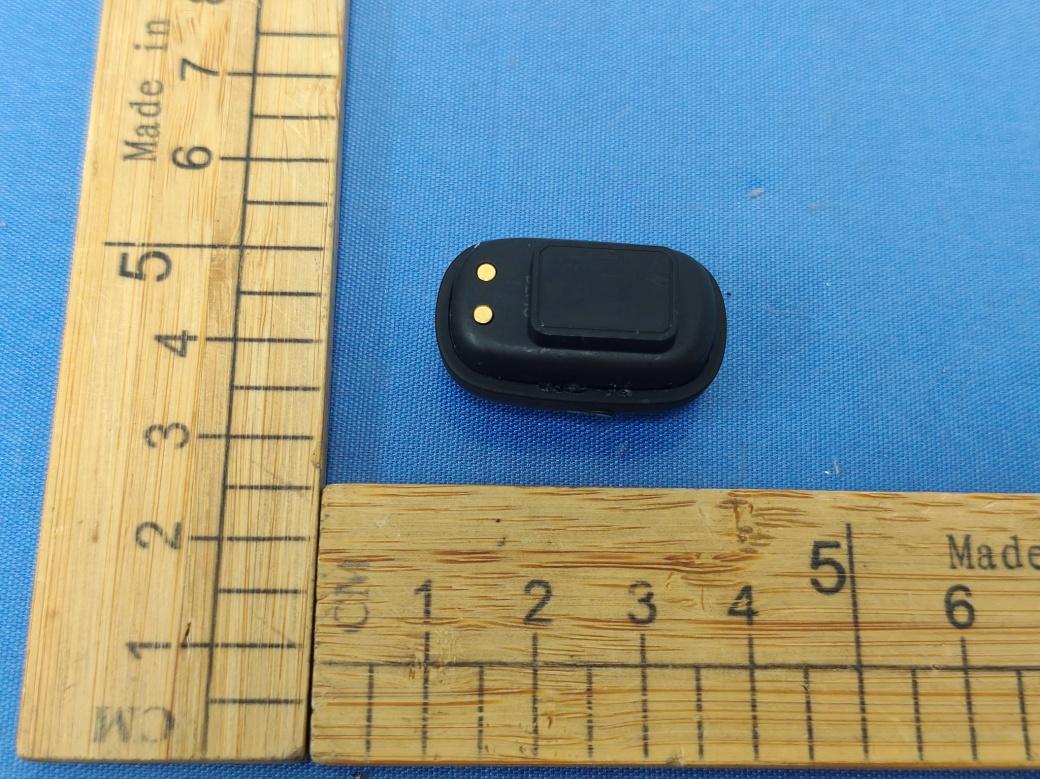

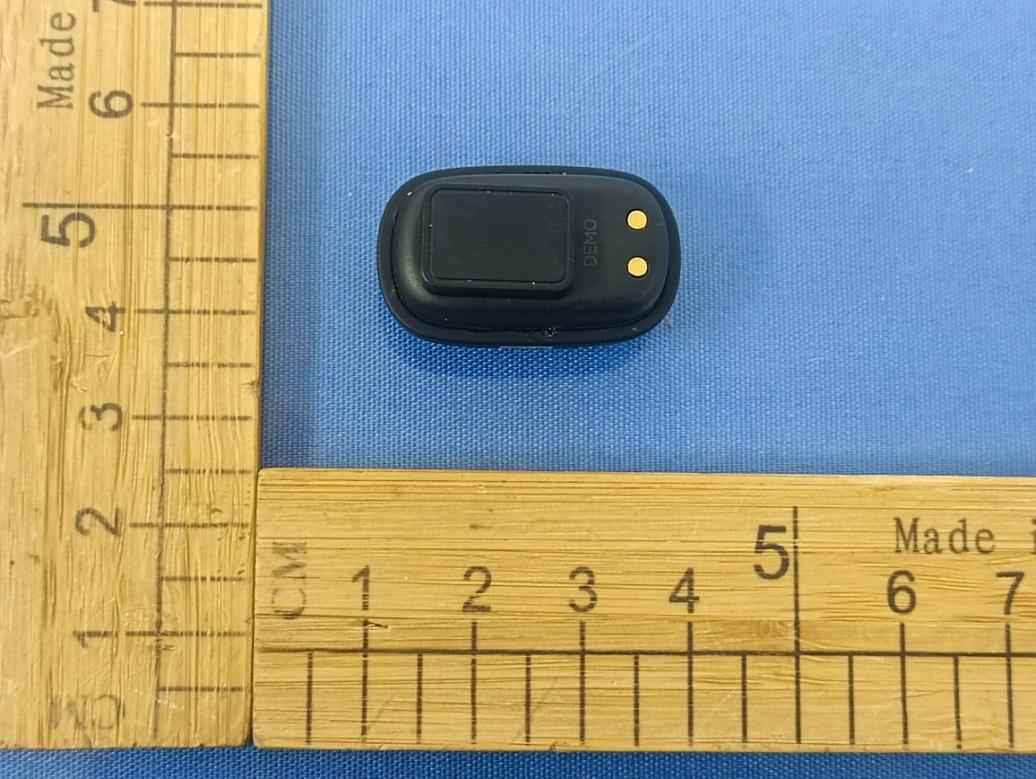

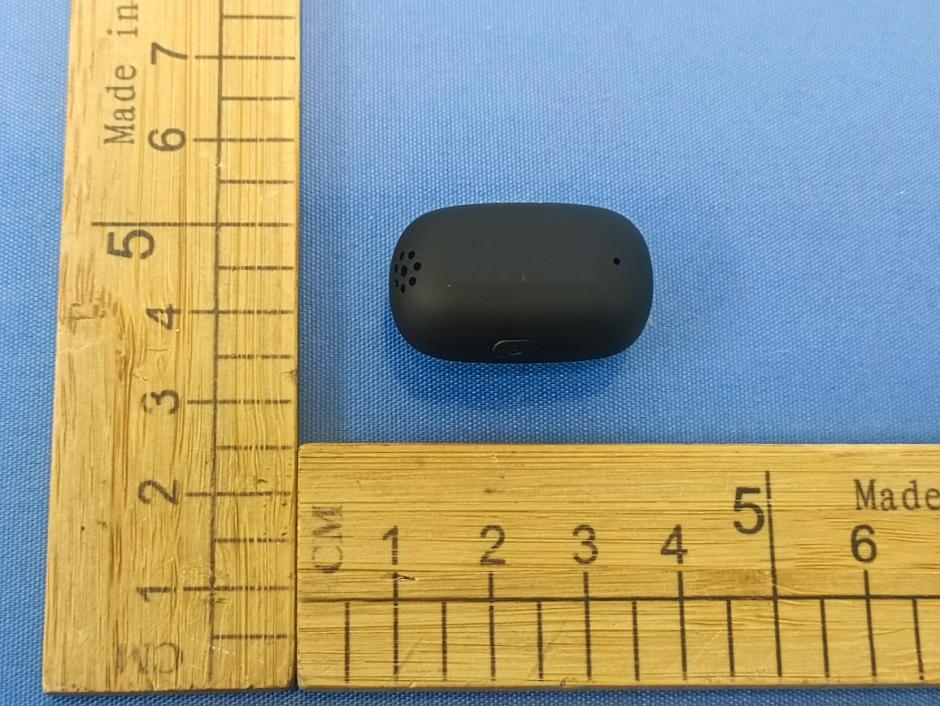

Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 1 / 7 External Photos Test model: Saramonic Air SE-TX Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 2 / 7 Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 3 / 7 Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 4 / 7 Serial model: Saramonic Air SE 2-TX Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 5 / 7 Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 6 / 7 Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT External Photos External Photos Page 7 / 7 ***** END *****

C D E B 654 3 2 1 B C D E F 2 14 3 5 . 5 5 m m 5 . 5 5 m m 1 4 . 5 7 m m 5 . 7 0 m m 5 . 7 0 m m 1 4 . 2 7 m m 10.43 mm 5 . 3 4 m m

Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT Internal Photos Internal Photos Page 1 / 3 Internal Photos Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT Internal Photos Internal Photos Page 2 / 3 Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF EUT Internal Photos Internal Photos Page 3 / 3 ANT ***** END *****

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 6 TR-4-E-R063 TEST REPORT Applicant Name : Shenzhen Jiayz photo industrial.,Ltd Address : A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan,Longhua District, Shenzhen, China Report Number : 2504Z85524E-RF FCC ID: 2ARN3-52901TX Test Standard (s) FCC PART 2.1093 Sample Description Product Type: Wireless Microphone Model No.: Saramonic Air SE-TX, Saramonic Air SE 2-TX Trade Mark: Saramonic Date Received: 2025-11-24 Report Date: 2025-12-18 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Amanda Wei Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Z85524E-RF Rev:A/4.0(2024/11/01) Page 2 of 6 TR-4-E-R051 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 4 RF EXPOSURE .............................................................................................................................................. 5 APPLICABLE STANDARD ................................................................................................................................. 5 TEST RESULT ................................................................................................................................................ 5 EXHIBIT A-EUT PHOTOGRAPHS ................................................................................................................ 6 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Z85524E-RF Rev:A/4.0(2024/11/01) Page 3 of 6 TR-4-E-R051 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision Rev.00 2504Z85524E-RF Original Report 2025-12-18 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Z85524E-RF Rev:A/4.0(2024/11/01) Page 4 of 6 TR-4-E-R051 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product Wireless Microphone Tested Model Saramonic Air SE-TX Multiple Model Saramonic Air SE 2-TX Model Difference # The difference is model name and sale channels. Please refer to DOS letter for details. The applicant provided model “Saramonic Air SE-TX” for testing. Frequency Range 2402-2480MHz Maximum Conducted Output Power 5.52dBm Antenna Specification # Internal Antenna, Antenna Gain: -1.5dBi (It is provided by the applicant.) Voltage Range # DC 3.85V from battery DC 5V from Charging Contacts Sample Serial Number 3CR8-6 (Assigned by ATC, Shenzhen) Sample/EUT Status Good condition Objective This test report is in accordance with Part 2-Subpart J, Part 15-Subparts C and Part 2-Subpart J, Radiofrequency Radiation Exposure of the Federal Communication Commission rules. The tests were performed in order to determine compliance with FCC §2.1093 rules. Test Facility The test site used by Shenzhen Accurate Technology Co., Ltd. to collect test data is located on the Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Accredited by American Association for Laboratory Accreditation (A2LA).The Certificate Number is 4297.01. Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Z85524E-RF Rev:A/4.0(2024/11/01) Page 5 of 6 TR-4-E-R051 RF EXPOSURE Applicable Standard According to FCC §2.1093, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Test result For worst case: Frequency (MHz) Tune-Up Conducted Output Power # (dBm) Tune-Up Conducted Output Power # (mW) Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion 2480 6.0 3.98 5 1.3 3 Yes Note: The tune-up con…

Text truncated - open the document above for the full version.

CC-JL-RD-36V1.0 1 Antenna Part Specification Project name： Saramonic Air SE-TX Antenna Name： FPC Version： V1.0 Date： 2025.9.30 Manufacturer： Shenzhen Cicent Communication Technology Co., Ltd. Manufacturer address： 505-506 ,ABlock,Donglian Building,Chuangye 2 road,Baoan District,Shenzhen,Guangdong,P.R china CC-JL-RD-36V1.0 2 Contents I: The report of passive data ...................................................................................................................................................... 3 II：3D Active test report of antenna ......................................................................................................................................... 6 III：Antenna matching .............................................................................................................................................................. 6 IV：Installation environment treatment method ....................................................................................................................... 7 V：Antenna structure drawing .................................................................................................................................................. 8 Change record Compile / change date Reason for change Changed content Version 2025.9.30 First edition First edition V1.0 CC-JL-RD-36V1.0 3 I: The report of passive data Angilent E5071C antenna S11 parameter： CC-JL-RD-36V1.0 4 Antenna efficiency and gain: 2400-2480MHz Frequency （MHz） Efficiency (dB ) Gain (dBi) Efficiency （%） 2400 -6.6 -3.6 21.5 2410 -6.3 -3.2 23.2 2420 -5.5 -2.4 27.9 2430 -4.9 -1.8 32.1 2440 -4.6 -1.5 34.4 2450 -4.8 -1.7 33.4 2460 -5.2 -2.1 30.2 2470 -5.8 -2.8 26.1 2480 -6.3 -3.2 23.9 AVG -5.6 -2.5 28.1 3D Antenna radiation pattern： CC-JL-RD-36V1.0 6 II：3D Active test report of antenna Free 1# Channel TRP（dBm） TIS（dBm） BT 0 8.4 -89.2 39 7.8 -88.9 78 7.0 -88.2 OTA Standard Chamber III：Antenna matching CC-JL-RD-36V1.0 7 IV：Installation environment treatment method The battery cable is 17mm long, and the MIC cable is 11.5mm long. Battery assembly direction. After installing the FPC antenna, please be sure to perform a cold pressing process to ensure that the FPC is properly attached. Otherwise, there may be consistency issues with antenna performance. CC-JL-RD-36V1.0 8 V：Antenna structure drawing Unit: mm

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked ―#‖ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 57 TR-4-E-R024 TEST REPORT Applicant Name: Shenzhen Jiayz photo industrial.,Ltd Address: A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan,Longhua District, Shenzhen, China Report Number: 2504Z85524E-RF-00A FCC ID: 2ARN3-52901TX Test Standard (s) FCC PART 15.247 Sample Description Product Name: Wireless Microphone Model No.: Saramonic Air SE-TX, Saramonic Air SE 2-TX Trade Mark: Saramonic Date Received: 2025-11-24 Report Date: 2025-12-18 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Amanda Wei Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Z85524E-RF-00A Rev:A/4.0(2024/11/01) Page 2 of 57 TR-4-E-R024 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 4 GENERAL INFORMATION ............................................................................................................................ 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 5 OBJECTIVE ................................................................................................................................................... 6 TEST METHODOLOGY .................................................................................................................................... 6 TEST FACILITY .............................................................................................................................................. 6 MEASUREMENT UNCERTAINTY ....................................................................................................................... 6 SYSTEM TEST CONFIGURATION ............................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION......................................................................................................... 7 EUT EXERCISE SOFTWARE AND POWER LEVEL # ............................................................................................ 7 SPECIAL ACCESSORIES ................................................................................................................................. 7 EQUIPMENT MODIFICATIONS .......................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................... 7 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................. 8 SUMMARY OF TEST RESULTS ................................................................................................................... 9 TEST EQUIPMENT LIST ............................................................................................................................. 10 ANTENNA REQUIREMENT......................................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................... 11 ANTENNA CONNECTOR CONSTRUCTION ....................................................................................................... 11 RADIATED SPURIOUS EMISSIONS .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................... 12 EUT SETUP ................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .................................................................................. 13 TEST PROCEDURE ...................................................................................................................................... 14 CALCULATION ............................................................................................................................................. 14 TEST DATA ................................................................................................................................................. 15 CHANNEL SEPARATION TEST ................................................................................................................. 33 APPLICABLE STANDARD ...............................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF Test Photos Test Photos Page 1 / 2 Radiated Spurious Emissions Test View (9kHz-30MHz) Radiated Spurious Emissions Test View (30MHz- 1GHz) Shenzhen Accurate Technology Co., Ltd. No.: 2504Z85524E-RF Test Photos Test Photos Page 2 / 2 Radiated Spurious Emissions Test View (1GHz-18GHz) Radiated Spurious Emissions Test View (Above 18GHz) ***** END *****
