2ARNF-M07331AX88 Voice Chat Headset for Xbox One - Hyperkin

C5266091_X8_Ed.1 1/1 Letter of Authorization Hyperkin, Inc. Company: Hyperkin, Inc. Address: 1939 West Mission Blvd. Pomona, CA 91766, USA Product Name: X88 Voice Chat Headset for Xbox One - Hyperkin Model Number: M07331 FCC Identifier: 2ARNF-M07331A We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jesse Zhang Date: 2020.5.30 Title: Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Hyperkin, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-5-30 Subject: Request for Confidentiality FCC ID: 2ARNF-M07331A To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jesse Zhang Title: Manager C5266091_X10_Ed.1 1/1

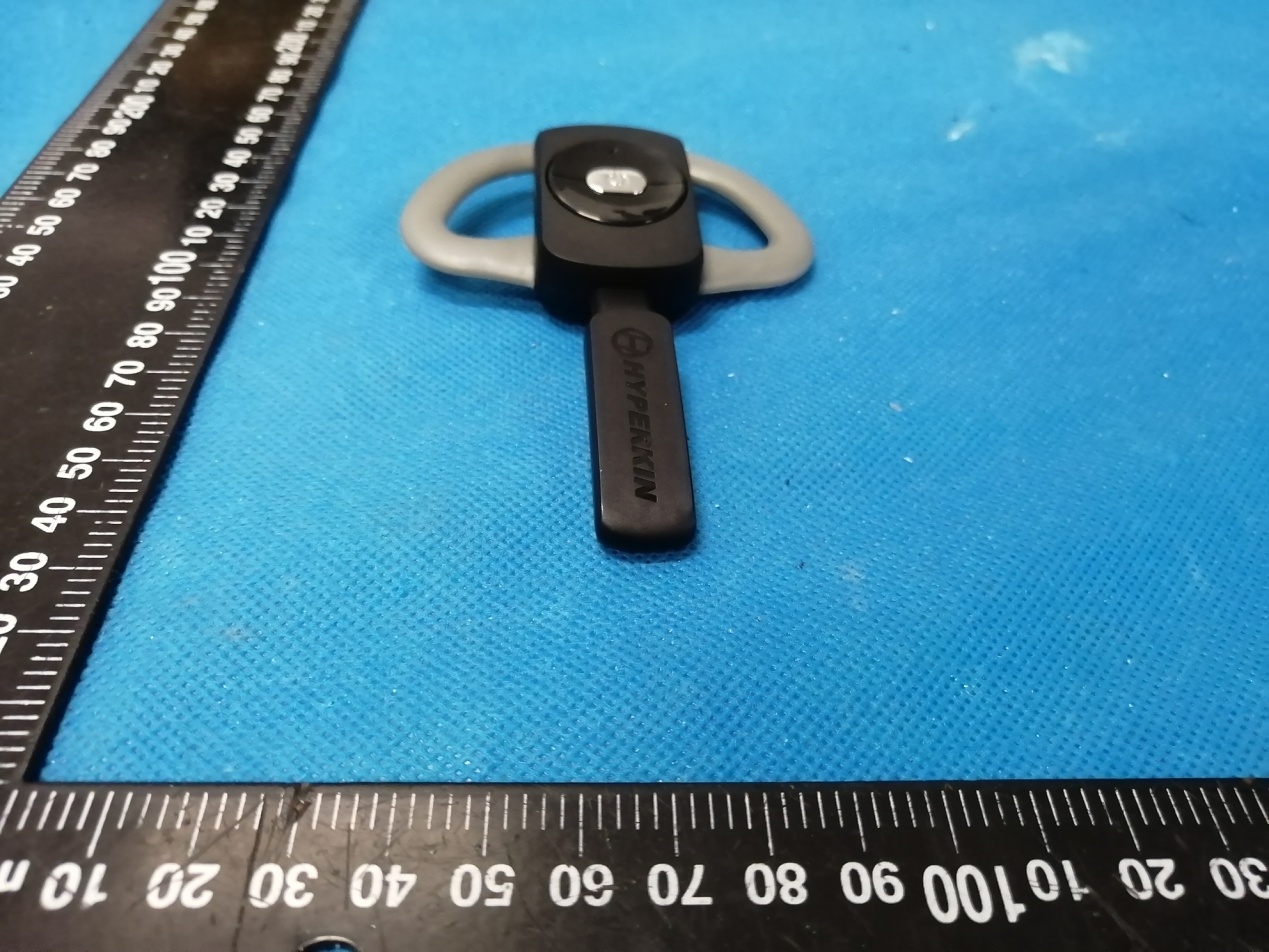

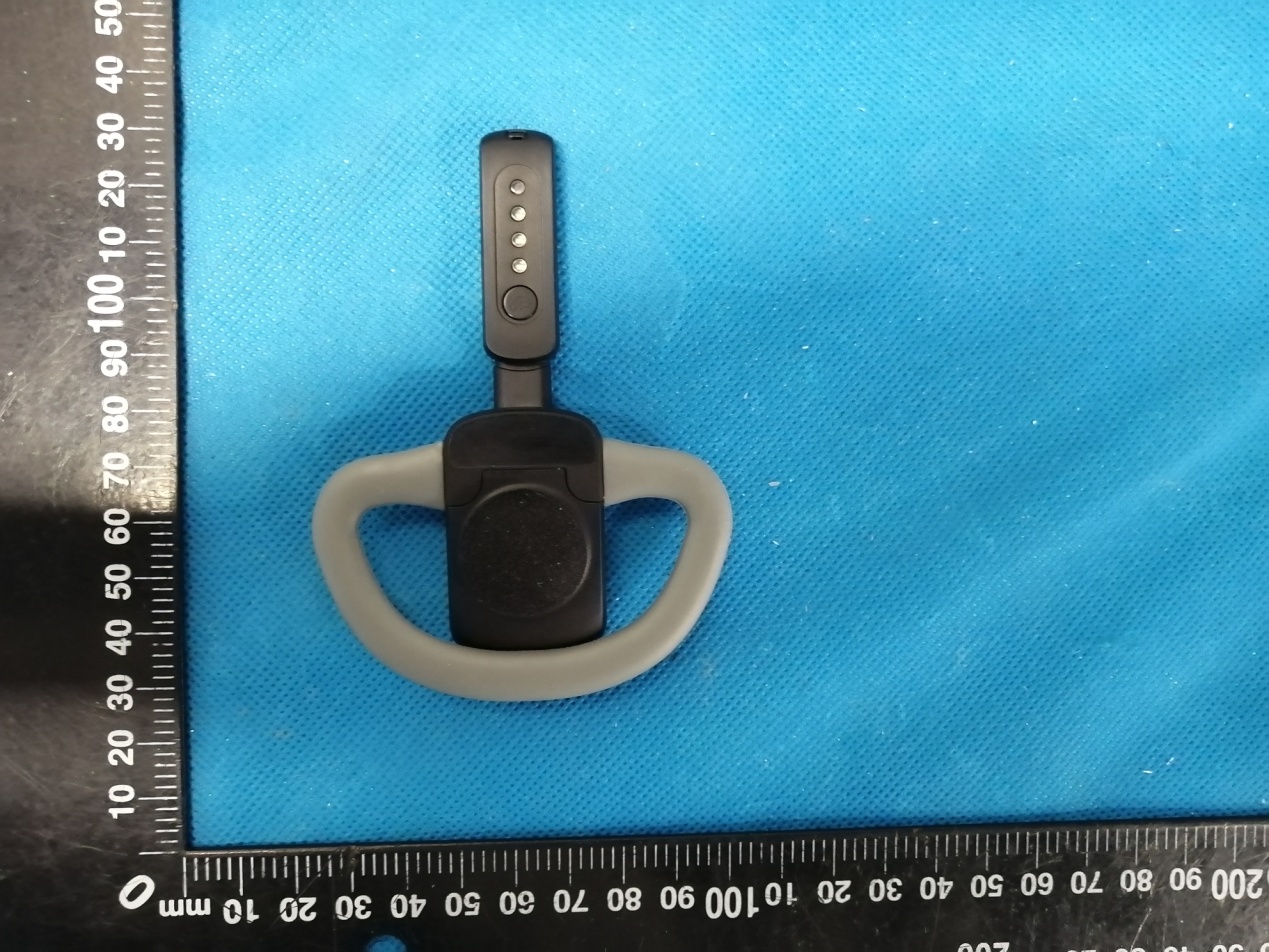

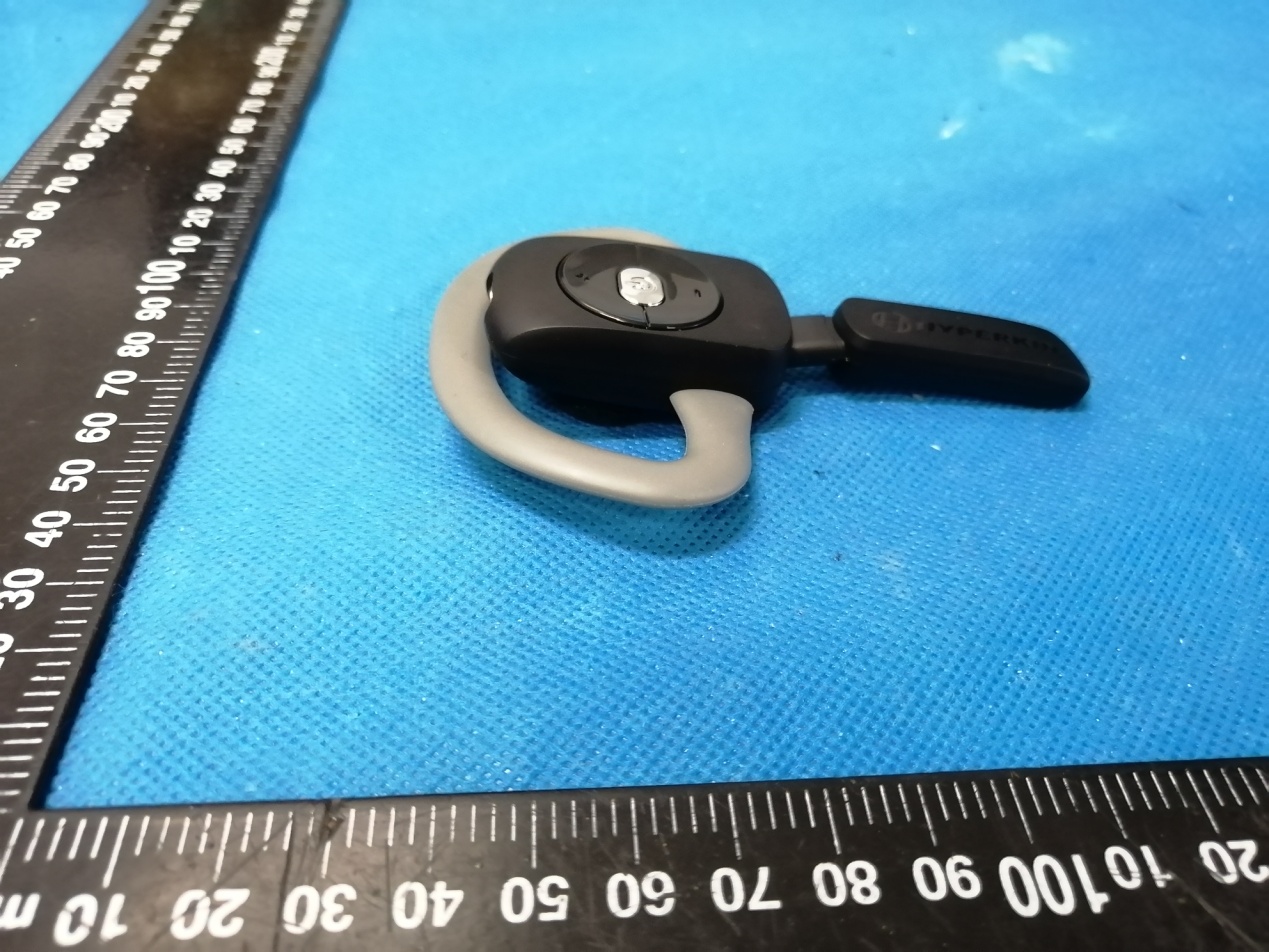

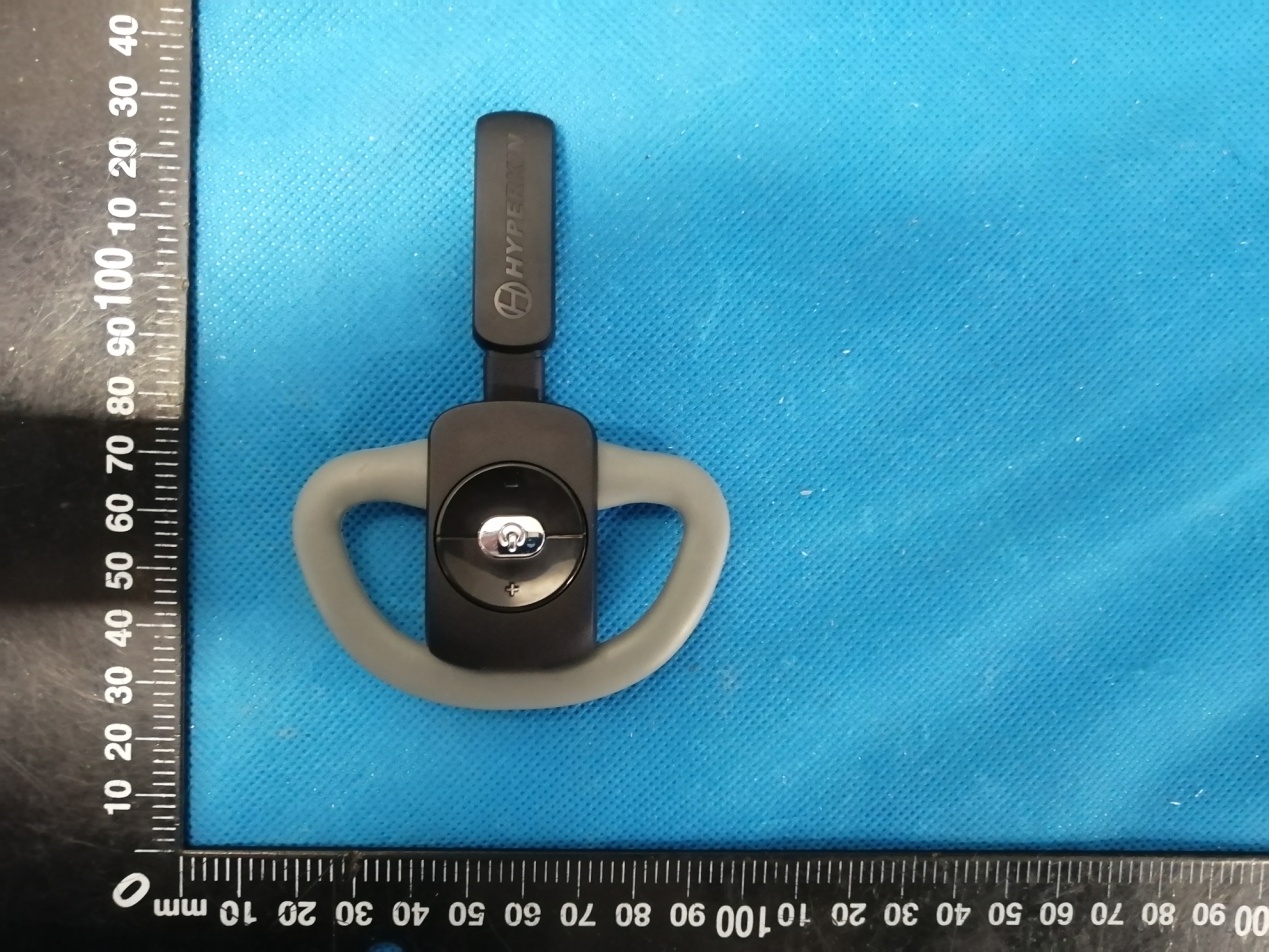

Annex A External Photos Report No.: HK2004281120‐E Page 1 of 4 Report No.: HK2004281120‐E Page 2 of 4 Report No.: HK2004281120‐E Page 3 of 4 Report No.: HK2004281120‐E Page 4 of 4

Annex B Internal Photos Report No.: HK2004281120‐E Page 1 of 3 2.4G Antenna Report No.: HK2004281120‐E Page 2 of 3 BL916K Report No.: HK2004281120‐E Page 3 of 3

Page 1 of 27 Report No.: HK2004281120-E FCC TEST REPORT Test report On Behalf of Hyperkin, Inc. For X88 Voice Chat Headset for Xbox One - Hyperkin Model No.: M07331 FCC ID: 2ARNF-M07331A Prepared for : Hyperkin, Inc. 1939 West Mission Blvd. Pomona, CA 91766, USA Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: May. 20, 2020 ~ May. 26, 2020 Date of Report: May. 26, 2020 Report Number: HK2004281120-E Page 2 of 27 Report No.: HK2004281120-E TEST RESULT CERTIFICATION Applicant’s name .................. : Hy perkin, Inc. Address .................................. : 1939 West Mission Blvd. Pomona, CA 91766, USA Manufacture's Name ............. : LiteStar Electronics Technology Co., Ltd. Address .................................. : Xingchen Sci.&Tech. Park, Lianbi Rd., Wulian Ind. Area, Fenggang Town, Dongguan, P.R. China Product description Trade Mark: Hyperkin Product name ........................... : X88 Voice Chat Headset for Xbox One - Hyperkin Model and/or type reference . : M07331 Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : May. 20, 2020 ~ May. 26, 2020 Date of Issue ........................................... : May. 26, 2020 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 27 Report No.: HK2004281120-E Table of Contents Page 1 . TEST SUMMARY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 Carrier Frequency of Channels 7 2.3 Operation of EUT during testing 7 2.4 DESCRIPTION OF TEST SETUP 8 2.5 MEASUREMENT INSTRUMENTS LIST 9 3 . CONDUCTED EMISSIONS TEST 10 3.1 Conducted Power Line Emission Limit 10 3.2 Test Setup 10 3.3 Test Procedure 10 3.4 Test Result 11 4 RADIATED EMISSION TEST 13 4.1 Radiation Limit 13 4.2 Test Setup 13 4.3 Test Procedure 14 4.4 Test Result 14 5 BAND EDGE 20 5.1 Limits 20 5.2 Test Procedure 20 5.3 Test Result 21 6 OCCUPIED BANDWIDTH MEASUREMENT 23 6.1 Test Setup 23 6.2 Test Procedure 23 6.3 Measurement Equipment Used 23 6.4 Test Result 23 7 ANTENNA REQUIREMENT 25 8 PHOTOGRAPH OF TEST 26 8.1 Radiated Emission 26 8.2 Conducted Emission 27 9 PHOTOS OF THE EUT 27 Page 4 of 27 Report No.: HK2004281120-E Revison History Revision Issue Date Revisions Revised By V1.0 2020-05-26 Initial Issue Jason Zhou Page 5 of 27 Report No.: HK2004281120-E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST §15.207 COMPLIANT RADIATED EMISSION TEST §15.249 (a) (d)/ §15.209 COMPLIANT BAND EDGE §15.249 (a) (d)/ §15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT §15.215 (c) COMPLIANT ANTENNA REQUIREMENT §15.203 COMPLIANT 1.2 TEST FACILITY Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 6 of 27 Report No.: HK2004281120-E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment X88 Voice Chat Headset for Xbox One - Hyperkin Model Name M07331 Serial Model N/A Model Difference N/A FCC ID 2ARNF-M07331A Antenna Type PCB Antenna Antenna Gain 0dBi Equipment X88 Voice Chat Headset for Xbox One - Hyperkin BT Operation frequency 2402 MHz ~ 2480 MHz Number of Channels 40CH Modulation Type GFSK Power Source DC 5V from Type-C or DC 3.7V from Battery Power Rating DC 5V from Type-C or DC 3.7V from Battery Page 7 of 27 Report No.: HK2004281120-E 2.2 Carrier Frequency of Channels Description of Channel: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 14 2430 28 2458 1 2404 15 2432 29 2460 2 2406 16 2434 30 2462 3 2408 17 2436 31 2464 4 2410 18 2438 32 2466 5 2412 19 2440 33 2468 6 2414 20 2442 34 2470 7 2416 21 2444 35 2472 8 2418 22 2446 36 2474 9 2420 23 2448 37 2476 10 2422 24 2450 38 2478 11 2424 25 2452 39 2480 12 2426 26 2454 13 2428 27 2456 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2402MHz Middle Channel: 2440MHz High Channel: 2480MHz Page 8 of 27 Report No.: HK2004281120-E 2.4 DESCRIPTION OF TEST SETUP Operation of EUT during conducted testing: AC plug Operation of EUT during below 1GHz and Above1GHz Radiation testing: ● Adapter information Model: HW-059200CHQ Input: 100-240V, 50-60Hz, 0.5A Output: 5VDC, 2A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position EUT EUT Adapter Page 9 of 27 Report No…
