2ARRB-02814Wireless Car Adapter for Android Auto

1 WIRELESS CAR ADAPTER For Android Auto TM Model: MA2 User Guide 2 Important Safety Instructions Follow these safety precautions when using your product to reduce the risk of fire, electric shock, and injury to persons or property: • Keep all slits and openings of the product unblocked. Do not set the product on a heating register or over a radiator. Ensure that proper ventilation is provided at the installation site. • Do not use while wet or while standing in water. • Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool). • Never insert objects of any kind into the product vents as that may result in fire or electric shock. • Do not use liquid cleaners or aerosol cleaners. • Do not use chemicals or cleaning agents to clean this product. • Clean this product with a soft, damp cloth. • Do not disassemble this product. If service or repair work is required, contact the customer service helpline found in this user’s guide. • Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work to restore the product to normal operation. • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. Save these instructions 3 Welcome... to your new Motorola Wireless Car Adapter for Android Auto! •N o wires and no fuss. •Wirelessly connects your phone, so you can hit the road. •Plugs into the existing Android Auto-enabled USB port of a compatible car or truck. •Establishes a Wi-Fi ○ R connection through which Android Auto can operate without the need for a USB cable. Got everything ? •M A2 adapter x 1 •USB cable type C to A x 1 •USB cable type C to C x 1 •Gel pad x 1 (This can be used to fix the adapter on your car.) •User Guide x 1 N eed help? If you have any problems setting up or using your wireless car adapter, please contact us by visiting: motorolasound.com/support 4 This user guide provides you with all the information you need to get the most from your wireless car adapter. Re ad the instructions carefully, and be informed that this wireless car adapter is only intended to work inside your Android TM Auto compatible car together with your smartphone which has the Android Auto app installed. 1. G etting to know your adapter Slide s witch (On/Off) - Black plate = Device TURN ON - Red plate = Device TURN OFF M button (pairing key) LED indicator USB-C connector 5 2. Setting up your adapter Android operating system of Mobile phone Requirement •To use Android Auto wirelessly, your phone should be running version 11 or higher of Android operating system. Mobile phone Setup and then, MA2 setup •Before setting up MA2 adapter, connect your mobile phone to your car with a wired USB cable and Android Auto screen shall be popped up on your car screen. Then, following on vehicle manufacturer’s instruction and mobile phone instruction to complete setup such as: - USB Preference page, click “File transfer /Android Auto”. - Share your maps location of your mobile phone. •While the Android Auto connection is active on your car screen, unplug your phone from the car and immediately plug your MA2 adapter into same USB port. Pair with MA2 wireless car adapter •When MA2 adapter flashes blue, pair your phone with it (look for ‘AndroidAuto-XXXX’ under Settings > Bluetooth on your phone). Now, wait for your phone to automatically re-establish its Android Auto connection wirelessly through this MA2 adapter; this may take a while. 6 3. LED definitions Turn on MA2 adapter by sliding “switch” to “black” plate. Event status M button LED colour Power on state - Solid white Pairing mode During power on, press and hold the button for more than 2s and release the button or auto enter into paring mode when there is no phone paired Blinks blue Bluetooth connecting - Blinks green (1s on, 1s off) Bluetooth connected - Solid green Sleep mode - Off 4 . Factory reset W ith some unexpected cases happened, you would need to erase MA2 memory to retrieve to factory settings: - During power on, press and hold the M button for more than 60s, release the button when the LED blinks green quickly. A fter factory reset, you need to do the pairing to your phone again. 7 5. Technical Specifications Wireless - Wi-Fi 802.11 a/n/ac - Bluetooth BDR, EDR Connection USB C type Client Power dissipation - DC 5 V, 1 70 mA maximum (ON) - DC 5V, < 10uA (OFF) 6. H elp W ireless Android Auto is not working during setup. Before setting up Wireless Android Auto, we recommend you do the following first: a)Check for any updates available to Android Auto for your mobile device via the Google Play app store. b)Check that Wireless Android Auto is enabled in the Android Auto settings on your mobile device. H ow do I reset the MA2? To reset your MA1, please check section 4 in this user guide. W ireless Android Auto was working before, but now it's not. What do I do? First, confirm that the Android Auto app on your phone is updated to the very latest version available in the Google Play Store. 8 Next, confirm that your phone is connected to the car for hands-free calling (Bluetooth HFP), simply by placing or receiving a phone call. A properly handled Bluetooth HFP phone call will use the car's own speakers and microphone. Finally, confirm that the LED light on MA2 is solid green. If wireless Android Auto has not started after several minutes, reboot the phone, unplug/re-plug the dongle, and power cycle the car's infotainment system, preferably all at once. I f the above steps do not resolve your issue, then take the following steps to completely reset your connection. Be sure to follow every step, in sequence: a)U nplug the MA2 from your car's USB port. b)On your car screen, navigate to the Bluetooth phone list, and 'forget' or 'delete' all paired phones. c)On your phone, navigate to the system settings for Bluetooth, and 'forget' or 'delete' …

Text truncated - open the document above for the full version.

U.S. AGENT LETTER OF ATTESTATION Date: 2026-01-07 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing Meizhou Guo Wei Electronics Co., Ltd certifies that, as of the date of the filing of the application, Meizhou Guo Wei Electronics Co. LLC is our designated U.S. agent for service of process for FCC ID. Meizhou Guo Wei Electronics Co., Ltd accepts to maintain an agent for no Jess than one year after the grantee has tenninated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Meizhou Guo Wei Electronics Co. LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for FCC ID. Designated U.S. Agent Information: Company Name: Meizhou Guo Wei Electronics Co., LLC Address: 468 W Winnie Way, Arcadia, CA, 91007 FRN:0033625732 Tel.: 852 6533 8010 Email: [email protected] Signed by (printed name): Wai Chuk Leung Signature: Applicant: Meizhou Guo Wei Electronics Co., Ltd . . . Address: AD 1 Section, Economic Development Area, Dongsheng Industnal D1stnct, Meizhou, Guangdong, China. FRN:0027997733 Tel: +86-0755-2573 6666 Email: [email protected] Signed by (printed name): AP Wang Signature:

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, Our product Wireless Car Adapter for Android Auto, model: MA2, FCC ID: 2ARRB-02814. For use in America, this product only supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK); 5G Wi-Fi (5150-5250MHz, 5725-5850MHz, 802.11a/ n20/n40/ac20/ac40 modes). The other functions, bands and modes were disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: AP Wang Engineering Director

CFR 47 §2.911(d)(5)(i) Attestation Letter Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARRB-02814 Meizhou Guo Wei Electronics Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARRB-02814 Meizhou Guo Wei Electronics Co., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. And our product does not use Kaspersky software information. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Meizhou Guo Wei Electronics Co., Ltd, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-02814 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Software Security Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature AP Wang Engineering Director

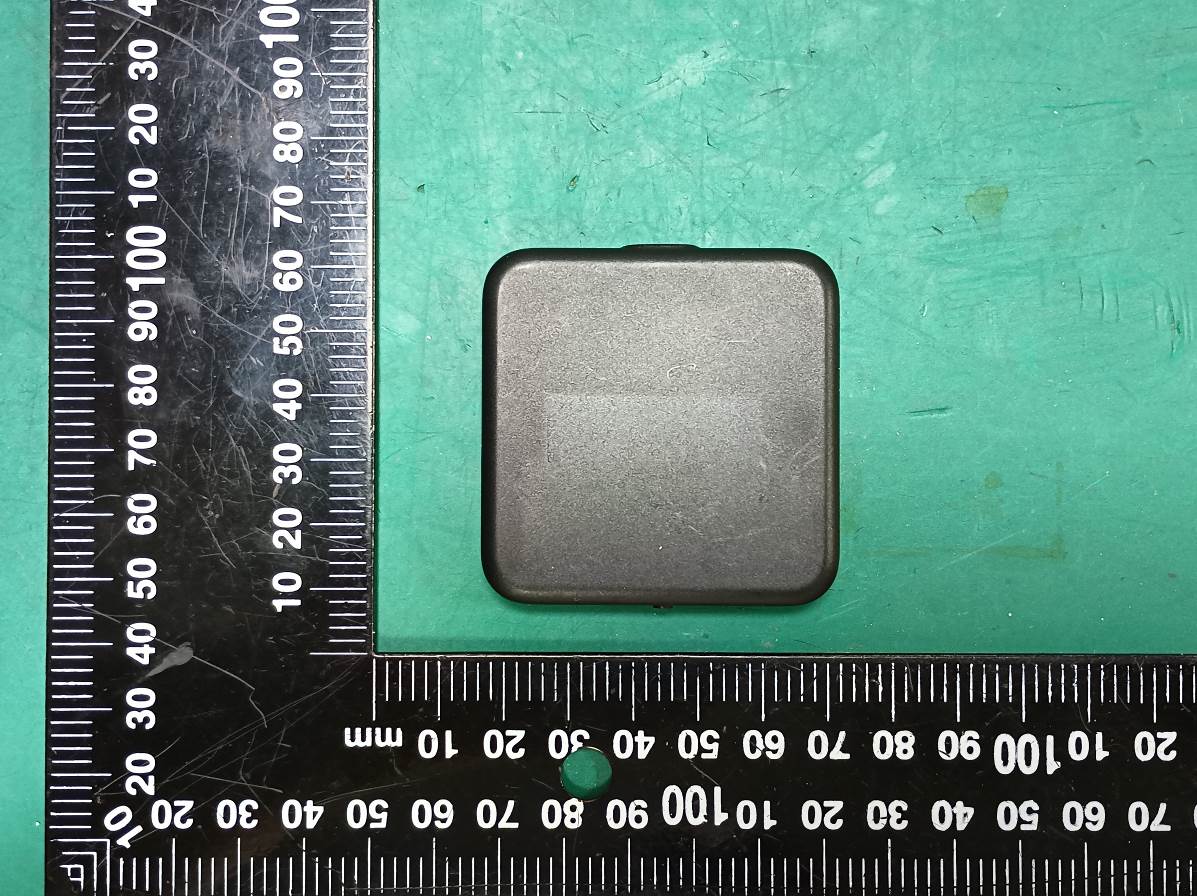

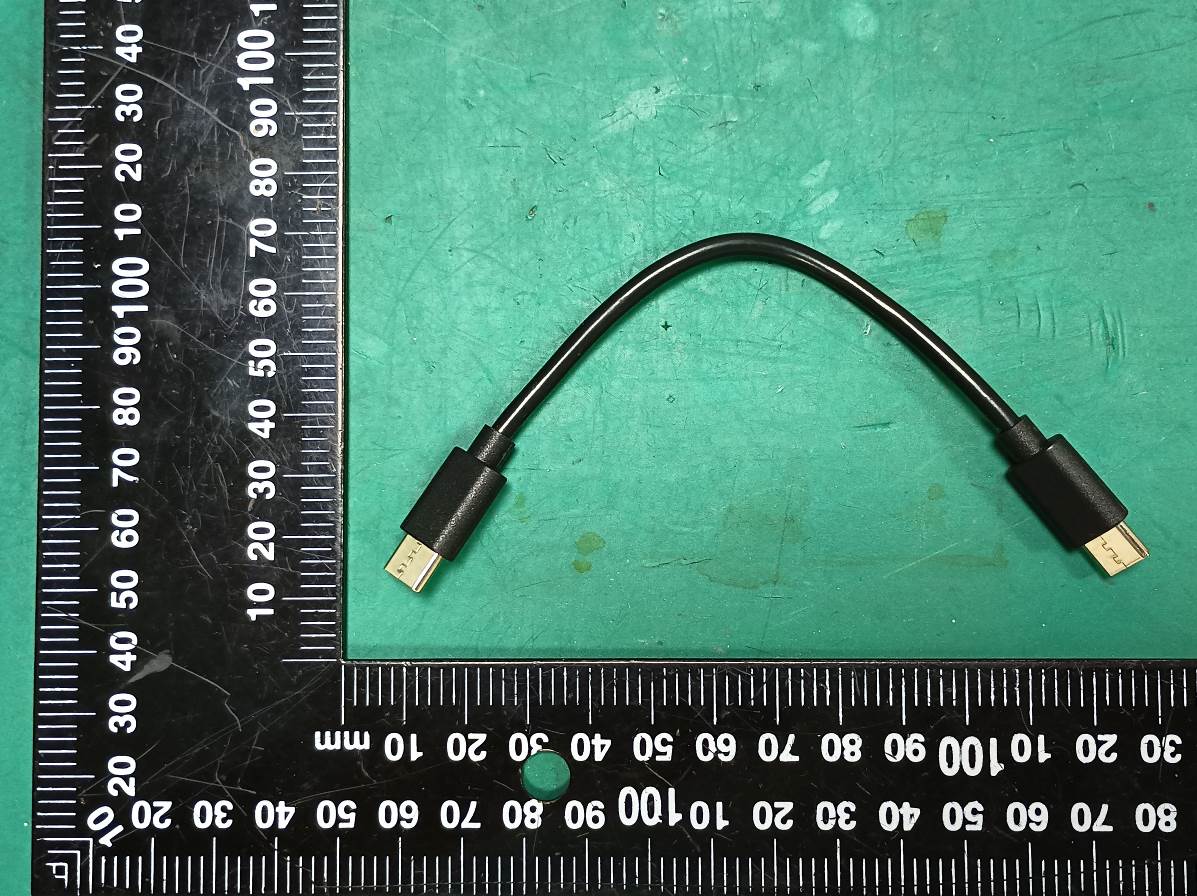

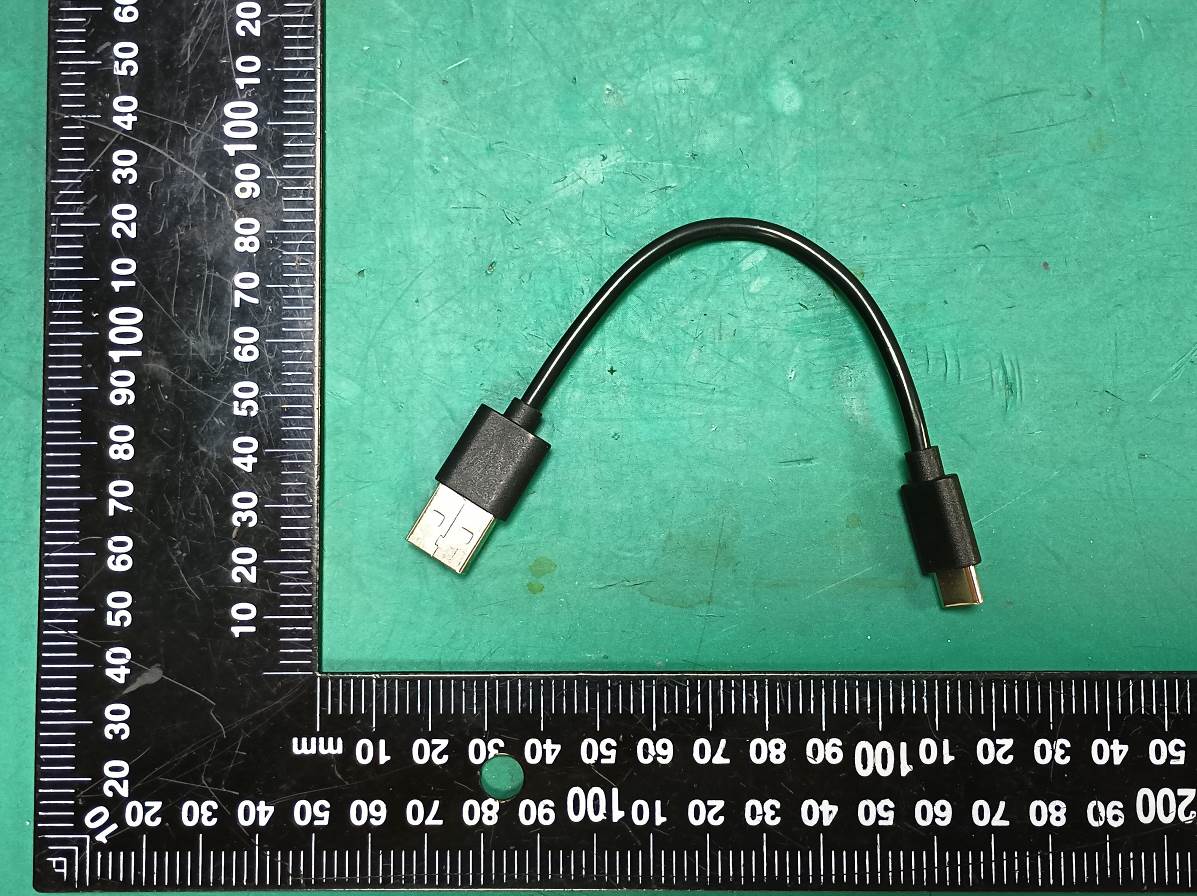

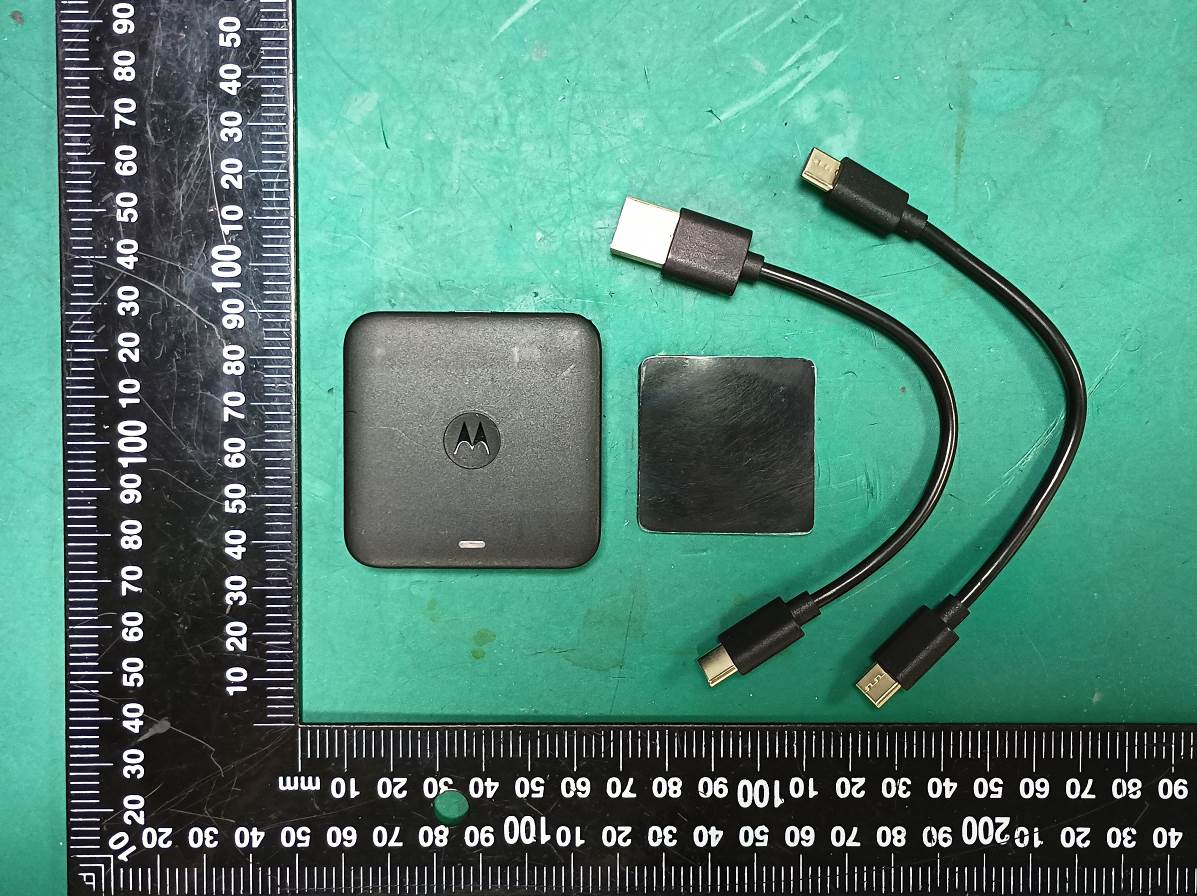

Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page1 / 5 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page2 / 5 Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page3 / 5 Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page4 / 5 Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page5 / 5 *****END *****

Serial No.: FFFGGCCYYWWXXXXXX Made in China Device ID: AndroidAuto-XXXX ANATEL: XXXXX-XX -XXXXX Label Size: 34.5x11.5mm Scale 1:1

Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page1 / 4 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page2 / 4 Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page3 / 4 Bay Area Compliance Laboratories Corp. (Shenzhen) EXHIBIT No.: 2401Z105001E-RF Page4 / 4 ANT *****END *****

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Z105001E-RF-00 TR-EM-RF015 Page 109 of 111 Version 4.1 RF EXPOSURE EVALUATION MPE-Based Exemption Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. R is the minimum separation distance in meters f = frequency in MHz Result Antenna Gain # ERP Mode Frequency (MHz) Tune up conducted power # (dBm) (dBi)(dBd)(dBm)(mW) Evaluation Distance (m) ERP Limit (mW) BT2402-24804.54.182.03 6.53 4.50 0.2768 5.2G Wi-Fi 5180-5240 13.50.74 -1.41 12.09 16.18 0.2768 5.8G Wi-Fi5745-582512.53.47 1.32 13.82 24.10 0.2 768 Note: The tune up conducted power and antenna gain was declared by the applicant. The BT and Wi-Fi cannot transmit at the same time To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

Report No.: 2401Z105001E-RF-00 Page 1 of 13 Appendix A Test Information: Sample No.: 2UJT-1 Test Date: 2024/12/04~2025/01/08 Test Site: RF Test Mode: Transmitting Tester: Rainbow Zhu Test Result: Pass Environmental Conditions: Temperature: (°C): 24.3-26 Relative Humidity: (%) 50-55 ATM Pressure: (kPa) 101 Report No.: 2401Z105001E-RF-00 Page 2 of 13 Emission Bandwidth 6dB Emission Bandwidth 5725-5850MHz Mode Test Frequency (MHz) Result (MHz) Limit (MHz) Verdict 802.11a 5745 16.416 ≥0.5 Pass 5785 16.366 ≥0.5 Pass 5825 16.366 ≥0.5 Pass 802.11ac20 5745 17.117 ≥0.5 Pass 5785 17.367 ≥0.5 Pass 5825 17.417 ≥0.5 Pass 802.11ac40 5755 35.836 ≥0.5 Pass 5795 35.936 ≥0.5 Pass Report No.: 2401Z105001E-RF-00 Page 3 of 13 5725-5850MHz 802.11a_5745MHz 802.11a_5785MHz 802.11a_5825MHz 802.11ac20_5745MHz 802.11ac20_5785MHz 802.11ac20_5825MHz Report No.: 2401Z105001E-RF-00 Page 4 of 13 802.11ac40_5755MHz 802.11ac40_5795MHz Report No.: 2401Z105001E-RF-00 Page 5 of 13 99% Occupied Bandwidth 5725-5850MHz Mode Test Frequency (MHz) 99% OBW (MHz) 802.11a 5745 17.200 5785 18.100 5825 17.500 802.11ac20 5745 18.200 5785 18.650 5825 19.850 802.11ac40 5755 39 5795 38.200 Note: The 99% Occupied Bandwidth have not fall into the band 5470-5725MHz, please refer to the test plots of 99% Occupied Bandwidth. Report No.: 2401Z105001E-RF-00 Page 6 of 13 5725-5850MHz 802.11a_5745MHz 802.11a_5785MHz 802.11a_5825MHz 802.11ac20_5745MHz 802.11ac20_5785MHz 802.11ac20_5825MHz Report No.: 2401Z105001E-RF-00 Page 7 of 13 802.11ac40_5755MHz 802.11ac40_5795MHz Report No.: 2401Z105001E-RF-00 Page 8 of 13 Maximum Conducted Output Power 5725-5850MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 802.11a 5745 10.75 30 Pass 5785 11.29 30 Pass 5825 11.98 30 Pass 802.11ac20 5745 10.93 30 Pass 5785 11.46 30 Pass 5825 12.24 30 Pass 802.11ac40 5755 11.38 30 Pass 5795 11.98 30 Pass Report No.: 2401Z105001E-RF-00 Page 9 of 13 Power Spectral Density 5725-5850MHz Mode Test Frequency (MHz) Reading (dBm/500kHz) Duty Cycle Factor(dB) Result (dBm/500kHz) Limit (dBm/500kHz) Verdict 802.11a 5745 -3.16 0.23 -2.93 30 Pass 5785 -2.58 0.23 -2.35 30 Pass 5825 -1.38 0.23 -1.15 30 Pass 802.11ac20 5745 -3.42 0.34 -3.08 30 Pass 5785 -2.92 0.34 -2.58 30 Pass 5825 -2.77 0.34 -2.43 30 Pass 802.11ac40 5755 -6.04 0.51 -5.53 30 Pass 5795 -5.66 0.51 -5.15 30 Pass Result = Reading + Duty Cycle Factor Report No.: 2401Z105001E-RF-00 Page 10 of 13 5725-5850MHz 802.11a_5745MHz 802.11a_5785MHz 802.11a_5825MHz 802.11ac20_5745MHz 802.11ac20_5785MHz 802.11ac20_5825MHz Report No.: 2401Z105001E-RF-00 Page 11 of 13 802.11ac40_5755MHz 802.11ac40_5795MHz Report No.: 2401Z105001E-RF-00 Page 12 of 13 Duty Cycle 5725-5850MHz Mode Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11a 5785 2.056 2.166 94.92 0.23 486 1 802.11ac20 5785 1.930 2.085 92.57 0.34 518 1 802.11ac40 5755 0.941 1.059 88.86 0.51 1063 2 Duty Cycle = Ton/(Ton+Toff)*100% Report No.: 2401Z105001E-RF-00 Page 13 of 13 5725-5850MHz 802.11a_5785MHz 802.11ac20_5785MHz 802.11ac40_5755MHz

Report No.: 2401Z105001E-RF-00 Page 1 of 12 Appendix B Test Information: Sample No.:2UJT-1Test Date:2025/09/28 Test Site:RFTest Mode:Transmitting Tester:Kungfumaster LiangTest Result:Pass Environmental Conditions: Temperature: (°C) 25.5 Relative Humidity: (%) 51 ATM Pressure: (kPa) 101.4 Report No.: 2401Z105001E-RF-00 Page 2 of 12 Emission Bandwidth 26dB Emission Bandwidth 5150-5250MHz Mode Test Frequency (MHz) Result (MHz) 518021.386 520022.252 802.11a 524021.618 518022.408 520022.507 802.11ac20 524023.001 519058.284 802.11ac40 523043.143 Report No.: 2401Z105001E-RF-00 Page 3 of 12 5150-5250MHz 802.11a_5180MHz 802.11a_5200MHz 802.11a_5240MHz 802.11ac20_5180MHz 802.11ac20_5200MHz 802.11ac20_5240MHz Report No.: 2401Z105001E-RF-00 Page 4 of 12 802.11ac40_5190MHz 802.11ac40_5230MHz Report No.: 2401Z105001E-RF-00 Page 5 of 12 99% Occupied Bandwidth 5150-5250MHz Mode Test Frequency (MHz) 99% OBW (MHz) 518016.700 520016.700 802.11a 524016.650 518017.750 520017.800 802.11ac20 524017.850 519036.600 802.11ac40 523036.700 Note: The 99% Occupied Bandwidth have not fall into the band 5250-5350MHz, please refer to the test plots of 99% Occupied Bandwidth. Report No.: 2401Z105001E-RF-00 Page 6 of 12 5150-5250MHz 802.11a_5180MHz 802.11a_5200MHz 802.11a_5240MHz 802.11ac20_5180MHz 802.11ac20_5200MHz 802.11ac20_5240MHz Report No.: 2401Z105001E-RF-00 Page 7 of 12 802.11ac40_5190MHz 802.11ac40_5230MHz Report No.: 2401Z105001E-RF-00 Page 8 of 12 Maximum Conducted Output Power 5150-5250MHz Mode Test Frequency (MHz) Average Output Power(dBm) Limit (dBm) Verdict 518012.6123.98Pass 520012.8023.98Pass 802.11a 524012.7823.98Pass 518012.5423.98Pass 520012.8423.98Pass 802.11ac20 524012.8623.98Pass 519013.1823.98Pass 802.11ac40 523013.4023.98Pass Note: 1. The EUT can work as client or master, conducted output power test compliance with stricter limit of the two modes (client is stricter more). 2. The maximum EIRP= (13.40+0.74) dBm= 14.14dBm<21dBm, so it's can compliance with the requirement of the maximum e.i.r.p. at any elevation angle above 30 degrees as measured from the horizon must not exceed 125mW (21 dBm). Report No.: 2401Z105001E-RF-00 Page 9 of 12 Power Spectral Density 5150-5250MHz Mode Test Frequency (MHz) Reading (dBm/MHz) Duty Cycle Factor(dB) Result (dBm/MHz) Limit (dBm/MHz) Verdict 51801.930.192.1211Pass 52001.720.191.9111Pass 802.11a 52401.870.192.0611Pass 51801.150.261.4111Pass 52001.670.261.9311Pass 802.11ac20 52401.530.261.7911Pass 5190-1.260.55-0.7111Pass 802.11ac40 5230-1.210.55-0.6611Pass Note: 1. Result = Reading + Duty Cycle Factor 2. The EUT can work as client or master, PSD test compliance with stricter limit of the two modes (client is stricter more). Report No.: 2401Z105001E-RF-00 Page 10 of 12 5150-5250MHz 802.11a_5180MHz 802.11a_5200MHz 802.11a_5240MHz 802.11ac20_5180MHz 802.11ac20_5200MHz 802.11ac20_5240MHz Report No.: 2401Z105001E-RF-00 Page 11 of 12 802.11ac40_5190MHz 802.11ac40_5230MHz Report No.: 2401Z105001E-RF-00 Page 12 of 12 Duty Cycle 5150-5250MHz Mode Test Frequency (MHz) Ton (ms) Ton+Toff (ms) Duty Cycle (%) Duty Cycle Factor(dB) 1/Ton (Hz) VBW Setting (kHz) 802.11a52002.0512.14495.660.19488 1 802.11ac2052001.9212.04194.120.26521 1 802.11ac4051900.9491.07888.030.551054 2 5150-5250MHz 802.11a_5200MHz 802.11ac20_5200MHz 802.11ac40_5190MHz

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF015 Page 1 of 111 Version 4.1 TEST REPORT Applicant Name:Meizhou Guo Wei Electronics Co., Ltd. Address:AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Report Number:2401Z105001E-RF-00 FCC ID:2ARRB-02814 Test Standard (s) FCC PART 15.407 Sample Description Product Type:Wireless Car Adapter for Android Auto Model No.:MA2 Multiple Model(s) No.:N/A Trade Mark:N/A Date Received:2024-11-19 Issue Date:2025-10-28 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Bruce LinNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Z105001E-RF-00 TR-EM-RF015 Page 2 of 111 Version 4.1 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................9 TEST EQUIPMENT LIST ..........................................................................................................................................10 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................12 AC LINE CONDUCTED EMISSIONS...............................................................................................................................12 UNDESIRABLE EMISSION .............................................................................................................................................14 EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH .............................................................................................18 CONDUCTED TRANSMITTER OUTPUT POWER..............................................................................................................20 POWER SPECTRAL DENSITY ........................................................................................................................................21 DUTY CYCLE ...............................................................................................................................................................22 ANTENNA REQUIREMENT .....................................................................................................................................23 ANTENNA CONNECTOR CONSTRUCTION .....................................................................................................................23 TEST DATA AND RESULTS .....................................................................................................................................24 UNDESIRABLE EMISSION .............................................................................................................................................24 RF CONDUCTED DATA ..............................................................................................................................................108 RF EXPOSURE EVALUATION ..............................................................................................................................109 EUT PHOTOGRAPHS ..............................................................................................................................................110 TEST SETUP PHOTOGRAPHS ..............................................................................................................................111 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401Z105001E-RF-00 TR-EM-RF015 Page 3 of 111 Version 4.1 DOCUMENT REVISION HISTORY Revision NumberReport NumberDescription of Re…

Text truncated - open the document above for the full version.

ANTENNA TEST REPORT Manufacturer: Meizhou Guo Wei Electronics Co., Ltd. Address: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Product Name: Wireless Car Adapter for Android Auto Product Model: MA2 Report Number: 2403Z105004E-RF-OT Date Of Issue: 2025/8/29 Reviewed By : Title: Approved By: Luke Yuan OTA Engineer Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-83085888 www.ccttt.com.cn China Certification ICT Co., Ltd (Dongguan) Report No.: 2403Z105004E-RF-OT Page 2 of 21 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. Each test item follows the test standard(s) without deviation. China Certification ICT Co., Ltd (Dongguan) Report No.: 2403Z105004E-RF-OT Page 3 of 21 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 4 1. GENERAL INFORMATION .................................................................................................... 5 2. TEST CONFIGURATIONS ...................................................................................................... 6 2.1 TEST ENVIRONMENT ........................................................................................................................... 6 2.2 TEST EQUIPMENT ................................................................................................................................ 6 2.3 TEST SPECIFICATION ........................................................................................................................... 6 2.4 TEST UNCERTAINTY ............................................................................................................................ 7 2.5 TEST MEASUREMENT SYSTEM ............................................................................................................ 8 2.6 TEST SETUP .......................................................................................................................................... 8 2.6.1 Antenna Gain, Efficiency and Radiation Pattern Test Setup ............................................................ 8 3. TEST RESULTS ......................................................................................................................... 9 3.1 GAIN AND EFFICIENCY ........................................................................................................................ 9 3.2 RADIATION PATTE…

Text truncated - open the document above for the full version.
