2ARRB-AM21APUDigital Audio Baby Monitor

Motorola AM21 Digital Audio Baby Monitor User Guide For: AM21 and AM21-2 Welcome... to your new Motorola Baby monitor! Thank you for purchasing the Digital Audio Baby Monitor. Now you hear your baby sleeping in another room. Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt as proof of warranty status. Registration is not required for warranty coverage. For product related questions, please contact us by visit: This User Guide provides you with all the information you need to get the most from your product. Please read the Safety Instructions on page 6 before you install the units. Got everything? •1 x Parent Unit •1 x Baby Unit •1 x Battery door for Parent Unit •1 x Power adapter for Parent unit •1 x Power adapter for Baby unit In packs with dual parent units, you will find an additional parent unit with power adapter. motorolanursery.com/support Overview of the Parent Unit 2 1 5 3 6 7 4 8 1.Power/Link indicator On when the parent unit is powered on and linked to the baby unit. Flashes when the parent unit is searching the baby unit. 2.Microphone 3.LEFT button < Press to decrease the speaker volume. 4.RIGHT button > Press to increase the speaker volume. 5.Power button 0 Press and hold to power on/ off the parent unit. 6.Battery cover 7.Speaker 8.Power jack Overview of the Baby Unit Important guidelines for installing your digital baby monitor •To use your baby unit and parent unit together, you must be able to establish a radio link between them. Note - The range may be affected by environmental conditions. •Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic door or reinforced concrete, between the baby unit and parent unit may block the radio signal. •The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent lights or dimmer switches. •If the signal is poor, try moving the parent unit and/or the baby unit to a different position in the room. 4 1 2 3 5 6 1.Microphone 2.Power button 0 Press and hold to power on/ off the baby unit. 3.Speaker 4.Power indicator On when the baby unit is powered on. 5.Power jack 6.Temperature sensor 5 Table of contents 1.Safety Instructions ..........................................................................6 2.Getting Started ................................................................................8 2.1 Baby unit power supply ........................................................................8 2.2 Parent unit power supply .....................................................................9 2.3 Parent unit battery installation .........................................................10 3.Using Your Digital Audio Baby Monitor ....................................11 3.1 Power on or off the Baby Unit ...........................................................11 3.2 Power on or off the Parent Unit.........................................................11 3.3 Speaker volume ......................................................................................11 4.Disposal of the Device (environment) ....................................12 5.Cleaning ...........................................................................................13 6.Troubleshooting ............................................................................14 7.General Information ......................................................................16 8.Technical Specifications ..............................................................21 Table of contents 6 Safety Instructions 1.Safety Instructions WARNING: Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1metre away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. 7 Safety Instructions BABY MONITOR SET UP & USE: •Determine a location for the BABY UNIT that will allow you to hear your baby in his/her cot. •Place the BABY UNIT on a flat surface, such as a dresser, bureau, or shelf or mount the Unit to a wall securely using the keyhole slots under the stand. •NEVER place the Baby Unit or cords within the cot. WARNING This Digital Audio Baby Monitor is compliant with all relevant standards regarding electromagnetic fields and is, when handled as described in the User Guide, safe to use. Therefore, always read the instructions in this User Guide carefully before using the device. •Adult assembly is required. Keep small parts away from children when assembling. •This product is not a toy. Do not allow children to play with it. •This Digital Audio Baby Monitor is not a substitute for responsible adult supervision. •Keep this User Guide for future reference. •Keep the cords out of reach of children. •Do not cover the Digital Audio Baby Monitor with a towel or blanket. •Test this monitor and all its functions so that you are familiar with it prior to actual use. •Do not use the Digital Audio Baby Monitor in damp areas or close to water. •Do not install the Digital Audio Baby Monitor in extreme cold or heat, direct sunlight, or close to a heat source. •Do not touch the plug contacts with sharp or metal objects. •Connect the power adapters to easily accessible mains power. CAUTION There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 8 Getting Started 2. Getting Started 2.1 Baby unit power supply •Insert the DC plug of the power adapter into the DC jack on the side of the baby unit, as shown. •Connect the other end of the power adapter to a suitable mains power socket. •The Power indicator will illuminate. NOTE Only use the power adapter provided (DC6/400mA). 9 Getting Started 2.2 Parent unit power supply MBP21PU • Insert the DC plug of the power adapter into the DC jack on the s…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(5)(i) Attestation Letter Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2ARRB-AM21APU Meizhou Guo Wei Electronics Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2ARRB-AM21APU Meizhou Guo Wei Electronics Co., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. And our product does not use Kaspersky software information. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ARRB-AM21APU In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Meizhou Guo Wei Electronics Co., Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature AP Wang Engineering Director

Meizhou Guo Wei Electronics Co., Ltd ADD: AD1 Section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. Tel: +86-0755-2573 6666 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Meizhou Guo Wei Electronics Co., Ltd, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature AP Wang Engineering Director

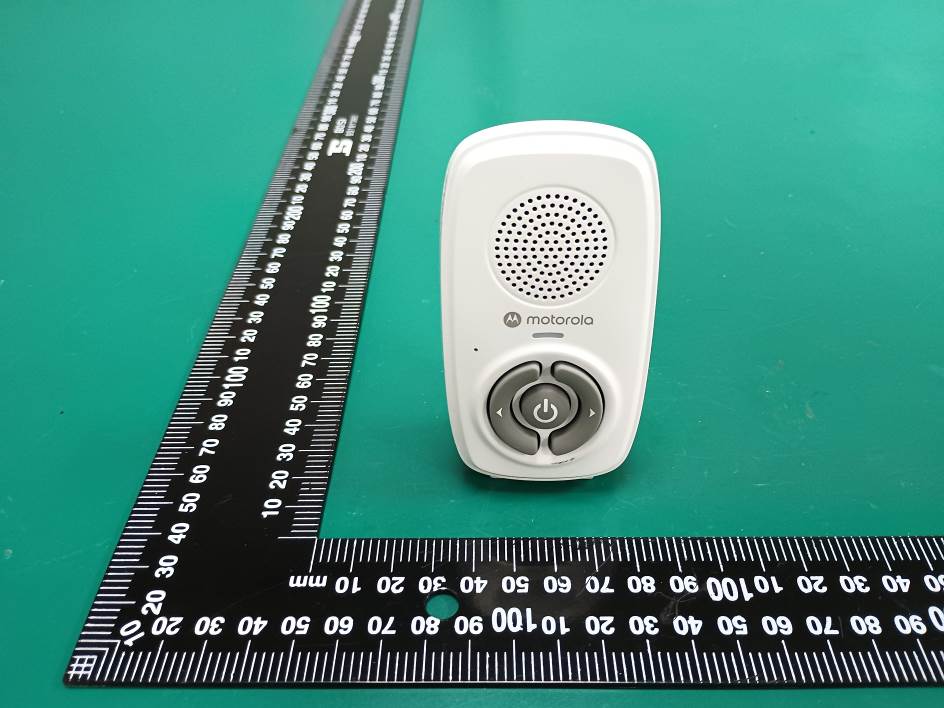

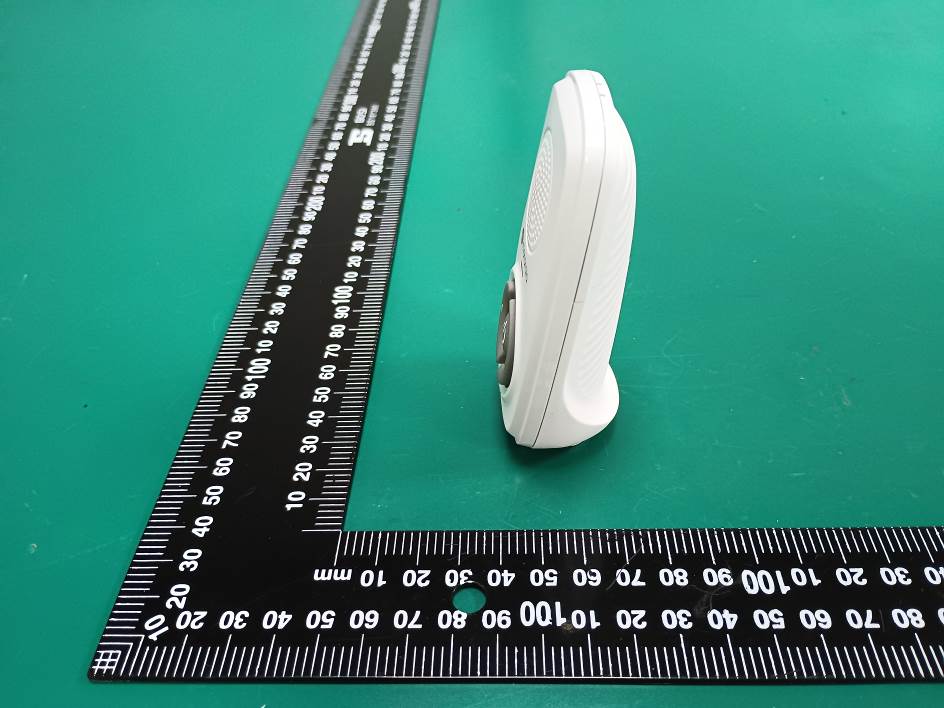

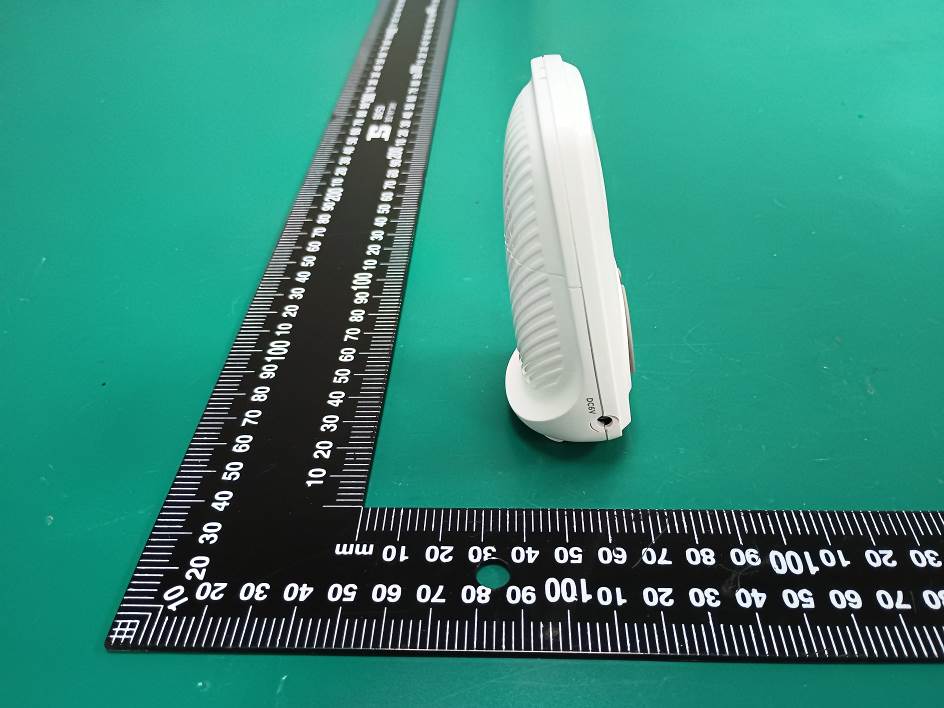

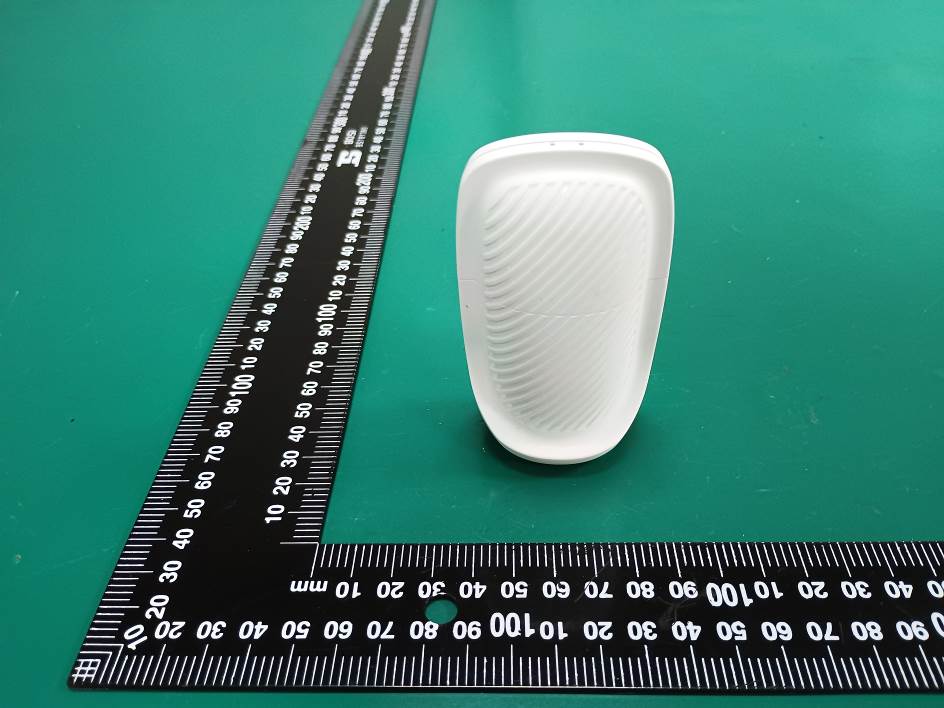

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-EXP Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-EXP Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-EXP Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-EXP Page 4 of 4

31.5 MM 16.2MM QR code MODEL: AM21 PUINPU T : DC6V 400mA MADE IN CHINA Use Only P owe r Supplies listed i n t h e u ser’s guide. FCC ID: 2ARRB-AM21APU IC: 20353-AM21APUHVIN: AM21APU SN: 000GGCCYYWWXXXXXX

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-INP Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-INP Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-INP Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2501Y82035E-RFB-INP Page 4 of 4 ANT
